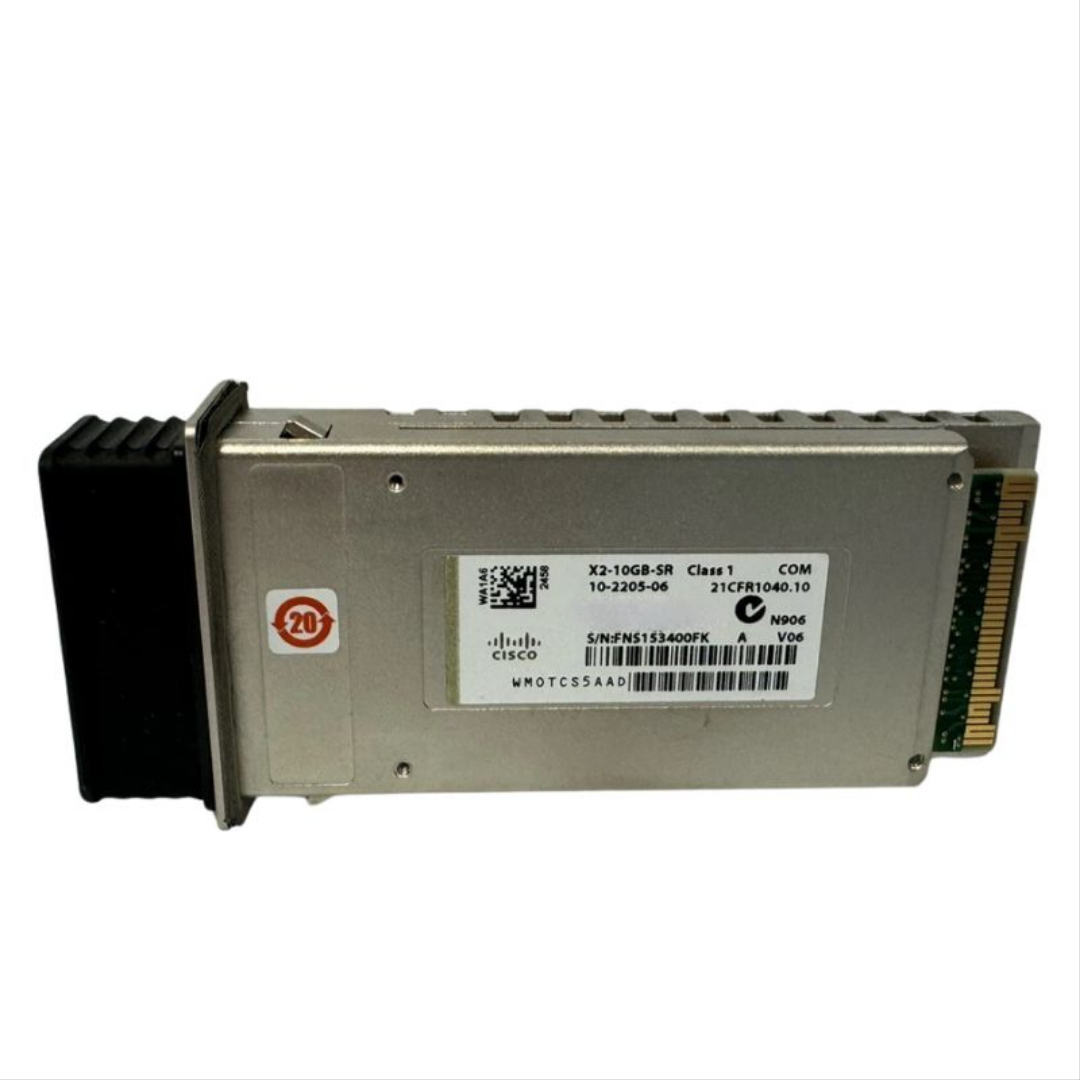

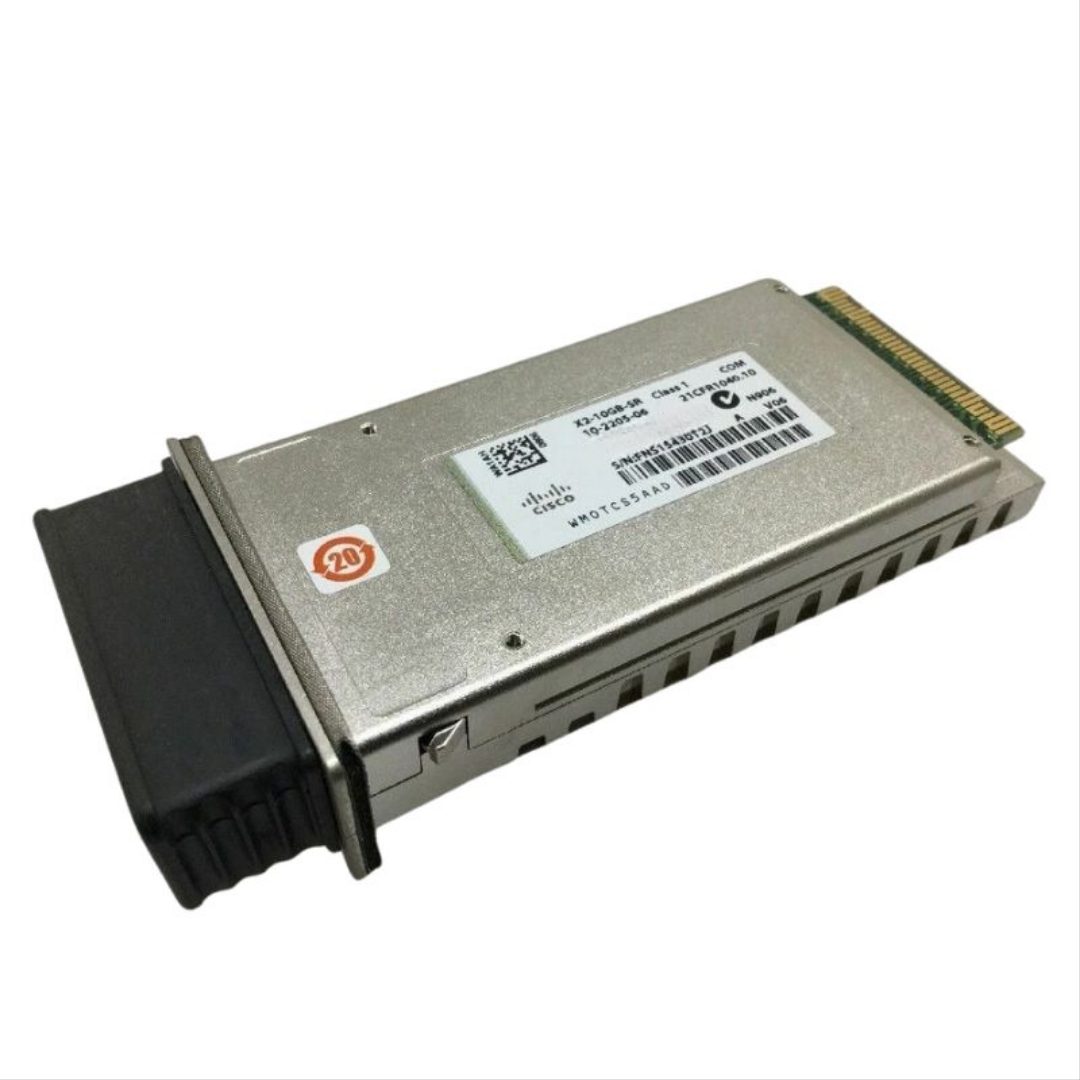

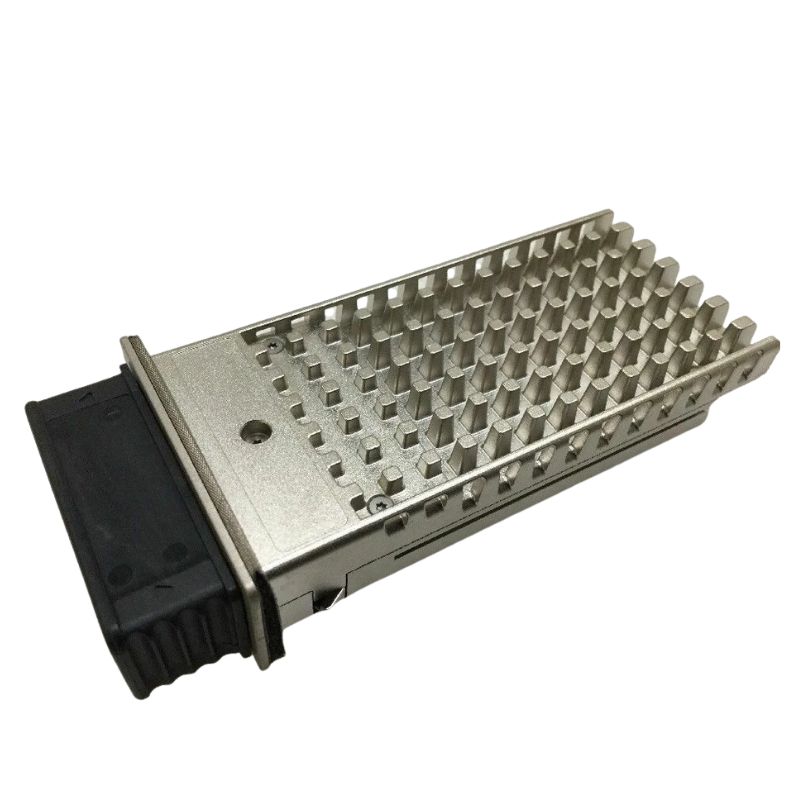

Cisco X2-10GB-SR Transceiver Module (X2-10GB-SR)

Speed

The Cisco X2-10GB-SR Transceiver Module offers a blazing-fast speed of 10Gbps, making it an ideal choice for users who require high-speed data transfers and reliable network connections. With this impressive speed, users can experience seamless and uninterrupted data transmission, allowing them to maximize their productivity and efficiency.

Main Specifications

• Manufacturer: Cisco
• Part Number: X2-10GB-SR
• Product Line: System X
• Product Type: Plug-in Transceiver Module

Key Technical Specifications

• Data Rate: 10 Gbps
• Form Factor: Plug-in module
• Connectivity: Wired, 10GBase-SR
• Wavelength: 850 nm
• Max Distance: 984 feet (300 meters) using Multi-Mode Fiber (MMF)

Interface & Ports

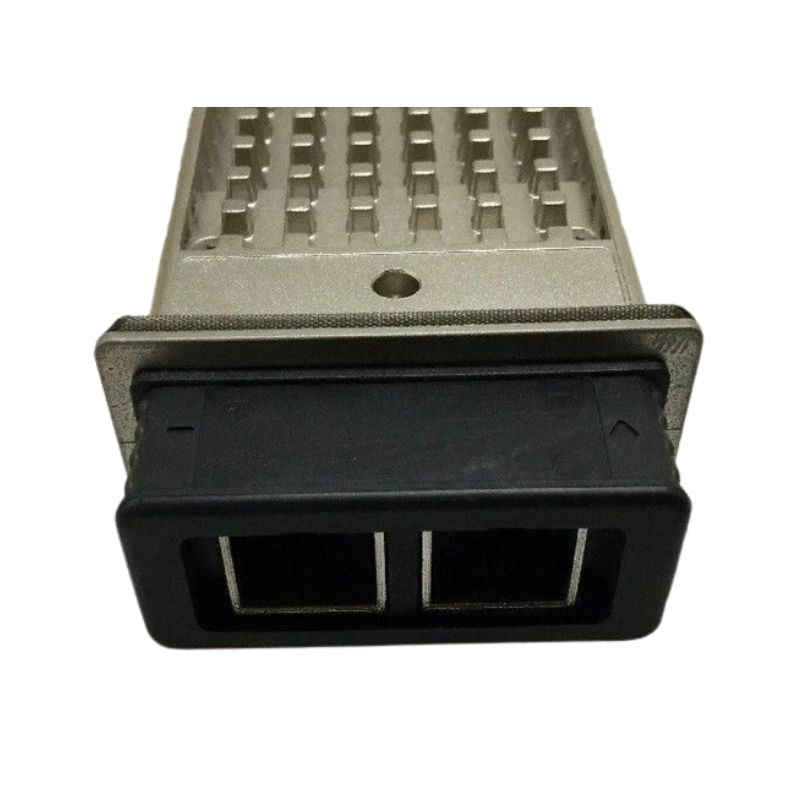

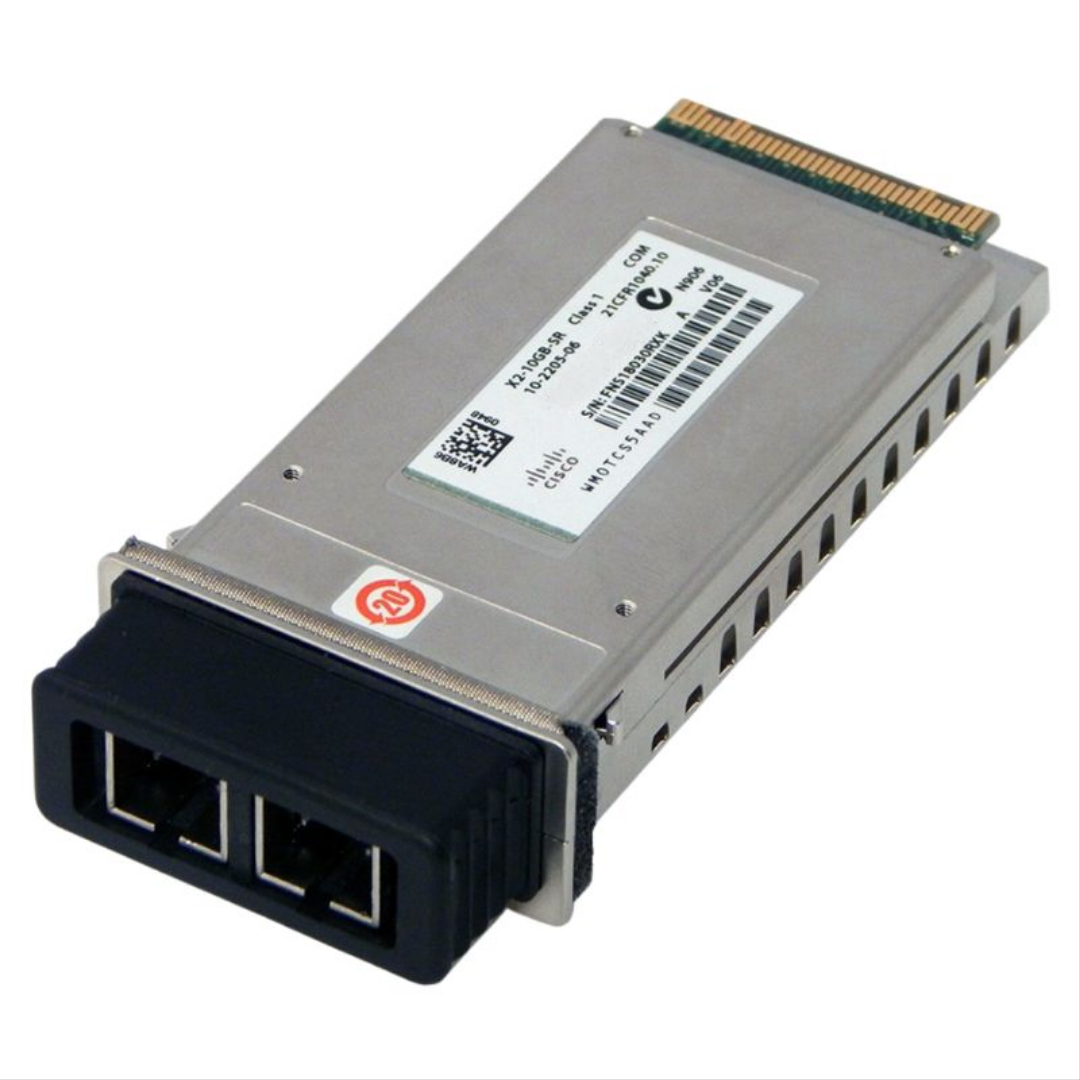

• Port Type: SC Duplex
• Supported Ports: 1 x 10GBase-SR
• Compatible Network Ports: SFP

Performance

• Media Type: Optical Fiber
• Supported Fiber: 50 µm, 62.5 µm Multi-Mode
• Ethernet Standard: 10 Gigabit Ethernet (10GBase-SR)

Power Characteristics

• Transmit Power: -1.0 dBm (max), -7.3 dBm (min)
• Receive Power: -1.0 dBm (max), -9.9 dBm (min)
• Power Consumption: 4 Watts
• Power Supply: +3.3V, APS(+1.2V)

Environmental Requirements

• Operating Temperature Range: 32°F to 104°F (0°C to 40°C)

Notable Features

• Supports IEEE 802.3ae 10GBASE-SR standard at 10.3125 Gbps
• Transmission range up to 300m with Multi-Mode Fiber
• 850nm Vertical Cavity Surface Emitting Laser (VCSEL)
• Hot-swappable with a 70-pin connector and XAUI electrical interface
• Monitoring and control via MDIO 2-wire interface
• Complies with RoHS environmental standards

Applications

• 10GE Ethernet Switches and Routers
• Core 10GE Networking Equipment
• Data Storage Networks (10GE Storage)
• Other High-speed 10Gbps Ethernet systems

Compatibility

Cisco Switches Supporting 10 Gigabit Ethernet

• Cisco 2360 Series – 2360-48TD-S
• Cisco 3100 Series – WS–CBS3110X-S-I, WS–CBS3120X-S, WS–CBS3130X-S
• Cisco 4500 Series – WS–X4013+10GE, WS–X4516-10GE, WS–X4606-X2-E
• Cisco 4900 Series – ME-4924-10GE, WS–C4928-10GE, WS–C4948-10GE
• Cisco 6500 Series – VS–S720-10G-3C, WS–X6708-10G-3C, WS–X6716-10G-3CXL
• Cisco 7600 Series – RSP720-10GE
• Cisco Nexus 7000 – N7K-M108X2-12L
• Cisco Catalyst 3560E/3750E Series – WS–C3560E-48PD, WS–C3750E-48TD, and more

Cisco Line Cards Supporting 10GE

• Cisco 4500 Series – WS–X4013+10GE, WS–X4516-10GE, WS–X4606-X2-E
• Cisco 6500 Series – VS–S720-10G-3C, WS–X6716-10G-3CXL
• Cisco 7600 Series – RSP720-10GE
• Cisco Nexus 7000 – N7K-M108X2-12L

Enhanced Performance

The 10Gbps speed provided by the Cisco X2-10GB-SR Transceiver Module ensures that users can achieve exceptional performance levels. Whether it's transferring large files, streaming high-definition videos, or running data-intensive applications, this transceiver module can handle it all with ease. Users can enjoy faster data transfers and reduced latency, resulting in improved overall system performance.

Efficient Workflow

With the Cisco X2-10GB-SR Transceiver Module's 10Gbps speed, businesses can benefit from enhanced workflow efficiency. It enables faster data access and retrieval, allowing employees to retrieve critical information quickly. This increased speed ensures that tasks are completed promptly, leading to improved productivity and customer satisfaction.

Future-Proof Solution

The 10Gbps speed offered by the Cisco X2-10GB-SR Transceiver Module is future-proof, ensuring that users can keep up with the ever-increasing demands of modern networking. As technology advances and network requirements evolve, this transceiver module will continue to deliver exceptional performance and meet the demands of tomorrow's networking needs.

Interface

The Cisco X2-10GB-SR Transceiver Module features an X2 interface, providing users with a versatile and reliable connection option. With its unique interface design, this transceiver module offers several benefits that cater to the diverse needs of users.

Flexibility

The X2 interface of the Cisco X2-10GB-SR Transceiver Module offers flexibility in connectivity options. It can be easily plugged into compatible devices, such as switches and routers, providing users with a seamless and hassle-free connection experience. This flexibility allows users to connect their devices effortlessly and expand their network infrastructure as needed.

Interoperability

The X2 interface ensures interoperability with a wide range of networking devices, making it a versatile choice for users. Whether it's connecting to Cisco devices or other compatible networking equipment, the Cisco X2-10GB-SR Transceiver Module guarantees compatibility and seamless operation. This interoperability eliminates compatibility concerns and simplifies the integration of the transceiver module into existing network infrastructures.

Scalability

The X2 interface of the Cisco X2-10GB-SR Transceiver Module supports scalability, allowing users to expand their network capabilities effortlessly. Whether it's adding more switches or increasing the number of connected devices, this transceiver module can accommodate growing network requirements. With its scalable interface, users have the flexibility to adapt their networks to changing business needs without disruption.

Compatibility

The Cisco X2-10GB-SR Transceiver Module is designed to support multi-mode fiber connections, offering users a wide range of compatibility options. This compatibility ensures that users can seamlessly integrate this transceiver module into their existing network infrastructure without any compatibility concerns.

Seamless Integration

The multi-mode fiber compatibility of the Cisco X2-10GB-SR Transceiver Module allows for seamless integration into multi-mode fiber networks. Whether it's connecting to existing switches or extending the network reach, this transceiver module ensures smooth and uninterrupted operation. Users can expand their network capabilities without the need for extensive infrastructure changes or additional equipment.

Cost-Efficiency

By supporting multi-mode fiber connections, the Cisco X2-10GB-SR Transceiver Module offers cost-efficiency to users. Multi-mode fiber cables are generally more affordable compared to single-mode fiber, making them an economical choice for businesses. This compatibility allows users to leverage existing multi-mode fiber infrastructure, reducing the need for costly upgrades or replacements.

Flexible Deployment

The compatibility with multi-mode fiber enables flexible deployment options for the Cisco X2-10GB-SR Transceiver Module. Users can take advantage of the versatility of multi-mode fiber to extend network connectivity over shorter distances within a building or data center. This flexibility allows users to design and implement network architectures tailored to their specific requirements.

Form Factor

The Cisco X2-10GB-SR Transceiver Module features a plug-in module form factor, offering users a convenient and user-friendly solution for their networking needs. With its compact design and easy installation process, this transceiver module provides several benefits that enhance user experience and operational efficiency.

Ease of Use

The plug-in module form factor of the Cisco X2-10GB-SR Transceiver Module ensures ease of use for users. The module can be easily inserted into compatible devices, eliminating the need for complex installation procedures or technical expertise. This user-friendly design allows users to quickly set up and deploy the transceiver module without any hassle.

Space Saving

The compact form factor of the Cisco X2-10GB-SR Transceiver Module saves valuable space in networking equipment. With its small size, this transceiver module can be installed in tight spaces or densely populated racks without sacrificing performance or functionality. This space-saving feature is especially advantageous in data centers or network closets where space is often limited.

Hot-Swappable

The plug-in module form factor of the Cisco X2-10GB-SR Transceiver Module enables hot-swappable functionality. Users can easily replace or upgrade the transceiver module without powering down the entire network infrastructure. This hot-swappable feature minimizes downtime and ensures continuous network operation, making it an ideal choice for critical networking environments where uninterrupted connectivity is essential.

Wavelength

The Cisco X2-10GB-SR Transceiver Module operates at a wavelength of 850nm, offering users reliable and efficient data transmission capabilities. The wavelength plays a crucial role in determining the performance and compatibility of the transceiver module, making it an essential feature for users to consider.

Optimal Performance

The 850nm wavelength of the Cisco X2-10GB-SR Transceiver Module ensures optimal performance in multi-mode fiber networks. It provides efficient data transmission over short distances, making it ideal for applications within a building or data center. With its optimized wavelength, users can achieve reliable and high-speed data transfers, minimizing data loss or signal degradation.

Compatibility with Multi-Mode Fiber

The 850nm wavelength is compatible with multi-mode fiber, allowing seamless integration into existing multi-mode fiber networks. Whether it's connecting to switches, routers, or other networking devices, the Cisco X2-10GB-SR Transceiver Module ensures compatibility and reliable operation. This compatibility eliminates the need for costly infrastructure changes or extensive network modifications.

Versatility

The 850nm wavelength offers versatility to users, allowing them to leverage the benefits of multi-mode fiber in various applications. Whether it's transmitting data within a building, connecting different floors, or extending network reach, this wavelength provides the flexibility needed to design and implement efficient network architectures.

Distance

The Cisco X2-10GB-SR Transceiver Module supports a distance of up to 300 meters, providing users with reliable and extended network connectivity options. The distance capability is a critical factor for users who require network connections over long distances or in large-scale environments.

Extended Reach

The 300-meter distance supported by the Cisco X2-10GB-SR Transceiver Module allows users to extend their network reach without compromising performance. Whether it's connecting multiple buildings within a campus or establishing network links across large data centers, this transceiver module ensures reliable and uninterrupted connectivity. Users can efficiently transmit data over extended distances, facilitating seamless collaboration and resource sharing.

Flexibility in Network Design

The 300-meter distance capability offers flexibility in network design for users. It enables the creation of complex network topologies or the connection of distant devices without the need for additional infrastructure investments. This flexibility allows users to design and implement networks that meet their specific requirements, ensuring efficient data transmission and optimal network performance.

Cost-Efficiency

The extended distance capability of the Cisco X2-10GB-SR Transceiver Module provides cost-efficiency to users. By eliminating the need for additional equipment or infrastructure, users can save on deployment and maintenance costs. This cost-efficiency is especially beneficial in large-scale deployments or environments where extensive cabling or equipment installations can be prohibitively expensive.
