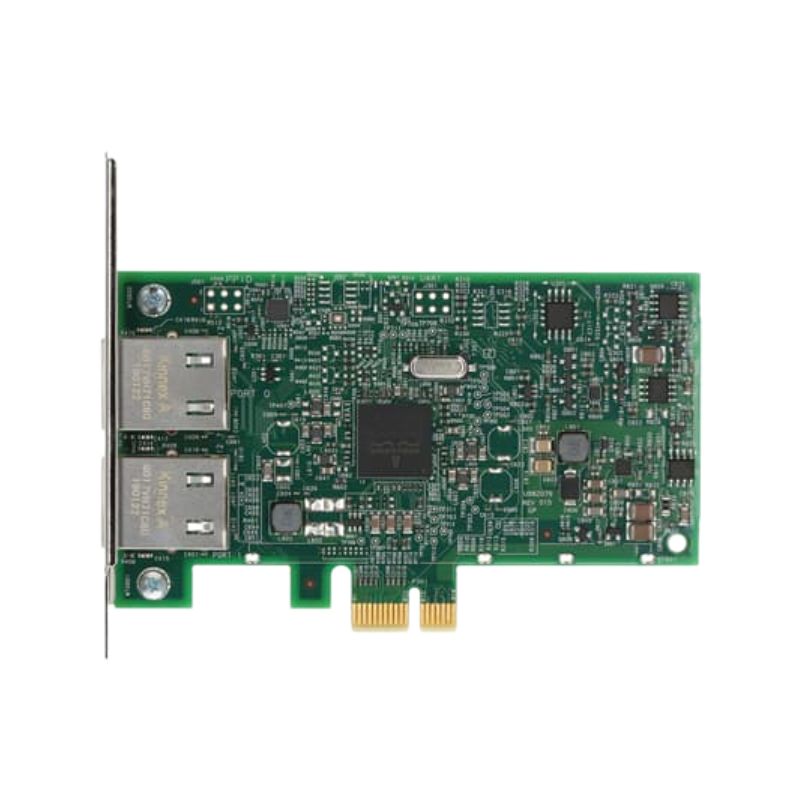

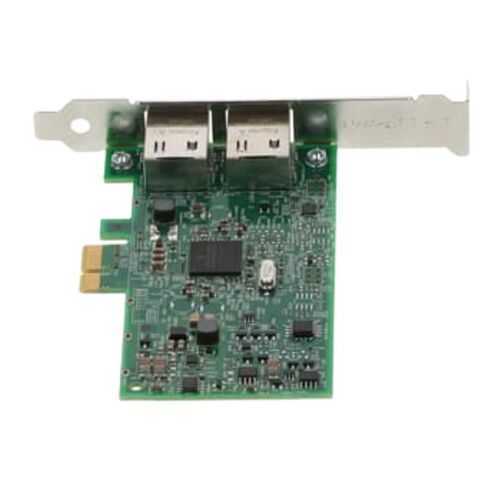

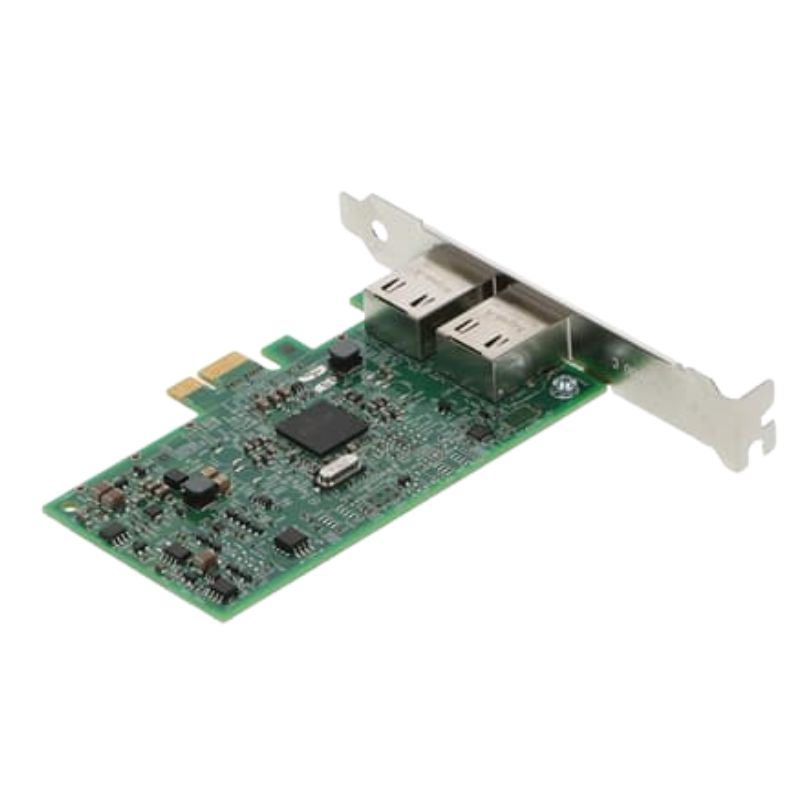

0FCGN Dell 5720 Dual-Ports 1Gbps Low Profile Interface Card

Product Highlights of Dell 0FCGN 2 Ports Interface Card

The Dell 0FCGN Broadcom 5720 Interface Card is equipped with Dual-Ports, making it an excellent choice for users who require multiple connectivity options. With two ports available, users can connect to different networks simultaneously or create a redundant connection for enhanced reliability.

General Specifications

• Manufacturer: Dell
• Part Number: 0FCGN
• Product Type: Dual-Port Network Interface Card

Technical Specifications

• Card Type: Plug-in Expansion
• Bus Interface: PCI Express 2.0 x2
• Slot Compatibility: 1 × PCIe 2.0 x2
• Ethernet Ports: 2 × Gigabit RJ-45
• Interface Standard: 1000BASE-T

Connectivity Technology

• Wired Transmission: Reliable Ethernet
• Cabling Options: 10BASE-T, 100BASE-TX, 1000BASE-T

Performance Metrics

• Supported Protocols: 10Mb LAN, 100Mb LAN, Gigabit LAN
• Maximum Throughput: 1 Gbps

Interface Details

• Connectivity: 2 × RJ-45 (1000BASE-T)
• Slot Requirement: PCI Express 2.0 x2

Advanced Features

• Remote Protocol: SNMP

Enhanced Functionalities

• ACPI Power Management Support
• Virtual LAN (VLAN) Compatibility
• Wake-on-LAN (WoL) Activation
• PXE Boot Support
• Large Send Offload (LSO)
• Receive Side Scaling (RSS)

Compliance Standards

• IEEE 802.3 Ethernet Standard

Dell 0FCGN Broadcom PCI-E Network Interface Card

The Dell 0FCGN Broadcom 5720 2 x Ports 1GbE PCI Express Network Interface Card is a high-reliability server networking solution designed for enterprise-grade connectivity, data center integration, and business-critical workloads that require stable dual-port Gigabit Ethernet performance. Built around the Broadcom 5720 controller architecture, this PCI Express NIC provides consistent throughput, low latency communication, and efficient packet processing for Dell PowerEdge servers and compatible enterprise systems. It is widely used in environments where dependable 1GbE networking is required for virtualization clusters, storage communication, cloud infrastructure nodes, and general server connectivity.

As a dual-port network interface card, the Dell 0FCGN enables two independent Gigabit Ethernet channels on a single PCI Express slot, optimizing server expansion capability while maintaining power efficiency and system airflow design integrity. The adapter is engineered for seamless integration into Dell enterprise platforms, ensuring firmware-level compatibility, driver stability, and advanced hardware offloading capabilities that reduce CPU utilization during network operations.

Core Architecture of Dell 0FCGN Network Adapter

Hardware Design and Controller Integration

At the heart of the Dell 0FCGN NIC is the Broadcom 5720 Ethernet controller, a widely deployed chipset in enterprise networking environments. This controller is optimized for dual 1GbE connectivity, providing balanced network traffic distribution across two ports. The architecture is designed to support high throughput with minimal packet loss, making it suitable for both steady-state workloads and burst traffic scenarios commonly found in virtualized infrastructures and application hosting environments.

The hardware design integrates advanced buffering techniques and hardware acceleration features that allow the NIC to handle packet segmentation, checksum offloading, and TCP/IP processing tasks. These capabilities reduce the processing burden on host CPUs, allowing server resources to be allocated more effectively to application workloads rather than network overhead.

PCI Express Interface Implementation

The Dell 0FCGN utilizes a PCI Express interface that ensures high-speed communication between the network adapter and the server motherboard. The PCIe architecture enables direct memory access pathways, which significantly improve data transfer efficiency and reduce latency in network operations. This is particularly important in enterprise environments where consistent response times and deterministic network behavior are required.

The PCI Express lane allocation ensures optimal bandwidth distribution for dual-port operation, allowing each Gigabit Ethernet interface to function independently without bottlenecking shared resources. This enhances performance in load-balanced environments and clustered server configurations.

Dual-Port Gigabit Ethernet Capabilities

The dual-port design of the Dell 0FCGN provides redundancy and load balancing capabilities, which are essential in enterprise network infrastructures. Each port operates independently at 1GbE speed, allowing administrators to configure failover strategies or traffic segmentation policies depending on workload requirements.

In high-availability systems, the dual-port configuration ensures continuous network connectivity even if one interface experiences failure or degradation. This makes the adapter suitable for mission-critical systems where downtime must be minimized.

Load Balancing and Traffic Distribution

The NIC supports intelligent traffic distribution across both ports, enabling improved throughput efficiency in environments where multiple services or virtual machines share the same physical server. Load balancing ensures that network traffic is evenly distributed, preventing congestion and maximizing utilization of available bandwidth.

This feature is especially beneficial in virtualization platforms where multiple guest operating systems generate simultaneous network requests that must be handled efficiently by the underlying hardware.

Use Cases for Dell 0FCGN Network Interface Card

Data Center Server Connectivity

The Dell 0FCGN Broadcom 5720 NIC is widely deployed in data center environments where stable Gigabit Ethernet connectivity is required for server-to-switch communication. Its reliable hardware design ensures uninterrupted data flow between compute nodes, storage systems, and management networks.

In rack-mounted server deployments, the adapter plays a critical role in maintaining consistent network performance under varying workloads. It is frequently used in application hosting environments, internal enterprise networks, and cloud-based service infrastructures.

Cloud Infrastructure Integration

Cloud computing environments rely heavily on predictable network performance, and the Dell 0FCGN provides the necessary stability for such deployments. The dual-port configuration allows cloud nodes to maintain redundant connectivity paths, ensuring service continuity even during hardware or network disruptions.

The adapter’s compatibility with Dell server ecosystems makes it a preferred choice for private cloud deployments where infrastructure standardization is essential for scalability and maintenance efficiency.

Virtualization and Multi-Tenant Environments

Virtualized server environments benefit significantly from the hardware offloading features of the Dell 0FCGN NIC. By reducing CPU overhead associated with network processing, the adapter allows virtualization hosts to allocate more resources to guest operating systems and application workloads.

In multi-tenant architectures, the NIC supports isolated traffic handling for multiple virtual machines, ensuring consistent performance and reducing contention between workloads. This makes it suitable for hypervisors such as VMware, Hyper-V, and Linux-based KVM environments.

Network Efficiency in Virtual Machines

The adapter enhances network efficiency in virtualized systems by enabling hardware-level packet processing. This ensures that virtual machines experience low-latency network communication, which is critical for distributed applications, database replication, and real-time services.

The NIC’s architecture allows efficient handling of simultaneous network streams, making it ideal for dense virtual server deployments where network traffic patterns are highly variable.

Performance Characteristics of Dell 0FCGN NIC

Throughput and Latency Optimization

The Dell 0FCGN provides consistent 1GbE throughput per port, optimized for enterprise workloads that require stable and predictable network performance. The Broadcom 5720 controller ensures minimal latency by efficiently processing network packets and reducing software intervention in data transfer operations.

Low latency performance is essential in applications such as database systems, enterprise resource planning platforms, and internal communication services where delays can significantly impact system efficiency.

Reliability and Error Handling

Reliability is a core design principle of the Dell 0FCGN Broadcom 5720 NIC. The adapter includes error detection and correction mechanisms that ensure data integrity during transmission. These mechanisms help prevent packet corruption and minimize retransmission overhead.

The NIC is engineered to operate continuously under high workloads, making it suitable for 24/7 enterprise environments where system stability is critical.

Redundancy and Failover

With its dual-port architecture, the NIC supports redundancy configurations that allow seamless failover in case one network path becomes unavailable. This ensures continuous connectivity for critical applications and reduces the risk of service disruption.

Failover mechanisms are commonly used in clustered server setups and high-availability systems where network uptime is a key requirement.

Compatibility and Deployment in Dell Server Ecosystems

Integration with Dell PowerEdge Servers

The Dell 0FCGN NIC is specifically designed for compatibility with Dell PowerEdge server platforms. This ensures optimal firmware integration, driver support, and system-level recognition during installation and configuration.

Its seamless compatibility reduces deployment complexity and ensures that administrators can quickly integrate the adapter into existing server infrastructures without extensive configuration adjustments.

Advanced Networking Features

Hardware Offloading Capabilities

The Broadcom 5720 controller integrates multiple hardware offloading features that significantly improve network efficiency. These include TCP segmentation offload, large send offload, and checksum offload functionalities.

By shifting these processing tasks from the CPU to the network adapter, the system achieves improved performance and reduced latency under heavy network loads.

Interrupt Moderation and CPU Efficiency

Interrupt moderation technology helps optimize CPU utilization by reducing the frequency of network interrupts. This allows the system to handle network traffic more efficiently, especially in high-throughput environments where excessive interrupts can degrade performance.

The result is smoother system operation and improved application responsiveness under sustained network activity.

Scalability in Enterprise Networks

The Dell 0FCGN NIC is designed with scalability in mind, allowing it to support growing network demands in expanding enterprise infrastructures. Its dual-port architecture and efficient packet handling capabilities make it suitable for scaling server deployments without requiring significant changes to existing network architecture.

This scalability ensures long-term usability in dynamic IT environments where workloads and traffic patterns evolve over time.

Physical Design and Thermal Efficiency

Form Factor and Server Integration

The physical design of the Dell 0FCGN NIC follows enterprise PCI Express form factor standards, ensuring compatibility with a wide range of rack-mounted and tower servers. Its compact layout allows efficient utilization of internal server space without obstructing airflow or adjacent expansion slots.

This design consideration is essential in high-density server environments where thermal management and space optimization are critical factors.

Thermal Performance and Heat Management

The adapter is engineered to operate within controlled thermal ranges, ensuring stable performance even under continuous network load conditions. Efficient heat dissipation mechanisms help maintain system stability and extend hardware lifespan.

Thermal efficiency is particularly important in data center environments where multiple NICs operate simultaneously within confined rack spaces.
