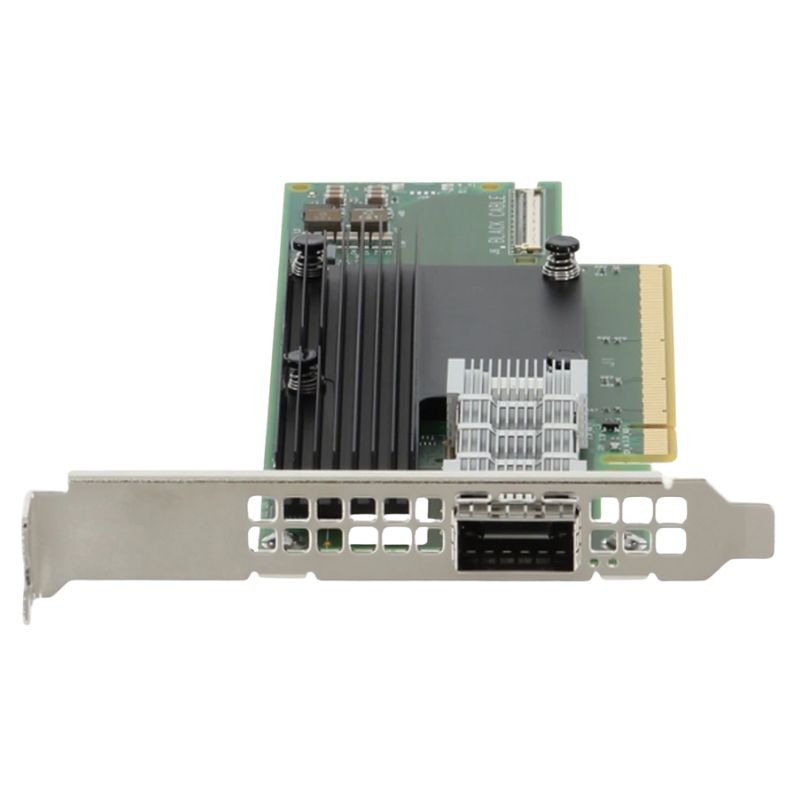

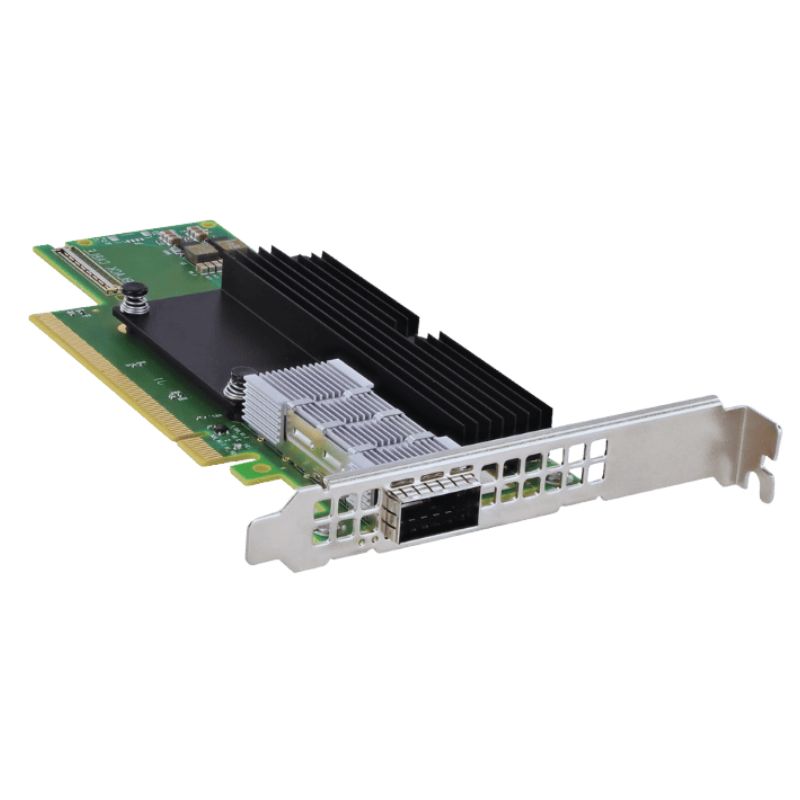

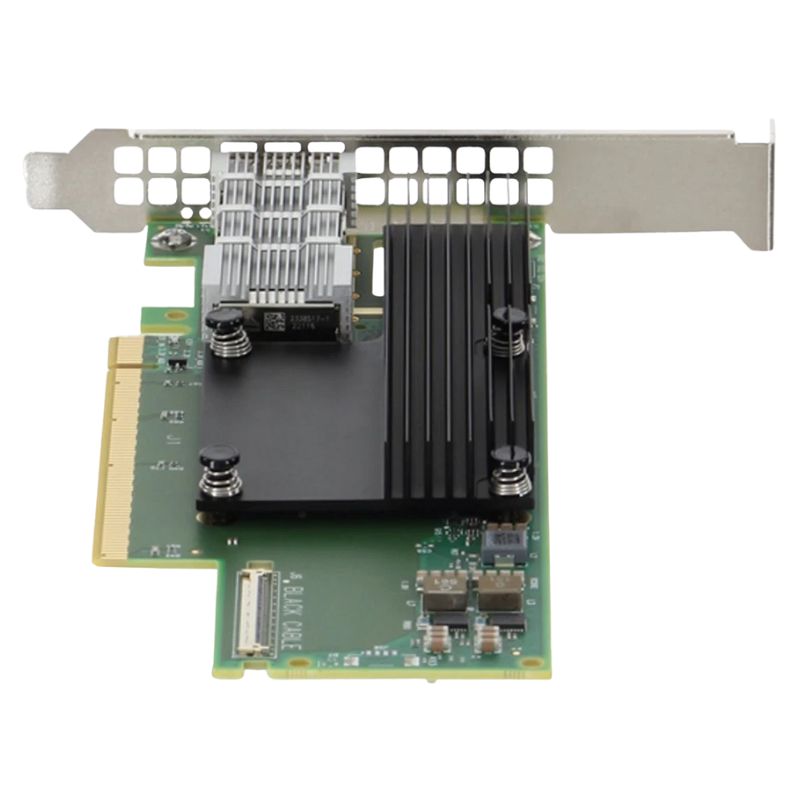

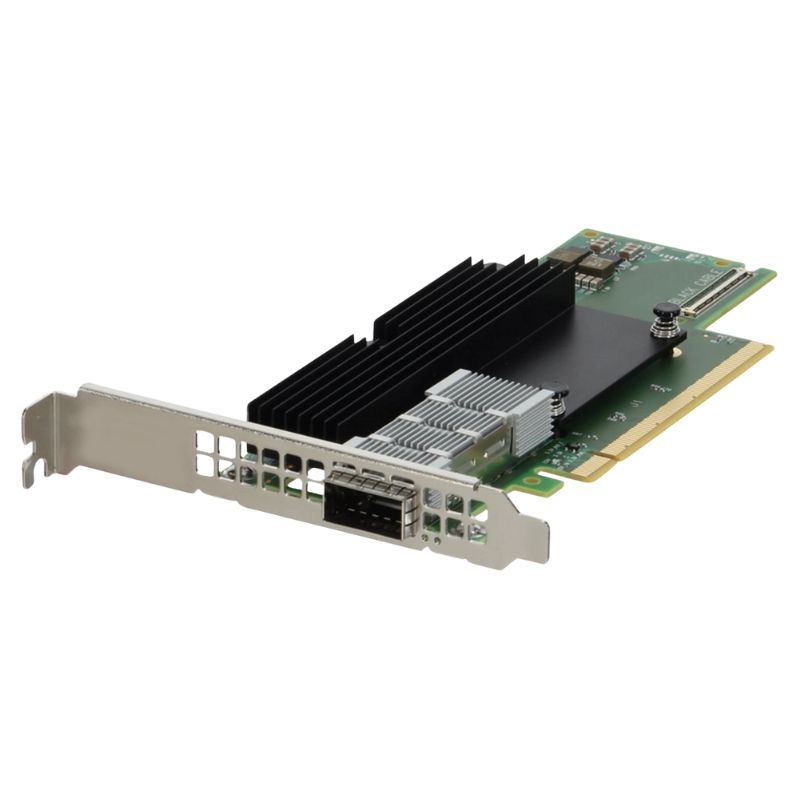

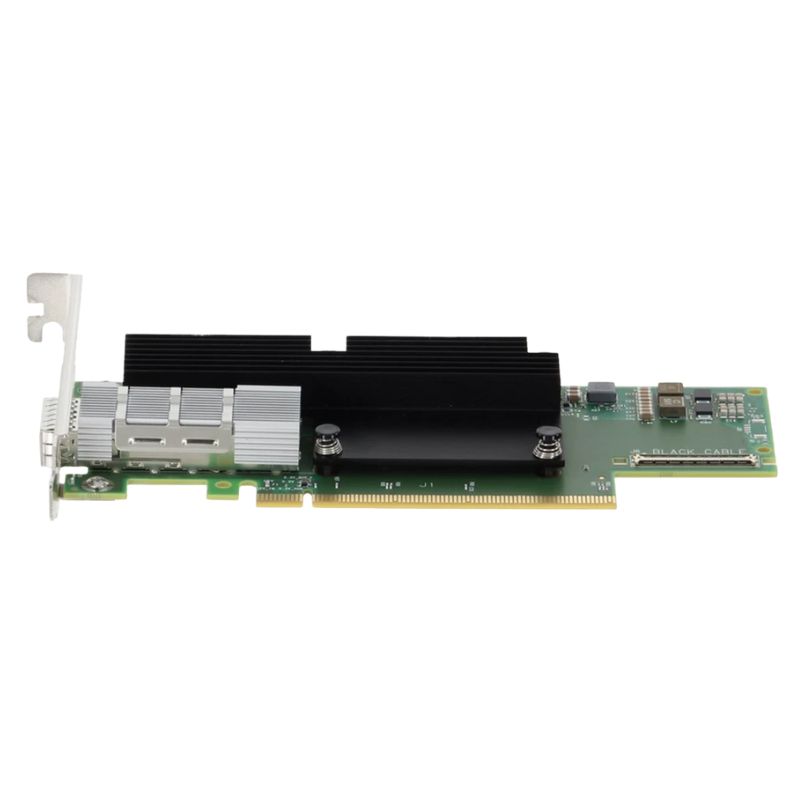

CN9K2 Dell Mellanox ConnectX-6 Single Port Adapter

Dell Mellanox ConnectX-6 Single Port Adapter

The Dell CN9K2 Mellanox ConnectX-6 Single Port Adapter is a high-performance networking solution designed for enterprise data centers and advanced computing environments. With support for multiple Ethernet and InfiniBand speeds, this adapter ensures reliable connectivity and optimized throughput for modern workloads.

General Information

• Manufacturer: Dell
• Part Number: CN9K2
• Device Category: Network Adapter

Technical Specifications

• PCIe Half Height design for compact integration
• Ethernet Speeds: 10/25/40/50/100/200 Gb/s
• InfiniBand Speeds: SDR, DDR, QDR, FDR, EDR, HDR100, HDR

Network Connector Type

• Single-port QSFP56 for high-speed connectivity.

PCIe Interface

• PCIe X16 through edge connector
• PCIe Gen 3.0 / 4.0 supported
• SerDes Speeds: 8.0 GT/s and 16.0 GT/s

Key Advantages

• Supports multi-speed Ethernet up to 200 Gb/s.
• Compatible with InfiniBand protocols for HPC environments.
• Compact PCIe half-height form factor for versatile deployment.
• Reliable QSFP56 connector for high-bandwidth applications.
• Optimized PCIe Gen 3.0/4.0 interface for modern servers.

Dell CN9K2 Mellanox ConnectX-6 Single Port Adapter Overview

The Dell CN9K2 Mellanox ConnectX-6 Single Port Adapter represents a high-performance networking solution designed for modern enterprise data centers, cloud infrastructures, and high-performance computing environments. Built on advanced InfiniBand and Ethernet technologies, this adapter is engineered to deliver ultra-low latency, high bandwidth throughput, and efficient hardware offload capabilities. It is widely adopted in environments where scalability, reliability, and consistent network acceleration are critical for workloads such as virtualization, storage networking, artificial intelligence, machine learning, and real-time analytics.

As organizations transition toward data-intensive architectures, the demand for faster interconnects and optimized network interface cards continues to grow. The Dell CN9K2 Mellanox ConnectX-6 Single Port Adapter addresses these demands by combining cutting-edge network acceleration features with robust hardware design, enabling seamless data movement across distributed systems while minimizing CPU overhead.

Advanced Architecture and Hardware Design

The underlying architecture of the Dell CN9K2 Mellanox ConnectX-6 Single Port Adapter is based on Mellanox ConnectX-6 technology, which is recognized for its high-performance networking capabilities. This adapter is built to support advanced Ethernet speeds and optimized data path processing that reduces latency and increases packet processing efficiency.

Single Port High-Speed Design

The single-port configuration of the Dell CN9K2 Mellanox ConnectX-6 Adapter is optimized for environments where a dedicated high-bandwidth connection is required without the complexity of multi-port balancing. This design ensures that all available bandwidth is concentrated into a single channel, allowing consistent throughput performance for mission-critical workloads.

By focusing resources on a single interface, the adapter reduces internal switching overhead and improves stability for workloads that require predictable network performance. This makes it ideal for clustered computing systems, database replication, and distributed storage environments where performance consistency is more important than port redundancy.

Enterprise Integration Efficiency

The Dell CN9K2 Mellanox ConnectX-6 Single Port Adapter integrates seamlessly into Dell PowerEdge servers and other enterprise-grade hardware platforms. Its compatibility with modern server architectures ensures minimal configuration complexity while maximizing performance gains. Enterprises benefit from simplified deployment processes and reduced network tuning requirements.

The adapter’s firmware and driver ecosystem are optimized for enterprise environments, supporting major operating systems and virtualization platforms. This ensures that administrators can deploy the adapter across hybrid infrastructures without extensive customization.

High Bandwidth Performance Capabilities

Performance is one of the most defining characteristics of the Dell CN9K2 Mellanox ConnectX-6 Single Port Adapter. It supports extremely high data throughput levels, making it suitable for workloads requiring rapid data exchange between compute nodes, storage systems, and cloud services.

Ultra-Low Latency Data Transfer

One of the key advantages of this adapter is its ability to minimize latency across network transactions. By utilizing hardware-based packet processing and offloading mechanisms, the adapter reduces the time required for data traversal between endpoints. This is particularly beneficial for latency-sensitive applications such as financial trading systems, real-time analytics engines, and AI model training clusters.

The reduction in latency is achieved through intelligent packet handling and streamlined communication paths that bypass unnecessary software stack layers. This allows applications to interact with the network more directly and efficiently.

Optimized Throughput for Data-Intensive Applications

The Dell CN9K2 Mellanox ConnectX-6 Single Port Adapter is designed to handle massive data loads with sustained throughput performance. This makes it an ideal choice for environments that rely on continuous data streaming, such as big data analytics platforms, distributed file systems, and cloud-native applications.

Its architecture supports advanced data segmentation and aggregation techniques, ensuring that large volumes of information can be transmitted without congestion or performance degradation.

Remote Direct Memory Access and RDMA Acceleration

Remote Direct Memory Access (RDMA) is one of the most important features supported by the Dell CN9K2 Mellanox ConnectX-6 Single Port Adapter. RDMA enables direct memory-to-memory data transfer between servers without involving the CPU, cache, or operating system intervention, significantly improving efficiency.

Reduced CPU Utilization

By offloading data transfer tasks from the CPU, RDMA allows compute resources to focus on application-level processing rather than network overhead. This leads to improved system performance and better utilization of server resources, especially in environments where CPU cycles are highly valuable.

This feature is particularly important in high-performance computing clusters and AI training environments where every percentage of CPU efficiency translates into faster computation and reduced operational costs.

Enhanced Storage Networking Performance

The RDMA capability of the adapter significantly enhances storage networking performance by enabling faster access to distributed storage systems. Data can be retrieved and written directly into memory buffers, reducing latency and improving I/O performance.

This is especially beneficial for software-defined storage solutions and hyperconverged infrastructure deployments, where storage performance directly impacts application responsiveness.

Support for Virtualization and Cloud Environments

Modern data centers rely heavily on virtualization and cloud computing technologies, and the Dell CN9K2 Mellanox ConnectX-6 Single Port Adapter is specifically designed to optimize these environments. It provides advanced virtualization offloads that improve virtual machine density and performance.

Virtual Machine Network Optimization

In virtualized environments, network traffic is often a bottleneck due to the overhead introduced by hypervisors and virtual switches. This adapter mitigates such challenges by offloading networking functions to dedicated hardware, ensuring smoother data flow between virtual machines.

As a result, organizations can scale their virtual infrastructure without experiencing significant performance degradation, even under heavy workloads.

Cloud-Native Workload Acceleration

The adapter is also optimized for cloud-native applications that rely on microservices architectures. These applications often require rapid communication between distributed services, making network performance a critical factor.

By providing consistent low-latency communication paths, the Dell CN9K2 Mellanox ConnectX-6 Single Port Adapter ensures that cloud-native workloads operate efficiently and reliably across distributed environments.

Advanced Security and Data Protection Features

Security is a fundamental requirement in enterprise networking, and this adapter incorporates advanced security features designed to protect data integrity and prevent unauthorized access. It supports hardware-based encryption acceleration, ensuring secure data transmission without compromising performance.

Hardware-Level Encryption Acceleration

The adapter offloads encryption and decryption processes to dedicated hardware engines, reducing the burden on system CPUs while maintaining high-speed secure communication channels. This is essential for organizations handling sensitive data across distributed systems.

By integrating encryption at the hardware level, the adapter helps maintain compliance with enterprise security standards and regulatory requirements without introducing performance penalties.

Secure Multi-Tenant Environments

In multi-tenant cloud infrastructures, isolation and security between tenants are critical. The Dell CN9K2 Mellanox ConnectX-6 Single Port Adapter provides mechanisms for secure traffic segmentation, ensuring that workloads remain isolated and protected.

This enhances trust and reliability in shared computing environments where multiple users or organizations operate on the same infrastructure.

High-Performance Computing and AI Workloads

High-performance computing environments demand extremely fast interconnects to handle complex simulations, scientific computations, and machine learning workloads. The Dell CN9K2 Mellanox ConnectX-6 Single Port Adapter is designed to meet these requirements by providing consistent high-bandwidth, low-latency communication.

AI and Machine Learning Optimization

AI workloads involve massive data transfers between compute nodes during model training and inference processes. The adapter ensures that these data transfers occur efficiently, reducing training times and improving model accuracy cycles.

Its ability to handle parallel data streams makes it particularly suitable for distributed machine learning frameworks that require synchronized communication between nodes.

Scientific Computing and Simulation Performance

Scientific computing applications such as weather modeling, genomic analysis, and physics simulations require high-speed interconnects to process large datasets. The adapter enhances these workloads by providing stable and fast data exchange capabilities across compute clusters.

This results in improved simulation accuracy and reduced processing time for complex computational tasks.

Storage Acceleration and Data Center Optimization

The Dell CN9K2 Mellanox ConnectX-6 Single Port Adapter plays a significant role in modern storage architectures by accelerating data transfer between compute nodes and storage arrays. Its support for advanced networking protocols ensures efficient storage access patterns.

NVMe over Fabrics Support

NVMe over Fabrics is a key technology that allows remote storage devices to be accessed with near-local performance. The adapter enables efficient NVMe-oF communication, reducing storage latency and improving I/O operations per second.

This capability is essential for high-performance storage systems used in enterprise databases and real-time analytics platforms.

Software-Defined Storage Integration

Software-defined storage solutions benefit greatly from the adapter’s ability to handle high-volume data traffic. It ensures that storage nodes can communicate efficiently, maintaining data consistency and performance across distributed environments.

This improves overall system resilience and scalability in enterprise storage deployments.

Power Efficiency and Thermal Optimization

Despite its high-performance capabilities, the Dell CN9K2 Mellanox ConnectX-6 Single Port Adapter is engineered for energy efficiency. It incorporates power management features that adjust performance based on workload demand, ensuring optimal energy usage.

Dynamic Power Scaling

The adapter intelligently adjusts power consumption based on network activity, reducing energy usage during low traffic periods while maintaining full performance during peak demand.

This contributes to lower operational costs and improved sustainability in large-scale data centers.

Thermal Control and Stability

Efficient thermal design ensures stable operation even under heavy workloads. The adapter maintains optimal temperature levels through advanced heat dissipation techniques, preventing performance throttling.

This enhances reliability and extends hardware lifespan in demanding enterprise environments.

Deployment Flexibility and Compatibility

The Dell CN9K2 Mellanox ConnectX-6 Single Port Adapter offers broad compatibility across enterprise systems, making it suitable for diverse deployment scenarios. It supports major virtualization platforms, operating systems, and cloud orchestration frameworks.

Enterprise Server Integration

Designed for seamless integration with Dell PowerEdge servers, the adapter simplifies deployment in enterprise environments. It is optimized for plug-and-play installation with minimal configuration overhead.

This ensures that organizations can rapidly scale their infrastructure without extensive downtime or complex setup procedures.

Hybrid and Multi-Cloud Compatibility

In hybrid cloud environments, interoperability is essential. The adapter supports consistent networking performance across on-premises and cloud-based infrastructures, enabling smooth workload migration and resource sharing.

This flexibility allows businesses to adopt hybrid strategies without compromising performance or reliability.
