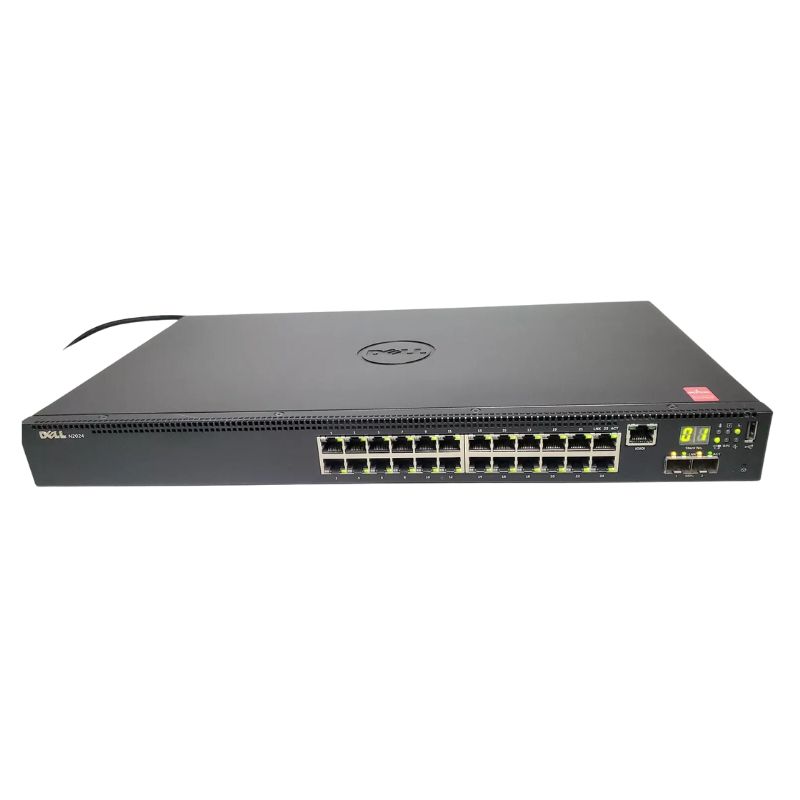

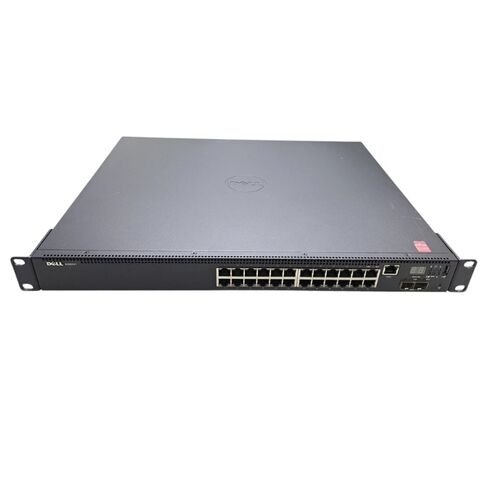

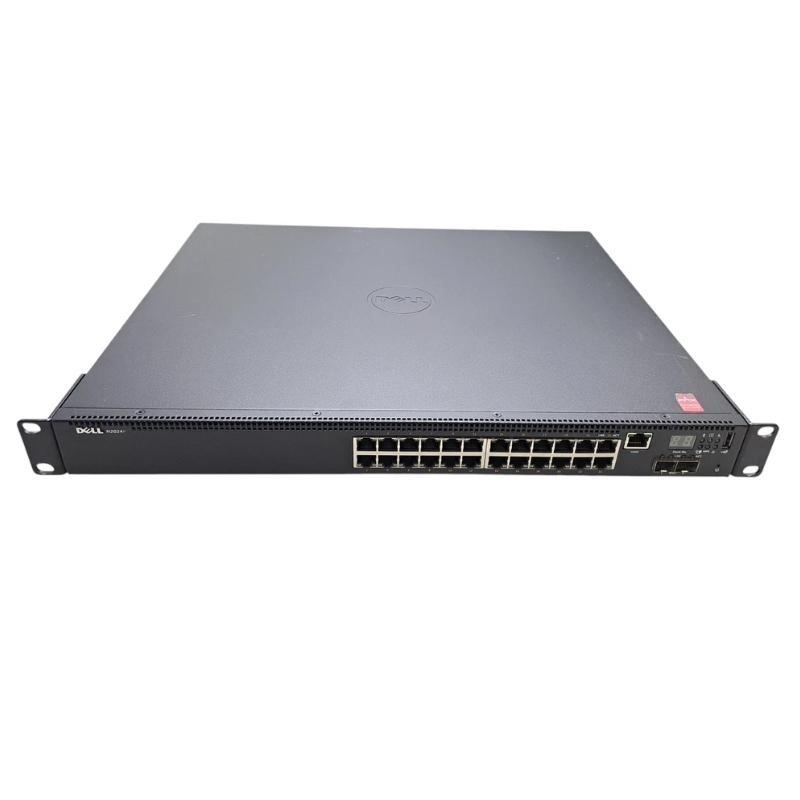

Dell N2024 Managed L3 Switch with 24 Ethernet Ports & 2 10-Gigabit SFP+

Device Overview of N2024

Core Functionality

• Device Type: Managed, stackable switch with 24 ports (Layer 2+).

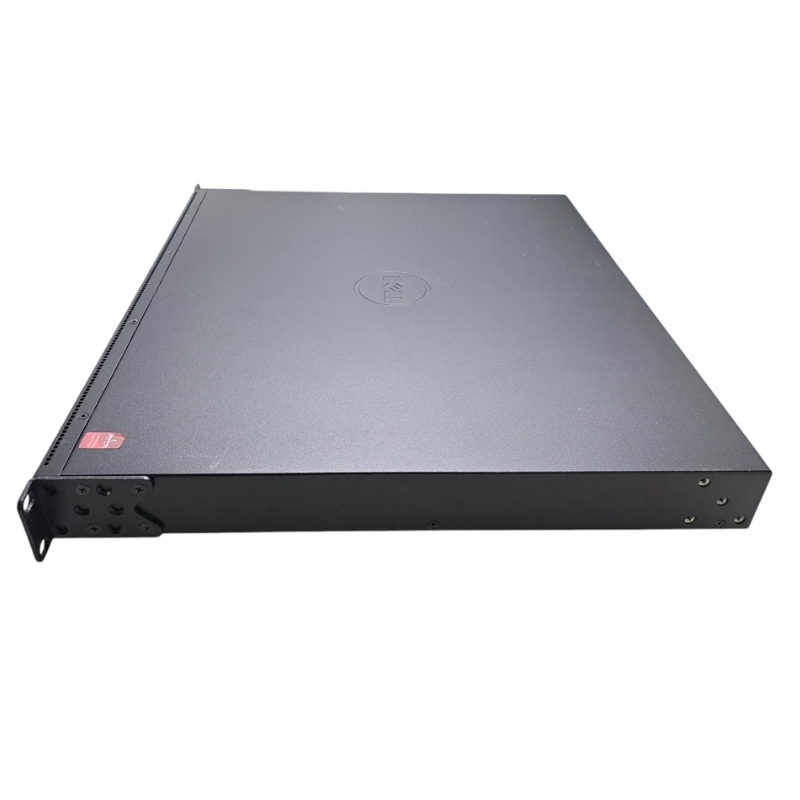

• Form Factor: 1U rack-mountable design, ideal for data center setups.
• Network Subtype: Gigabit Ethernet, supporting both 10/100/1000 Mbps connections.
• Port Configuration: Includes 24 x 10/100/1000 ports and 2 x 10 Gigabit SFP+ uplinks for enhanced network flexibility.

Performance and Capacity

• Switching Fabric: 172 Gbps of total bandwidth, ensuring smooth traffic flow.
• Forwarding Rate: Handles up to 128 million packets per second (Mpps).
• Stacking Bandwidth: 84 Gbps, facilitating robust stacking capabilities for multiple devices.
• VLAN Capacity: Supports up to 4,096 virtual interfaces, providing extensive VLAN management options.

Enhanced Network Capabilities

• ARP/NDP Entries: Up to 1,024 ARP and 400 NDP entries to manage IP address mapping efficiently.
• Routing Options: Supports static and dynamic IPv4/IPv6 routes, with 256 IPv4 and 128 IPv6 static routes.
• Priority Queues: Eight per port, ensuring QoS (Quality of Service) for prioritizing critical traffic.

ACL and Security Features

• ACL Rules: Maximum system-wide ACL rules: 2,048, with up to 1,023 rules per individual ACL.
• Ingress/Egress Rules: Supports up to 1,024 ingress and 512 egress IPv4 rules per interface, with IPv6 ingress/egress capacities of 512/256 rules respectively.
• MAC Address Table: 8,192 entries, offering robust address management.

Advanced Management and Protocol Support

• Routing Protocols: RIPv1, RIPv2, IGMPv2, IGMPv3, Static IPv4/IPv6 routing for versatile routing configurations.
• Remote Management: SNMP (v1, v2, v3), RMON, Telnet, and TFTP are supported for enhanced device control and monitoring.
• Encryption: Advanced security with MD5, AES, SSL, and TLS encryption protocols.

Comprehensive Features for Seamless Operations

• Auto-negotiation and flow control for optimized connection speed and stability.
• VLAN and ARP support, ensuring efficient traffic segmentation and IP address resolution.
• Quality of Service (QoS) support for traffic prioritization, ensuring critical applications get the bandwidth they need.
• IPv6 and RSTP (Rapid Spanning Tree Protocol) support for future-proof and resilient network setups.

Compliance and Standards

• Complies with a broad range of IEEE standards, including IEEE 802.3ab (Gigabit Ethernet) and IEEE 802.1x (Port-based Network Access Control).
• Supports Energy Efficient Ethernet (IEEE 802.3az), reducing power consumption during periods of low network activity.

Memory and Expansion

• RAM: 1 GB of system memory ensures smooth processing of network tasks.
• Flash Memory: 256 MB for system configuration and updates.

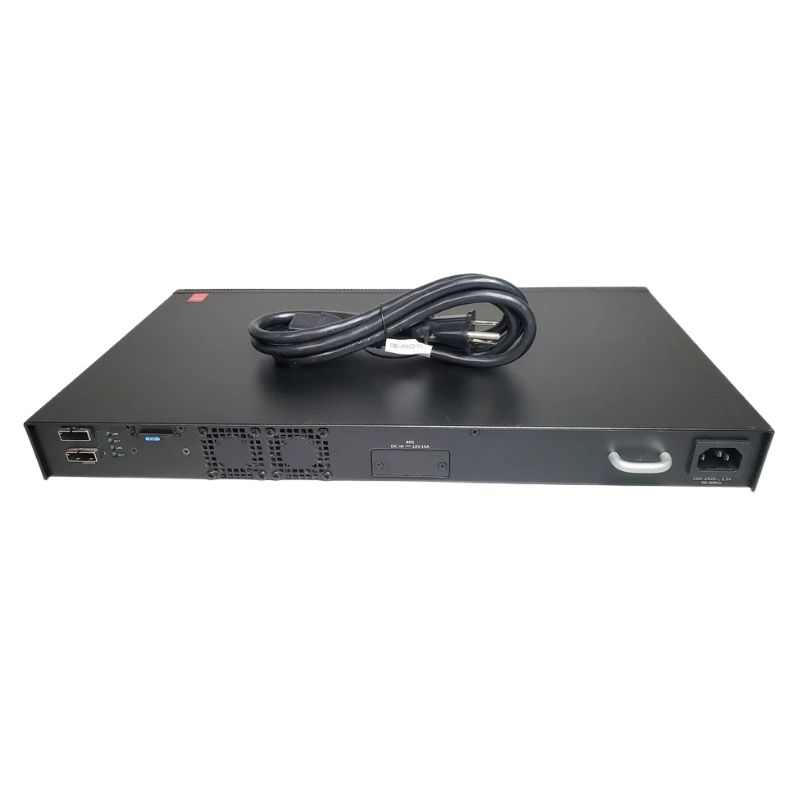

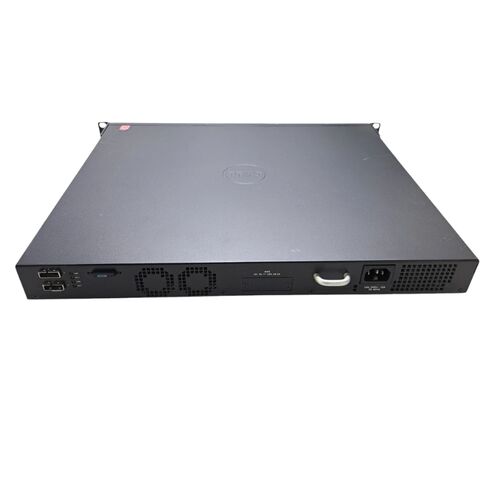

• Ports: 24 x Gigabit RJ-45, 2 x 10G SFP+, 1 x RS-232 for management, 1 x USB Type-A, 2 x network stack device ports.

Power and Energy Efficiency

• Power Supply: Internal, providing 100 watts of power.
• Operational Power Consumption: Consumes 42.9 watts, ensuring energy-efficient performance.
• Redundant Power System (RPS): Connector available for an additional layer of power reliability.

Number Of Ports

24 Ports for Enhanced Connectivity

The Dell N2024 Managed L3 Switch is equipped with 24 ports, providing users with enhanced connectivity options for their network infrastructure. With a generous number of ports available, this switch allows businesses to easily connect multiple devices, such as computers, servers, printers, and other network-enabled devices. The 24 ports enable efficient data transfer and communication between these devices, ensuring smooth and uninterrupted operations.

Scalability and Flexibility

Having 24 ports on the Dell N2024 switch offers scalability and flexibility to accommodate the evolving needs of businesses. Whether you have a small office network or a growing enterprise, the ample number of ports allows you to expand your network infrastructure without the need for additional switches or complex configurations. This scalability ensures that your network can adapt to future growth and technological advancements.

Improved Network Performance

The 24 ports on the Dell N2024 switch play a crucial role in improving network performance. With more ports available, you can distribute the network traffic evenly across multiple devices, preventing congestion and bottlenecks. This results in faster data transfer rates, reduced latency, and improved overall network efficiency. Users can enjoy seamless connectivity and experience enhanced productivity without any interruptions caused by network limitations.

Efficient Workgroup Collaboration

In workgroup environments where collaboration is key, the 24 ports of the Dell N2024 switch facilitate smooth collaboration among team members. Each member can connect their devices to the switch, enabling easy file sharing, resource access, and real-time collaboration. The increased number of ports allows for simultaneous connections, ensuring everyone can contribute to projects without any connectivity limitations.

Streamlined Network Management

The Dell N2024 Managed L3 Switch's 24 ports simplify network management tasks. With all devices connected to a single switch, administrators can easily monitor and control network activities from a central location. This streamlined management reduces the complexity of troubleshooting and maintenance, saving valuable time and effort. Additionally, the switch's user-friendly interface and configuration options make it convenient for administrators to manage and optimize network resources.

Cost-Efficient Solution

By offering 24 ports, the Dell N2024 switch provides a cost-efficient networking solution. Instead of investing in multiple switches or more expensive alternatives, businesses can achieve their connectivity requirements with a single device. This reduces the overall infrastructure cost while maintaining high-performance networking capabilities.

Reliable Network Connectivity

The 24 ports on the Dell N2024 switch ensure reliable network connectivity throughout your organization. Each port is designed to deliver stable and consistent connections, minimizing downtime and disruptions. Whether you are transferring large files, streaming media, or conducting video conferences, the reliable network connectivity provided by these ports ensures smooth and uninterrupted operations.

Future-Proof Investment

Investing in a switch with 24 ports, like the Dell N2024, is a future-proof decision. As technology advances and your network requirements grow, having ample ports ensures that your infrastructure can adapt to changing needs. You won't have to replace or upgrade the switch shortly due to port limitations, saving you both time and money.

Port Type

Ethernet Ports for Universal Compatibility

The Dell N2024 Managed L3 Switch features Ethernet ports, which offer universal compatibility with a wide range of devices and networks. Ethernet is a widely adopted networking standard that enables seamless communication between devices across various industries and applications.

Plug-and-Play Connectivity

With Ethernet ports, the Dell N2024 switch provides plug-and-play connectivity, making it incredibly easy to set up and integrate into your network infrastructure. Simply connect your Ethernet-enabled devices to the switch, and they will be instantly recognized and ready for use. This simplicity eliminates the need for complex configurations or specialized knowledge, saving time and effort during installation.

High-Speed Data Transfer

Ethernet ports offer high-speed data transfer capabilities, ensuring efficient communication between connected devices. The Dell N2024 switch's Ethernet ports support fast data transfer rates, enabling quick file transfers, streaming media, and other bandwidth-intensive tasks. Whether you are transferring large files or accessing shared resources, the high-speed connectivity provided by these ports guarantees optimal performance.

Interoperability with Existing Infrastructure

As Ethernet is a widely adopted standard, the Dell N2024 switch's Ethernet ports allow seamless interoperability with your existing network infrastructure. Whether you have older devices or different networking equipment from various vendors, the Ethernet ports ensure compatibility and smooth integration. This eliminates the need to replace or reconfigure existing devices, saving both time and money.

Support for Multiple Applications

The versatility of Ethernet ports on the Dell N2024 switch enables support for a wide range of applications. From basic data transfer to multimedia streaming and VoIP (Voice over Internet Protocol) communication, these ports can handle various network traffic types effortlessly. They provide a reliable foundation for different applications, ensuring consistent performance and optimized user experiences.

Secure and Private Data Transfer

Ethernet ports on the Dell N2024 switch support various security protocols, ensuring secure and private data transfer between connected devices. Whether you are transmitting sensitive information within your organization or conducting secure transactions over the network, these ports offer the necessary security features to protect your data from unauthorized access or interception.

Compatibility with Network Devices

With Ethernet ports, the Dell N2024 switch is compatible with a wide range of network devices, including computers, servers, printers, IP cameras, and access points. This compatibility allows you to connect and integrate devices seamlessly, creating a unified and efficient network infrastructure.

Easy Integration with Network Protocols

Ethernet ports on the Dell N2024 switch support various network protocols, such as TCP/IP (Transmission Control Protocol/Internet Protocol), DHCP (Dynamic Host Configuration Protocol), and VLAN (Virtual Local Area Network). These protocols enable efficient network communication, address allocation, and network segmentation, respectively. The switch's compatibility with these protocols ensures smooth integration into your existing network environment.

Number Of 10G Ports

2 10G Ports for High-Speed Connectivity

The Dell N2024 Managed L3 Switch is equipped with 2 10G ports, providing users with high-speed connectivity options for their network infrastructure. These 10G ports offer significantly faster data transfer rates compared to standard Gigabit Ethernet ports, enabling organizations to handle bandwidth-intensive tasks more efficiently.

Enhanced Performance and Throughput

The 10G ports on the Dell N2024 switch deliver enhanced performance and throughput for demanding applications that require substantial bandwidth. Whether you are transferring large files, streaming high-definition media, or running virtualized environments, these ports ensure smooth and uninterrupted operations. Users can experience reduced latency and improved overall network responsiveness.

Future-Proof Networking

With 2 10G ports, the Dell N2024 switch provides a future-proof networking solution. As technology advances and the demand for higher network speeds increases, these ports offer headroom for future expansion. Investing in a switch with 10G ports ensures that your network infrastructure can accommodate future growth and technological advancements without the need for premature hardware upgrades.

Seamless Integration with High-Bandwidth Devices

The 10G ports on the Dell N2024 switch seamlessly integrate with high-bandwidth devices, such as high-performance servers, storage systems, and network appliances. These devices often require faster data transfer rates to maximize their capabilities. By connecting them to the 10G ports, you can fully utilize their potential without any performance bottlenecks.

Efficient Data Replication and Backup

For organizations that rely on data replication and backup processes, the 10G ports on the Dell N2024 switch offer significant advantages. The high-speed connectivity provided by these ports allows for faster and more efficient data replication across multiple storage devices or backup locations. This ensures that critical data is replicated or backed up within shorter timeframes, reducing the risk of data loss and minimizing the impact of potential disasters.

Accelerated Virtualization Performance

Virtualized environments, such as virtual servers or desktops, benefit greatly from the 10G ports on the Dell N2024 switch. The higher bandwidth provided by these ports enables faster virtual machine migrations, improved response times, and enhanced overall performance of virtualized applications. Users can enjoy seamless virtual experiences without any noticeable slowdowns or performance degradation.

Increased Network Capacity

The 2 10G ports on the Dell N2024 switch increase your network's capacity to handle higher volumes of data traffic. Whether you have a growing number of users or bandwidth-intensive applications, these ports ensure that your network can accommodate the increased demand without sacrificing performance. This scalability allows your organization to scale up its operations and support future growth.

Support for Multiple Network Architectures

The 10G ports on the Dell N2024 switch support multiple network architectures, including traditional Ethernet and Fibre Channel over Ethernet (FCoE). This versatility allows you to choose the most suitable architecture for your specific requirements, ensuring optimal performance and compatibility with your existing infrastructure.

10G Port Type

SFP+ Ports for Versatile Connectivity

The Dell N2024 Managed L3 Switch features SFP+ (Small Form-Factor Pluggable Plus) ports as its 10G port type. These ports offer versatile connectivity options and support a wide range of SFP+ transceivers, allowing users to choose the most suitable ones for their specific network requirements.

Hot-Swappable Transceivers

SFP+ ports on the Dell N2024 switch support hot-swappable transceivers, which can be easily inserted or removed without powering down the switch or disrupting network connectivity. This flexibility allows for easy maintenance, upgrades, and customization based on changing network needs. It also reduces downtime and minimizes disruptions to network operations.

Interoperability with Different Media Types

The SFP+ ports on the Dell N2024 switch are compatible with a wide range of media types, such as copper cables, multimode fiber cables, and single-mode fiber cables. This interoperability ensures that you can choose the most appropriate media type for your specific network requirements, whether it is for short-distance connections within a data center or long-distance connections between remote locations.

Flexible Network Design and Expansion

The SFP+ ports' versatility on the Dell N2024 switch allows for flexible network design and expansion. You can easily connect different types of devices, such as servers, storage systems, and switches, using the appropriate SFP+ transceivers and media types. This flexibility enables you to create customized network configurations that best suit your unique requirements.

Long-Distance Connectivity

For organizations with geographically dispersed locations or remote offices, the SFP+ ports on the Dell N2024 switch enable long-distance connectivity. By utilizing single-mode fiber cables and compatible SFP+ transceivers, you can establish high-speed connections over long distances without any significant degradation in performance. This is particularly beneficial for data replication, disaster recovery, or interconnecting multiple sites.

Scalability and Investment Protection

The SFP+ ports' scalability on the Dell N2024 switch ensures investment protection by allowing easy migration to higher network speeds when required. As technology advances and demands for higher bandwidth increase, you can replace or upgrade the SFP+ transceivers to support faster network speeds without replacing the entire switch. This scalability saves costs and extends the lifespan of your network infrastructure.

Multi-Vendor Transceiver Compatibility

The SFP+ ports on the Dell N2024 switch are compatible with multi-vendor transceivers, allowing you to choose from a wide range of options available in the market. This compatibility ensures that you have flexibility in selecting transceivers based on factors such as budget, performance requirements, or specific vendor preferences. You are not limited to using proprietary transceivers, giving you more freedom in designing your network infrastructure.

Cost-Effective Network Expansion

The SFP+ ports on the Dell N2024 switch provide a cost-effective solution for network expansion. Instead of investing in new switches or complex configurations, you can leverage the existing switch and add additional SFP+ transceivers to support higher network speeds or connect to different types of devices. This allows for gradual and cost-efficient network expansion as your organization's needs evolve.
