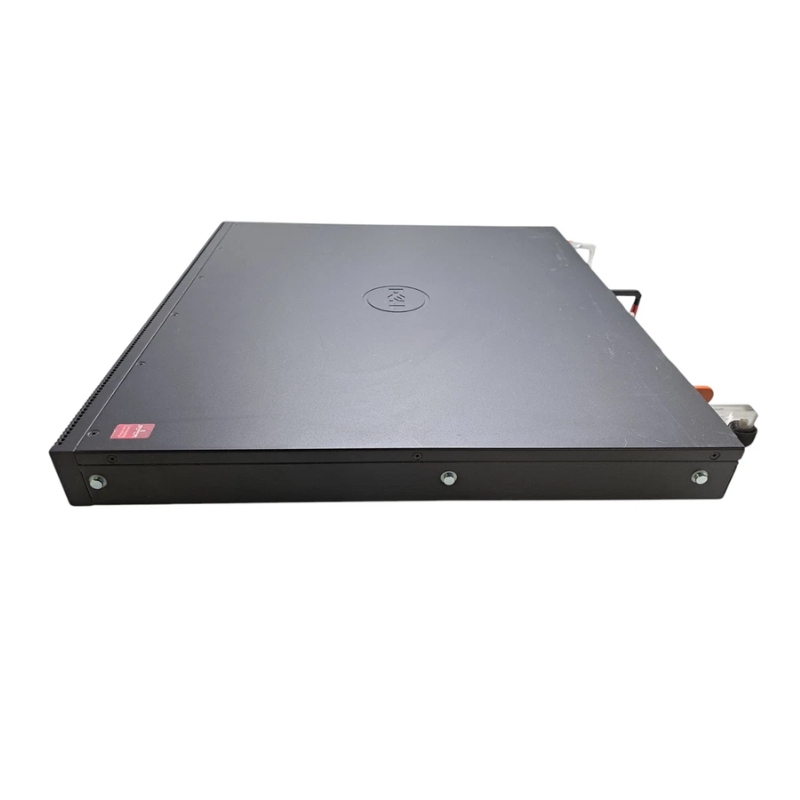

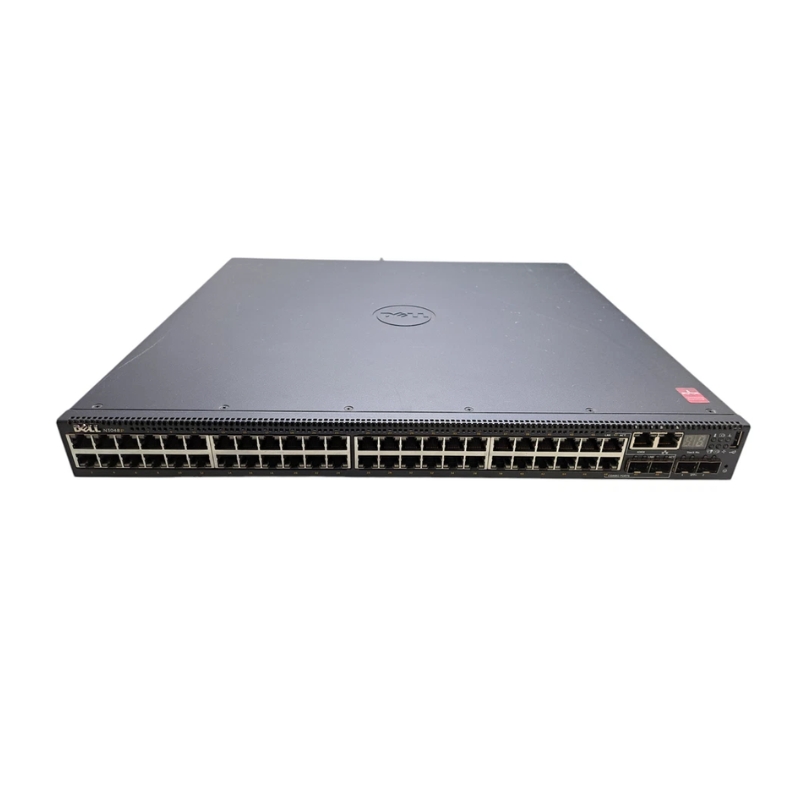

Dell N3048P 48 Ports L3 Managed Switch

Dell N3048P Networking Switch Overview

• Brand: Dell
• Model: N3048P
• Type: Managed Switch
• Rack-mountable with 48 Ethernet Ports

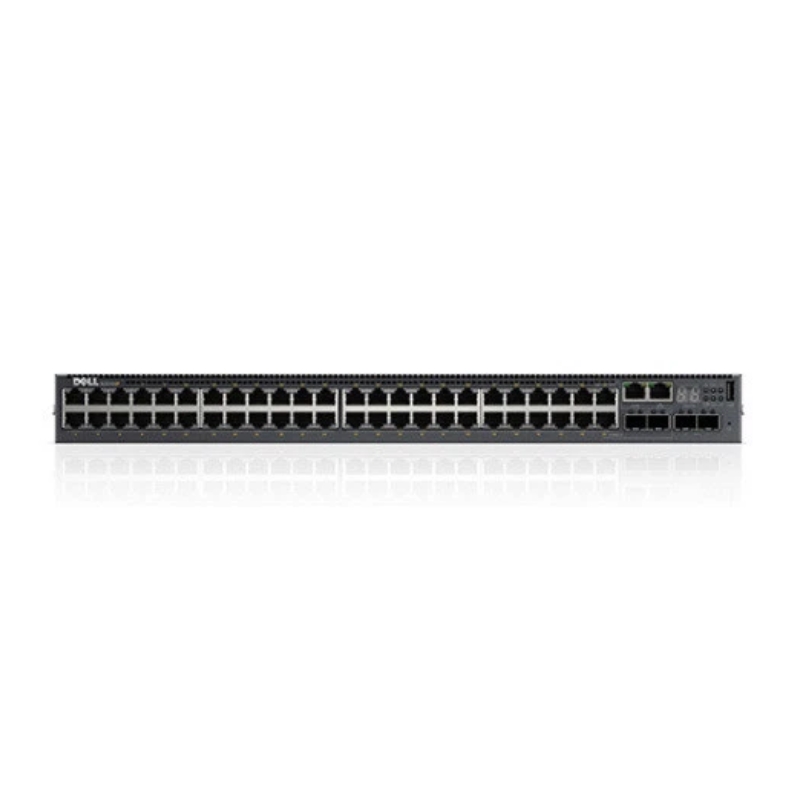

Port Configuration and Connectivity

• 48 x 10/100/1000 Ethernet Ports
• 2 x 10 Gigabit SFP+ Ports
• 2 x Combo 1000Base-T Ports
• Supports Power over Ethernet (PoE+)

Switching Performance

• Switching Fabric Capacity: 260 Gbps
• Forwarding Rate: 193 Mpps
• Stacking Bandwidth: 84 Gbps

Advanced Features

• Layer 3 Stackable Managed Switch
• Supports VLANs, OSPF, RIP, and dynamic routing
• IPv4 & IPv6 Static and Dynamic Routing

Capacity and Scaling

• MAC Address Entries: 16,384
• VLANs Supported: Up to 4,094
• Maximum LAG Groups: 128
• OSPF Routes: Up to 8,160
• Maximum Ports per LAG: 8

ACL and Security Features

• Access Control Lists (ACLs): 4,096 system-wide
• Maximum ACL Rules per Interface: 3,072 (IPv4 Ingress), 1,024 (IPv4 Egress)
• Supports IPv6 ACLs with up to 1,021 Ingress Rules

Supported Standards and Protocols

• IEEE 802.3 Ethernet Standards
• SNMP, RMON, SSH for Remote Management
• IEEE 802.1Q VLAN Tagging
• Supports LACP for Link Aggregation

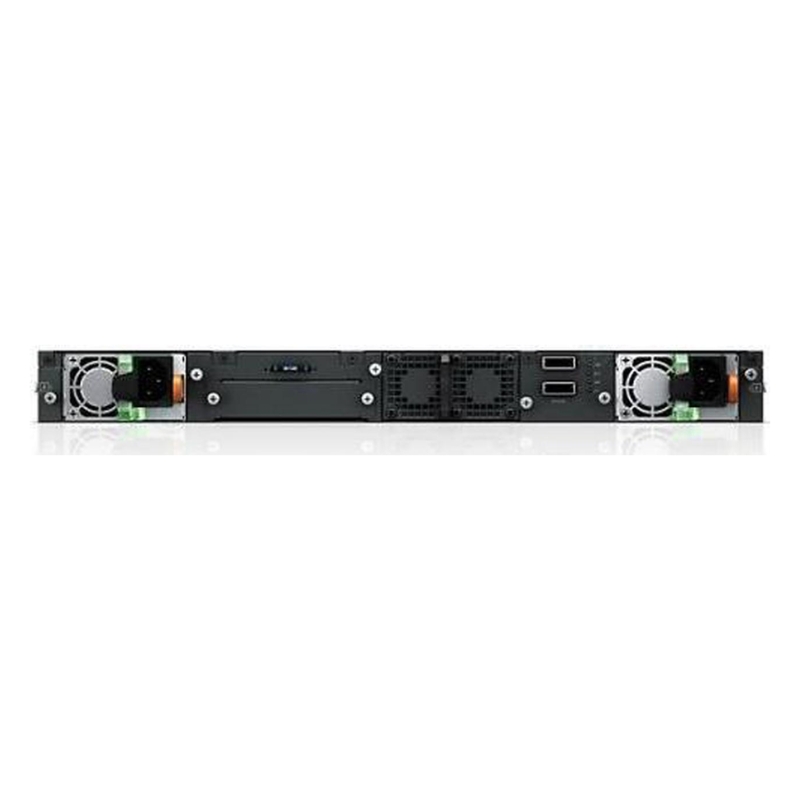

Power Supply and Enclosure

• 1U Rack-mountable Enclosure
• Single Power Supply Pre-installed

Ports

The Dell N3048P L3 Managed Switch is equipped with an impressive 48 ports, making it an ideal choice for businesses and organizations with high network traffic demands. The abundance of ports allows for the connection of numerous devices, such as computers, printers, servers, and other networking equipment. This switch provides exceptional flexibility and scalability, enabling users to expand their network infrastructure without any hassle.

Increased Connectivity

With 48 ports available, the Dell N3048P offers a vast number of connections, ensuring that all devices can be seamlessly integrated into the network. This high level of connectivity is particularly advantageous for large companies or organizations that have numerous departments or divisions. Each department can have its own dedicated port, resulting in efficient communication and data transfer within the network.

Reduced Network Congestion

By having 48 ports at your disposal, you can distribute the network load evenly across multiple devices. This helps to prevent network congestion and ensures that each device receives adequate bandwidth for optimal performance. With reduced congestion, users will experience faster data transfer speeds and a smoother overall network experience.

Expansion Capabilities

The abundance of ports on the Dell N3048P provides ample room for future growth and expansion. As your business or organization grows, you can easily connect additional devices without the need for additional switches or complex network reconfigurations. This scalability makes the N3048P a cost-effective solution in the long run, as it can adapt to your evolving network requirements.

Enhanced Network Flexibility

Having 48 ports gives you the flexibility to customize your network according to your specific needs. You can allocate ports based on device priority or department requirements. For example, you can dedicate certain ports to high-bandwidth devices such as servers or multimedia streaming devices, ensuring they receive uninterrupted and high-speed connectivity. This level of control allows you to optimize your network for maximum efficiency.

Management

The "Managed" feature of the Dell N3048P L3 Managed Switch sets it apart from unmanaged switches. This switch offers advanced management capabilities that provide users with greater control, visibility, and security over their network infrastructure.

Centralized Network Control

The managed functionality of the N3048P allows for centralized network control, giving administrators the ability to configure and manage the switch from a single interface. This centralized control simplifies network management tasks, such as VLAN configuration, port settings, and security protocols. With a managed switch like the N3048P, you have full control over your network, ensuring it operates efficiently and securely.

Enhanced Network Visibility

A managed switch like the N3048P provides administrators with detailed insights into network traffic, allowing them to monitor and analyze network behavior. This visibility is crucial for identifying potential bottlenecks, troubleshooting connectivity issues, and optimizing network performance. The N3048P offers features such as port mirroring and traffic monitoring, enabling administrators to gain valuable insights into their network's health and performance.

Improved Network Security

Network security is a top priority for any organization, and the managed capabilities of the N3048P can significantly enhance your network's security posture. With features like access control lists (ACLs), administrators can define policies that restrict or permit specific types of traffic, protecting sensitive data from unauthorized access. Additionally, the N3048P supports various security protocols such as Secure Shell (SSH) and Secure Sockets Layer (SSL) for secure remote management.

Quality of Service (QoS) Optimization

The managed functionality of the N3048P enables administrators to prioritize certain types of network traffic through Quality of Service (QoS) settings. This ensures that critical applications or services receive the necessary bandwidth and network resources, guaranteeing optimal performance. QoS optimization is particularly beneficial for organizations that rely on real-time applications such as voice over IP (VoIP) or video conferencing.

Power-over-Ethernet

The Dell N3048P L3 Managed Switch features Power-over-Ethernet (PoE) functionality, which allows for the simultaneous transmission of data and power over Ethernet cables. This feature eliminates the need for separate power cables, simplifying installation and reducing clutter in your network infrastructure.

Simplified Installation

With PoE support, you can easily install devices such as IP phones, wireless access points, and security cameras without the need for additional power outlets near each device. This simplifies the installation process and reduces the overall cost of deploying these devices. Additionally, PoE eliminates the need for complex wiring setups, making it an ideal solution for organizations with limited physical space or older buildings.

Flexibility and Mobility

The PoE feature of the N3048P enables devices to be powered and connected to the network through a single Ethernet cable. This provides flexibility and mobility, as devices can be easily relocated or added to different areas of your network without the need for additional power sources. This level of flexibility is particularly advantageous in dynamic environments or spaces where frequent device movement is required.

Cost Savings

By utilizing PoE, you can significantly reduce the costs associated with deploying and maintaining separate power infrastructure. The elimination of individual power adapters and cables reduces both the initial setup costs and ongoing energy consumption. Additionally, PoE allows for centralized power management, enabling administrators to monitor and control power usage more efficiently.

Remote Power Management

The N3048P's PoE functionality includes remote power management capabilities. Administrators can remotely monitor and control the power status of each connected PoE device. This remote power management feature simplifies troubleshooting and allows for efficient power allocation, ensuring that critical devices receive power priority when needed. Additionally, remote power management helps to minimize energy waste by allowing administrators to power down or schedule power cycles for devices that are not in use.

In conclusion, the Dell N3048P L3 Managed Switch provides users with an extensive range of benefits and features. The 48 ports offer increased connectivity, reduced network congestion, expansion capabilities, and enhanced network flexibility. The managed functionality provides centralized network control, enhanced visibility, improved security, and QoS optimization. The Power-over-Ethernet feature simplifies installation, offers flexibility and mobility, reduces costs, and includes remote power management capabilities. Whether you need a reliable switch for a small office or a large enterprise network, the Dell N3048P is a versatile and powerful solution that meets the demands of modern networking environments.
