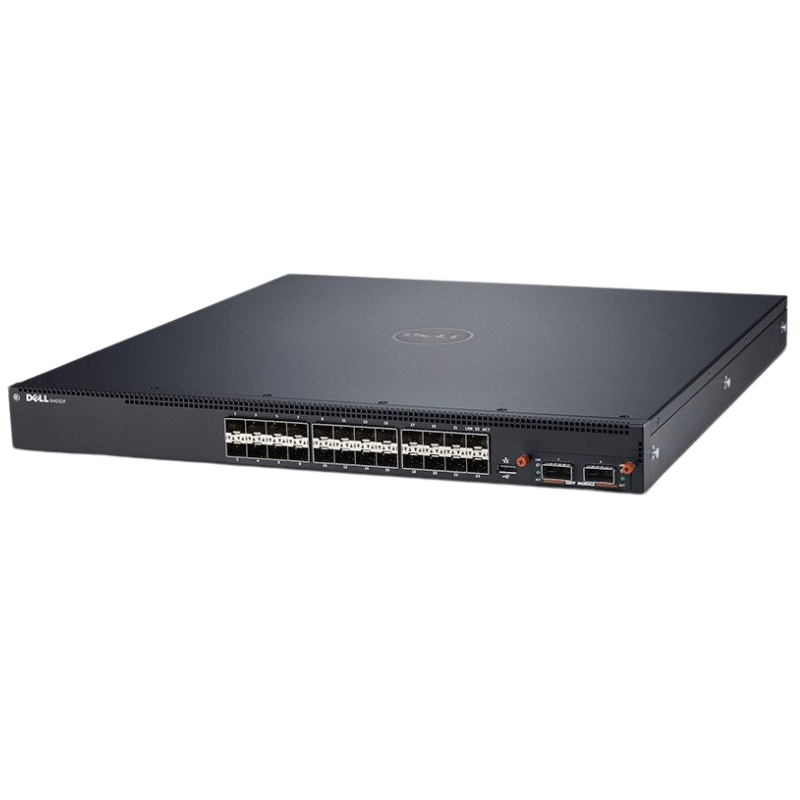

Dell N4032F 10GbE 24-Port L3 Managed Stackable Ethernet Switch

Product Overview

Device Specifications

• Type: 24-Port L3 Managed Stackable Switch
• Form Factor: Rack-mountable, 1U
• Network Interface: 10 Gigabit Ethernet

Port and Performance Details

• Ports: 24 x 10 Gigabit SFP+
• Switching Fabric Bandwidth: 640 Gbps
• Forwarding Performance: 476 Million Packets Per Second (Mpps)

Capacity and Routing

• MAC Addresses: 131,072
• IPv4 Static Routes: 1,024
• IPv6 Static Routes: 1,024
• IPv4 Dynamic Routes: 8,160
• IPv6 Dynamic Routes: 4,096
• Maximum Ports per LAG: 8
• Maximum Dynamic Ports per Switch Stack: 144
• LAG Groups: 128
• Priority Queues per Port: 8
• OSPF Routes: 8,160
• RIP Routes: 512
• ECMP Next Hops per Route: 4
• ECMP Groups: 1,024
• VLAN Routing Interfaces: 128
• Supported VLANs: 4,094
• IPv4 Multicast Entries: 512
• IPv6 Multicast Entries: 256
• ARP Entries: 6,144
• NDP Entries: 400

Access Control and Security

• ACL Entries: 100
• Maximum Rules per ACL: 1,023
• Maximum ACL Rules System-wide: 3,072
• Maximum ACL Rules per Interface (IPv4 Egress): 1,023
• Maximum ACL Rules per Interface (IPv4 Ingress): 2,047
• Maximum ACL Rules per Interface (IPv6 Egress): 512
• Maximum ACL Rules per Interface (IPv6 Ingress): 1,021
• Maximum VLAN Interfaces with ACLs Applied: 24

Routing Protocols

• OSPF, RIP-1, RIP-2, IGMPv2, IGMP, VRRP
• OSPFv2, PIM-SM, PIM-DM, IGMPv3
• OSPFv3, MLDv2, MLD

Management and Monitoring

• Remote Management Protocols: SNMP v2, SNMP, RMON, HTTP, SSH
• Management Features: Layer 3 and Layer 2 Switching, MDI/MDI-X, Auto-negotiation, Port Mirroring
• Additional Features: Stackable, Broadcast Storm Control, IP Address Filtering, ACL Support
• Quality of Service (QoS): Dynamic ARP Inspection (DAI), LLDP Support, Remote Switch Port Analyzer (RSPAN)
• Management Information Base (MIB): Dual Firmware Images, Redundant Fans

Compliance and Standards

• IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z
• IEEE 802.1d, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p
• IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x
• IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v
• ANSI/TIA-1057, IEEE 802.1ag, IEEE 802.1ab (LLDP)
• IEEE 802.3az, IEEE 802.1qbb, IEEE 802.1qaz

Power Redundancy

• Yes, the device supports power redundancy for enhanced reliability.

Ports

The Dell N4032F Stackable Ethernet Switch is equipped with a remarkable 24 ports, making it an ideal choice for businesses and organizations that require high-density networking capabilities. These ports are essential for connecting multiple devices, such as computers, servers, printers, and other network devices, to the switch.

Increased Connectivity

With 24 ports available on the Dell N4032F switch, users can connect a wide range of devices simultaneously. This is particularly beneficial for businesses that have multiple departments or teams requiring access to the network. Each department can have its dedicated port, ensuring reliable and consistent connectivity without any compromise in performance.

Scalability

The abundance of ports on the Dell N4032F switch allows for easy scalability. As your business grows and requires additional network connections, you can simply connect more devices to the available ports on the switch. This eliminates the need for investing in additional switches or complex network configurations.

Flexibility

The 24 ports on the Dell N4032F switch provide users with the flexibility to customize their network setups according to their specific requirements. You can easily allocate specific ports to different departments or prioritize certain devices by connecting them to dedicated ports. This level of flexibility ensures efficient network management and optimal performance.

Speed

One of the standout features of the Dell N4032F Stackable Ethernet Switch is its impressive speed of 10 Gigabytes. This high-speed capability is essential for businesses that handle large amounts of data and require fast and reliable network connections.

Enhanced Data Transfer

With a speed of 10 Gigabytes, the Dell N4032F switch enables lightning-fast data transfer between connected devices. This is particularly beneficial in scenarios where large files or data sets need to be transferred quickly, such as in graphic design studios, video editing suites, or data-intensive research environments. The high-speed capability ensures minimal waiting times and increased productivity.

Future-Proofing

The 10-gigabyte speed of the Dell N4032F switch ensures that you are ready for future advancements in technology. As more and more devices and applications require higher bandwidths, having a switch with 10 Gigabyte speed ensures that your network infrastructure can handle the increased demands without any bottlenecks or performance issues.

Reduced Latency

The high-speed capability of the Dell N4032F switch significantly reduces latency, providing users with a seamless and responsive network experience. This is particularly important in real-time applications such as video conferencing, online gaming, or VoIP (Voice over Internet Protocol) calls, where any delays or interruptions can have a detrimental impact on communication quality.

Layer

The Dell N4032F Stackable Ethernet Switch boasts Layer 3 functionality, which offers advanced networking capabilities and brings numerous benefits to users.

Efficient Routing

Layer 3 switches, such as the Dell N4032F, can perform routing functions at wire speed. This means that the switch can efficiently direct network traffic between different subnets or VLANs (Virtual Local Area Networks). By handling routing at the switch level, you can offload this task from your core router, resulting in improved overall network performance.

Improved Network Segmentation

Layer 3 switches enable network segmentation by creating multiple virtual networks within a single physical network infrastructure. This allows for enhanced security and improved network management. It enables you to isolate specific devices or departments within their virtual networks, ensuring that sensitive data remains protected and reducing the risk of unauthorized access.

Quality of Service (QoS)

The Layer 3 functionality of the Dell N4032F switch allows for the implementation of Quality of Service (QoS) policies. QoS enables you to prioritize network traffic based on specific requirements. For example, you can prioritize voice or video traffic to ensure a smooth and uninterrupted user experience. This ensures that critical applications or services receive the necessary bandwidth and reduces the chances of congestion or network slowdowns.

In conclusion, the Dell N4032F Stackable Ethernet Switch offers a comprehensive set of features that cater to the needs of modern businesses and organizations. With its 24 ports, users can enjoy increased connectivity, scalability, and flexibility. The impressive 10-gigabyte speed ensures enhanced data transfer, future-proofing, and reduced latency. Finally, the Layer 3 functionality brings efficient routing, improved network segmentation, and Quality of Service capabilities. Whether you are looking to upgrade your current network infrastructure or set up a new one, the Dell N4032F switch is a reliable and powerful choice that will meet your networking needs.
