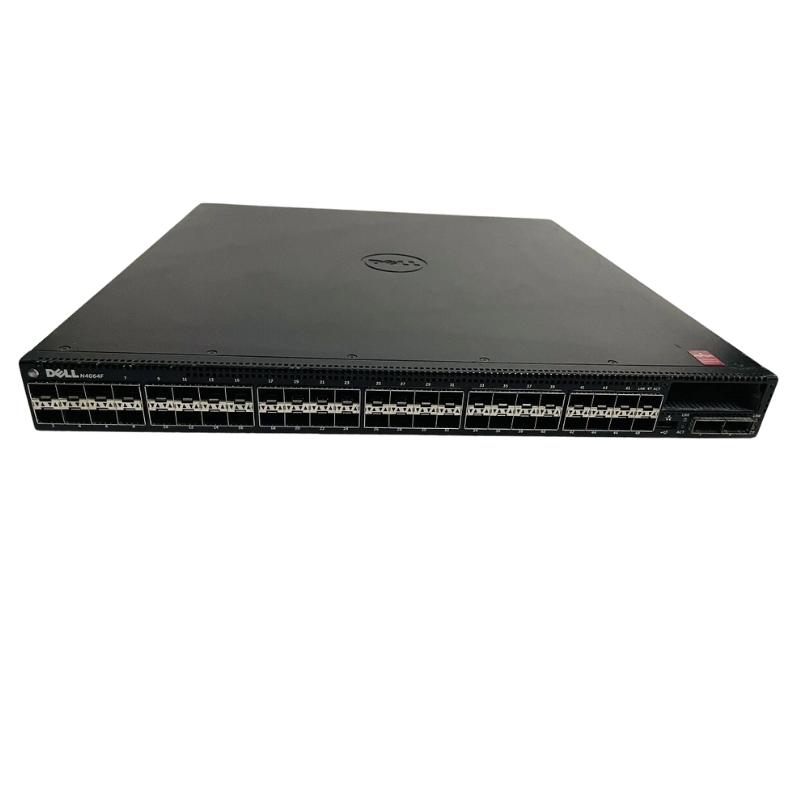

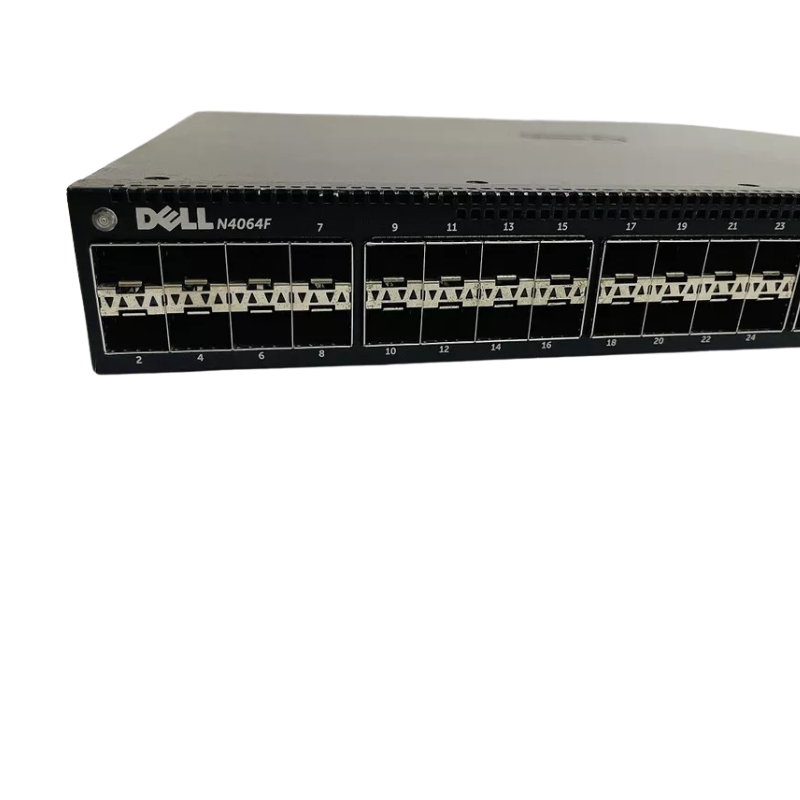

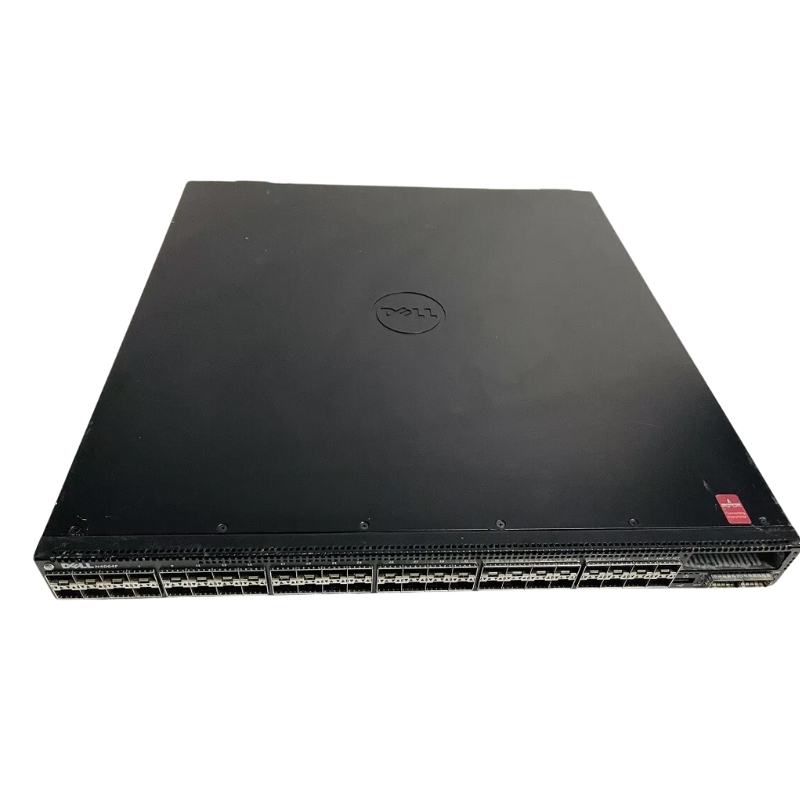

Dell N4064 Managed Switch 48 Ports L3 Stackable Rack Mountable 2 x 40GB QSFP+

Key Specifications

Device Characteristics

• Type: 48-Port L3 Managed Stackable Switch
• Form Factor: Rack-mountable 1U
• Technology: 10 Gigabit Ethernet

Port Configuration

• Ports: 48 x 10 Gigabit Ethernet + 2 x 40 Gigabit QSFP+

Performance Metrics

• Switching Fabric Bandwidth: 1.28 Tbps
• Forwarding Throughput: 952 Mpps

Capacity and Limits

Address and Route Management

• MAC Address Table: 131,072 Entries
• Static IPv4 Routes: 1,024
• Dynamic IPv4 Routes: 8,160
• Static IPv6 Routes: 1,024
• Dynamic IPv6 Routes: 4,096

Port and VLAN Specifications

• Maximum Member Ports Per LAG: 8
• Maximum Dynamic Ports Per Switch Stack: 144
• VLANs Supported: 4,094

ACL and Multicast

• Maximum ACL Rules (System-wide): 3,072
• Maximum ACL Rules Per Interface (IPv4 Ingress): 2,047
• Maximum Multicast Entries (IPv4): 512
• Maximum Multicast Entries (IPv6): 256

Routing and Management

Supported Protocols

• Routing Protocols: OSPF, RIP-1, RIP-2, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPFv3, MLdV2

Management and Security

• Remote Management Protocols: SNMPv2, SNMP, RMON, HTTP, SSH
• Encryption: AES, SSL, TLS 1.0
• Authentication Methods: RADIUS, TACACS+, LDAP

Compliance and Standards

Industry Standards

• IEEE Standards: 802.2, 802.3, 802.3u, 802.3z, 802.1d, 802.1q, 802.3ab, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.3ae, 802.3ac, 802.1s, 802.1v, 802.1ag, 802.1ab (LLDP), 802.3az, 802.1qbb, 802.1qaz
• ANSI/TIA Standard: 1057

Hardware Details

Memory and Storage

• RAM: 2 GB
• Flash Memory: 256 MB

Expansion and Connectivity

• Interfaces:

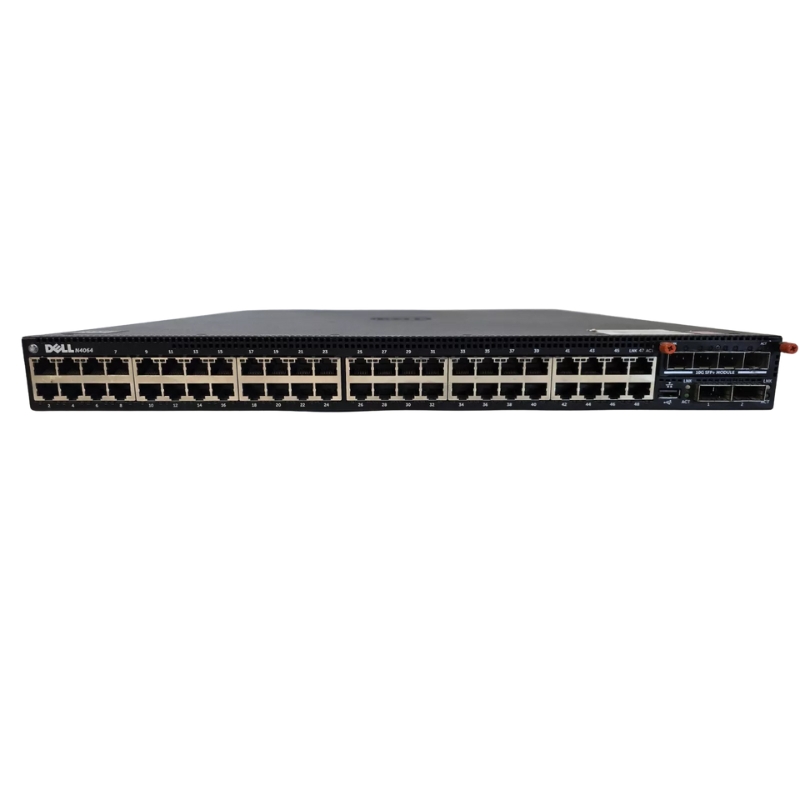

  • 48 x 10 Gbit LAN - RJ-45
  • 2 x 40 Gbit LAN - QSFP+
  • 1 x Gigabit LAN - RJ-45 (Management)
  • 1 x Serial (RS-232) - RJ-45 (Management)
  • 1 x USB - Type A
• Expansion Slots: 1 (total), 1 (free)

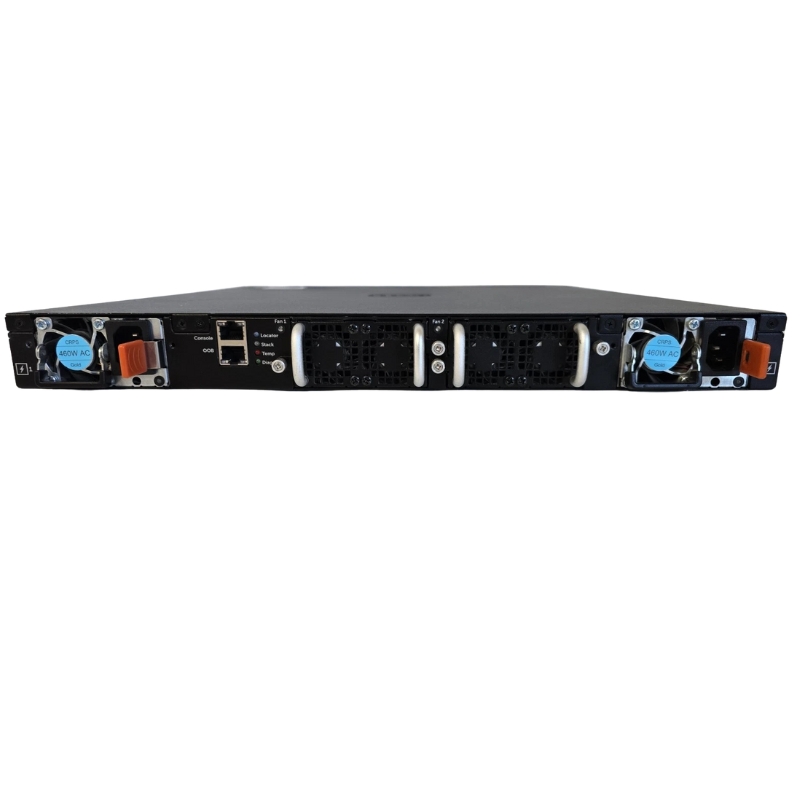

Power Specifications

• Power Device: Internal Hot-plug Power Supply
• Installed Power Supplies: 2
• Power Redundancy: Yes
• Power Provided: 460 Watts
• Operational Power Consumption: 395 Watts

Ports

The Dell N4064 Managed Switch boasts an impressive 48 ports, making it an ideal choice for businesses and organizations that require extensive networking capabilities. These ports provide users with the ability to connect multiple devices to the switch, facilitating efficient communication and data transfer across the network.

Increased Connectivity

With 48 ports, the Dell N4064 switch offers a substantial increase in connectivity options compared to switches with fewer ports. This allows businesses to connect a greater number of devices, such as computers, printers, servers, and IP phones, to their network without the need for additional switches or complicated setups.

Scalability

The abundance of ports on the Dell N4064 switch ensures scalability for growing businesses. As companies expand and add more devices to their network, having ample ports available allows for seamless integration of new hardware without disruptions or bottlenecks in network performance.

Flexibility

The numerous ports on the Dell N4064 switch provide users with the flexibility to configure their network in various ways. Whether it's creating separate VLANs for different departments, setting up link aggregation for higher bandwidth requirements, or establishing redundant connections for increased reliability, the abundance of ports enables users to design a network that suits their specific needs.

By offering 48 ports, the Dell N4064 Managed Switch addresses the connectivity needs of modern businesses and organizations, ensuring smooth operations and efficient data transfer.

Layer

The Dell N4064 Managed Switch features Layer 3 functionality, making it a powerful networking solution for businesses that require advanced routing capabilities. Layer 3 switches operate at the network layer of the OSI model and provide enhanced routing capabilities compared to Layer 2 switches.

Advanced Routing

With Layer 3 functionality, the Dell N4064 switch can perform advanced routing tasks, such as static routing, dynamic routing protocols (e.g., OSPF, BGP), and inter-VLAN routing. This enables businesses to create complex network architectures and efficiently manage traffic flow between different subnets or VLANs.

Improved Network Performance

Layer 3 switches offer faster and more efficient routing compared to traditional routers. By using hardware-based forwarding and caching techniques, the Dell N4064 switch can process packets and make routing decisions at high speeds, resulting in improved network performance and reduced latency.

Reduced Network Complexity

Deploying a Layer 3 switch like the Dell N4064 eliminates the need for separate routers in the network infrastructure. This reduces network complexity, simplifies management, and lowers overall costs. Additionally, with Layer 3 functionality integrated into the switch, businesses can enjoy a streamlined and consolidated network architecture.

By incorporating Layer 3 functionality, the Dell N4064 Managed Switch offers businesses advanced routing capabilities, improved network performance, and reduced complexity.

Stackable

The Dell N4064 Managed Switch is stackable, providing businesses with the ability to expand their network infrastructure without sacrificing performance or manageability. The stackable feature allows multiple switches to be interconnected and managed as a single unit.

Scalability

The stackable feature of the Dell N4064 switch ensures scalability for businesses that anticipate future growth. By stacking additional switches, businesses can increase their network capacity without the need for complex configurations or separate management interfaces. This simplifies network expansion and facilitates seamless integration of new devices.

Centralized Management

With stackable switches, businesses can manage multiple switches as a single logical unit. This centralized management approach streamlines network administration tasks by providing a unified interface for configuration, monitoring, and troubleshooting. Administrators can easily apply changes to the entire stack or specific switches within the stack, saving time and effort.

Improved Resilience

Stackable switches enhance network resilience by providing built-in redundancy. If one switch in the stack fails, the remaining switches continue to operate, ensuring uninterrupted network connectivity. Additionally, stackable switches support link aggregation, allowing for increased bandwidth and load balancing across multiple connections.

The stackable feature of the Dell N4064 switch offers businesses scalability, centralized management, and improved resilience, making it an ideal choice for organizations that require a flexible and efficient network infrastructure.

Uplink Ports

The Dell N4064 Managed Switch is equipped with two uplink ports, providing users with high-speed connections to other network devices or uplinking to higher-level switches or routers. These uplink ports play a crucial role in establishing reliable and efficient network connections.

Upstream Connectivity

The uplink ports on the Dell N4064 switch enable businesses to connect their switch to higher-level networking equipment, such as core switches or routers. This establishes a direct link to the backbone of the network, ensuring fast and reliable communication between different segments of the network.

High Bandwidth Capacity

Uplink ports typically offer higher bandwidth capacity than regular ports, allowing for faster data transfer and reduced congestion. The two uplink ports on the Dell N4064 switch offer increased bandwidth for demanding applications, such as video streaming, large file transfers, or data-intensive tasks, ensuring optimal performance and user experience.

Flexibility in Network Design

The presence of uplink ports provides users with flexibility in network design. Businesses can choose different connection types for their uplinks, such as Ethernet or fiber optic connections, depending on their specific requirements. This flexibility allows for seamless integration with existing infrastructure and facilitates future upgrades or changes in network topology.

The two uplink ports on the Dell N4064 switch enhance upstream connectivity, increase bandwidth capacity, and offer flexibility in network design, making it an excellent choice for businesses that demand robust and reliable network connections.

Uplink Speed

The Dell N4064 Managed Switch boasts an impressive uplink speed of 40GB QSFP+, making it a high-performance networking solution for businesses that require fast and reliable data transfer.

High-Speed Data Transfer

The 40GB QSFP+ uplink speed of the Dell N4064 switch enables businesses to transfer large volumes of data quickly and efficiently. Whether it's backing up files, streaming high-definition media, or running data-intensive applications, the high-speed uplink ensures minimal latency and optimal performance.

Future-Proof Technology

With the increasing demand for higher network speeds, the 40GB QSFP+ uplink speed future-proofs the network infrastructure. It provides businesses with the capability to handle emerging technologies and bandwidth-hungry applications without the need for immediate upgrades or replacements. This ensures a long-term investment in a reliable and high-performance networking solution.

Compatibility and Interoperability

The 40GB QSFP+ uplink speed of the Dell N4064 switch ensures compatibility and interoperability with other networking devices that support similar speeds. This allows businesses to seamlessly integrate the switch into their existing infrastructure or expand their network by connecting to other high-speed devices without compatibility issues.

The 40GB QSFP+ uplink speed of the Dell N4064 switch offers businesses high-speed data transfer, future-proof technology, and compatibility with other devices, making it an ideal choice for organizations that require a reliable and high-performance networking solution.

In conclusion, the Dell N4064 Managed Switch offers an array of features that cater to the networking needs of businesses and organizations. With its 48 ports, Layer 3 functionality, stackable capability, two uplink ports, and 40GB QSFP+ uplink speed, this switch provides enhanced connectivity, advanced routing, scalability, centralized management, resilience, high-speed data transfer, and compatibility. By incorporating these features into their network infrastructure, businesses can enjoy efficient operations, improved performance, and a future-proof networking solution.
