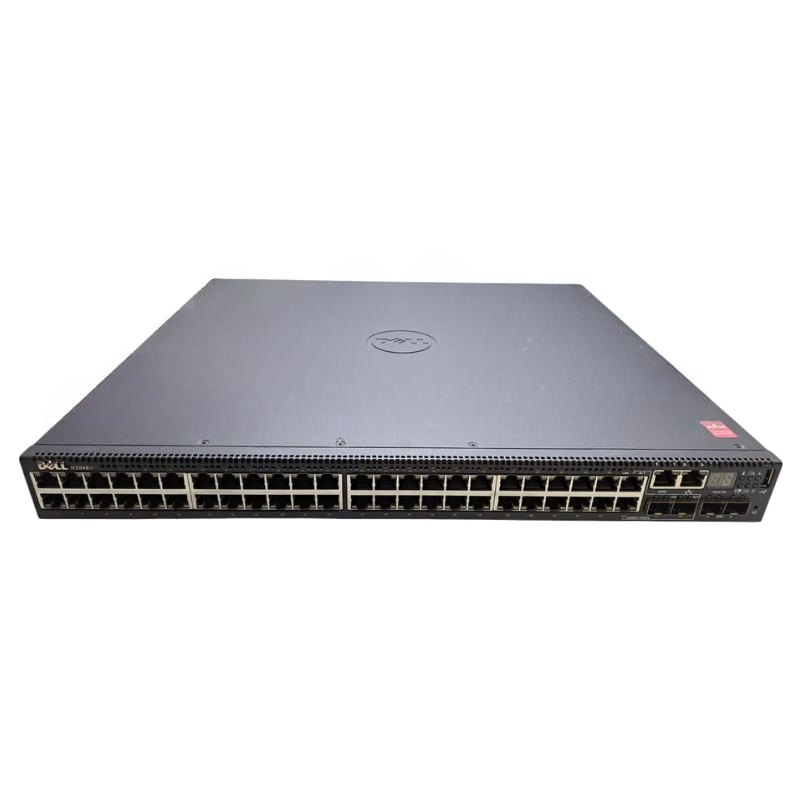

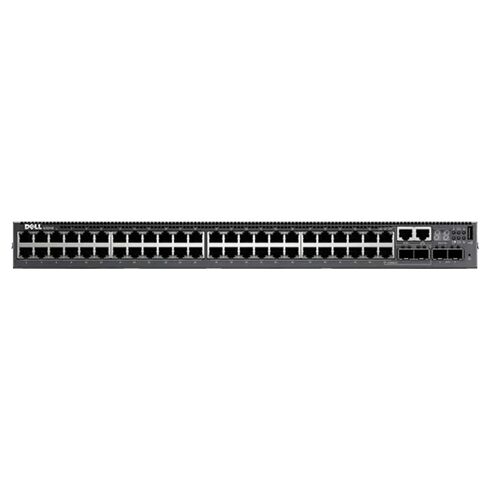

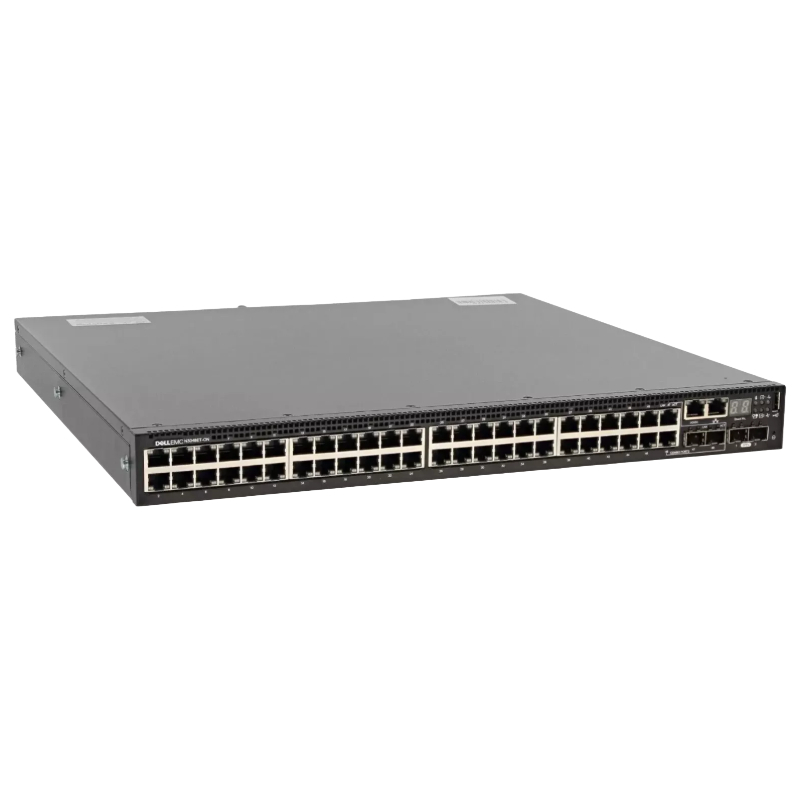

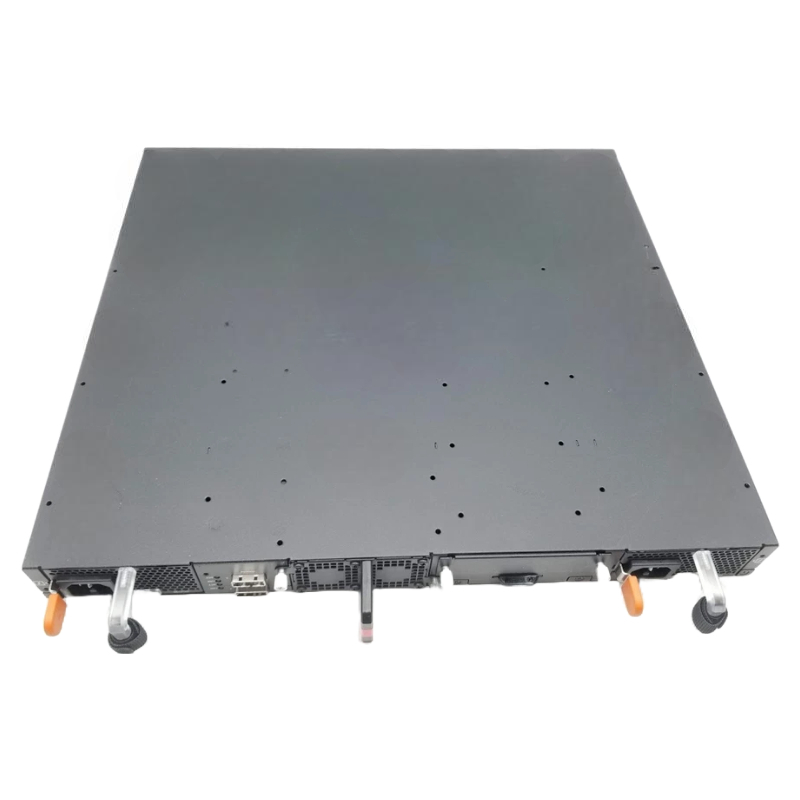

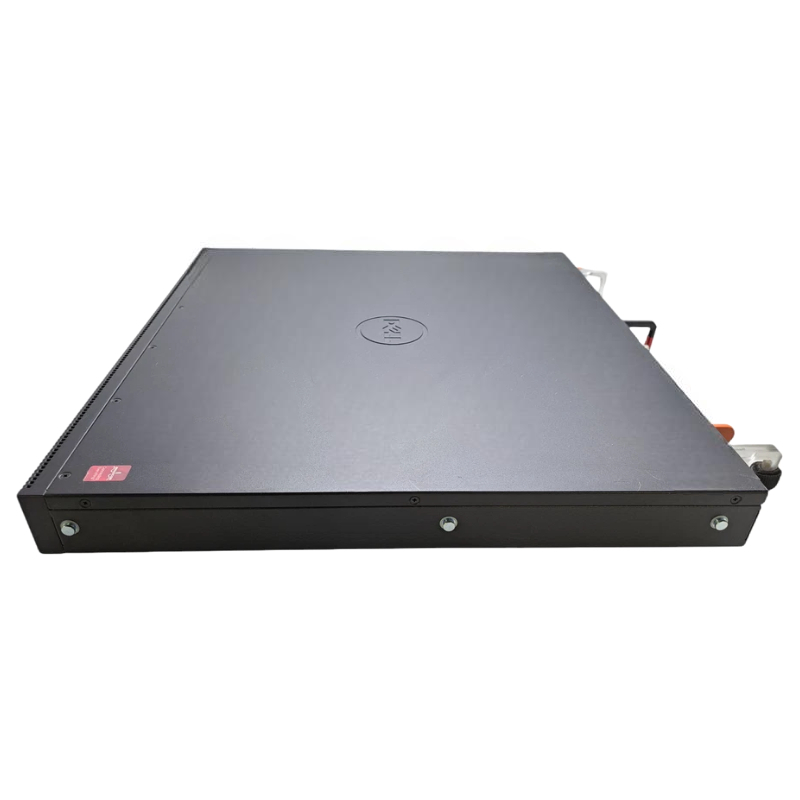

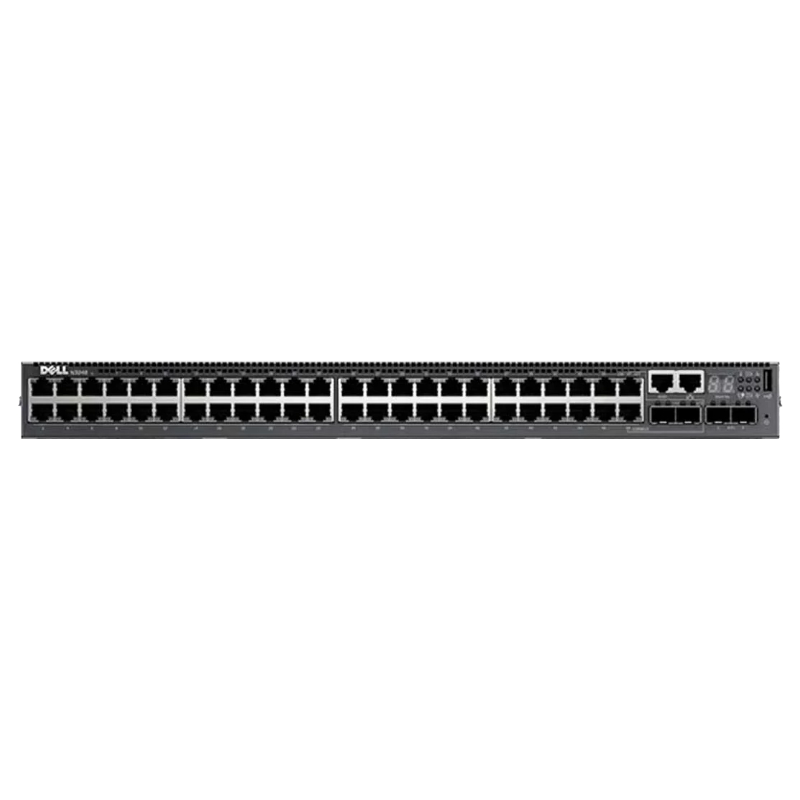

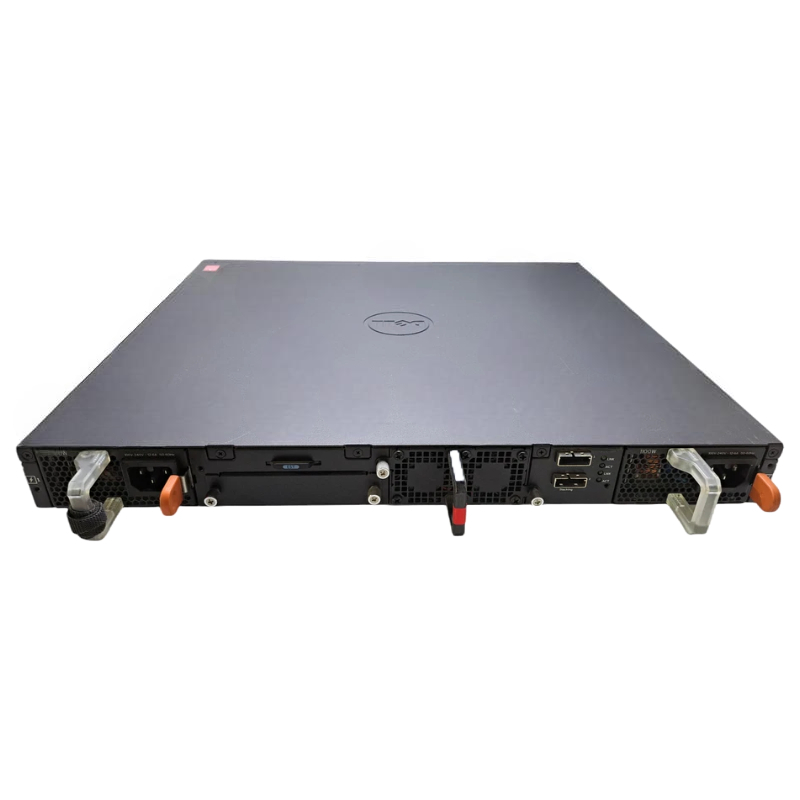

Dell N4064F 48-Port 10G SFP+ & 2 40G Managed L3 Switch - 463-7700

Product Overview

Explore the advanced features of our 48 Ports L3 Managed Stackable Switch, a robust solution designed for high-performance networking.

Key Specifications

• Device Type: 48-Port L3 Managed Stackable Switch
• Enclosure Type: Rack-mountable (1U)
• Subtype: 10 Gigabit Ethernet
• Ports:
  • 48 x 10 Gigabit SFP+
  • 2 x 40 Gigabit QSFP+

Performance Metrics

• Switching Fabric Bandwidth: 1.28 Tbps
• Forwarding Performance: 952 Mpps

Capacity and Routing

• MAC Addresses: 131,072
• IPv4 Static Routes: 1,024
• IPv6 Static Routes: 1,024
• IPv4 Dynamic Routes: 8,160
• IPv6 Dynamic Routes: 4,096
• Max Member Ports Per LAG: 8
• Max Dynamic Ports Per Switch Stack: 144
• LAG Groups: 128
• Priority Queues Per Port: 8
• OSPF Routes: 8,160
• RIP Routes: 512
• ECMP Next Hops Per Route: 4
• ECMP Groups: 1,024
• VLAN Routing Interfaces: 128
• VLANs Supported: 4,094
• Multicast Entries (IPv4): 512
• Multicast Entries (IPv6): 256
• ARP Entries: 6,144
• NDP Entries: 400
• ACL: 100
• Max ACL Rules Per ACL: 1,023
• Max ACL Rules System-wide: 3,072
• Max ACL Rules Per Interface (IPv4) Egress: 1,023
• Max ACL Rules Per Interface (IPv4) Ingress: 2,047
• Max ACL Rules Per Interface (IPv6) Egress: 512
• Max ACL Rules Per Interface (IPv6) Ingress: 1,021
• Max VLAN Interfaces with ACLs Applied: 24
• MAC Address Table Size: 131,072 Entries

Routing Protocols and Management

• Supported Routing Protocols: OSPF, RIP-1, RIP-2, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPFv3, MLdv2, MLd
• Remote Management Protocols: SNMP v2, SNMP, RMON, HTTP, SSH
• Encryption Algorithms: AES, SSL, TLS 1.0
• Authentication Methods: RADIUS, TACACS+, LDAP

Advanced Features

• Layer 3 Switching
• Layer 2 Switching
• MDI/MDI-X Switching
• Auto-negotiation
• Port Mirroring
• Stackable Design
• Broadcast Storm Control
• IP Address Filtering
• Access Control List (ACL) Support
• Quality of Service (QoS)
• Dynamic ARP Inspection (DAI)
• LLDP Support
• Remote Switch Port Analyzer (RSPAN)
• Management Information Base (MIB)
• Dual Firmware Images
• Redundant Fans
• MAC and IP-Based ACLs Support
• Time-Controlled ACLs Support
• Protocol-Based VLANs Support

Standards Compliance

• IEEE 802.2
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3z
• IEEE 802.1d
• IEEE 802.1q
• IEEE 802.3ab
• IEEE 802.1p
• IEEE 802.3x
• IEEE 802.3ad (LACP)
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.3ae
• IEEE 802.3ac
• IEEE 802.1s
• IEEE 802.1v
• ANSI/TIA-1057
• IEEE 802.1ag
• IEEE 802.1ab (LLDP)
• IEEE 802.3az
• IEEE 802.1qbb
• IEEE 802.1qaz

Hardware Specifications

• RAM: 2 GB
• Flash Memory: 256 MB

Expansion and Connectivity

• Interfaces:
  • 48 x 10G LAN - SFP+
  • 2 x 40G LAN - QSFP+
  • 1 x Gigabit LAN - RJ-45 (Management)
  • 1 x Serial (RS-232) - RJ-45 (Management)
  • 1 x USB - Type A
• Expansion Slots: 1 (total) / 1 (free)

Power Details

• Power Device: Internal Power Supply - Hot-Plug
• Installed Qty: 1 (installed) / 2 (max)
• Power Redundancy: Yes
• Power Provided: 460 Watt
• Operational Power Consumption: 395 Watt

Ports

48 Ports

The Dell N4064F Managed L3 Switch is equipped with 48 ports, providing users with a multitude of connectivity options. These ports allow for the simultaneous connection of various devices, such as computers, servers, and networking equipment. With 48 ports available, users can easily expand their network infrastructure and accommodate a higher number of devices without compromising on performance or speed.

Enhanced Scalability and Flexibility

The inclusion of 48 ports in the Dell N4064F Managed L3 Switch ensures enhanced scalability and flexibility for users. This switch is designed to meet the growing demands of modern businesses, enabling them to effortlessly connect multiple devices and expand their network as needed. Whether you are a small business experiencing growth or a large enterprise requiring extensive network connectivity, the 48 ports offered by this switch provide the necessary scalability to accommodate your requirements.

Efficient Network Management

Having 48 ports allows users to efficiently manage their network infrastructure. Each port can be assigned to a specific device or group of devices, simplifying network administration and troubleshooting. With clearly defined port allocations, users can easily identify and address any issues that may arise within their network. This level of control not only enhances efficiency but also reduces downtime by enabling quick resolution of connectivity problems.

Increased Bandwidth

The 48 ports in the Dell N4064F Managed L3 Switch contribute to increased bandwidth capabilities. Each port supports high-speed data transfer rates, allowing for seamless communication between connected devices. This is particularly beneficial in environments where large amounts of data need to be transferred quickly, such as multimedia production or data centers. With the ability to handle high bandwidth requirements, this switch ensures optimal performance and minimizes latency.

Support for Multiple Network Topologies

The 48 ports featured in the Dell N4064F Managed L3 Switch offer support for multiple network topologies. Whether you are using a star, ring, or mesh topology, this switch provides the necessary flexibility to accommodate your network design. This feature is especially valuable for organizations with complex network architectures or those planning to expand their network infrastructure in the future. The versatility of the 48 ports ensures compatibility with various network layouts, enabling seamless integration into existing setups.

Part Number

463-7700

The part number 463-7700 is an essential identifier for the Dell N4064F Managed L3 Switch. It distinguishes this particular model from other variations and allows users to easily locate and purchase the correct product. Understanding the significance of the part number is crucial for users who are seeking to acquire this specific switch for their networking needs.

Product Identification

The part number 463-7700 serves as a unique identifier for the Dell N4064F Managed L3 Switch. This alphanumeric code ensures that customers can accurately identify and differentiate between different models and configurations. By referencing the part number, users can avoid confusion or potential mistakes when ordering or discussing the product with suppliers or technical support personnel.

Compatibility Assurance

The 463-7700 part number guarantees compatibility with other Dell networking products and accessories. Dell has a wide range of networking equipment available, and using the correct part number ensures that all components seamlessly integrate with one another. By utilizing the designated part number, users can confidently build their network infrastructure, knowing that each component is designed to work together efficiently and reliably.

Easy Replacement and Upgrades

In the event of a hardware failure or the need for an upgrade, having the correct part number simplifies the replacement process. Users can easily locate and obtain the exact model they require, reducing downtime and minimizing disruptions to their network operations. Additionally, when planning to upgrade their existing Dell networking equipment, users can effortlessly identify the compatible components by referencing the part number. This streamlines the upgrade process and ensures a smooth transition to improved network capabilities.

Access to Specific Product Information

The part number 463-7700 provides users with access to specific product information related to the Dell N4064F Managed L3 Switch. By searching for this part number on Dell's website or other authorized platforms, users can access detailed specifications, documentation, and firmware updates specifically tailored to this model. This information is crucial for users who want to fully leverage the features and capabilities of the switch, ensuring optimal performance and effective utilization of its functionalities.

Overall, the inclusion of 48 ports in the Dell N4064F Managed L3 Switch offers numerous benefits such as enhanced scalability, efficient network management, increased bandwidth, and support for multiple network topologies. Similarly, the importance of the part number 463-7700 lies in its ability to uniquely identify the switch, guarantee compatibility, simplify replacements and upgrades, and provide access to specific product information. With these features and attributes, users can confidently deploy the Dell N4064F Managed L3 Switch as a reliable and versatile solution for their networking requirements.
