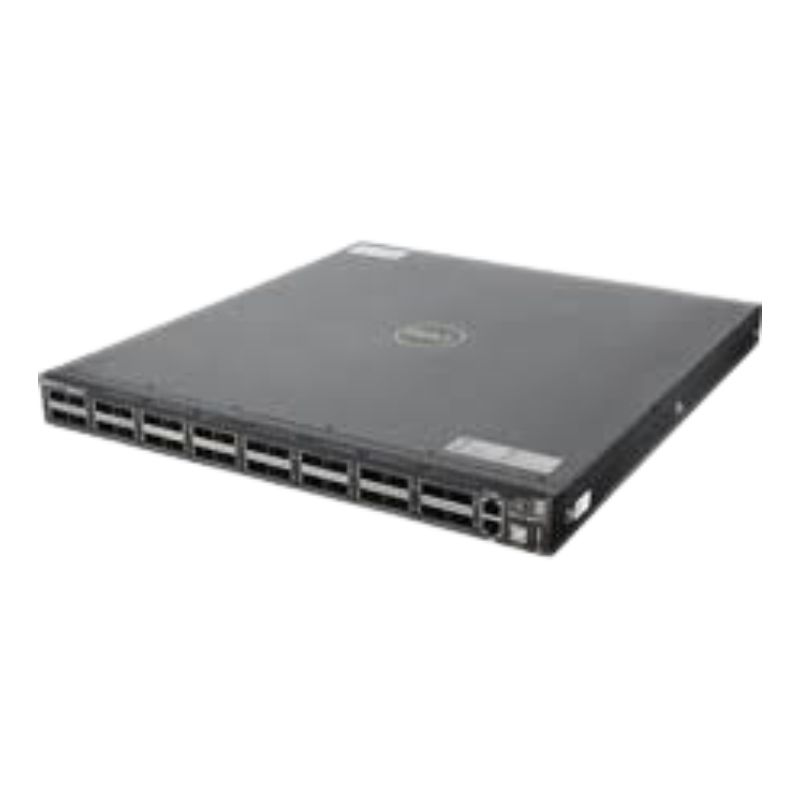

Dell S2410-01-10GE-24P 24Ports 10GBPS Switch With 24 XFP Ports and L2

Physical Specifications

• 24 Line-rate 10Gbe XFP Ports
• 1 RJ45 Console/Management Port with RS232 Signaling
• 1 RJ45 Ethernet Management Port
• Dimensions: 1RU, 1.73" H x 17" W x 16.73" D (4.4 cm H x 43.2 cm W x 42.5 cm D)
• Weight: 14.3 lbs (6.5 kg)
• ISO 7779 A-weighted Sound Pressure Level: 61.5 dBA at 73.4°F (23°C)

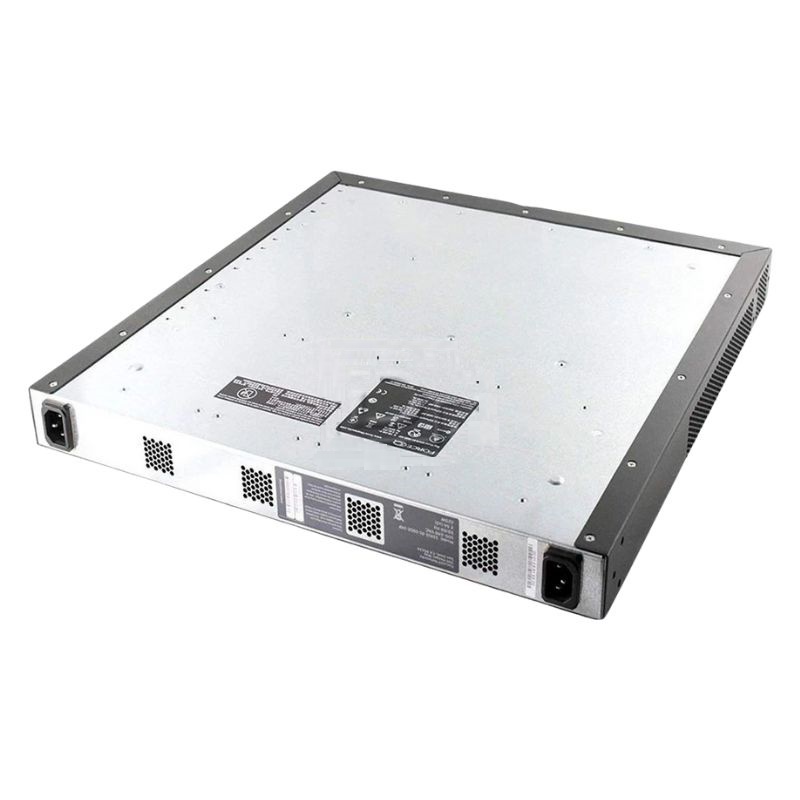

• Power Supply: 100–240 VAC, 50/60 Hz
• Maximum Power Consumption: 225 W
• Maximum Thermal Output: 426 BTU/h
• Maximum Current Draw: 2.05 A at 100/120 VAC, 1.025 A at 200/240 VAC
• Operating Temperature Range: 32°F to 104°F (0°C to 40°C)
• Operating Humidity: 10% to 90% (RH), Non-condensing
• Non-operating Storage Temperature: –4°F to 158°F (–20°C to 70°C)
• Storage Humidity: 10% to 95% (RH), Non-condensing
• Reliability: MTBF 240,105 Hours

Redundancy Features

• Link Aggregation

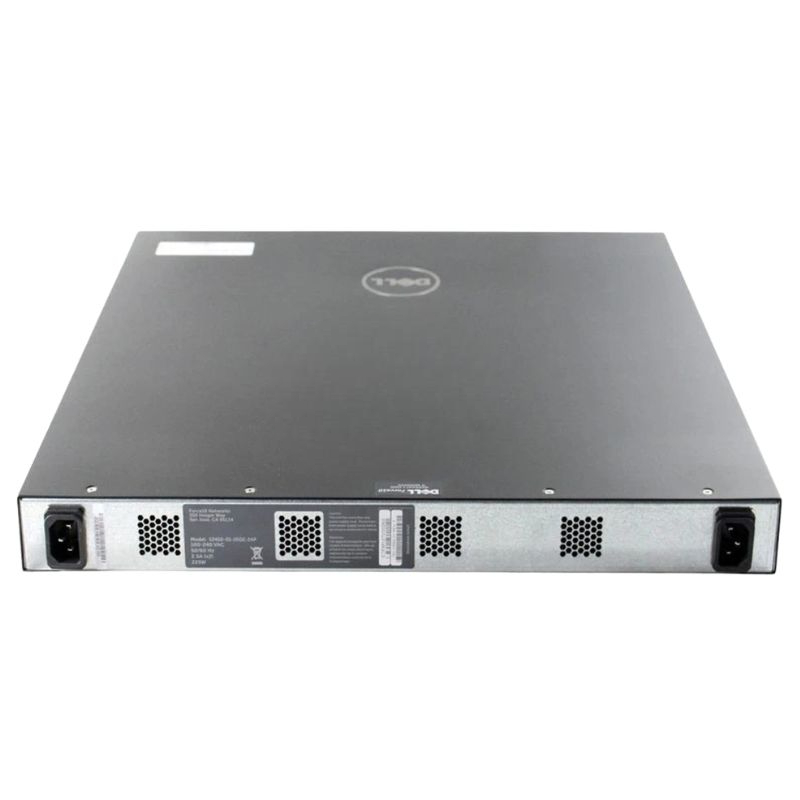

• Built-in Power Redundancy

Performance Metrics

Switching Capabilities

• Layer 2 MAC Addresses: 16k
• Switching Fabric Capacity: 480 Gbps (360 Mpps)
• Link Aggregation: 12 Links Per Group, 12 Groups Per Switch
• Queues Per Port: 4 Queues
• VLANs: 1024 VLANs with 4096 Tag Values Support
• Line-rate Layer 2 Switching: Supports All Protocols, Including IPv4 and IPv6
• Switching Latency: 300 ns (CX4 Ports), 700 ns (XFP Ports)

IEEE Compliance

• 802.1d Bridging, STP
• 802.1p L2 Prioritization
• 802.1q VLAN Tagging, Double VLAN Tagging
• 802.1s MSTP
• 802.1w RSTP
• 802.3ac Frame Extensions for VLAN Tagging
• 802.3ad Link Aggregation with LACP
• 802.3ae 10 Gigabit Ethernet (10GBASE-X)
• 802.3ak 10 Gigabit Ethernet (10GBASE-CX4)
• 802.3x Flow Control
• MTU: 10,240 Bytes

Network Management

• 1155 SMIV1
• 1157 SNMPv1
• 1212 Concise MIB Definitions
• 1215 SNMP Traps
• 1905 SNMPv2
• 1907 SNMP MIB
• 1493 Bridges MIB
• 2096 IP Forwarding Table MIB
• 2233 Interfaces MIB
• 2570 SNMPv3
• 2576 Coexistence Between SNMPv1/v2/v3
• 2578 SMIV2
• 2665 Ethernet-like Interfaces MIB
• 2865 RADIUS
• Draft-Grant-TACACS-02 TACACS+

RoHS Compliance

• All S-Series Components are EU RoHS Compliant

XFP Support

• Compatible with any combination of DELL Force10 SR, LR, ER, ZR, DWDM, and CX4 XFPs
• Note: CX4 Module overlaps with adjacent ports on the S2410P switch. XFP modules are sold separately.

Ports

The Dell S2410-01-10GE-24P Switch is equipped with 24 ports, making it an ideal choice for users who require a high-density network switch. With a total of 24 ports, this switch offers ample connectivity options for various devices and allows for efficient network management.

Increased Connectivity

One of the main benefits of having 24 ports on the Dell S2410-01-10GE-24P Switch is the increased connectivity it provides. With 24 ports, users can connect multiple devices simultaneously, such as computers, servers, printers, and other network devices. This allows for seamless communication and data transfer between devices, improving overall productivity and efficiency.

Scalability

Having 24 ports also offers scalability for future expansion. As businesses grow and more devices are added to the network, having additional ports ensures that there is enough capacity to accommodate the increased demand. This scalability feature is particularly useful for businesses that anticipate growth or have fluctuating network requirements.

Flexible Network Configuration

With 24 ports, users have the flexibility to configure their network in various ways to suit their specific needs. For example, they can create separate VLANs (Virtual Local Area Networks) to segregate traffic and improve security within the network. They can also implement link aggregation, which combines multiple ports to increase bandwidth and improve network performance. The availability of multiple ports allows for greater customization and optimization of the network infrastructure.

Port Type

The Dell S2410-01-10GE-24P Switch features XFP (10 Gigabit Small Form Factor Pluggable) ports, offering users high-speed connectivity and advanced capabilities. The use of XFP ports brings several benefits and is crucial for users who require fast and reliable network connections.

High-Speed Connectivity

The XFP ports on the Dell S2410-01-10GE-24P Switch provide users with high-speed connectivity, capable of delivering data at 10 Gigabits per second (Gbps). This high-speed connectivity is essential for demanding applications and large data transfers. It allows for faster file transfers, smoother video streaming, and improved overall network performance.

Future-Proofing

By incorporating XFP ports, the Dell S2410-01-10GE-24P Switch ensures compatibility with future network requirements. As technology continues to advance, network speeds are expected to increase. Investing in a switch with XFP ports ensures that users are prepared for future network upgrades without having to replace their entire infrastructure. This future-proofing feature saves both time and money in the long run.

Advanced Capabilities

XFP ports offer advanced capabilities, such as support for fiber optic cables. Fiber optic cables provide greater transmission distances and immunity to electromagnetic interference, making them ideal for long-distance connections or environments with high levels of electrical noise. The use of XFP ports allows users to leverage these advanced capabilities, ensuring reliable and efficient network connectivity.

Speed

The Dell S2410-01-10GE-24P Switch boasts a speed of 10 Gigabits per second (Gbps), providing users with fast and reliable data transmission. This high-speed capability brings numerous benefits and is particularly important for users who require efficient and responsive networks.

Enhanced Performance

The 10 Gbps speed of the Dell S2410-01-10GE-24P Switch significantly enhances network performance. With faster data transmission, users experience reduced latency, improved response times, and smoother operation of bandwidth-intensive applications. This is especially crucial in environments where real-time communication or high-performance computing is required, such as data centers or multimedia production studios.

Bandwidth Intensive Applications

The 10 Gbps speed is particularly beneficial for bandwidth-intensive applications. These applications, such as video conferencing, online gaming, or large-scale data transfers, require a significant amount of bandwidth to operate smoothly. The high-speed capability of the Dell S2410-01-10GE-24P Switch ensures that these applications can run seamlessly without any bottlenecks or performance issues.

Future-Proof Investment

Investing in a switch with 10 Gbps speed is a future-proof choice. As technology advances and network requirements grow, the demand for higher speeds will continue to increase. By choosing a switch with 10 Gbps speed, users ensure that their network infrastructure can handle future upgrades without the need for immediate replacements. This not only saves costs in the long run but also provides peace of mind knowing that the network is capable of supporting future needs.

Features

The Dell S2410-01-10GE-24P Switch is categorized as an L2 switch, which stands for Layer 2 switch. The L2 designation brings numerous benefits and plays a crucial role in network management and performance.

Efficient Network Management

As an L2 switch, the Dell S2410-01-10GE-24P Switch offers efficient network management capabilities. Layer 2 switches operate at the data link layer of the OSI (Open Systems Interconnection) model and are responsible for forwarding data packets based on MAC (Media Access Control) addresses. This allows for efficient routing and switching of data within the network, improving overall performance and reducing network congestion.

Enhanced Security

Layer 2 switches provide enhanced security features compared to lower-layer switches. They support VLANs, which allow for network segmentation and isolation of different user groups or departments. This helps improve security by preventing unauthorized access to sensitive information and limiting the impact of potential security breaches. Additionally, Layer 2 switches support features like MAC address filtering and port security, further enhancing network security.

Fast and Reliable Switching

Layer 2 switches are known for their fast and reliable switching capabilities. They use MAC addresses to make forwarding decisions, which is faster compared to Layer 3 switches that rely on IP addresses. This ensures minimal latency and efficient data transmission within the network. The fast switching capabilities of the Dell S2410-01-10GE-24P Switch contribute to a seamless user experience and improved network performance.

In conclusion, the Dell S2410-01-10GE-24P Switch offers users a range of features and capabilities that enhance network connectivity, performance, and management. With its 24 ports, XFP technology, 10 Gbps speed, and L2 functionality, this switch is a reliable choice for users who require a high-density switch with advanced capabilities. Whether it's for small businesses, data centers, or any environment that demands efficient networking, the Dell S2410-01-10GE-24P Switch delivers the necessary features to meet the demands of modern network infrastructure.
