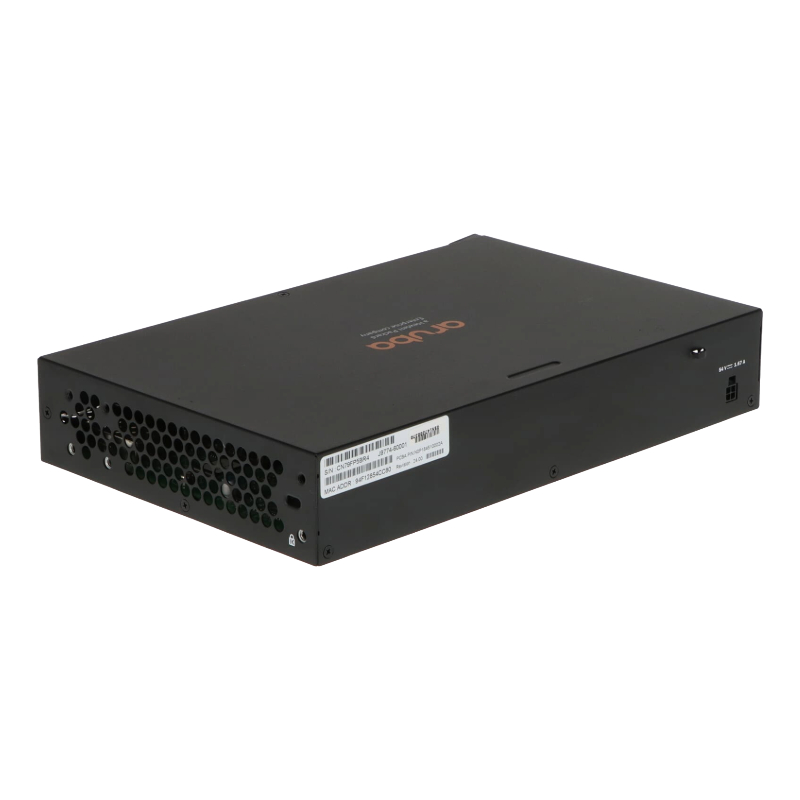

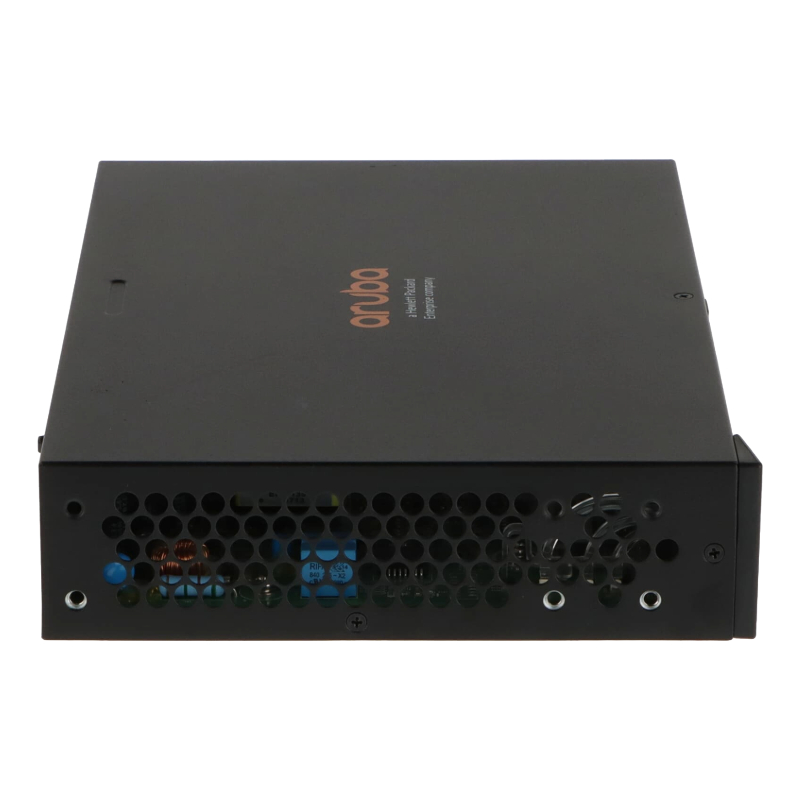

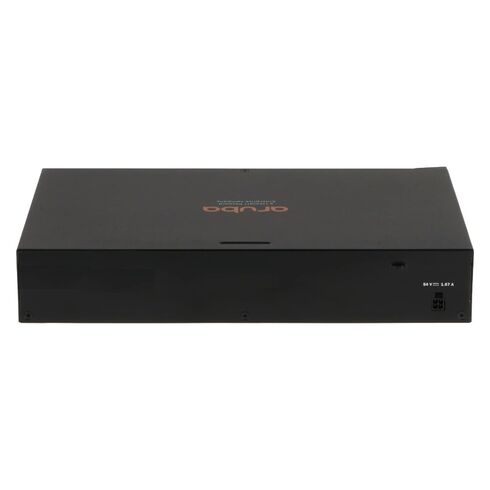

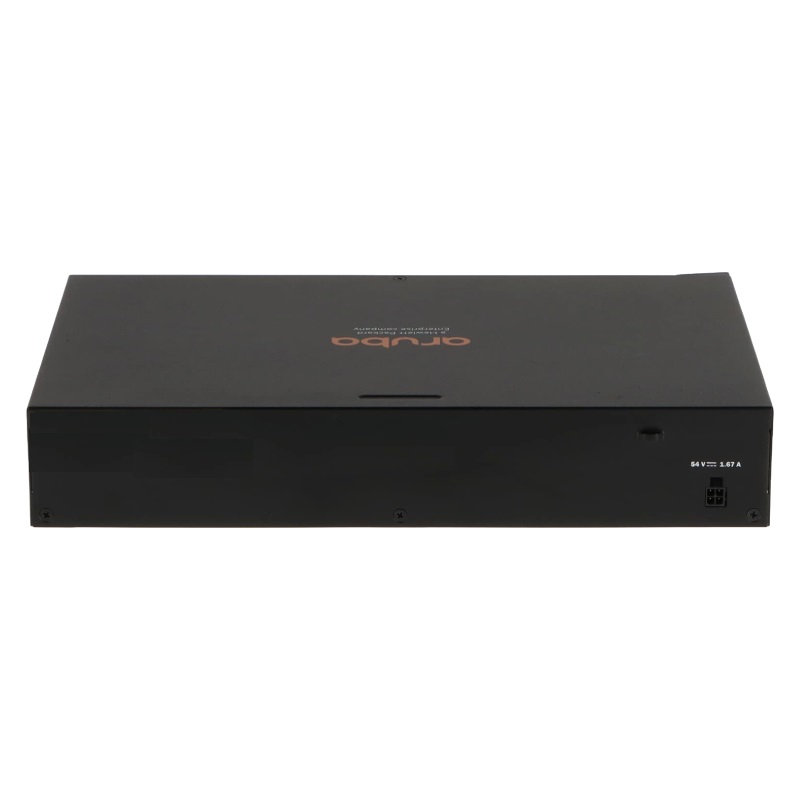

HP J9774-61001 2530 8G PoE Wall-Mountable Switch Ethernet

Ports

The HP J9774-61001 Wall-Mountable Switch is equipped with 8 ports, making it an ideal choice for small to medium-sized businesses that require a reliable and efficient network solution. These ports allow for seamless connectivity between devices, such as computers, servers, printers, and other network-enabled devices. With 8 ports available, users can easily expand their network infrastructure and connect multiple devices simultaneously.

Overview of HP J9774-61001 Network Switch

General Information

• Manufacturer: HP
• Part Number: J9774-61001
• Device Type: Managed Switch

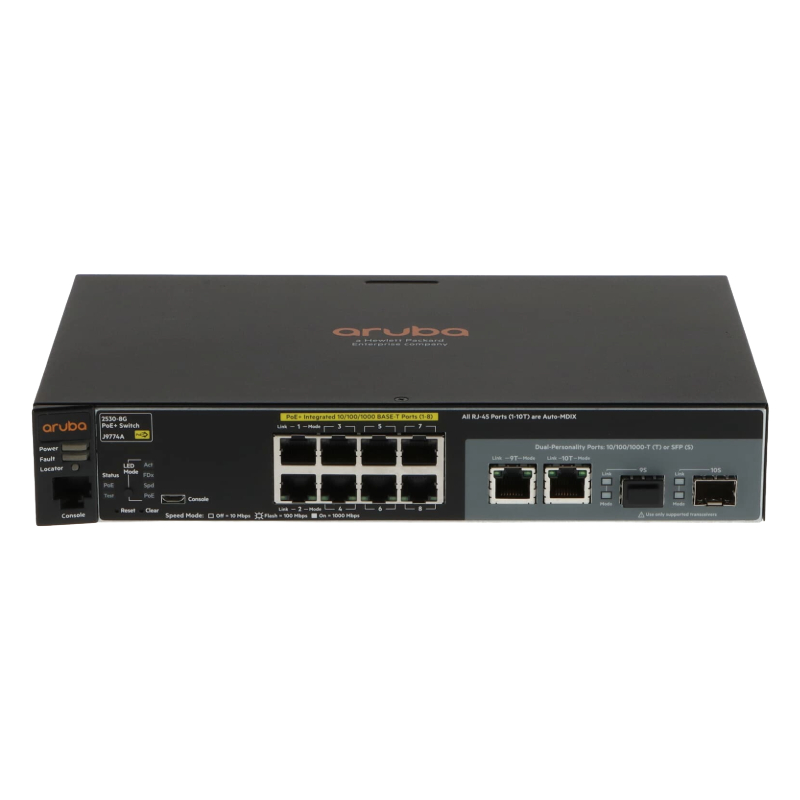

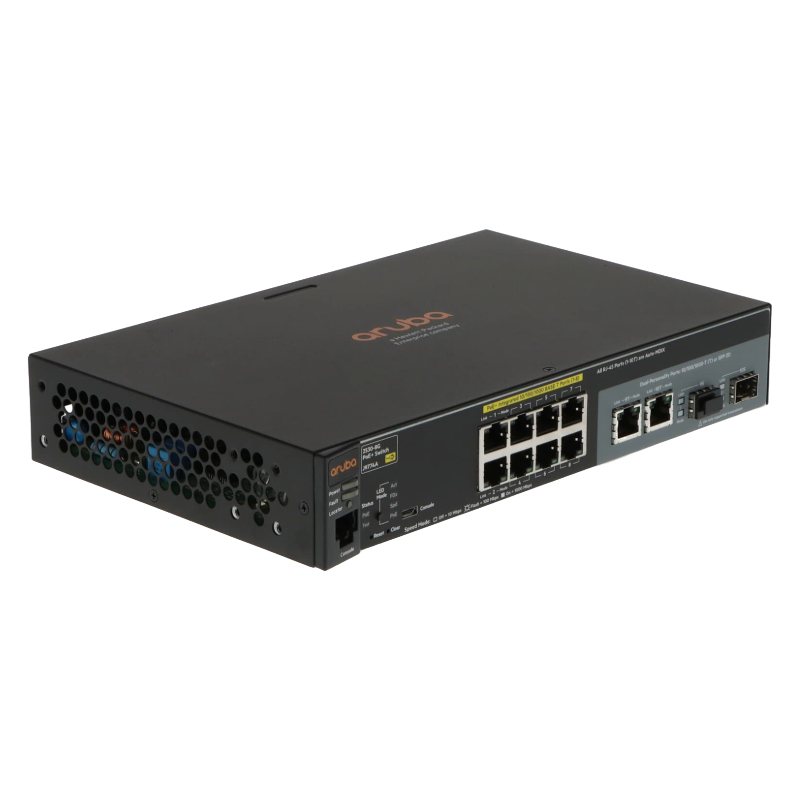

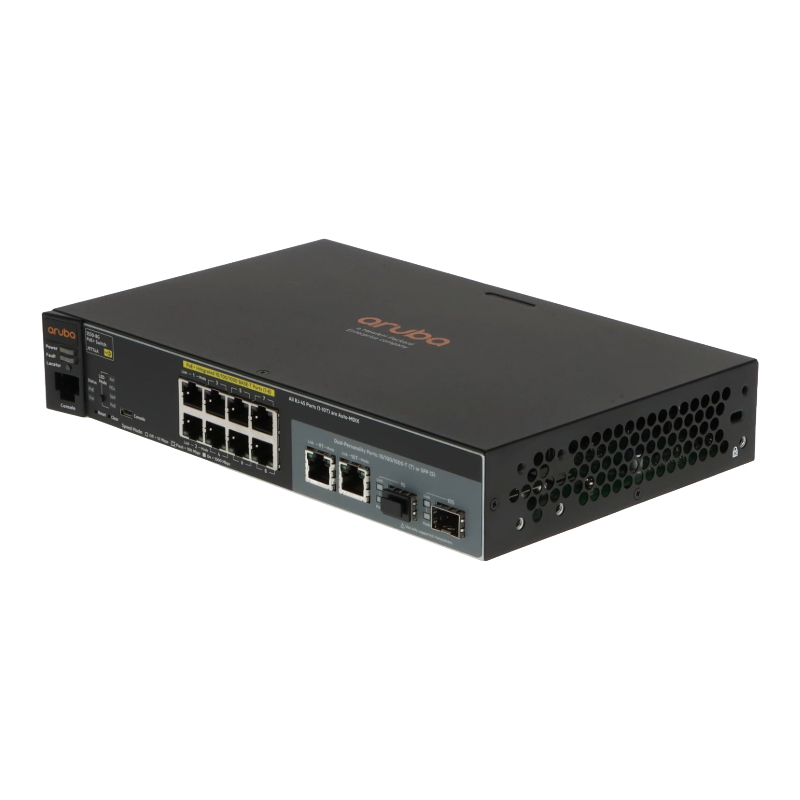

• Ports: 8 x 10/100/1000 PoE+ and 2 x Combo Gigabit SFP

Device Specifications

Form Factor and Interfaces

• Enclosure Options: Desktop, Rack-Mountable, Wall-Mountable 1U
• Interface Type: Gigabit Ethernet

Power and PoE

• Power Over Ethernet (PoE): PoE+
• PoE Budget: 67 Watts
• Power Requirements: AC 120/230 V (50/60 Hz)

Performance Characteristics

Throughput and Capacity

• Throughput: Up to 14.8 million packets per second (Mpps)
• Switching Capacity: 20 Gbps
• MAC Address Capacity: 16,000 entries

Additional Technical Details

• Jumbo Frame Support: Up to 9220 bytes
• MAC Address Table Size: 16,000 entries

Remote Management Protocols

• SNMP v1, v2c, v3
• RMON (1, 2, 3, 9)
• Telnet
• HTTP
• TFTP
• SSH-2
• CLI

Features and Capabilities

Network Management

• Flow Control
• DHCP and BOOTP Support
• ARP Support
• Trunking and VLAN Support
• Auto-Uplink (Auto MDI/MDI-X)
• Port Mirroring
• IPv6 Support
• Half Duplex and Full Duplex Modes
• SNTP Support
• SFlow
• Multiple Spanning Tree Protocol (MSTP) Support
• Access Control List (ACL) Support
• Quality of Service (QoS)
• STP Root Guard
• LLDP Support
• Class of Service (CoS)
• Generic Attribute Registration Protocol (GARP)

Compliance and Standards

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.1d
• IEEE 802.1q
• IEEE 802.3ab
• IEEE 802.1p
• IEEE 802.3af
• IEEE 802.3x
• IEEE 802.3ad (LACP)
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.1s
• IEEE 802.1ab (LLDP)
• IEEE 802.3at
• IEEE 802.3az

Increased Connectivity

Having 8 ports on the HP J9774-61001 Wall-Mountable Switch significantly increases the connectivity options for users. This enables businesses to connect more devices to their network without experiencing any bottlenecks or performance issues. Whether it's expanding the number of workstations or connecting additional networking equipment, the 8 ports offer the flexibility and scalability required for growing businesses.

Efficient Data Transfer

The 8 ports on this switch support high-speed data transfer rates, allowing for efficient and seamless communication between devices. With faster data transfer speeds, businesses can experience improved productivity and reduced latency. This is particularly beneficial in environments where large files need to be transferred or where real-time communication is critical, such as video conferencing or VoIP applications.

VLAN Support

In addition to the increased connectivity options, the HP J9774-61001 Wall-Mountable Switch also provides VLAN support. VLANs (Virtual Local Area Networks) allow network administrators to segment their network into smaller virtual networks, enhancing security and improving network performance. With VLAN support, businesses can isolate sensitive data or restrict access to specific resources, ensuring that critical information remains secure.

Easy Management

The HP J9774-61001 Wall-Mountable Switch offers easy management options for configuring and monitoring the connected devices. With its intuitive web-based interface, users can quickly set up and manage their network settings without the need for specialized IT knowledge. This ensures that businesses can efficiently utilize the switch's features and optimize their network performance.

PoE

The HP J9774-61001 Wall-Mountable Switch features Power over Ethernet (PoE) capability, which provides significant benefits for users requiring both data and power connectivity to network devices. With PoE, businesses can simplify their network infrastructure and eliminate the need for separate power cables, reducing clutter and installation complexity.

Convenient Power Delivery

The PoE feature of the HP J9774-61001 Wall-Mountable Switch enables power delivery over the Ethernet cable, eliminating the need for additional power outlets near each network device. This is particularly advantageous in situations where power sources are limited or inaccessible. PoE allows businesses to deploy network devices in locations where power supply may not be readily available, such as remote areas or ceiling-mounted access points.

Cost and Time Savings

By combining data and power delivery through a single Ethernet cable, the HP J9774-61001 Wall-Mountable Switch reduces the overall cost of network deployment. Businesses can save on additional wiring and electrical expenses by utilizing PoE-enabled devices. Additionally, the simplified installation process saves time and effort, as there is no need for separate power cables to be routed and connected to each device.

Flexibility and Scalability

The PoE feature of this switch offers flexibility and scalability in network design. With PoE support, businesses can easily add or relocate network devices without the need for extensive rewiring or additional power infrastructure. This allows for greater flexibility in expanding or reconfiguring the network layout as business needs evolve, saving both time and resources.

Remote Device Management

Another benefit of PoE is the ability to remotely manage and monitor network devices. With power and data delivered through a single cable, businesses can conveniently control and troubleshoot connected devices without physically accessing them. This remote management capability enhances network efficiency and reduces the need for on-site technical support, resulting in cost savings and improved productivity.

Series

The HP J9774-61001 Wall-Mountable Switch belongs to the 2530 series, which is renowned for its reliability, performance, and advanced features. This series is designed to meet the networking needs of small to medium-sized businesses, offering a cost-effective solution without compromising on quality or functionality.

Robust Performance

The 2530 series switches are built to deliver exceptional performance and reliability in demanding network environments. With advanced switching capabilities, these switches ensure high-speed data transmission, minimal packet loss, and low latency. This translates into improved network efficiency and enhanced user experience, especially for bandwidth-intensive applications such as video streaming or large file transfers.

Enhanced Security

The 2530 series switches incorporate robust security features to protect the network from unauthorized access and potential threats. These switches support features like Access Control Lists (ACLs), which allow administrators to define and enforce policies for traffic filtering and access control. Additionally, features like port security and MAC address lockdown enhance network security by preventing unauthorized devices from connecting to the network.

Simplified Network Management

With its intuitive web-based interface and comprehensive management tools, the 2530 series switches offer simplified network management. Administrators can easily configure, monitor, and troubleshoot the switches using the provided management software. This streamlines network administration tasks and reduces the complexity associated with managing a network infrastructure, allowing businesses to allocate their resources more efficiently.

Energy Efficiency

The 2530 series switches are designed with energy efficiency in mind. These switches incorporate advanced power-saving features, such as Energy Efficient Ethernet (EEE) and idle port power management. By intelligently adjusting power consumption based on network activity, the switches optimize energy usage and reduce operating costs. This environmentally friendly approach not only benefits businesses by lowering energy bills but also contributes to a greener and more sustainable working environment.
