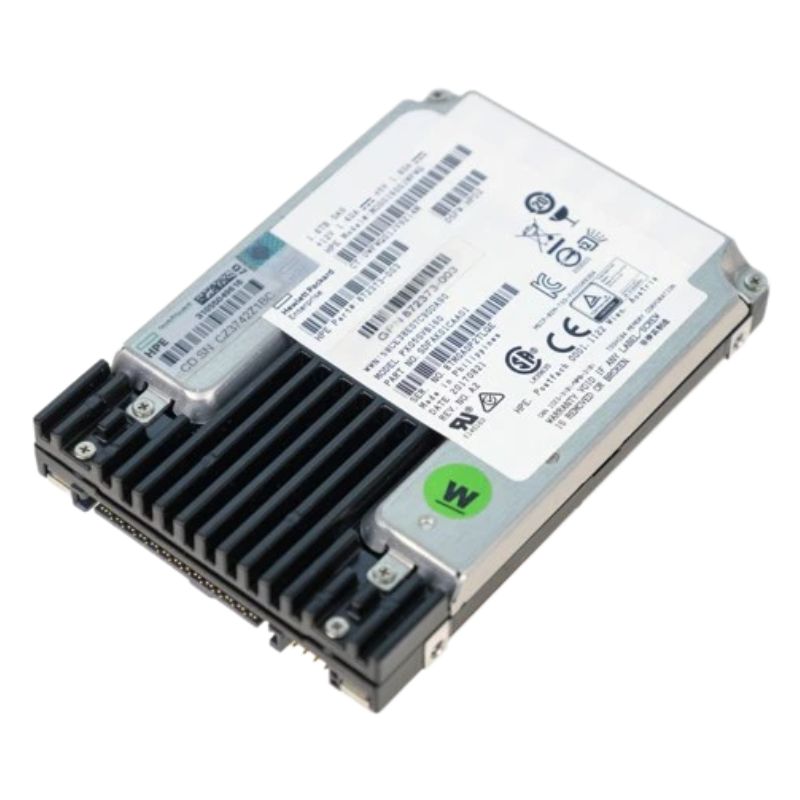

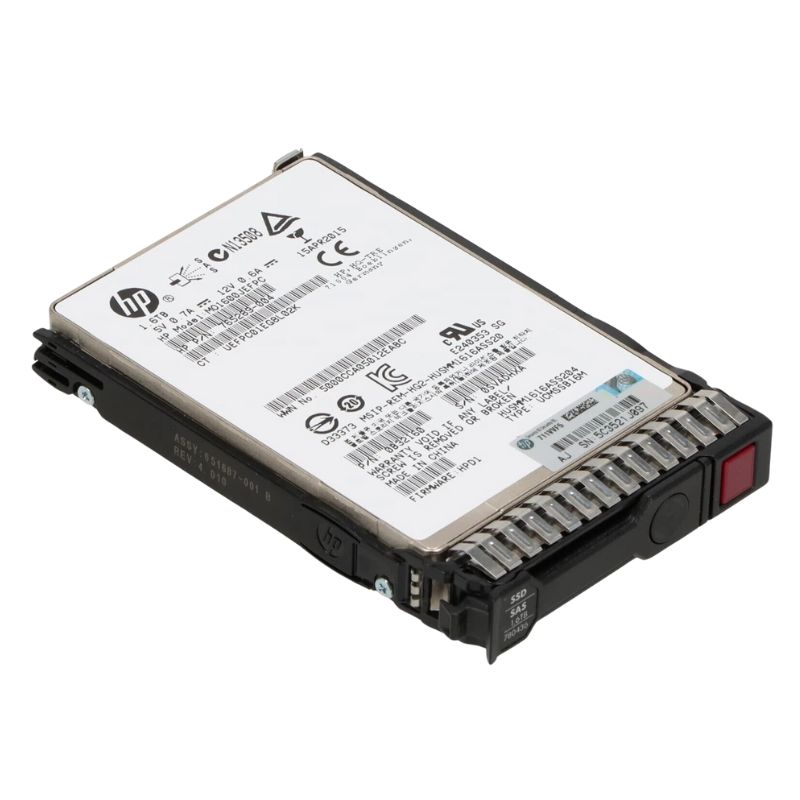

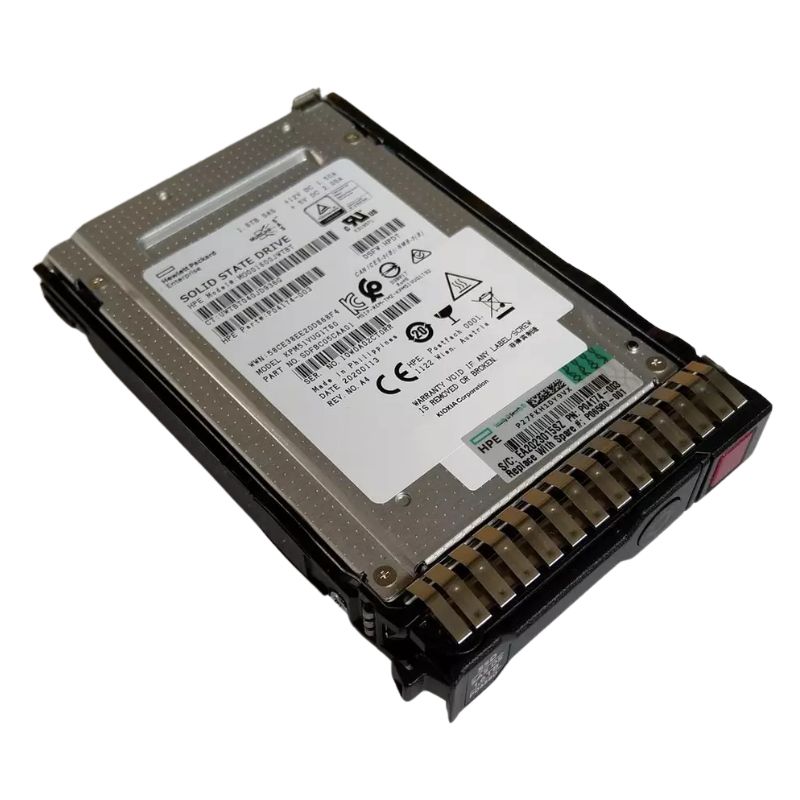

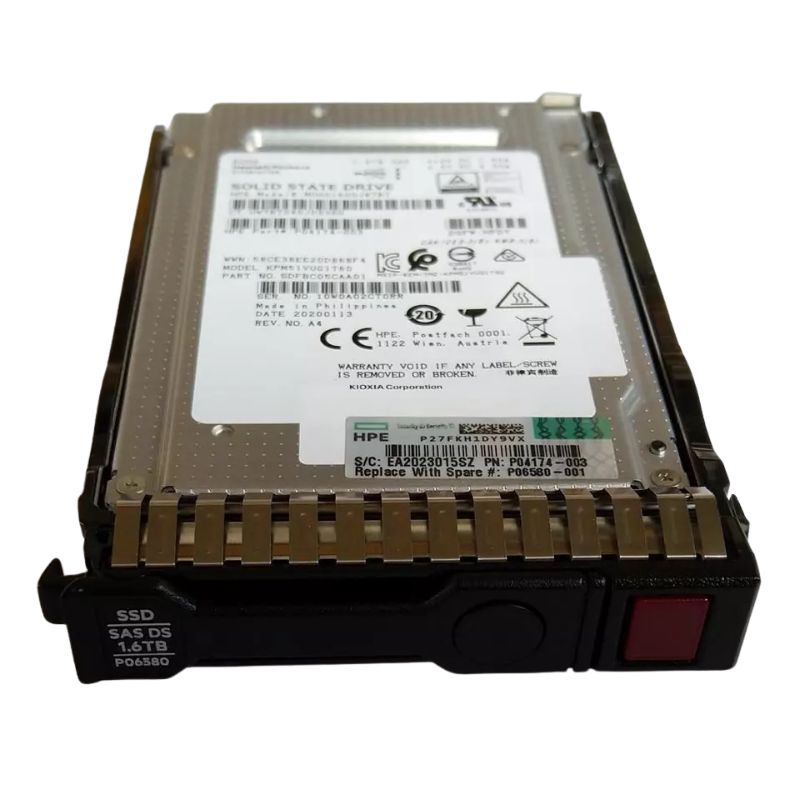

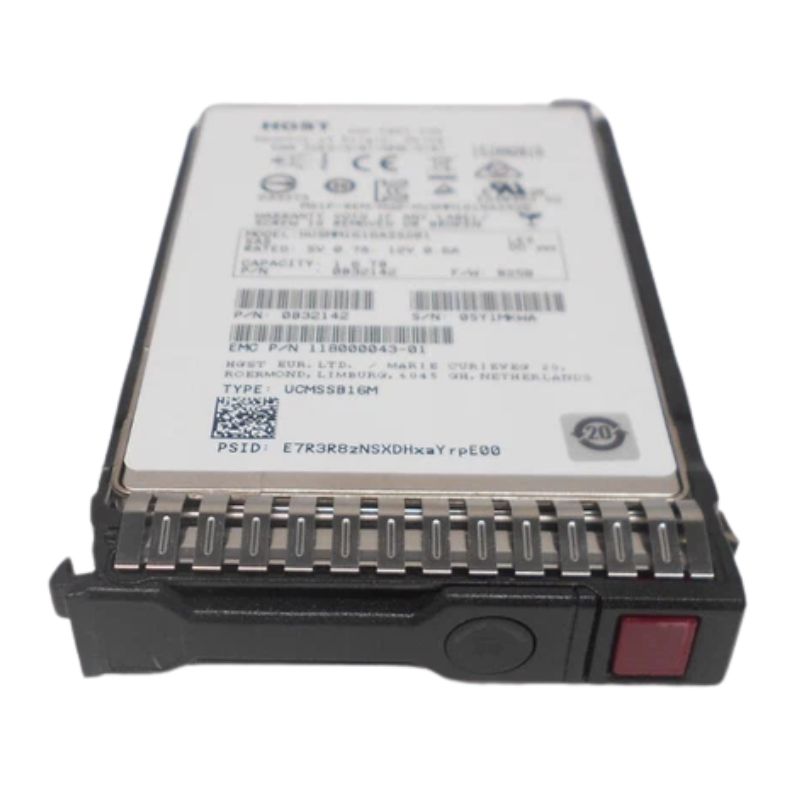

HPE 1.6TB SAS-12GBPS 2.5" DS SC WI SSD P04545-H21

Product Overview for HPE 1.6TB SSD (P04545-H21)

General Information

• Manufacturer: HPE
• Part Number: P04545-H21
• Drive Type: Solid State Drive
• Interface: SAS 12Gbps

Key Features of the HPE P04545-H21 SSD

• Storage Capacity: 1.6TB of high-speed storage
• NAND Flash Memory Type: Triple-level Cell (TLC) for enhanced endurance
• Dual Port Connectivity: Supports dual-port connectivity for increased availability
• Hot Plug Capability: Hot-swappable design for easy maintenance
• Carrier Type: Smart Carrier (SC) for advanced storage management
• Workload Profile: Optimized for write-intensive applications
• Firmware Security: Digitally Signed Firmware (DS) to ensure data integrity

Performance Highlights

• Drive Endurance: Supports up to 29,200 TB of lifetime writes
• DWPD (Drive Writes Per Day): 10 DWPD for reliable performance in demanding environments
• Data Transfer Rate: 12 Gb/sec (external)
• Max Sequential Read Throughput: 1,075 MiB/s
• Max Sequential Write Throughput: 1,030 MiB/s

Random IOPS Performance

• Random Read Latency (4KiB, Q1): 135 microseconds
• Random Write Latency (4KiB, Q1): 35 microseconds
• Random Read IOPS (4KiB, Q=16): 110,000 IOPS
• Random Write IOPS (4KiB, Q=16): 120,000 IOPS
• Max Random Read IOPS (4KiB, Q32): 165,000 IOPS
• Max Random Write IOPS (4KiB, Q1): 120,000 IOPS

Power Consumption and Efficiency

• Idle Power Consumption: 5.00 watts
• Random Read Power Consumption: 6.00 watts
• Random Write Power Consumption: 6.00 watts
• Sequential Read Power Consumption: 6.98 watts
• Sequential Write Power Consumption: 6.98 watts
• Combined Random Read/Write Power: 5.43 watts
• Maximum Power Consumption: 8.98 watts

Dimensions & Weight

• Height: 0.63 inches
• Width: 3.10 inches
• Depth: 5.45 inches
• Weight: 1.50 lbs

Capacity: 1.6TB

When it comes to storage solutions, capacity plays a crucial role in determining the overall performance and efficiency of a device. The HPE P04545-H21 SSD is equipped with an impressive storage capacity of 1.6TB, making it an ideal choice for users who require ample space for storing their data and applications.

Benefits of a Large Capacity

Having a high capacity SSD like the HPE P04545-H21 offers several advantages to users:

1. Enhanced Data Storage

The 1.6TB capacity allows you to store a vast amount of data, ranging from large files to multiple applications, without worrying about running out of space. This enables you to conveniently manage and access your files whenever you need them.

2. Improved Performance

A larger capacity SSD ensures that your system runs smoothly by providing sufficient space for your operating system and programs. It reduces the need for constant data shuffling or deleting files to free up space, resulting in improved overall performance and faster load times.

3. Future-Proofing

The 1.6TB capacity not only caters to your current storage needs but also prepares you for any future requirements. As applications and files continue to grow in size, having extra storage space can save you from the hassle and cost of upgrading or adding additional drives in the near future.

4. Streamlined Workflow

With a larger capacity, you can conveniently store all your data in a single drive instead of spreading it across multiple devices or partitions. This simplifies your workflow, making it easier to locate and manage files, resulting in increased productivity.

The Importance of 1.6TB Capacity

The 1.6TB capacity of the HPE P04545-H21 SSD is particularly important for users in various industries and scenarios:

1. Creative Professionals

Graphic designers, video editors, and other creative professionals deal with large file sizes on a daily basis. The 1.6TB capacity ensures that they have ample space to store their high-resolution images, videos, and other multimedia assets without compromising on performance.

2. Data Centers

Data centers require robust storage solutions to handle massive amounts of data from multiple clients or applications. The 1.6TB capacity of the HPE P04545-H21 SSD allows data centers to efficiently store and manage large volumes of data, ensuring smooth operations and quick access.

3. Gaming Enthusiasts

Gaming enthusiasts often accumulate a vast library of games, which can quickly consume storage space. The 1.6TB capacity provides gamers with enough room to store their favorite games, reducing the need to uninstall and reinstall titles frequently.

Interface: SAS-12GBPS

The interface of an SSD determines how it communicates with the rest of the system and influences its overall performance. The HPE P04545-H21 SSD boasts an impressive SAS-12GBPS interface, offering exceptional data transfer speeds and reliability.

Benefits of SAS-12GBPS Interface

The SAS-12GBPS interface provides users with several advantages:

1. Blazing-Fast Transfer Speeds

The SAS-12GBPS interface enables lightning-fast data transfer speeds, ensuring rapid access to your files and applications. Whether you're transferring large files or running resource-intensive applications, the high-speed interface minimizes waiting times and enhances overall system responsiveness.

2. Increased Scalability

The SAS-12GBPS interface supports a high level of scalability, making it suitable for businesses and organizations that anticipate future growth. It allows for the connection of multiple drives or expansion units, ensuring that your storage solution can accommodate your changing needs without compromising performance.

3. Improved Reliability

The SAS-12GBPS interface offers enhanced reliability compared to other interfaces. It incorporates advanced error detection and correction mechanisms, reducing the chances of data corruption and ensuring the integrity of your stored information.

4. Compatibility

SAS-12GBPS is a widely adopted interface in the enterprise sector. The HPE P04545-H21 SSD's compatibility with this interface ensures seamless integration into existing systems and infrastructure, making it a convenient and reliable choice for businesses.

Form Factor: 2.5inch

The form factor of an SSD refers to its physical size and shape. The HPE P04545-H21 SSD features a compact 2.5inch form factor, offering versatility and compatibility with a wide range of devices and systems.

Benefits of 2.5inch Form Factor

The 2.5inch form factor provides several benefits to users:

1. Space Efficiency

The compact size of the 2.5inch form factor allows for efficient utilization of space within your device or system. It is particularly suitable for laptops, compact desktops, and servers where space is limited but high-performance storage is essential.

2. Easy Installation

Due to its widespread adoption, many devices are designed to accommodate 2.5inch drives. Installing the HPE P04545-H21 SSD into compatible systems is straightforward, often requiring minimal effort and no additional adapters or modifications.

3. Versatility

The 2.5inch form factor offers versatility, as it can be used in various devices and configurations. Whether you need to upgrade your laptop's storage or enhance the performance of your server, the HPE P04545-H21 SSD's 2.5inch form factor ensures compatibility across different platforms.

4. Portability

If you frequently move your storage device between different systems or need a portable storage solution, the 2.5inch form factor is ideal. Its compact size and lightweight design make it easy to carry without compromising on performance or reliability.

Usage: Write Intensive

The usage category of an SSD indicates its intended application and workload capacity. The HPE P04545-H21 SSD falls under the write-intensive category, making it suitable for scenarios that involve frequent data writing and high-demand workloads.

Benefits of Write-Intensive SSD

Write-intensive SSDs like the HPE P04545-H21 offer several benefits:

1. Durability

Write-intensive SSDs are designed to withstand heavy workloads, making them highly durable and reliable. They are built with advanced flash memory technology and wear-leveling algorithms that evenly distribute data writes across the drive, resulting in extended lifespan.

2. High Performance

Write-intensive SSDs are optimized for handling write-heavy workloads, ensuring consistent performance even under demanding conditions. Whether you're running database applications, performing frequent data backups, or working with large files, the HPE P04545-H21 SSD delivers exceptional write speeds and responsiveness.

3. Data Integrity

Write-intensive SSDs prioritize data integrity, employing sophisticated error correction algorithms and power loss protection mechanisms. These features minimize the risk of data corruption during write operations, ensuring the reliability and consistency of your stored information.

4. Suitable for Enterprise Applications

Write-intensive SSDs are particularly well-suited for enterprise applications that involve heavy data writing, such as database servers, virtualization environments, and content delivery networks. The HPE P04545-H21 SSD's write-intensive nature makes it an excellent choice for businesses that require reliable and high-performance storage solutions.

In conclusion, the HPE P04545-H21 SSD provides an impressive capacity of 1.6TB, ensuring ample storage space for various user requirements. The SAS-12GBPS interface offers fast transfer speeds and reliability, while the 2.5inch form factor provides versatility and compatibility. Additionally, its write-intensive nature makes it suitable for demanding workloads and enterprise applications. With these features, the HPE P04545-H21 SSD is a powerful storage solution that meets the needs of professionals, data centers, gamers, and businesses alike.
