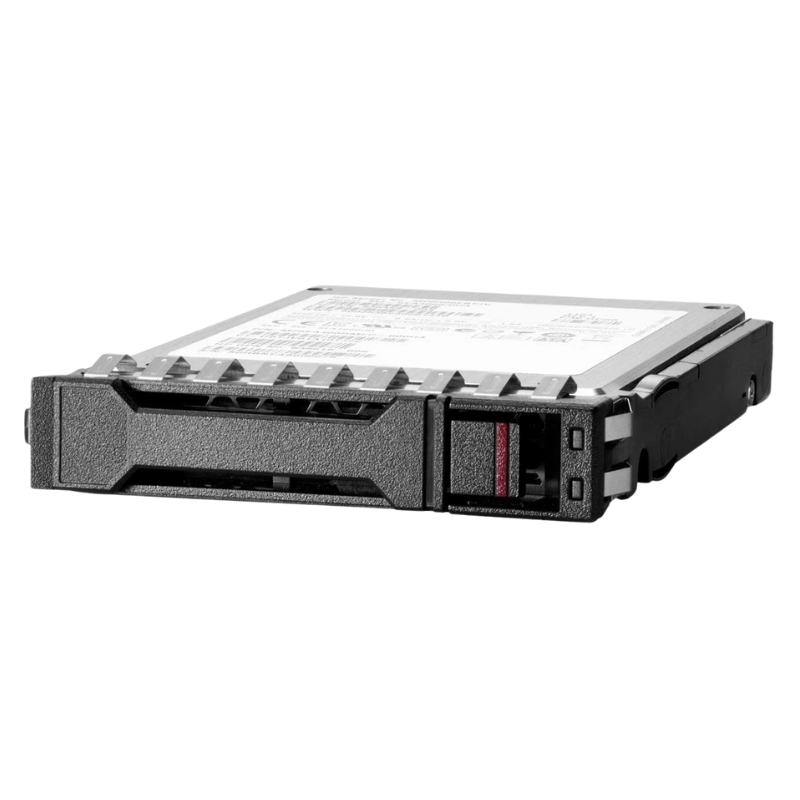

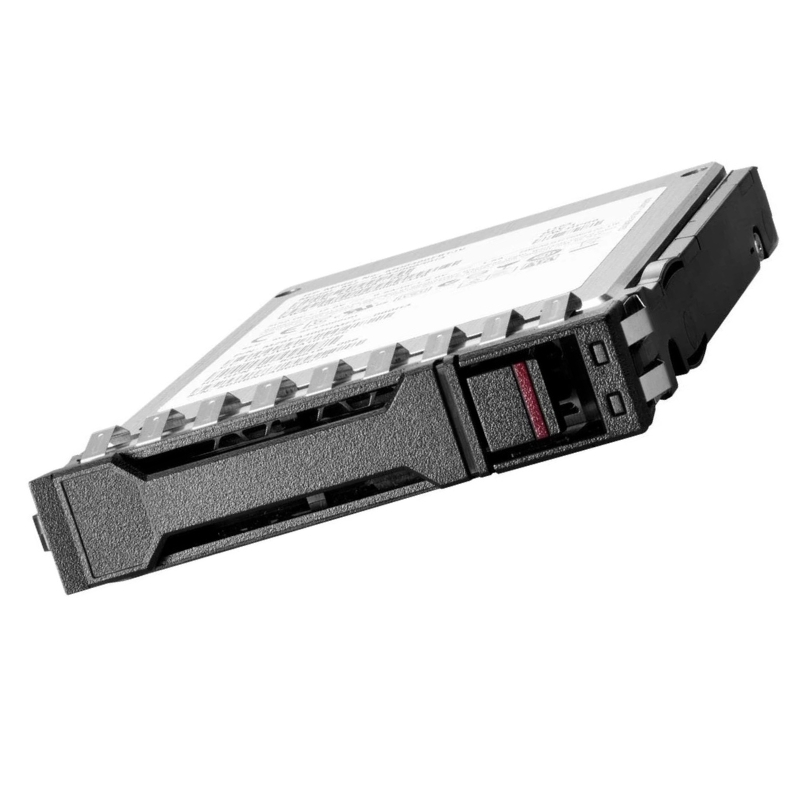

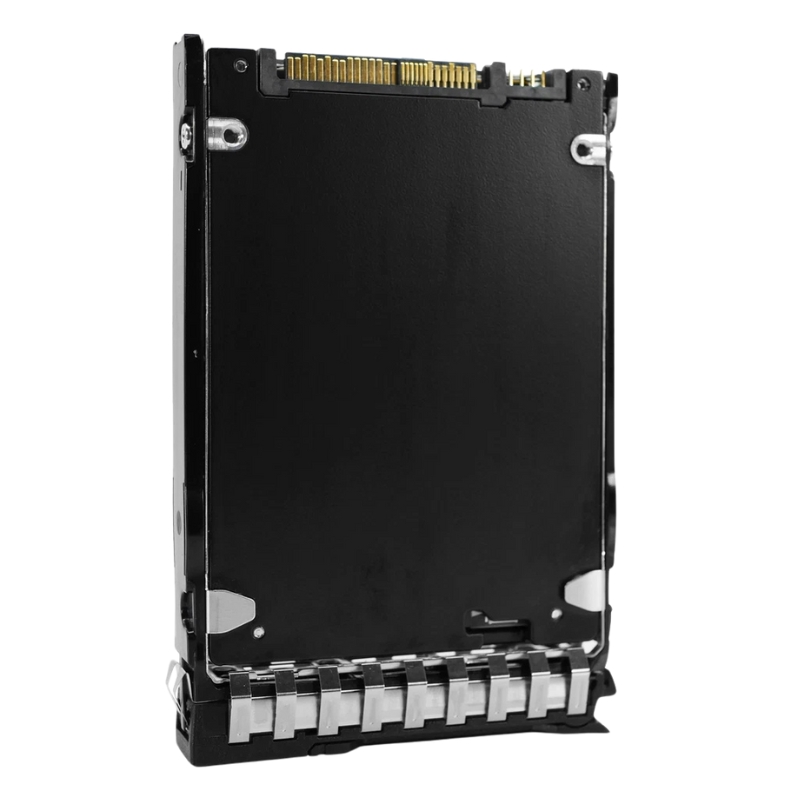

HPE 240GB SATA 6GBPS 2.5 SFF SSD 875483-H21

Specifications Overview

Brand Details

• Manufacturer: HPE
• MPN: 875483-H21

Part Numbers

• Option Part Number: 875483-H21
• Spare Part Number: 875703-001
• Model Number: MK000240GWEZF
• Assembly Number: 870668-001

General Information

Device Characteristics

• Type: Solid State Drive (SSD) - Hot-Swap
• Storage Capacity: 240 GB
• Interface: SATA 6Gbps
• Form Factor: 2.5-inch SFF
• Flash Technology: Triple-Level Cell (TLC)
• Workload Type: Mixed Use
• Carrier Type: Smart Carrier (SC)
• Connection Type: Hot Plug
• Key Features: Digitally Signed Firmware (DS)
• Included With: HPE SmartDrive Carrier
• Dimensions: Height: 7 mm

Performance Metrics

Drive Specifications

• 30-Day Write Capability: 2200 writes
• Transfer Rate: 6 Gb/sec (external)
• Endurance (DWPD): 5.0 (Drive Writes Per Day)
• Maximum Sequential Read Throughput: 510 MiB/s
• Maximum Sequential Write Throughput: 320 MiB/s
• Random Read Latency (4KiB, Q1): 125 µs
• Random Write Latency (4KiB, Q1): 40 µs
• Random Read IOPS (4KiB, Q=16): 62,000 IOPS
• Random Write IOPS (4KiB, Q=16): 525,000 IOPS
• Max Random Read IOPS (4KiB, Q32): 70,000
• Max Random Write IOPS (4KiB, Q16): 52,500
• 4KiB Random (70% Read / 30% Write, Q32) IOPS: 53,000
• 4KiB Random (50% Read / 50% Write, Q32) IOPS: 51,000

Power Consumption Data

Energy Usage

• Idle Consumption: 1.07 Watts
• Random Read: 3.00 Watts
• Random Write: 3.00 Watts
• Sequential Read: 3.21 Watts
• Sequential Write: 3.90 Watts
• Random R/W: 2.95 Watts

Expansion and Connectivity Options

Compatibility

• Compatible Bay Type: 2.5" SFF
• Available Interfaces: 1 x SATA 6 Gb/s

Compatible Systems

HPE ProLiant BL Series

• BL460c Gen9 (2.5 inch)
• BL460c Gen9 Base (2.5 inch)
• BL460c Gen9 Entry (2.5 inch)
• BL460c Gen9 Performance (2.5 inch)
• BL660c Gen9 (2.5 inch)

HPE ProLiant DL Series

• DL120 Gen9 (2.5 inch)
• DL120 Gen9 Entry (2.5 inch)
• DL20 Gen9 (2.5 inch)
• DL20 Gen9 Base (2.5 inch)
• DL20 Gen9 Entry (2.5 inch)
• DL20 Gen9 Performance (2.5 inch)
• DL20 Gen9 Solution (2.5 inch)
• DL20 Gen9 Special Server (2.5 inch)
• DL385 Gen10 (2.5 inch)
• DL385 Gen10 Base (2.5 inch)
• DL385 Gen10 Entry (2.5 inch)
• DL385 Gen10 High-Performance (2.5 inch)
• DL385 Gen10 Performance (2.5 inch)
• DL385 Gen10 Solution (2.5 inch)
• DL388 Gen9 (2.5 inch)
• DL388 Gen9 Base (2.5 inch)
• DL580 Gen10 (2.5 inch)
• DL580 Gen10 Base (2.5 inch)
• DL580 Gen10 Entry (2.5 inch)
• DL580 Gen10 Performance (2.5 inch)
• DL580 Gen9 (2.5 inch)
• DL580 Gen9 Base (2.5 inch)
• DL580 Gen9 Database (2.5 inch)
• DL580 Gen9 High Performance (2.5 inch)
• DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch)

HPE ProLiant ML Series

• ML110 Gen10 (2.5 inch)
• ML110 Gen10 Entry (2.5 inch)
• ML110 Gen10 Performance (2.5 inch)
• ML110 Gen10 Solution (2.5 inch)
• ML110 Gen9 (2.5 inch)
• ML110 Gen9 Base (2.5 inch)
• ML110 Gen9 Entry (2.5 inch)
• ML150 Gen9 (2.5 inch)
• ML150 Gen9 Base (2.5 inch)
• ML150 Gen9 Entry (2.5 inch)
• ML150 Gen9 Performance (2.5 inch)
• ML30 Gen9 (2.5 inch)
• ML30 Gen9 Base (2.5 inch)
• ML30 Gen9 Entry (2.5 inch)
• ML30 Gen9 Performance (2.5 inch)
• ML30 Gen9 Solution (2.5 inch)
• ML350 Gen9 (2.5 inch)
• ML350 Gen9 Base (2.5 inch)
• ML350 Gen9 Entry (2.5 inch)
• ML350 Gen9 Performance (2.5 inch)

HPE ProLiant WS Series

• WS460c Gen9 (2.5 inch)
• WS460c Gen9 Graphics (2.5 inch)
• WS460c Gen9 Graphics Expansion (2.5 inch

  Capacity

  The HPE 875483-H21 SSD offers a capacity of 240GB, making it an ideal choice for users who require a balance between storage space and performance. With this generous capacity, users can store a large amount of data without worrying about running out of space. Whether it's multimedia files, documents, or applications, the 240GB capacity ensures that users have enough room to meet their storage needs.

  Increased Storage Efficiency

  One of the key benefits of the 240GB capacity is increased storage efficiency. With more storage space available, users can organize their files and data in a more efficient manner. This helps to optimize their workflow and makes it easier to locate and access specific files when needed. Whether it's for personal or business use, having ample storage capacity allows users to stay organized and productive.

  Seamless Multimedia Content Management

  In today's digital age, multimedia content such as photos, videos, and music plays a significant role in our lives. The 240GB capacity of the HPE 875483-H21 SSD ensures that users can store and manage their multimedia content seamlessly. Whether it's capturing precious memories or editing high-resolution videos, users can rely on the spacious capacity to store their files without worrying about running out of space.

  Enhanced Gaming Experience

  Gaming enthusiasts will also benefit from the 240GB capacity of this SSD. Modern games often require substantial storage space due to their detailed graphics and expansive worlds. With the HPE 875483-H21 SSD's generous capacity, gamers can install and play their favorite games without concerns of limited storage. This ensures a smooth gaming experience without any compromise on performance.

  Interface

  The HPE 875483-H21 SSD features a SATA 6GBPS interface, providing users with a high-speed and reliable connection between the drive and their system. This interface offers numerous benefits and is a crucial factor to consider when choosing an SSD.

  Fast Data Transfer Speeds

  The SATA 6GBPS interface allows for fast data transfer speeds, ensuring that users can quickly access and transfer their files. This is particularly important for tasks that involve large file sizes, such as video editing or transferring large datasets. With the SATA 6GBPS interface, users can experience minimal latency and significantly reduced waiting times when accessing or transferring data.

  Compatibility with Existing Systems

  Another advantage of the SATA 6GBPS interface is its compatibility with existing systems. It is a widely adopted standard, making it compatible with most modern desktops and laptops. Users can easily upgrade their storage solution by replacing their existing hard drive or SSD with the HPE 875483-H21 without worrying about compatibility issues. This ensures a seamless integration into their current system setup.

  Future-Proofing

  The SATA 6GBPS interface also provides future-proofing benefits. As technology continues to advance, faster data transfer standards may emerge. By choosing an SSD with the SATA 6GBPS interface, users can ensure that their storage solution remains relevant and compatible with future systems and technologies.

  Form Factor

  The HPE 875483-H21 SSD has a form factor of 2.5 Inch Small Form Factor, which offers several advantages for users in terms of versatility, compatibility, and space-saving benefits.

  Versatility in Installation

  The 2.5 Inch SFF form factor allows the HPE 875483-H21 SSD to be easily installed in a variety of systems. Whether it's a desktop, laptop, or server, users can enjoy the flexibility of using this SSD in different hardware configurations. This versatility ensures that users can make the most out of their investment and adapt the SSD to suit their specific needs.

  Compatibility with Drive Bays

  The 2.5 Inch SFF form factor is commonly found in drive bays, making it compatible with a wide range of storage systems and enclosures. Users can seamlessly integrate the HPE 875483-H21 SSD into their existing storage infrastructure without the need for additional adapters or modifications. This compatibility simplifies the installation process and ensures that the SSD can be easily deployed in various environments.

  Space-Saving Design

  The compact size of the 2.5 Inch SFF form factor contributes to its space-saving benefits. This is particularly advantageous for users who have limited physical space in their systems or require multiple drives in a small footprint. The HPE 875483-H21 SSD's form factor allows for efficient utilization of space without compromising on performance or capacity.

  Use

  The HPE 875483-H21 SSD is designed for mixed-use applications, making it suitable for a wide range of workloads and usage scenarios.

  Optimized Performance

  With its mixed-use design, the HPE 875483-H21 SSD delivers optimized performance for both read and write operations. This makes it an excellent choice for users who require a balance between high-speed data access and efficient data handling. Whether it's running intensive applications, handling databases, or multitasking, the mixed-use design ensures consistent and reliable performance.

  Improved Endurance

  The mixed-use design of the HPE 875483-H21 SSD also contributes to improved endurance. This means that the SSD can handle a higher number of read and write operations over its lifespan compared to drives designed for specific use cases. This increased endurance ensures that users can rely on the SSD for demanding workloads without concerns of premature wear or degradation in performance.

  Versatility for Various Workloads

  Another benefit of the mixed-use design is its versatility for various workloads. Whether it's heavy file transfers, virtualization, or content creation, the HPE 875483-H21 SSD can efficiently handle different types of workloads. This versatility allows users to use the SSD across multiple applications and industries, making it a versatile and cost-effective storage solution.
