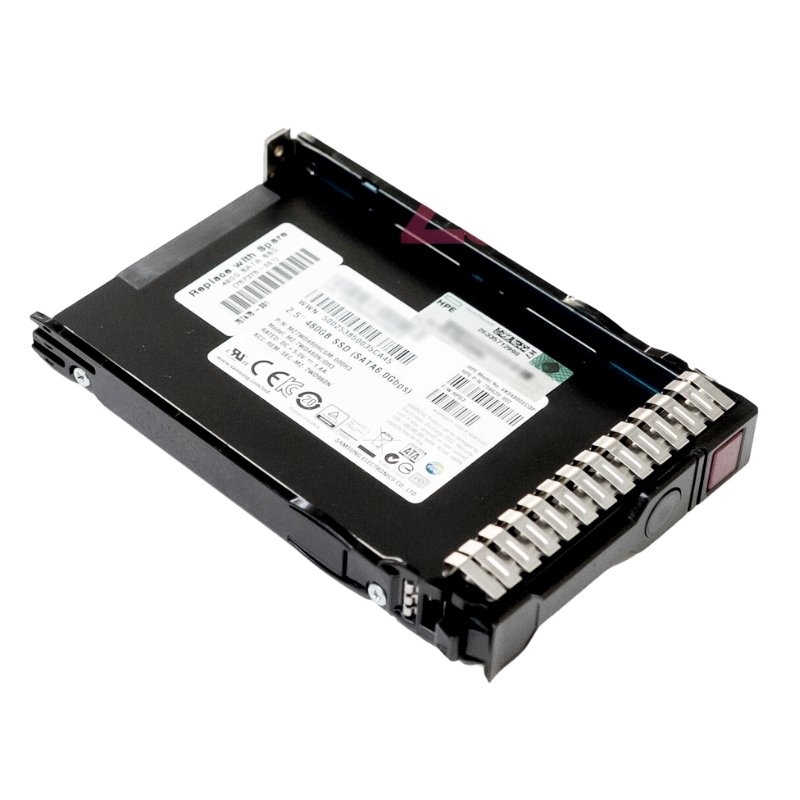

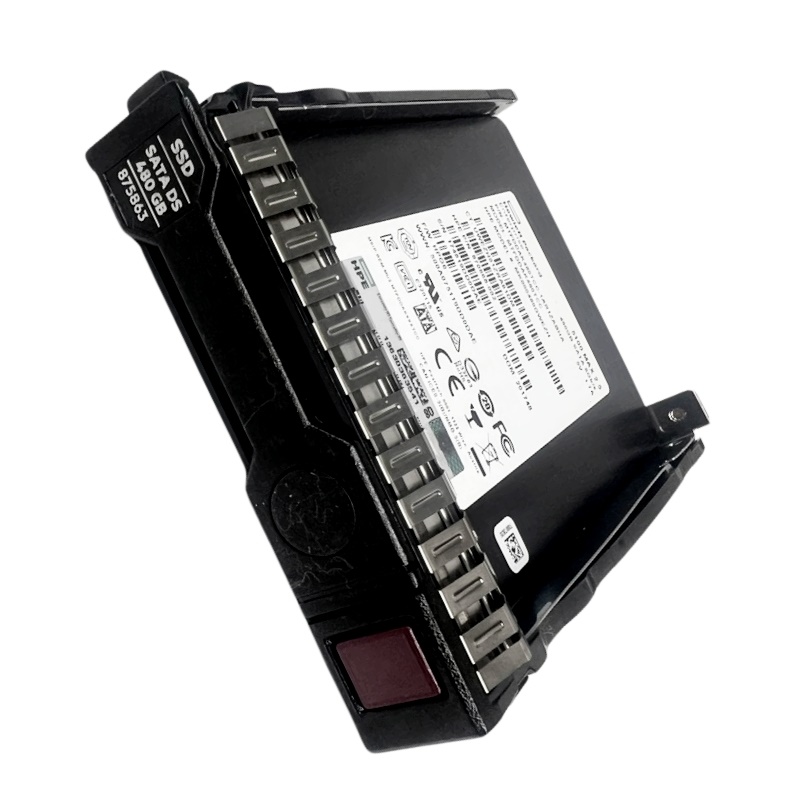

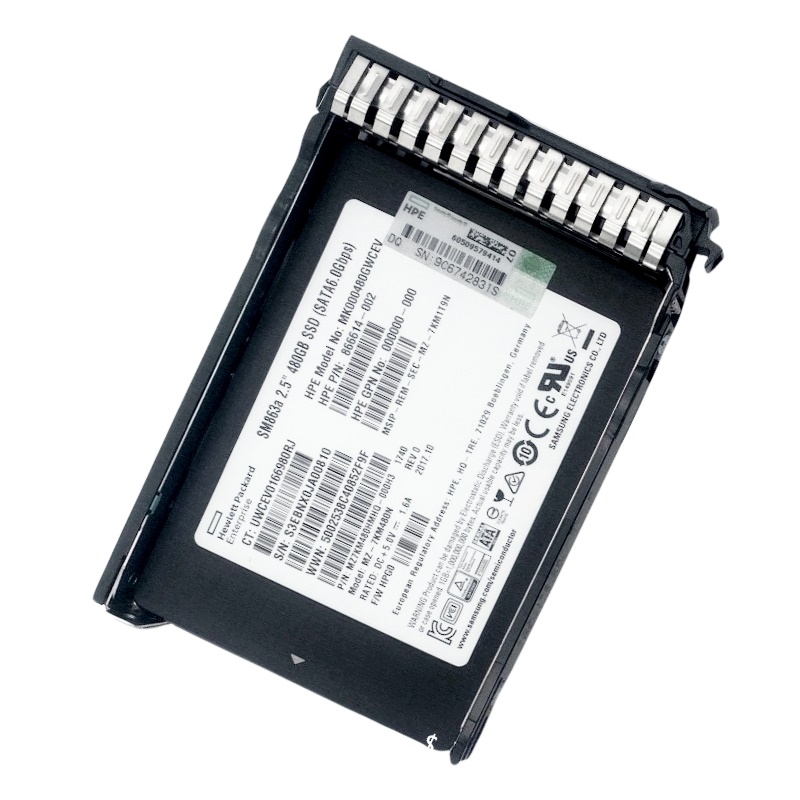

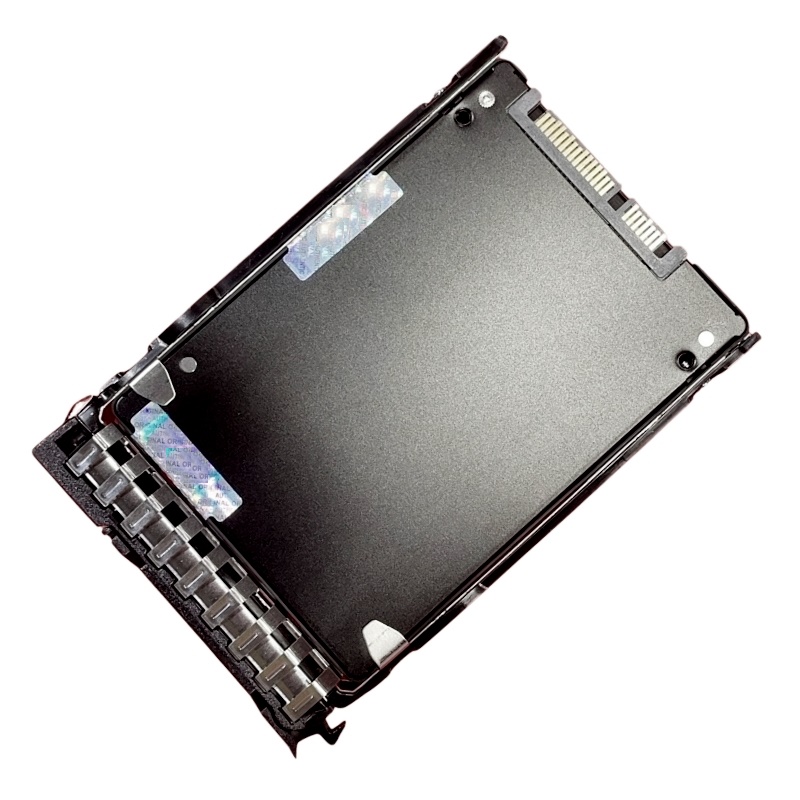

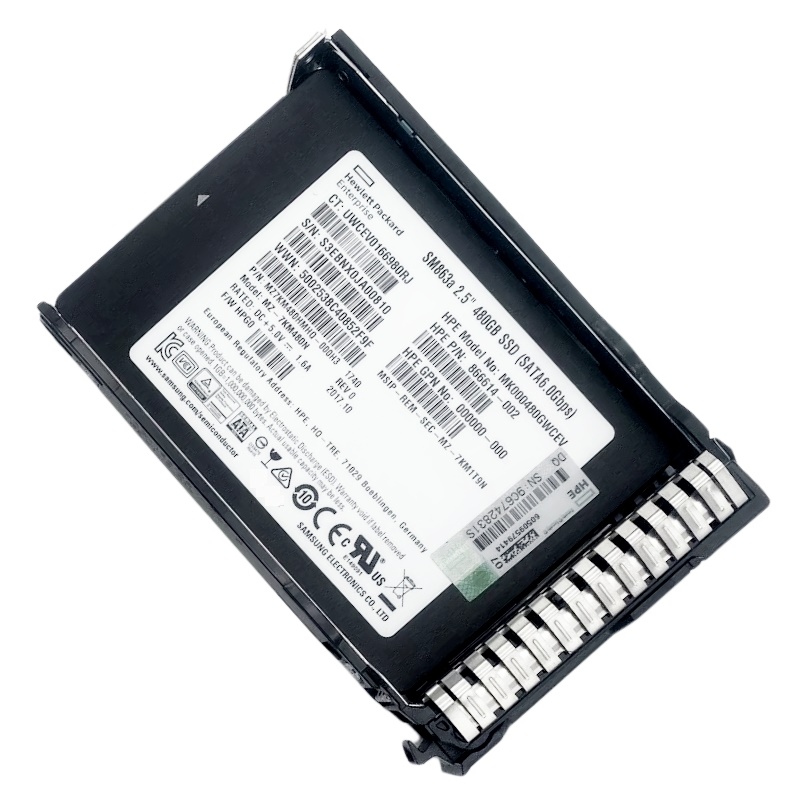

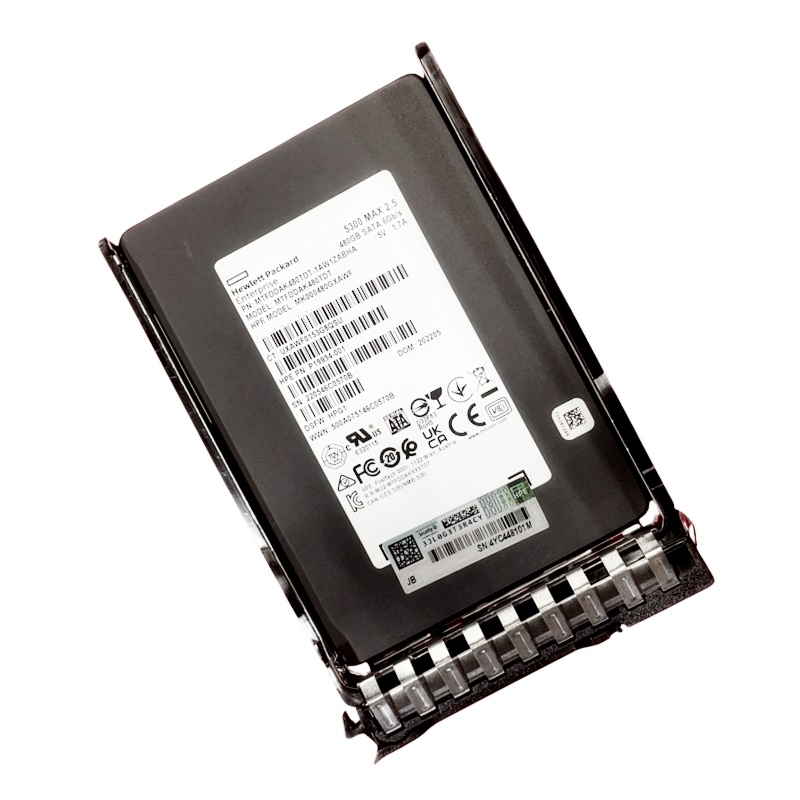

HPE 3.5" Smart Carrier Converter SSD SATA 6GBPS 480GB 832417-B21

Product Information of HPE 3.5inch Smart Carrier SSD

• Brand: HPE
• Part Number: 832417-B21
• Device Type: Solid State Drive – Hot-Swap
• Capacity: 480 GB
• Form Factor: 3.5 inch LFF
• Interface Type: SATA 6Gbps
• Plug Type: Hot Pluggable
• NAND Flash Memory Type: Multi-Level Cell (MLC)
• Carrier Type: Smart Carrier Converter (SCC)
• Workload Type: Mixed Use
• Features: Power Loss Protection (PLP), Digitally Signed Firmware (DS)
• Bundled with: HPE Smart Carrier Converter
• Supported Platforms: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
• Height: 15 mm

Performance Specifications

Write Durability and Daily Operations

• Lifetime Writes: 2630 TBW
• Drive Writes Per Day (DWPD): 3
• Drive Transfer Rate: 6 Gb/sec (external)

Sequential and Random Operations

• MAX Sequential Reads: 535 MiB/s
• MAX Sequential Writes: 380 MiB/s
• Random Read Latency (4KiB, Q1): 115 µs
• Random Write Latency (4KiB, Q1): 45 µs

IOPS Performance

• Random Read IOPS (4KiB, Q=16): 64,000
• Random Write IOPS (4KiB, Q=16): 26,000
• Max Random Read IOPS (4KiB, Q32): 71,000
• Max Random Write IOPS (4KiB, Q4): 26,000
• 4KiB Random 70% Read / 30% Write (Queue 32): 45,000 IOPS
• 4KiB Random 50% Read / 50% Write (Queue 32): 36,000 IOPS

Dimensions and Weight

• Height: 5.63 inch
• Width: 3.75 inch
• Depth: 7.00 inch
• Weight: 1.35 lbs

Power Consumption

Idle and Active Power Usage

• Idle Power: 1.18 Watt
• Random Read Power: 2.60 Watt
• Random Write Power: 2.60 Watt
• Sequential Read Power: 3.06 Watt
• Sequential Write Power: 5.12 Watt
• Random Read/Write Power: 2.60 Watt

Compatibility

HPE ProLiant DL Series

• DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage
• DL388 Gen9, DL388 Gen9 Base
• DL388p Gen8 Base
• DL80 Gen9 Entry

HPE ProLiant ML Series

• ML110 Gen9, ML110 Gen9 Base, ML110 Gen9 Entry

Form Factor: 3.5inch

The HPE 832417-B21 SSD is designed with a form factor of 3.5inch, making it a versatile and efficient storage solution for various applications. In this section, we will explore the benefits and importance of this form factor for users.

Optimal Fit in Standard Drive Bays

One of the key advantages of the 3.5inch form factor is its compatibility with standard drive bays. Most computer cases and server enclosures are equipped with 3.5inch drive bays, allowing for seamless integration of the HPE 832417-B21 SSD into existing systems without the need for additional hardware or modifications.

By utilizing the available drive bays, users can maximize their storage capacity within a given space. This is particularly important in data centers or server environments where rack space is limited and every inch counts. The ability to fit the HPE 832417-B21 SSD into a 3.5inch drive bay ensures efficient utilization of available resources and minimizes the need for costly infrastructure expansions.

Easy Installation and Maintenance

The 3.5inch form factor offers user-friendly installation and maintenance processes. With standardized dimensions, it is straightforward to slot the HPE 832417-B21 SSD into a compatible drive bay, typically requiring no additional tools or adapters.

Furthermore, the larger form factor allows for better airflow and heat dissipation compared to smaller form factors such as 2.5-inch drives. This helps in maintaining optimal operating temperatures for the SSD, leading to enhanced performance and longevity.

Compatibility with Legacy Systems

Another advantage of the 3.5inch form factor is its compatibility with legacy systems. Many older servers and workstations still rely on 3.5inch drive bays as their primary storage interface. By offering compatibility with these systems, the HPE 832417-B21 SSD allows users to upgrade their storage infrastructure without the need for a complete system overhaul.

For users with legacy systems, the ability to utilize the 3.5inch form factor ensures a seamless transition to modern SSD technology without sacrificing compatibility or performance.

Carrier Type: Smart Carrier

The HPE 832417-B21 SSD features a Smart Carrier, which provides numerous benefits and is of significant importance for users. In this section, we will delve into the advantages and significance of this carrier type.

Enhanced Drive Protection

The Smart Carrier offers enhanced drive protection for the HPE 832417-B21 SSD. Its robust design shields the SSD from accidental bumps, vibrations, and other physical impacts that may occur during installation or relocation. This added protection minimizes the risk of drive failures and data loss, providing users with peace of mind and ensuring uninterrupted operation.

Efficient Hot-Swap Capability

The Smart Carrier facilitates efficient hot-swapping of drives, allowing for easy replacement or addition of SSDs without interrupting system operations. This feature is particularly valuable in mission-critical environments where downtime must be kept to a minimum.

With the Smart Carrier, users can simply slide out a defective or outdated SSD and replace it with a new one, all while the system continues running. This eliminates the need for system shutdowns or restarts, saving valuable time and ensuring continuous productivity.

Improved Management and Monitoring

The Smart Carrier incorporates intelligent management and monitoring capabilities for the HPE 832417-B21 SSD. It allows users to access vital information such as drive health status, temperature, firmware versions, and other diagnostic data. This enables proactive maintenance and troubleshooting, reducing the risk of unexpected drive failures and optimizing overall system performance.

Moreover, the Smart Carrier often integrates with management software and systems, providing administrators with centralized control and visibility over the deployed SSDs. This streamlines management tasks simplifies monitoring, and enhances overall system efficiency.

Interface: SATA 6GBPS

The HPE 832417-B21 SSD utilizes the SATA 6GBPS interface, offering users numerous benefits and highlighting its importance in modern storage solutions. In this section, we will explore the advantages and significance of this interface.

High Data Transfer Speeds

The SATA 6GBPS interface enables high data transfer speeds, allowing for rapid access to stored data and faster overall system performance. With a maximum theoretical bandwidth of 6 gigabits per second (approximately 600 megabytes per second), users can experience significantly reduced data transfer times compared to previous SATA generations.

This enhanced speed is particularly valuable in scenarios that involve intensive read and write operations, such as database servers, content delivery networks (CDNs), or video editing workstations. By leveraging the SATA 6GBPS interface, the HPE 832417-B21 SSD ensures smooth and efficient data processing, enabling users to complete tasks more quickly and effectively.

Backward Compatibility

The SATA 6GBPS interface maintains backward compatibility with previous SATA generations. This means that users can seamlessly integrate the HPE 832417-B21 SSD into systems that support earlier SATA versions, such as SATA 3GBPS or SATA 1.5GBPS.

This compatibility is particularly advantageous for users who have existing infrastructure utilizing older SATA interfaces. The ability to upgrade to the HPE 832417-B21 SSD without replacing or modifying their entire storage system provides a cost-effective solution for enhancing performance without significant investment.

Widespread Adoption and Support

The SATA 6GBPS interface has achieved widespread adoption across various industries and sectors. It is a well-established standard with extensive support from hardware manufacturers, operating systems, and software applications.

This widespread adoption ensures that users can easily find compatible components and leverage the advantages of the SATA 6GBPS interface without compatibility or interoperability issues. The HPE 832417-B21 SSD's utilization of this widely accepted interface ensures seamless integration into existing systems and compatibility with a vast array of storage solutions and software applications.

Capacity: 480GB

The HPE 832417-B21 SSD offers a capacity of 480GB, which provides users with ample storage space for their data-intensive applications and workloads. In this section, we will discuss the benefits and importance of this capacity.

Storage Scalability

The 480GB capacity of the HPE 832417-B21 SSD allows users to accommodate growing storage demands without the need for frequent upgrades or expansions. This scalability is particularly valuable in dynamic environments where data volumes are continuously increasing, such as media production studios, scientific research facilities, or cloud service providers.

With 480GB of storage space, users can store large amounts of data, including operating systems, applications, databases, and multimedia files. This ensures that critical resources are readily accessible and minimizes the risk of running out of storage capacity, which can lead to performance degradation or downtime.

Cost-Effective Solution

The 480GB capacity strikes a balance between cost and performance, making it a cost-effective solution for various use cases. It provides users with sufficient storage space to meet their requirements without incurring unnecessary expenses associated with higher-capacity drives.

For budget-conscious individuals or organizations, the HPE 832417-B21 SSD's 480GB capacity offers an ideal compromise between cost and functionality. It allows them to leverage the benefits of SSD technology while staying within their budget constraints.

Optimized Performance

The 480GB capacity of the HPE 832417-B21 SSD ensures optimized performance for a wide range of applications. With ample storage space, users can store frequently accessed data, reducing read and write latencies and improving overall system responsiveness.

Additionally, the 480GB capacity allows for efficient wear leveling and garbage collection algorithms, which optimize the lifespan and performance of the SSD. These algorithms distribute write operations evenly across the drive and proactively manage data blocks to minimize write amplification and maximize endurance.

Use Case: Mixed Use

The HPE 832417-B21 SSD is specifically designed for mixed-use scenarios, offering significant benefits and catering to a wide range of applications. In this section, we will explore the advantages and importance of this use case.

Versatility and Flexibility

The mixed-use capability of the HPE 832417-B21 SSD makes it a versatile storage solution that can handle various workloads and applications. Whether it is running databases, virtualization environments, or content delivery networks, this SSD excels in delivering consistent performance across diverse workloads.

This versatility allows users to utilize the same SSD for multiple purposes, reducing the need for specialized storage solutions. It simplifies storage management and procurement processes while providing the necessary performance and reliability for demanding applications.

Optimized Performance for Diverse Workloads

The mixed-use capability of the HPE 832417-B21 SSD ensures optimized performance for diverse workloads. It is specifically designed to handle a combination of read-intensive and write-intensive operations, delivering balanced performance across different usage patterns.

For example, in database environments where both read and write operations are crucial, the HPE 832417-B21 SSD can provide fast response times for queries while maintaining high transactional throughput. This ensures smooth and efficient data processing without compromising on performance or reliability.

Cost-Effective Solution for Multiple Applications

By offering mixed-use capabilities, the HPE 832417-B21 SSD provides users with a cost-effective solution for multiple applications. Instead of purchasing separate SSDs for different workloads, users can rely on a single SSD that caters to a wide range of use cases.

This consolidated approach not only reduces acquisition costs but also simplifies management and maintenance tasks. Administrators can focus on optimizing the performance of a single SSD rather than juggling multiple storage devices, leading to improved efficiency and reduced operational overhead.

In conclusion, the HPE 832417-B21 SSD's 3.5inch form factor, Smart Carrier, SATA 6GBPS interface, 480GB capacity, and mixed-use capabilities offer users a comprehensive storage solution that excels in compatibility, performance, scalability, and versatility. Whether it is fitting into standard drive bays, providing enhanced drive protection, enabling high-speed data transfers, accommodating growing storage demands, or delivering optimized performance for diverse workloads, this SSD caters to the needs of various applications and environments.
