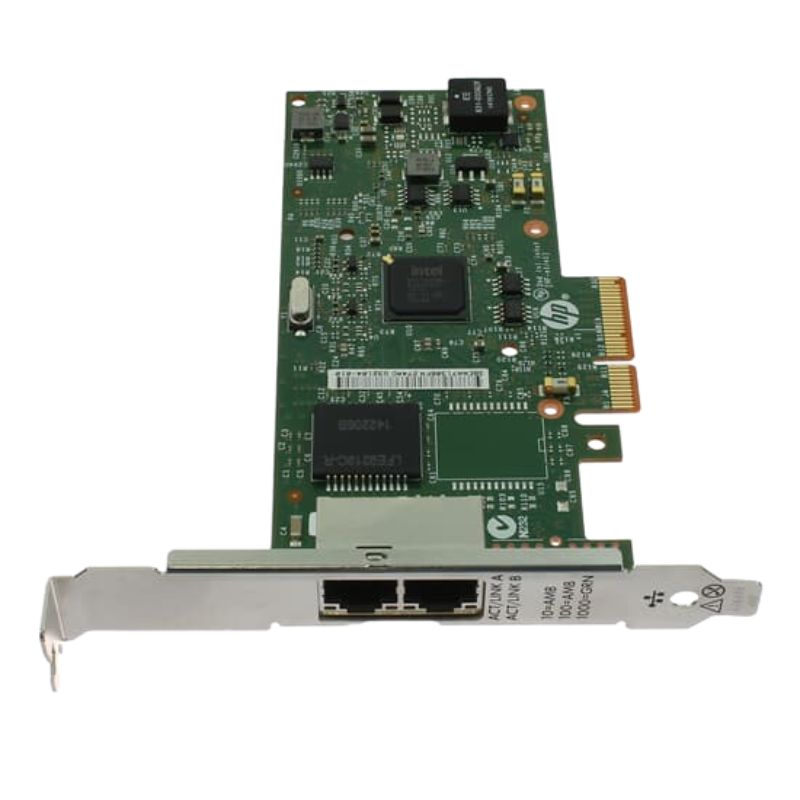

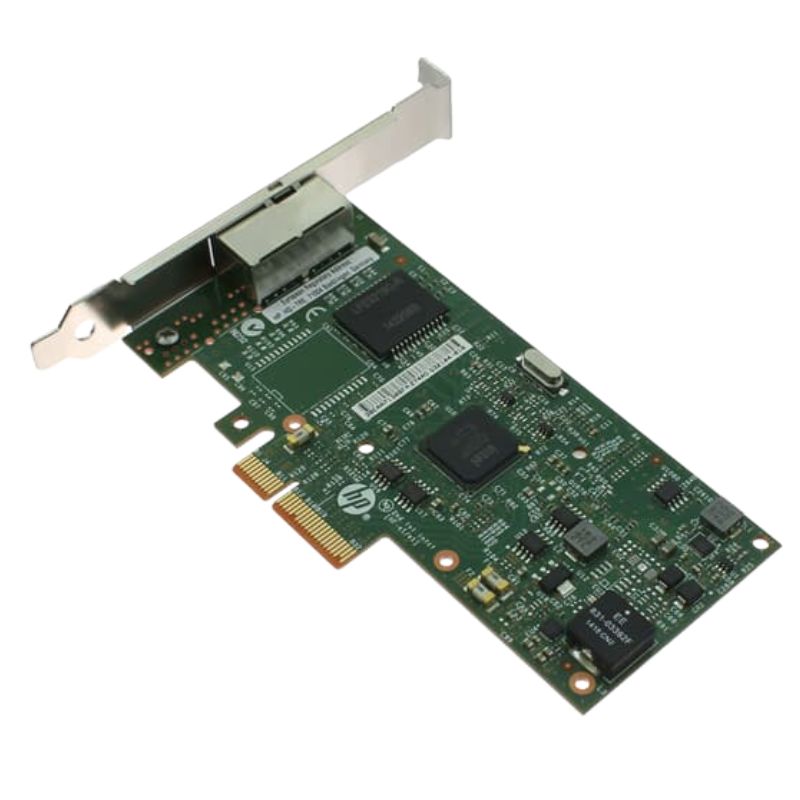

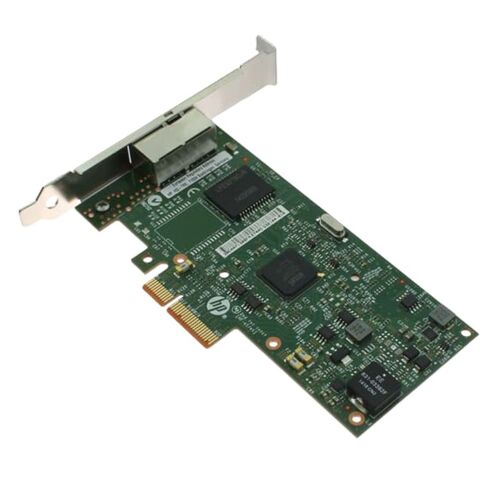

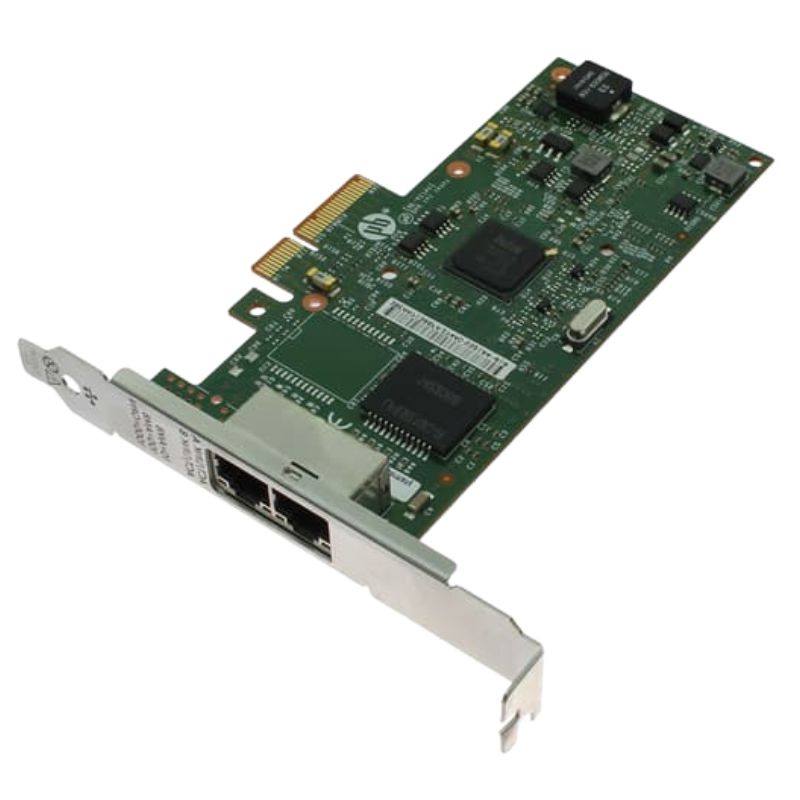

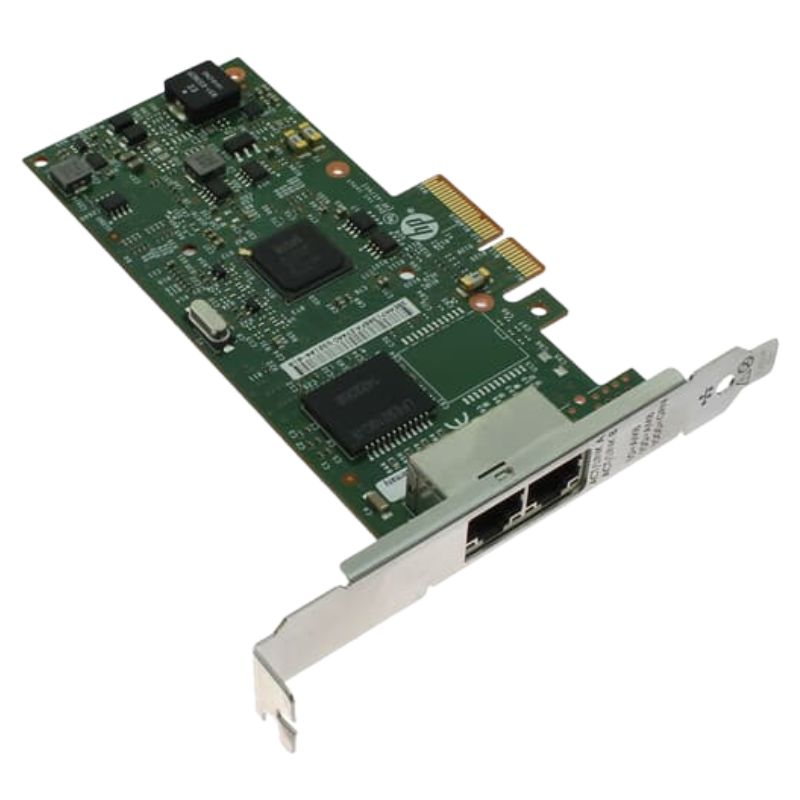

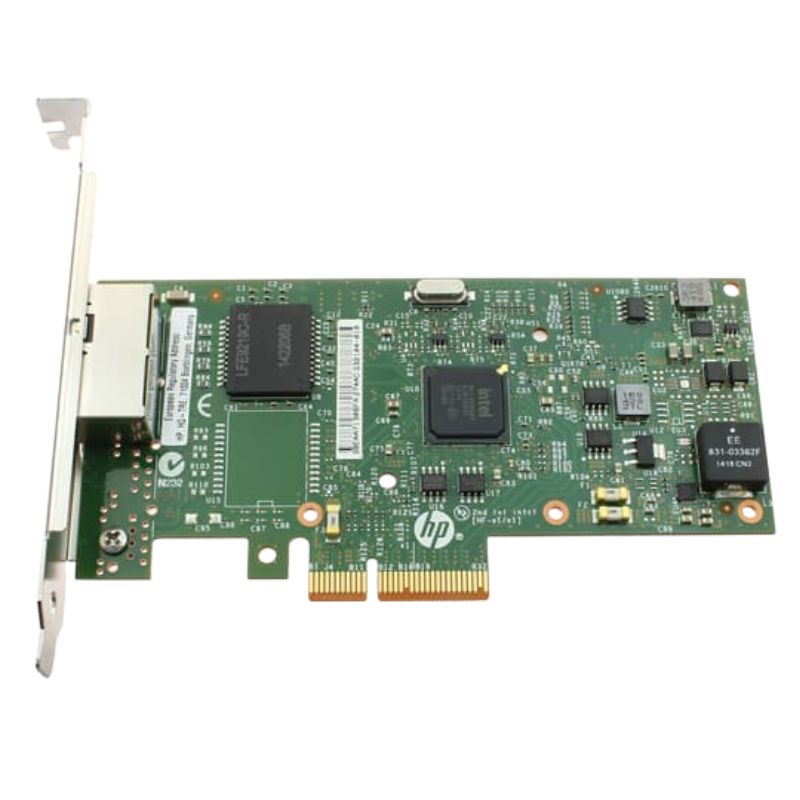

HPE 361T PCIe 2.0x4 1Gb 2 Port Network Adapter 656241-001

Port

The HPE 361T Network Adapter is equipped with 2 ports, offering users the flexibility to connect multiple devices simultaneously. This feature is particularly beneficial for users who require high bandwidth and want to connect their server to multiple networks or devices.

Overview of HPE 2-Port Networking Adapter

Main Features and Specifications

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Model Number: 656241-001
• Category: Networking Hardware
• Adapter Type: Dual-Port Adapter
• Form Factor: Low-profile Plug-in Card
• Interface Type: PCI Express 2.0 x4
• PCI Revision: PCIe 2.0

Dimensions and Weight

• Depth: 5.3 inches
• Height: 2.5 inches

Networking Capabilities

• Port Configuration: Two Gigabit Ethernet Ports
• Connection Type: Wired Network
• Cabling Standards: 10Base-T, 100Base-TX, 1000Base-T
• Data Link Protocols: 10Mb LAN, 100Mb LAN, Gigabit Ethernet
• Maximum Data Transfer Rate: 1 Gbps
• Remote Management: SNMP
• Status Indicators: Link Activity, Port Transmission Speed

Technical Features

• Auto-negotiation for optimal network performance
• Wake on LAN (WOL) for remote activation
• Network Fault Tolerance (NFT) for enhanced reliability
• Support for Jumbo Frames to handle large data packets
• PXE Support for network booting
• Large Send Offload (LSO) to reduce CPU load
• Energy Efficient Ethernet for reduced power consumption

Compliance and Certifications

• IEEE Standards: 802.3, 802.3u, 802.1Q, 802.3ab, 802.3x, 802.3ad (LACP), 802.1as, 802.3az
• Certifications: FCC Class B, UL, VCCI Class B ITE, CISPR 22 Class B, DOC-B, EN 60950, UL 1950, VCCI-II, WHQL, EN55022 Class B, ICES-003 Class B, MIC Class B, WEEE, RoHS, BSMI Class A

Processor and Memory

• Processor: Intel I350

Expansion and Connectivity

• Interfaces: 2 x 1000Base-T – RJ-45
• Compatible Slots: 1 x PCI Express 2.0 x4 – Low-profile

Included Accessories

• Low-profile Bracket

System Requirements

• Operating Systems: SuSE Linux Enterprise Server, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, VMware ESX 4.1, VMware ESXi 4.1 & 5, Citrix XenServer 6.0

Environmental Conditions

• Minimum Operating Temperature: 32 °F
• Maximum Operating Temperature: 131 °F
• Humidity Range: 10 – 90% (Non-condensing)

Compatibility with ProLiant Series

DL Series

• DL165 G7, DL580 G7, DL585 G7, DL980 G7, DL160 G8/G9 (Gen8/Gen9), DL320e G8/G9 (Gen8/Gen9)
• DL360 G10 (Gen10), DL360e G8/G9 (Gen8/Gen9), DL360p G8/G9 (Gen8/Gen9)
• DL380 G10 (Gen10), DL380e G8/G9 (Gen8/Gen9), DL380p G8/G9 (Gen8/Gen9)
• DL385 G10 (Gen10), DL385p G8/G9 (Gen8/Gen9), DL560 G8/G9 (Gen8/Gen9), DL560 G10 (Gen10)
• DL580 G10 (Gen10)

ML Series

• ML110 G10 (Gen10), ML310e G8/G9 (Gen8/Gen9), ML350 G10 (Gen10)
• ML350e G8/G9 (Gen8/Gen9), ML350p G8/G9 (Gen8/Gen9)

SL Series

• SL230s G8/G9 (Gen8/Gen9), SL250s G8/G9 (Gen8/Gen9)
• SL270s G8/G9 (Gen8/Gen9)

Increased Connectivity

With 2 ports, the HPE 361T Network Adapter enables users to establish connections with various networks, switches, and devices. This allows for increased connectivity and expands the possibilities for data sharing, collaboration, and resource utilization. Users can connect their server to different networks or configure one port for management purposes and the other for data traffic. This flexibility ensures efficient and optimized network performance.

Enhanced Network Redundancy

Redundancy is essential in a network infrastructure to ensure uninterrupted connectivity and minimize downtime. The dual ports on the HPE 361T Network Adapter provide redundancy by offering an alternative connection path in case one port fails or experiences issues. This feature is particularly important for critical applications where any downtime can result in significant losses or disruptions. Users can configure the adapter for link aggregation or failover, ensuring continuous network availability.

Improved Bandwidth and Load Balancing

By utilizing both ports of the HPE 361T Network Adapter, users can distribute network traffic across multiple paths, resulting in improved bandwidth utilization and load balancing. This feature is crucial in scenarios where high data transfer rates are required, such as virtualization environments or data-intensive applications. Load balancing ensures that network resources are efficiently utilized, preventing bottlenecks and optimizing overall network performance.

Efficient Virtualization

In virtualized environments, the HPE 361T Network Adapter's dual ports enable users to dedicate one port to handle management traffic while using the other port exclusively for data transfers between virtual machines (VMs). This segregation of traffic helps in improving VM performance and ensures efficient resource allocation.

Optimized Storage Networking

For users utilizing storage area networks (SANs) or network-attached storage (NAS), the dual ports of the HPE 361T Network Adapter can be used to establish separate connections for data and storage traffic. This segregation prevents congestion and enhances the overall performance of storage systems.

Seamless Migration and Upgrades

The presence of two ports on the HPE 361T Network Adapter simplifies migration and upgrades by providing a seamless transition path. Users can connect their existing infrastructure to one port while gradually migrating or upgrading to new equipment on the other port. This ensures minimal disruption and allows for a smooth transition to newer technologies.

Interface

The HPE 361T Network Adapter features a PCIe 2.0x4 interface, offering users a high-speed and efficient connection to their server. This interface provides numerous benefits that enhance performance, scalability, and compatibility.

High-Speed Data Transfer

The PCIe 2.0x4 interface of the HPE 361T Network Adapter delivers high-speed data transfer rates, enabling users to leverage the full potential of their network infrastructure. This interface offers significantly faster data transmission compared to older interfaces like PCI or PCI-X. Users can take advantage of this increased speed to handle bandwidth-intensive applications, large file transfers, and data-intensive workloads with ease.

Enhanced Scalability

The PCIe 2.0x4 interface supports higher bandwidth and provides improved scalability compared to previous generations. Users can expand their network capabilities by adding additional adapters or upgrading to higher-speed components without encountering bottlenecks caused by limited bus bandwidth. This scalability ensures that the HPE 361T Network Adapter can keep up with the evolving demands of modern networks.

Backward Compatibility

Despite its advanced features, the PCIe 2.0x4 interface of the HPE 361T Network Adapter maintains compatibility with older PCIe versions. This allows users to seamlessly integrate the adapter into existing server infrastructures without requiring significant hardware upgrades. The backward compatibility ensures that users can leverage the benefits of the latest technology while still utilizing their current server investments.

Future-Proofing

By adopting the PCIe 2.0x4 interface, users future-proof their server infrastructure to some extent. This interface is widely supported and is expected to remain relevant for several years. Users can confidently invest in the HPE 361T Network Adapter, knowing that their server will be compatible with future advancements in PCIe technology.

Improved Server Performance

The high-speed and efficient connection provided by the PCIe 2.0x4 interface directly impacts server performance. With faster data transfer rates, servers equipped with the HPE 361T Network Adapter can handle more concurrent connections, process requests quicker, and deliver improved response times. This enhanced performance translates into increased productivity, reduced latency, and an overall better user experience.

Speed

The HPE 361T Network Adapter boasts a speed of 1Gb, enabling users to achieve fast and reliable network connectivity. This feature is crucial for applications that require high bandwidth and low latency, ensuring smooth data transmission and optimal network performance.

High Bandwidth Capacity

With a speed of 1Gb, the HPE 361T Network Adapter provides a significant bandwidth capacity for data transfers. Users can leverage this high-speed connection to handle bandwidth-intensive tasks such as large file transfers, video streaming, or real-time data processing. The increased bandwidth ensures that network resources are effectively utilized and prevents congestion or bottlenecks that can hinder productivity.

Low Latency

The 1Gb speed of the HPE 361T Network Adapter contributes to low latency, which is crucial in real-time applications and environments where responsiveness is paramount. Users can rely on this adapter to deliver data quickly and minimize delays, ensuring smooth communication, efficient data processing, and seamless user experiences.

Optimized Network Performance

The high-speed capabilities of the HPE 361T Network Adapter directly impact the overall network performance. By providing fast and reliable connectivity, this adapter enables users to maximize the throughput of their network infrastructure. Users can transfer data quickly, access resources instantaneously, and collaborate seamlessly, resulting in improved productivity and enhanced business operations.

Virtualization Support

For users leveraging virtualization technologies, the 1Gb speed of the HPE 361T Network Adapter ensures efficient communication between virtual machines (VMs) and host systems. This speed allows for smooth VM migrations, rapid data transfers between VMs, and optimal performance of virtualized applications.

Enhanced Multimedia Streaming

With its 1Gb speed, the HPE 361T Network Adapter is well-suited for multimedia streaming applications. Users can rely on this adapter to deliver high-quality audio and video streams without buffering or interruptions. Whether it's video conferencing, media production, or online gaming, the fast speed of the adapter ensures a seamless experience.

BufferSize

The HPE 361T Network Adapter is equipped with a generous 10MB buffer size, offering users improved network performance by effectively managing data traffic. This feature plays a crucial role in preventing packet loss, reducing latency, and optimizing throughput.

Packet Management

The 10MB buffer size of the HPE 361T Network Adapter allows for efficient packet management. The adapter can store incoming packets temporarily in its buffer before forwarding them to the appropriate destination. This buffering capability ensures smooth data transmission even during high network traffic periods, preventing packet loss and minimizing the chances of data corruption.

Latency Reduction

By utilizing its 10MB buffer size, the HPE 361T Network Adapter helps in reducing latency. The buffer allows for temporary storage of incoming data, allowing the adapter to handle bursts of traffic more effectively. This reduces the chances of congestion and ensures that data is transmitted without delays, resulting in improved response times and a better user experience.

Optimized Throughput

The buffer size of the HPE 361T Network Adapter contributes to optimized network throughput. The adapter can absorb temporary variations in network traffic and smooth out the data flow, preventing bottlenecks and maximizing the utilization of available bandwidth. This optimized throughput translates into improved network performance, increased productivity, and reduced downtime.

Improved Quality of Service (QoS)

With a larger buffer size, the HPE 361T Network Adapter can better handle Quality of Service (QoS) requirements. QoS ensures that critical network traffic receives priority over less important data. The buffer allows the adapter to prioritize and manage different types of traffic effectively, ensuring that time-sensitive applications or services receive adequate resources and bandwidth.

Enhanced Reliability

The 10MB buffer size enhances the overall reliability of the HPE 361T Network Adapter. The larger buffer helps in handling sudden traffic spikes or temporary interruptions without losing packets. This reliability ensures uninterrupted connectivity, minimizes disruptions, and provides a stable networking environment for critical applications.

CompatibleWith

The HPE 361T Network Adapter is compatible with ProLiant servers, enabling users to seamlessly integrate it into their existing infrastructure. This compatibility offers several benefits, including ease of installation, optimized performance, and simplified management.

Seamless Integration

The compatibility of the HPE 361T Network Adapter with ProLiant servers ensures a seamless integration process. Users can easily install the adapter without the need for additional hardware modifications or complex configurations. This compatibility saves time and effort during the deployment phase, allowing users to quickly leverage the benefits of the adapter.

Optimized Performance

The HPE 361T Network Adapter's compatibility with ProLiant servers ensures optimized performance. The adapter is specifically designed to work seamlessly with ProLiant hardware, taking advantage of server-specific optimizations and features. This optimized performance translates into improved network efficiency, reduced latency, and enhanced overall system performance.

Streamlined Management

The compatibility between the HPE 361T Network Adapter and ProLiant servers simplifies management tasks. Users can leverage existing server management tools, interfaces, and utilities to monitor and configure the adapter seamlessly. This streamlined management approach reduces complexity and enables efficient administration of the network infrastructure.

Proven Reliability

HPE's ProLiant servers have a reputation for reliability and stability. By using the HPE 361T Network Adapter specifically designed for ProLiant servers, users can benefit from the proven reliability of both the server hardware and the adapter. This combination ensures a robust networking solution that is less prone to failures, reducing downtime and providing a dependable platform for critical applications.

Vendor Support

The compatibility with ProLiant servers also means users can rely on HPE's comprehensive vendor support. In case of any issues or technical difficulties, users can reach out to HPE's support team for assistance. This support network provides peace of mind, knowing that help is readily available when needed.

PartNumber

The HPE 361T Network Adapter has a unique part number, 656241-001, which allows users to easily identify and procure the specific adapter they require. This part number plays a vital role in compatibility, warranty, and support, ensuring users have the right product for their needs.

Accurate Product Identification

The part number, 656241-001, serves as a unique identifier for the HPE 361T Network Adapter. With this part number, users can accurately identify and specify the exact adapter they require for their server infrastructure. This eliminates any confusion or ambiguity during procurement, ensuring that the right product is obtained.

Compatibility Assurance

The part number is crucial for verifying compatibility between the HPE 361T Network Adapter and the server it will be installed in. Users can cross-reference the part number with the server's compatibility list or specifications to ensure that the adapter is certified and supported for use. This compatibility assurance ensures that the adapter will seamlessly integrate with the server hardware and operate optimally.

Warranty and Support

The part number is often used to register products for warranty coverage and support services. By providing the part number, users can ensure that their HPE 361T Network Adapter is eligible for warranty claims or technical assistance. This warranty coverage and support are essential for resolving any issues or defects that may arise during the product's lifespan.

Product Differentiation

In a market with numerous network adapters available, the unique part number of the HPE 361T Network Adapter helps differentiate it from other similar products. Users can easily identify and select the specific adapter they require by referencing its part number, ensuring they receive the features, performance, and compatibility they need.

Procurement Simplification

The part number simplifies the procurement process for users. By including the specific part number in purchase orders or inquiries, users can ensure that they receive the correct adapter without any confusion or errors. This simplification streamlines the procurement process, saving time and effort for both users and vendors.
