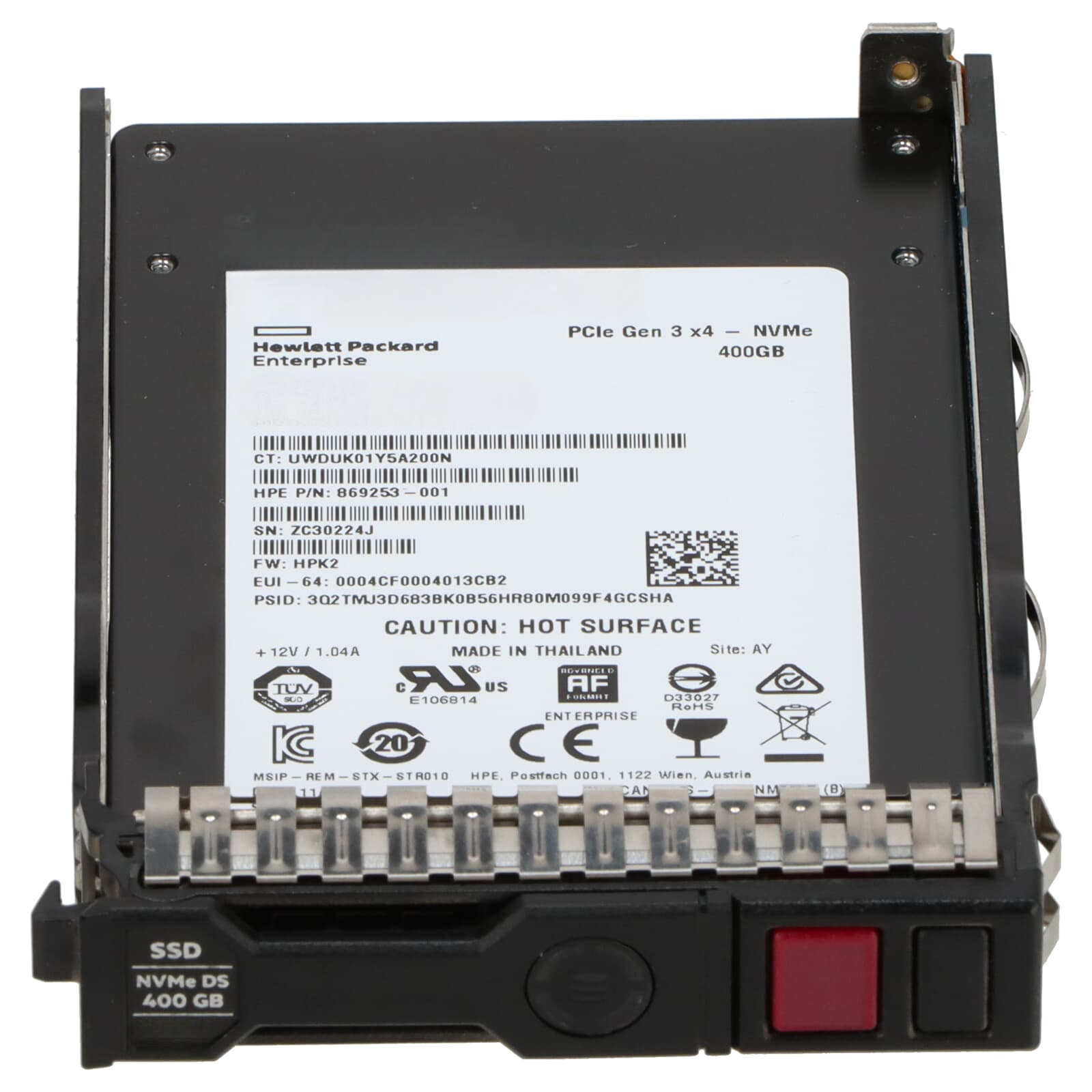

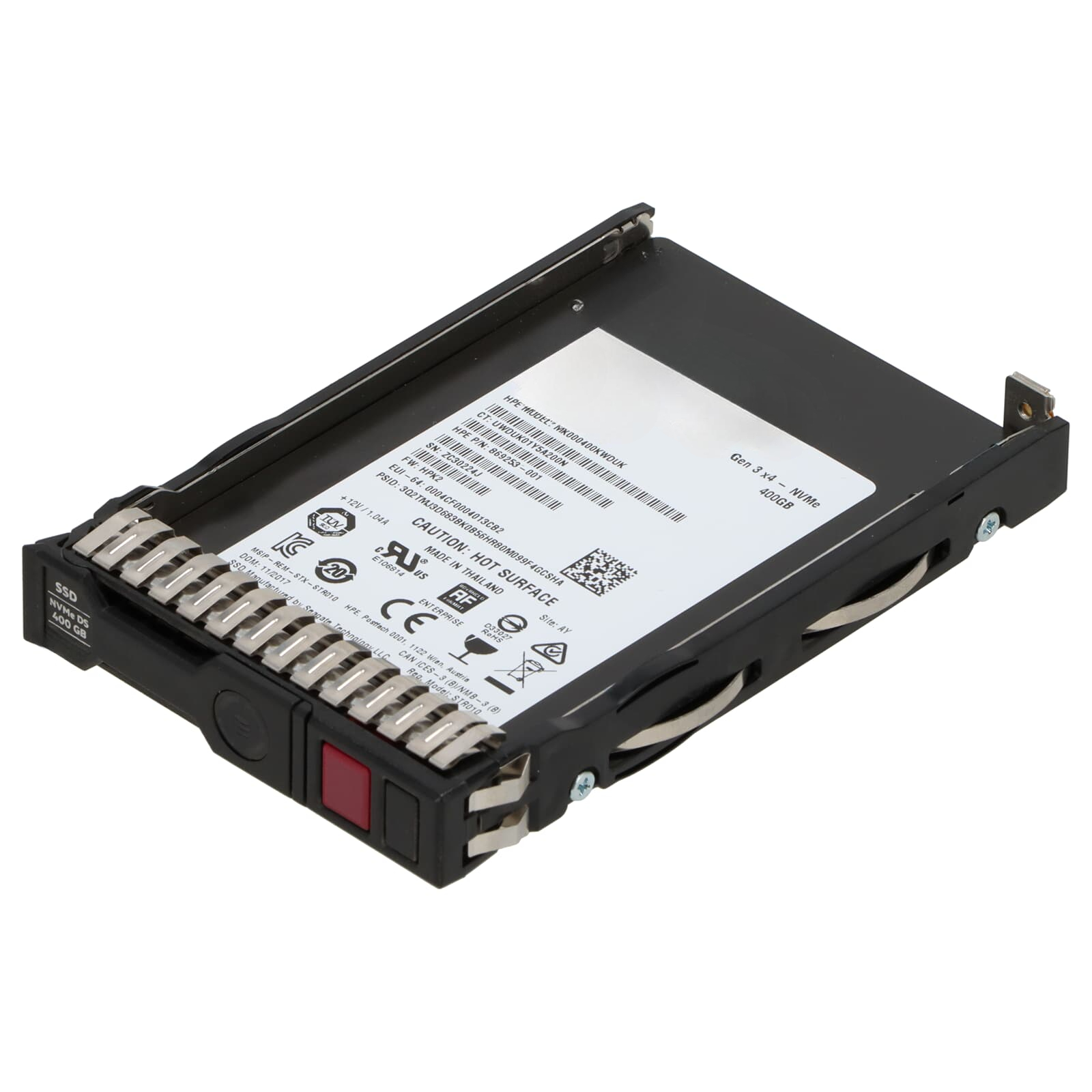

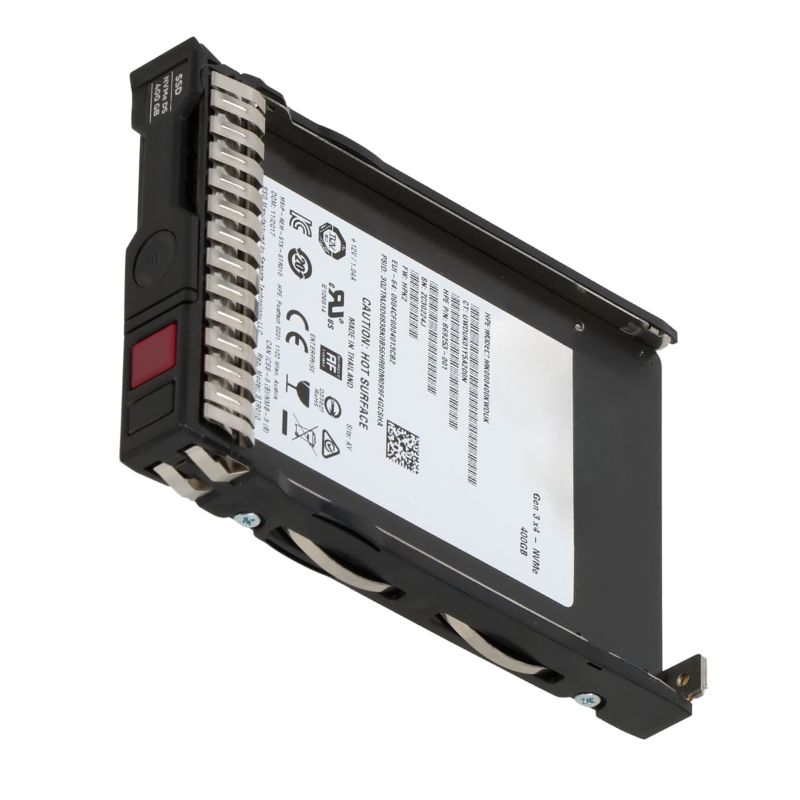

764903-001 HPE 400GB PCIe 3.0 x4 NVMe 2.5" Internal SSD

HPE 764903-001 400GB NVME PCIE SSD

Product Details

• Brand: HPE
• Model Number: 764903-001
• Drive Category: Hot-Swap Solid State Drive

Technical Specifications

Storage Capacity & Format

• Size: 400GB
• Form Factor: 2.5-inch Small Form Factor

Interface & Memory Architecture

• Connection Type: NVMe U.2 PCI Express 3.0 x4
• Flash Memory: Multi-Level Cell (MLC)
• Plug Style: Hot Pluggable
• Carrier Module: Smart Carrier NVMe (SCN)

Supported Platforms

• HPE ProLiant Rack Servers
• HPE Tower Systems
• HPE BladeSystem Infrastructure
• HPE Synergy Framework

Additional Attributes

• Power Loss Protection (PLP)
• Optimized for Read-Intensive Workloads
• Supports x4 PCIe Lanes
• Height: 15.00 mm (0.60 inch)

Performance Metrics

Endurance & Speed

• Drive Writes Per Day (DWPD): 0.3
• Sequential Read Speed: Up to 2200 MiB/s
• Sequential Write Speed: Up to 950 MiB/s

Latency & IOPS

• Random Read Latency: 90 µs (4KiB, Q1)
• Random Write Latency: 40 µs (4KiB, Q1)
• Random Read IOPS: 150,000 (4KiB, Q=16)
• Random Write IOPS: 26,500 (4KiB, Q=16)
• Max Random Read IOPS: 445,000 @ Q128
• Max Random Write IOPS: 26,500 @ Q1

Mixed Workload Performance

• 70% Read / 30% Write (Queue 32): 55,000 IOPS
• 50% Read / 50% Write (Queue 32): 48,000 IOPS

Connectivity & Expansion Options

Interface & Bay Compatibility

• Interface: PCIe NVMe
• Drive Bay: 2.5-inch SFF slot

Energy Efficiency

Power Usage Statistics

• Idle Consumption: 4.00 Watts
• Random Read: 8.14 Watts
• Random Write: 8.28 Watts
• Sequential Read: 7.55 Watts
• Sequential Write: 10.00 Watts
• Combined Random Read/Write: 7.81 Watts

System Compatibility

Supported HPE Server Models

HPE ProLiant BL Series

• BL460c Gen10 (2.5-inch)

HPE ProLiant DL Series

• DL360 Gen10 Base / Entry / Performance / SMB / Solution
• DL380 Gen10 Base / Entry / High Performance / Network Choice / SAP HANA / SMB / Solution
• DL388 Gen10 / Gen9 / Gen9 Base
• DL580 Gen8 / Gen9 / Gen9 Database / SAP HANA Scale-out & Scale-up

HPE 764903-001 400GB PCIE Internal SSD Overview

The HPE 764903-001 is a high-performance 400GB PCIe 3.0 x4 NVMe internal solid-state drive designed for enterprise-level workloads, offering a blend of speed, reliability, and efficiency. Its 2.5-inch form factor ensures compatibility with a wide range of server configurations, particularly in HPE ProLiant environments. Leveraging NVMe technology, this SSD delivers low latency and high throughput, making it ideal for data-intensive applications, virtualization, and database management.

Performance and Technology Features

PCIe 3.0 x4 Interface Advantages

Utilizing the PCI Express 3.0 x4 interface, the HPE 764903-001 provides a significant performance boost compared to legacy SATA SSDs. The x4 lane configuration allows for higher data transfer rates, reducing bottlenecks in high-demand computing environments. This ensures smooth operation for enterprise applications, including large-scale transactional databases, big data analytics, and cloud workloads.

NVMe Protocol Optimization

The drive employs the Non-Volatile Memory Express (NVMe) protocol, specifically engineered for flash storage, to achieve lower latency and increased Input/Output Operations Per Second (IOPS). NVMe enables parallel command queues, which allows multiple read and write requests to be processed simultaneously. This translates to faster response times, optimized server efficiency, and enhanced performance for mission-critical workloads.

Read and Write Speeds

The HPE 764903-001 offers exceptional sequential read and write speeds, ensuring rapid data access and transfer. This high throughput reduces application wait times, accelerates data processing, and supports real-time analytics. Whether deployed for caching, primary storage, or mixed-use scenarios, the SSD maintains consistent performance even under heavy workload conditions.

Enhanced Endurance for Mixed-Use Workloads

With a robust endurance rating, the HPE 764903-001 is optimized for mixed-use workloads, balancing read and write operations efficiently. This makes it ideal for environments where both heavy read-intensive tasks and significant write operations occur, such as virtualization platforms, enterprise file storage, and high-frequency trading systems.

Compatibility

Server Integration

The HPE 764903-001 SSD is fully compatible with HPE ProLiant Gen9 and Gen10 servers, supporting hot-swap capabilities for seamless maintenance and replacement. Its standardized 2.5-inch form factor allows easy integration into existing server infrastructures without requiring extensive modifications.

Data Center Flexibility

Due to its compact size and high performance, this internal SSD can be deployed across various data center scenarios, from virtualization clusters to database servers and cloud storage solutions. It supports a broad range of operating systems and enterprise applications, ensuring flexibility and scalability for evolving business requirements.
