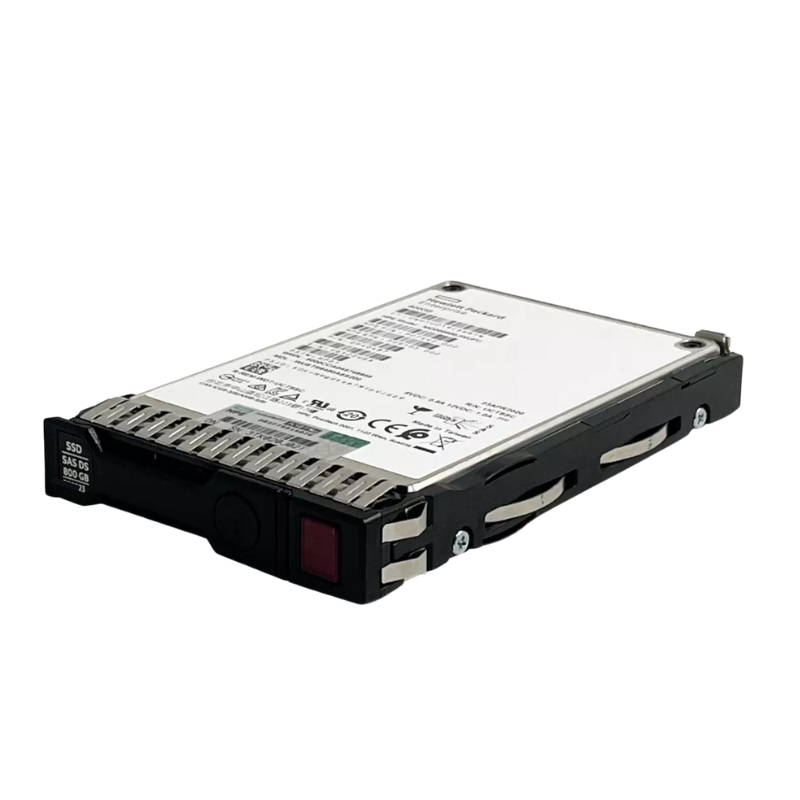

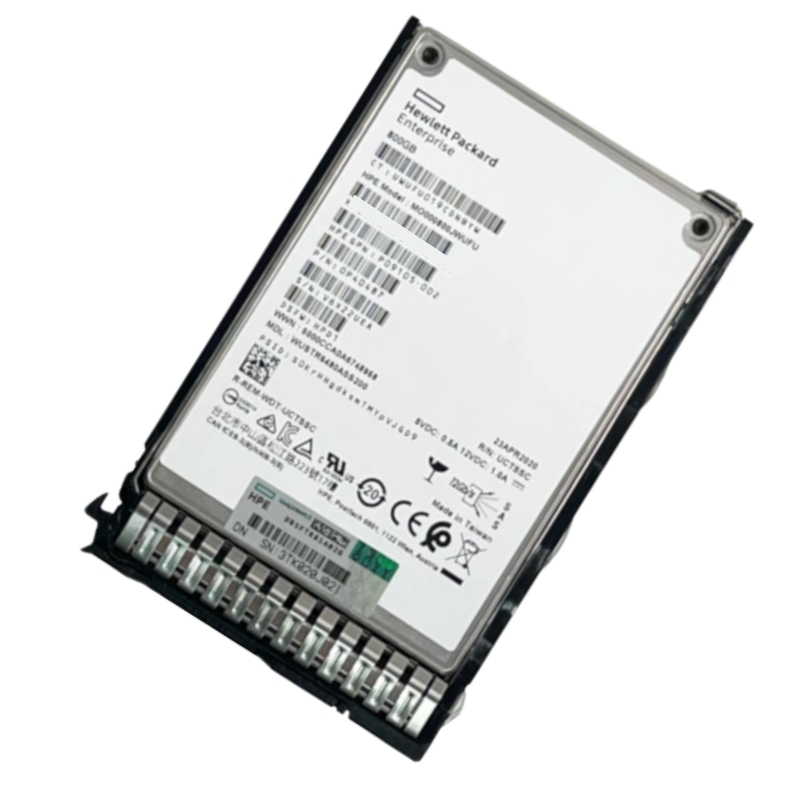

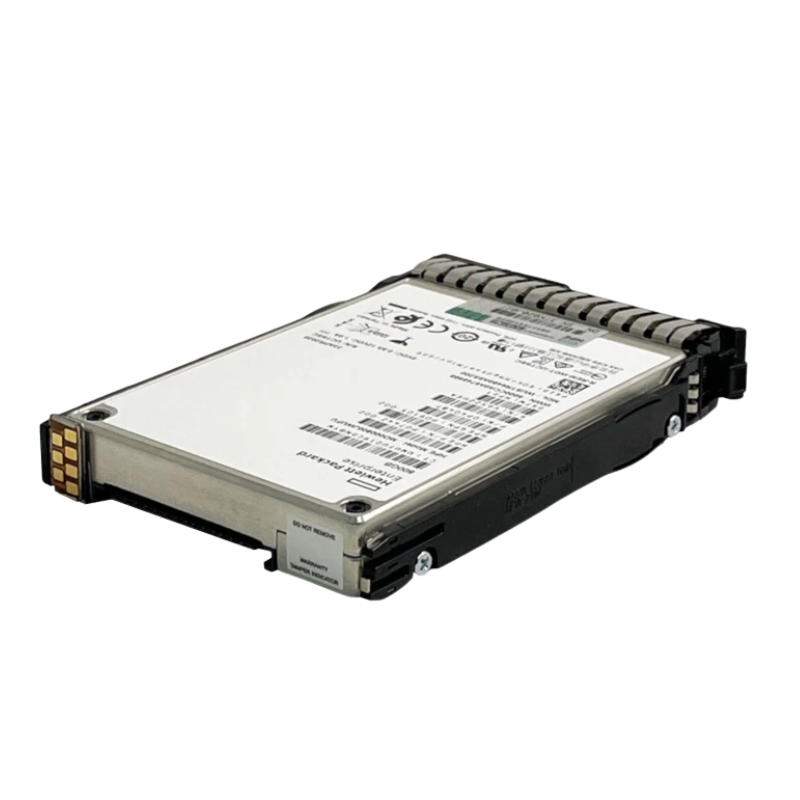

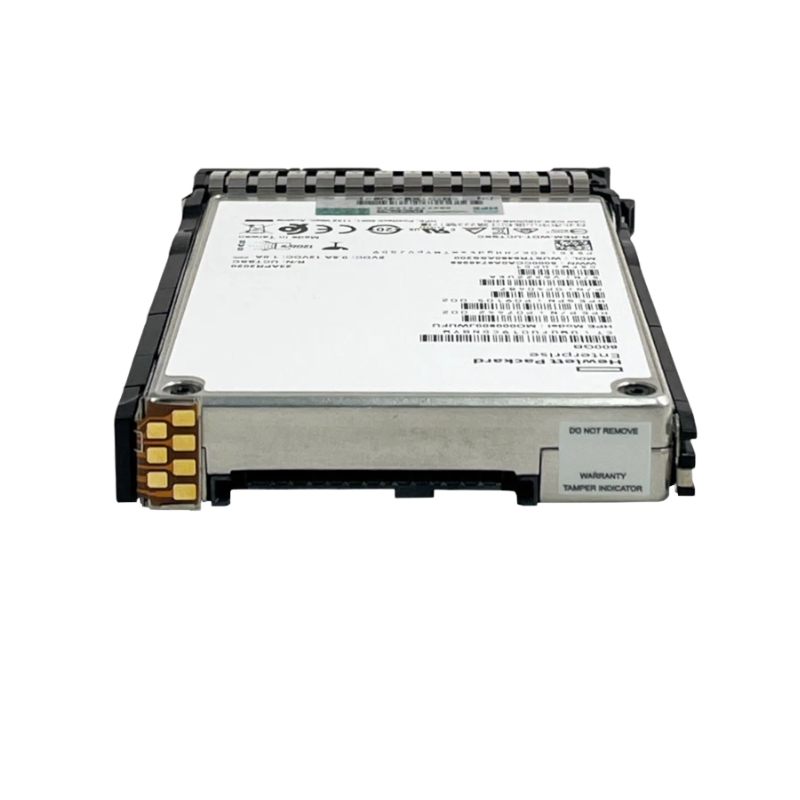

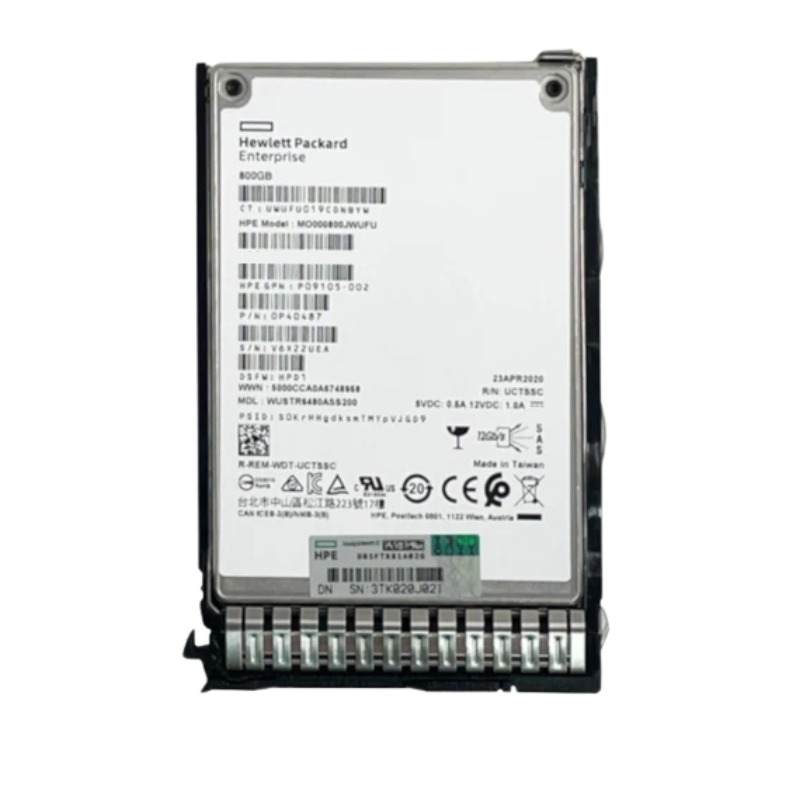

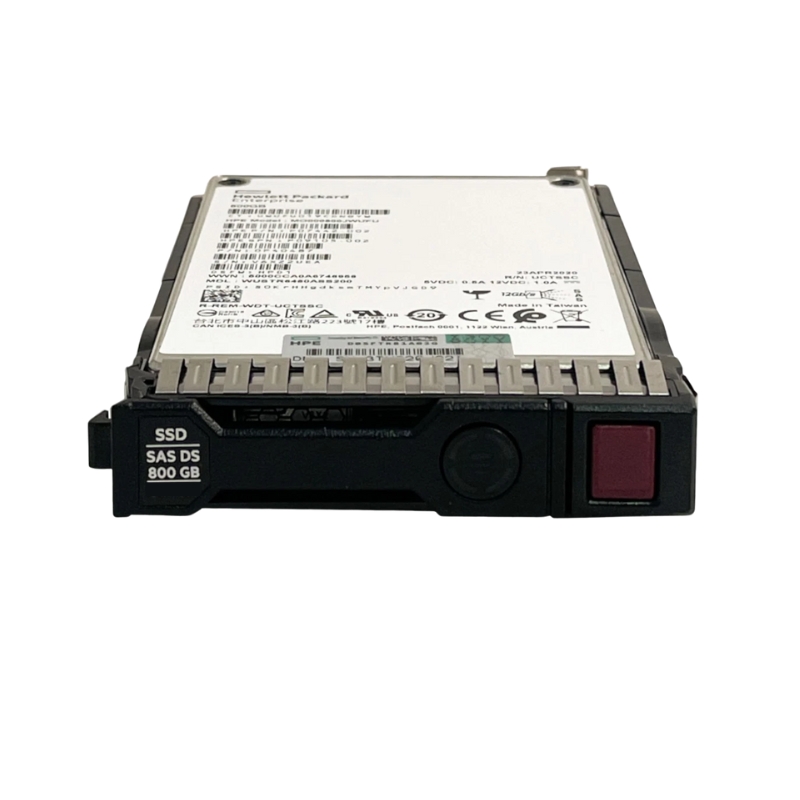

741234-001 HPE 800GB SAS 12G 2.5" SFF SSD

HPE 741234-001 800GB SAS-12GBPS 2.5-Inch Enterprise SSD

The HPE 741234-001 800GB SAS 12Gbps 2.5-Inch Enterprise SSD is designed to deliver exceptional performance, endurance, and reliability for mission-critical workloads. Optimized for HPE ProLiant servers, BladeSystem, Synergy, and storage arrays, this drive ensures faster data processing, high bandwidth, and durability, making it a dependable choice for data centers and enterprises.

General Information

• Brand: HPE
• Manufacturer Part Number (MPN): 741234-001
• Model Number: EO0800JDVFC
• Assembly Number: 741135-003
• Storage Capacity: 800GB
• Interface: SAS-12Gbps
• Form Factor: 2.5-Inch Small Form Factor (SFF)
• Type: High Endurance Enterprise SSD

Technical Specifications

Device Characteristics

• Drive Type: Solid State Drive – Hot-Swap
• Form Factor: 2.5-Inch SFF
• Logical Block Size: 512 bytes
• Carrier: HPE Smart Carrier (SC)
• Workload Profile: Enterprise Performance
• Special Features: High Endurance
• Supported Platforms: HPE ProLiant Rack, Tower, BladeSystem, Synergy
• Height: 15 mm (0.6 inch)

Performance Capabilities

Data Transfer & Throughput

• Drive Transfer Rate: 12 Gb/sec (external bandwidth)
• Sequential Read Speed: Up to 1000 MB/s
• Sequential Write Speed: Up to 560 MB/s

Input/Output Operations Per Second (IOPS)

• Random Reads: 87,000 IOPS
• Random Writes: 73,000 IOPS

Expansion & Connectivity

• Interface: 1 x SAS 12Gbps
• Compatible Drive Bay: 2.5-Inch SFF

Power Efficiency

• Power Usage: 9 Watts (typical)

Physical Dimensions & Weight

• Height: 5.50 inches
• Width: 7.30 inches
• Depth: 8.80 inches
• Weight: 1.50 lbs

Environmental Parameters

• Minimum Operating Temperature: 32 °F
• Maximum Operating Temperature: 140 °F

Compatibility Information

This HPE 741234-001 800GB SAS-12Gbps SSD is compatible with a wide range of HPE servers, storage arrays, and Synergy modules, making it a versatile enterprise storage solution.

Supported HPE ProLiant BL Series

• BL420c (Gen8, Gen9)
• BL460c (Gen8, Gen9)
• BL465c (Gen8, Gen9)
• BL660c (Gen8, Gen9)

Supported HPE ProLiant DL Series

• DL20 (Gen9)
• DL60, DL80 (Gen9)
• DL120, DL160, DL180 (Gen8, Gen9)
• DL320e, DL360, DL360e, DL360p (Gen8, Gen9)
• DL388 (Gen9)
• DL380, DL380e, DL380p (Gen8, Gen9)
• DL385p (Gen8, Gen9)
• DL560, DL580 (Gen8, Gen9)

Supported HPE ProLiant ML Series

• ML110, ML150 (Gen8, Gen9)
• ML310e (Gen8, Gen9)
• ML350, ML350e, ML350p (Gen8, Gen9)

Supported HPE ProLiant SL Series

• SL230s (Gen8, Gen9)
• SL250s (Gen8, Gen9)
• SL270s (Gen8, Gen9)

Supported HPE ProLiant XL Series

• XL170r (Gen9)
• XL190r (Gen9)
• XL220a, XL230a, XL250a (Gen9)

Supported HPE Storage Arrays

• D3700
• D2220sb

Supported HPE StoreEasy Systems

• StoreEasy 1830
• StoreEasy 1840

Supported HPE StoreVirtual VSA Models

• VSA 4130
• VSA 4330, 4330 (FC)
• VSA 4335, 4335 (Hybrid SAN)
• VSA 4530, 4630, 4730, 4730 (FC)

Supported HPE Synergy Series

• D3940 Storage Module

HPE 741234-001 800GB SAS-12GBPS 2.5 Inch Enterprise SSD Overview

The HPE 741234-001 800GB SAS-12GBPS 2.5 Inch Enterprise SSD is a high-performance storage solution designed to deliver exceptional reliability, consistent throughput, and enterprise-grade endurance. Engineered for modern data centers and demanding IT infrastructures, this solid-state drive enables businesses to accelerate applications, streamline workflows, and optimize storage efficiency. Built to withstand continuous workloads, it offers advanced features such as robust data protection, low latency, and high input/output operations per second. Its compatibility with enterprise-class servers and storage arrays makes it an ideal choice for organizations seeking dependable performance across critical workloads.

Enterprise-Class Performance and Reliability

Enterprise environments require drives that can sustain rigorous operations without sacrificing reliability. The HPE 741234-001 800GB SAS SSD delivers consistent performance under heavy workloads, thanks to its SAS-12GBPS interface that ensures fast data transfer rates. Unlike consumer-grade storage solutions, this enterprise SSD is engineered to meet stringent requirements for uptime, data integrity, and endurance. It is designed to minimize the risk of data loss and downtime, making it essential for mission-critical applications such as database management, virtualization, online transaction processing, and cloud workloads. Its architecture allows for predictable performance even during peak demand periods.

Advanced SAS-12GBPS Interface Technology

The SAS-12GBPS interface of the HPE 741234-001 SSD ensures that businesses can take advantage of higher bandwidth for demanding workloads. This protocol supports dual-port functionality, which enhances redundancy and provides seamless failover capabilities. With faster data throughput, organizations can improve response times for applications and handle larger volumes of data with reduced latency. Compared to SATA drives, the SAS interface offers superior error correction, longer command queues, and enhanced overall reliability, which are critical for enterprise deployments.

Consistent Throughput for Heavy Workloads

Applications such as enterprise databases, real-time analytics, and virtualization require storage drives that deliver consistent throughput. The HPE 741234-001 SSD is optimized for such workloads, ensuring minimal performance variability. Its firmware and controller technology allow it to maintain speed and stability, preventing bottlenecks even when handling concurrent tasks. This consistency is vital for enterprises that cannot afford disruptions in performance during intensive computing operations.

Durability and Endurance in Enterprise Operations

Durability is a key attribute for enterprise SSDs, and the HPE 741234-001 is built to withstand high write cycles and prolonged use. It offers endurance levels that significantly exceed those of consumer-grade SSDs, allowing organizations to operate under continuous workloads without worrying about drive failure. This endurance ensures cost savings over time, as the drive requires fewer replacements and reduces downtime associated with hardware maintenance.

Data Integrity and Protection Features

Protecting enterprise data is one of the main responsibilities of IT administrators. The HPE 741234-001 SSD incorporates advanced error detection and correction technologies to safeguard against potential data corruption. It also provides end-to-end data path protection, which ensures that information is consistently preserved from the host system to the storage medium. With these features, organizations can reduce the risk of data loss and ensure business continuity.

Reduced Risk of Hardware Failures

Hardware failures in enterprise environments can lead to costly downtime and data loss. The HPE 741234-001 SSD is designed with robust components that minimize wear and tear, significantly lowering the risk of unexpected failures. The drive undergoes rigorous testing and validation by HPE to meet enterprise standards, ensuring long-term operational stability. By reducing the chances of failure, businesses can operate more confidently and allocate fewer resources to reactive maintenance.

Compatibility with Enterprise Systems

The HPE 741234-001 SSD is designed to seamlessly integrate with a wide range of HPE servers and storage arrays. Its 2.5-inch form factor and SAS-12GBPS interface allow it to be installed easily into existing infrastructures. Enterprises that already rely on HPE hardware will find this SSD particularly beneficial, as it complements HPE’s ecosystem of enterprise solutions. Compatibility with a wide range of applications ensures that organizations can deploy the drive without worrying about integration issues.

Optimized for HPE ProLiant Servers

HPE ProLiant servers are widely used in enterprise IT environments, and the HPE 741234-001 SSD is optimized for compatibility with these systems. This ensures smooth integration, reliable performance, and support from HPE’s global services. By choosing an HPE-certified drive, organizations can maintain warranty coverage, benefit from ongoing support, and reduce risks associated with third-party components.

Scalability for Growing Data Needs

As businesses expand, their data storage needs grow. The HPE 741234-001 SSD provides scalability by enabling enterprises to add capacity and performance without replacing existing infrastructures. IT managers can expand storage pools by adding more drives, ensuring flexibility as data requirements evolve. This scalability makes the SSD a long-term investment for businesses planning to grow their IT capabilities over time.

Energy Efficiency and Operational Cost Savings

Power consumption is a major factor for enterprises running large-scale data centers. The HPE 741234-001 SSD consumes less power compared to traditional spinning hard drives, leading to significant cost savings over time. By reducing energy requirements, enterprises can lower their overall operational costs while supporting environmentally sustainable initiatives. This efficiency also helps extend the life of server hardware by reducing heat generation and minimizing cooling requirements.

Reduced Cooling Requirements

Enterprise SSDs like the HPE 741234-001 generate less heat compared to HDDs. This means that organizations can reduce their dependence on extensive cooling systems, further cutting energy costs. In large data centers where cooling expenses make up a significant portion of the budget, the use of SSDs contributes to financial savings and environmental benefits. Lower heat output also contributes to hardware longevity, reducing the frequency of component replacements.

Lower Total Cost of Ownership

While enterprise SSDs typically come with higher initial investments, the HPE 741234-001 offers long-term cost advantages. Reduced downtime, lower power consumption, and minimal maintenance requirements result in a lower total cost of ownership. Businesses can achieve higher returns on investment by deploying drives that require fewer replacements and deliver consistent performance over extended periods.

Future-Proof Enterprise Storage Solution

The rapid evolution of IT demands storage solutions that can adapt to emerging requirements. The HPE 741234-001 800GB SAS SSD is built with future-proofing in mind, ensuring it remains relevant as data center technologies advance. With its robust performance, enterprise endurance, and compatibility with evolving workloads, this drive allows businesses to confidently build storage infrastructures that can support innovation and growth.

Supporting Data Center Modernization

Modern data centers are moving toward highly efficient, high-performance storage environments. The HPE 741234-001 SSD supports this trend by offering superior speed and endurance compared to traditional drives. Its design aligns with enterprise digital transformation strategies, enabling organizations to modernize their IT infrastructure without compromising on reliability. As companies embrace hybrid cloud, virtualization, and analytics-driven workloads, this SSD provides the foundation for seamless transitions.

Long-Term Value for IT Investments

Enterprise storage investments must be evaluated for their long-term impact. The HPE 741234-001 SSD ensures sustained value by offering high performance, endurance, and scalability. Its reliability reduces operational risks, while its efficiency minimizes costs. By choosing this enterprise SSD, organizations secure a dependable storage solution capable of supporting business growth for years to come.
