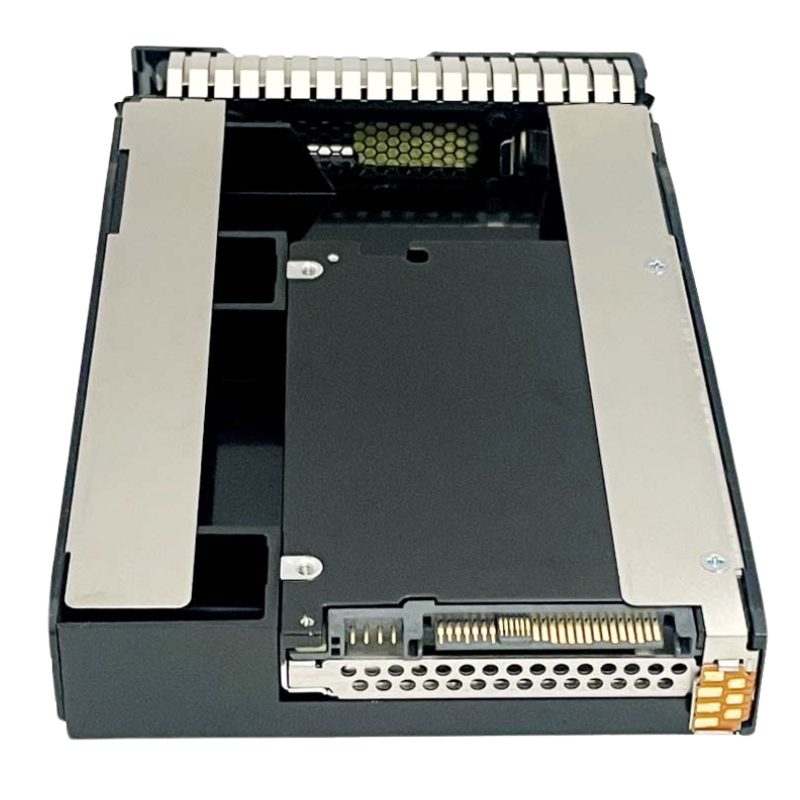

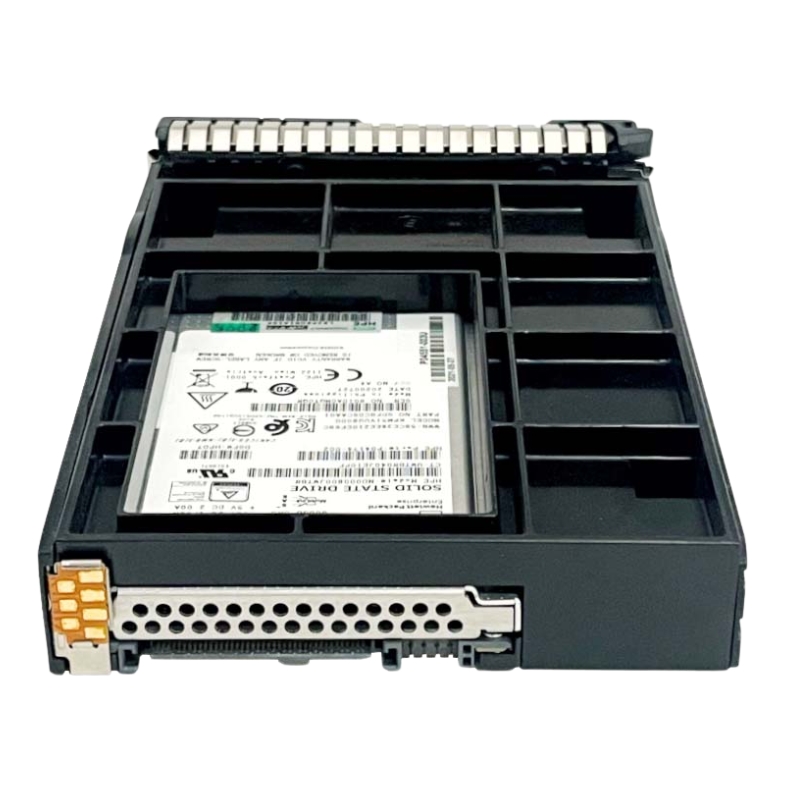

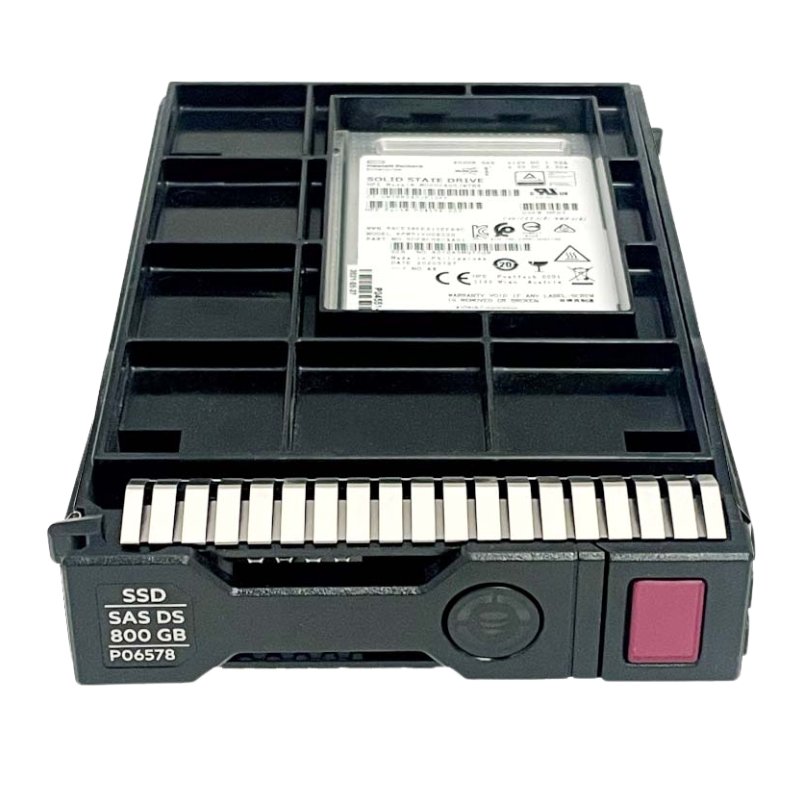

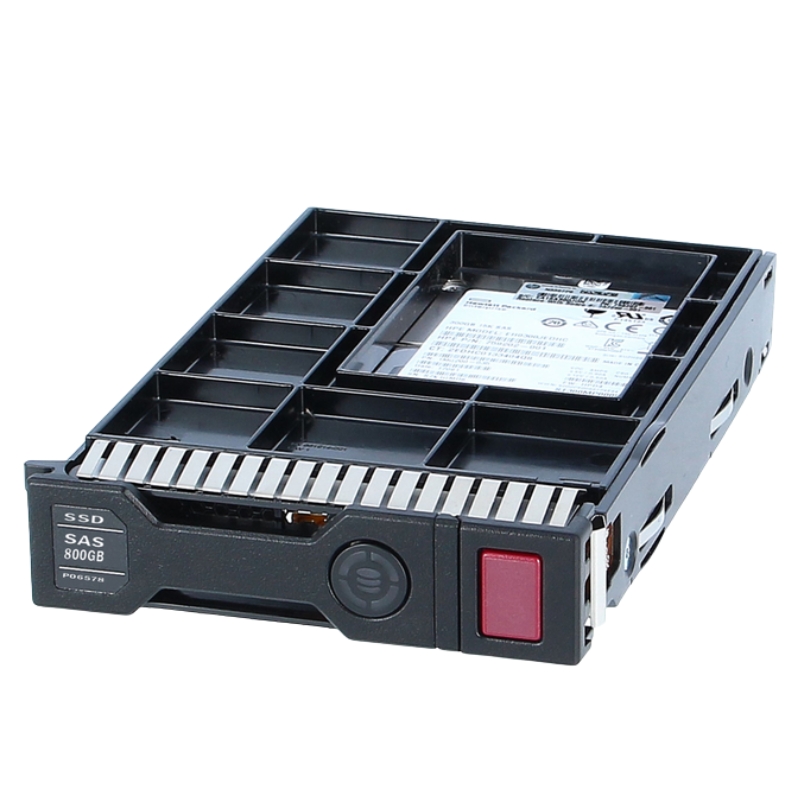

P06579-001 HPE 800GB SAS-12GBPS Mixed Use LFF MlC SSD

HPE P06579-001 800GB SAS 12Gb/s Mixed Use SSD Overview

The HPE P06579-001 is a high-performance 800GB SAS solid-state drive designed for mixed-use workloads, delivering exceptional reliability and speed in enterprise environments. Equipped with Multi-Level Cell (MLC) NAND flash, this 3.5-inch LFF SSD combines high endurance, fast data transfer, and advanced firmware security.

Key Features of HPE P06579-001

• Manufacturer: HPE
• Part Number: P06579-001
• Capacity: 800GB
• Interface: SAS 12GBPS
• Form Factor: 3.5 inch Large Form Factor (LFF)
• NAND Type: Multi-Level Cell (MLC)
• Workload Optimization: Mixed Use
• Hot-Swappable Design for Easy Maintenance
• Digitally Signed Firmware for Enhanced Security
• Bundled HPE Low Profile Converter (LPC) for Seamless Integration

Technical Specifications

Performance Metrics

• Random Read IOPS (4KiB, Q=16): 104,000
• Max Random Read IOPS (4KiB, Q=32): 165,000
• Random Write IOPS (4KiB, Q=16): 85,000
• Sequential Read Speed: 1075 MBps
• Sequential Write Speed: 1030 MBps
• Endurance: 3 DWPD (Drive Writes Per Day)
• 30-Day Write Volume: 4,380 TB
• Drive Transfer Rate: 12 Gb/sec

Power Consumption

• Idle: 4.26 W
• Random Read: 4.97 W
• Random Write: 4.97 W
• Sequential Read: 6.71 W
• Sequential Write: 6.95 W
• Max Power: 6.71 W

Dimensions & Weight

• Height: 22.23 cm
• Width: 18.41 cm
• Depth: 13.97 cm
• Weight: 1.36 kg
• Height in Drive Bay: 0.6 inch (15 mm)

Connectivity & Expansion

• Interface: 1 x SAS 12 Gb/s
• Compatible Drive Bay: 3.5" LFF
• Hot-Pluggable for Easy Swap and Maintenance
• Low Profile Converter Included for Seamless Deployment

Compatibility & Supported Servers

HPE Apollo Series

• Apollo 4200 Gen10 (3.5 inch)
• Apollo 4200 Gen9 (3.5 inch)
• Apollo 4510 Gen9 (3.5 inch)

HPE ProLiant DL Series

• DL325 Gen10 (3.5 inch)
• DL325 Gen10 Entry (3.5 inch)
• DL325 Gen10 Performance (3.5 inch)
• DL325 Gen10 SMB Solution (3.5 inch)

HPE ProLiant ML Series

• ML110 Gen10 (3.5 inch, Entry, Performance, Solution)
• ML350 Gen10 (3.5 inch, Base, Entry, Performance, Solution, Sub-Entry)

HPE ProLiant XL Series

• XL170r Gen10 (3.5 inch)
• XL190r Gen10 (3.5 inch)

HPE P06579-001 800GB SAS-12GBPS Mixed Use Solid State Drive Category

The HPE P06579-001 800GB SAS-12GBPS Mixed Use LFF Solid State Drive (SSD) is a high-performance enterprise storage solution that belongs to the category of HPE SAS Mixed Use SSDs. These drives are engineered to provide reliable, high-speed storage for applications that demand both endurance and performance. With a capacity of 800GB, SAS 12Gbps interface, and Mixed Use (MU) workload optimization, this category of SSDs is suitable for a wide range of enterprise workloads, including virtualization, database management, transactional applications, and mixed read/write environments.

Key specifications and performance characteristics

HPE Mixed Use SSDs, including the P06579-001, are optimized to deliver balanced read and write performance, making them ideal for workloads that require frequent data access along with consistent write operations. The 12Gbps SAS interface ensures high throughput and low latency, supporting rapid data transfer between the SSD and host systems. The large form factor (LFF) offers enhanced cooling and thermal management, which is critical in high-density server environments where heat dissipation can affect overall performance and reliability.

Storage capacity and mixed use optimization

The 800GB capacity of the HPE P06579-001 provides sufficient storage for a wide variety of enterprise applications while maintaining performance under heavy mixed workloads. Mixed Use SSDs are designed to handle a combination of read-intensive and write-intensive operations, allowing IT administrators to deploy these drives for balanced workloads such as virtualized servers, small to medium-sized databases, and business-critical applications. The ability to sustain high performance for both reads and writes differentiates Mixed Use SSDs from Read-Intensive or Write-Intensive SSDs, offering a versatile storage solution for mixed environments.

Digitally signed firmware for enhanced security

A defining feature of the HPE P06579-001 and its subcategory is the digitally signed firmware. Digitally signed firmware ensures that only authenticated, verified firmware can be installed and executed on the SSD, reducing the risk of unauthorized modifications or firmware corruption. This security feature is critical in enterprise environments, where data integrity, compliance, and protection against malware attacks are top priorities. Administrators can rely on this feature to maintain secure and stable storage operations, ensuring that firmware updates are authenticated and do not compromise the SSD’s performance or data reliability.

Reliability and endurance metrics

HPE Mixed Use SSDs are designed with advanced wear-leveling algorithms and error-correcting code (ECC) technology to maximize endurance and reliability. The P06579-001 model can sustain thousands of drive writes per day (DWPD), making it suitable for enterprise applications that involve frequent write operations. High Mean Time Between Failures (MTBF) ratings further ensure the longevity and reliability of these SSDs in demanding enterprise environments. By offering predictable endurance and performance, this category provides IT teams with confidence when designing storage architectures for business-critical applications.

Form factor and integration into server infrastructure

The HPE P06579-001 features a Large Form Factor (LFF) design, commonly 3.5-inch, which provides physical robustness and superior thermal management. LFF SSDs are ideal for servers and storage arrays that require high-density drives with efficient cooling solutions. This form factor is compatible with a range of HPE ProLiant servers and storage systems, ensuring seamless integration into existing infrastructures. Additionally, the LFF design supports hot-plug capabilities, allowing drives to be replaced or upgraded without powering down the system, thereby reducing operational downtime.

Compatibility with HPE storage systems and servers

Drives in this category are fully certified for HPE storage arrays, including HPE ProLiant, Apollo, and Synergy servers. This certification guarantees optimal performance, interoperability, and firmware compatibility across HPE platforms. IT administrators benefit from HPE’s ecosystem of management tools, including HPE Smart Storage Administrator (SSA) and HPE Integrated Lights-Out (iLO), which simplify deployment, monitoring, and maintenance. The seamless integration ensures that Mixed Use SSDs can be deployed quickly and reliably in enterprise environments, supporting both legacy and modern storage architectures.

Performance optimization and workload efficiency

The HPE P06579-001 category is optimized for mixed workloads that require balanced read and write operations. Features such as low-latency data access, high IOPS (Input/Output Operations Per Second), and efficient queue management contribute to overall system performance. Enterprise applications such as online transaction processing (OLTP), virtual desktop infrastructure (VDI), and collaborative business applications benefit from the consistent performance delivered by these SSDs. By providing predictable I/O performance, HPE Mixed Use SSDs reduce latency bottlenecks, improve application responsiveness, and enhance overall system efficiency.

Energy efficiency and thermal management

Energy efficiency is another important consideration in this category. The HPE P06579-001 SSDs are designed to operate at lower power levels compared to traditional spinning disks, reducing overall data center power consumption. The LFF form factor enhances thermal dissipation, ensuring that the drives maintain optimal operating temperatures even under heavy workloads. This contributes to both the reliability and longevity of the SSD, making it a sustainable choice for enterprise storage environments where energy efficiency and cooling costs are critical factors.
