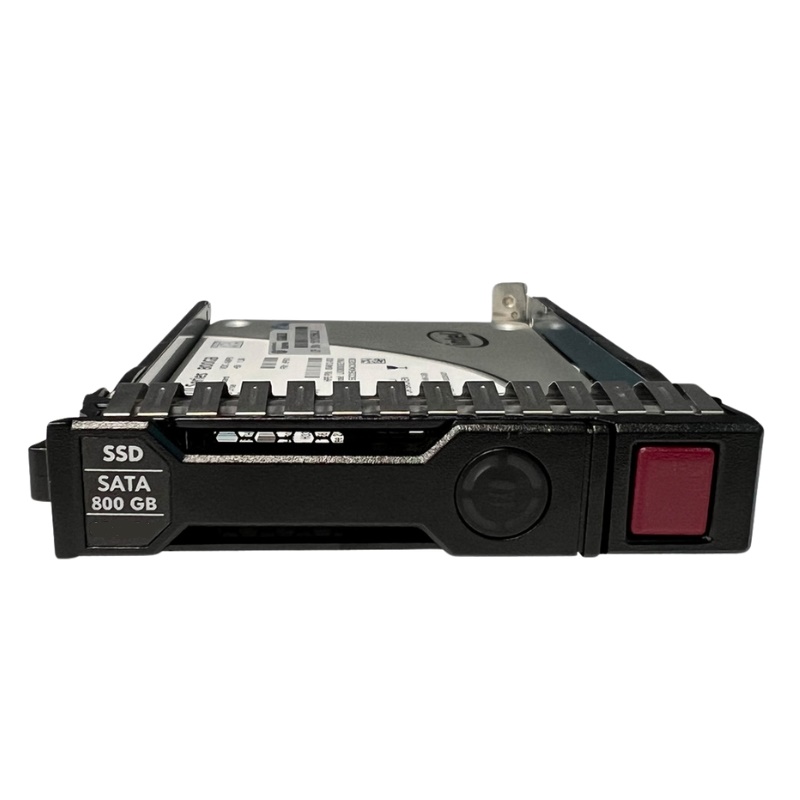

HPE 800GB SATA 6GBPS 2.5" SSD 764913-004
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Essential Specifications of HPE 764913-004 SSD
Brand and Model Information
- Manufacturer: HPE
- Model Identifier: 764913-004
- Type of Device: Solid State Drive - Hot-Swap
SSD Characteristics
- Endurance Type: Value Endurance (Up to 1 DWPD)
- Total Capacity: 800 GB
- Form Factor: 2.5 Inch SFF
- Connection Interface: SATA 6GBPS
- Hot-Plug Capability: Yes
- NAND Flash Type: 20nm Multi-Level Cell (MLC)
- Carrier Type: Smart Carrier (SC)
- Optimized Workload: Read Intensive
- Encryption Standard: 256-bit AES
- Hardware Encryption: Supported
- Special Features: High Endurance Technology (HET)
- Included Accessories: HPE Smart Carrier
Performance Metrics of the HPE 800 GB SSD
- SSD Endurance: 5427 TB
- Daily Writes (DWPD): 3
- Transfer Rate: 6 GB/sec (External)
- Random Read IOPS (4KiB, Q=16): 58000 IOPS
- Random Write IOPS (4KiB, Q=16): 26000 IOPS
- Internal Read Speed: 550 MBps
- Internal Write Speed: 520 MBps
Expansion and Connectivity Features
- Available Interfaces: 1 x SATA 6Gbps
- Compatible Bay Size: 2.5 Inch SFF
Environmental Conditions for the HPE SATA-6GBPS SSD
- Maximum Operating Temperature: 158 °F
- Minimum Operating Temperature: 32 °F
- Shock Resistance (Non-Operating): 1000 g @ 0.5 ms
- Shock Resistance (Operating): 1000 g @ 0.5 ms
Power Consumption Details
- Active Power Use: 6.80 Watts
- Idle Power Use: 600 mW
Compliance and Reliability Information
- Regulatory Standards: RoHS Compliant
- Included Accessories: Hot-plug tray
- Mean Time Between Failures (MTBF): 2,000,000 hours
Product Dimensions and Weight
- Height: 0.63 inch
- Width: 3.10 inches
- Depth: 5.45 inches
- Weight: 1.50 lbs
Compatibility Overview
HPE ProLiant BL Series
- HPE ProLiant BL660c Gen9 (2.5 inch)
HPE ProLiant DL Series
- DL180 Gen9 (2.5 inch)
- DL180 Gen9 Base (2.5 inch)
- DL180 Gen9 Entry (2.5 inch)
- DL180 Gen9 Storage (2.5 inch)
- DL20 Gen9 (2.5 inch)
- DL20 Gen9 Entry (2.5 inch)
- DL20 Gen9 Performance (2.5 inch)
- DL560 Gen9 (2.5 inch)
- DL560 Gen9 Base (2.5 inch)
- DL560 Gen9 Entry (2.5 inch)
- DL560 Gen9 Performance (2.5 inch)
- DL580 Gen9 (2.5 inch)
- DL580 Gen9 Database (2.5 inch)
- DL580 Gen9 SAP HANA Scale-out Base Configuration (2.5 inch)
- DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch)
HPE ProLiant ML Series
- ML110 Gen9 (2.5 inch)
- ML110 Gen9 Base (2.5 inch)
- ML110 Gen9 Entry (2.5 inch)
HPE ProLiant WS Series
- WS460c Gen9 Graphics (2.5 inch)
- WS460c Gen9 Graphics Expansion (2.5 inch)
Capacity
The HPE 764913-004 SSD is designed with a remarkable capacity of 800GB, making it an ideal choice for users who require ample storage space for their data-intensive tasks. Whether you are a professional working with large files, a gamer with a vast collection of games, or a content creator handling high-resolution videos, this SSD's generous 800GB capacity ensures that you have enough room to store all your files without worrying about running out of space.
Uninterrupted Workflow
With its impressive 800GB capacity, the HPE 764913-004 SSD allows users to work without interruptions. It eliminates the need to constantly delete or transfer files to free up space, enabling you to focus on your work or leisure activities without any hindrance. Whether you are editing a video, rendering a complex 3D model, or multitasking between resource-intensive applications, this SSD's capacity ensures that you can seamlessly carry out your tasks without experiencing slowdowns due to limited storage.
Efficient File Management
The ample capacity of the HPE 764913-004 SSD also enables efficient file management. With such a large storage space, you can easily organize and categorize your files without sacrificing their accessibility. You can create separate folders for different projects, clients, or types of content, allowing you to locate specific files quickly and effortlessly. No more wasting time searching for that important document buried deep within a cluttered storage drive – this SSD's capacity ensures that everything is neatly organized and easily retrievable.
Future-Proof Storage
The 800GB capacity of the HPE 764913-004 SSD provides users with future-proof storage that can accommodate their growing data needs. As technology advances and file sizes continue to increase, having sufficient storage capacity becomes crucial. By investing in this SSD, users can rest assured that they will have enough space to handle future data requirements, saving them from the hassle and expense of upgrading their storage devices frequently.
Interface
The HPE 764913-004 SSD features a cutting-edge SATA 6GBPS interface, providing users with exceptional data transfer speeds and performance. This interface is a vital component of the SSD, as it determines how quickly data can be read from or written to the drive. With SATA 6GBPS, users can experience significant improvements in their system's overall responsiveness and efficiency.
Rapid Data Transfer
The SATA 6GBPS interface of the HPE 764913-004 SSD enables lightning-fast data transfer speeds. It allows for seamless and rapid transmission of large files, reducing the time required to copy or move data between storage devices. Whether you are transferring files between internal drives, backing up your data to an external storage device, or loading applications and games, this interface ensures that you can perform these tasks with minimal waiting time.
Enhanced System Performance
The high-speed data transfer capabilities provided by the SATA 6GBPS interface directly contribute to enhanced system performance. By minimizing data bottlenecks and reducing latency, this interface ensures that your system can quickly access and retrieve information from the SSD. This results in faster boot times, reduced application loading times, and improved overall system responsiveness. Whether you are launching resource-intensive applications or multitasking between several programs, this interface ensures smooth performance even under demanding workloads.
Compatibility and Flexibility
The SATA 6GBPS interface of the HPE 764913-004 SSD offers broad compatibility with a wide range of systems and devices. As one of the most widely adopted storage interfaces, SATA ensures that this SSD can effortlessly integrate into various desktops, laptops, workstations, and servers. Additionally, the SATA interface provides users with flexibility, allowing them to easily upgrade their existing storage devices by simply connecting the SSD to an available SATA port.
Form Factor
The HPE 764913-004 SSD features a 2.5-inch form factor, making it a versatile and space-efficient storage solution for users. The compact size of this SSD offers several benefits and ensures compatibility with a wide range of devices.
Space-Saving Design
The 2.5-inch form factor of the HPE 764913-004 SSD allows for efficient utilization of space within your device. Whether you are upgrading your laptop, desktop, or server, this SSD's compact size ensures that it can easily fit into the available drive bays without occupying excessive space. This is particularly beneficial for users with limited physical space or those who prioritize a clutter-free workspace.
Hot-Swap Capability
The 2.5-inch form factor also enables hot-swap capability, which is essential in scenarios where uninterrupted system operation is crucial. Hot-swapping refers to the ability to replace or install drives without shutting down the system. With this feature, users can easily swap out the HPE 764913-004 SSD when necessary, ensuring minimal downtime and uninterrupted workflow. This is particularly advantageous in enterprise environments where continuous operation is vital.
Compatibility with Various Devices
The 2.5-inch form factor of the HPE 764913-004 SSD ensures compatibility with a wide range of devices. Whether you need to upgrade your laptop, workstation, or server, this SSD's form factor ensures that it can seamlessly integrate into the existing infrastructure without requiring any additional modifications or adapters. It provides users with flexibility and convenience, allowing them to enhance their storage capabilities without complex installation procedures.
Use Case
The HPE 764913-004 SSD is designed to cater to a variety of use cases, making it a versatile storage solution for different user requirements. Its read-intensive, basic carrier, and mixed-use capabilities ensure that users can rely on this SSD for a wide range of applications and workloads.
Read Intensive Applications
The HPE 764913-004 SSD is optimized for read-intensive applications, making it an excellent choice for tasks that involve accessing and retrieving data frequently. Whether you are working with databases, running virtual machines, or performing data analytics, this SSD's read-intensive capabilities ensure that you can quickly access the required information without experiencing significant delays or performance degradation.
Basic Carrier Applications
For users who require reliable and efficient storage in basic carrier applications, the HPE 764913-004 SSD is an ideal solution. Its robust performance and durability make it suitable for tasks such as file servers, web servers, and entry-level workstations. This SSD can handle the demands of basic carrier applications with ease, ensuring smooth operation and reliable data storage.
Mixed Use Environments
The HPE 764913-004 SSD excels in mixed-use environments where workloads consist of a combination of read and write operations. Whether you are running a small business server, hosting virtual desktop infrastructure, or performing content creation tasks, this SSD's mixed-use capabilities ensure that it can handle the varied demands of your workload. It provides a balance between read and write performance, delivering consistent and reliable storage for mixed-use scenarios.
In conclusion, the HPE 764913-004 SSD offers exceptional features that cater to the diverse needs of users. With its impressive 800GB capacity, users can enjoy uninterrupted workflow, efficient file management, and future-proof storage. The SATA 6GBPS interface ensures rapid data transfer, enhanced system performance, compatibility, and flexibility. The 2.5-inch form factor provides space-saving design, hot-swap capability, and compatibility with various devices. Lastly, the read-intensive, basic carrier, and mixed-use capabilities make this SSD suitable for a wide range of use cases. Whether you are a professional, gamer, or content creator, the HPE 764913-004 SSD is a reliable and efficient storage solution that meets your requirements.
