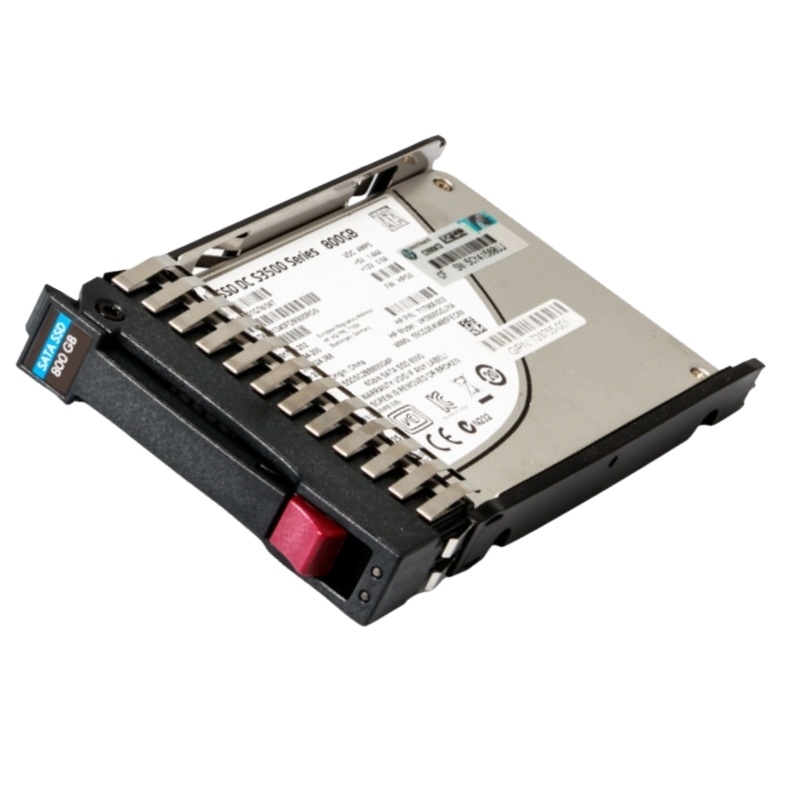

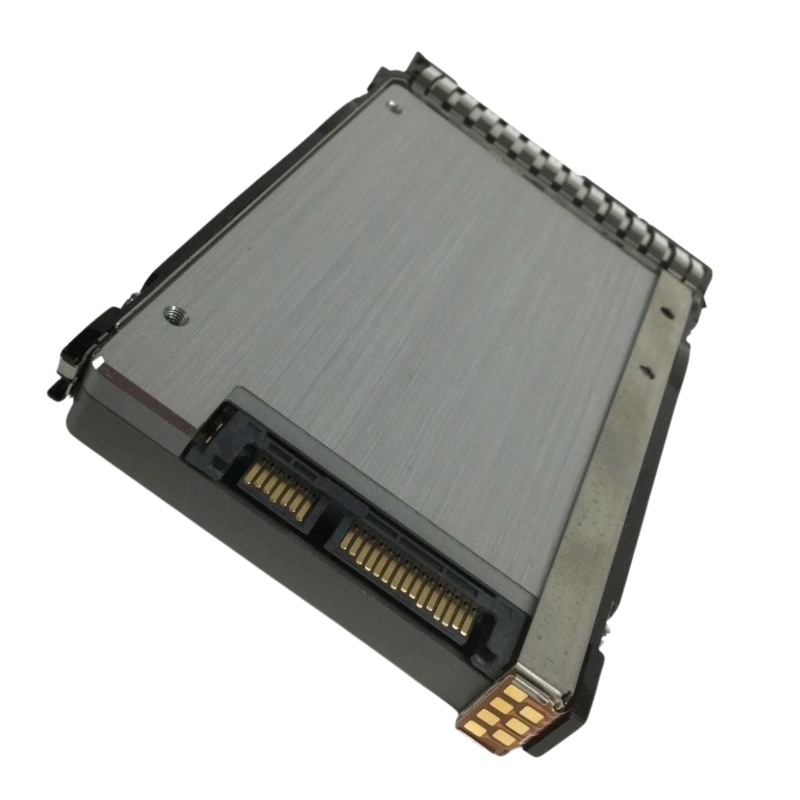

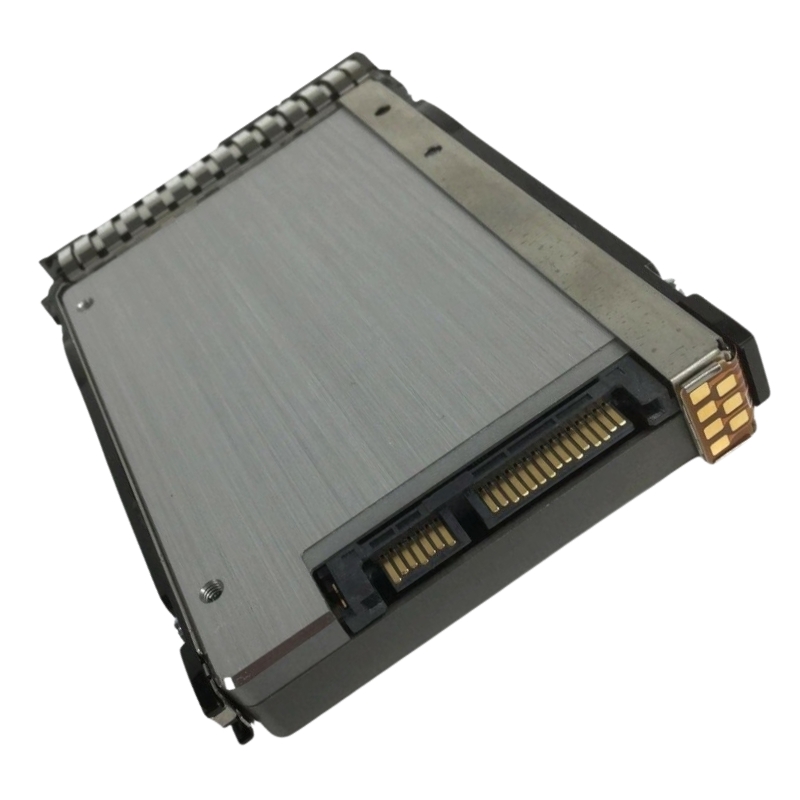

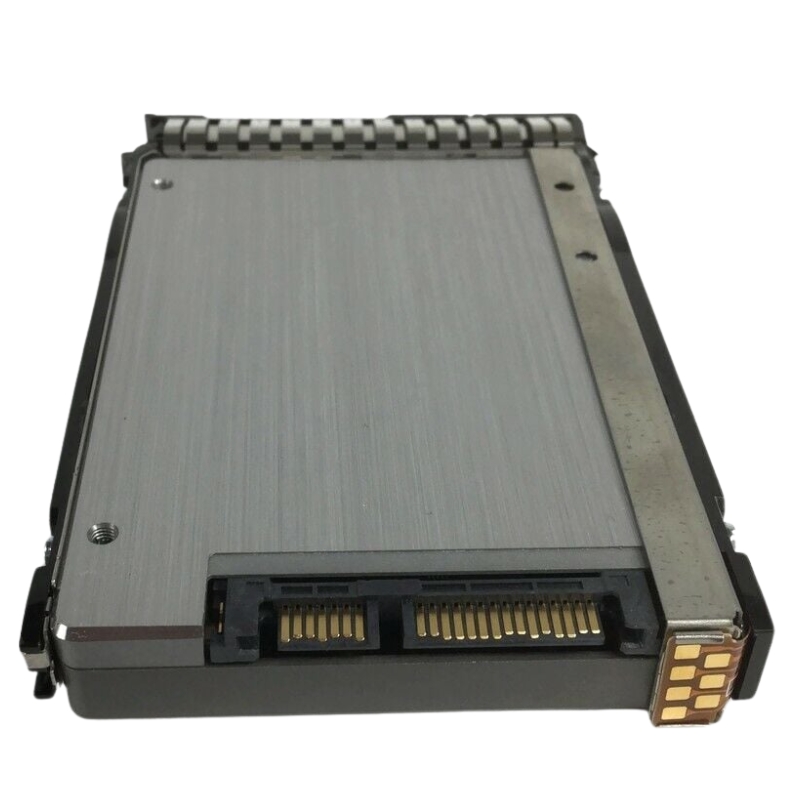

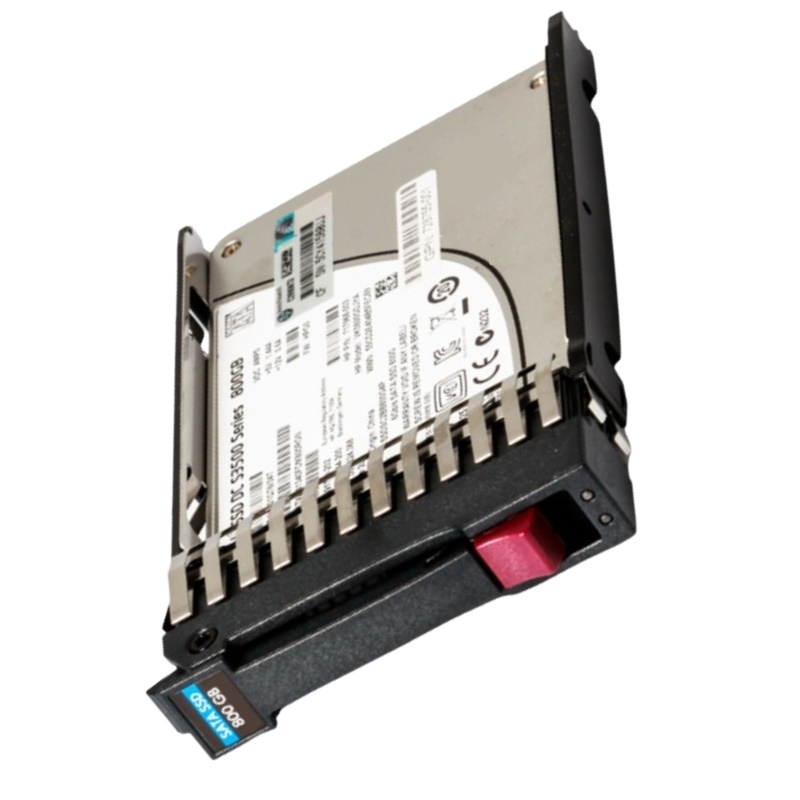

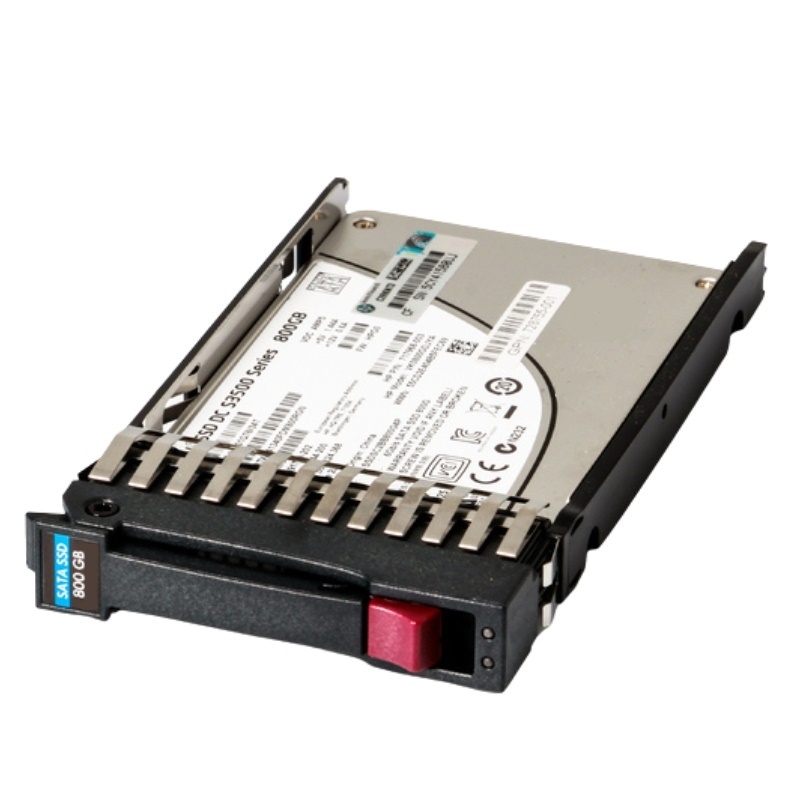

Overview of the HPE 804674-B21 SSD
Manufacturer Information
- Brand: HPE
- Part Number: 804674-B21
- Type: Solid State Drive
Technical Specifications
Storage Capacity
- Size: 800 GB
- Form Factor: 3.5-inch LFF
Dimensions
- Height: 15 mm
- Width and Length: Standard LFF
Interface and Memory Type
- Connection: SATA-6Gbps
- NAND Flash Technology: Multi-level cell (MLC)
- Plug Type: Hot Pluggable
- Carrier Type: Smart Carrier Converter (SCC)
- Workload Type: Write Intensive (WI-2)
Performance Metrics
Drive Endurance
- DWPD: 10
Data Transfer Rates
- External Transfer Rate: 6 Gb/sec
- Sequential Read Throughput: 540 MiB/s
- Sequential Write Throughput: 370 MiB/s
I/O Operations Per Second (IOPS)
- Random Read IOPS (4KiB, Q=16): 64,500
- Random Write IOPS (4KiB, Q=16): 46,500
- Maximum Random Read IOPS (4KiB, Q32): 72,000
- Maximum Random Write IOPS (4KiB, Q16): 46,500
- 4KiB Random 70% Read / 30% Write, Queue 32: 60,000 IOPS
- 4KiB Random 50% Read / 50% Write, Queue 32: 55,000 IOPS
Power Consumption
Energy Usage in Different States
- Idle: 1.16 Watts
- Random Read: 2.25 Watts
- Random Write: 2.25 Watts
- Sequential Read: 3.24 Watts
- Sequential Write: 6.06 Watts
- Random R/W: 2.25 Watts
Compatibility Details
Supported HPE ProLiant DL Series Models
- DL180 Gen9 (3.5 inch)
- DL180 Gen9 Base (3.5 inch)
- DL180 Gen9 Entry (3.5 inch)
- DL180 Gen9 Storage (3.5 inch)
- DL20 Gen9 (3.5 inch)
- DL20 Gen9 Entry (3.5 inch)
- DL20 Gen9 Performance (3.5 inch)
- DL320e Gen8 (3.5 inch)
- DL320e Gen8 Base (3.5 inch)
- DL320e Gen8 Entry (3.5 inch)
- DL320e Gen8 Performance (3.5 inch)
- DL320e Gen8 Special Server (3.5 inch)
- DL320e Gen8 v2 (3.5 inch)
- DL320e Gen8 v2 Base (3.5 inch)
- DL320e Gen8 v2 Entry (3.5 inch)
- DL320e Gen8 v2 Performance (3.5 inch)
- DL360e Gen8 (3.5 inch)
- DL360e Gen8 Base (3.5 inch)
- DL360e Gen8 Entry (3.5 inch)
- DL360e Gen8 Performance (3.5 inch)
- DL360e Gen8 Special Server (3.5 inch)
- DL385p Gen8 (3.5 inch)
- DL385p Gen8 Dedicated Workload (3.5 inch)
- DL385p Gen8 Entry (3.5 inch)
- DL385p Gen8 Maximized Consolidation (3.5 inch)
- DL385p Gen8 Storage (3.5 inch)
- DL385p Gen8 Storage Centric (3.5 inch)
- DL388 Gen9 (3.5 inch)
- DL388 Gen9 Base (3.5 inch)
- DL80 Gen9 Entry (3.5 inch)
Capacity: 800GB
The HPE 804674-B21 SSD boasts an impressive storage capacity of 800GB, making it an ideal choice for users who require a high-performance storage solution. With this substantial capacity, users can store a vast amount of data without worrying about running out of space. Whether you are a business professional dealing with large datasets or a content creator working with high-resolution media files, the 800GB capacity ensures that you have ample room to store all your important files and documents.
Increased Storage Space
One of the most significant advantages of the 800GB capacity is the increased storage space it provides. This allows users to store more data, applications, and files on their SSD, eliminating the need for additional storage devices. With ample space at your disposal, you can consolidate your data and streamline your storage infrastructure, resulting in improved efficiency and reduced costs.
Efficient Data Management
The generous capacity of the HPE 804674-B21 SSD enables users to efficiently manage their data. With more space available, you can logically organize your files and folders, making it easier to locate specific data when needed. Additionally, the increased capacity reduces the need for frequent data transfers or deletions, optimizing your workflow and saving valuable time.
Seamless Expansion
With the 800GB capacity, users have the flexibility to expand their storage capabilities seamlessly. As your storage needs grow over time, you can rely on this SSD to accommodate your increasing demands. This eliminates the hassle of constantly upgrading or replacing your storage solution and ensures that you can continue to scale your operations without disruption.
Enhanced Performance
The ample capacity of the HPE 804674-B21 SSD contributes to its overall performance. With a larger storage space, the SSD can distribute data across multiple NAND flash memory cells, reducing the strain on individual cells and enhancing the drive's overall speed and responsiveness. Whether you are running resource-intensive applications or performing data-intensive tasks, the 800GB capacity ensures that your SSD can handle the workload efficiently.
Interface: SATA 6GBPS
The HPE 804674-B21 SSD features a SATA 6GBPS interface, providing users with fast and reliable data transfer speeds. This interface offers numerous benefits and is widely recognized for its compatibility and versatility.
High-Speed Data Transfer
The SATA 6GBPS interface enables lightning-fast data transfer speeds, allowing users to quickly and efficiently move large files or access data stored on the SSD. With this interface, you can experience significantly reduced data transfer times, enabling you to accomplish tasks more rapidly and improving overall productivity.
Seamless Compatibility
The SATA 6GBPS interface ensures seamless compatibility with a wide range of devices, including desktop computers, laptops, and servers. This makes the HPE 804674-B21 SSD a versatile storage solution that can be easily integrated into various systems without any compatibility issues. Whether you are upgrading an existing system or building a new one, the SATA 6GBPS interface ensures a hassle-free installation process.
Backward Compatibility
Another advantage of the SATA 6GBPS interface is its backward compatibility with previous SATA versions. This means that the HPE 804674-B21 SSD can be used with systems that support older SATA interfaces without any performance degradation. You can enjoy the benefits of the SATA 6GBPS interface while retaining compatibility with older devices, providing flexibility and future-proofing your storage solution.
Reliable Performance
The SATA 6GBPS interface is known for its reliability and stability. It offers a robust connection between the SSD and the host system, ensuring consistent and uninterrupted data transfer. This reliability is crucial for users who rely on their storage solution for critical operations or require dependable performance without any bottlenecks.
Intended Use: Write Intensive
The HPE 804674-B21 SSD is specifically designed for write-intensive workloads, making it an excellent choice for users who require high endurance and exceptional performance in demanding environments.
Optimized for Write-Heavy Applications
Write-intensive workloads involve frequent and continuous data writes, such as database operations, content creation, or virtualization. The HPE 804674-B21 SSD is optimized to handle these demanding applications with ease. It offers superior write performance, ensuring that your data is written quickly and efficiently, minimizing latency, and improving overall system responsiveness.
Enhanced Endurance
One of the key benefits of the write-intensive design is its enhanced endurance. The HPE 804674-B21 SSD utilizes advanced technologies to prolong the lifespan of the drive, even under heavy write workloads. This ensures that your SSD can withstand continuous writes without compromising on performance or reliability, providing peace of mind and reducing the need for frequent replacements.
Improved Data Integrity
Write-intensive workloads often involve critical data that needs to be accurately written and preserved. The HPE 804674-B21 SSD incorporates advanced error correction mechanisms and data protection features to ensure the integrity of your data. These features prevent data corruption or loss during write operations, guaranteeing that your valuable information remains intact and secure.
Consistent Performance
Write-intensive workloads demand consistent and reliable performance to maintain productivity and prevent any disruptions. The HPE 804674-B21 SSD excels in delivering consistent performance, even under heavy write workloads. You can rely on this SSD to provide stable and predictable performance, allowing you to focus on your work without worrying about performance degradation or slowdowns.
Form Factor: LFF SCC
The HPE 804674-B21 SSD features a Large Form Factor Small Carrier Card (SCC), offering users a compact and efficient storage solution. This form factor is well-suited for various applications and provides numerous benefits to users.
Space-Saving Design
The Large Form Factor SCC form factor ensures that the HPE 804674-B21 SSD occupies minimal space within your system. This is particularly beneficial for users with limited physical space or those looking to optimize their storage infrastructure. The compact design allows for efficient utilization of available space while providing high-capacity storage capabilities.
Easy Installation and Maintenance
The Large Form Factor SCC form factor simplifies the installation and maintenance process of the HPE 804674-B21 SSD. The small carrier card design enables easy insertion and removal of the SSD, reducing downtime and minimizing disruptions during upgrades or maintenance tasks. Additionally, the form factor ensures compatibility with standard drive bays, facilitating hassle-free integration into existing systems.
Durable and Secure
The Large Form Factor SCC form factor offers robustness and security to protect your data. The sturdy construction of the small carrier card ensures that the SSD remains securely in place, minimizing the risk of accidental disconnection or damage. Furthermore, the form factor provides additional protection against environmental factors such as vibrations or shocks, safeguarding the integrity of your data.
Versatile Applications
The LFF SCC form factor is widely compatible with various systems and applications. Whether you are using the HPE 804674-B21 SSD in a server, workstation, or storage array, the small carrier card design ensures seamless integration. This versatility allows users to leverage the benefits of the SSD across different environments and applications, providing flexibility and enhancing overall system performance.
