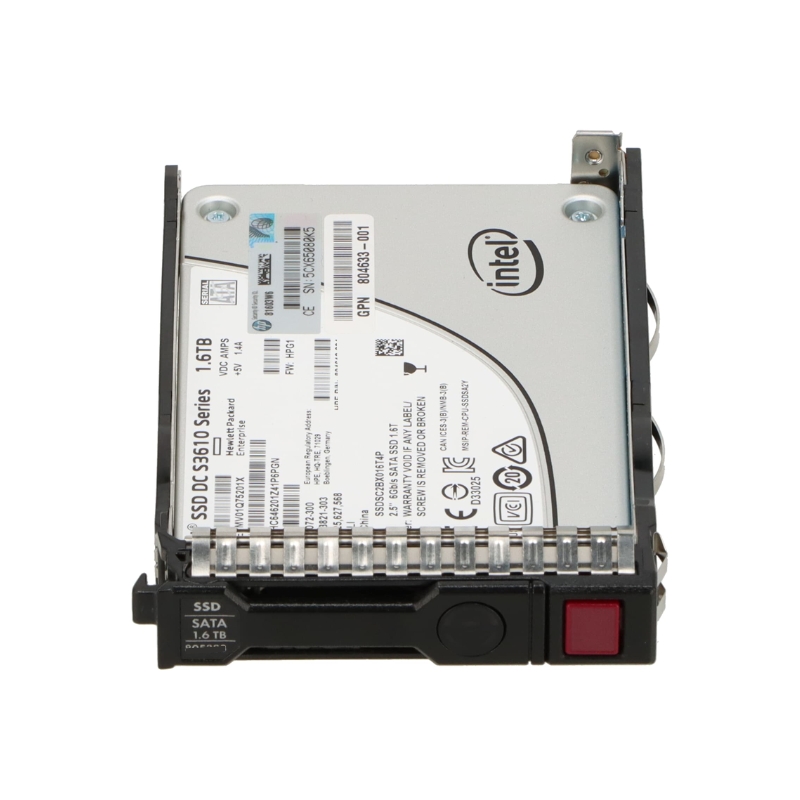

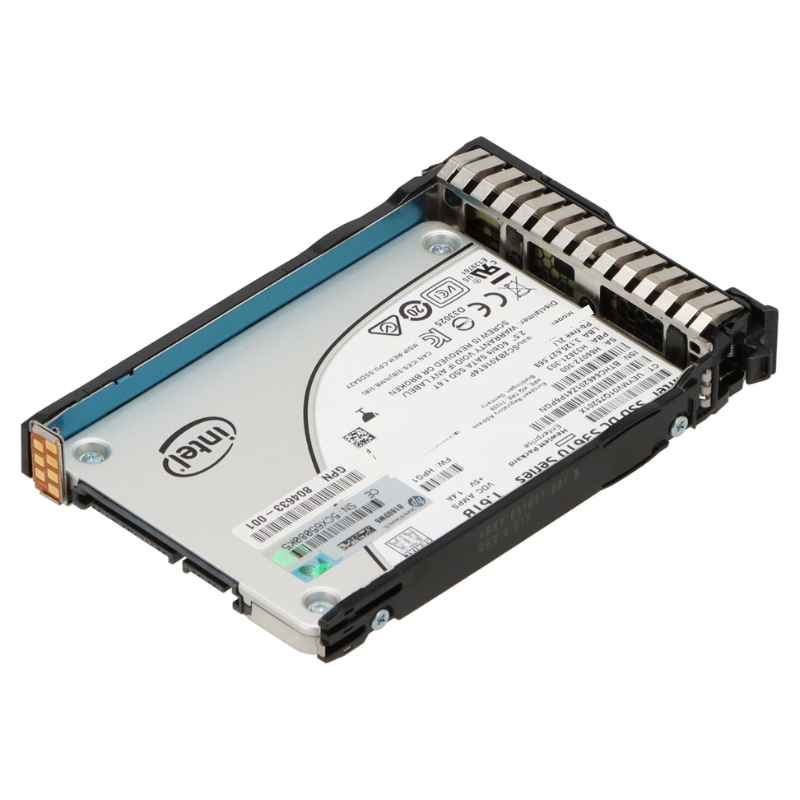

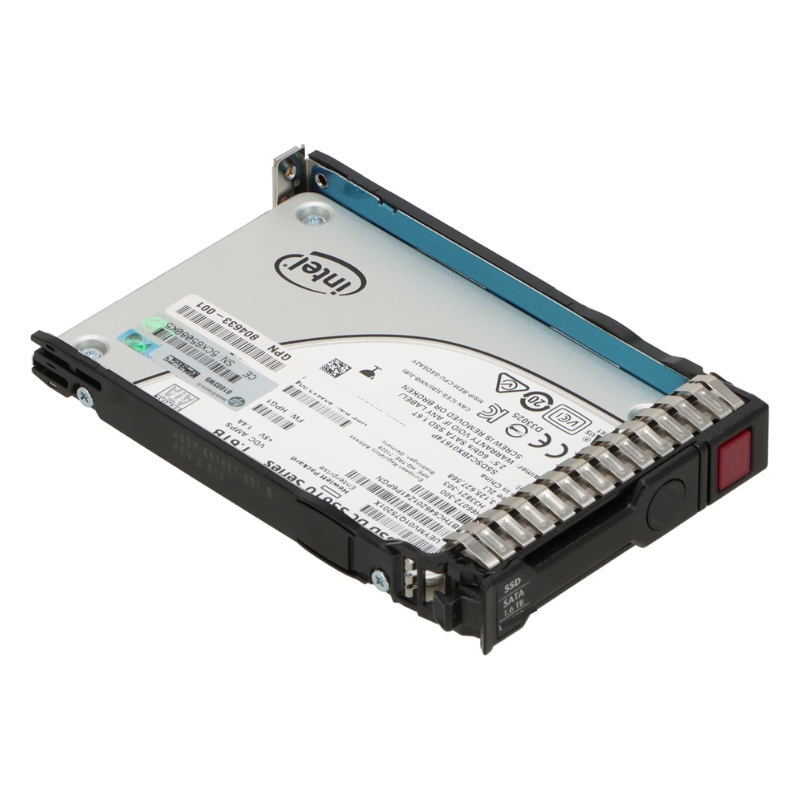

HPE 805384-001 1.6TB SATA 6G 3.5" Smart Carrier Mixed Use SSD

Key Specifications of HPE 805384-001

• Brand: HPE
• MPN: 805384-001
• Option Part Number: 804634-B21
• Spare Part Number: 805384-001
• Assembly Number: 804612-004

General Characteristics

Device Type and Capacity

• Device Type: Solid State Drive (Hot-Swap)
• Capacity: 1.6 TB

Form Factor and Interface

• Form Factor: 3.5 inch LFF
• Interface Type: SATA 6Gbps
• Plug Type: Hot Pluggable

NAND Memory and Carrier Type

• Memory Type: eMLC NAND Flash
• Carrier Type: Smart Carrier Converter (SCC)

Workload and Advanced Features

• Workload Type: Mixed Use
• Special Features: Power Loss Protection (PLP), Digitally Signed Firmware (DS)

Supported Platforms

• Compatible with: HPE ProLiant Rack, Tower, BladeSystem Servers, Synergy Systems
• Bundled with: HPE Smart Carrier Converter

Physical Dimensions

• Height: 15 mm

Performance Specifications

Data Transfer and Write Durability

• Drive Writes Per Day (DWPD): 3
• Transfer Rate: 6 Gb/sec

Sequential and Random Performance

• Max Sequential Read Throughput: 535 MiB/s
• Max Sequential Write Throughput: 360 MiB/s
• Random Read Latency: 115 µs (4KiB, Q=1)
• Random Write Latency: 50 µs (4KiB, Q=1)

Input/Output Performance

• Random Read IOPS (4KiB, Q=16): 64,000
• Random Write IOPS (4KiB, Q=16): 23,000
• Max Random Read IOPS (4KiB, Q=32): 71,000
• Max Random Write IOPS (4KiB, Q=4): 23,000

Mixed Workload IOPS Performance

• 70% Read / 30% Write, Queue 32 (IOPS): 44,000
• 50% Read / 50% Write, Queue 32 (IOPS): 34,000

Expansion and Connectivity

Interface and Bay Compatibility

• Interface: 1 x SATA 6Gbps
• Bay Compatibility: 3.5" LFF

Power Consumption

Idle and Active Power Usage

• Idle Power Consumption: 1.20 Watts
• Random Read/Write Power Consumption: 0.39 Watts
• Sequential Read Power Consumption: 0.34 Watts
• Sequential Write Power Consumption: 6.69 Watts

Compatibility Information

Supported HPE ProLiant Servers

• BL Series: BL420c, BL460c, BL465c (Gen8/Gen9)
• DL Series: DL20, DL60, DL80, DL120, DL160, DL180, DL320e, DL360e, DL360p, DL380e, DL380p, DL388 (Gen8/Gen9)
• ML Series: ML110, ML150, ML310e, ML350, ML350e (Gen8/Gen9)
• SL Series: SL200t, SL230s, SL250s, SL2500, SL4550, SL4545, SL454x (Gen8/Gen9)

Supported Storage and Arrays

• HPE Storage Arrays: D3600, D3700
• HPE StoreEasy: 1430, 1440, 1530, 1540, 1630, 1640

Capacity

The HPE 805384-001 SSD offers a massive storage capacity of 1.6TB, making it an excellent choice for users who require ample space to store their data. With this large capacity, you can store a vast amount of files, documents, photos, videos, and more without worrying about running out of storage space.

Increased Productivity

Having a high-capacity SSD like the HPE 805384-001 allows users to work more efficiently and effectively. With ample storage space, you can keep all your files, applications, and software in one place without the need for external storage devices. This eliminates the hassle of constantly transferring files and searching for additional storage options, saving you time and increasing productivity.

Seamless Multitasking

The 1.6TB capacity of the HPE 805384-001 SSD enables seamless multitasking by providing enough space for running multiple applications simultaneously. You can switch between different programs without experiencing any lag or slowdowns, ensuring a smooth and uninterrupted workflow. Whether you're editing videos, working on complex projects, or running resource-intensive software, this SSD's capacity will meet your needs.

Data Security

With a large storage capacity, you can conveniently create backups of your important files and documents. The HPE 805384-001 SSD allows you to safeguard your data by regularly backing it up to prevent any potential loss or damage. By having enough space to store multiple backups, you can ensure the safety and security of your valuable information.

Efficient Data Management

The spacious capacity of the HPE 805384-001 SSD enables effective data management. You can organize your files and folders in a structured manner, making it easier to locate specific data when needed. This helps to streamline your workflow and boost overall efficiency, as you spend less time searching for files and more time focusing on your tasks.

Future-Proof Solution

The 1.6TB capacity of this SSD makes it a future-proof investment. As technology advances and file sizes continue to increase, having a large storage capacity ensures that your device remains relevant and capable of handling the demands of tomorrow's data-intensive applications. With the HPE 805384-001 SSD, you can be confident in its ability to meet your storage needs for years to come.

Cost-Effective Storage Solution

By opting for the HPE 805384-001 SSD with its 1.6TB capacity, you can avoid the recurring costs associated with external storage devices or cloud storage subscriptions. With this cost-effective solution, you can save money in the long run while enjoying the convenience of having all your data stored securely on a single device.

Interface

The HPE 805384-001 SSD features a SATA 6GBPS interface, which offers several benefits and is of great importance for users seeking optimal performance and compatibility.

Blazing Fast Data Transfer Speeds

The SATA 6GBPS interface of the HPE 805384-001 SSD ensures lightning faster data transfer speeds. With this interface, you can quickly transfer large files, such as videos or high-resolution images, between your SSD and other devices. This significantly reduces waiting times and allows you to work more efficiently, especially when dealing with data-intensive tasks.

Backward Compatibility

One of the key advantages of the SATA interface is its backward compatibility. The HPE 805384-001 SSD can be easily connected to older systems that support SATA 3GBPS or even SATA 1.5GBPS. This ensures that you can use the SSD with a wide range of devices, both old and new, without worrying about compatibility issues.

Easy Installation

The SATA interface simplifies the installation process of the HPE 805384-001 SSD. You can easily connect it to your system's SATA port without the need for additional adapters or complicated setup procedures. This makes upgrading your storage system hassle-free, allowing you to enjoy the benefits of increased performance and capacity in no time.

Stable and Reliable Connection

The SATA interface offers a stable and reliable connection between the HPE 805384-001 SSD and your system. This ensures that your data is transferred without any interruptions or data loss. You can rely on this interface to maintain a consistent and secure connection, minimizing the risk of data corruption or system crashes.

Industry Standard

The SATA 6GBPS interface is an industry standard, widely adopted by manufacturers and supported by various operating systems. This means that you can seamlessly integrate the HPE 805384-001 SSD into your existing setup without any compatibility issues or software conflicts. It provides a universal solution that is recognized and supported by most devices and software platforms.

Cost-Effective Solution

The SATA interface is a cost-effective solution for users seeking high-performance storage options. Compared to other interfaces, such as PCIe, SATA offers a more affordable alternative without compromising on speed or reliability. The HPE 805384-001 SSD with its SATA 6GBPS interface provides an excellent balance between cost and performance, making it an ideal choice for budget-conscious users.

Form Factor

The HPE 805384-001 SSD boasts a form factor of 3.5 inches, which offers several benefits and holds great importance for users in need of a reliable and versatile storage solution.

Optimal Compatibility

The 3.5-inch form factor of the HPE 805384-001 SSD ensures compatibility with a wide range of devices, including desktop computers, servers, and workstations. Whether you're upgrading your existing system or building a new one, this SSD can seamlessly fit into standard drive bays without the need for additional adapters or modifications.

Enhanced Cooling

The larger form factor of the HPE 805384-001 SSD allows for better heat dissipation. The increased surface area provides more room for airflow, ensuring that the SSD remains cool even during intensive operations. This helps to prevent overheating and ensures the longevity and reliability of the drive.

Easy Installation

The 3.5-inch form factor makes the installation process of the HPE 805384-001 SSD quick and straightforward. You can easily mount the drive into the compatible drive bay using standard screws or tool-less mechanisms, saving you time and effort. This allows for hassle-free upgrades or replacements, enabling you to enjoy the benefits of increased storage capacity without any complications.

Space Efficiency

While the 3.5-inch form factor may occupy more physical space compared to smaller form factors like 2.5 inches, it offers superior space efficiency in terms of capacity. The larger size allows for more storage chips to be packed into the SSD, resulting in higher storage capacities at a lower cost per gigabyte. This makes the HPE 805384-001 SSD an excellent choice for users who require large storage capacities within a limited physical space.

Expandability

The 3.5-inch form factor provides room for future expansion. If you need to increase your storage capacity in the future, you can simply add more HPE 805384-001 SSDs to your system without any compatibility issues. This scalability ensures that your storage solution can grow alongside your needs, providing a flexible and future-proof setup.

Reliability and Durability

The 3.5-inch form factor offers a robust and sturdy construction, ensuring the reliability and durability of the HPE 805384-001 SSD. The larger size allows for stronger components and better shock absorption, protecting the drive from physical damage caused by accidental drops or vibrations. This makes it an ideal choice for users who require a storage solution that can withstand demanding environments or transportation.

Carrier

The HPE 805384-001 SSD comes with a Smart Carrier, providing users with numerous benefits and offering great importance for those seeking a convenient and secure storage solution.

Hot-Swap Capability

The Smart Carrier allows for hot-swapping of the HPE 805384-001 SSD without the need to power down the system. This feature is particularly useful in mission-critical environments where downtime must be minimized. With hot-swapping, you can replace or upgrade the SSD while the system is still running, ensuring continuous operation without interruptions.

Enhanced Protection

The Smart Carrier provides enhanced protection for the HPE 805384-001 SSD. It shields the drive from physical damage and static electricity, reducing the risk of data loss or corruption. The carrier also helps to dissipate heat effectively, preventing overheating and ensuring optimal performance and longevity of the SSD.

Easy Identification

The Smart Carrier is designed with labeling and identification features, allowing for easy identification of the HPE 805384-001 SSD. This is particularly beneficial in server environments where multiple drives are installed. The clear labeling ensures that you can quickly locate and identify the specific drive you need for maintenance, upgrades, or troubleshooting.

Effortless Installation

The Smart Carrier simplifies the installation process of the HPE 805384-001 SSD. It provides a tool-less design, allowing you to easily slide the drive into the carrier and secure it without the need for additional tools or screws. This saves time and effort during initial setup or when replacing drives, ensuring a hassle-free experience.

Security Features

The Smart Carrier offers security features to protect your data. It includes locking mechanisms to secure the HPE 805384-001 SSD in place, preventing unauthorized removal or tampering. This adds an extra layer of security, ensuring that your sensitive information remains protected from unauthorized access.

Efficient Cable Management

The Smart Carrier provides efficient cable management for the HPE 805384-001 SSD. It includes cable routing options that allow you to neatly organize and manage the cables connected to the drive, reducing clutter and improving airflow within the system. This contributes to better cooling and overall system performance.

Use Type

The HPE 805384-001 SSD is categorized as a Mixed-use SSD, offering numerous benefits and serving an important role for users requiring high performance and versatility in their storage solution.

Optimized Performance

The mixed-use designation of the HPE 805384-001 SSD indicates that it is designed to handle a wide range of workloads, including both read-intensive and write-intensive tasks. This versatility ensures optimized performance across various applications and workloads, providing a balance between speed and endurance.

Flexibility

The Mixed Use designation allows for greater flexibility in terms of usage scenarios. Whether you're running demanding databases, virtualization environments, or content delivery networks, the HPE 805384-001 SSD can handle the diverse workload requirements. This flexibility makes it suitable for a wide range of industries and applications.

Reliability and Endurance

Mixed Use SSDs are designed to withstand the demands of both read and write operations, offering exceptional reliability and endurance. The HPE 805384-001 SSD's mixed use classification ensures that it can handle continuous read and write cycles without compromising performance or longevity. This makes it an ideal choice for users who require a storage solution that can handle intensive workloads without experiencing performance degradation over time.

Cost-Effective Solution

The Mixed Use classification of the HPE 805384-001 SSD provides a cost-effective solution for users seeking high-performance storage without the associated price tag of enterprise-grade SSDs. By offering a balanced approach to performance and endurance, this SSD offers a competitive price per gigabyte ratio, making it an attractive option for budget-conscious users.

Scalability

Mixed Use SSDs like the HPE 805384-001 allow for scalability as your storage requirements grow. Whether you need to expand your storage capacity or upgrade your existing system, this SSD provides the flexibility to accommodate future needs. You can seamlessly integrate additional drives or replace existing ones with higher-capacity models, ensuring that your storage solution can scale alongside your business or personal requirements.

Improved User Experience

The mixed use classification of the HPE 805384-001 SSD translates into an improved user experience. The SSD's ability to handle various workloads and applications efficiently ensures that you can enjoy a smooth and responsive computing experience. Whether you're gaming, editing videos, or performing data analysis, this SSD's performance and versatility contribute to an overall enhanced user experience.
