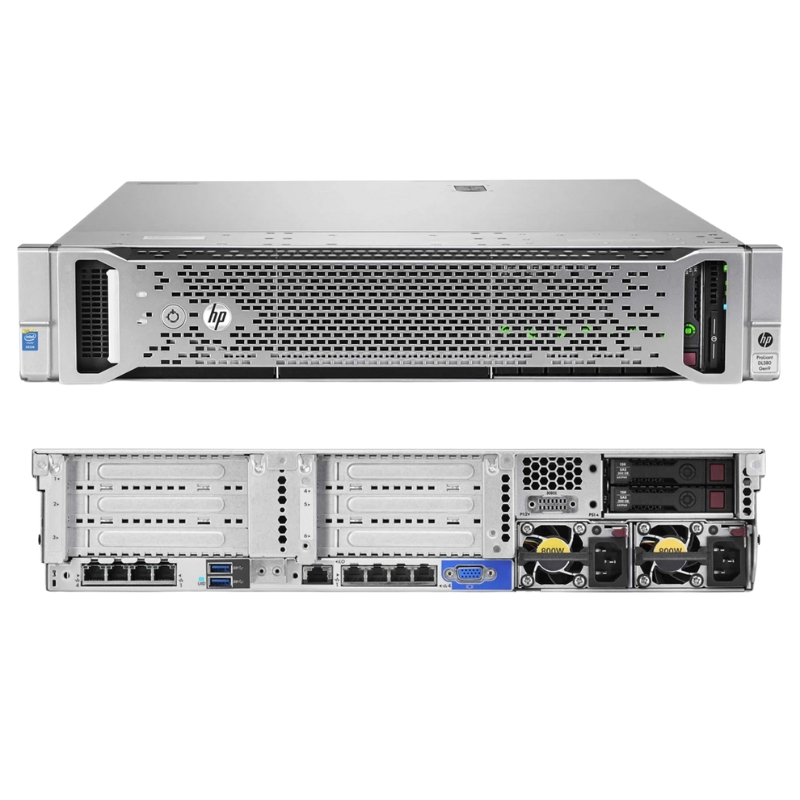

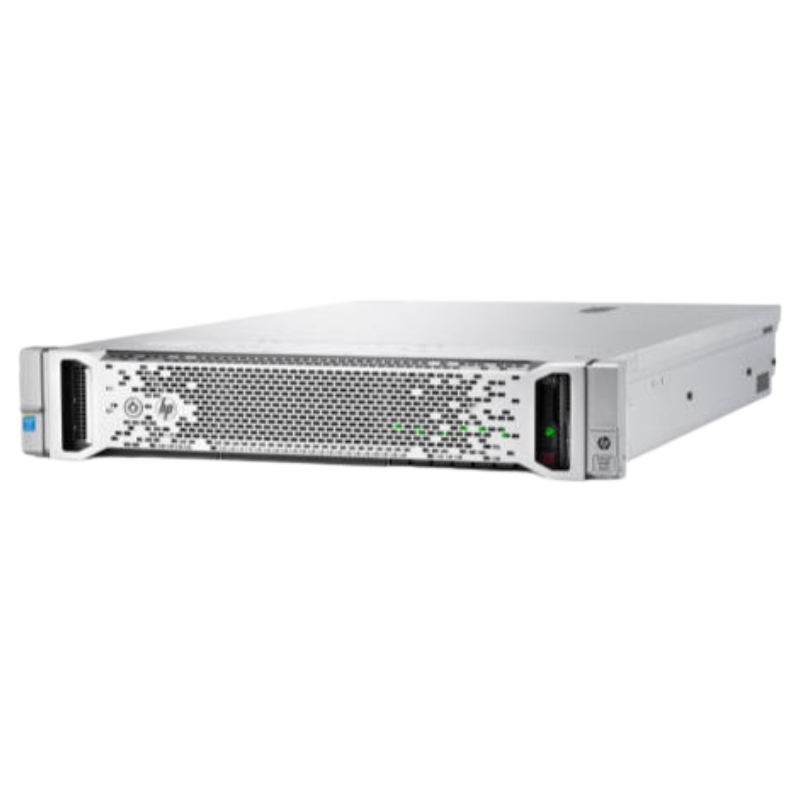

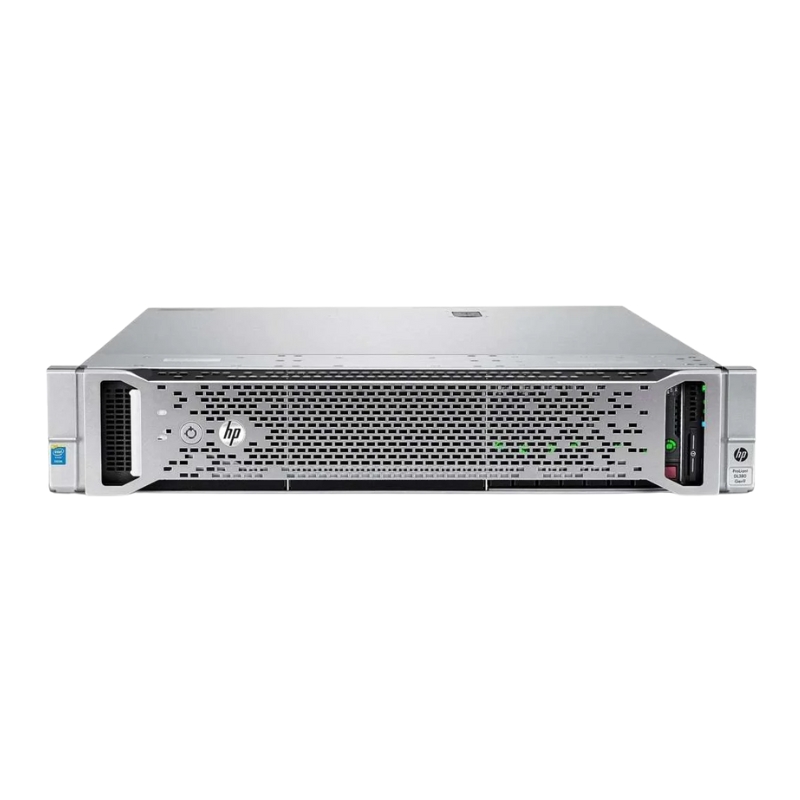

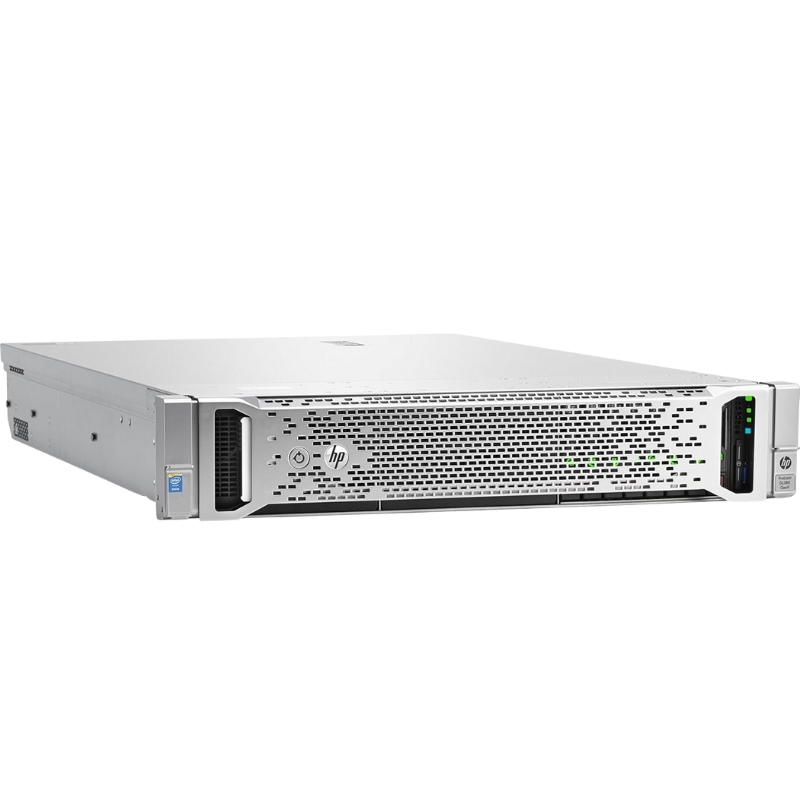

HPE 848774-B21 1x Intel Xeon E5-2630V4 10-Core, 16GB DDR4, 1GB Ethernet, 500w Ps 2u Rack Server

Processor

The HPE 848774-B21 2U Rack Server comes equipped with a powerful 1x Intel Xeon 10-Core E5-2630V4 processor, running at a speed of 2.2GHz. This processor is a significant feature of this server and offers numerous benefits to users.

Processor & Chipset Details

CPU Specifications

• Processor: Intel Xeon E5-2630v4
• Clock Speed: 2.2 GHz with a Max Turbo Frequency of 3.1 GHz
• Intel QPI Speed: 8 GT/s
• Cores: 10-core
• CPU Quantity: 1 (supports up to 2)
• Processor Features: Hyper-Threading, Intel Turbo Boost Technology 2

Cache Memory

• Cache Type: Smart Cache
• Installed Cache Size: 50 MB (25 MB per processor)

Memory Specifications

• Installed RAM: 16 GB, expandable up to 384 GB
• Memory Technology: DDR4 SDRAM with Advanced ECC
• Memory Speed: 2133 MHz
• Compliance: PC4-17000
• Form Factor: DIMM 288-pin
• Features: Registered, Online Spare, Dual Rank, Quad Channel Architecture, HP SmartMemory
• Configuration Example: 1 x 16 GB

Storage & Controller Features

Storage Configuration

• Hard Drive: None included
• Optical Drive: DVD-RW SATA

Storage Controller

• Controller Name: Smart Array P440ar
• Buffer Size: 2 GB
• Disk Drive Compatibility: 12 Gb/s SAS, 6 Gb/s SATA
• SAS Port Link Rate: 12 Gb/s per Physical Link
• PCIe Link Rate: PCI Express 3.0 x8
• Physical Drives Supported: Up to 26
• Logical Drives Supported: Up to 64
• RAID Support: RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM

Graphics & Networking

Graphics Controller

• Type: Integrated Matrox G200eh2
• Video Memory: 16 MB

Networking Capabilities

• Ethernet Ports: 2 x 10 Gigabit Ethernet, 4 x Gigabit Ethernet
• Ethernet Controller: HP 331i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
• Remote Management: Integrated Lights-Out 4 (iLO 4)
• Additional Features: Wake On LAN (WOL), PXE Support
• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

Expansion Bays

• Total Bays: 8 x Hot-swap 2.5 SFF, 1 x External 5.25

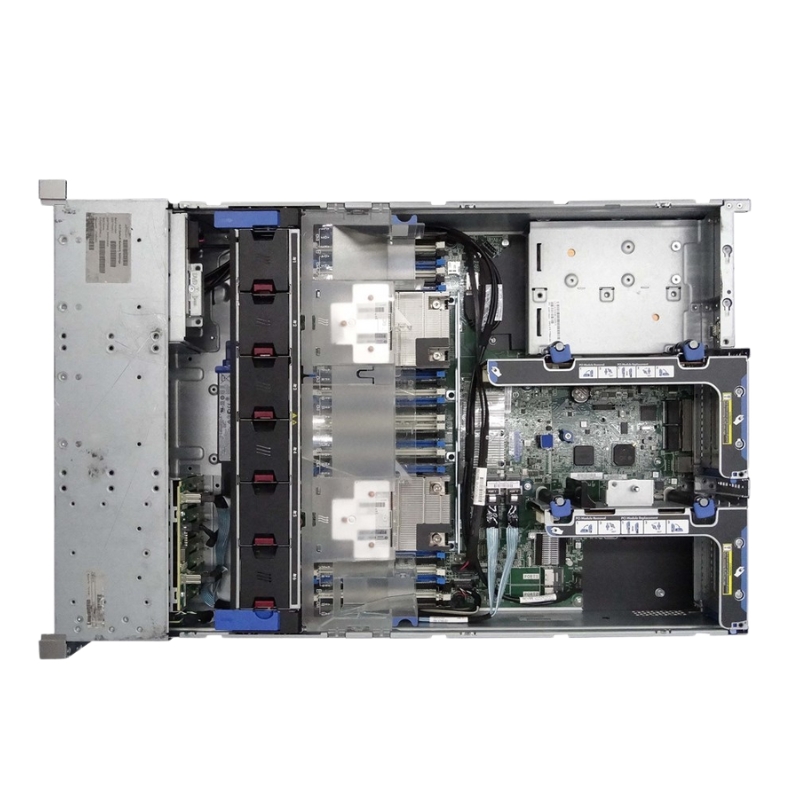

Expansion Slots

• CPU Slots: 2 (1 available)
• DIMM Slots: 24 (23 available)
• PCIe 3.0 x16 Slots: 2 (both available)
• PCIe 3.0 x8 Slots: 2 (both available)
• MicroSD Card Slot: 1 (available)
• PCIe 3.0 x16 Full-length Slots: 2 (both available)

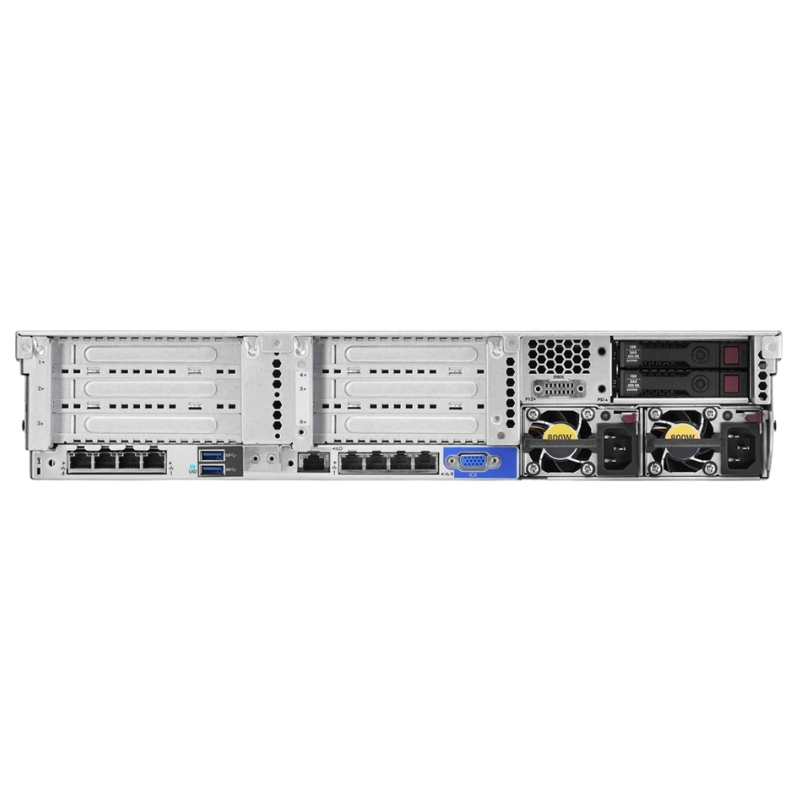

Interfaces & Ports

• LAN Ports: 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet
• HP iLO Port: 1
• VGA Ports: 2 (1 front, 1 rear)
• USB 3.0 Ports: 5 (1 front, 2 rear, 2 internal)
• USB 2.0 Ports: 2 (front)

Miscellaneous Information

Included Accessories

• HP Easy Install Rails

Standards Compliance

• ACPI 2.0b
• FCC Class A Certified
• EN 61000-3-2, EN 55022
• ICES-003
• EN 61000-3-3, EN 55024
• CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1, EN 60950-1
• WEEE, GB 9254, CNS 13438

Power Specifications

• Device Type: Hot-plug Power Supply
• Redundancy: Yes, 1+1 scheme
• Installed Quantity: 1 (supports up to 2)
• Nominal Voltage: AC 120/230 V
• Power Provided: 500 Watts
• 80 Plus Certification: 80 Plus Platinum
• Efficiency: 94%

Physical Dimensions & Weight

• Width: 17.5 inches
• Depth: 26.7 inches
• Height: 3.4 inches
• Weight: 32.5 lbs

Enhanced Performance

The Intel Xeon 10-Core E5-2630V4 processor provides exceptional performance capabilities to the HPE 848774-B21 server. With its ten cores and twenty threads, it can handle demanding workloads and multitasking efficiently. Users can expect faster processing speeds, improved responsiveness, and seamless execution of resource-intensive applications.

Increased Productivity

By utilizing the power of the Intel Xeon 10-Core E5-2630V4 processor, users can experience enhanced productivity and efficiency in their daily operations. Tasks that would typically take longer to complete can be executed swiftly, allowing businesses to save valuable time and resources. Whether it is data analysis, virtualization, or running complex databases, this processor ensures smooth and uninterrupted performance.

Optimized Virtualization

Virtualization has become increasingly important in modern computing environments, allowing businesses to run multiple virtual machines on a single physical server. The 1x Intel Xeon 10-Core E5-2630V4 processor in the HPE 848774-B21 server is specifically designed to optimize virtualization performance. It supports advanced virtualization technologies, such as Intel Virtualization Technology (VT-x), enabling efficient management of virtual resources and improved consolidation ratios.

Memory

The HPE 848774-B21 server is equipped with 16GB(1X16) DDR4 SDRAM memory, which plays a crucial role in the overall performance and efficiency of the system.

Improved System Responsiveness

With 16GB(1X16) DDR4 SDRAM, the server can handle data more effectively, resulting in improved system responsiveness. This allows users to work with large datasets, run memory-intensive applications, and perform tasks without experiencing significant delays. The enhanced memory capacity ensures a smoother user experience and reduces the risk of bottlenecks that may hinder productivity.

Efficient Multitasking

The ample memory capacity of the HPE 848774-B21 server enables efficient multitasking. Users can seamlessly switch between multiple applications, run virtual machines simultaneously, and handle complex workloads without compromising performance. The 16GB(1X16) DDR4 SDRAM ensures that each task receives sufficient memory resources, preventing slowdowns and ensuring optimal performance.

Scalability and Future-Proofing

The HPE 848774-B21 server's memory configuration allows for easy scalability and future expansion. With a single 16GB module, there are additional memory slots available to upgrade the server's memory capacity as needed. This flexibility ensures that the server can adapt to growing business requirements and remain relevant for years to come.

Networking

The networking capabilities of the HPE 848774-B21 server are powered by a 1GB Ethernet 4-Port 331i network adapter, providing reliable connectivity and efficient data transfer.

Faster Data Transfer

The 1GB Ethernet 4-Port 331i network adapter enables fast data transfer between the server and network devices. With a maximum speed of 1 gigabit per second, users can enjoy seamless file transfers, smooth streaming, and quick access to network resources. This high-speed connectivity minimizes latency and ensures efficient communication within the network infrastructure.

Improved Network Performance

The HPE 848774-B21 server's networking feature plays a crucial role in optimizing network performance. The 1GB Ethernet 4-Port 331i network adapter supports advanced technologies like TCP/IP Offload Engine (TOE), which offloads network processing tasks from the CPU to the adapter. This results in reduced CPU utilization, improved overall system performance, and increased network efficiency.

Enhanced Network Security

The 1GB Ethernet 4-Port 331i network adapter also includes advanced security features to protect sensitive data and ensure network integrity. It supports features such as VLAN tagging, which allows for secure segregation of network traffic, and TCP/IP checksum offload, which verifies the integrity of transmitted data. These features contribute to a more secure and reliable network infrastructure.

Power Supply

The HPE 848774-B21 server is equipped with a reliable 1x 500w Ps power supply, ensuring stable and efficient power delivery to the system components.

Reliability and Redundancy

The 1x 500w Ps power supply offers a high level of reliability and redundancy, minimizing the risk of unexpected downtime due to power-related issues. In case of a power supply failure, the server can seamlessly switch to an alternative power source, ensuring uninterrupted operation. This redundancy is especially critical for businesses that rely heavily on their servers and cannot afford disruptions in their services.

Energy Efficiency

The HPE 848774-B21 server's power supply is designed with energy efficiency in mind. It complies with industry standards and regulations, such as 80 PLUS certification, which guarantees high efficiency levels. By consuming less energy, the server helps reduce electricity costs and contributes to a greener IT infrastructure.

Easy Maintenance and Upgrades

The modular design of the 1x 500w Ps power supply simplifies maintenance and upgrades. If necessary, the power supply can be easily replaced or upgraded without causing significant downtime or disruptions to the server's operation. This flexibility ensures that the server can adapt to changing power requirements or accommodate future expansion.
