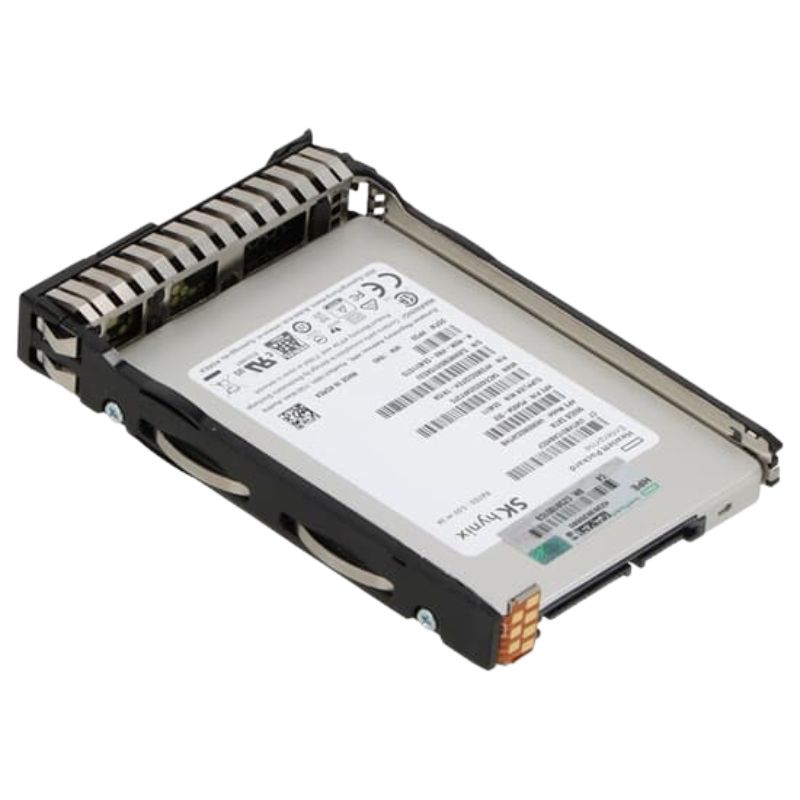

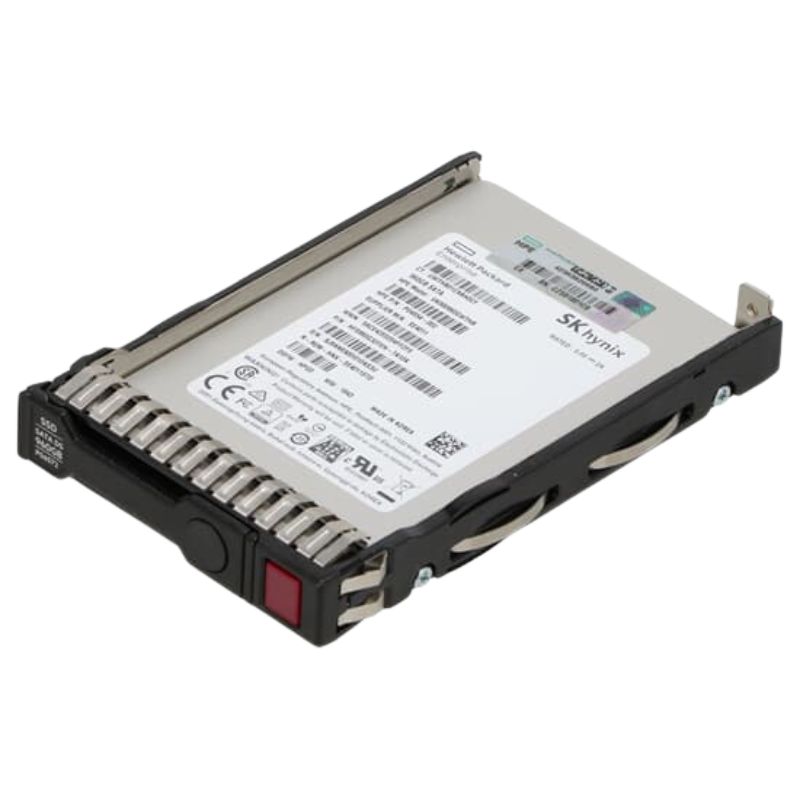

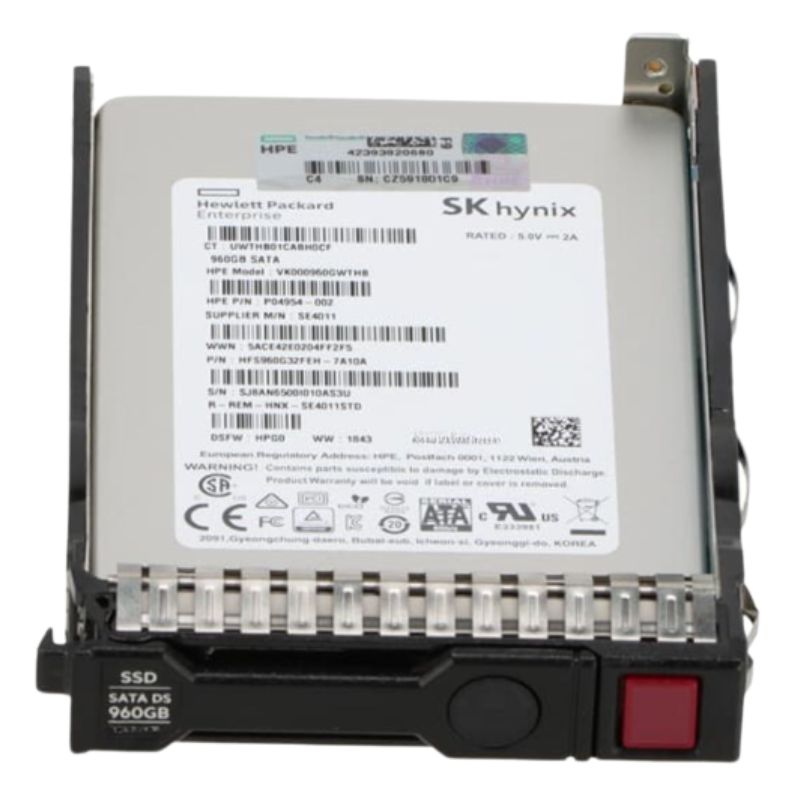

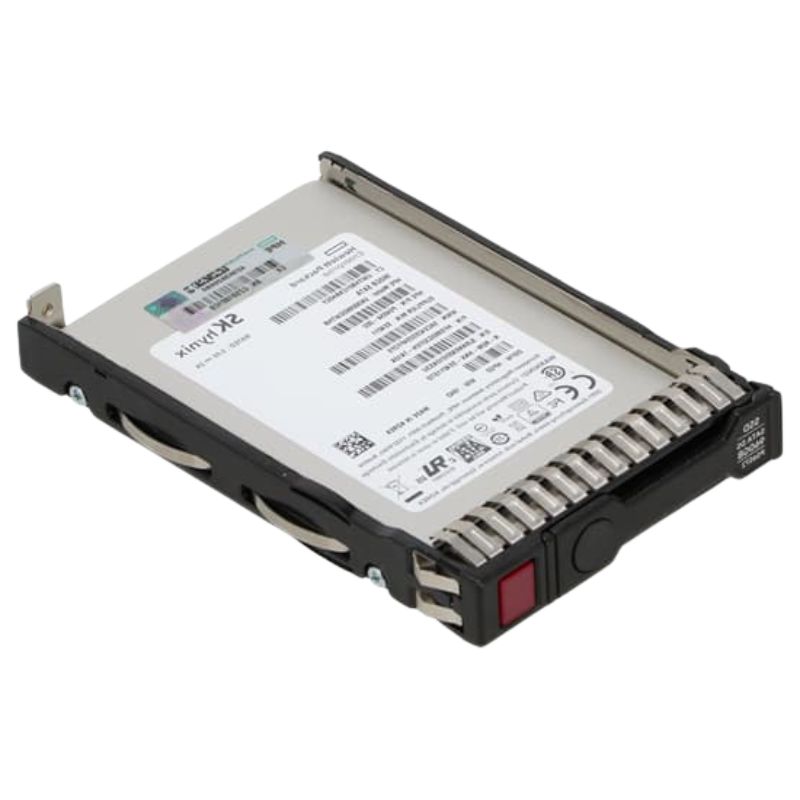

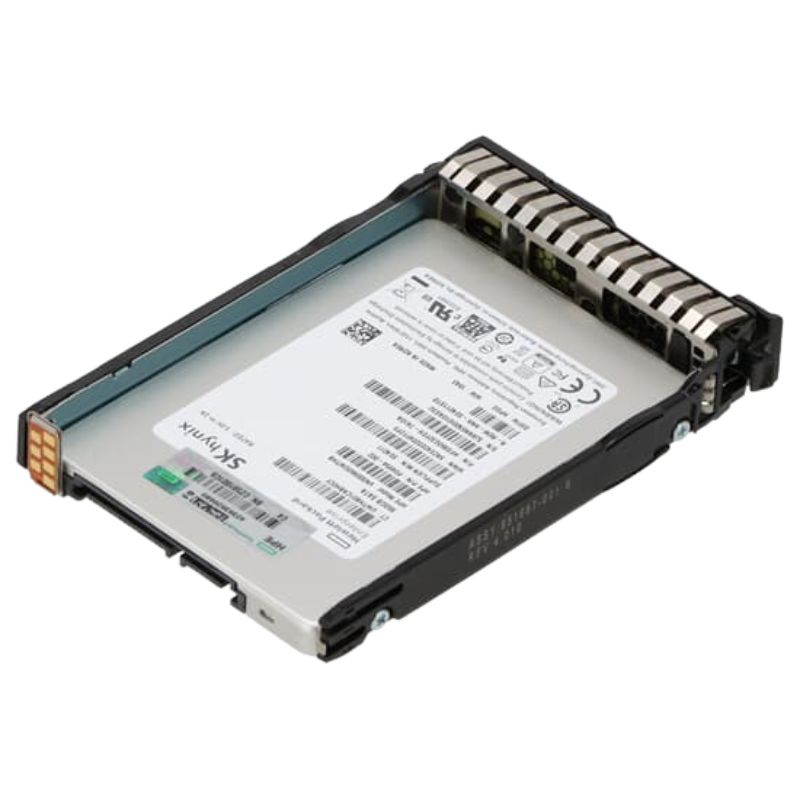

868822-B21 HPE 960GB SATA 6GBPS SC Intensive SFF SSD

HPE 868822-B21 960GB Read Intensive SATA SSD Overview

Enterprise-Grade Storage Solution for Modern Data Centers

The HPE 868822-B21 represents a significant advancement in enterprise storage technology, specifically engineered to meet the demanding requirements of contemporary server environments. This 960GB 2.5-inch Small Form Factor (SFF) Solid State Drive delivers exceptional performance, reliability, and efficiency for read-intensive applications. Designed exclusively for HPE Gen9 and Gen10 servers, this SSD integrates seamlessly with HPE's ecosystem, providing optimized performance through firmware-level compatibility and enhanced management capabilities.

Key Technical Specifications at a Glance

This drive features a SATA-6Gbps interface that ensures broad compatibility while delivering sequential read speeds of up to 560MB/s and write speeds of up to 535MB/s. With advanced NAND flash technology and a sophisticated controller, the 868822-B21 offers consistent performance under varying workload conditions. The drive's 2.5-inch SFF SC Hot Swap design facilitates easy installation and maintenance without requiring server downtime, making it ideal for environments where continuous operation is critical.

Comprehensive Technical Architecture

Advanced NAND Flash Technology

The HPE 868822-B21 utilizes high-quality 3D TLC NAND flash memory, carefully selected and optimized for enterprise read-intensive workloads. This technology enables higher storage densities while maintaining excellent endurance characteristics. The drive's architecture includes advanced error correction codes (ECC) that detect and correct multi-bit errors, significantly enhancing data integrity and reliability. The wear-leveling algorithms distributed across the NAND cells ensure even utilization, preventing premature wear on specific memory blocks and extending the drive's operational lifespan.

NAND Management and Longevity Features

Sophisticated garbage collection mechanisms operate in the background to maintain optimal performance levels during sustained write operations. The drive implements advanced bad block management that identifies and remaps defective memory areas to reserved good blocks, ensuring continuous operation even as the drive ages. These features collectively contribute to the drive's specified endurance rating of 0.8 Drive Writes Per Day (DWPD) over its 5-year warranty period, making it suitable for read-intensive applications that occasionally require write operations.

Intelligent Controller Architecture

At the heart of the 868822-B21 lies a high-performance SSD controller specifically tuned for enterprise environments. This controller manages all aspects of drive operation, including data placement, wear leveling, error correction, and interface communication. The controller's firmware is customized by HPE to work optimally with their server architecture, incorporating specific command sets and optimization routines that enhance performance in HPE server environments. The controller also facilitates advanced power management features that reduce energy consumption during periods of low activity without compromising responsiveness.

Performance Optimization Technologies

The controller implements several proprietary technologies to maintain consistent performance. These include dynamic thermal throttling that adjusts operation based on temperature readings to prevent overheating, background media scanning that proactively identifies potential error conditions, and read-retry algorithms that recover data from marginally readable cells. The controller's advanced queue management ensures optimal command processing, reducing latency and improving overall system responsiveness under heavy load conditions.

Form Factor and Physical Design

2.5-inch Small Form Factor (SFF) Advantages

The 2.5-inch Small Form Factor design represents the current standard for enterprise server storage, offering significant advantages over traditional 3.5-inch drives. The compact dimensions (69.85mm x 100mm x 7mm) enable higher storage density within the same physical space, allowing organizations to maximize their storage capacity per rack unit. This form factor is specifically designed to fit HPE's drive cages and backplanes, ensuring perfect mechanical compatibility and reliable electrical connections. The reduced physical size also contributes to improved airflow within server chassis, supporting better thermal management for entire systems.

Hot Swap Capability Implementation

The Hot Swap feature of the 868822-B21 enables administrators to install, replace, or remove drives while the server remains operational. This capability is crucial for maintaining high availability in enterprise environments where downtime must be minimized. The drive incorporates staggered power pins and specialized circuitry that ensures safe insertion and removal by establishing ground connections first and breaking them last. The SFF SC (Smart Carrier) design includes an integrated activity LED and status indicator that provides visual feedback about drive operation and health, facilitating quick identification of potential issues.

Hot Swap Mechanism Details

The hot swap mechanism includes specially designed connectors that maintain electrical connectivity during the insertion process, preventing signal bouncing and ensuring clean connections. The drive carrier incorporates a positive latching mechanism that securely holds the drive in place while providing smooth ejection when needed. These design elements work in conjunction with HPE's firmware to enable the operating system to properly recognize drive insertion and removal events, triggering appropriate responses without requiring manual intervention or system reboots.

Interface Technology: SATA-6Gbps

SATA Interface Evolution and Capabilities

The SATA-6Gbps interface, also known as SATA III, represents the third generation of the Serial ATA specification, delivering a maximum theoretical bandwidth of 600MB/s. While newer interfaces like NVMe offer higher performance, SATA remains highly relevant for many enterprise applications due to its excellent balance of performance, compatibility, and cost-effectiveness. The 868822-B21 fully utilizes the SATA-6Gbps interface capabilities, saturating the bandwidth during sequential operations while maintaining low latency for random access patterns. The interface includes native support for Native Command Queuing (NCQ) that optimizes command execution order, reducing mechanical delays and improving overall efficiency.

SATA Protocol Advantages in Enterprise Environments

The SATA protocol includes several features particularly beneficial in enterprise settings. These include hot plug capability, asynchronous signal recovery, and hardware-level error reporting. The interface's widespread adoption ensures compatibility with existing infrastructure while providing a clear migration path from traditional hard disk drives. The SATA-6Gbps interface in the 868822-B21 maintains backward compatibility with earlier SATA generations, ensuring operation in older systems, though at reduced speeds when connected to slower interfaces.

Performance Characteristics and Workload Optimization

Read-Intensive Workload Specialization

The 868822-B21 is specifically engineered for read-intensive applications where the majority of operations involve reading rather than writing data. This specialization allows HPE to optimize the drive's characteristics for maximum read performance and endurance while maintaining acceptable write capabilities. Typical read-intensive scenarios include database query operations, web serving, virtual desktop infrastructure (VDI), content delivery networks, and data analytics where large datasets are frequently accessed but infrequently modified. The drive's architecture prioritizes read latency reduction and sustained read throughput, ensuring responsive performance even under heavy load.

Performance Metrics and Real-World Performance

In controlled testing environments, the 868822-B21 demonstrates consistent performance metrics that meet or exceed its specifications. Sequential read operations typically achieve speeds between 550-560MB/s, while sequential writes range from 520-535MB/s depending on data patterns and drive conditioning. Random read performance reaches up to 98,000 IOPS (4KB blocks) while random write performance achieves approximately 34,000 IOPS. These performance characteristics remain stable across various workload conditions thanks to the drive's sophisticated garbage collection and wear-leveling algorithms that prevent performance degradation over time.

Write Performance Management

While optimized for read operations, the 868822-B21 maintains robust write performance through several advanced technologies. The drive incorporates a dynamically sized SLC cache that accelerates write operations by initially writing data in single-level cell mode before migrating to TLC storage during idle periods. This caching mechanism significantly improves burst write performance while maintaining consistent operation during sustained writes. The drive's controller monitors write amplification factors and adjusts operation parameters to minimize unnecessary write operations, extending the drive's lifespan and maintaining performance consistency.

Compatibility and Integration with HPE Server Platforms

HPE Gen9 Server Integration

The 868822-B21 is fully compatible with HPE Gen9 server platforms, including ProLiant DL, ML, and BL series servers. When installed in Gen9 servers, the drive automatically enables HPE-specific features such as advanced health monitoring, predictive failure analysis, and optimized power management. The drive works seamlessly with HPE Smart Array controllers in both HBA and RAID modes, supporting all common RAID levels. Integration with HPE iLO (Integrated Lights-Out) management enables remote monitoring of drive health, temperature, and performance metrics through HPE's management ecosystem.

Gen9-Specific Optimizations

HPE has implemented several Gen9-specific optimizations in the 868822-B21's firmware. These include enhanced queue depth management that aligns with Gen9's storage controller capabilities, thermal profiling that matches Gen9 server cooling characteristics, and power management protocols that integrate with Gen9's dynamic power saving features. The drive also supports HPE's Service Information Tags that store configuration and service history information accessible through HPE management tools, simplifying maintenance and support operations.

HPE Gen10 Server Integration

In HPE Gen10 servers, the 868822-B21 benefits from additional platform enhancements, including improved power efficiency, enhanced thermal management, and deeper integration with HPE's security features. Gen10 servers provide more sophisticated health monitoring capabilities that the 868822-B21 fully utilizes, offering earlier warning of potential issues and more detailed performance analytics. The drive supports HPE's Silicon Root of Trust technology when used in Gen10 systems, contributing to the overall security posture by ensuring firmware integrity throughout the boot process.

Gen10-Specific Enhancements

The integration with Gen10 platforms includes support for HPE's Persistent Memory Backup feature, which can use the SSD as a backup target for persistent memory modules. The drive's firmware includes optimizations for Gen10's updated storage controller architecture, improving command processing efficiency and reducing CPU overhead. When used in Gen10 systems, the 868822-B21 supports HPE's OneView management platform, providing unified management across compute, storage, and networking infrastructure.

Reliability, Durability, and Endurance

Enterprise-Class Reliability Features

The 868822-B21 incorporates multiple reliability-enhancing technologies that distinguish it from consumer-grade SSDs. These include end-to-end data protection that maintains data integrity from the host interface through the controller to the NAND flash memory. Power loss protection circuits ensure that in-progress operations complete properly during unexpected power interruptions, preventing data corruption. The drive's sophisticated bad block management and error correction capabilities maintain data integrity even as the NAND flash cells approach their endurance limits, ensuring reliable operation throughout the drive's specified lifespan.

Mean Time Between Failures (MTBF) and Annualized Failure Rate (AFR)

HPE specifies the 868822-B21 with a Mean Time Between Failures (MTBF) of 2,000,000 hours, significantly higher than consumer SSD offerings. This translates to an Annualized Failure Rate (AFR) of just 0.43%, demonstrating the drive's exceptional reliability in continuous operation environments. These reliability metrics are achieved through rigorous component selection, comprehensive testing, and sophisticated error management algorithms that proactively identify and mitigate potential failure conditions before they impact data availability.

Endurance Specifications and Wear Leveling

The 868822-B21 is rated for 0.8 Drive Writes Per Day (DWPD) over its 5-year warranty period, meaning the drive can withstand having its entire capacity written 0.8 times per day for five years. For a 960GB drive, this translates to a total endurance of approximately 1.4 petabytes written (TBW). This endurance rating makes the drive suitable for read-intensive workloads that include moderate write components. The drive's advanced wear-leveling algorithms distribute write operations evenly across all available memory cells, preventing specific areas from wearing out prematurely and extending the drive's usable life beyond minimum specifications.

Power Efficiency and Thermal Management

Advanced Power Management Capabilities

The 868822-B21 implements sophisticated power management features that reduce energy consumption without compromising performance. These include multiple power states that the drive transitions between based on activity levels. During active operation, the drive typically consumes between 3-4 watts, while in idle states power consumption drops to below 1 watt. The drive supports device-initiated power state transitions that enable it to enter low-power states during periods of inactivity, automatically returning to active状态 when commands are received. These power management capabilities contribute significantly to reducing total cost of ownership through lower energy consumption and reduced cooling requirements.

Thermal Management and Cooling Requirements

Enterprise SSDs generate heat during operation, and proper thermal management is crucial for maintaining performance and reliability. The 868822-B21 incorporates temperature sensors that monitor internal conditions and trigger throttling mechanisms if temperatures exceed safe operating limits. This proactive thermal management prevents damage from overheating while maintaining data integrity. The drive's casing is designed to maximize surface area for efficient heat dissipation, and when installed in properly configured HPE servers, the drive operates within its specified temperature range of 0°C to 70°C, ensuring optimal performance and longevity.

Use Cases and Application Scenarios

Virtualization and Virtual Desktop Infrastructure

In virtualization environments, the 868822-B21 excels as a storage platform for host operating systems, application virtual machines, and virtual desktop infrastructure (VDI). The drive's high read performance accelerates virtual machine boot operations, application loading, and user session initialization. In VDI implementations, the drive efficiently handles the "boot storm" scenario where multiple virtual desktops start simultaneously, providing responsive user experience while maintaining consistent performance. The drive's endurance characteristics ensure reliable operation in these write-intensive initialization phases while optimizing for the predominantly read-oriented steady-state operation.

Database and Transaction Processing

For database applications, the 868822-B21 provides excellent performance for read-oriented operations such as query processing, reporting, and analytics. While write-intensive database workloads might benefit from write-optimized SSDs, read-heavy database applications achieve significant performance improvements with the 868822-B21. The drive's low latency reduces query response times, while its consistent performance ensures predictable operation under varying load conditions. Database indexing operations, which involve substantial read activity, particularly benefit from the drive's architecture, accelerating search and retrieval operations across large datasets.

Content Delivery and Web Serving

Content delivery networks and web serving applications represent ideal use cases for the 868822-B21, where read performance is paramount. These applications typically involve serving static content, media files, and cached dynamic content to multiple simultaneous users. The drive's high sequential read performance ensures fast content delivery, while its random read capabilities efficiently handle multiple concurrent requests. The hot-swap capability enables seamless maintenance and capacity expansion without interrupting service availability, crucial for high-availability web serving environments.
