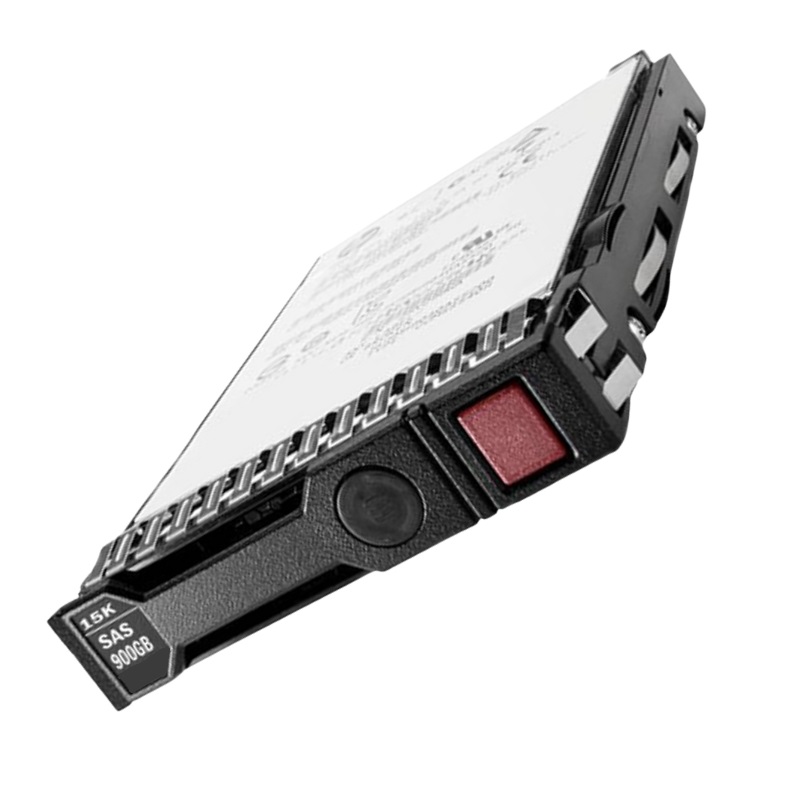

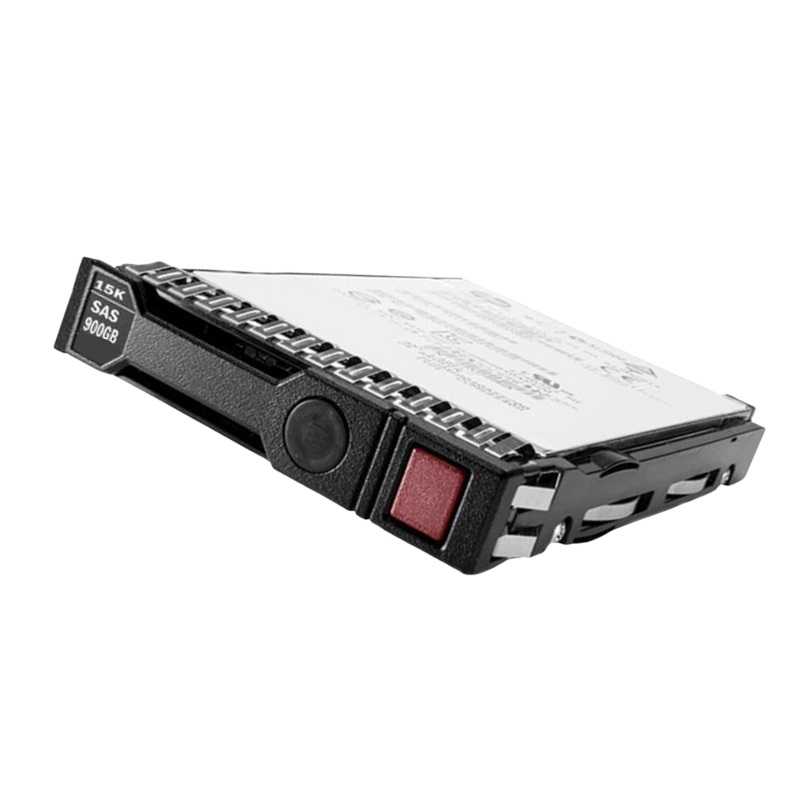

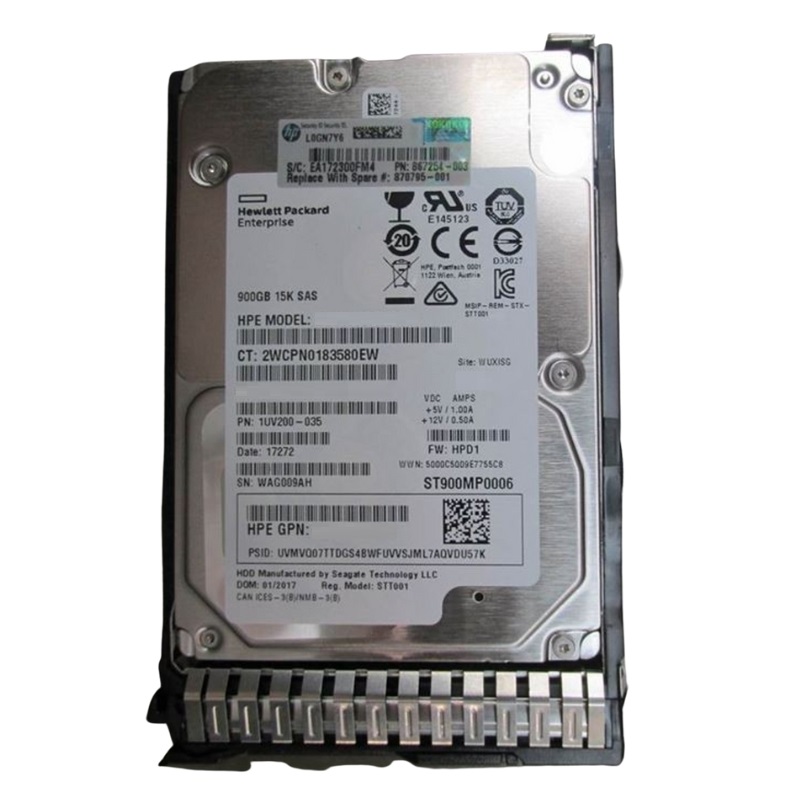

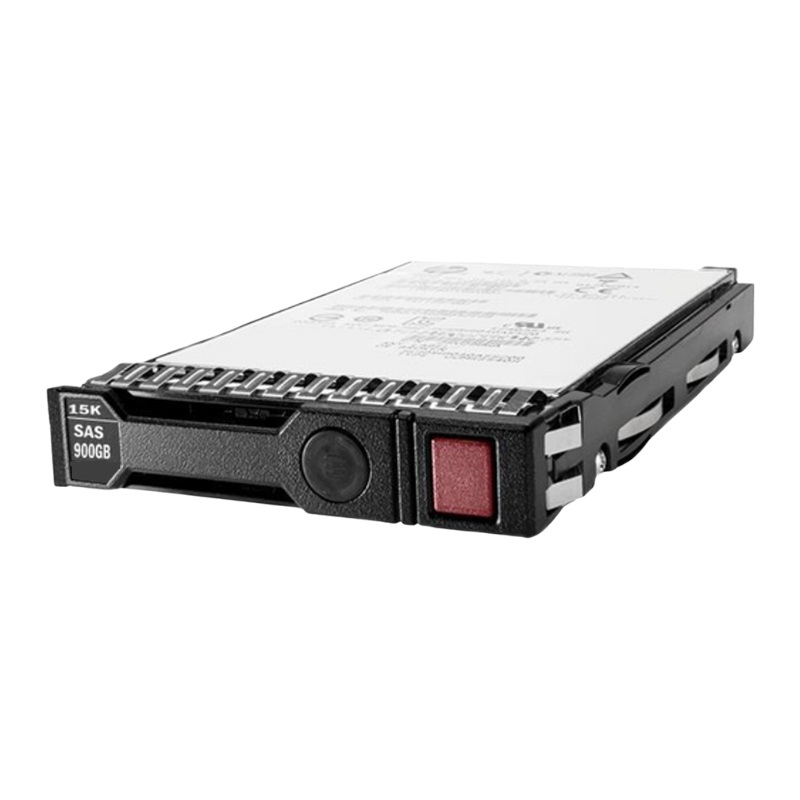

HPE 870761-B21 900GB 15K RPM SAS 12GBPS LFF Hard Drive

870761-B21
Hover on image to enlarge

Brief Overview of 870761-B21

HPE 900GB 15K RPM SAS 12GBPS Hot-Swap LFF Hard Drive 870761-B21. Excellent Refurbished with 6-Month Replacement Warranty
QR Code of HPE 870761-B21 900GB 15K RPM SAS 12GBPS LFF Hard Drive
$378.14
$247.20
You save: $130.94 (35%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPN870761-B21Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Product/Item ConditionExcellent Refurbished ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

Product Overview

Specifications

  • Brand: HPE
  • Part Number: 870761-B21
  • Spare Part Number: 870796-001
  • Model Identifier: EH000900JWCPN
  • Assembly Code: 867254-003
  • HPE Global Part Number: 868774-002

General Information

  • Type of Device: Hot-Swap Hard Drive
  • Storage Capacity: 900 GB
  • Form Factor: 3.5-inch Low Profile LFF
  • Connection Interface: SAS 12Gbps
  • Bytes per Sector: 512
  • Drive Technology: Air-Filled
  • Format Specification: 512n
  • Carrier Type: Low Profile Carrier Converter (LPCC)
  • Designed Workload: Enterprise Environment
  • Key Features: Advanced format 512n, Dual Port, Digitally Signed Firmware
  • Included Accessories: HPE Low Profile Carrier Converter

Performance Metrics

  • External Drive Transfer Rate: 12 Gb/sec
  • Rotation Speed: 15000 RPM
  • Average Seek Duration: 2.72 ms
  • Maximum Seek Duration: 5.36 ms
  • Track-to-Track Seek Duration: 0.22 ms
  • Max Sequential Throughput: 295 MiB/s
  • IO Operations Per Second (IOPs):
    • 128Kib Random Read: 235 IOPs
    • 128Kib Random 70% Read / 30% Write: 235 IOPs
    • 128Kib Random 50% Read / 50% Write: 235 IOPs

Connectivity & Expansion Options

  • Available Interfaces: 1 x SAS 12 Gb/s
  • Compatible Bay Size: 3.5" LFF

Power Consumption

  • Idle Power Usage: 4.70 Watts
  • Random Read/Write Power Usage: 6.10 Watts
  • Sequential Read Power Usage: 6.30 Watts
  • Sequential Write Power Usage: 6.40 Watts

Physical Dimensions

  • Width: 4.20 inches
  • Depth: 6.20 inches
  • Height: 1.03 inches

Environmental Specifications

  • Minimum Operating Temperature: 50 °F
  • Maximum Operating Temperature: 95 °F

Compatibility Details

Compatible with HPE ProLiant DL Series:

  • DL325 Gen10 Base (3.5 inch)

Compatible with HPE ProLiant ML Series:

  • ML110 Gen10 (3.5 inch)
  • ML110 Gen10 Entry (3.5 inch)
  • ML110 Gen10 Performance (3.5 inch)
  • ML110 Gen10 Solution (3.5 inch)
  • ML30 Gen10 (3.5 inch)
  • ML30 Gen10 Entry (3.5 inch)
  • ML30 Gen10 Performance (3.5 inch)
  • ML30 Gen10 Solution (3.5 inch)
  • ML350 Gen10 (3.5 inch)
  • ML350 Gen10 Base (3.5 inch)
  • ML350 Gen10 Entry (3.5 inch)
  • ML350 Gen10 High Performance (3.5 inch)
  • ML350 Gen10 Performance (3.5 inch)
  • ML350 Gen10 Solution (3.5 inch)
  • ML350 Gen10 Sub-Entry (3.5 inch)

Compatible with HPE ProLiant XL Series:

  • XL170r Gen9 (3.5 inch)
  • XL190r Gen9 (3.5 inch)

Capacity

The HPE 900GB 15K RPM SAS Hot-Swap LFF Hard Drive is a high-capacity storage solution designed to meet the demanding needs of modern businesses. With a whopping 900GB of storage space, this hard drive allows users to store and access large amounts of data with ease.

Benefits of High Capacity

Having a large storage capacity is essential for businesses that deal with vast amounts of data. Whether it's storing customer information, financial records, or media files, having a 900GB capacity ensures that you have enough space to accommodate your growing data needs.

One of the main benefits of a high-capacity hard drive is the ability to store and access large files without the need for external storage devices. This eliminates the hassle of managing multiple drives and allows for seamless data access and retrieval.

Furthermore, a larger capacity also enables businesses to run resource-intensive applications and software without worrying about running out of storage space. This is particularly crucial for industries such as media production, scientific research, and data analysis, where large datasets are the norm.

Importance of 900GB Capacity

The 900GB capacity of the HPE 15K RPM SAS hard drive is specifically designed to meet the needs of enterprise-level businesses that require extensive storage capabilities. By offering nearly a terabyte of storage space, this hard drive provides users with peace of mind knowing they have ample room to store their critical data.

For businesses that deal with large files on a daily basis, such as video production studios or architectural firms working with CAD drawings, having a 900GB capacity ensures that they can store all their files in one place. This reduces the risk of losing or misplacing important data and streamlines workflow efficiency.

Moreover, in industries where data security is paramount, such as healthcare or finance, having a high-capacity hard drive allows for the storage of sensitive information without compromising on encryption or security measures. The 900GB capacity ensures that businesses can store vast amounts of confidential data securely, minimizing the risk of data breaches or unauthorized access.

Scalability and Future-Proofing

Another benefit of the HPE 900GB 15K RPM SAS hard drive's capacity is its scalability. As businesses grow and their data needs increase, having a high-capacity hard drive allows for seamless expansion without the need for additional hardware or complex data migration processes.

Investing in a 900GB capacity hard drive also future-proofs your storage infrastructure. By anticipating future storage needs and investing in a larger capacity up front, businesses can save both time and money in the long run. This eliminates the need for frequent hardware upgrades or the hassle of transferring data from smaller drives to larger ones.

Cost-Effective Storage Solution

While it's true that larger capacity hard drives may come with a higher price tag, the HPE 900GB 15K RPM SAS hard drive offers a cost-effective storage solution in the long term. By providing ample storage space, businesses can consolidate their data onto a single drive, eliminating the need for multiple drives and reducing maintenance costs.

Furthermore, the 900GB capacity allows businesses to optimize their storage infrastructure by reducing power consumption and cooling requirements. With fewer physical drives, businesses can save on energy costs while maintaining high-performance storage capabilities.

In conclusion, the HPE 900GB 15K RPM SAS Hot-Swap LFF Hard Drive offers an impressive storage capacity of 900GB, making it an ideal solution for businesses that require extensive storage capabilities. With benefits such as seamless data access, scalability, and cost-effectiveness, this high-capacity hard drive is a valuable asset for any enterprise-level organization.

Speed

The speed at which a hard drive operates is a critical factor in determining its performance and efficiency. The HPE 900GB 15K RPM SAS Hot-Swap LFF Hard Drive boasts an impressive rotational speed of 15,000 RPM, making it a high-performance storage solution for businesses with demanding data needs.

Benefits of High Speed

High-speed hard drives offer several advantages for businesses across various industries. One of the significant benefits is faster data access and retrieval. With a 15,000 RPM rotational speed, the HPE hard drive can read and write data at a significantly faster rate compared to lower-speed drives. This translates into reduced latency and improved overall system performance.

For businesses that rely on resource-intensive applications or perform data-intensive tasks, such as video editing or database management, a high-speed hard drive can significantly enhance productivity. The fast access times allow for quicker file transfers, software loading times, and data processing, resulting in improved workflow efficiency.

Importance of 15,000 RPM Speed

The 15,000 RPM speed of the HPE 900GB SAS hard drive is specifically designed to meet the demands of enterprise-level businesses that require exceptional performance and responsiveness from their storage systems.

In industries where real-time data analysis or high-speed transactions are critical, such as financial services or scientific research, having a high-speed hard drive is essential. The 15,000 RPM speed ensures that data can be accessed and processed quickly, enabling businesses to make timely decisions based on accurate information.

Reduced Data Transfer Times

One of the key advantages of the HPE 900GB 15K RPM SAS hard drive's speed is its ability to reduce data transfer times significantly. This is particularly important when dealing with large files or performing backups.

With faster read and write speeds, businesses can transfer large datasets or perform backups in a fraction of the time it would take with slower hard drives. This not only improves efficiency but also reduces the risk of data loss or corruption during the transfer process.

Enhanced System Performance

The high speed of the HPE 900GB 15K RPM SAS hard drive directly contributes to overall system performance. By reducing latency and improving data access times, businesses can experience faster application response times, improved multitasking capabilities, and smoother operation of resource-intensive software.

In addition, the 15,000 RPM speed ensures that businesses can run complex applications or perform data-intensive tasks without experiencing performance bottlenecks. This is particularly crucial for industries that rely on real-time data processing or require high-speed access to critical information.

In conclusion, the HPE 900GB 15K RPM SAS Hot-Swap LFF Hard Drive's speed of 15,000 RPM offers significant benefits for businesses that require high-performance storage solutions. With advantages such as faster data access, reduced transfer times, and enhanced overall system performance, this high-speed hard drive is an excellent choice for enterprise-level organizations.

Interface

The interface of a hard drive determines how it connects to a computer or storage system and plays a crucial role in its overall performance and compatibility. The HPE 900GB 15K RPM SAS Hot-Swap LFF Hard Drive features a SAS 12GBPS interface, offering several advantages for users in terms of speed, reliability, and scalability.

Benefits of SAS 12GBPS Interface

The SAS (Serial Attached SCSI) interface provides numerous benefits over other interfaces, making it a popular choice for enterprise-level storage systems. The 12GBPS speed offered by the HPE hard drive's SAS interface ensures fast and efficient data transfer rates.

One of the primary advantages of SAS is its compatibility with both SATA and SAS devices. This allows for seamless integration into existing storage infrastructure and flexibility in terms of connecting to different types of devices. Businesses can mix and match SAS and SATA drives within the same system, optimizing storage capacity and performance according to their specific needs.

Importance of SAS 12GBPS Interface

The SAS 12GBPS interface featured in the HPE 900GB 15K RPM hard drive is essential for businesses that require high-speed data transfer and reliable connectivity. It offers numerous advantages that make it a preferred choice for enterprise-level storage solutions.

Enhanced Data Transfer Rates

The 12GBPS speed of the SAS interface ensures that businesses can transfer data at lightning-fast speeds. Whether it's reading or writing large files, performing backups, or running resource-intensive applications, a higher data transfer rate allows for quicker access to critical information.

The enhanced data transfer rates of the SAS interface are particularly beneficial in industries that deal with real-time data processing or require high-speed access to large datasets. This includes sectors such as finance, healthcare, and scientific research, where quick access to accurate information is crucial for decision-making.

Reliability and Scalability

The SAS interface offers superior reliability compared to other interfaces, making it an ideal choice for businesses that value data integrity and stability. The robust design of SAS cables ensures secure connections and reduces the risk of data loss or corruption during high-speed transfers.

Furthermore, the SAS interface provides scalability, allowing businesses to expand their storage infrastructure without compromising on performance. The ability to connect multiple drives in a daisy-chain configuration ensures seamless integration and efficient utilization of storage resources.

In conclusion, the HPE 900GB 15K RPM SAS Hot-Swap LFF Hard Drive's SAS 12GBPS interface offers significant advantages for businesses that require fast and reliable connectivity. With benefits such as enhanced data transfer rates, compatibility with SATA and SAS devices, and scalability, this interface is a valuable asset for enterprise-level organizations.

Part Number

The part number of a hard drive is a unique identifier that helps users identify and locate specific products. The HPE 900GB 15K RPM SAS Hot-Swap LFF Hard Drive has the part number 870761-B21, which is essential for ordering, replacement, or troubleshooting purposes.

Benefits of Part Number

The part number serves as a crucial reference for businesses when it comes to managing their storage infrastructure. Having a unique identifier like the 870761-B21 allows users to quickly locate and order the exact hard drive model they require without any confusion or ambiguity.

Easy Ordering and Replacement

With the part number readily available, businesses can easily order additional hard drives or replacements when needed. This eliminates the risk of ordering the wrong product or experiencing delays in procurement due to incorrect specifications.

Moreover, having a specific part number simplifies the process of replacing failed or faulty drives. When troubleshooting hardware issues, IT professionals can quickly identify the problematic drive by its part number and replace it with an identical unit, minimizing downtime and ensuring continuity of operations.

Compatibility and System Integration

The part number also plays a crucial role in ensuring compatibility and system integration. By referencing the part number, businesses can ensure that the hard drive they are purchasing is compatible with their existing storage infrastructure and meets their specific requirements.

In addition, the part number provides information about the specific features and specifications of the hard drive. This allows businesses to verify that the drive aligns with their desired capacity, speed, interface, and other critical factors before making a purchase.

In conclusion, the HPE 900GB 15K RPM SAS Hot-Swap LFF Hard Drive's part number 870761-B21 offers significant benefits for businesses in terms of easy ordering, replacement, and compatibility. By providing a unique identifier, this part number simplifies procurement processes and ensures seamless integration into existing storage infrastructure.

Features
Product/Item Condition:
Excellent Refurbished
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
