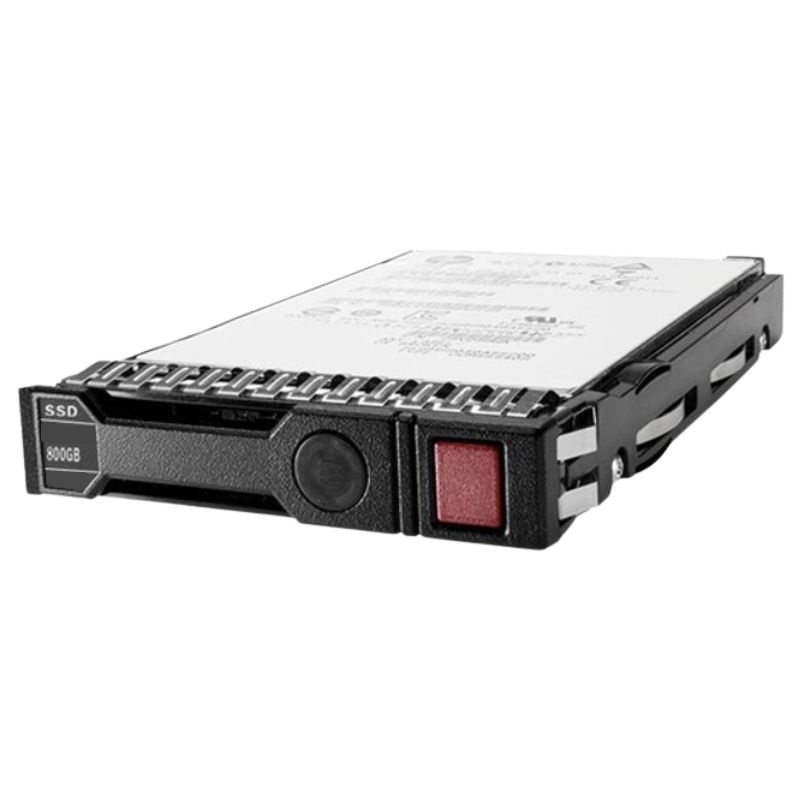

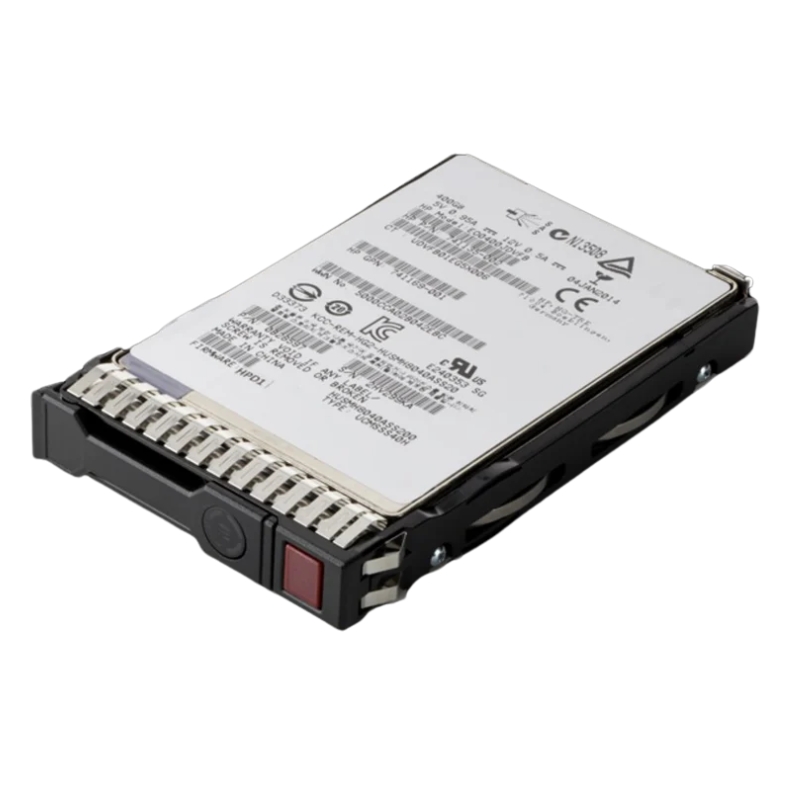

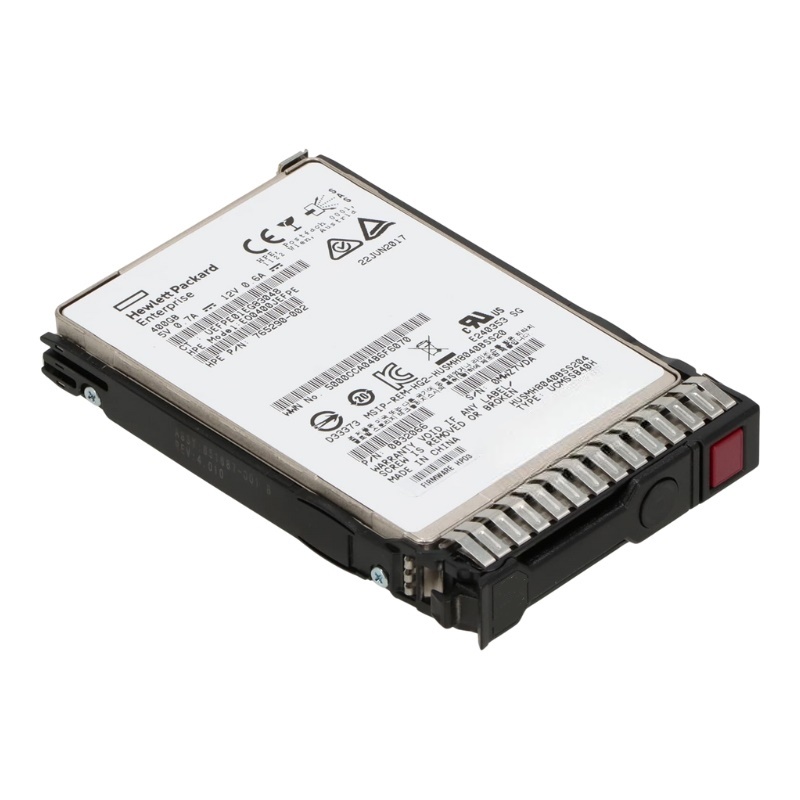

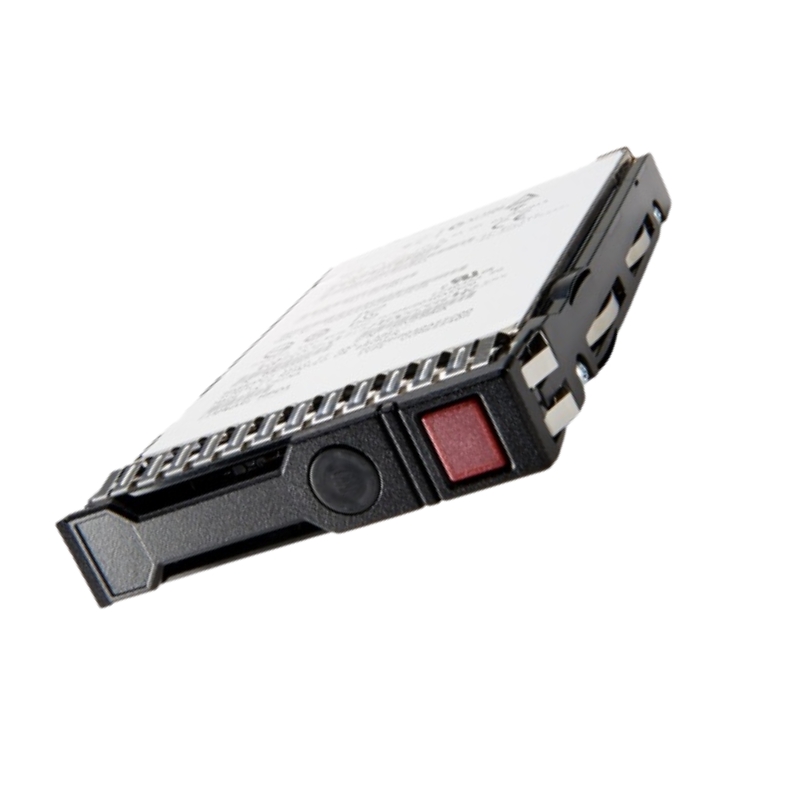

HPE 872514-001 800GB 2.5" SATA-6GBPS SSD
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Specifications Overview
Product Identification
- Brand: HPE
- Manufacturer Part Number (MPN): 872514-001
General Information
- Type: Solid State Drive (SSD) - Hot-Swap
- Storage Capacity: 800 GB
- Interface: SATA 6Gbps
- Form Factor: 2.5 inch SFF
- Flash Technology: Multi-Level Cell (MLC)
- Connection Type: Hot Plug
- Carrier Design: Smart Carrier (SC)
- Workload Rating: Write Intensive (WI-3)
- Firmware: Digitally Signed Firmware (DS)
- Included with: HPE Smart Carrier (SC)
- Compatible Server Generations: ProLiant Gen9 / Gen10
- Height: 15.00 mm (0.60 inch)
Performance Metrics
- Endurance (DWPD): 10
- Drive Transfer Rate: 6 Gb/sec (external)
- Maximum Sequential Reads Throughput: 510 MiB/s
- Maximum Sequential Writes Throughput: 475 MiB/s
- Random Read Average Latency: 110 µSec (4KiB, Q1)
- Random Write Average Latency: 37 µSec (4KiB, Q1)
- Random Read IOPS: 62,000 (4KiB, Q=16)
- Random Write IOPS: 51,500 (4KiB, Q=16)
- Maximum Random Read IOPS: 69,000 (4KiB, Q=32)
- Maximum Random Write IOPS: 51,500 (4KiB, Q=4)
- IOPS Performance (70% Read / 30% Write, Queue 32): 61,000
- IOPS Performance (50% Read / 50% Write, Queue 32): 60,000
Connectivity and Expansion
- Interface Ports: 1 x SATA 6 Gb/s
- Compatible Bay Size: 2.5" SFF
Power Consumption
- Idle Consumption: 1.23 Watts
- Random Read Consumption: 2.66 Watts
- Random Write Consumption: 2.66 Watts
- Sequential Read Consumption: 2.66 Watts
- Sequential Write Consumption: 2.68 Watts
- Random Read/Write Consumption: 2.66 Watts
Physical Specifications
- Height: 5.00 inches
- Width: 7.00 inches
- Depth: 9.00 inches
- Weight: 1.10 lbs
Environmental Conditions
- Minimum Operating Temperature: 32 °F
- Maximum Operating Temperature: 140 °F
Compatibility Details
Designed for HPE ProLiant BL Series:
- BL460c Gen10 (2.5 inch)
- BL660c Gen9 (2.5 inch)
HPE ProLiant DL Series Support:
- DL180 Gen9 Storage (2.5 inch)
- DL20 Gen9 Variants (2.5 inch)
- DL360 Gen9 Models (2.5 inch)
- DL380 Gen10 Variants (2.5 inch)
- DL560 Gen10 Models (2.5 inch)
- DL580 Gen9 Series (2.5 inch)
HPE ProLiant ML Series Compatibility:
- ML10 Gen9 Variants (2.5 inch)
- ML30 Gen9 Series (2.5 inch)
HPE Synergy 480 Gen10 Compatibility:
- Base Compute Module (2.5 inch)
- Performance Compute Module (2.5 inch)
Capacity
The HPE 800GB 2.5Inch SATA-6GBPS Write Intensive Smart Carrier SSD Solid State Drive offers an impressive capacity of 800GB. This ample storage space allows users to store a large amount of data, applications, and files without worrying about running out of space.
Increased Storage
With 800GB of storage capacity, this SSD is perfect for users who require a high amount of storage space for their business or personal needs. It provides enough room to store large files, such as high-resolution photos, videos, and complex software applications.
Efficient Data Management
The large capacity of this SSD enables users to efficiently manage their data without the need for multiple drives or external storage solutions. It simplifies the data management process by providing a single storage device that can handle a wide range of data types and sizes.
Enhanced Productivity
By having ample storage space, users can keep all their important files and documents easily accessible. This eliminates the time wasted on searching for specific files or transferring data between different devices. It enhances productivity by allowing users to quickly access and work on their projects without any delays.
Form Factor
The HPE 800GB 2.5Inch SATA-6GBPS Write Intensive Smart Carrier SSD Solid State Drive is designed with a form factor of 2.5 inches. This compact size makes it compatible with a wide range of devices, including laptops, desktops, and servers.
Versatile Compatibility
The 2.5-inch form factor ensures compatibility with various computing devices. Whether you need to upgrade your laptop's storage or enhance the performance of your server, this SSD can seamlessly fit into different systems without any compatibility issues.
Space Efficiency
The compact size of this SSD allows it to occupy less space within the device. This is particularly beneficial for users with limited space, such as those using small form-factor PCs or servers. It ensures efficient utilization of the available space and enables users to maximize their system's potential.
Easy Installation
The 2.5-inch form factor simplifies the installation process. Users can easily replace their existing hard drives with this SSD, as it follows the standard size specifications. This eliminates the need for any additional modifications or adjustments, making the upgrade process quick and hassle-free.
Interface
The HPE 800GB 2.5Inch SATA-6GBPS Write Intensive Smart Carrier SSD Solid State Drive features a SATA-6GBPS interface. This interface provides a high-speed data transfer rate and ensures seamless connectivity with compatible devices.
Fast Data Transfer
The SATA-6GBPS interface offers exceptional data transfer speeds, allowing users to quickly move large files and access their data without any delays. This is particularly advantageous for tasks that involve handling extensive datasets or working with resource-intensive applications.
Compatibility
The SATA-6GBPS interface is widely supported by modern computing devices, including laptops, desktops, and servers. Its compatibility ensures that users can easily connect the SSD to their existing systems without any compatibility issues or the need for additional adapters.
Seamless Integration
The SATA interface allows for a smooth integration of the SSD into the system's storage infrastructure. Users can easily connect the drive to their motherboard or storage controller, ensuring a reliable and stable connection. This seamless integration ensures that the SSD operates at its full potential and delivers optimal performance.
Intended Use
The HPE 800GB 2.5Inch SATA-6GBPS Write Intensive Smart Carrier SSD Solid State Drive is specifically designed for write-intensive applications. It is built to handle heavy workloads and deliver excellent performance in scenarios that involve frequent data writes.
High Endurance
Write-intensive applications often involve continuous writing and rewriting of data. The SSD's design focuses on endurance, ensuring it can withstand the demands of such applications without compromising performance or reliability. It delivers consistent performance even under heavy write workloads.
Reliable Data Storage
With write-intensive use, the reliability of data storage becomes crucial. The SSD's write-intensive capabilities ensure that data is securely stored, minimizing the risk of data loss or corruption. This makes it ideal for critical applications where data integrity is of utmost importance.
Optimized Performance
The write-intensive design of this SSD optimizes its performance for tasks that involve frequent data writes. It delivers faster write speeds and improved endurance, reducing the time required for data transfers and improving overall system responsiveness.
Part Number
The HPE 800GB 2.5Inch SATA-6GBPS Write Intensive Smart Carrier SSD Solid State Drive has a unique part number: 872514-001. This part number serves as an identifier for this specific product and facilitates easy identification and ordering.
Product Identification
The part number allows users to quickly identify and locate the exact product they need from a range of options available in the market. It ensures that users can confidently select and purchase the correct SSD model without any confusion or compatibility issues.
Efficient Ordering Process
By having a unique part number, users can easily communicate their requirements to suppliers or retailers. This streamlines the ordering process, as the part number eliminates any ambiguity and ensures accurate fulfillment of the order.
Product Support and Documentation
The part number is also useful for accessing product-specific support and documentation. Users can refer to the part number when seeking assistance from the manufacturer or when accessing resources such as user manuals, firmware updates, or technical specifications related to this particular SSD model.
