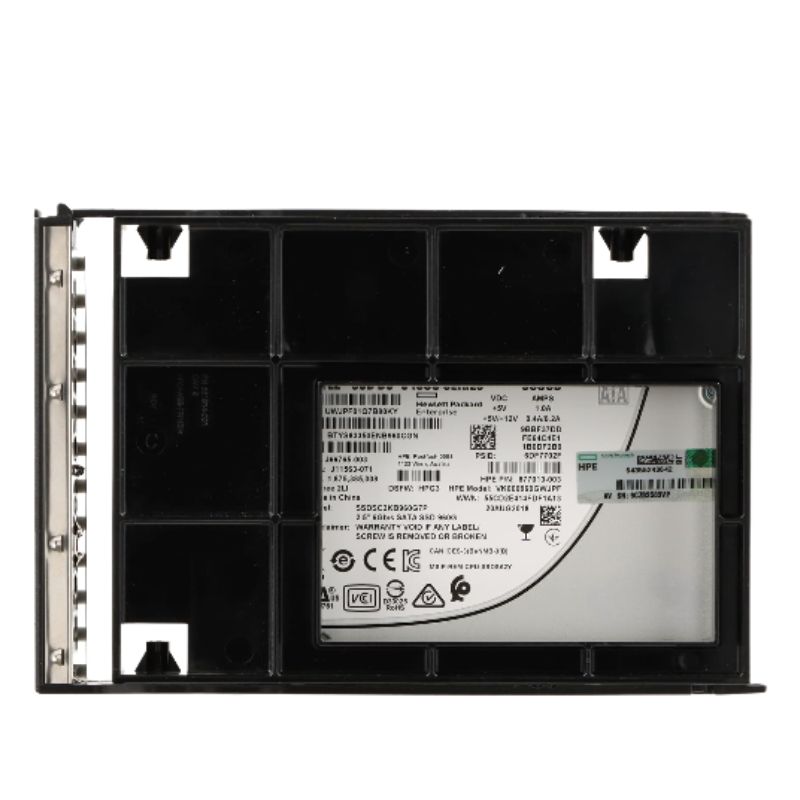

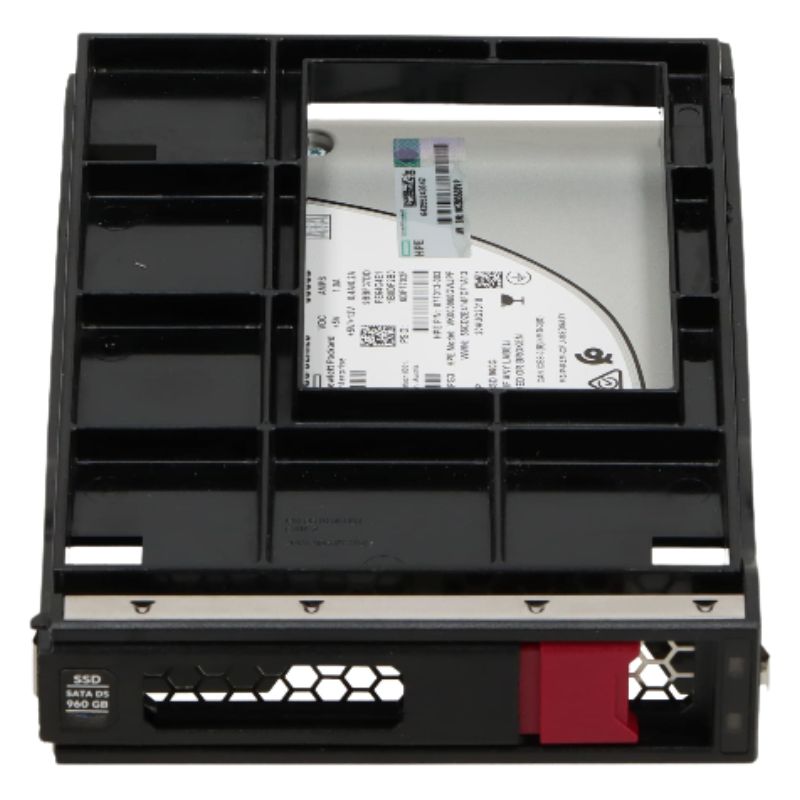

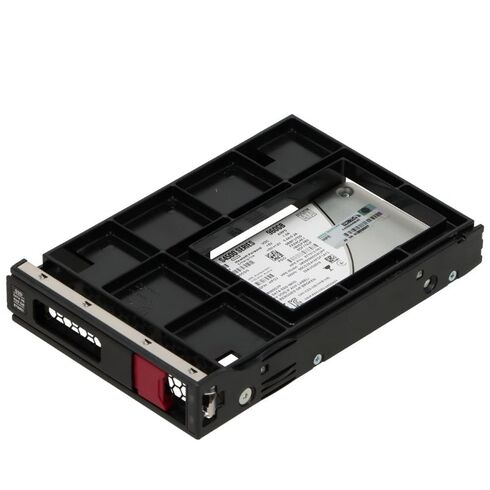

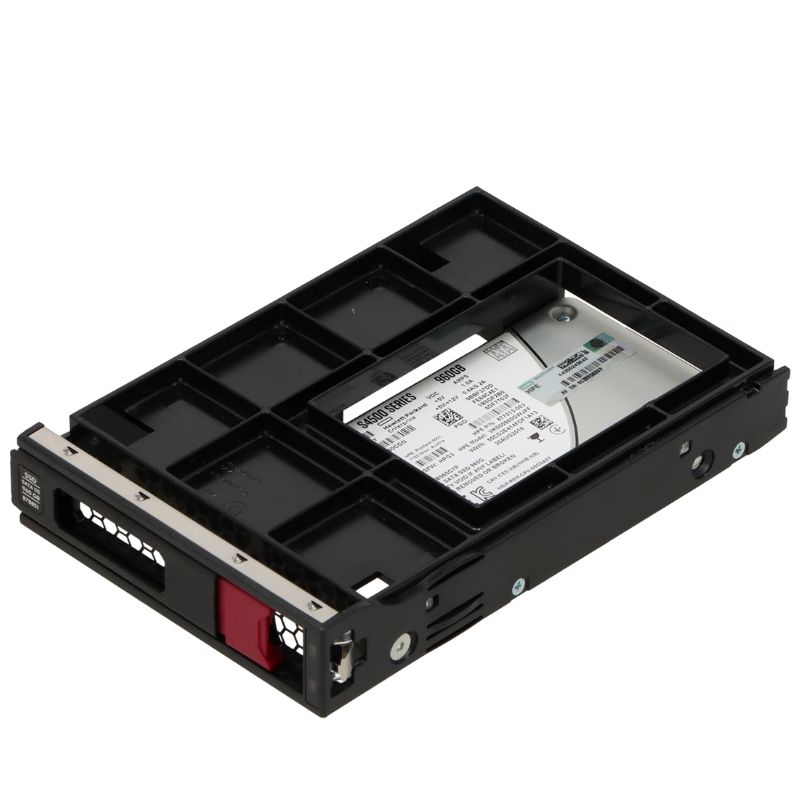

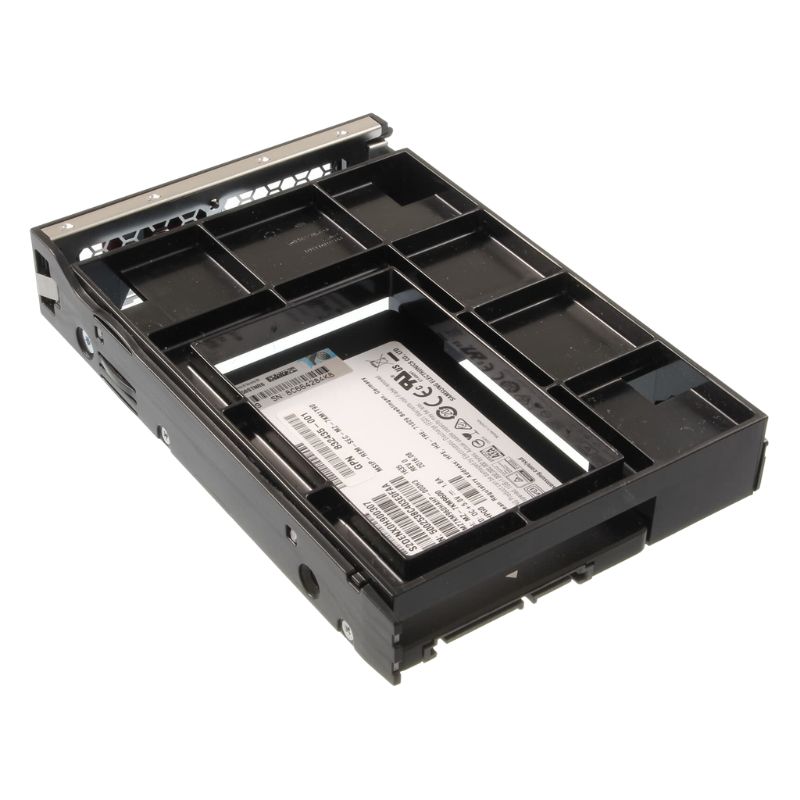

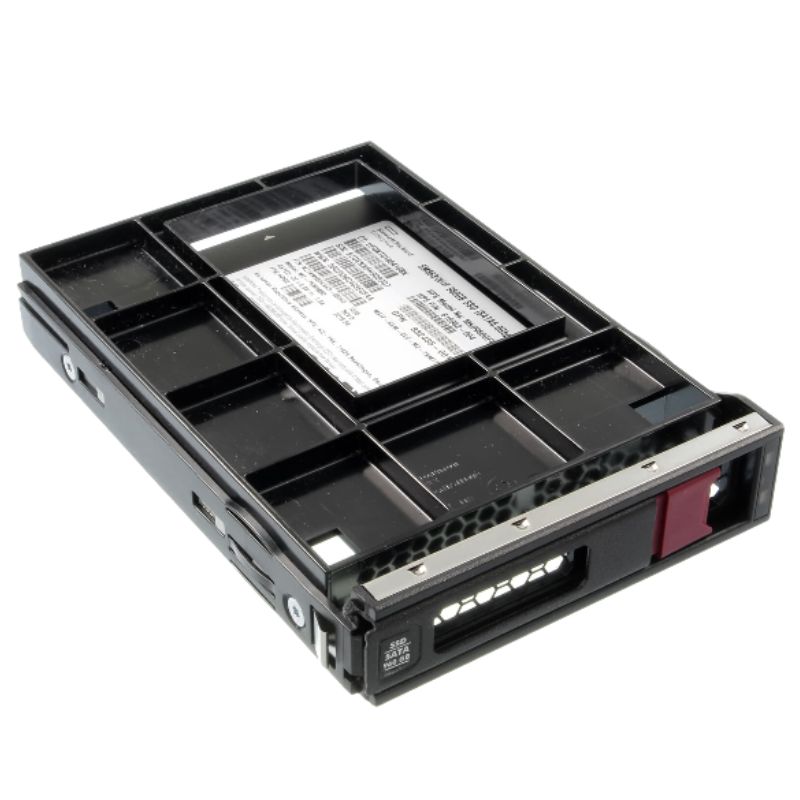

HPE 960GB 2.5" DS SATA-6GBPS SC SSD 877756-X21

877756-X21
Hover on image to enlarge

Brief Overview of 877756-X21

HPE 960GB 2.5inch DS SATA-6GBPS SC Read Intensive G9 / G10 SSD 877756-X21. Excellent Refurbished with 6-Month Replacement Warranty
QR Code of HPE 960GB 2.5" DS SATA-6GBPS SC SSD 877756-X21
$444.15
$309.13
You save: $135.02 (30%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPN877756-X21Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Product/Item ConditionExcellent Refurbished ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

Product Specifications for HPE Solid State Drive

Manufacturer and Model Information

  • Brand: Hewlett Packard Enterprise (HPE)
  • Manufacturer Part Number (MPN): 877756-X21
  • Drive Type: Hot-Swap Solid State Drive
  • Interface Standard: SATA 6 Gbps

General Specifications

Storage and Memory Characteristics

  • Total Capacity: 960 GB
  • NAND Technology: Multi-Level Cell (MLC)
  • Physical Form Factor: 3.5-Inch Large Form Factor (LFF)
  • Features:
    • Digitally Signed Firmware
    • HPE SmartSSD Wear Gauge
  • Drive Height: 0.3 inches
  • Connection Type: Hot Plug
  • Carrier Style: Low Profile Converter
  • Intended Workload: Primarily Read Intensive
  • Included Accessories: HPE Low Profile Converter

Performance Metrics

Endurance and Throughput

  • Drive Writes Per Day (DWPD): 1
  • External Transfer Rate: 6 Gb/sec
  • Internal Data Rates:
    • Read Speed: 500 MB/s
    • Write Speed: 465 MB/s

Input/Output Operations per Second (IOPS)

  • 4KB Random Read IOPS: 60,000
  • 4KB Random Write IOPS: 30,000
  • Peak 4KB Random Write IOPS: 30,000
  • Peak 4KB Random Read IOPS: 64,000
  • Average Latency: 60 µs

Power Consumption Details

Operational Power Usage

  • Idle Power Consumption: 1.29 W
  • Power During Random Read: 2.69 W
  • Power During Random Write: 4.6 W
  • Sequential Read Power Usage: 2.31 W
  • Sequential Write Power Usage: 4.7 W

Dimensions and Weight Information

Physical Specifications

  • Height: 5.63 inches
  • Width: 3.75 inches
  • Depth: 7.00 inches
  • Weight: 1.35 lbs

Compatibility with HPE Systems

Supported Models in HPE ProLiant ML Series

  • ML110 Gen10 (3.5-Inch)
  • ML110 Gen10 Performance (3.5-Inch)
  • ML110 Gen9 (3.5-Inch)
  • ML110 Gen9 Base (3.5-Inch)
  • ML110 Gen9 Entry (3.5-Inch)
  • ML350 Gen10 (3.5-Inch)
  • ML350 Gen10 Base (3.5-Inch)
  • ML350 Gen10 Entry (3.5-Inch)
  • ML350 Gen10 Performance (3.5-Inch)
  • ML350 Gen10 Solution (3.5-Inch)
  • ML350 Gen10 Sub-Entry (3.5-Inch)

Supported Models in HPE ProLiant XL Series

  • XL170R Gen10 (3.5-Inch)
  • XL190R Gen10 (3.5-Inch)

Usage: Read Intensive

Enhanced Performance

The HPE 960GB 2.5inch DS SATA-6GBPS SC SSD is designed with a focus on read-intensive usage. This means that it excels at tasks that involve predominantly reading data, such as booting up operating systems, loading applications, accessing databases, and retrieving large files. With its read-intensive capabilities, this SSD delivers enhanced performance and efficiency for users who prioritize fast data access.

Quick Data Retrieval

By prioritizing read-intensive usage, the HPE 960GB SSD ensures quick data retrieval, allowing users to access the information they need in a fraction of the time compared to traditional hard drives. Whether you're a professional working on intensive tasks or a gamer seeking seamless gameplay, this SSD's read-intensive feature ensures that you won't experience any lag or delays when accessing your data.

Optimized Workflows

The read-intensive feature of the HPE 960GB SSD also benefits users by optimizing their workflows. With faster access to data, professionals can work more efficiently and complete tasks in less time. This is particularly advantageous for businesses that rely on large-scale data processing or require quick access to critical information. By streamlining workflows, this SSD enhances productivity and reduces downtime.

Improved System Responsiveness

One of the key benefits of the read-intensive feature is the improved system responsiveness it offers. With faster data retrieval, your system will feel more responsive and snappy, ensuring a smooth user experience. Whether you're multitasking between applications or navigating through complex files, the HPE 960GB SSD's read-intensive capability ensures that your system responds swiftly to your commands.

Reduced Power Consumption

In addition to its performance advantages, the read-intensive feature of the HPE 960GB SSD also contributes to reduced power consumption. By prioritizing read operations, the SSD minimizes unnecessary write operations, which consume more power. This not only helps to extend the battery life of laptops and portable devices but also reduces overall energy consumption, making it an environmentally friendly choice.

Generation: G9 / G10

Latest Technology

The HPE 960GB 2.5inch DS SATA-6GBPS SC SSD belongs to the G9 / G10 generation, which signifies the use of the latest technology in its design and manufacturing. With each generation, HPE improves upon the performance, reliability, and efficiency of their SSDs. By choosing a G9 / G10 SSD, users can benefit from the advancements made in solid-state drive technology.

Enhanced Speed

One of the significant advantages of the G9 / G10 generation is the enhanced speed it offers. With faster read and write speeds compared to previous generations, this SSD ensures quicker data access and transfer. Whether you're transferring large files or running resource-intensive applications, the HPE 960GB SSD's G9 / G10 generation delivers the performance you need for demanding tasks.

Improved Reliability

Reliability is a critical factor when it comes to data storage devices. The G9 / G10 generation of the HPE 960GB SSD incorporates improved reliability features, ensuring that your data remains secure and accessible at all times. With enhanced error correction capabilities and advanced wear-leveling algorithms, this SSD minimizes the risk of data loss or corruption, providing peace of mind to users.

Extended Lifespan

The G9 / G10 generation also brings extended lifespan to the HPE 960GB SSD. Through advancements in NAND flash technology and controller optimization, this SSD offers increased endurance, allowing it to withstand intensive workloads without compromising performance or reliability. With a longer lifespan, users can rely on this SSD for their storage needs for an extended period, reducing the need for frequent replacements.

Future-Proof Investment

Investing in a G9 / G10 SSD like the HPE 960GB ensures that you're future-proofing your storage solution. As technology continues to advance, newer applications and operating systems may require higher performance and compatibility. By choosing a G9 / G10 SSD, you can be confident that your storage device will meet the demands of future software updates and applications, providing lasting value for your investment.

Part Number: 877756-X21

Identifying Compatibility

The part number 877756-X21 uniquely identifies the HPE 960GB 2.5inch DS SATA-6GBPS SC SSD, making it easier for users to identify and select the correct product for their specific needs. With numerous storage options available in the market, having a distinct part number ensures that you're choosing the right SSD that is compatible with your system.

Seamless Integration

The HPE 960GB SSD's part number, 877756-X21, is specifically designed to seamlessly integrate with HPE servers and storage solutions. This ensures compatibility and allows for smooth installation and operation within HPE environments. By using the correct part number, users can avoid potential compatibility issues and enjoy a hassle-free experience when integrating the SSD into their existing infrastructure.

Efficient Support and Maintenance

In addition to facilitating compatibility, the unique part number simplifies support and maintenance processes. When seeking assistance or replacement parts, providing the part number ensures that support personnel can quickly identify and address your specific needs. This streamlines troubleshooting, reduces downtime, and enables efficient maintenance, ultimately saving time and resources for users.

Product Differentiation

The HPE 960GB SSD's part number also plays a role in product differentiation. With various storage options available, the unique part number distinguishes this specific SSD from other models or alternatives. This allows users to make informed decisions based on their requirements and ensures that they are selecting the exact product they need, avoiding any confusion or ambiguity.

Accurate Inventory Management

For businesses and organizations that manage inventories, the part number is crucial for accurate inventory management. By utilizing the unique part number 877756-X21, organizations can effectively track stock levels, streamline procurement processes, and ensure that the right products are available when needed. This helps prevent stockouts and delays, optimizing operations and ensuring customer satisfaction.
