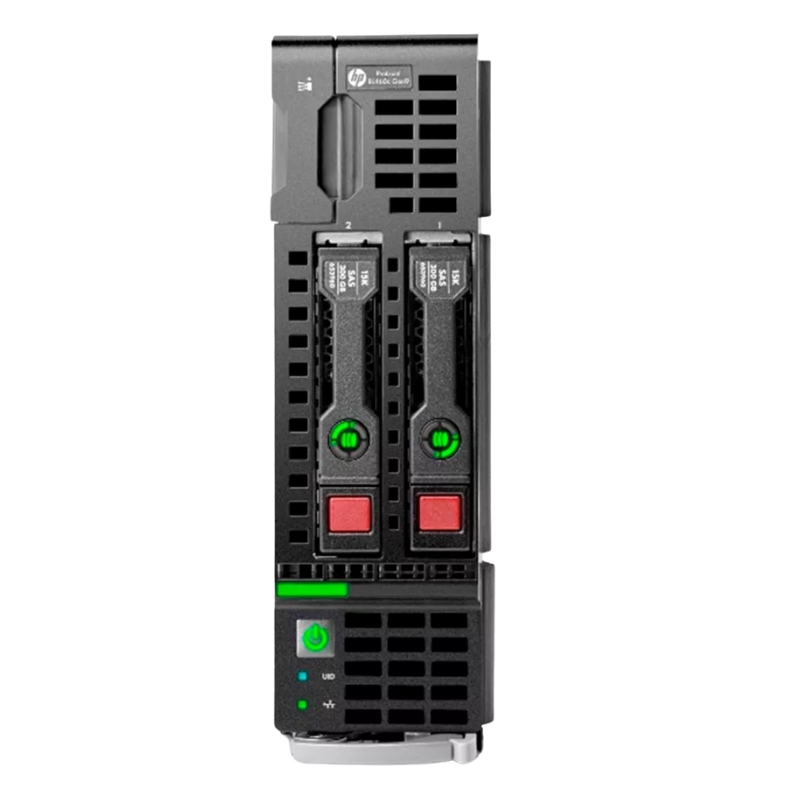

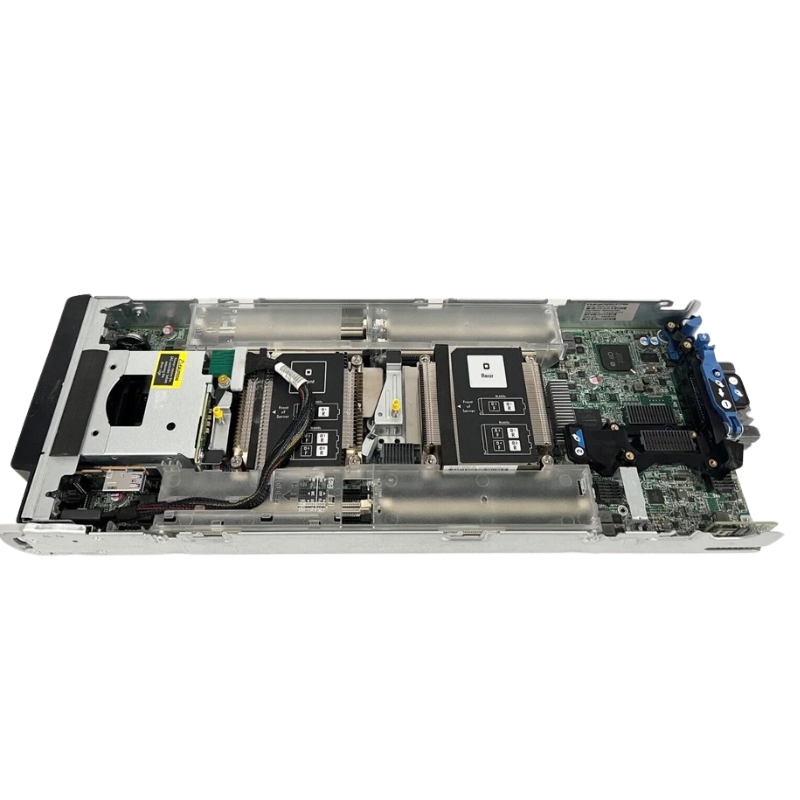

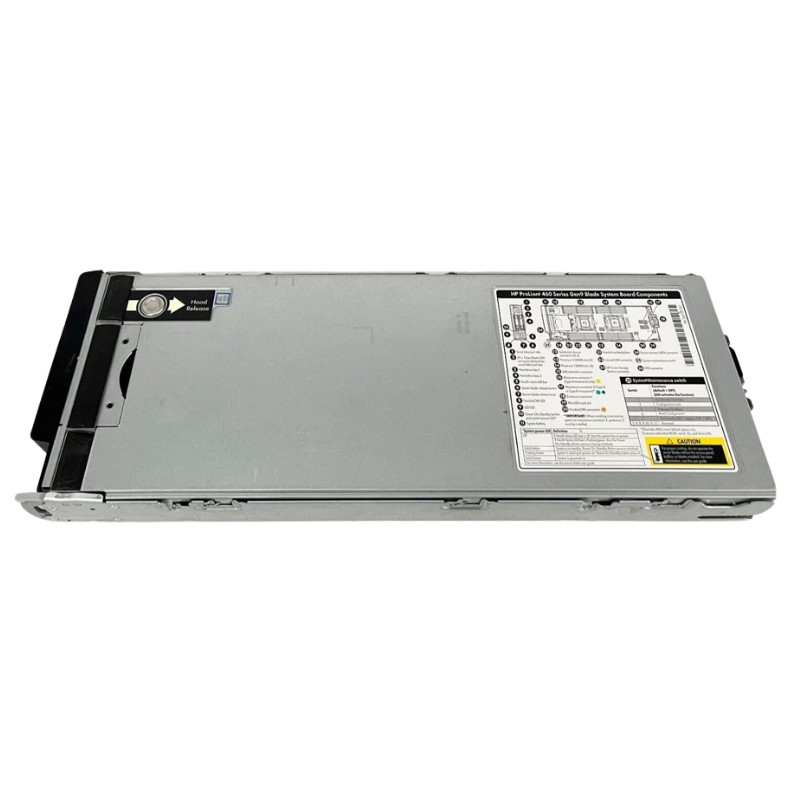

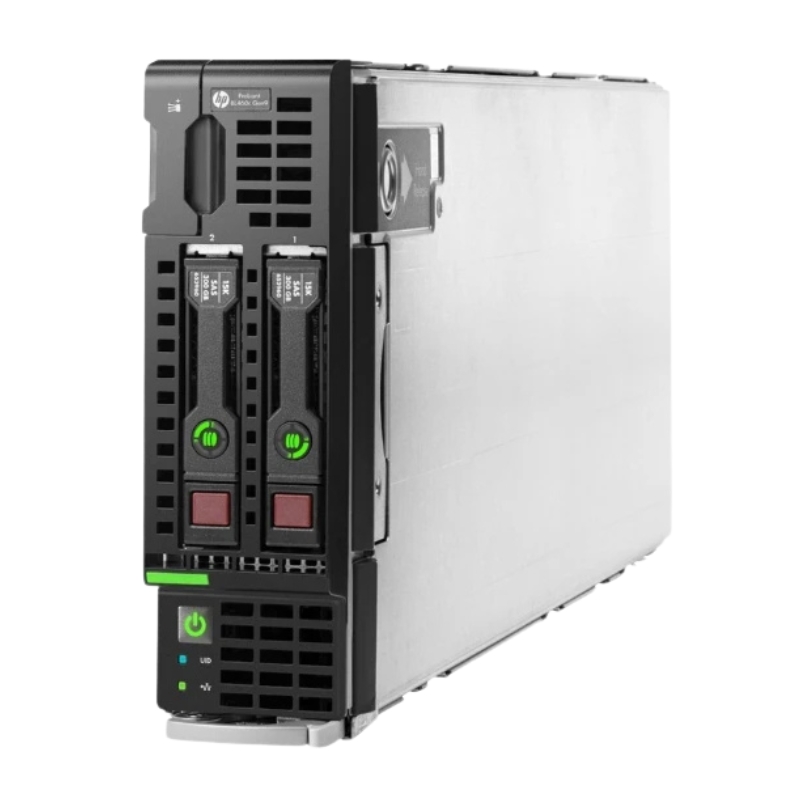

HPE BL460C Gen9 E5-2660V4 128GB DDR4 SDRAM Blade Server 813196-B21

Key Information of HPE 813196-B21

Manufacturer and Product Overview

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Part Number / SKU: 813196-B21
• Product Type: Server
• Server Model: Proliant BL460C Gen9
• Form Factor: 2-Way Blade Server

Processor and Chipset Specifications

Processor Details

• Processor Type: Intel Xeon E5-2660V4
• Base Clock Speed: 2.0 GHz
• Max Turbo Frequency: 3.2 GHz
• Number of Cores: 14 Cores per processor
• 64-bit Computing: Yes
• Installed Processors: 2
• Maximum Supported Processors: 2
• Upgradability: Supports processor upgrades
• Chipset Type: Intel C600
• Processor Features: Hyper-Threading, Intel Turbo Boost 2.0

Cache Memory Information

Cache Specifications

• Cache Type: L3 Cache
• Total Cache Size: 70 MB (35 MB per processor)

Memory Specifications

Installed and Maximum Memory

• Installed RAM: 128 GB DDR4 SDRAM
• Maximum Supported RAM: 512 GB
• Memory Speed: 2400 MHz
• Memory Compliance: PC4-19200
• Memory Form Factor: 288-pin DIMM

Advanced Memory Features

• Configuration: 4 x 32 GB
• Online Spare Memory: Supported
• Load-Reduced DIMM (LRDIMM): Supported
• HPE SmartMemory: Integrated for enhanced performance
• Supported RAM:
  • PC4-19200 – 256 GB – Registered – ECC
  • PC4-19200 – 512 GB – Load-Reduced – ECC

Storage and Controller Details

Storage Configuration

• Hard Drive: Not included
• Storage Controller: 1 x SAS-3 PCIe 3.0 x8
• Interface Type: SATA 6Gb/s / SAS 12Gb/s
• Controller Type: HPE H244br Smart Host Bus Adapter
• RAID Levels Supported: RAID 0, RAID 1

Graphics and Display

Graphics Processor

• Graphics Chipset: Matrox G200eh

Networking and Connectivity

Network Interface and Ports

• Bus Type: FlexibleLOM
• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Ethernet Controller: HPE FlexFabric 536FLB
• Data Link Protocols: Gigabit Ethernet, 10 Gigabit Ethernet, FCoE (Fibre Channel over Ethernet)
• Remote Management Protocols: SNMP, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 4 (iLO 4)
• Additional Features: Wake on LAN (WoL)

Network Compliance Standards

• IEEE 802.1Q
• IEEE 802.1P
• IEEE 802.3X
• IEEE 802.3ad (LACP)
• IEEE 802.3ae
• IEEE 802.3ap
• IEEE 802.1Qau

Dimensions and Weight

Physical Characteristics

• Depth: 20.4 inches
• Width: 2.2 inches
• Height: 7.1 inches
• Weight: 10.47 lbs

Processor

The HPE BL460C Gen9 Blade Server boasts a powerful and efficient processor, the E5-2660V4/2.0GHz. This feature plays a pivotal role in delivering exceptional performance and facilitating seamless multitasking for users.

Overview of the HPE Proliant Bl460c Gen9 Blade Server

General Information

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Part Number: 813196-B21
• Product Name: Proliant Bl460c Gen9 2-Way Blade Server

Processor and Chipset

• Processor Type: Intel Xeon E5-2660v4, 2.0 GHz
• Max Turbo Frequency: 3.2 GHz
• Cores: 14 Cores
• 64-bit Computing: Supported
• Installed Processors: 2
• Maximum Supported Processors: 2
• Chipset Type: Intel C600 Series
• Processor Features: Hyper-Threading, Intel Turbo Boost Technology 2.0

Cache Memory

• Cache Memory Type: L3 Cache
• Installed Cache Size: 70 MB
• Cache Size Per Processor: 35 MB

Memory Specifications

• Installed Memory: 128 GB
• Maximum Supported Memory: 512 GB
• Memory Type: DDR4 SDRAM
• Memory Speed: 2400 MHz
• Compliance: PC4-19200
• Form Factor: DIMM 288-pin
• Features: Online Spare Memory, Load-Reduced DIMM (LRDIMM), HP SmartMemory
• Configuration: 4 x 32 GB
• Supported RAM Types:
  • PC4-19200 - 256 GB - Registered - ECC
  • PC4-19200 - 512 GB - Load-Reduced - ECC

Storage and Storage Controller

• Hard Drive: Not Included
• Storage Controller: 1 x SAS-3 - PCIe 3.0 x8
• Controller Interface: SATA 6 GB/s, SAS 12 GB/s
• Controller Type: HP H244BR Smart Host Bus Adapter
• RAID Levels Supported: RAID 0, RAID 1

Graphics and Display

• Graphics Processor: Matrox G200eh

Network and Communication

• Interface Type: FlexibleLOM
• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Ethernet Controller: HP FlexFabric 536FLB
• Data Link Protocols: Gigabit Ethernet, 10 Gigabit Ethernet, Fibre Channel Over Ethernet (FCoE)
• Remote Management Protocols: SNMP, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 4 (iLO 4)
• Additional Features: Wake On LAN (WOL)
• Standards Compliance: IEEE 802.1Q, IEEE 802.1P, IEEE 802.3X, IEEE 802.3AD (LACP), IEEE 802.3AE, IEEE 802.3AP, IEEE 802.1Qau

Expansion and Connectivity

• Expansion Bays: 2 Hot-Swap 2.5" SFF (both free)
• Expansion Slots:
  • 2 x Processor Slots (both occupied)
  • 16 x Memory Slots - DIMM 240-pin (12 free)
  • 2 x Expansion Slots (x16 Mode)
  • 1 x Internal microSDHC Card Slot (free)
  • 1 x FlexibleLOM Slot (occupied)
• Interfaces & Ports:
  • 1 x HP iLO
  • 1 x USB 3.0
  • 2 x LAN (10 Gigabit Ethernet)

Dimensions and Weight

• Width: 2.2 in
• Depth: 20.4 in
• Height: 7.1 in
• Weight: 10.47 lbs

Enhanced Performance

With the E5-2660V4/2.0GHz processor, the HPE BL460C Gen9 Blade Server offers enhanced performance capabilities. The processor operates at a base frequency of 2.0GHz, ensuring fast and efficient processing of tasks. This enables users to experience smooth and responsive performance even when dealing with resource-intensive applications.

Turbo Boost Technology

The E5-2660V4/2.0GHz processor also incorporates Intel's Turbo Boost Technology, which dynamically adjusts the processor's frequency based on workload demands. This intelligent feature allows the processor to reach speeds of up to 3.2GHz, delivering an extra burst of power when needed. Users can benefit from increased performance during peak workloads, resulting in faster data processing and reduced wait times.

Efficient Multitasking

Efficient multitasking is crucial for businesses and organizations that require their servers to handle multiple tasks simultaneously. The E5-2660V4/2.0GHz processor supports hyper-threading technology, allowing each physical core to run two threads concurrently. This means that the server can execute more tasks in parallel, improving overall productivity and reducing processing time.

Ram

When it comes to memory capacity, the HPE BL460C Gen9 Blade Server excels with its impressive 128GB DDR4 SDRAM. This substantial amount of RAM provides numerous benefits for users, ensuring smooth operation and efficient handling of data-intensive processes.

Improved System Responsiveness

The 128GB DDR4 SDRAM enables the HPE BL460C Gen9 Blade Server to handle multiple applications simultaneously without experiencing a significant drop in performance. The ample memory capacity allows for rapid retrieval and storage of frequently accessed data, resulting in improved system responsiveness. Users can seamlessly switch between applications and perform tasks efficiently, even when dealing with memory-hungry software.

Enhanced Virtualization

Virtualization has become a cornerstone of modern IT infrastructure, enabling organizations to maximize resource utilization and streamline management processes. The 128GB DDR4 SDRAM of the HPE BL460C Gen9 Blade Server offers ample memory for virtualized environments, allowing for the smooth operation of multiple virtual machines concurrently. This enhances server consolidation efforts and reduces the need for additional hardware investments.

Future-Proofing

As technology continues to advance, applications and operating systems become more resource-intensive. By incorporating 128GB of DDR4 SDRAM, the HPE BL460C Gen9 Blade Server ensures that users are prepared for future requirements. This generous memory capacity allows businesses to scale their operations without worrying about memory limitations, providing flexibility and accommodating growth.

Part Number

The part number of the HPE BL460C Gen9 Blade Server is 813196-B21. This unique identifier is crucial for users when it comes to ordering, inventory management, and support services. Understanding the benefits and importance of this feature can help users make informed decisions and ensure smooth operations.

Ordering Accuracy

The part number serves as a precise reference point for users when placing an order for the HPE BL460C Gen9 Blade Server. With numerous product variations available in the market, having the correct part number ensures that users receive the exact model they require. This eliminates any confusion or potential issues related to incorrect specifications, ensuring a seamless procurement process.

Inventory Management

For businesses that manage large IT infrastructures, effective inventory management is crucial. The part number, 813196-B21, allows users to easily track and identify the HPE BL460C Gen9 Blade Server within their inventory. This simplifies asset management, making it easier to keep track of hardware components, perform maintenance, and plan for future upgrades.

Support and Documentation

The part number is also essential for accessing support services and documentation related to the HPE BL460C Gen9 Blade Server. When seeking assistance or troubleshooting, users can provide the part number to support technicians, enabling them to provide accurate and relevant guidance. Additionally, the part number can be used to access product-specific documentation, including manuals and technical specifications, facilitating efficient deployment and maintenance.

In conclusion, the HPE BL460C Gen9 Blade Server's E5-2660V4/2.0GHz processor delivers enhanced performance, efficient multitasking, and responsiveness. The 128GB DDR4 SDRAM ensures improved system performance, enhanced virtualization capabilities, and future-proofing. Finally, the part number, 813196-B21, enables accurate ordering, streamlined inventory management, and easy access to support services and documentation. With these features in place, the HPE BL460C Gen9 Blade Server offers a powerful and reliable solution for users seeking exceptional performance and seamless operation.
