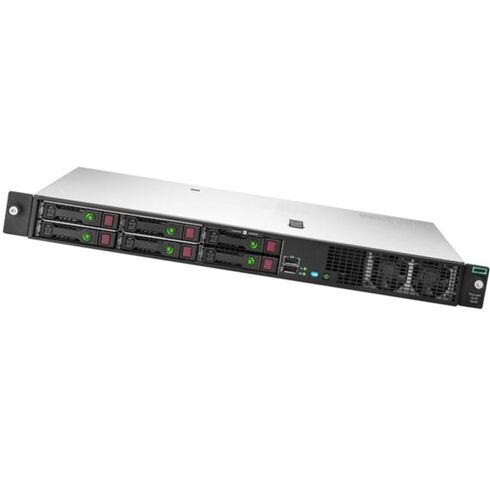

HPE DL20 Gen10 Xeon 6 Core 3.4GHZ 16GB DDR4 Server P17081-B21

Processor: Xeon 6 Core 3.4GHZ

The HPE Proliant DL20 Gen10 Server is powered by a robust and highly efficient Xeon 6 Core 3.4GHz processor. This exceptional processing power enables the server to handle demanding workloads and ensures smooth and reliable performance.

Manufacturer Details

• Manufacturer: HPE
• Part Number: P17081-B21
• Product Name: ProLiant DL20 Gen10 - 1U Rack Mountable Server (Performance Model)

Processor & Chipset

CPU Specifications

• Processor: Intel Xeon E-2224, 3.4 GHz
• Max Turbo Speed: 4.8 GHz
• Number of Cores: 6-core
• CPU Quantity: 1
• Max CPU Quantity: 1
• CPU Upgradability: Yes, upgradable
• Features: Hyper-threading Technology, Intel Turbo Boost Technology 2.0, Intel Smart Cache
• Socket Type: FCLGA1151

Cache Memory

• Installed Size: 12 MB L3 Cache
• Cache Per Processor: 12 MB

Memory Specifications

Installed Memory

• Size: 16 GB (upgradable to 64 GB)
• Technology: DDR4 SDRAM with ECC
• Effective Memory Speed: 2666 MHz
• Memory Speed Compliance: PC4-21333
• Form Factor: DIMM 288-pin
• Slots: 4 (total), 3 (empty)
• Configuration: 1 x 16 GB

Storage Controllers

• Type: RAID
• Controller Interface: SATA 6 Gb/s
• Controller Name: HPE Smart Array S100i SR Software RAID
• Channels: 4
• RAID Levels: 0, 1, 5, 10

Display & Graphics

• Graphics Processor: Matrox G200
• Video Interfaces: VGA

Networking & Communication

Network Interfaces

• Interface Type: PCI Express x2
• Ethernet Ports: 2 x Gigabit Ethernet
• Ethernet Controller: HPE 332i
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

Bays

• External 5.25: 1 (free)
• Hot-swap 2.5 SFF: 4 (free)

Slots

• PCIe 3.0 x16: 1 (free, full-length, full-height, x16 Mode)
• PCIe 3.0 x8: 1 (free, low-profile, x8 Mode)

Interfaces

• VGA: 1
• Gigabit Ethernet: 2 (LAN)
• HP iLO: 1 (LAN)
• USB 3.0: 5 (2 front, 2 rear, 1 internal)

Additional Information

• Standards Compliance: AES, FIPS 140-2, TLS v1.2, ASHRAE Class A3, ASHRAE Class A4, ACPI 6.1, Redfish API, UEFI

Power Specifications

• Device Type: Power Supply
• Installed Quantity: 1
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 500 Watts

Physical Dimensions

• Width: 17.1 inches
• Depth: 15 inches
• Height: 1.7 inches
• Weight: 17.37 lbs

Enhanced Performance

The Xeon 6 Core 3.4GHz processor offers a significant performance boost compared to its predecessors. With its higher clock speed and multiple cores, it can handle complex calculations and multi-threaded applications with ease. This translates into faster response times and improved productivity for users.

Whether you are running resource-intensive applications, virtualization software, or handling large databases, the powerful processor ensures that your server can keep up with the demands of your business. It enables you to run multiple tasks simultaneously without experiencing performance bottlenecks.

Efficient Virtualization

Virtualization has become an integral part of modern IT infrastructure, allowing businesses to maximize their resources and reduce costs. The Xeon 6 Core 3.4GHz processor is specifically designed to excel in virtualized environments.

With its high core count and advanced virtualization technologies, such as Intel Virtualization Technology (VT-x), the processor enables efficient partitioning of resources among virtual machines. This results in improved consolidation ratios and better utilization of hardware resources.

Furthermore, the Xeon processor offers hardware-assisted virtualization, which offloads some of the virtualization tasks from the software layer to the hardware level. This reduces overhead and enhances performance, making it an ideal choice for virtualized servers.

Seamless Scalability

The Xeon 6 Core 3.4GHz processor provides seamless scalability, allowing businesses to adapt to evolving needs and future growth. With its powerful architecture, the server can handle increased workloads and accommodate additional users or applications.

Whether you are a small business planning for expansion or a large enterprise with changing requirements, the scalability of the Xeon processor ensures that your server can grow with your business. This not only saves you from investing in new hardware but also provides a seamless transition without disruptions to your operations.

RAM: 16GB DDR4

The HPE Proliant DL20 Gen10 Server is equipped with 16GB of DDR4 RAM, providing ample memory capacity to handle demanding workloads and resource-intensive applications.

Improved Performance and Responsiveness

The 16GB DDR4 RAM offers a significant improvement over previous generations of RAM. Its higher bandwidth and lower latency result in faster data transfer rates and improved overall system performance.

With ample memory capacity, the server can efficiently store and retrieve data, reducing processing delays and enhancing responsiveness. This is particularly beneficial for applications that require frequent data access, such as databases or virtualization environments.

Enhanced Multitasking

In today's fast-paced business environment, multitasking has become the norm. The 16GB DDR4 RAM enables the server to handle multiple tasks simultaneously without sacrificing performance.

With more memory available, the server can allocate resources efficiently to different applications or processes running concurrently. This ensures smooth multitasking and prevents slowdowns or crashes caused by insufficient memory capacity.

Future-Proof Investment

The 16GB DDR4 RAM provides ample headroom for future growth and scalability. As businesses expand and their requirements increase, having sufficient memory capacity becomes crucial.

By investing in a server with 16GB DDR4 RAM, you can future-proof your infrastructure and avoid the need for immediate upgrades. This not only saves costs but also streamlines your IT operations by eliminating potential bottlenecks and ensuring optimal performance.

Product Number: P17081-B21

The HPE Proliant DL20 Gen10 Server has the product number P17081-B21, which serves as a unique identifier for this specific model. This feature is important for users as it helps in identifying and differentiating between various server configurations and models.

Easy Identification and Documentation

With a unique product number like P17081-B21, it becomes easier to identify and document the server within your organization. Whether you are managing a single server or a large fleet of servers, having a distinct product number simplifies tracking, maintenance, and troubleshooting processes.

Accurate Ordering and Procurement

The product number plays a crucial role when ordering or procuring additional components, spare parts, or accessories for your server. It ensures that you receive the right items that are compatible with the specific model, saving time and effort in the procurement process.

By providing the product number to your vendors or suppliers, you can eliminate any potential confusion or errors that may arise from using incorrect part numbers or incompatible components. This helps in streamlining the procurement process and ensures seamless integration of new hardware into your existing infrastructure.

Effective Technical Support

When seeking technical support or assistance with your server, providing the product number enables support teams to quickly identify and understand the specific model you are using. This expedites troubleshooting processes and ensures that you receive accurate guidance or solutions tailored to your server's configuration.

By accurately communicating the product number, you can avoid delays in support and minimize any potential downtime caused by unresolved issues. This ensures smooth operations and helps in maximizing the uptime of your server.
