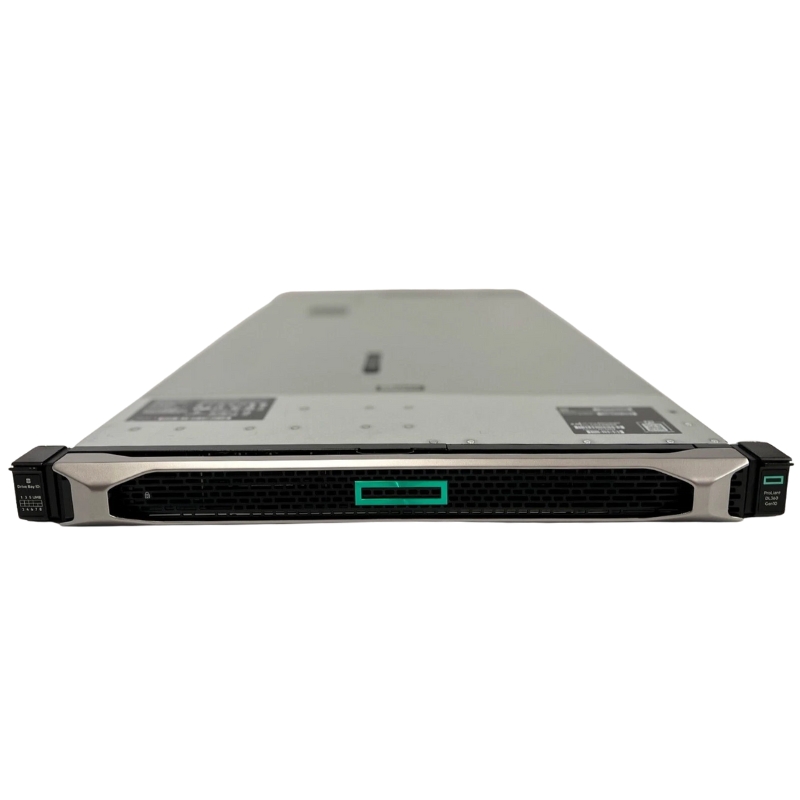

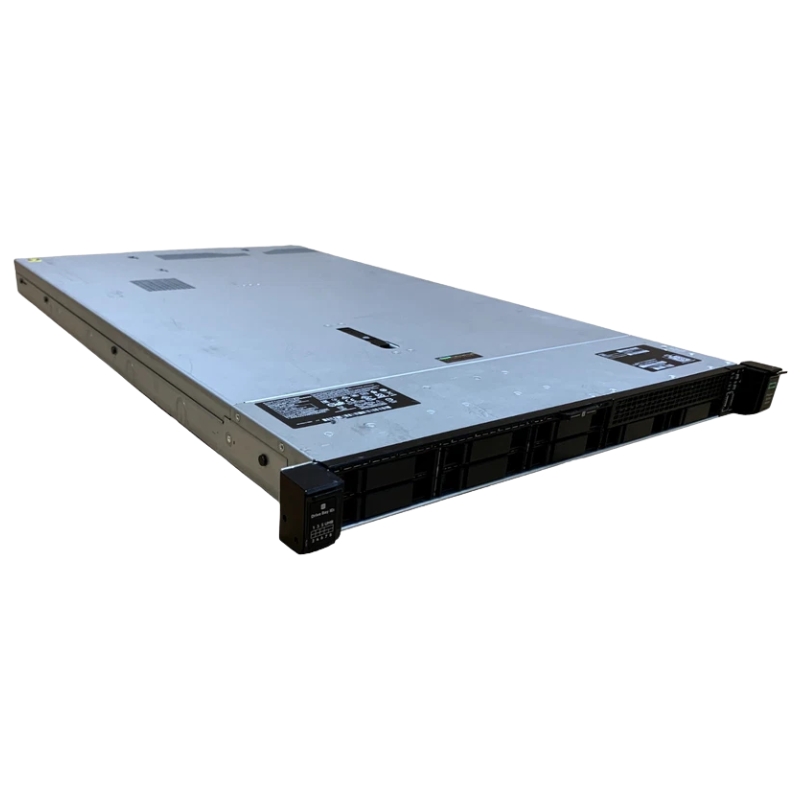

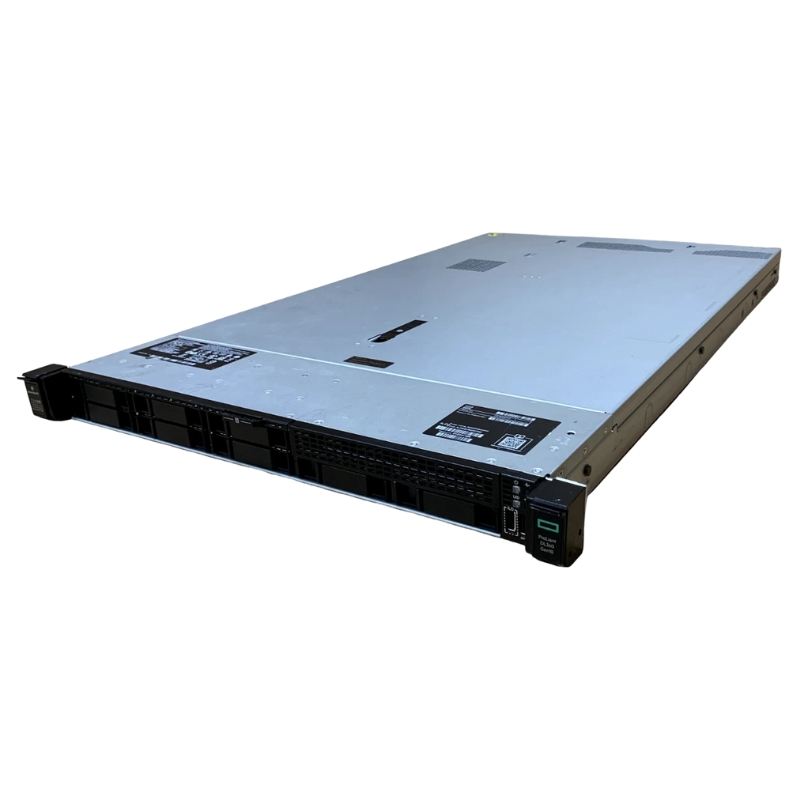

HPE DL360 Gen10 P06455-B21 Xeon 2.1 GHz 16-core Gold 6130 Server

Processor

The HPE DL360 Gen10 Server is powered by an exceptional processor known as the Xeon 2.1 GHz 16-core Gold 6130. This powerful processor is a game-changer for users who require high-performance computing and seamless multitasking capabilities.

General Product Details

• Manufacturer: Hewlett Packard Enterprise
• Model Number: P06455-B21
• Product Name: ProLiant DL360 Gen10 - 1U Rack-Mountable Server (Embedded LOM Model)

Processor & Chipset Specifications

Central Processing Unit (CPU)

• Processor: 1st Gen Intel Xeon Gold 6130, 2.1 GHz
• Maximum Turbo Speed: 3.7 GHz
• Core Count: 16 Cores
• Processor Quantity: 1
• Maximum CPUs: 2
• Upgrade Potential: Upgradeable

Key Processor Features

• Hyper-Threading Technology
• Enhanced Intel SpeedStep Technology
• Intel Virtualization Technology
• Intel Turbo Boost Technology 2.0
• Intel 64 Technology

Chipset

• Type: Intel C621

Cache Memory

• Installed Cache Size: 22 MB L3 Cache
• Cache Per Processor: 22 MB

Memory Configuration

Installed and Maximum Memory

• Installed Memory: 64 GB
• Maximum Supported Memory: 768 GB

Memory Technology

• Type: DDR4 SDRAM
• Effective Memory Speed: 2666 MHz
• Rated Memory Speed: 2666 MHz
• Memory Compliance: PC4-20800
• Form Factor: DIMM 288-pin

Memory Slots

• Total Slots: 12
• Empty Slots: 10
• Configuration: 2 x 32 GB
• Supported Memory Types: PC4-20800 - 3.072 TB Load-Reduced PC4-20800 - 768 GB Registered PC4-20800 - 192 GB Non-Volatile

Storage Details

Drives

• Hard Drive: None
• Optical Drive: None

Storage Controllers

• Type: 1 x RAID
• Interface: SATA 6 Gb/s / SAS 12 Gb/s
• Controller: HPE Smart Array P408i-a
• Channel Quantity: 8
• RAID Levels: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
• Buffer Size: 2 GB

Display & Graphics

• Video Memory: 16 MB
• Video Interfaces: VGA

Network & Communication

Ethernet Connectivity

• Ports: 4 x Gigabit Ethernet
• Controller: HP 331i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management

• Protocols: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Features: Wake On LAN (WOL), PXE Support

Expansion & Connectivity

Bays

• External Universal Media Bay: 1 (Free)
• Hot-Swap 2.5" SFF Bays: 8 (All Free)

Slots

• FlexibleLOM Slot: 1 (Full-height, Low-profile, Three-quarter-length)
• PCIe 3.0 x16 Slot: 1 (Full-height)
• PCIe 3.0 x8 Slot: 1 (Low-profile)
• MicroSD Card Slot: 1 (Internal)
• PCIe x16 Slot: 1 (Full-height)

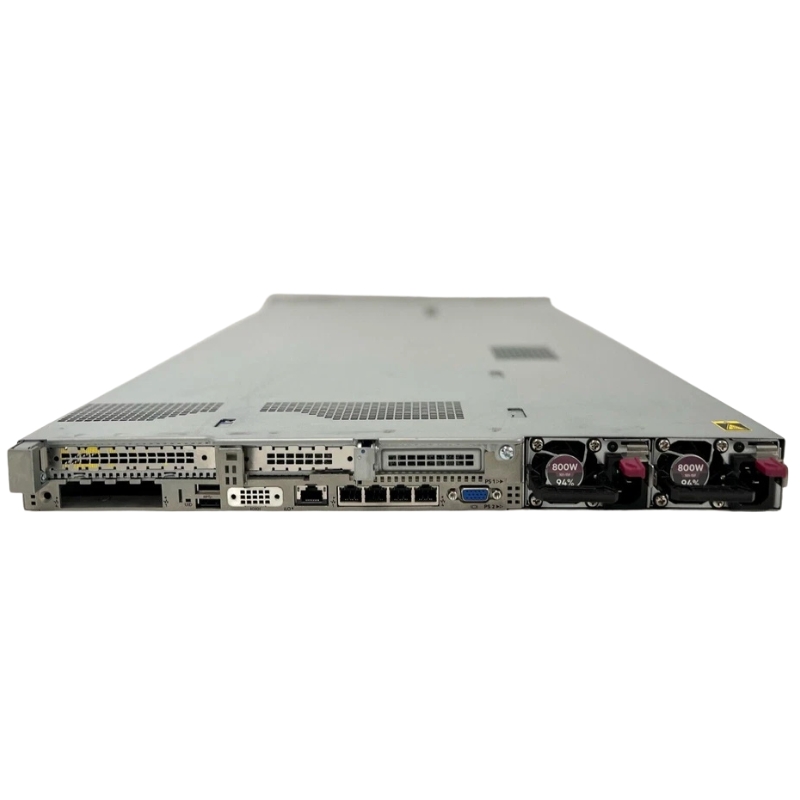

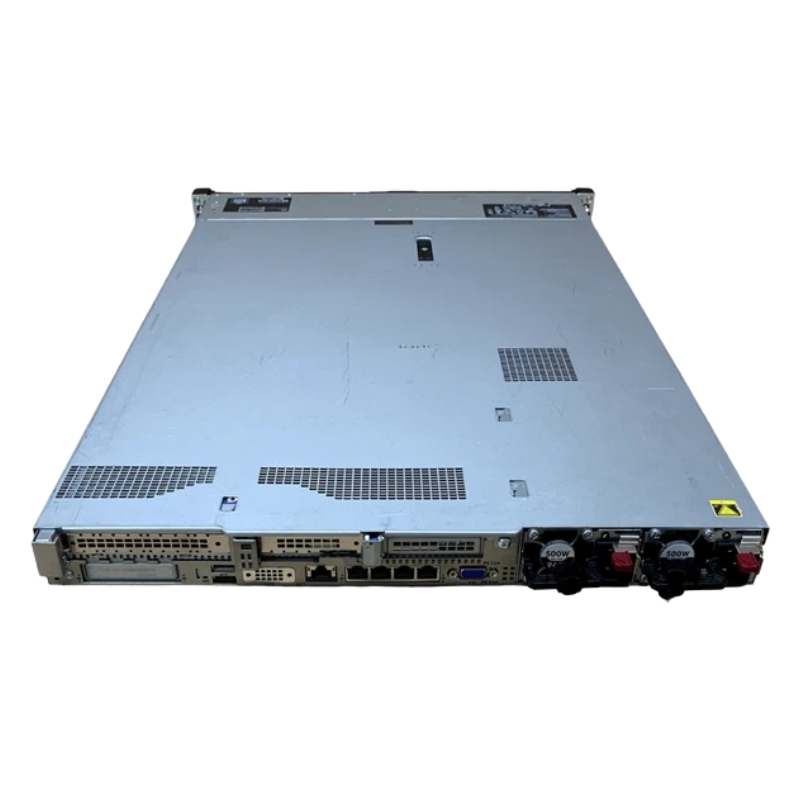

Interfaces

• HP iLO Type A: 1 (Front)
• HP iLO RJ-45: 1 (Rear)
• Gigabit Ethernet LAN RJ-45: 4 (Rear)
• USB 3.0 Ports: 5 (1 Front, 2 Rear, 2 Internal)
• VGA Port: 1 (Rear)

Additional Information

Included Accessories

• HPE Easy Install Rails
• HPE Standard Heatsink
• 5 x Standard Hot Plug Fans

Cables

• Power Cable Included

Compliance Standards

• AES
• FIPS 140-2
• IPv6 Ready
• PCI DSS
• TLS v1.2
• ASHRAE Class A4
• ASHRAE Class A3
• WEEE 2002/95/EC
• ACPI 6.1

Manufacturer's Program

• HPE Smart Buy

Power Specifications

• Type: Hot-Plug Power Supply
• Redundancy: Optional (1+1 with Optional Power Supply)
• Installed Quantity: 2
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 800 Watts

Dimensions & Weight

• Width: 17.1 inches
• Depth: 27.8 inches
• Height: 1.7 inches
• Weight: 28.75 lbs

Unmatched Performance

The Xeon 2.1 GHz 16-core Gold 6130 processor is designed to deliver unparalleled performance. With its impressive clock speed of 2.1 GHz and 16 cores, it can handle even the most demanding workloads with ease. Whether you are running resource-intensive applications or performing complex data analysis, this processor ensures smooth and efficient operations.

Enhanced Multithreading

Multithreading is a crucial feature for modern servers, as it allows for the simultaneous execution of multiple tasks. The Xeon 2.1 GHz 16-core Gold 6130 processor supports hyper-threading, which means that each physical core can handle two threads simultaneously. This feature significantly improves overall system performance, enabling faster data processing and reducing latency.

Improved Energy Efficiency

Energy efficiency is an important consideration for businesses aiming to reduce their carbon footprint and lower operational costs. The Xeon 2.1 GHz 16-core Gold 6130 processor incorporates advanced power management technologies that optimize power consumption based on workload demands. This helps to minimize energy waste while maintaining exceptional performance levels.

Future-Ready Architecture

The Xeon 2.1 GHz 16-core Gold 6130 processor is built on Intel's advanced architecture, making it future-ready and capable of handling upcoming technologies and workloads. Its robust design ensures compatibility with emerging software and hardware advancements, providing users with a scalable and future-proof server solution.

Accelerated Workloads

By harnessing the power of the Xeon 2.1 GHz 16-core Gold 6130 processor, businesses can accelerate their workloads and improve productivity. The processor's high clock speed and multithreading capabilities enable faster data processing, resulting in reduced waiting times and increased efficiency. Whether you are running virtualization software, hosting databases, or performing data-intensive computations, this processor can handle it all.

Reliability and Stability

The Xeon 2.1 GHz 16-core Gold 6130 processor is renowned for its reliability and stability. It is built to withstand heavy workloads and continuous operation, ensuring uninterrupted performance even under demanding conditions. This reliability is essential for businesses that rely on their servers for critical operations, as it minimizes the risk of system failures and costly downtime.

Storage

The HPE DL360 Gen10 Server features the P408I-A storage solution, which offers an array of benefits for users who require efficient and reliable data storage capabilities.

High Storage Capacity

The P408I-A storage solution provides ample storage capacity, allowing businesses to store large amounts of data without worrying about running out of space. With support for multiple drives and RAID configurations, users can easily expand their storage capacity as their needs grow.

RAID Support

RAID (Redundant Array of Independent Disks) is a technology that combines multiple physical drives into a single logical unit for enhanced performance, data redundancy, and fault tolerance. The P408I-A storage solution supports various RAID levels, including RAID 0, RAID 1, RAID 5, and RAID 6, providing users with flexible options to suit their specific requirements.

Data Protection

Data protection is crucial for businesses dealing with sensitive information. The P408I-A storage solution offers advanced features such as data encryption and secure erase, ensuring that data remains protected throughout its lifecycle. These features help businesses comply with data privacy regulations and safeguard their valuable information.

Hot-Pluggable Drives

The P408I-A storage solution supports hot-pluggable drives, allowing users to add or replace drives without interrupting system operation. This feature is particularly beneficial for businesses that require continuous access to their data and cannot afford any downtime. With hot-pluggable drives, organizations can perform maintenance or expand storage capacity on-the-fly, ensuring uninterrupted productivity.

Faster Data Access

The P408I-A storage solution utilizes advanced caching mechanisms to optimize data access speed. By intelligently storing frequently accessed data in cache memory, it significantly reduces read and write latency, resulting in faster data retrieval and improved overall system performance. This is especially advantageous for applications that rely on quick access to large datasets.

Scalability and Flexibility

As businesses grow, their storage needs increase as well. The P408I-A storage solution offers scalability and flexibility, allowing users to add more drives or upgrade to higher-capacity drives as their requirements evolve. This scalability ensures that the server can adapt to changing storage demands without the need for significant hardware investments.

Drive Bays

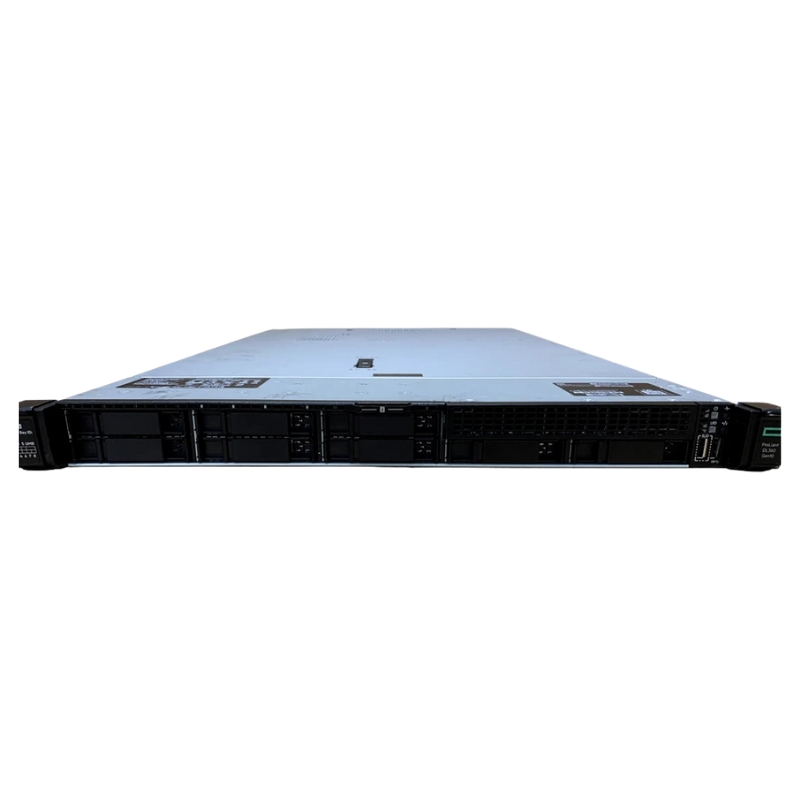

The HPE DL360 Gen10 Server is equipped with 8SFF (Small Form Factor) drive bays, offering users a range of benefits in terms of storage capacity and flexibility.

Compact Design

The 8SFF drive bays are designed to maximize storage capacity while minimizing physical space requirements. Their compact form factor allows the server to accommodate a large number of drives within a limited footprint, making it an ideal choice for businesses with space constraints.

Increased Storage Density

With 8SFF drive bays, users can achieve higher storage density compared to larger form factor drive bays. This means that businesses can store more data in the same physical space, reducing the need for additional servers and optimizing resource utilization.

Easy Drive Installation

The 8SFF drive bays feature a user-friendly design that simplifies the installation and removal of drives. The hot-pluggable nature of these drive bays allows for hassle-free drive replacement or expansion, ensuring minimal disruption to system operation. This ease of installation makes it convenient for businesses to manage their storage infrastructure effectively.

Flexible Drive Configuration

The 8SFF drive bays offer flexibility in terms of drive configuration. Users can choose from various RAID levels and mix different drive types (e.g., HDDs and SSDs) within the drive bays, tailoring the storage setup to their specific needs. This flexibility allows businesses to optimize performance, reliability, and cost-efficiency based on their workload requirements.

Improved Airflow and Cooling

Efficient airflow and cooling are critical for maintaining optimal operating conditions and prolonging the lifespan of drives. The compact design of the 8SFF drive bays ensures improved airflow patterns within the server chassis, preventing heat buildup and ensuring reliable performance. Additionally, the smaller form factor of the drives results in reduced power consumption, contributing to overall energy efficiency.

Hot-Swap Capabilities

The 8SFF drive bays support hot-swapping, enabling users to replace or add drives without shutting down the server. This capability eliminates downtime during maintenance or drive failures, allowing businesses to maintain continuous access to their data. Hot-swapping is particularly advantageous for mission-critical applications that require high availability and minimal disruption.

In conclusion, the HPE DL360 Gen10 Server offers exceptional features that cater to the needs of modern businesses. The Xeon 2.1 GHz 16-core Gold 6130 processor delivers unmatched performance, reliability, and energy efficiency. The P408I-A storage solution provides high storage capacity, data protection, and scalability. The 8SFF drive bays offer compactness, increased storage density, and flexibility in drive configuration. With these features, users can achieve optimal productivity, seamless data storage, and reliable performance in their server infrastructure.
