HPE DL360 Gen10 Server P06453-B21 Xeon 2.1GHz 8-core Silver 16GB-R P408I-A

Processor

The HPE Proliant DL360 Gen10 Server is powered by an impressive Xeon 2.1 GHz 8-core Silver processor. This processor is designed to deliver outstanding performance and reliability, making it an ideal choice for a wide range of applications.

General Information

• Manufacturer: Hewlett Packard Enterprise
• Model Number: P06453-B21

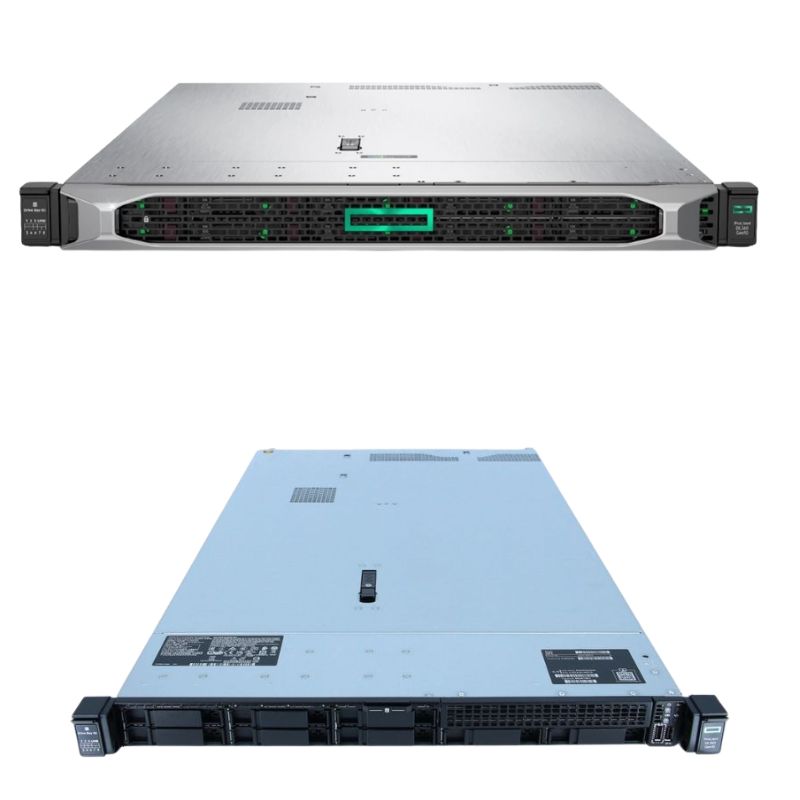

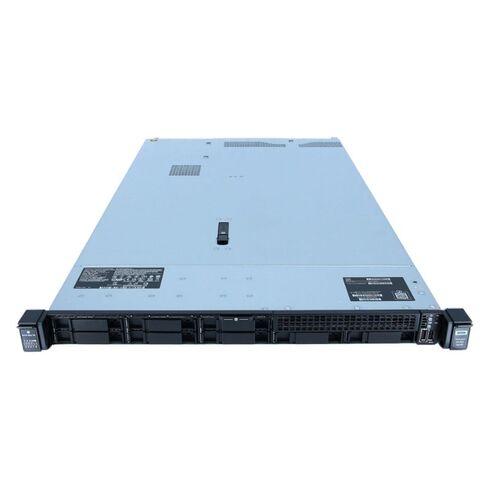

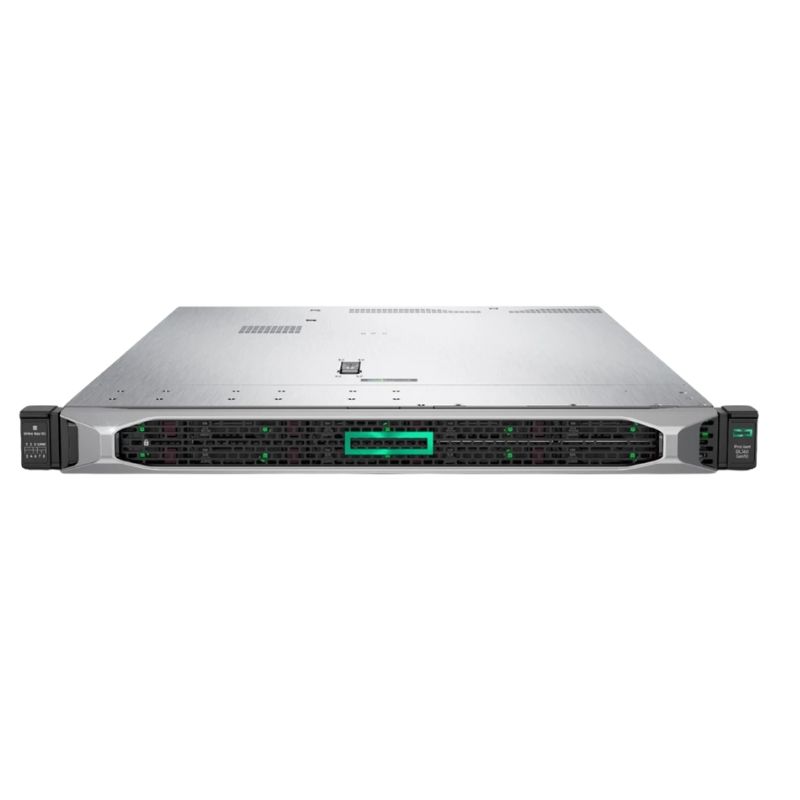

• Product: Proliant DL360 Gen10 - 1U Rack-Mountable Server (Embedded LOM Model)

Processor & Chipset

CPU Details

• Processor: 1st Gen Intel Xeon Silver 4110, 2.1 GHz
• Max Turbo Speed: 3.0 GHz
• Cores: 8-core
• CPU Quantity: 1 (upgradable to 2)
• CPU Features: Hyper-threading, Intel Turbo Boost Technology 2
• Chipset: Intel C621

Cache Memory

• Installed Size: 11 MB L3 Cache
• Cache per Processor: 11 MB

Memory Specifications

• Installed Memory: 16 GB, expandable up to 768 GB
• Memory Type: DDR4 SDRAM
• Effective Memory Speed: 2400 MHz
• Rated Memory Speed: 2666 MHz
• Memory Compliance: PC4-20800
• Form Factor: DIMM 288-pin
• Memory Slots: 24 (total), 23 (available)
• Memory Features: Registered
• Supported RAM Types: PC4-20800 (up to 3.072 TB load-reduced), PC4-20800 (768 GB registered)

Storage Configuration

• Hard Drive: None
• Optical Drive: None

Storage Controllers

• Controller Type: 1 x RAID
• Interface: SATA 6 Gb/s / SAS 12 Gb/s
• Controller Model: HPE Smart Array P408i-a
• Channels: 8
• RAID Levels: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
• Buffer Size: 2 GB

Display & Graphics

• Video Memory: 16 MB
• Video Interfaces: VGA

Network & Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331i
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Additional Features: Wake On LAN (WoL), PXE Support

Expansion & Connectivity

Bays

• External Bay: 1 (total), 1 (free)
• Hot-Swap Bays: 8 x 2.5" SFF (total and free)

Slots

• FlexibleLOM Slot: 1 (total and free)
• PCIe 3.0 x16 Slot: 1 (total and free)
• PCIe 3.0 x8 Slots: 2 (total and free)
• MicroSD Card Slot: 1 (total and free, internal)

Interfaces

• HP iLO Type A: 1 (front)

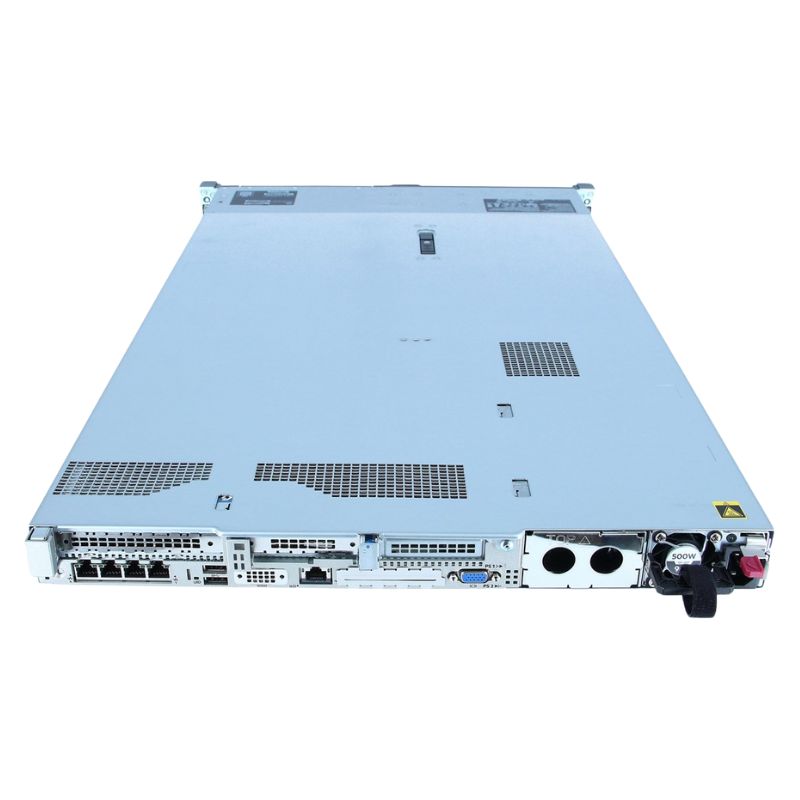

• USB 3.0 Ports: 5 (1 front, 2 rear, 2 internal)
• LAN Ports (Gigabit Ethernet): 4 (rear)
• HP iLO RJ-45: 1 (rear)
• VGA Port: 1 (rear)

Miscellaneous

Included Accessories

• HPE Easy Install Rails
• HPE Standard Heatsink
• 5 Standard Hot Plug Fans

Cables Included

• Power Cable

Compliance Standards

• AES
• FIPS 140-2
• IPv6 Ready
• PCI DSS
• TLS v1.2
• ASHRAE Class A4
• ASHRAE Class A3
• WEEE 2002/95/EC
• ACPI 6.1

Manufacturer Selling Program

• HPE Smart Buy

Power Description

• Type: Hot-Plug Power Supply
• Redundancy: Optional (1+1 with additional power supply)
• Installed Quantity: 1
• Max Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 500 Watts

Dimensions & Weight

• Width: 17.1 inches
• Depth: 27.8 inches
• Height: 1.7 inches
• Weight: 28.75 lbs

Benefits of Xeon 2.1 GHz 8-core Silver Processor

1. Powerful Performance

The Xeon 2.1 GHz 8-core Silver processor offers exceptional computing power. With eight cores and a clock speed of 2.1 GHz, it can handle demanding workloads and deliver fast and efficient processing. This makes it perfect for resource-intensive tasks such as virtualization, database management, and high-performance computing.

2. Improved Efficiency

One of the key advantages of the Xeon 2.1 GHz 8-core Silver processor is its energy efficiency. It is designed to balance performance and power consumption effectively. This means that you can enjoy powerful performance while minimizing energy costs and reducing your carbon footprint.

3. Enhanced Reliability

Reliability is crucial when it comes to server processors, as any downtime can result in significant losses for businesses. The Xeon 2.1 GHz 8-core Silver processor is built with advanced technologies to ensure maximum reliability. It features error-correcting code (ECC) memory support, which helps detect and correct data errors to prevent system crashes and data corruption.

4. Scalability

Another important benefit of the Xeon 2.1 GHz 8-core Silver processor is its scalability. It supports multi-socket configurations, allowing you to easily expand your server's processing capabilities as your business grows. Whether you need to add more cores or increase the clock speed, this processor provides the flexibility to meet your evolving needs.

5. Virtualization Capabilities

Virtualization has become a critical component of modern server environments, enabling businesses to optimize resource utilization and improve overall efficiency. The Xeon 2.1 GHz 8-core Silver processor is specifically optimized for virtualization workloads, with features such as Intel Virtualization Technology (VT-x) and Intel Virtualization Technology for Directed I/O (VT-d). These technologies enhance the performance and security of virtualized environments, making it easier to run multiple virtual machines simultaneously.

Importance of Xeon 2.1 GHz 8-core Silver Processor

The Xeon 2.1 GHz 8-core Silver processor plays a crucial role in ensuring that the HPE Proliant DL360 Gen10 Server delivers exceptional performance and reliability. By harnessing the power of this processor, users can experience faster processing speeds, improved efficiency, and enhanced scalability. Whether you are running resource-intensive applications, managing databases, or running virtualized environments, this processor provides the capabilities you need to stay productive and meet your business objectives.

Memory

The HPE Proliant DL360 Gen10 Server is equipped with 16GB-R memory, which is designed to provide fast and reliable data access for a wide range of applications.

Benefits of 16GB-R Memory

1. Increased Performance

The 16GB-R memory offers a significant boost in performance compared to lower capacity options. With more memory available, the server can store and retrieve data faster, resulting in improved application response times and overall system performance. This is particularly important for memory-intensive tasks such as database management and virtualization.

2. Enhanced Multitasking

In today's fast-paced business environment, multitasking has become the norm. The 16GB-R memory enables the server to handle multiple tasks simultaneously without experiencing significant performance degradation. This means that you can run multiple applications, perform complex computations, and handle high user loads without sacrificing responsiveness or efficiency.

3. Future-Proofing

Investing in a server with ample memory capacity is essential for future-proofing your IT infrastructure. As applications and workloads become more demanding, the need for additional memory will increase. The 16GB-R memory provides a solid foundation, allowing you to expand your server's memory capacity as your requirements evolve. This ensures that your server can continue to meet the demands of your business without the need for costly hardware upgrades.

4. Data Integrity

Data integrity is critical for businesses of all sizes. The 16GB-R memory is equipped with advanced error-correcting code (ECC) technology, which detects and corrects memory errors in real-time. This helps prevent data corruption and ensures the reliability and accuracy of your critical business data.

Importance of 16GB-R Memory

The 16GB-R memory is a vital component of the HPE Proliant DL360 Gen10 Server, providing a reliable and high-performance memory solution for a wide range of applications. Whether you are running resource-intensive workloads or handling multiple tasks simultaneously, this memory configuration ensures that your server can deliver the performance and responsiveness required to keep your business running smoothly.

Storage

The HPE Proliant DL360 Gen10 Server features the P408I-A 8SFF storage solution, offering ample storage capacity and advanced features to meet the needs of modern businesses.

Benefits of P408I-A 8SFF Storage

1. High Storage Capacity

The P408I-A 8SFF storage solution provides ample space to store your business-critical data. With support for up to 8 small form factor (SFF) drives, you can take advantage of the latest high-capacity hard drives or solid-state drives (SSDs) to accommodate your growing storage requirements. This allows you to store large amounts of data, including files, applications, and databases, without worrying about running out of space.

2. Enhanced Data Protection

Data protection is a top priority for businesses, especially in today's digital landscape where cyber threats are constantly evolving. The P408I-A 8SFF storage solution offers advanced data protection features to safeguard your critical information. It supports RAID (Redundant Array of Independent Disks) configurations, allowing you to create redundant copies of your data across multiple drives for increased fault tolerance and improved data integrity.

3. Increased Performance

In addition to high storage capacity, the P408I-A 8SFF storage solution delivers impressive performance. It supports the latest storage technologies, such as SAS (Serial Attached SCSI) and NVMe (Non-Volatile Memory Express), which offer faster data transfer speeds and reduced latency compared to traditional storage interfaces. This means that your applications can access and retrieve data more quickly, resulting in improved overall system performance.

4. Flexibility and Scalability

The P408I-A 8SFF storage solution provides flexibility and scalability to meet the changing needs of your business. It supports a variety of drive types and sizes, allowing you to mix and match drives based on your specific requirements. Furthermore, you can easily expand your storage capacity by adding additional drives or upgrading to larger capacity drives as your business grows.

Importance of P408I-A 8SFF Storage

The P408I-A 8SFF storage solution is a crucial component of the HPE Proliant DL360 Gen10 Server, providing businesses with the storage capacity, data protection, and performance required to meet the demands of modern applications. Whether you need to store large amounts of data, protect critical information, or improve system performance, this storage solution delivers the features and capabilities necessary to support your business operations effectively.
