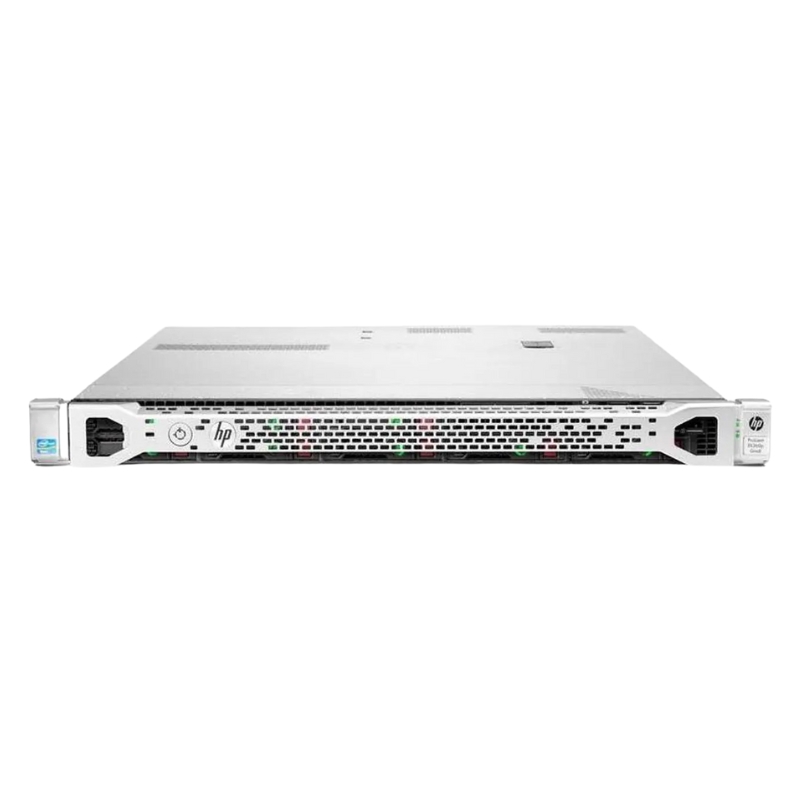

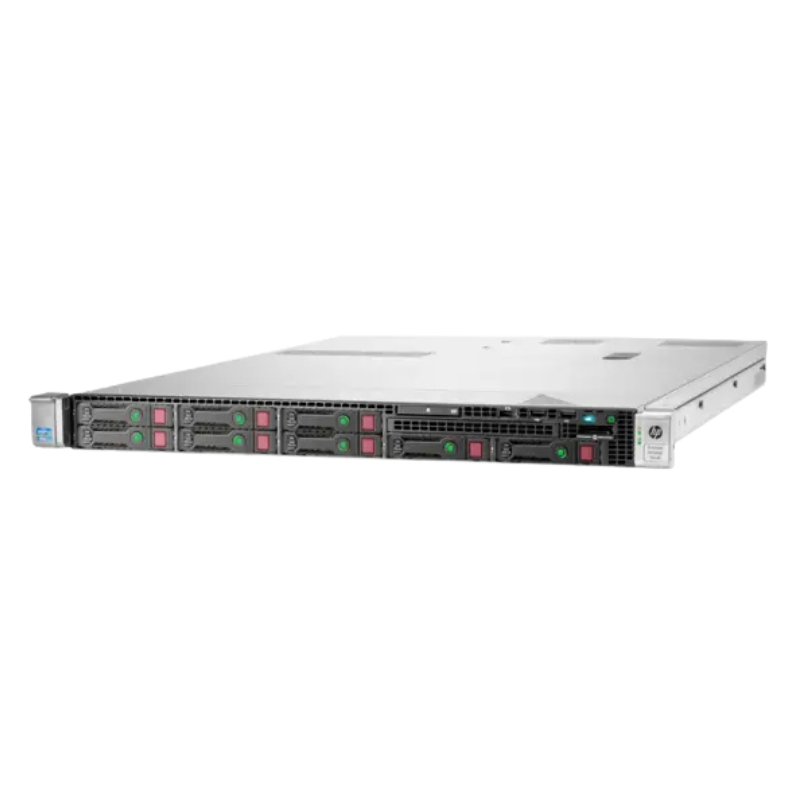

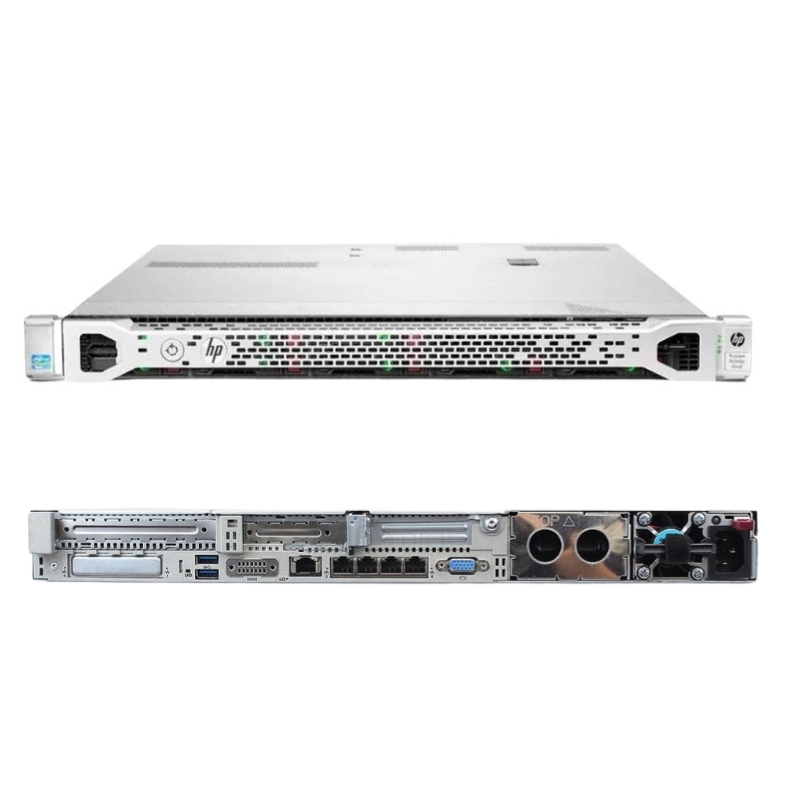

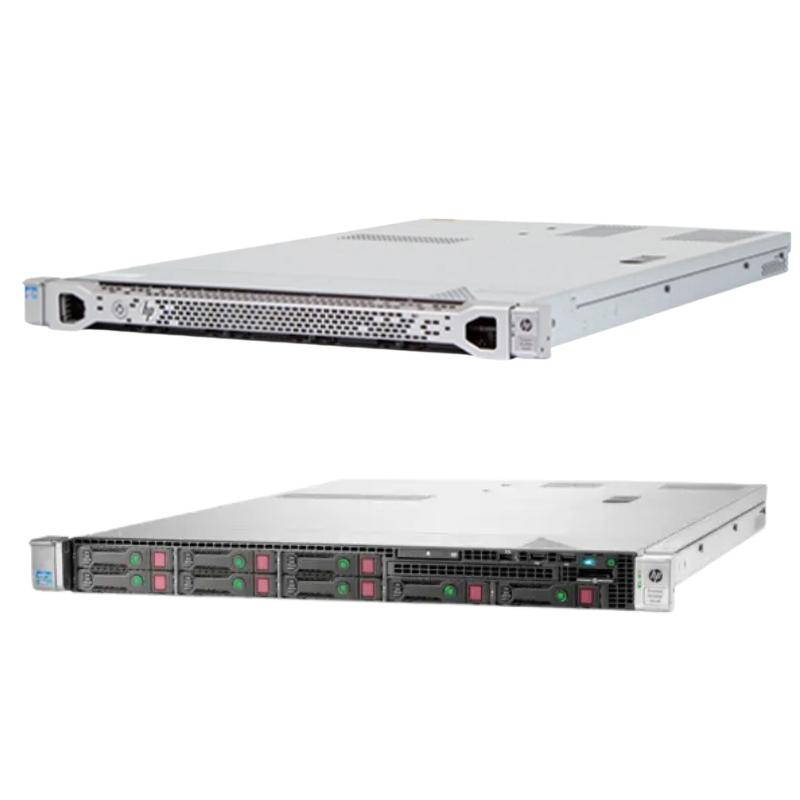

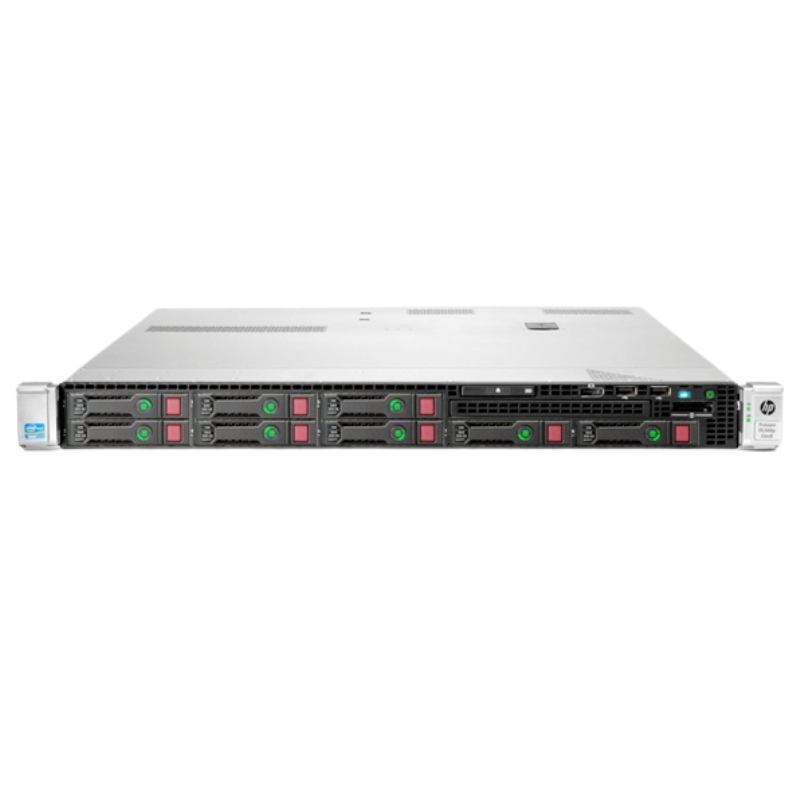

HPE DL360 Gen9 Xeon 10-Core 2.3GHz,32GB DDR4 Server - 755263-B21

Processor

The HPE DL360 Gen9 Server features a powerful Xeon 10-Core 2.3GHz processor, which provides exceptional performance and reliability for users. This advanced processor is designed to handle demanding workloads and deliver high-speed processing capabilities, making it an ideal choice for businesses of all sizes.

Overview of HPE ProLiant DL360

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 755263-B21
• Product Model: ProLiant DL360 Gen9 (Performance Edition)

Processor and Chipset

• Processor Type: Intel Xeon E5-2650v3 with a base frequency of 2.3 GHz
• Max Turbo Frequency: 3 GHz
• QuickPath Interconnect: 9.60 GT/s
• Core Count: 10 cores
• 64-bit Computing: Supported
• Processor Socket Compatibility: FCLGA2011-3
• Installed Processors: 2
• Maximum Supported Processors: 2
• Chipset Type: Intel C610 Series

Cache Memory

• Cache Type: Smart Cache
• Installed Cache Size: 50 MB
• Cache Per Processor: 25 MB

Memory Specifications

• Installed Memory Size: 32 GB (expandable to 768 GB)
• Memory Technology: DDR4 SDRAM with Advanced ECC
• Memory Speed: 2133 MHz
• Memory Compliance: PC4-17000
• Form Factor: DIMM 288-pin
• Memory Features: Registered, Online Spare, Quad Channel Architecture, HP SmartMemory
• Memory Configuration: 2 x 16 GB
• Supported RAM Types: PC4-17000 (Load-Reduced), PC4-17000 (Registered)

Storage Options

• Hard Drive: Not included
• Optical Drive: Not included

Storage Controllers

• Controller Name: Smart Array P440ar
• Buffer Size: 2 GB
• Disk Drive Types: 12 Gb/s SAS, 6 Gb/s SATA
• SAS Port Link Rate: 12 Gb/s per physical link
• PCIe Link Rate: PCI Express 3.0 x8
• Physical Drives Supported: Up to 26
• Logical Drives Supported: Up to 64
• RAID Support: RAID 0, 1, 5, 6, 10, 50, 60, RAID 1 ADM, RAID 10 ADM

Graphics and Display

• Graphics Processor: Matrox G200
• Video Interface: VGA

Networking and Communication

• Ethernet Controller: HP Ethernet 1Gb 4-Port 331i Adapter
• Network Processor: Broadcom BCM5719 Chipset
• Ethernet Ports: 4 Gigabit Ethernet
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocol: Integrated Lights-Out 4 (iLO4)
• Remote Management Controllers: RJ-45 (2 ports)
• Features: Wake-on-LAN (WoL), PXE Support
• Compliance Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion and Connectivity

• Expansion Bays: 1 External, 8 Hot-Swap 2.5" SFF
• Expansion Slots:
  • 24 DIMM 288-pin (22 free)
  • 2 CPU (0 free)
  • 1 PCIe 3.0 x16 (1 free)
  • 1 PCIe 3.0 x8 (Low-Profile, 0 free)
  • 1 FlexibleLOM (1 free)
  • 1 Internal MicroSD Card (1 free)

Interfaces and Ports

• VGA Port: 1
• Serial Port: 1
• LAN Ports: 4 Gigabit Ethernet
• HP iLO Port: 1
• USB Ports: 5 USB 3.0 (1 Front, 2 Rear, 2 Internal)

Miscellaneous Information

• Compliance Standards: ACPI 2.0b, FCC Class A Certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, ASHRAE, CNS 13438

Power Specifications

• Power Supply Type: Hot-Plug
• Power Redundancy: Optional (1+1 with additional power supply)
• Installed Power Supplies: 2
• Maximum Supported Power Supplies: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 800 Watt
• 80 Plus Certification: 80 Plus Platinum

Physical Dimensions

• Width: 17.1 inches
• Depth: 27.5 inches
• Height: 1.7 inches
• Weight: 27.01 lbs

Improved Performance

The Xeon 10-Core 2.3GHz processor offers a significant improvement in performance compared to previous generations. With its increased number of cores and higher clock speed, it can handle multiple tasks simultaneously with ease. This means faster data processing, reduced latency, and improved overall system performance.

Enhanced Multitasking

One of the key benefits of the Xeon 10-Core 2.3GHz processor is its ability to efficiently handle multitasking. Whether you're running multiple applications, virtual machines, or heavy workloads, this processor can handle them all without compromising performance. It ensures smooth and uninterrupted operation even during peak usage periods.

Optimized Workload Distribution

To further optimize workload distribution, the Xeon 10-Core 2.3GHz processor features Intel's Hyper-Threading technology. This technology enables each core to handle two threads simultaneously, effectively doubling the number of virtual cores available. As a result, the processor can efficiently allocate resources and maximize performance for a wide range of applications.

Memory

The HPE DL360 Gen9 Server comes equipped with 32GB DDR4 memory, providing ample capacity for seamless multitasking and data-intensive applications. The DDR4 memory technology offers significant improvements over its predecessors in terms of speed, capacity, and power efficiency.

Faster Data Access

With 32GB of DDR4 memory, users can experience faster data access speeds compared to older memory technologies. The higher clock speeds and improved data transfer rates of DDR4 memory ensure that data can be retrieved quickly, resulting in reduced latency and improved system responsiveness.

Efficient Multitasking

The 32GB DDR4 memory capacity allows for efficient multitasking, enabling the server to handle multiple applications and processes simultaneously without experiencing significant performance degradation. This is particularly important for businesses that rely on running multiple virtual machines or resource-intensive applications.

Scalability and Future-Proofing

Another advantage of the HPE DL360 Gen9 Server's 32GB DDR4 memory is its scalability. The server supports memory expansion, allowing businesses to easily upgrade their memory capacity as their needs grow. This ensures that the server can keep up with increasing demands and provides a future-proof solution for businesses.

Part Number

The HPE DL360 Gen9 Server features the part number 755263-B21, which is an important identifier for purchasing, maintenance, and support purposes. Understanding the significance of the part number can help users make informed decisions and ensure compatibility with other components.

Purchasing Convenience

Part number 755263-B21 simplifies the purchasing process by providing a unique identifier for the HPE DL360 Gen9 Server. When users need to order or inquire about this specific server model, they can simply provide the part number to ensure accuracy and avoid confusion. This streamlines the procurement process and saves valuable time for businesses.

Compatibility Assurance

The part number also helps ensure compatibility with other components or accessories that are designed specifically for the HPE DL360 Gen9 Server. By referencing the part number, users can easily verify that the components they intend to use are compatible with their server model. This eliminates potential compatibility issues and minimizes the risk of system failures.

Efficient Maintenance and Support

For maintenance and support purposes, part number 755263-B21 plays a crucial role. When contacting technical support or searching for relevant documentation, users can quickly identify the specific server model using the part number. This expedites troubleshooting processes and ensures that the appropriate resources are readily available, resulting in faster issue resolution and minimized downtime.

In conclusion, the HPE DL360 Gen9 Server's Xeon 10-Core 2.3GHz processor, 32GB DDR4 memory, and part number 755263-B21 provide significant benefits and importance for users. The processor's improved performance, enhanced multitasking capabilities, and workload distribution optimization deliver exceptional processing power. The DDR4 memory's faster data access, efficient multitasking, and scalability ensure smooth operation and future-proofing. Lastly, the part number simplifies purchasing, guarantees compatibility, and facilitates efficient maintenance and support. Whether it's for business-critical applications, virtualization, or general computing needs, the HPE DL360 Gen9 Server offers a reliable and powerful solution.
