HPE DL360 Gen9 Xeon 12 Core 2.2GHz 32GB DDR4 Server 818209-B21

Processor: Xeon 12 Core 2.2GHz

The HPE Proliant DL360 Gen9 Server is equipped with a powerful Xeon 12 Core 2.2GHz processor, which offers exceptional performance and reliability for businesses of all sizes. This processor is a crucial component of the server, providing the necessary computing power to handle demanding workloads and applications efficiently.

General Product Information

Manufacturer Details

• Manufacturer: Hewlett Packard Enterprise
• Manufacturer Part Number: 818209-B21

Product Overview

• Product Name: Proliant DL360 Gen9 - 1U Rack Mountable Server (Performance Model)

Processor & Chipset

CPU Specifications

• Processor: Intel Xeon E5-2650v4, 2.2 GHz
• Max Turbo Frequency: 2.9 GHz
• Cores: 12-core
• Number of CPUs: 2
• CPU Socket Type: LGA2011-v3
• Processor Upgradability: Upgradable
• Main Features: Hyper-Threading, Intel Turbo Boost Technology 2.0

Cache Memory

Details

• Total Cache Size: 60 MB
• Cache Per Processor: 30 MB

Memory Specifications

Installed Memory

• Installed Size: 32 GB (expandable up to 384 GB)
• Memory Type: DDR4 SDRAM with Advanced ECC
• Compliance: PC4-17000
• Form Factor: DIMM 288-pin
• Features: Registered, Online Spare Memory, Quad Channel Memory Architecture, HP SmartMemory

Supported RAM Configurations

• PC4-17000 - 768 GB (Load-reduced)
• PC4-17000 - 384 GB (Registered)

Storage Information

Drive and Controller Details

• Hard Drive: None
• Optical Drive: None
• Storage Controller: Smart Array P440ar with 2GB FBWC
• RAID Levels Supported: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
• Buffer Size: 2 GB

Display & Graphics

Graphics Processor

• Graphics Processor: Matrox G200
• Video Interfaces: VGA

Networking & Communication

Ethernet and Remote Management

• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 4
• Additional Features: Wake on LAN (WOL), PXE Support
• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

Expansion Bays

• External Bays: 1 total (1 free)
• Hot-Swap Bays: 8 total (8 free) x 2.5” SFF

Expansion Slots

• DIMM Slots: 24 total (22 free)
• CPU Slots: 2 total (0 free)
• PCIe Slots:
  • 1 x PCIe 3.0 x16 (Three-quarter-length, Full-height)
  • 1 x PCIe 3.0 x8 (Low-profile)
• FlexibleLOM Slot: 1 total (1 free)
• MicroSD Card Slot: 1 total (1 free, internal)

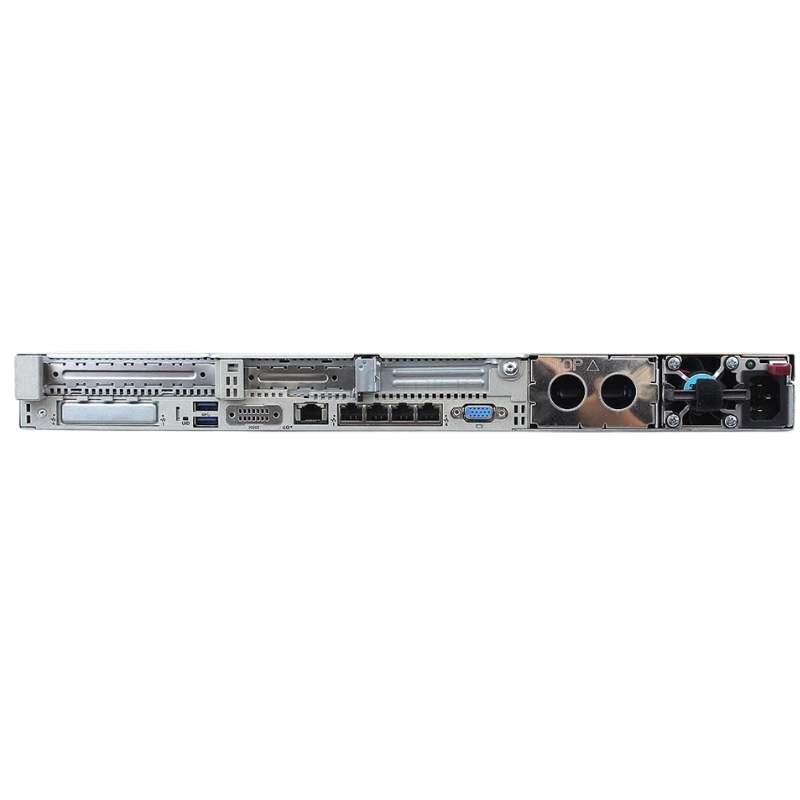

Interfaces & Ports

Available Ports

• VGA: 1
• Serial Port: 1
• LAN Ports: 4 x Gigabit Ethernet
• HP iLO Port: 1
• USB Ports:
  • 5 x USB 3.0 (1 Front, 2 Rear, 2 Internal)

Additional Information

Included Accessories

• HP Easy Install Rails

Compliance Standards

• ACPI 2.0b, FCC Class A Certified, EN 61000-3-2
• EN55022, ICES-003, EN 61000-3-3
• EN55024, CISPR 22, FCC CFR47 Part 15
• IEC 60950-1, EN 60950-1, WEEE
• GB 9254, ASHRAE, CNS 13438

Power Specifications

Power Supply Details

• Device Type: Hot-plug Power Supply
• Power Redundancy: Yes
• Redundancy Scheme: 1+1
• Installed Quantity: 2
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 800 Watt
• 80 Plus Certification: 80 Plus Platinum

Dimensions & Weight

Physical Dimensions

• Width: 17.1 inches
• Depth: 27.5 inches
• Height: 1.7 inches
• Weight: 27.01 lbs

Unmatched Processing Power

The Xeon 12 Core 2.2GHz processor delivers unmatched processing power, allowing users to handle complex tasks and run resource-intensive applications without any lag or slowdowns. Its high clock speed ensures swift execution of instructions, enabling businesses to maximize productivity and achieve faster results.

Improved Multitasking

With 12 cores at its disposal, the Xeon processor excels at multitasking. It can effortlessly handle multiple concurrent processes, enabling users to run various applications simultaneously without experiencing performance bottlenecks. This is particularly beneficial for businesses that rely on virtualization or frequently work with large datasets.

Enhanced Performance for Demanding Applications

Many modern business applications, such as databases, virtualization platforms, and data analytics tools, require substantial computing power to perform optimally. The Xeon 12 Core 2.2GHz processor meets these requirements with ease, ensuring smooth and efficient operation even under heavy workloads. This results in improved application performance and reduced response times, allowing businesses to make faster decisions and enhance overall productivity.

Energy Efficiency

In addition to its impressive performance capabilities, the Xeon 12 Core 2.2GHz processor also boasts excellent energy efficiency. It utilizes advanced power management technologies to minimize power consumption while maintaining optimal performance levels. This not only helps businesses reduce their energy costs but also contributes to a more sustainable IT infrastructure.

Future-Proofing

Investing in a server with a powerful processor like the Xeon 12 Core 2.2GHz ensures future-proofing for businesses. As technology continues to advance and software becomes more demanding, having a robust processor ensures that the server can handle future upgrades and expansions effortlessly. This eliminates the need for frequent hardware replacements, saving businesses both time and money in the long run.

RAM: 32GB DDR4

The HPE Proliant DL360 Gen9 Server is equipped with 32GB of DDR4 RAM, providing ample memory capacity to support a wide range of applications and workloads. The RAM plays a crucial role in the overall performance and responsiveness of the server, making it a vital feature for businesses.

Improved System Responsiveness

The 32GB DDR4 RAM ensures improved system responsiveness, allowing users to perform tasks quickly and efficiently. With ample memory capacity, the server can store frequently accessed data and instructions, reducing the need for constant retrieval from slower storage devices. This results in faster application load times, smoother multitasking, and an overall more seamless user experience.

Efficient Data Processing

Large datasets are becoming increasingly common in today's business environment. The 32GB DDR4 RAM enables businesses to process these datasets efficiently by providing sufficient memory space for temporary data storage and manipulation. This is particularly important for tasks such as data analytics, simulations, and virtualization, where quick access to data is crucial for timely decision-making.

Scalability and Flexibility

The 32GB DDR4 RAM offers scalability and flexibility for businesses that anticipate future growth or increased workloads. It allows businesses to expand their operations without worrying about running out of memory capacity. The server can accommodate additional RAM modules to meet growing demands, providing a cost-effective solution for scaling up the infrastructure.

Reliability and Error Correction

DDR4 RAM incorporates advanced error correction mechanisms, such as ECC (Error-Correcting Code), which detect and correct memory errors. This ensures data integrity and system stability, reducing the risk of system crashes, data corruption, and application failures. The 32GB DDR4 RAM in the HPE Proliant DL360 Gen9 Server offers this reliability, giving businesses peace of mind and minimizing potential downtime.

Optimal Virtualization Performance

Virtualization technology has become a cornerstone of modern IT infrastructure, allowing businesses to maximize resource utilization and streamline operations. The 32GB DDR4 RAM provides sufficient memory capacity to support virtualized environments, enabling businesses to run multiple virtual machines simultaneously without compromising performance. This is particularly beneficial for businesses that rely heavily on virtualization for server consolidation or development and testing purposes.

Part Number: 818209-B21

The part number 818209-B21 is a crucial identifier for the HPE Proliant DL360 Gen9 Server. It allows businesses to accurately identify and procure the specific server model they require, ensuring compatibility and seamless integration within their existing infrastructure.

Compatibility Assurance

The 818209-B21 part number guarantees compatibility with other components and accessories specifically designed for the HPE Proliant DL360 Gen9 Server. This eliminates any guesswork or uncertainty when it comes to expanding or upgrading the server in the future. Businesses can confidently select compatible parts and accessories, ensuring smooth integration and optimal performance.

Efficient Maintenance and Support

Having a specific part number like 818209-B21 simplifies maintenance and support processes for businesses. When troubleshooting or seeking technical assistance, providing the part number allows support personnel to quickly identify the exact model and configuration of the server. This expedites issue resolution and minimizes downtime, ensuring uninterrupted business operations.

Streamlined Procurement

The 818209-B21 part number simplifies the procurement process for businesses. When ordering additional servers or replacement parts, specifying the part number ensures that the correct model is acquired, avoiding any potential compatibility issues. This streamlines the procurement workflow and saves time for businesses, allowing them to focus on more critical aspects of their operations.

Traceability and Documentation

Having a unique part number associated with the HPE Proliant DL360 Gen9 Server enables businesses to maintain accurate records and documentation. They can easily track and document server installations, configurations, and any changes made over time. This traceability is essential for inventory management, compliance requirements, and auditing purposes.

Seamless Upgrades and Expansions

As businesses grow and their requirements evolve, they may need to upgrade or expand their server infrastructure. The 818209-B21 part number facilitates this process by ensuring that the new servers or components are compatible with the existing infrastructure. This allows businesses to seamlessly integrate new hardware, avoiding any disruptions or compatibility issues that could impact productivity.
