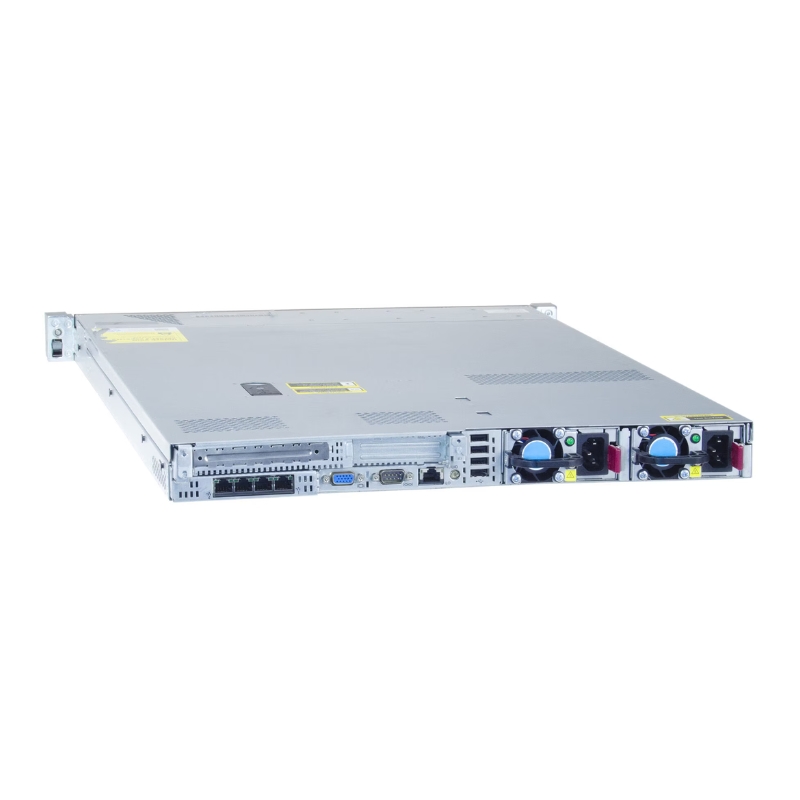

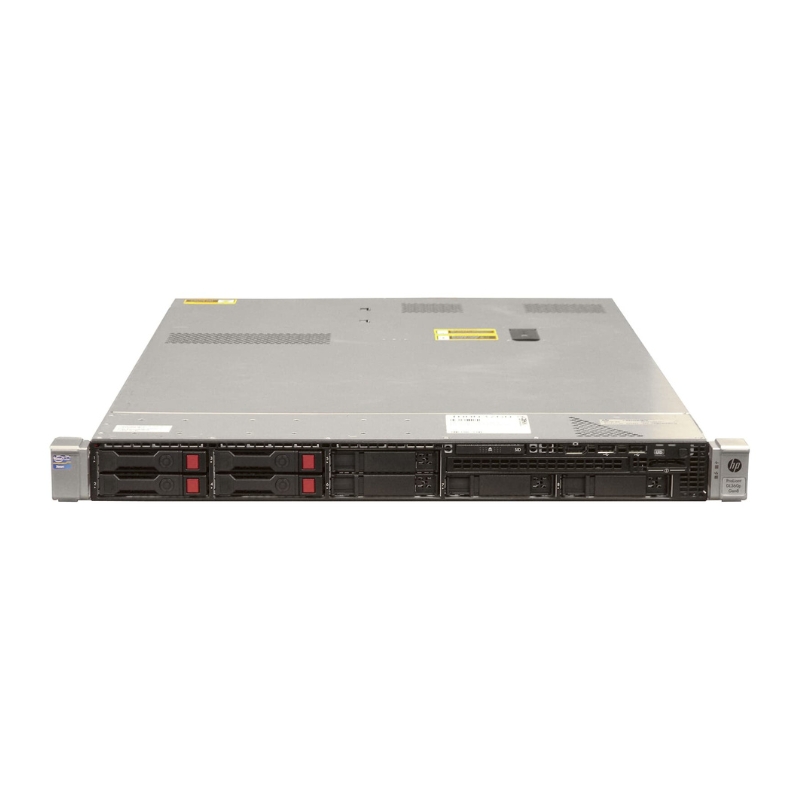

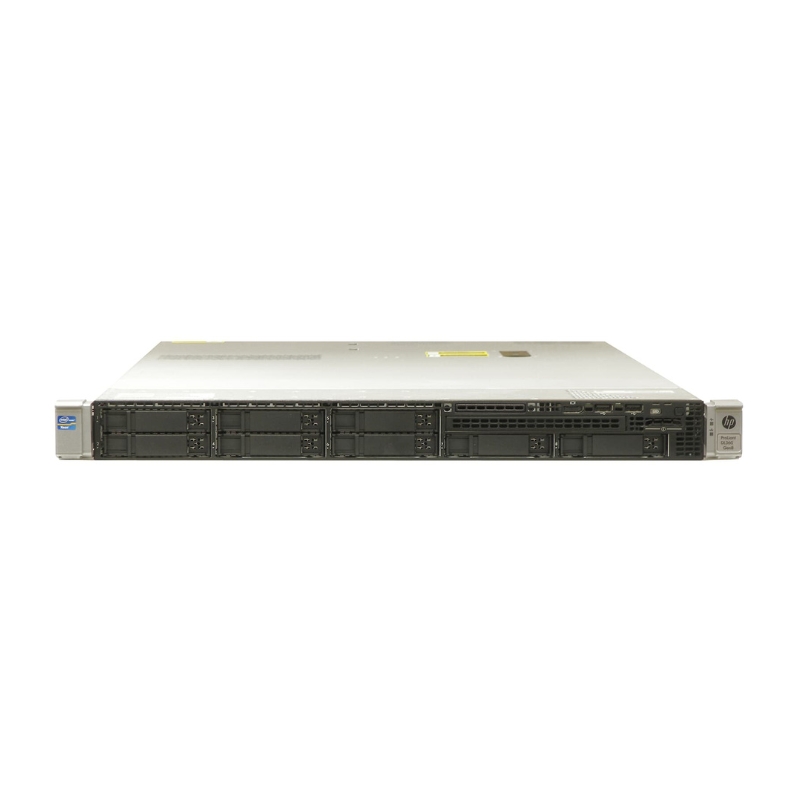

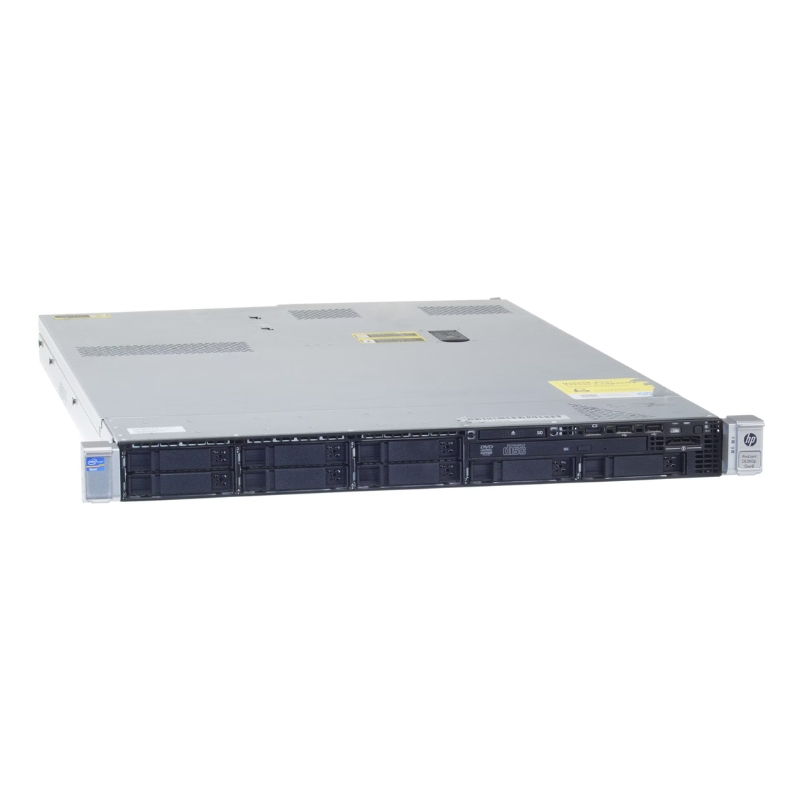

HPE DL360p G8 1U E5-2609 2.4GHz Xeon Rack Server 670632-S01

Processor

The HPE ProLiant DL360p G8 Rack Server is equipped with a powerful Intel Xeon E5-2609 2.4GHz processor. This processor is a key component of the server that plays a crucial role in its performance and efficiency. In this section, we will explore the benefits and importance of this feature for users.

General Details

• Manufacturer: Hewlett Packard Enterprise
• Manufacturer Part Number: 670632-S01
• Product Name: ProLiant DL360p Gen8 - 2U Rack Server (Smart Buy Model)

Processor and Chipset Information

Processor Specifications

• Processor Type: Intel Xeon E5-2609 / 2.4 GHz
• Core Count: Quad-core
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• 64-bit Computing: Yes
• Upgradability: Upgradable
• Chipset Type: Intel C600

Cache Memory

• Cache Memory Type: L3 Cache
• Installed Size: 10 MB
• Cache Per Processor: 10 MB

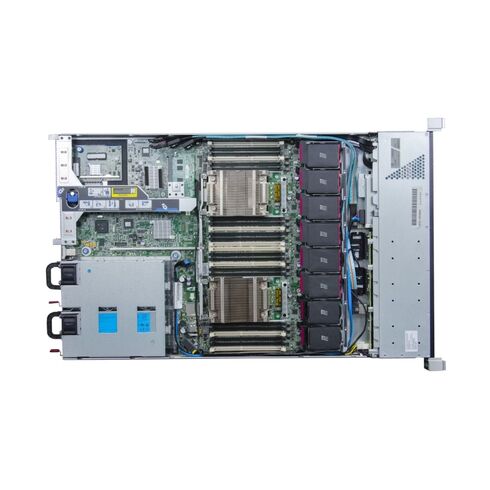

Memory Specifications

Installed and Supported Memory

• Installed Memory Size: 8 GB
• Maximum Memory Size: 384 GB
• Memory Technology: DDR3 SDRAM
• Effective Memory Speed: 1333 MHz
• Memory Compliance: PC3-10600
• Form Factor: DIMM 240-pin
• Memory Slots: 24 (Total), 23 (Empty)
• Configuration Example: 1 x 8 GB

Supported RAM Configurations

• PC3-12800: Up to 384 GB (Registered)
• PC3-10600: Up to 768 GB (Registered), Up to 128 GB (Unbuffered, Advanced ECC)

Storage and Optical Features

Storage Options

• Hard Drive: None
• Optical Drive: None

Storage Controller

• Type: Integrated RAID - PCIe 3.0 x8
• Interface Types: SATA 6 Gb/s, SAS 6 Gb/s
• Controller Name: Smart Array P420i with ZM
• RAID Levels: 0, 1, 5, 6, 10, 50, 60
• Buffer Size: ZM

Display and Graphics

• Graphics Controller Type: Integrated
• Graphics Processor: Matrox G200
• Video Interfaces: VGA

Networking and Communication

Network Interface

• Type: Plug-in Card
• Bus Type: PCI Express x4
• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331FLR
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP)

Expansion and Connectivity

Expansion Bays

• External 5.25-inch Bays: 1 (Total), 1 (Free)
• Hot-Swap 2.5-inch SFF Bays: 8 (Total), 8 (Free)

Expansion Slots

• DIMM 240-pin Slots: 24 (Total), 23 (Free)
• CPU Slots: 2 (Total), 1 (Free)
• PCIe 3.0 x16 Slot: 1 (Total), 1 (Free, Half-length, Full-height)
• PCIe 3.0 x8 Slot: 1 (Total), 1 (Free, Low-profile)
• SD Card Slot (Internal): 1 (Total), 1 (Free)

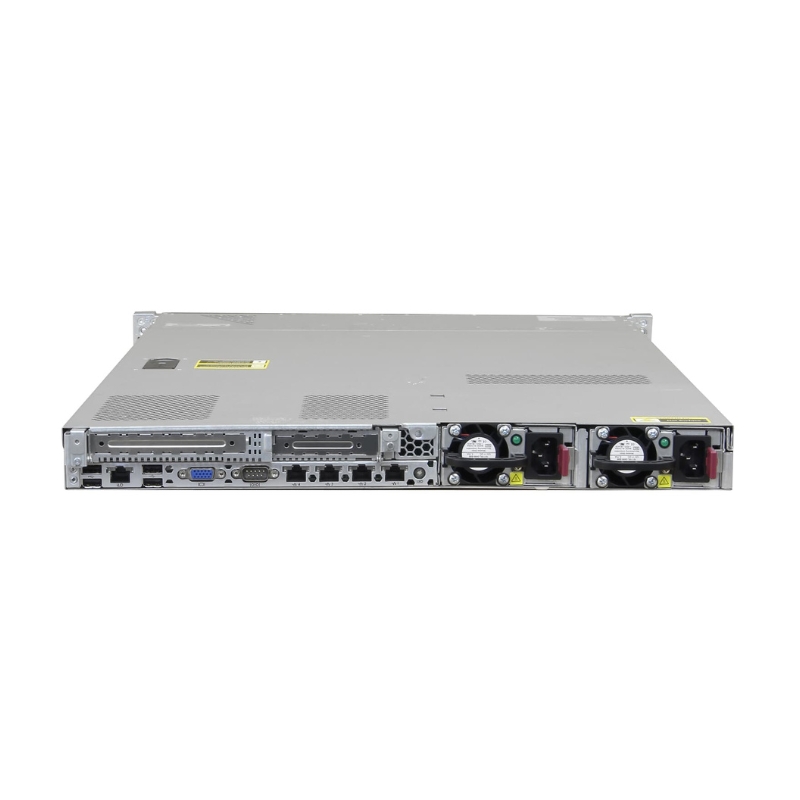

Interfaces and Ports

• Serial Port: 1
• VGA Port: 1
• LAN Ports (Gigabit Ethernet): 4
• HP iLO Port: 1
• USB 2.0 Ports: 6 (2 Front, 4 Rear)

Additional Features

• Administrator Password
• Power-on Password
• Keyboard Password
• Serial Port I/O Control
• QuickLock Feature

Compliance and Standards

• ACPI 2.0b
• FCC Class A Certified
• EN 61000-3-2
• EN55022
• ICES-003
• EN 61000-3-3
• EN55024
• CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1
• EN 60950-1
• BSMI CNS 13438

Manufacturer Selling Program

HP Smart Buy

Power Specifications

• Power Device Type: Hot-Plug Power Supply
• Power Redundancy: Yes (1+1 Scheme)
• Installed Power Supplies: 2
• Maximum Supported Power Supplies: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 460 Watt
• 80 Plus Certification: 80 Plus Gold
• Efficiency: 94%

Dimensions and Weight

• Width: 17.1 inches
• Depth: 27.5 inches
• Height: 1.7 inches
• Weight: 31.99 lbs

Enhanced Performance

The Intel Xeon E5-2609 2.4GHz processor provides exceptional performance capabilities for the HPE ProLiant DL360p G8 Rack Server. With its four cores and eight threads, it enables the server to handle demanding workloads with ease. Whether you are running resource-intensive applications, virtualization environments, or data-intensive tasks, this processor ensures smooth and efficient operations.

Improved Multitasking

Multitasking is an essential requirement for modern servers, especially in enterprise environments. The Intel Xeon E5-2609 2.4GHz processor excels in this aspect by offering advanced multitasking capabilities. Its simultaneous multi-threading technology allows each core to handle two threads simultaneously. This means that the server can efficiently execute multiple tasks at once, increasing productivity and reducing response times.

Optimized Workload Management

The HPE ProLiant DL360p G8 Rack Server's Intel Xeon E5-2609 2.4GHz processor also features Intel's smart cache technology. This technology dynamically allocates and shares cache resources between the processor cores based on workload demands. As a result, it optimizes data access and reduces latency, enabling faster execution of tasks and smoother overall performance.

Energy Efficiency

Energy efficiency is a critical consideration for any server deployment. The Intel Xeon E5-2609 2.4GHz processor is designed with power-saving features, allowing the HPE ProLiant DL360p G8 Rack Server to operate efficiently while minimizing energy consumption. This not only reduces operational costs but also contributes to a greener and more sustainable IT infrastructure.

Reliability and Scalability

The Intel Xeon E5-2609 2.4GHz processor is known for its reliability and scalability. It is built with robust architecture and undergoes rigorous testing to ensure high-quality performance and long-term reliability. Additionally, this processor supports Intel's advanced virtualization technologies, enabling seamless scalability and efficient resource allocation in virtualized environments.

Form Factor

The HPE ProLiant DL360p G8 Rack Server boasts a compact 1U form factor. This form factor is a crucial feature that brings several benefits and importance for users.

Space Efficiency

The 1U form factor of the HPE ProLiant DL360p G8 Rack Server allows it to fit into a standard server rack with ease. This is particularly advantageous for businesses with limited physical space or those looking to maximize their server density. By occupying only a single rack unit, this server enables efficient utilization of available space, allowing for the deployment of more servers within the same rack.

Scalability

Despite its compact size, the 1U form factor does not compromise on scalability. The HPE ProLiant DL360p G8 Rack Server supports a flexible configuration that accommodates various expansion options. It features multiple PCIe slots, drive bays, and memory slots, allowing users to customize the server's capabilities according to their specific requirements. This scalability makes it an ideal choice for businesses that anticipate future growth or evolving computing needs.

Ease of Maintenance

The 1U form factor simplifies maintenance tasks for the HPE ProLiant DL360p G8 Rack Server. With its compact design, the server's components are easily accessible from the front or rear of the rack. This facilitates faster and more convenient hardware upgrades, replacements, or troubleshooting. Additionally, the server's hot-swappable components further enhance its maintainability by minimizing downtime during hardware modifications.

Cooling Efficiency

Heat dissipation is a critical concern in server environments. The 1U form factor of the HPE ProLiant DL360p G8 Rack Server contributes to efficient cooling management. The compact design allows for better airflow and heat dissipation within the server rack. This helps prevent overheating issues and ensures optimal performance and reliability of the server components.

Cost Savings

The 1U form factor offers cost-saving advantages for users. By occupying less physical space, it reduces the need for larger server rooms or dedicated cooling systems, resulting in lower infrastructure costs. Additionally, the smaller form factor consumes less power, leading to reduced energy expenses. These cost savings can be significant for businesses operating on tight budgets or aiming to optimize their IT expenditure.

Sku

The HPE ProLiant DL360p G8 Rack Server is identified by its unique SKU, which in this case is 670632-S01. The SKU is an important feature that provides several benefits and importance for users.

Easy Identification

The SKU serves as a unique identifier for the HPE ProLiant DL360p G8 Rack Server model. It simplifies the process of identifying and distinguishing this specific server from other models within the HPE product line. Whether you are procuring, managing, or discussing the server with support personnel, referring to its SKU ensures clear communication and accurate understanding of the intended model.

Compatibility Assurance

The SKU also plays a crucial role in ensuring compatibility with server components and accessories. HPE designs and tests its products to be compatible with specific server models identified by their SKUs. By referencing the SKU, users can confidently select compatible components such as memory modules, storage drives, expansion cards, or power supplies. This compatibility assurance minimizes the risk of compatibility issues or performance limitations.

Configuration Management

The SKU helps streamline configuration management for the HPE ProLiant DL360p G8 Rack Server. It serves as a reference point for tracking and managing different server configurations within an organization. By associating specific SKU numbers with unique configurations, IT administrators can efficiently maintain an inventory of servers and ensure consistency across deployments. This simplifies tasks such as software updates, firmware upgrades, or hardware replacements.

Warranty and Support

The SKU is also essential for warranty and support purposes. HPE provides warranties and support services tailored to specific server models identified by their SKUs. By registering the SKU, users can ensure they receive the appropriate level of warranty coverage and access to technical support resources. This facilitates prompt resolution of any potential hardware or software issues, minimizing downtime and ensuring business continuity.

Simplified Procurement

The SKU simplifies the procurement process for the HPE ProLiant DL360p G8 Rack Server. By referencing the SKU in purchase orders or inquiries, users can accurately communicate their requirements to vendors or HPE resellers. This eliminates confusion or errors that may arise from using alternative identification methods. Additionally, vendors can quickly identify and deliver the correct server model based on its SKU, ensuring a smooth procurement experience.

In conclusion, the HPE ProLiant DL360p G8 Rack Server's Intel Xeon E5-2609 2.4GHz processor, 1U form factor, and SKU provide significant benefits and importance for users. The processor delivers enhanced performance, improved multitasking, optimized workload management, and energy efficiency. The 1U form factor ensures space efficiency, scalability, ease of maintenance, and cooling efficiency. The SKU offers easy identification, compatibility assurance, configuration management, warranty and support benefits, and simplified procurement. All these features combine to make the HPE ProLiant DL360p G8 Rack Server a reliable and efficient choice for businesses in need of a powerful and compact server solution.
