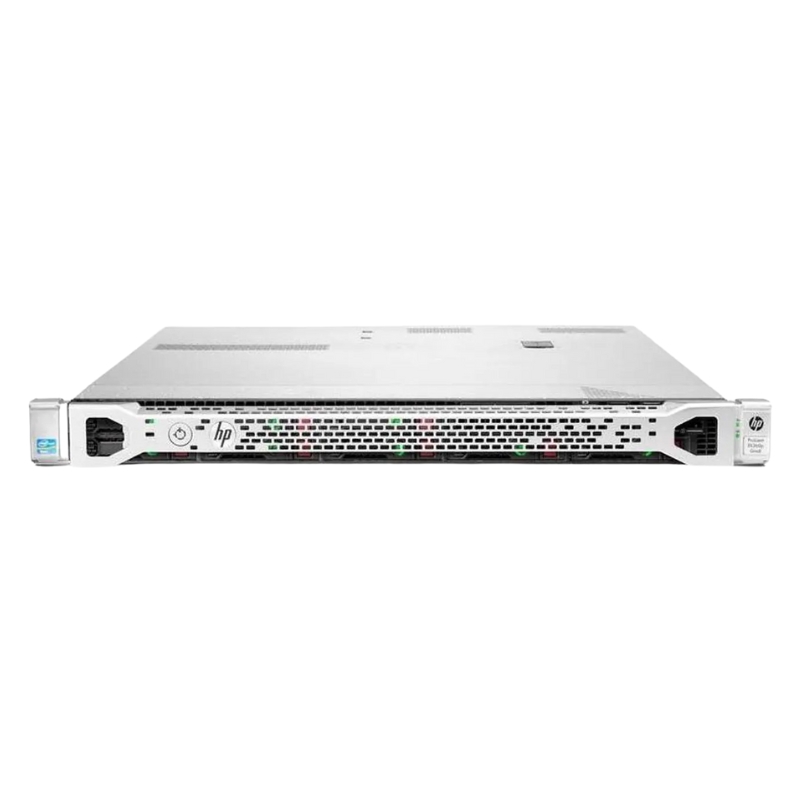

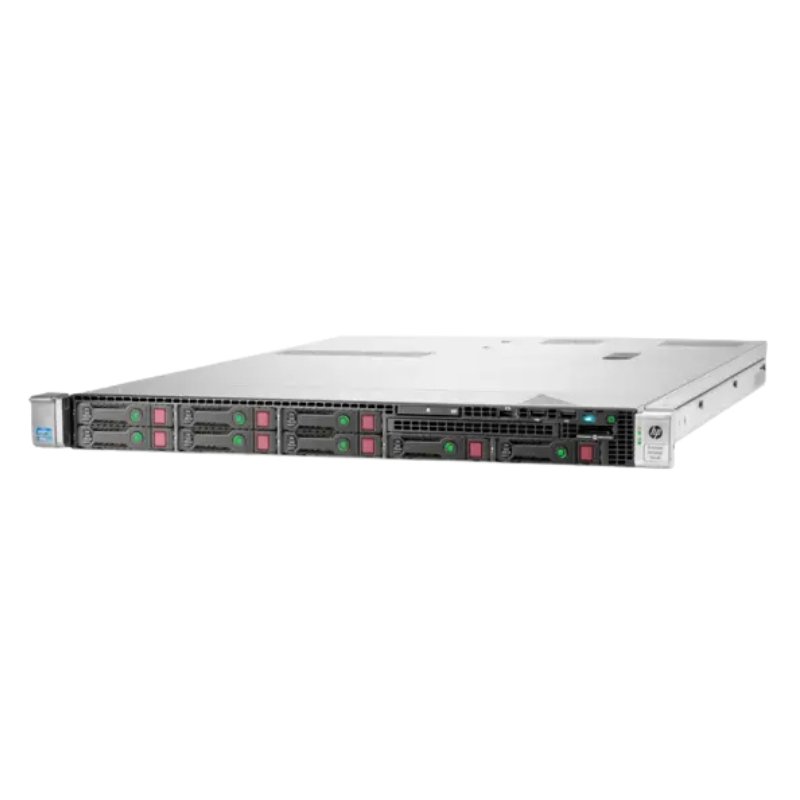

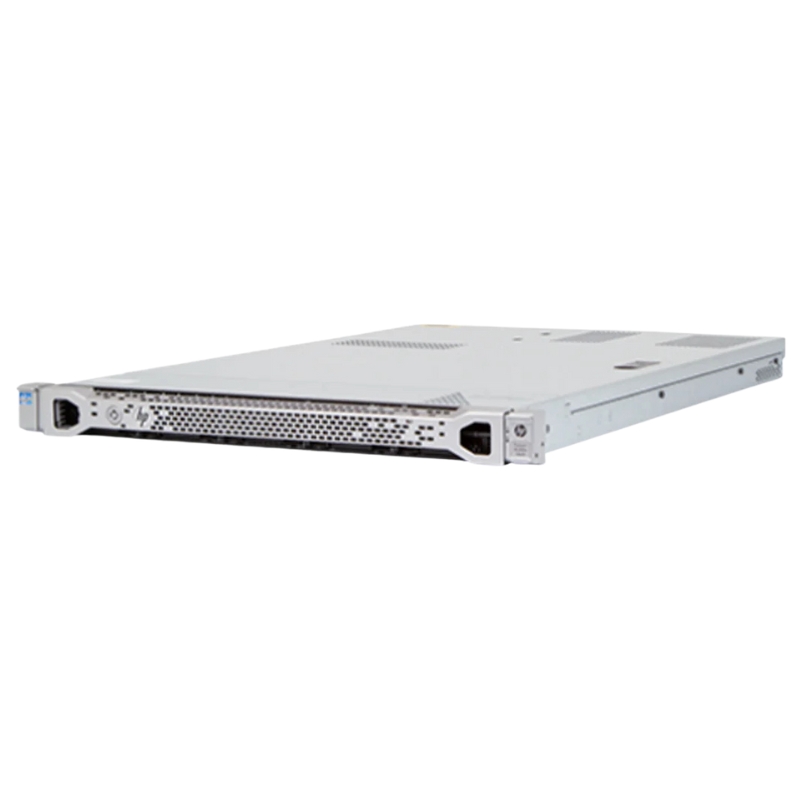

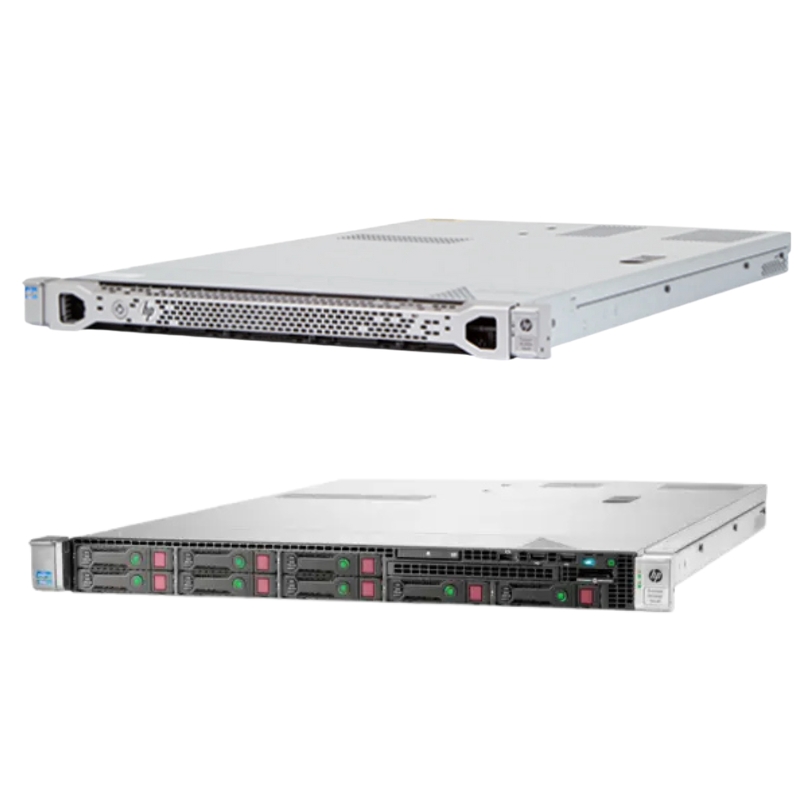

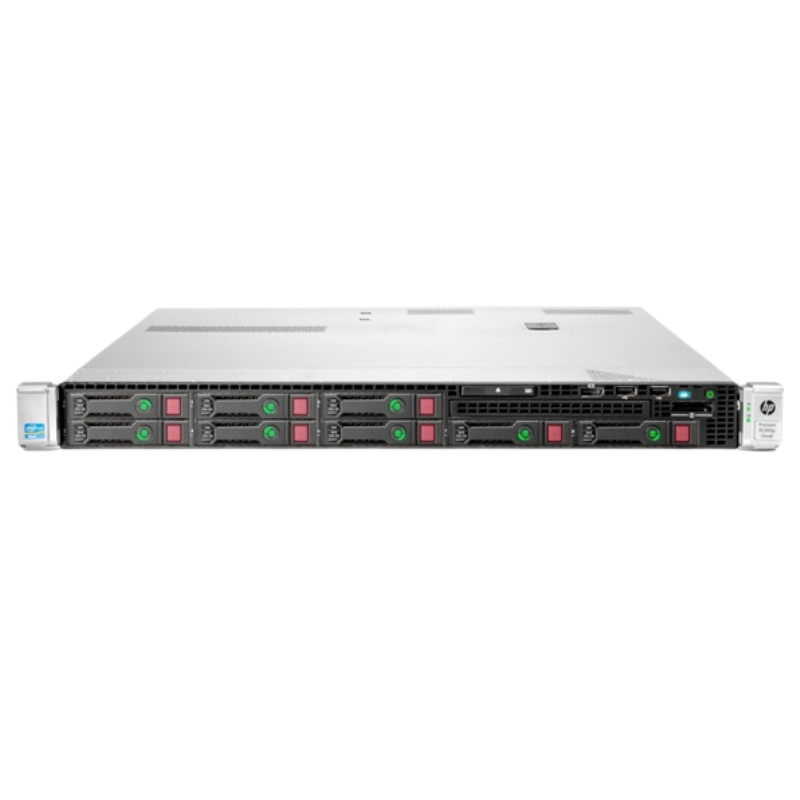

HPE DL360p Gen8 Server 737293-S01 Xeon 10 Core 2.2GHz 32GB DDR3

Processor

The HPE Proliant DL360p Gen8 Server is equipped with a powerful Xeon 10 Core 2.2GHz processor, making it a formidable choice for businesses and organizations requiring high-performance computing. The processor is the heart of any server, and the Xeon 10 Core 2.2GHz offers exceptional capabilities that set this server apart from its competitors.

General Information of DL360p

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Part Number: 737293-S01
• Product Name: ProLiant DL360p Gen8 1U Rack Server

Processor & Chipset

• Processor Type: Intel Xeon E5-2660v2
• Clock Speed: 2.2 GHz
• Socket Type: FCLGA2011
• Core Count: 10-core
• 64-bit Computing: Supported
• Installed Processors: 2
• Maximum Processors Supported: 2
• Chipset Model: Intel C600
• Data Bus Speed: 1866 MHz

Cache Memory

• Cache Type: L3 Cache
• Installed Cache Size: 50 MB
• Cache Per Processor: 25 MB

Memory Configuration

• Current RAM Size: 32 GB
• Maximum Supported RAM: 768 GB
• Memory Type: DDR3 SDRAM
• Memory Speed: 1866 MHz
• Memory Form Factor: DIMM 240-pin
• Total Memory Slots: 24

Memory Specifications

• PC-3 14900 Compliance: Yes
• Configuration Options:
  • 2 x 16 GB
  • PC3-12800: 384 GB (Registered)
  • PC3-10600: 768 GB (Load-reduced)
  • PC3-10600: 128 GB (Unbuffered - Advanced ECC)
  • PC3-10600: 384 GB (Hypercloud)

Storage & Storage Controllers

• Installed Hard Drive: None

Storage Controller

• Type: RAID - Plug-in Card
• Interface: PCI Express 3.0 x8
• Controller Name: Smart Array P420i with 2GB FBWC
• Supported RAID Levels: RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
• Buffer Size: 2 GB

Card Reader

• Included Memory Card Reader: Yes
• Supported Card Types: Secure Digital (SD) Card

Display & Graphics

• Graphics Controller: Matrox G200
• Video Interface: VGA

Network & Communication

• Networking Type: Plug-in Card
• Bus Type: PCI Express 2.0 x8
• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Ethernet Controller: HP 331FLR-T
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 4 (iLO 4)
• Features: Wake-on-LAN (WoL), PXE Support
• Compliant Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.1q
  • IEEE 802.3ab
  • IEEE 802.1p
  • IEEE 802.3ad (LACP)

Expansion & Connectivity

• Total Bays: 1 x Front Accessible 5.25in Slim Line
• Hot-Swap Bays: 8 x 2.5in SFF

Expansion Slots

• Memory Slots: 24 (22 free)
• Processor Slots: 2 (0 free)
• PCI Express 3.0 x16 Slot: 1 (1 free)
• PCI Express 3.0 x8 Slot: 1 (1 free)
• FlexibleLOM Slot: 1 (0 free)

Interfaces & Ports

• Serial Port: 1 x RS-232 (9-pin D-sub)
• Display/Video Port: 1 x VGA (15-pin HD D-sub)
• USB Ports: 7 x USB (4 rear, 2 front, 1 internal)
• Network Ports: 4 x Ethernet (RJ-45)
• Management Port: 1 x HP iLO (RJ-45)

Power Description

• Power Supply Type: Hot-plug
• Power Redundancy: Optional
• Redundancy Scheme: 1+1 (with optional power supply)
• Installed Power Supplies: 2
• Maximum Supported Power Supplies: 2
• Voltage Requirement: AC 120/230V (50/60 Hz)
• Power Provided: 750 Watts
• 80 Plus Certification: 80 Plus Platinum

Dimensions & Weight

• Height: 1.7 inches
• Width: 17.1 inches
• Depth: 27.5 inches
• Weight: 32.0 lbs

Enhanced Performance

The Xeon 10 Core 2.2GHz processor delivers outstanding performance, allowing the HPE Proliant DL360p Gen8 Server to handle demanding workloads with ease. With ten cores and a base frequency of 2.2GHz, this processor can execute multiple tasks simultaneously, resulting in faster data processing and improved overall efficiency. This enhanced performance is particularly beneficial for resource-intensive applications such as virtualization, database management, and data analytics.

Improved Multithreading

Multithreading is a crucial feature in modern servers, as it enables concurrent execution of multiple threads or processes. The Xeon 10 Core 2.2GHz processor supports Hyper-Threading Technology, which effectively doubles the number of threads that the server can handle. This means that the HPE Proliant DL360p Gen8 Server can efficiently handle multiple tasks concurrently, allowing for better resource utilization and improved system responsiveness.

Optimized Power Efficiency

Efficiency is a key consideration for any server deployment, as it directly impacts operational costs and environmental impact. The Xeon 10 Core 2.2GHz processor incorporates advanced power management technologies that optimize power consumption without compromising performance. By dynamically adjusting clock speeds and power usage based on workload demands, this processor ensures that the HPE Proliant DL360p Gen8 Server operates at peak efficiency while minimizing energy consumption.

Scalability and Future-Proofing

The Xeon 10 Core 2.2GHz processor provides excellent scalability, allowing businesses to easily upgrade their server's performance as their needs grow. With ten cores and support for advanced features such as Turbo Boost Technology, this processor can handle demanding workloads both now and in the future. By investing in a server with a powerful processor like the Xeon 10 Core 2.2GHz, organizations can ensure that their infrastructure remains capable of meeting their evolving requirements.

Memory

In addition to its impressive processor, the HPE Proliant DL360p Gen8 Server comes with 32GB DDR3 memory. The memory capacity plays a critical role in determining a server's ability to handle concurrent tasks and store and retrieve data quickly. With 32GB of DDR3 memory, this server offers exceptional performance and benefits for businesses across various industries.

Enhanced Workload Capacity

The 32GB DDR3 memory in the HPE Proliant DL360p Gen8 Server provides ample capacity to handle a wide range of workloads simultaneously. With this generous memory allocation, businesses can run multiple applications, virtual machines, and databases without experiencing performance bottlenecks. This enhanced workload capacity translates to improved productivity, reduced downtime, and better overall user experience.

Faster Data Processing

DDR3 memory technology offers significant improvements over its predecessors in terms of data transfer speeds. The 32GB DDR3 memory in the HPE Proliant DL360p Gen8 Server allows for quick access to frequently used data, resulting in faster data processing and reduced latency. This is particularly beneficial for applications that rely on real-time data analysis, such as financial trading platforms or scientific simulations.

Reliability and Redundancy

Reliability is a critical factor when choosing a server for business-critical operations. The 32GB DDR3 memory in the HPE Proliant DL360p Gen8 Server is designed to provide high levels of reliability and data integrity. ECC (Error-Correcting Code) memory technology is incorporated to detect and correct single-bit memory errors, minimizing the risk of data corruption and system crashes. This ensures that the server operates reliably and consistently, even under heavy workloads.

Future Expandability

The 32GB DDR3 memory in the HPE Proliant DL360p Gen8 Server offers room for future growth and scalability. Businesses can easily expand the server's memory capacity by adding additional modules as their requirements evolve. This flexibility allows organizations to adapt to changing workloads without the need for a complete server replacement, saving both time and money.

In conclusion, the HPE Proliant DL360p Gen8 Server stands out with its powerful Xeon 10 Core 2.2GHz processor and generous 32GB DDR3 memory. The processor's enhanced performance, improved multithreading capabilities, optimized power efficiency, and scalability make it an ideal choice for organizations in need of high-performance computing. The ample memory capacity of 32GB DDR3 ensures enhanced workload capacity, faster data processing, reliability, and future expandability. With these features, the HPE Proliant DL360p Gen8 Server is well-equipped to handle demanding tasks and meet the evolving needs of businesses across various industries.
