HPE DL360P Gen8 Server Xeon 3.0GHz 10 Core 32GB DDR3 748302-S01

Processor

The HPE Proliant DL360P Gen8 Server is equipped with a powerful Xeon 3.0GHz 10 Core processor. This feature sets it apart from other servers in terms of processing capability and performance. The Xeon 3.0GHz 10 Core processor offers numerous benefits for users, making it an essential component of this server.

Main Specification of 32GB DDR3

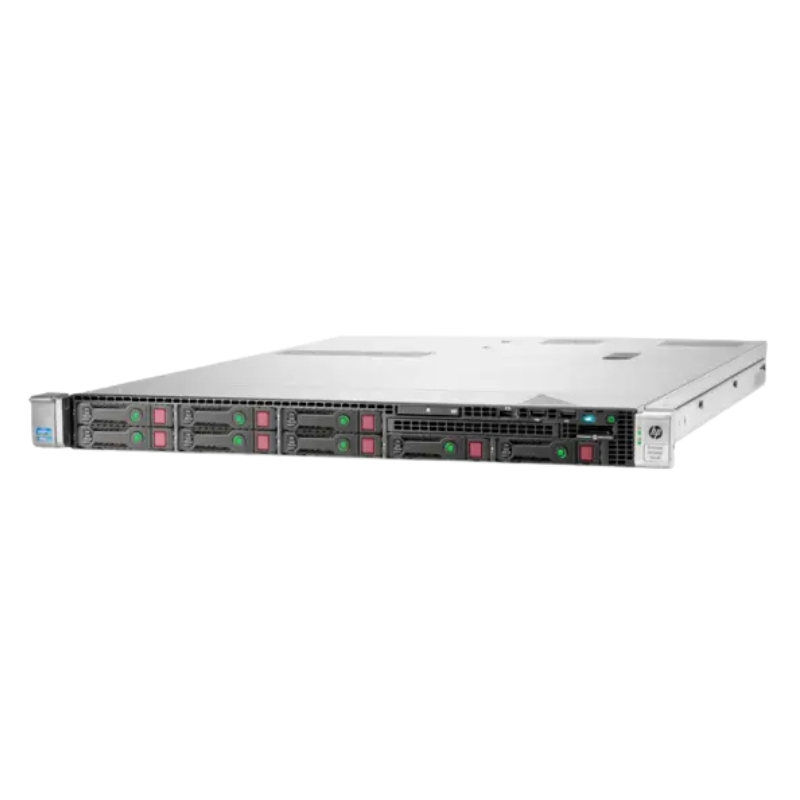

Discover the HPE ProLiant DL360p G8 1U Rack Server, model number 748302-S01. Engineered for high performance, this 1U server provides an ideal solution for data centers and enterprise environments.

Manufacturer Details

• Brand: Hewlett Packard Enterprise (HPE)
• Product Part Number: 748302-S01
• Product Name: ProLiant DL360p G8 1U Rack Server

Processor & Chipset

• Processor Type: Intel Xeon E5-2690v2, 3.0 GHz
• Socket Compatibility: FCLGA2011
• Core Count: 10-core
• 64-bit Computing: Yes
• Installed Processors: 2
• Maximum Processors Supported: 2
• Chipset Model: Intel C600
• Data Bus Speed: 1866 MHz

Cache Memory

• Cache Type: L3 Cache
• Installed Cache Size: 50 MB
• Cache Per Processor: 25 MB

Memory Specifications

• Installed RAM: 32 GB, expandable up to 768 GB
• Memory Technology: DDR3 SDRAM
• Memory Speed: 1866 MHz
• Memory Compliance: PC3-14900
• Form Factor: DIMM 240-pin
• Total Memory Slots: 24

Supported RAM Configurations

• 2 x 16 GB RAM (PC3-12800)
• 384 GB Registered (PC3-10600)
• 768 GB Load-reduced (PC3-10600)
• 128 GB Unbuffered Advanced ECC (PC3-10600)
• 384 GB Hypercloud (PC3-10600)

Storage & Controllers

• Hard Drive: None
• Storage Controller Type: RAID Plug-in Card, PCI Express 3.0 x8
• Controller Interface: SATA-600 / SAS 2.0
• Controller Model: Smart Array P420i with 1GB FBWC
• RAID Levels Supported: 0, 1, 5, 10, 50
• Buffer Size: 1 GB

Card Reader

• Memory Card Reader: Yes
• Supported Flash Memory: Secure Digital (SD) Card

Display & Graphics

• Graphics Controller: Matrox G200
• Video Interface: VGA

Networking & Communication

• Networking Type: Plug-in Card
• Interface Type: PCI Express 2.0 x8
• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Ethernet Controller: HP 331FLR-T
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 4 (iLO4)
• Features: Wake-on-LAN (WoL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP)

Expansion & Connectivity

• Expansion Bays:
  • 1 x Front Accessible - 5.25" Slim Line
  • 8 x Hot-swap - 2.5" SFF
• Expansion Slots:
  • 24 x Memory - DIMM 240-pin (22 free)
  • 2 x Processor (0 free)
  • 1 x PCI Express 3.0 x16 - Half-length, Full-height (1 free)
  • 1 x PCI Express 3.0 x8 - Low-profile (1 free)
  • 1 x FlexibleLOM (x4 mode) (0 free)

Interfaces & Ports

• 1 x Serial - RS-232 - 9 Pin D-sub (DB-9)
• 1 x Display/Video - VGA - 15 Pin HD D-sub (HD-15)
• 7 x USB - 4 Pin USB Type A (2 Front, 4 Rear, 1 Internal)
• 4 x Network - Ethernet 10BASE-T/100BASE-TX/1000BASE-TX - RJ-45
• 1 x Management - HP iLO - RJ-45

Power Specifications

• Device Type: Hot-plug Power Supply
• Power Redundancy: Optional
• Redundancy Scheme: 1+1 (with Optional Power Supply)
• Installed Power Supplies: 2
• Maximum Supported Power Supplies: 2
• Voltage Required: AC 120/230 V (50/60 Hz)
• Power Output: 750 Watt
• 80 Plus Certification: 80 Plus Platinum

Dimensions & Weight

• Height: 1.7 in
• Width: 17.1 in
• Depth: 27.5 in
• Weight: 32.0 lbs

Enhanced Performance

The Xeon 3.0GHz 10 Core processor delivers exceptional performance, enabling the HPE Proliant DL360P Gen8 Server to handle demanding workloads efficiently. With its high clock speed and multiple cores, this processor can execute tasks swiftly and effectively. Whether you are running resource-intensive applications or performing complex computations, the Xeon 3.0GHz 10 Core processor ensures smooth and responsive performance.

Multitasking Capabilities

Thanks to its 10 cores, this processor allows for efficient multitasking. Users can run multiple applications simultaneously without experiencing significant slowdowns or performance bottlenecks. Whether you need to run virtual machines, perform data analysis, or host a website, the Xeon 3.0GHz 10 Core processor ensures that your server can handle multiple tasks concurrently without compromising performance.

Improved Responsiveness

The Xeon 3.0GHz 10 Core processor enhances the overall responsiveness of the HPE Proliant DL360P Gen8 Server. It minimizes latency and ensures quick response times, enabling users to access data and applications swiftly. This is particularly beneficial for businesses that rely on real-time data processing or require rapid access to critical information.

Scalability

When it comes to scalability, the Xeon 3.0GHz 10 Core processor offers significant advantages. As your business grows and demands increase, this processor can accommodate expanding workloads. Its powerful performance capabilities ensure that your server can handle the increased load without compromising efficiency. This scalability is crucial for businesses that anticipate future growth and need a server that can adapt to changing requirements.

Energy Efficiency

Despite its impressive performance capabilities, the Xeon 3.0GHz 10 Core processor is designed to be energy-efficient. It incorporates advanced power management features that optimize energy consumption, helping to reduce operational costs and environmental impact. By utilizing power efficiently, this processor ensures a balance between performance and energy consumption, making it an environmentally conscious choice for businesses.

Reliability and Stability

The Xeon 3.0GHz 10 Core processor is known for its reliability and stability. It is built with high-quality components and undergoes rigorous testing to ensure optimal performance and durability. This processor can handle demanding workloads for extended periods without overheating or experiencing performance degradation. Its reliability is essential for businesses that require continuous operation and minimal downtime.

Memory

The HPE Proliant DL360P Gen8 Server features 32GB DDR3 memory, which plays a crucial role in enhancing the server's performance and efficiency. The ample memory capacity ensures that this server can handle complex tasks and data-intensive applications effectively.

Improved Workload Management

With 32GB of DDR3 memory, the HPE Proliant DL360P Gen8 Server can efficiently manage workloads of varying sizes and complexities. This memory capacity allows for seamless multitasking, enabling users to run multiple applications simultaneously without compromising performance. Whether you are running databases, virtual machines, or web servers, the ample memory ensures smooth operation and efficient workload management.

Faster Data Access

The 32GB DDR3 memory significantly enhances data access speeds on the HPE Proliant DL360P Gen8 Server. With large amounts of memory available, frequently accessed data can be stored in memory for quick retrieval. This reduces the reliance on slower storage devices, such as hard drives, and improves overall system responsiveness. Faster data access is particularly beneficial for applications that require real-time data processing or involve handling large datasets.

Optimized Virtualization Performance

Virtualization is a key feature of modern data centers, and the 32GB DDR3 memory in the HPE Proliant DL360P Gen8 Server enhances virtualization performance. With sufficient memory capacity, the server can support multiple virtual machines simultaneously without experiencing significant performance degradation. This allows businesses to consolidate their infrastructure, reduce hardware costs, and improve overall efficiency.

Future-Proofing

The 32GB DDR3 memory provides ample room for growth and future requirements. As businesses expand and their workloads increase, having sufficient memory is crucial to maintain optimal performance. With 32GB of memory, the HPE Proliant DL360P Gen8 Server can accommodate growing demands and ensure that it remains capable of handling future workloads without the need for immediate upgrades.

Reliability and Redundancy

The HPE Proliant DL360P Gen8 Server's 32GB DDR3 memory offers reliability and redundancy features to ensure data integrity and system stability. Error-correcting code (ECC) technology detects and corrects memory errors, minimizing the chances of data corruption or system crashes. This reliability is essential for businesses that rely on continuous operation and cannot afford disruptions or data loss.

Power Efficiency

In addition to its performance benefits, the 32GB DDR3 memory is designed to be power-efficient. It operates at lower voltages, reducing energy consumption and contributing to overall energy savings. By utilizing power efficiently, this memory module helps businesses reduce their carbon footprint and lower operational costs.

Part Number

The HPE Proliant DL360P Gen8 Server features part number 748302-S01, which is a unique identifier for this specific model. The part number holds significance and benefits for users, providing essential information and facilitating efficient identification and procurement processes.

Identification and Compatibility

The part number, 748302-S01, uniquely identifies the HPE Proliant DL360P Gen8 Server model. This identification ensures that users can accurately refer to and communicate the specific server variant they require. Additionally, the part number helps streamline compatibility checks, making it easier to verify whether certain components or accessories are compatible with this particular server model. This simplifies the procurement process and reduces the chances of purchasing incompatible parts.

Efficient Service and Support

The part number plays a crucial role in facilitating efficient service and support for the HPE Proliant DL360P Gen8 Server. When contacting customer support or service providers, providing the part number ensures that they can quickly identify the server model and offer tailored assistance. This expedites troubleshooting, reduces downtime, and helps businesses maintain optimal server performance.

Product Documentation and Information

The part number serves as a reference point for accessing product documentation and information related to the HPE Proliant DL360P Gen8 Server. By using the part number, users can easily locate manuals, technical specifications, firmware updates, and other essential resources provided by Hewlett Packard Enterprise (HPE). Access to comprehensive documentation enables users to make informed decisions, perform configuration changes, and implement best practices for their servers.

Inventory Management

For businesses with multiple servers or a large IT infrastructure, the part number plays a vital role in inventory management. By associating each server with its unique part number, businesses can accurately track their assets, manage warranties, and plan for future expansions or upgrades. This helps businesses maintain an organized and efficient IT environment, ensuring that they have the necessary resources available when needed.

Procurement Efficiency

The part number streamlines the procurement process for the HPE Proliant DL360P Gen8 Server. By specifying the part number during purchasing, businesses can ensure that they receive the correct server model with the desired specifications. This reduces the chances of receiving incorrect or incompatible products, saving time and minimizing the need for returns or exchanges.

Compatibility with Accessories and Components

The part number facilitates compatibility checks with accessories and components designed specifically for the HPE Proliant DL360P Gen8 Server. When selecting additional storage drives, expansion cards, or other peripherals, users can refer to the part number to ensure compatibility. This ensures seamless integration of new components into the server infrastructure and avoids potential issues caused by incompatible hardware.

In conclusion, the HPE Proliant DL360P Gen8 Server's Xeon 3.0GHz 10 Core processor, 32GB DDR3 memory, and part number 748302-S01 are integral features that contribute to its performance, efficiency, and ease of use. The Xeon processor's enhanced performance and multitasking capabilities ensure smooth operation even under demanding workloads. The abundant DDR3 memory provides improved workload management, faster data access, and optimized virtualization performance. Additionally, the unique part number simplifies identification, compatibility checks, service and support, inventory management, and procurement processes. Together, these features make the HPE Proliant DL360P Gen8 Server a reliable and efficient choice for businesses of all sizes.
