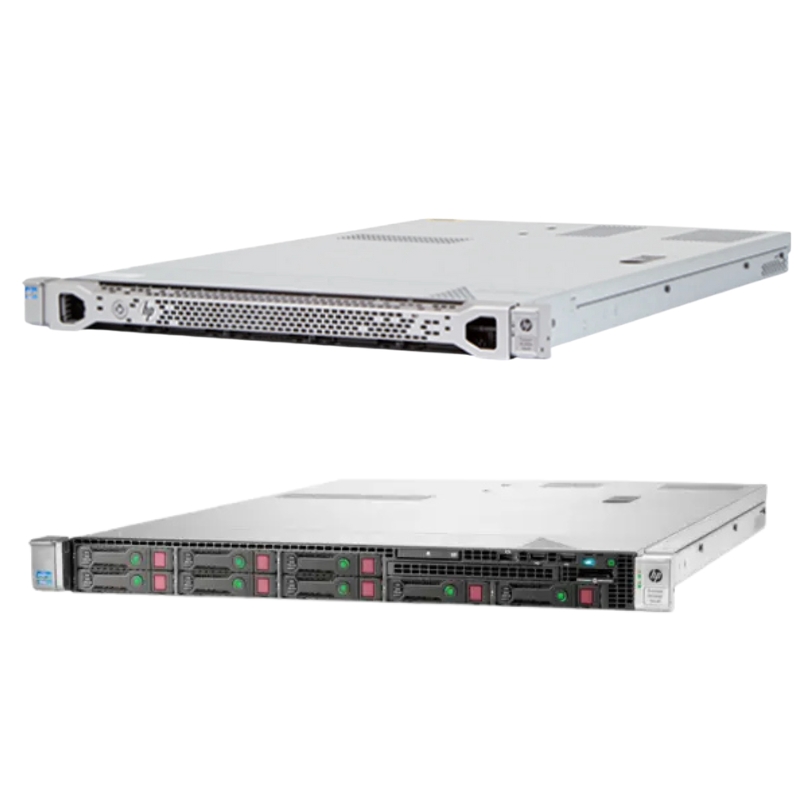

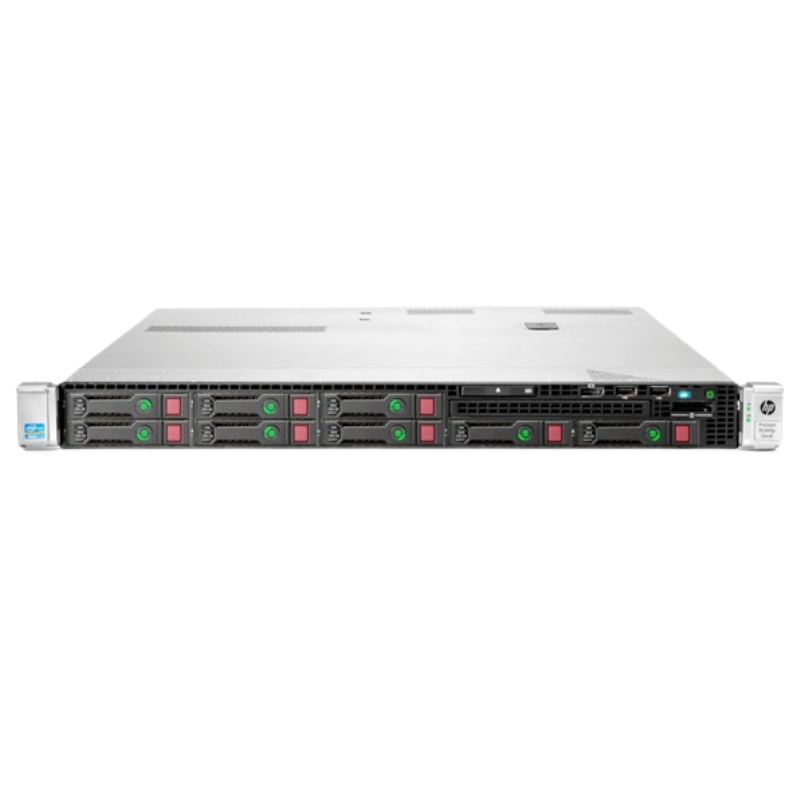

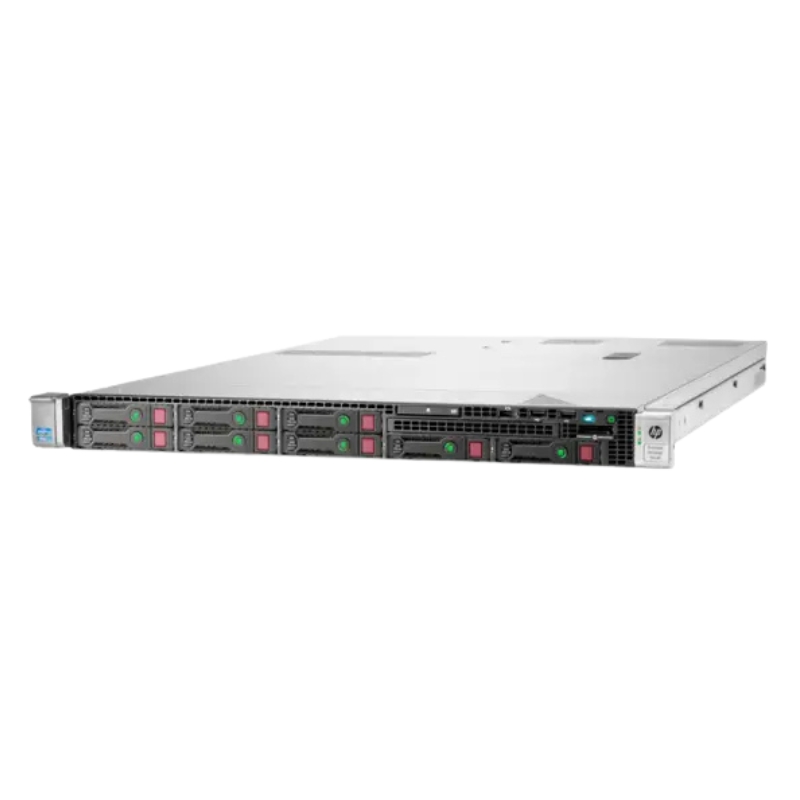

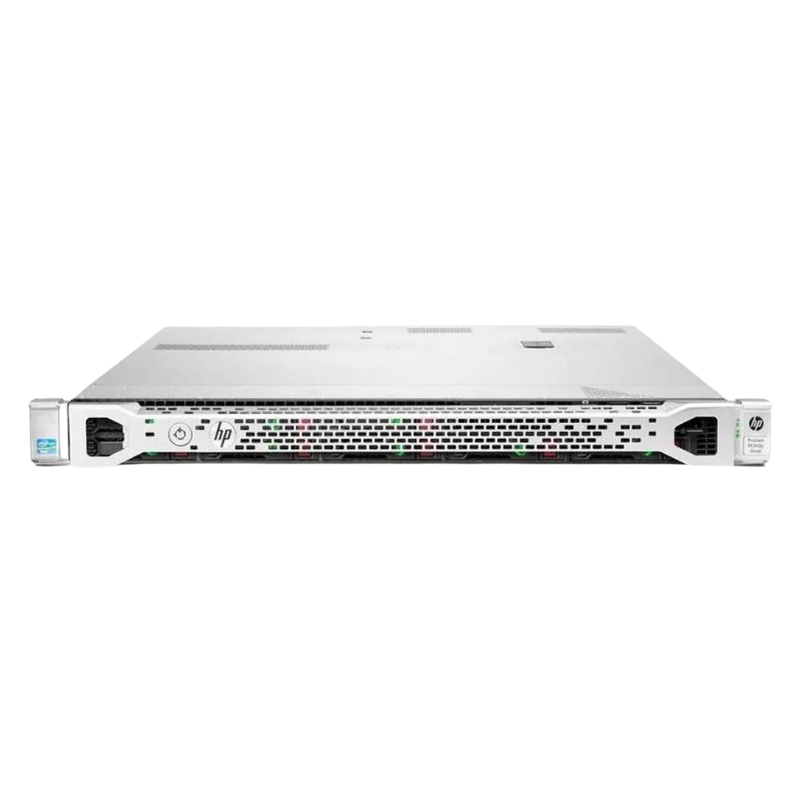

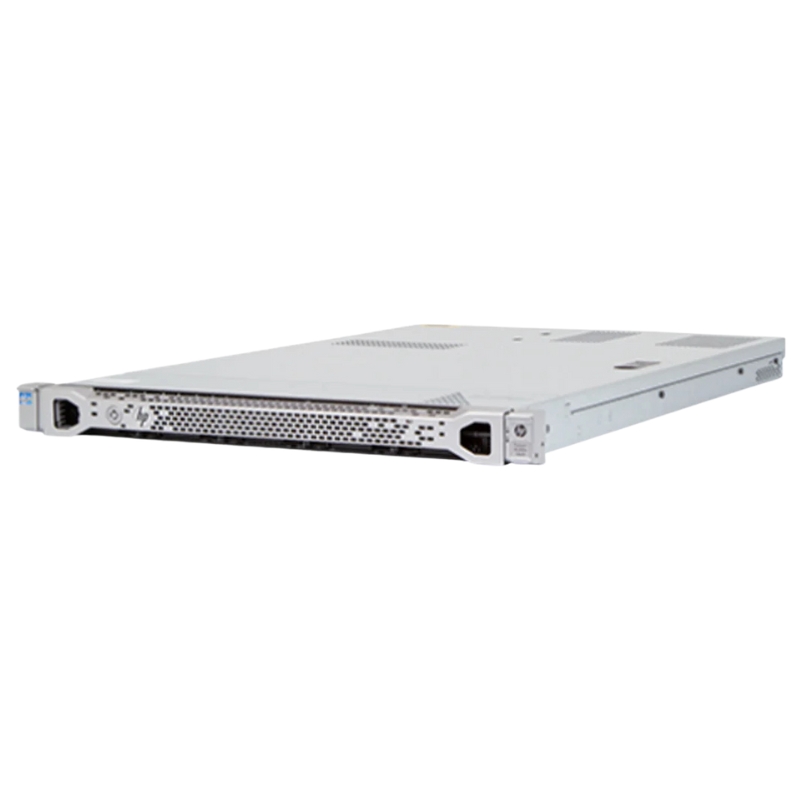

HPE DL360p Gen8 Xeon 10 Core 2.5GHz 32GB DDR3 Server 748301-S01

Processor

The HPE Proliant Dl360p Gen8 Server is powered by an impressive Xeon 10 Core 2.5GHz processor. This powerful processor is designed to deliver exceptional performance and reliability, making it an ideal choice for businesses and individuals who require high computing power.

Overview of Xeon 10 Core

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Part Number: 748301-S01
• Product Name: Proliant DL360p G8 1U-Rack Server S-bu

Processor & Chipset

• Processor Type: Intel Xeon E5-2670v2, 2.5 GHz
• Socket Compatibility: FCLGA2011
• Core Count: 10 cores
• 64-bit Computing: Yes
• Installed Processors: 2
• Maximum Processor Support: 2
• Chipset Model: Intel C600
• Data Bus Speed: 1866 MHz

Cache Memory

• Cache Type: L3 Cache
• Installed Cache Size: 50 MB
• Cache Per Processor: 25 MB

Memory Specifications

• Installed RAM: 32 GB (expandable up to 768 GB)
• Memory Technology: DDR3 SDRAM
• Memory Speed: 1866 MHz
• Memory Form Factor: DIMM 240-pin
• Compliance: PC3-14900
• Total Memory Slots: 24
• Configuration Options:
  • PC3-12800 - 384 GB - Registered
  • PC3-10600 - 768 GB - Load-reduced
  • PC3-10600 - 128 GB - Unbuffered - Advanced ECC
  • PC3-10600 - 384 GB - Hypercloud

Storage & Storage Controllers

• Hard Drive: None included
• Storage Controller: Smart Array P420i with 1GB FBWC
• Controller Interface: Serial ATA-600 / SAS 2.0
• RAID Levels Supported: 0, 1, 5, 10, 50
• Buffer Size: 1 GB

Card Reader

• Memory Card Reader: Yes
• Supported Flash Cards: Secure Digital (SD) Card

Display & Graphics

• Graphics Controller: Matrox G200
• Video Interfaces: VGA

Networking & Communication

• Networking Type: Plug-in Card
• Interface Type: PCI Express 2.0 x8
• Ethernet Ports: 2x 10 Gigabit Ethernet
• Ethernet Controller: HP 331FLR-T
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake on LAN (WOL), PXE Support
• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP)

Expansion & Connectivity

• Expansion Bays:
  • 1x Front Accessible - 5.25in Slim Line
  • 8x Hot-swap - 2.5in SFF
• Expansion Slots:
  • 24x Memory - DIMM 240-pin (22 free)
  • 2x Processor (0 free)
  • 1x PCI Express 3.0 x16 - Half-length, Full-height (1 free)
  • 1x PCI Express 3.0 x8 - Low-profile (1 free)
  • 1x FlexibleLOM (x4 Mode) (0 free)
• Interfaces & Ports:
  • 1x Serial - RS-232 - 9 Pin D-sub (DB-9)
  • 1x Display / Video - VGA - 15 Pin HD D-sub (HD-15)
  • 7x USB - 4 Pin USB Type A (2 Front, 4 Rear, 1 Internal)
  • 4x Network - Ethernet 10Base-T/100Base-TX/1000Base-TX - RJ-45
  • 1x Management - HP iLO - RJ-45

Power Specifications

• Device Type: Hot-plug Power Supply
• Redundancy: Optional (1+1 with Optional Power Supply)
• Installed Power Supplies: 2
• Maximum Supported Power Supplies: 2
• Voltage Required: AC 120/230 V (50/60 Hz)
• Power Provided: 750 Watt
• 80 Plus Certification: 80 Plus Platinum

Dimensions & Weight

• Height: 1.7 inches
• Width: 17.1 inches
• Depth: 27.5 inches
• Weight: 32.0 lbs

Unmatched Performance

The Xeon 10 Core 2.5GHz processor is specifically built to handle demanding workloads and complex tasks effortlessly. With its ten cores, it can efficiently execute multiple instructions simultaneously, resulting in faster processing times and improved overall performance.

Enhanced Productivity

One of the significant benefits of the Xeon 10 Core 2.5GHz processor is its ability to enhance productivity. With its advanced multi-threading technology, it enables users to run multiple applications simultaneously without experiencing a drop in performance. This means tasks can be completed faster, allowing businesses to increase their productivity and efficiency.

Smooth Multitasking

Multitasking becomes a breeze with the Xeon 10 Core 2.5GHz processor. Its powerful cores allow users to seamlessly switch between applications, run resource-intensive software, and handle complex data processing tasks simultaneously without any lag or slowdown. This ensures a smooth workflow, especially in environments that require handling large datasets or running virtual machines.

Optimized Virtualization

For businesses utilizing virtualization technology, the Xeon 10 Core 2.5GHz processor offers exceptional capabilities. Its robust architecture enables efficient virtual machine deployment and management, providing businesses with the flexibility to consolidate their servers and optimize resource utilization. This results in cost savings and improved server efficiency.

Reliability and Scalability

The Xeon 10 Core 2.5GHz processor is known for its reliability and scalability. It is designed to handle heavy workloads consistently, ensuring stable performance even during peak usage times. Additionally, its scalability allows users to upgrade their server's performance as their needs grow, making it a future-proof investment.

RAM

The HPE Proliant Dl360p Gen8 Server is equipped with an impressive 32GB DDR3 RAM. This ample amount of memory is essential for businesses and individuals who require a high-performance server that can handle demanding applications and multitasking efficiently.

Improved System Responsiveness

The 32GB DDR3 RAM significantly improves the server's system responsiveness. With its large capacity, it can store and access frequently used data quickly, reducing the time required for data retrieval. This results in faster application loading times, smoother multitasking, and improved overall system performance.

Efficient Multitasking

Multitasking becomes seamless with the 32GB DDR3 RAM. It allows users to run multiple applications simultaneously without experiencing a significant drop in performance. This is particularly beneficial for businesses that rely on running multiple resource-intensive applications concurrently, such as databases, virtual machines, or data analytics tools.

Enhanced Virtualization Performance

Virtualization environments heavily rely on memory capacity to ensure optimal performance. The 32GB DDR3 RAM provides businesses with the necessary resources to efficiently run multiple virtual machines simultaneously. This means more virtual machines can be deployed on the server, resulting in better resource utilization and cost savings.

Future-Proof Investment

The 32GB DDR3 RAM offers ample room for scalability and future upgrades. As businesses grow and their requirements increase, they can easily upgrade their server's memory capacity without replacing the entire system. This flexibility ensures that the HPE Proliant Dl360p Gen8 Server can adapt to evolving needs, making it a cost-effective and future-proof investment.

Reliable Data Processing

The 32GB DDR3 RAM plays a crucial role in data processing. It enables the server to handle large datasets efficiently, ensuring smooth data processing and analysis. This is particularly important for businesses that deal with big data analytics, scientific simulations, or other memory-intensive tasks.

Product Code

The HPE Proliant Dl360p Gen8 Server has a product code of 748301-S01. This unique identifier holds significant importance for users, as it helps in identifying and differentiating the server model from others in the market.

Easy Identification

The product code, 748301-S01, makes it easy for users to identify and locate the specific server model they require. It eliminates any confusion that may arise due to similar server models or variations within the same series. This streamlined identification process saves time and ensures that users can quickly find the exact server they need.

Compatibility Assurance

The product code, 748301-S01, also assists in ensuring compatibility with other hardware components or software systems. By referring to the product code, users can verify that their chosen server model is compatible with their existing infrastructure, eliminating any potential issues or compatibility conflicts. This compatibility assurance reduces the risk of downtime or technical complications.

Ordering Accuracy

When placing an order for the HPE Proliant Dl360p Gen8 Server, having the correct product code, 748301-S01, is vital. It ensures that users receive the precise server model they desire, avoiding any discrepancies or order inaccuracies. This accuracy in ordering guarantees a smoother procurement process and eliminates the need for returns or exchanges.

Warranty and Support

The product code is also essential when it comes to warranty and support services. By providing the product code, users can easily register their server for warranty coverage and access the necessary support resources. This ensures that users can take full advantage of the manufacturer's warranty, receive timely assistance in case of any issues, and access firmware or software updates specific to their server model.

Documentation and Resources

The product code, 748301-S01, is often used as a reference in documentation and online resources related to the HPE Proliant Dl360p Gen8 Server. Users can search for technical specifications, user manuals, troubleshooting guides, and other relevant information using the product code as a keyword. This makes it easier to find accurate and specific information about their server model, facilitating efficient setup, maintenance, and troubleshooting.
