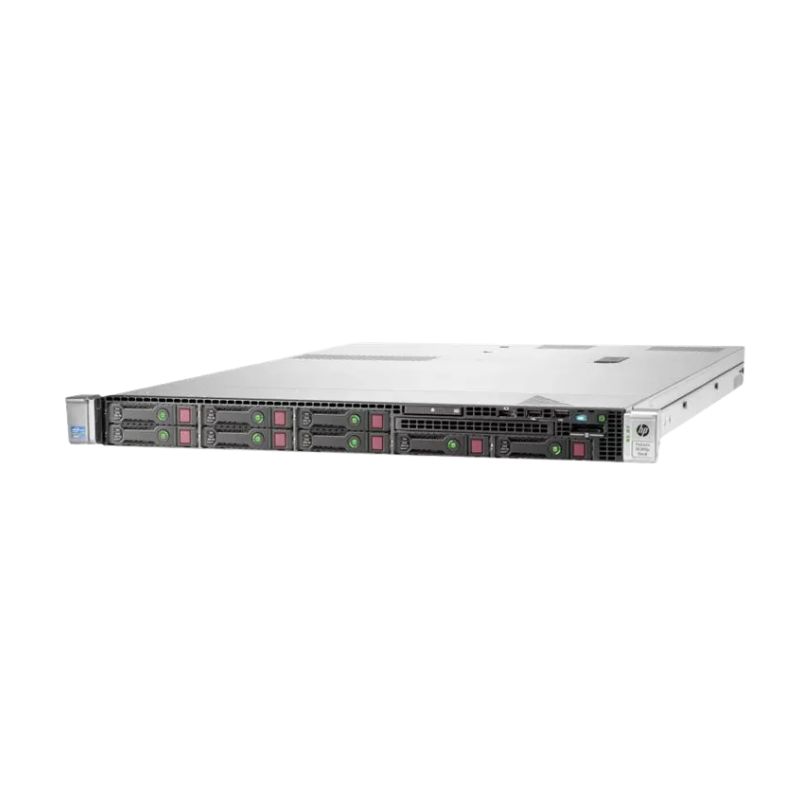

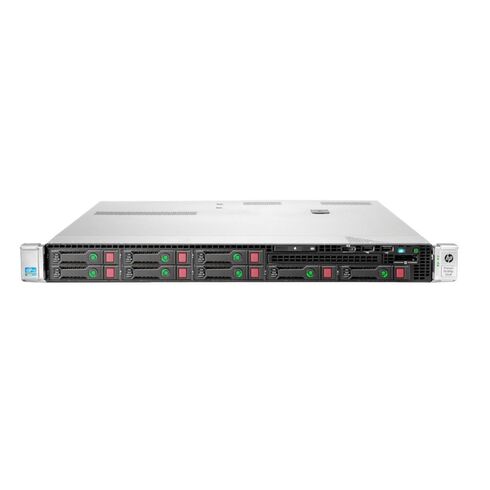

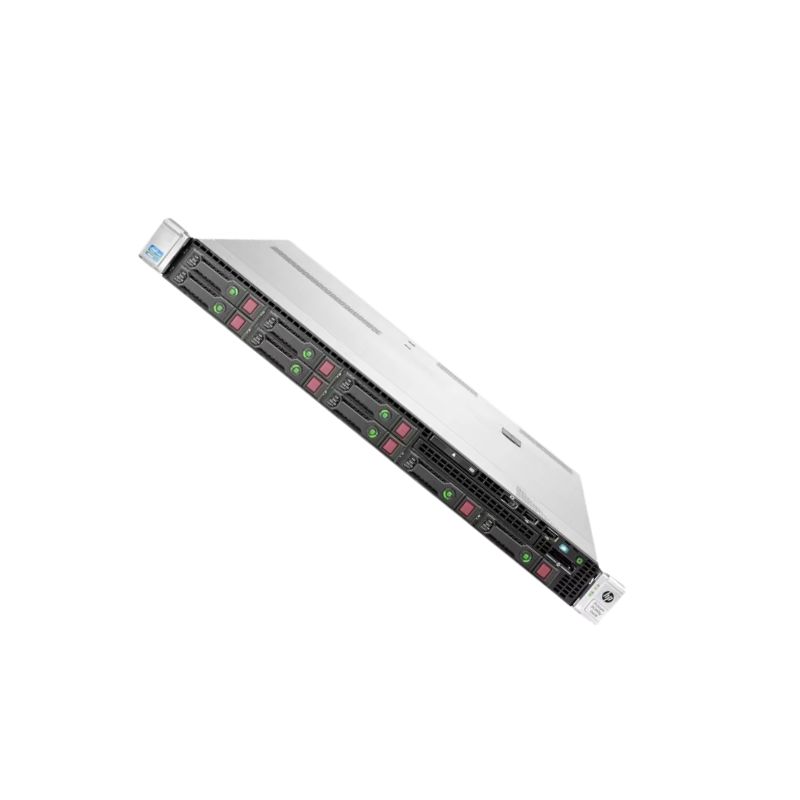

HPE DL360P Gen8 Xeon 8-Core 2.9GHz 32GB DDR3 Server 646905-001

Processor

The HPE DL360P Gen8 Server is equipped with a powerful Xeon 8-Core 2.9GHz processor, making it a top choice for businesses and organizations that require high-performance computing. This processor offers several benefits that are crucial for users seeking optimal server performance.

Product Overview of 646905-001

• Brand: Hewlett Packard Enterprise
• Part Number: 646905-001

Model Specifications

Product Name: ProLiant DL360p Gen8 - 2-Way 1U Rack Server (Performance Model)

Processor & Chipset

• CPU: Intel Xeon E5-2690, 2.9 GHz
• Max Turbo Speed: 3.8 GHz
• Core Count: 8-core
• 64-bit Computing: Supported
• Number of CPUs: 2
• CPU Upgradability: Yes, upgradable
• Processor Features: Hyper-Threading, Intel QuickPath Interconnect, Intel Turbo Boost Technology 2

Cache Memory

• Type: L3 Cache
• Installed Size: 40 MB
• Cache Per Processor: 20 MB

Memory

• Installed Size: 32 GB, expandable to 384 GB
• Memory Technology: DDR3 SDRAM
• Effective Memory Speed: 1600 MHz
• Memory Form Factor: DIMM 240-pin
• Memory Slots: 24 total, 20 available
• Supported Configurations:
  • 4 x 8 GB
  • PC3-12800 - 384 GB Registered
  • PC3-10600 - 768 GB Load-Reduced
  • PC3-10600 - 128 GB Unbuffered with Advanced ECC
  • PC3-10600 - 384 GB Hypercloud

Storage & Optical Drives

• Hard Disk Drive: Not included
• Optical Drive: Not included

Storage Controller

• Controller Type: Integrated RAID
• Interface Type: SATA 6 Gb/s, SAS 6 Gb/s
• Controller Name: Smart Array P420i with 2 GB FBWC
• RAID Levels: RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
• Buffer Size: 2 GB

Display & Graphics

• Graphics Controller: Integrated
• Graphics Processor: Matrox G200
• Video Interfaces: VGA

Networking & Communication

• Network Type: Plug-in Card
• Interface Type: PCI Express x4
• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Ethernet Controller: HP 530FLR
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
• Remote Management Protocol: IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP)

Expansion & Connectivity

• Expansion Bays:
  • 1 x Front Accessible - 5.25 inch x 1/2H (free)
  • 8 x Hot-swap - 2.5 inch SFF (all available)
• Expansion Slots:
  • 24 x DIMM 240-pin (20 available)
  • 2 x CPU (none available)
  • 1 x PCIe 3.0 x16 - Half-length, Full-height (available)
  • 1 x PCIe 3.0 x8 - Low-profile (available)
  • 1 x FlexibleLOM (x4 mode) (available)
  • 1 x SD Card (internal) (available)

Interfaces & Ports

• 1 x Serial
• 1 x VGA
• 2 x LAN (10 Gigabit Ethernet)
• 1 x HP iLO
• 7 x USB 2.0 (2 front, 4 rear, 1 internal)

Miscellaneous

• Features: Administrator Password, Power-on Password, Serial Port I/O Control, Setup Password, UEFI BIOS
• Standards Compliance: ACPI 2.0b, FCC Class A Certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, BSMI CNS 13438

Power Description

• Power Supply Type: Hot-plug
• Power Redundancy: Yes, 1+1
• Installed Power Supplies: 2
• Max Supported Power Supplies: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 750 Watts
• 80 Plus Certification: 80 Plus Platinum
• Efficiency: 94%

Dimensions & Weight

• Width: 17.1 inches
• Depth: 27.5 inches
• Height: 1.7 inches
• Weight: 31.99 lbs

Enhanced Performance

The Xeon 8-Core 2.9GHz processor delivers exceptional performance and enables the server to handle demanding workloads efficiently. With eight cores, it can execute multiple tasks simultaneously, ensuring smooth operations and reducing processing time. This enhanced performance is particularly essential for businesses that rely on complex applications and data-intensive tasks, such as virtualization, database management, and high-performance computing.

Improved Productivity

By harnessing the power of the Xeon 8-Core 2.9GHz processor, the HPE DL360P Gen8 Server enables users to achieve higher productivity levels. The server can swiftly process large amounts of data, allowing for faster data analysis, decision-making, and problem-solving. This increased speed translates into shorter response times, enabling businesses to serve their customers more efficiently and gain a competitive edge.

Scalability and Flexibility

The Xeon 8-Core 2.9GHz processor provides excellent scalability and flexibility, allowing the HPE DL360P Gen8 Server to adapt to changing business needs. With its ability to handle demanding workloads, the server can easily accommodate future growth and increased demands for computational power. This scalability ensures that businesses can expand their operations without worrying about investing in new server infrastructure.

Energy Efficiency

Energy efficiency is a crucial aspect of modern servers, as it contributes to reducing operational costs and minimizing environmental impact. The Xeon 8-Core 2.9GHz processor is designed with energy efficiency in mind, ensuring optimal performance while consuming less power. This feature not only helps businesses save on electricity bills but also promotes sustainable practices.

Reliability and Stability

The Xeon 8-Core 2.9GHz processor is renowned for its reliability and stability. It is built to withstand heavy workloads and intensive usage, ensuring that the HPE DL360P Gen8 Server operates smoothly without experiencing frequent downtime or performance issues. This reliability is vital for businesses that rely heavily on their servers to deliver uninterrupted services to their customers.

RAM

The HPE DL360P Gen8 Server boasts an impressive 32GB DDR3 RAM, providing users with an enhanced computing experience and improved server performance. The substantial amount of RAM offers numerous benefits that are crucial for businesses that require a high-performance server.

Enhanced Multitasking

The 32GB DDR3 RAM allows the HPE DL360P Gen8 Server to handle multiple tasks simultaneously without compromising performance. This capability is particularly beneficial for businesses that rely on multitasking, such as running multiple virtual machines or handling complex databases. With sufficient RAM, the server can allocate resources effectively, ensuring smooth operations even under heavy workloads.

Faster Data Access

One of the key advantages of having 32GB DDR3 RAM is the ability to access data quickly. The server can store frequently accessed data in the RAM, reducing the need to retrieve it from slower storage devices such as hard drives. This results in faster response times and improved overall system performance, enabling businesses to process data more efficiently.

Improved System Stability

Insufficient RAM can cause system instability and slowdowns, especially when dealing with resource-intensive applications. The 32GB DDR3 RAM ensures that the HPE DL360P Gen8 Server operates smoothly and remains stable under heavy workloads. It prevents bottlenecks and minimizes the risk of crashes, providing a reliable and stable environment for businesses to run their critical applications.

Future-Proofing

As technology continues to advance, the demand for memory-intensive applications and processes will only increase. By equipping the HPE DL360P Gen8 Server with 32GB DDR3 RAM, businesses can future-proof their infrastructure. The substantial amount of RAM ensures that the server can handle upcoming software updates, new applications, and increased data processing requirements without the need for immediate upgrades.

Virtualization Capabilities

The 32GB DDR3 RAM is particularly beneficial for businesses that rely on virtualization. Virtual machines consume significant amounts of memory, and insufficient RAM can severely impact their performance. The HPE DL360P Gen8 Server, with its ample RAM capacity, allows businesses to run multiple virtual machines simultaneously without compromising performance or stability.

Part Number

The HPE DL360P Gen8 Server is identified by its unique part number, 646905-001. This part number serves several important purposes for users and is a crucial aspect to consider when purchasing or maintaining the server.

Easy Identification

With a distinctive part number like 646905-001, the HPE DL360P Gen8 Server can be easily identified among other servers or IT equipment. This simplifies inventory management and asset tracking for businesses, ensuring that they can quickly locate and manage their servers within their infrastructure.

Compatibility Assurance

Part numbers play a vital role in ensuring compatibility between different hardware components. The 646905-001 part number of the HPE DL360P Gen8 Server serves as a reference point for compatibility checks when adding or replacing components. It helps businesses ensure that any upgrades or replacements they make are compatible with their existing server, preventing compatibility issues and potential system failures.

Efficient Maintenance and Support

Having a specific part number like 646905-001 makes it easier for businesses to obtain the right spare parts and support for the HPE DL360P Gen8 Server. When troubleshooting or performing maintenance tasks, businesses can refer to the part number to ensure they acquire the correct replacement parts or seek appropriate technical assistance. This efficiency in maintenance and support contributes to minimizing downtime and maximizing server reliability.

Documentation and Resources

The part number serves as a reference point when accessing documentation, manuals, and online resources related to the HPE DL360P Gen8 Server. Businesses can use the part number to search for specific information about their server model, including user guides, technical specifications, and firmware updates. This ensures that businesses have access to comprehensive resources that can aid in the proper configuration, optimization, and troubleshooting of their server.

Warranty Validation

The part number is often tied to warranty information for the HPE DL360P Gen8 Server. By providing the part number when making a warranty claim or seeking support, businesses can easily validate their warranty coverage. This simplifies the warranty process and ensures that businesses receive timely assistance and replacement of faulty components, if needed.
