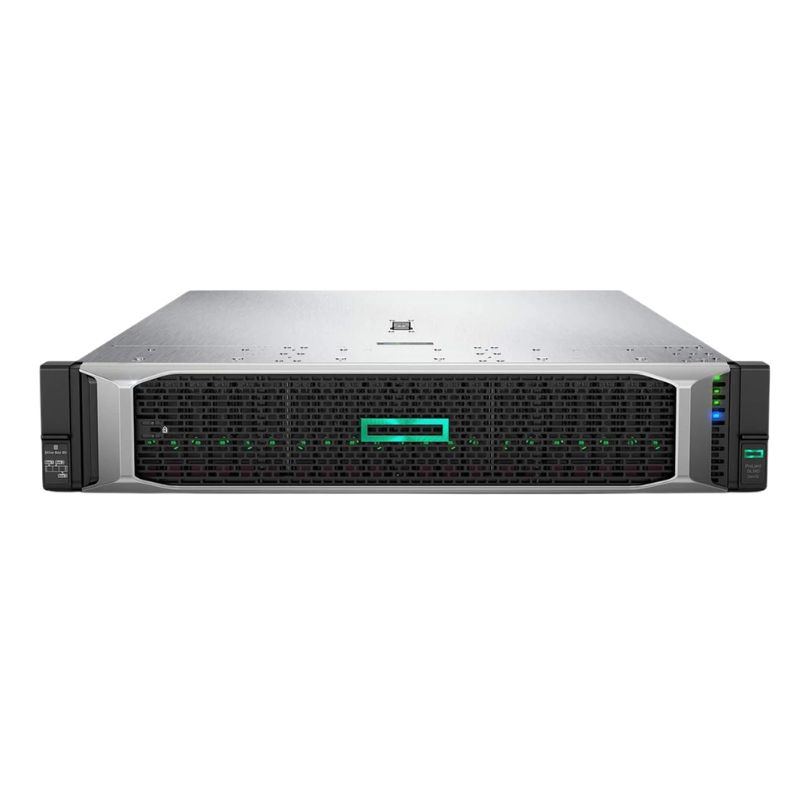

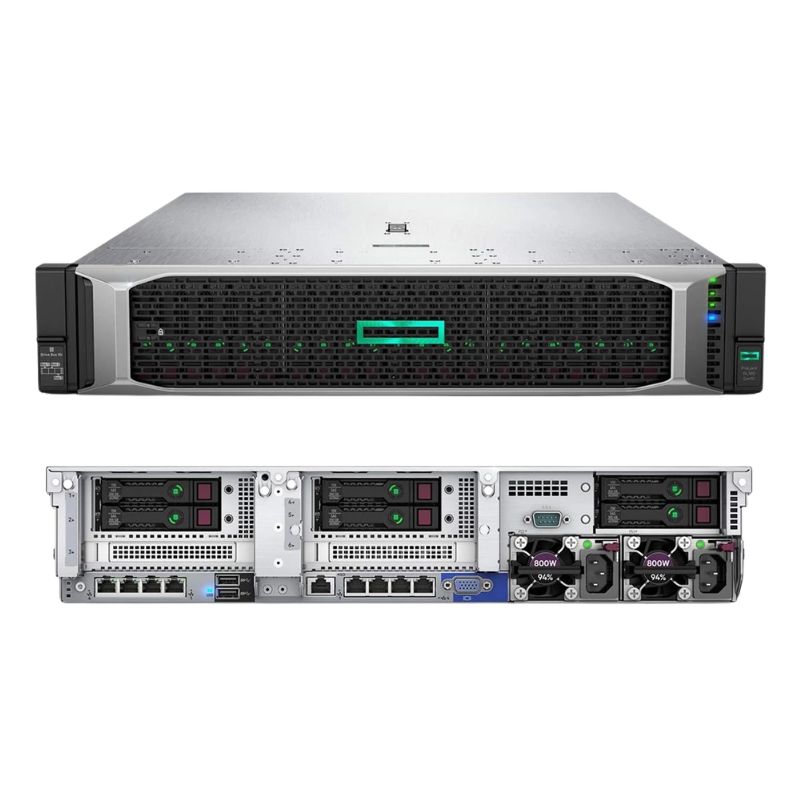

HPE DL380 Gen10 P06422-B21 Server 5118 64GB-R P408I-A 8SFF 800W RPS

Processor

The HPE DL380 Server Gen10 P06422-B21 comes equipped with an impressive processor, the Intel Xeon Silver 5118. This powerful processor offers exceptional performance and reliability for users, making it an ideal choice for a wide range of applications and workloads.

General Information

• Manufacturer: Hewlett Packard Enterprise
• Part Number: P06422-B21
• Product Name: ProLiant DL380 Gen10 - 2U Rack-Mountable Server (Performance Model)

Processor & Chipset

Central Processing Unit (CPU)

• Processor: Intel Xeon Gold 5118
• Base Clock Speed: 2.3 GHz
• Max Turbo Frequency: 3.2 GHz
• Core Count: 12 Cores
• CPU Quantity: 1 (upgradable to 2)
• Features: Hyper-Threading, Intel Turbo Boost Technology 2
• Chipset: Intel C621

Cache Memory

• Total L3 Cache Size: 13.75 MB
• Cache per Processor: 16.5 MB

Memory

Installed Memory

• Standard Size: 64 GB
• Maximum Capacity: 3 TB
• Memory Type: DDR4 SDRAM
• Effective Speed: 2400 MHz
• Rated Speed: 2666 MHz
• Compliance: PC4-20800
• Form Factor: DIMM 288-pin
• Slots: 12 total (10 available)
• Features: Registered, Dual Rank, HPE SmartMemory
• Configuration: 2 x 32 GB
• Supported RAM: PC4-20800 up to 3.072 TB (load-reduced) or 768 GB (registered)

Storage Controllers

Main Storage Controller

• Type: RAID
• Interface: PCIe 3.0 x8
• Controller Name: HPE Smart Array P408i-a
• Channels: 8
• RAID Levels: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
• Buffer Size: 2 GB

Secondary Storage Controller

• Type: SATA
• Interface: SATA 6 Gb/s
• Controller Name: HPE Smart Array S100i SR Software
• Channels: 14

Graphics Controller

• Video Memory: 16 MB
• Video Interface: VGA

Network & Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331i
• Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: SNMP v3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Features: Wake on LAN (WoL), PXE Support

Expansion & Connectivity

Bays

• External Bays: 8 (total), all hot-swappable 2.5 SFF

Slots

• FlexibleLOM Slot: 1 (free)
• PCIe 3.0 x16 Slot: 1 (free), half-length, full-height
• PCIe 3.0 x8 Slots: 2 (free), half-length, full-height
• MicroSD Card Slot: 1 (internal)

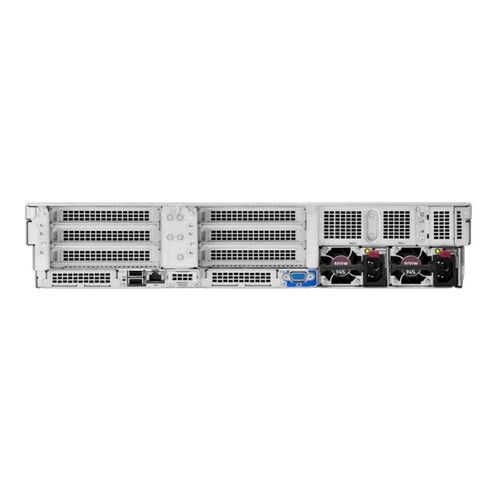

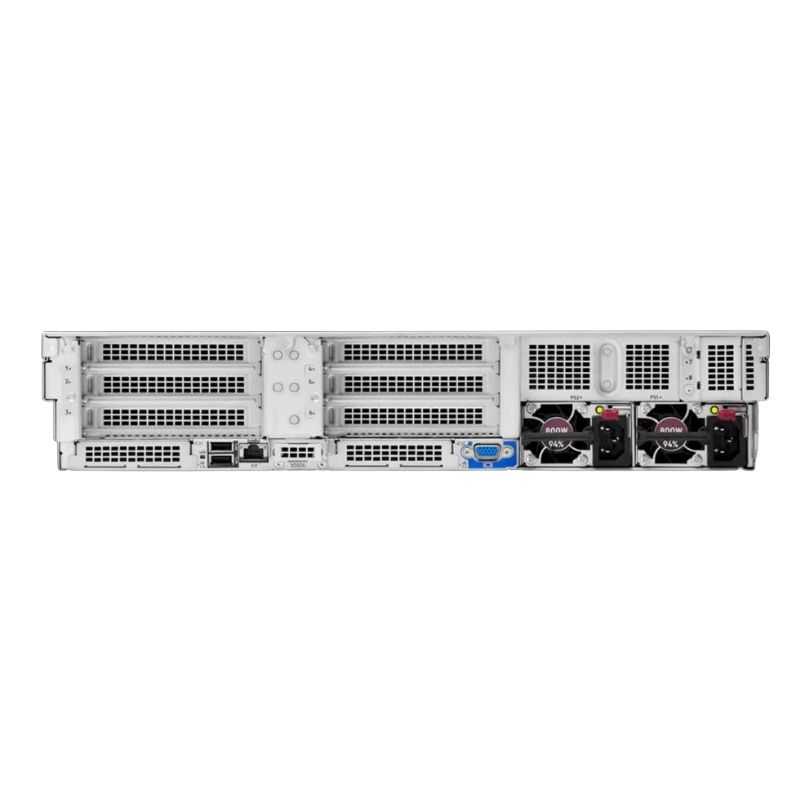

Interfaces

• HP iLO Type A: 1 (front)
• USB 3.0 Ports: 5 (1 front, 2 rear, 2 internal)
• Gigabit Ethernet LAN Ports: 4 (rear, RJ-45)
• HP iLO RJ-45: 1 (rear)
• VGA Port: 1 (rear)

Miscellaneous

Included Accessories

• RAID Battery Backup Unit
• HP Easy Install Rail Kit
• 4 Standard Fans
• CPU Standard Heatsink

Compliance Standards

• AES
• FIPS 140-2
• IPv6 Ready
• TLS v1.2
• ASHRAE Class A4
• ASHRAE Class A3
• WEEE 2002/95/EC
• ACPI 6.1

Manufacturer Selling Program

• HPE Smart Buy

Power Description

• Device Type: Hot-plug Power Supply
• Power Redundancy: Optional
• Redundancy Scheme: 1+1 (with optional power supply)
• Installed Power Supplies: 2
• Max Supported Power Supplies: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 800 Watts
• 80 Plus Certification: 80 Plus Platinum
• Dimensions & Weight

• Width: 17.5 inches
• Depth: 28.8 inches
• Height: 3.4 inches
• Weight: 32.54 lbs

Exceptional Performance

The Intel Xeon Silver 5118 processor delivers exceptional performance to handle demanding tasks and workloads. With a base clock speed of 2.3 GHz and a maximum turbo frequency of 3.2 GHz, this processor ensures that your server can handle even the most resource-intensive applications with ease. It features 12 cores and 24 threads, allowing for efficient multitasking and improved productivity.

Enhanced Productivity

With the Intel Xeon Silver 5118 processor, users can experience enhanced productivity and efficiency. The high core count allows for simultaneous execution of multiple tasks, enabling faster data processing and reduced latency. This is particularly beneficial for businesses that rely on data analysis, virtualization, and other compute-intensive workloads.

Improved Reliability

Reliability is crucial when it comes to server hardware, and the Intel Xeon Silver 5118 processor delivers just that. It is designed to ensure maximum uptime and minimize the risk of system failures. With features such as error-correcting code (ECC) memory support, users can have peace of mind knowing that their data is protected and their server remains operational even in the event of memory errors.

Memory

When it comes to memory, the HPE DL380 Server Gen10 P06422-B21 offers an impressive 64GB-R configuration. This ample amount of memory allows for smooth multitasking, efficient data processing, and improved overall performance.

Smooth Multitasking

With 64GB of memory, users can experience smooth multitasking without any performance bottlenecks. Whether you're running multiple virtual machines, handling large databases, or performing complex calculations, this server's memory capacity ensures that you can handle it all with ease. It allows for fast retrieval and storage of data, resulting in improved productivity and reduced waiting times.

Efficient Data Processing

The 64GB-R memory configuration enables efficient data processing, ensuring that your server can handle large amounts of data quickly and effectively. This is particularly important for businesses that deal with big data analytics, real-time processing, and other data-intensive applications. With this memory capacity, you can process and analyze data faster, gaining valuable insights in less time.

Improved Performance

The ample memory capacity of the HPE DL380 Server Gen10 P06422-B21 translates into improved overall performance. It allows for faster execution of applications, reduced latency, and improved response times. Whether you're running resource-intensive applications or handling multiple users simultaneously, this server's memory configuration ensures that you can deliver a seamless and responsive experience to your users.

Storage Controller

The HPE DL380 Server Gen10 P06422-B21 is equipped with a powerful storage controller, the HPE Smart Array P408I-A. This feature offers numerous benefits and plays a crucial role in ensuring efficient data storage and retrieval.

Efficient Data Storage

The HPE Smart Array P408I-A storage controller provides efficient data storage capabilities for the server. It supports a wide range of RAID configurations, including RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10. These RAID levels offer different combinations of performance, redundancy, and capacity to suit various business needs. With the ability to configure the storage according to your requirements, you can optimize the server's storage capacity and performance.

Enhanced Data Protection

Data protection is of utmost importance for any business, and the HPE Smart Array P408I-A storage controller ensures enhanced data protection. It supports advanced features such as online RAID level migration, which allows you to change the RAID configuration without interrupting the server's operation. Additionally, it offers data encryption capabilities, ensuring that sensitive data remains secure and protected from unauthorized access.

Improved Performance

The HPE Smart Array P408I-A storage controller enhances the server's overall performance by optimizing data storage and retrieval. It supports high-speed SAS drives, allowing for fast data transfer rates and reduced latency. With this storage controller, you can experience improved application performance, faster boot times, and reduced data access delays.

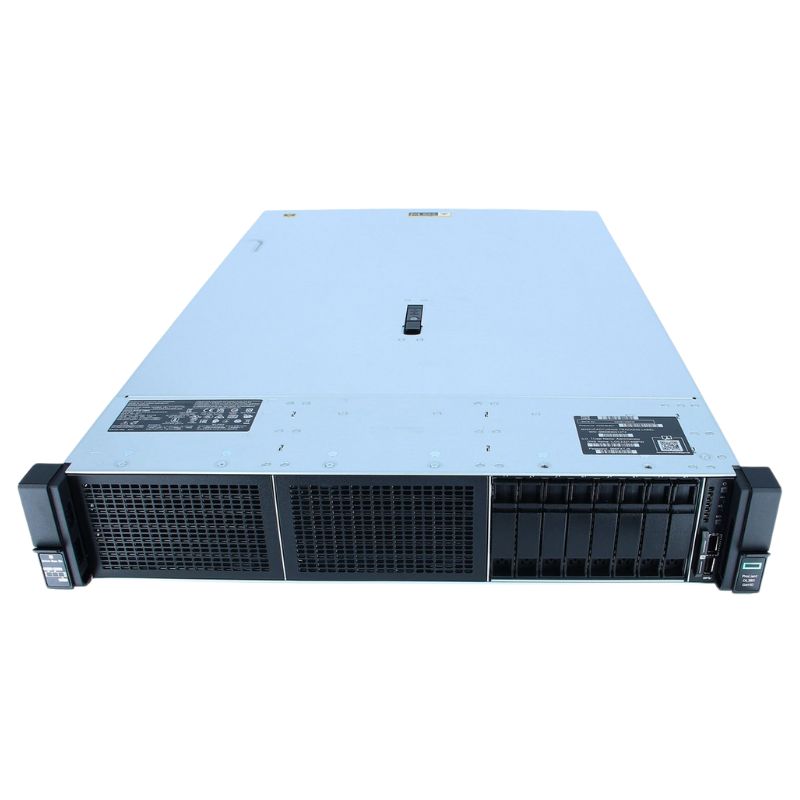

Drive Bays

The HPE DL380 Server Gen10 P06422-B21 features eight Small Form Factor (SFF) drive bays, providing ample storage capacity and flexibility for users. These drive bays offer several benefits and play a crucial role in efficient data management.

Ample Storage Capacity

With eight SFF drive bays, users have plenty of storage capacity to accommodate their growing data needs. Whether you're storing large databases, multimedia files, or critical business documents, these drive bays ensure that you have enough space to store your valuable data. This is particularly beneficial for businesses that deal with large amounts of data or require extensive local storage.

Flexibility in Drive Configuration

The eight SFF drive bays offer flexibility in configuring your storage setup according to your specific requirements. You can choose to use all the drive bays for high-capacity storage or configure them in a RAID array for improved performance and redundancy. This flexibility allows you to tailor the server's storage configuration to meet your unique needs, ensuring optimal performance and data protection.

Hot-Swap Capability

The drive bays in the HPE DL380 Server Gen10 P06422-B21 support hot-swapping, which means that you can replace or add drives without powering down the server. This feature allows for easy maintenance and upgrades, minimizing downtime and ensuring continuous operation. With hot-swappable drive bays, you can perform storage-related tasks quickly and efficiently, without disrupting critical business processes.

Power Supply

The HPE DL380 Server Gen10 P06422-B21 is equipped with an 800W RPS (Redundant Power Supply), offering reliable and efficient power delivery for the server. The power supply plays a crucial role in ensuring uninterrupted operation and protecting valuable data.

Redundancy for High Availability

The 800W RPS provides redundancy, ensuring high availability for the server. In the event of a power supply failure, the redundant power supply seamlessly takes over, preventing any disruption to the server's operation. This redundancy is particularly important for businesses that rely on continuous uptime and cannot afford any downtime or loss of data.

Efficient Power Delivery

The 800W RPS delivers efficient power to the server, optimizing energy consumption and reducing operating costs. It meets high-efficiency standards, resulting in reduced power wastage and lower electricity bills. With efficient power delivery, you can minimize your environmental footprint and contribute to sustainable operations.

Protecting Valuable Data

A reliable power supply is essential for protecting valuable data stored on the server. Power fluctuations and outages can lead to data corruption or loss, causing significant disruptions to business operations. The 800W RPS ensures stable and consistent power delivery, reducing the risk of data loss due to power-related issues. It acts as a safeguard for your valuable data, ensuring that it remains protected and accessible at all times.

In conclusion, the HPE DL380 Server Gen10 P06422-B21 offers exceptional features that cater to the needs of modern businesses. The Intel Xeon Silver 5118 processor delivers outstanding performance and reliability, enabling efficient multitasking and improved productivity. The 64GB-R memory configuration ensures smooth multitasking, efficient data processing, and overall performance optimization. The HPE Smart Array P408I-A storage controller provides efficient data storage, enhanced data protection, and improved performance. The eight SFF drive bays offer ample storage capacity, flexibility in drive configuration, and hot-swappable capability for easy maintenance. The 800W RPS delivers reliable power supply, redundancy for high availability, efficient power delivery, and protection for valuable data. With these features, the HPE DL380 Server Gen10 P06422-B21 is a powerful and reliable solution for businesses that require high-performance computing and robust data management capabilities.
