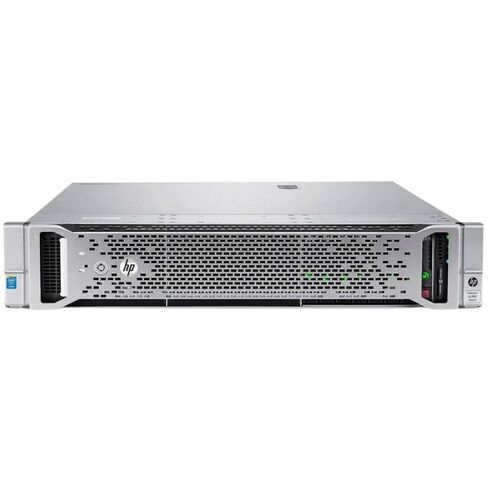

HPE DL380 Gen9 Xeon Octa Core 3.2GHz 32GB DDR4 Server - 800076-S01

Processor

The HPE Proliant Dl380 Gen9 Server is equipped with a powerful Xeon Octa Core 3.2GHz processor. This feature sets it apart from other servers in terms of performance and processing capabilities. Let's dive into the benefits and importance of this feature for users.

General Specifications

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 800076-S01
• Product Name: Proliant DL380 Gen9 - 2U Rack Mountable Server

Processor & Chipset Details

• Processor Type: Intel Xeon E5-2667v3, 3.2 GHz
• Max Turbo Speed: 3.6 GHz
• QuickPath Interconnect: 9.60 GT/s
• Core Count: Octa-core
• 64-bit Computing: Yes
• Processor Socket: FCLGA2011-3
• Installed CPUs: 1
• Max Supported CPUs: 2
• Chipset: Intel C610 Series

Cache Memory

• Type: Smart Cache
• Installed Size: 20 MB
• Cache per Processor: 20 MB

Memory Configuration

• Installed Size: 32 GB (expandable to 384 GB)
• Memory Technology: DDR4 SDRAM - Advanced ECC
• Effective Memory Speed: 2133 MHz
• Rated Memory Speed: 2133 MHz
• Memory Specification Compliance: PC4-17000
• Form Factor: DIMM 288-pin
• Memory Slots: 24 (total), 22 (empty)
• Features: Registered, Online Spare Memory, Quad Channel Architecture, HP SmartMemory
• Configuration: 2 x 16 GB
• Supported RAM: PC4-17000 up to 384 GB Registered, 1.5 TB Load-Reduced

Storage & Controllers

• Hard Drive: None
• Optical Drive Type: None

Storage Controllers

• Controller Name: Smart Array P440ar
• Buffer Size: 2 GB
• Disk Drive Support: 12 GB/s SAS, 6 GB/s SATA
• SAS Port Link Rate: 12 GB/s per Physical Link Supported
• PCIe Link Rate: PCI Express 3.0 x8
• Physical Drives Supported: Up to 26 Drives
• Logical Drives Supported: Up to 64 Logical Drives
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM

Graphics & Display

• Graphics Processor: Matrox G200eh2
• Video Memory: 16 MB
• Video Interfaces: VGA

Networking & Communication

• Ethernet Controller: HP FlexFabric 1Gb 4-Port 331i Adapter
• Network Processor: Broadcom BCM5719 Chipset
• Ethernet Ports: 4 x Gigabit Ethernet
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocol: Integrated Lights-Out 4
• Remote Management Controller: RJ-45 (two)
• Features: Wake On LAN (WoL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

• Expansion Bays: 8 x Hot-swap 2.5" SFF
• Expansion Slots:
  • 24 x DIMM 288-pin (22 free)
  • 2 x CPU (1 free)
  • 2 x PCIe 3.0 x16 (X8 Mode) (2 free)
  • 1 x PCIe 3.0 x8 (1 free)
  • 1 x MicroSD Card (internal) (1 free)

Interfaces & Ports

• 4 x LAN (Gigabit Ethernet) - RJ-45
• 1 x HP iLO - RJ-45
• 1 x VGA
• 5 x USB 3.0 (1 Front, 2 Rear, 2 Internal)

Miscellaneous Features

• Included Accessories: HP Easy Install Rails
• Security Features:
  • Administrator Password
  • Power-on Password
  • Keyboard Password
  • Serial Port I/O Control
  • Quicklock
  • UEFI BIOS
• Compliant Standards:
  • ACPI 2.0b
  • FCC Class A Certified
  • EN 61000-3-2
  • EN55022
  • ICES-003
  • EN 61000-3-3
  • EN55024
  • CISPR 22
  • FCC CFR47 Part 15
  • IEC 60950-1
  • EN 60950-1
  • WEEE
  • GB 9254
  • ASHRAE
  • CNS 13438

Power Supply Specifications

• Device Type: Power Supply - Hot-plug
• Power Redundancy: Yes (1+1 Scheme)
• Installed Quantity: 2
• Nominal Voltage: AC 120/230 V
• Power Provided: 500 Watt
• 80 Plus Certification: 80 Plus Platinum
• Efficiency: 94%

Enhanced Performance

The Xeon Octa Core 3.2GHz processor provides exceptional performance that can handle heavy workloads and demanding applications with ease. It offers eight cores, which means it can execute multiple tasks simultaneously, resulting in improved efficiency and reduced processing time. Whether you're running virtual machines, databases, or complex computations, this processor ensures smooth and uninterrupted operations.

Increased Productivity

With its high clock speed of 3.2GHz, the processor ensures fast data processing and response times. This translates into increased productivity for users, as tasks can be completed more quickly. Whether you're running resource-intensive applications or performing data analysis, the speed of the processor enables you to work efficiently and meet deadlines effectively.

Scalability

The HPE Proliant Dl380 Gen9 Server is designed to support future growth and expansion. The Xeon Octa Core 3.2GHz processor offers scalability options, allowing you to upgrade your server's performance as your business needs evolve. This means you can easily accommodate increasing workloads or add additional applications without worrying about outgrowing your server's capabilities.

Virtualization Capabilities

Virtualization has become an integral part of modern IT infrastructure. The Xeon Octa Core 3.2GHz processor supports advanced virtualization technologies, such as Intel Virtualization Technology (VT-x), which enhances server performance by optimizing resource allocation and reducing latency. With virtualization, you can consolidate multiple servers into a single physical machine, saving space, reducing power consumption, and simplifying management.

Reliability and Stability

The Xeon Octa Core 3.2GHz processor is known for its reliability and stability. It is designed to handle mission-critical workloads while maintaining consistent performance levels. This ensures that your server operates smoothly without unexpected slowdowns or crashes, providing a reliable foundation for your business operations.

Efficient Power Consumption

Power efficiency is a crucial aspect of any server infrastructure. The Xeon Octa Core 3.2GHz processor is built using advanced manufacturing processes, resulting in improved power efficiency. It intelligently manages power consumption, reducing energy costs and environmental impact. By choosing a server with an efficient processor, you can contribute to sustainability efforts while saving on operational expenses.

Ram

Another essential feature of the HPE Proliant Dl380 Gen9 Server is its 32GB DDR4 RAM. The RAM plays a crucial role in the server's overall performance and responsiveness. Let's explore the benefits and importance of this feature.

Enhanced Multitasking

With 32GB of DDR4 RAM, the server can handle multiple concurrent tasks effortlessly. Whether you're running resource-intensive applications or virtual machines, the ample RAM capacity ensures smooth multitasking without significant performance degradation. Users can experience seamless operations, even when dealing with memory-intensive workloads.

Improved System Responsiveness

RAM acts as a temporary storage space for data that the processor needs to access quickly. With 32GB of DDR4 RAM, the server can store a larger amount of frequently accessed data, reducing the need to fetch information from slower storage devices like hard drives. This results in improved system responsiveness, as data can be retrieved and processed faster, leading to shorter response times and enhanced user experience.

Efficient Memory Management

DDR4 RAM technology offers enhanced memory management capabilities. It allows for higher memory densities and faster data transfer rates compared to its predecessors. The 32GB DDR4 RAM in the HPE Proliant Dl380 Gen9 Server provides efficient memory utilization, ensuring optimal performance while minimizing memory-related bottlenecks.

Future-Proofing

With 32GB of RAM, the server is well-equipped to handle future growth and expansion. As applications become more demanding and data volumes increase, having sufficient RAM is crucial to maintaining performance levels. By choosing a server with ample RAM capacity, you can avoid potential upgrades or replacements in the near future, saving both time and money.

Fault-Tolerance and Redundancy

The HPE Proliant Dl380 Gen9 Server supports various memory redundancy features, such as memory mirroring and online spare memory. These features ensure fault-tolerance by creating backups of critical data and allowing the system to continue functioning even in the event of a memory failure. With 32GB DDR4 RAM, you can take advantage of these redundancy options, minimizing the risk of data loss and downtime.

Compatibility with Modern Applications

Many modern applications, especially those used for data analytics or virtualization, require a significant amount of memory to perform optimally. The 32GB DDR4 RAM in the HPE Proliant Dl380 Gen9 Server meets the requirements of these applications, enabling you to leverage their full potential. By providing the necessary resources, the server ensures that your critical applications run smoothly and efficiently.

Sku

The HPE Proliant Dl380 Gen9 Server's SKU is 800076-S01. While it may seem like a simple identifier, the SKU carries important information for users. Let's delve into the benefits and importance of this feature.

Easy Identification

The SKU acts as a unique identifier for the server model. With the SKU 800076-S01, users can easily recognize and differentiate the HPE Proliant Dl380 Gen9 Server from other server models. This simplifies the procurement process and ensures that you get the exact server you need without confusion or errors.

Compatibility and Configurability

The SKU also carries information about the server's hardware configuration and compatibility. By referencing the SKU, users can ensure that the server they are purchasing is compatible with their existing infrastructure or specific requirements. This prevents any compatibility issues and allows for seamless integration of the server into your IT environment.

Product Support and Warranty

The SKU is often associated with product support and warranty information. By referring to the SKU 800076-S01, users can easily access documentation, drivers, firmware updates, and other resources specific to the HPE Proliant Dl380 Gen9 Server. Additionally, the SKU helps determine warranty coverage, making it easier to obtain support or replacement parts if needed.

Scalability Options

Certain SKUs may indicate specific scalability options available for the server. For example, a server with SKU 800076-S01 might come with expansion slots or additional storage options that allow for future expansion. By understanding the SKU's implications, users can make informed decisions about potential upgrades or scalability options for their infrastructure.

Availability and Pricing

The SKU can also provide insights into product availability and pricing. By referencing the SKU, users can check stock availability and compare pricing across different vendors or resellers. This information helps in making cost-effective decisions and ensures that you can acquire the server at competitive prices.

Configuration Management

For organizations managing multiple servers, the SKU plays a vital role in configuration management. By associating each server with its unique SKU, administrators can easily track and manage specific configurations, ensuring consistency across the infrastructure. This simplifies maintenance tasks, such as software updates, hardware replacements, or troubleshooting, as each server's configuration can be easily identified and managed based on its SKU.

In conclusion, the HPE Proliant Dl380 Gen9 Server's Processor, RAM, and SKU features are essential components that contribute to its overall performance, reliability, and user experience. The Xeon Octa Core 3.2GHz processor offers enhanced performance, productivity, and scalability options. The 32GB DDR4 RAM provides improved multitasking capabilities, system responsiveness, and efficient memory management. The SKU 800076-S01 simplifies identification, compatibility assessment, and configuration management. By understanding the benefits and importance of these features, users can make informed decisions when choosing the HPE Proliant Dl380 Gen9 Server for their business needs.
