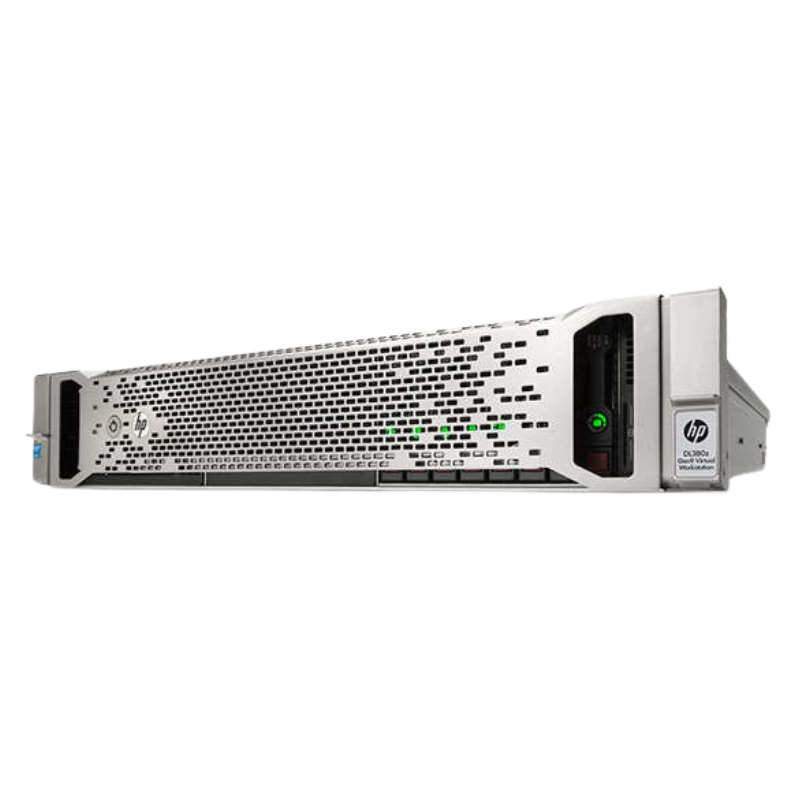

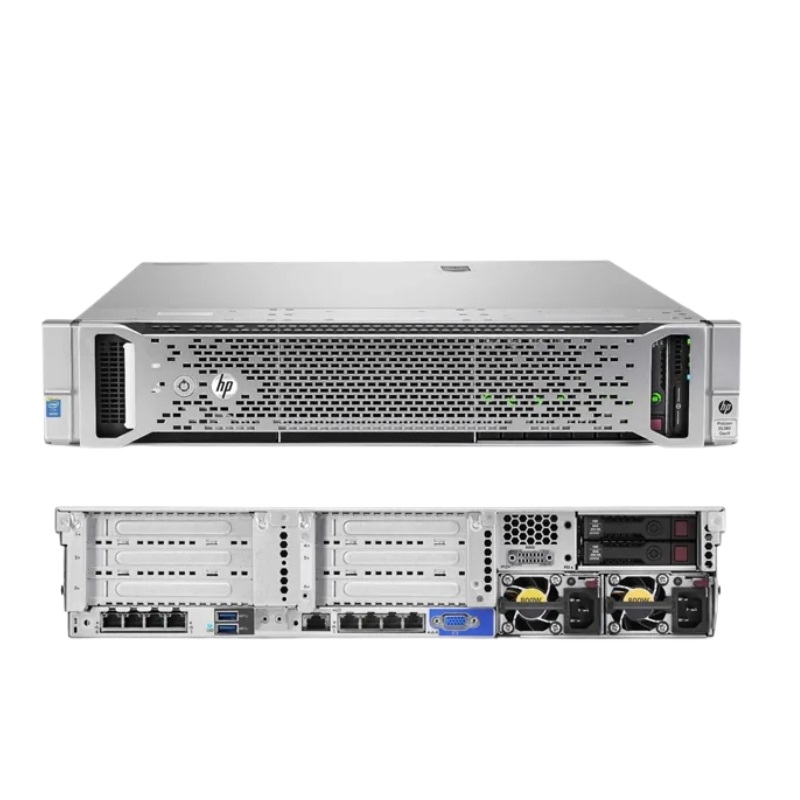

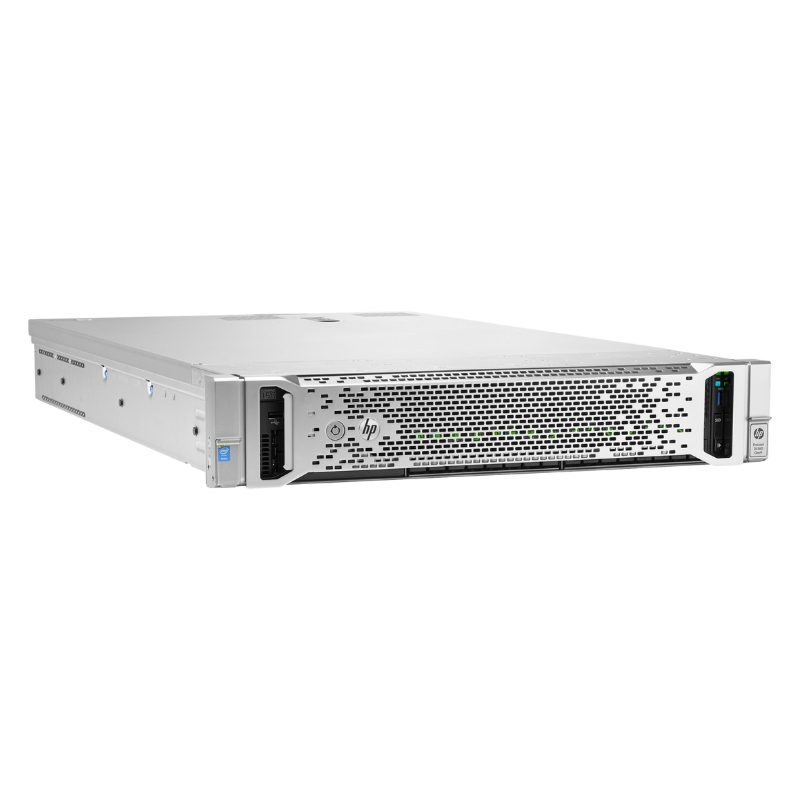

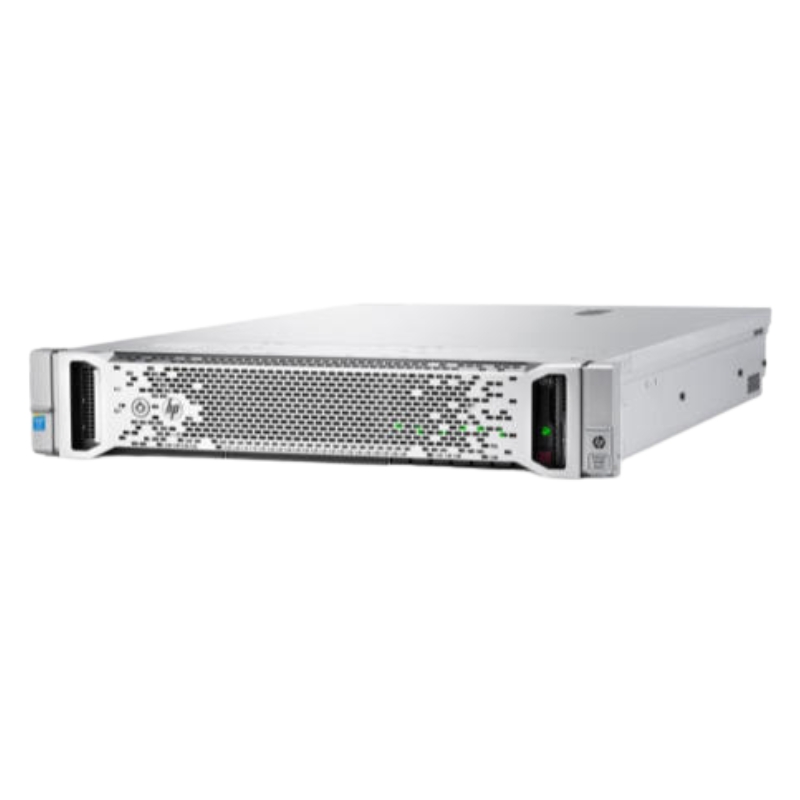

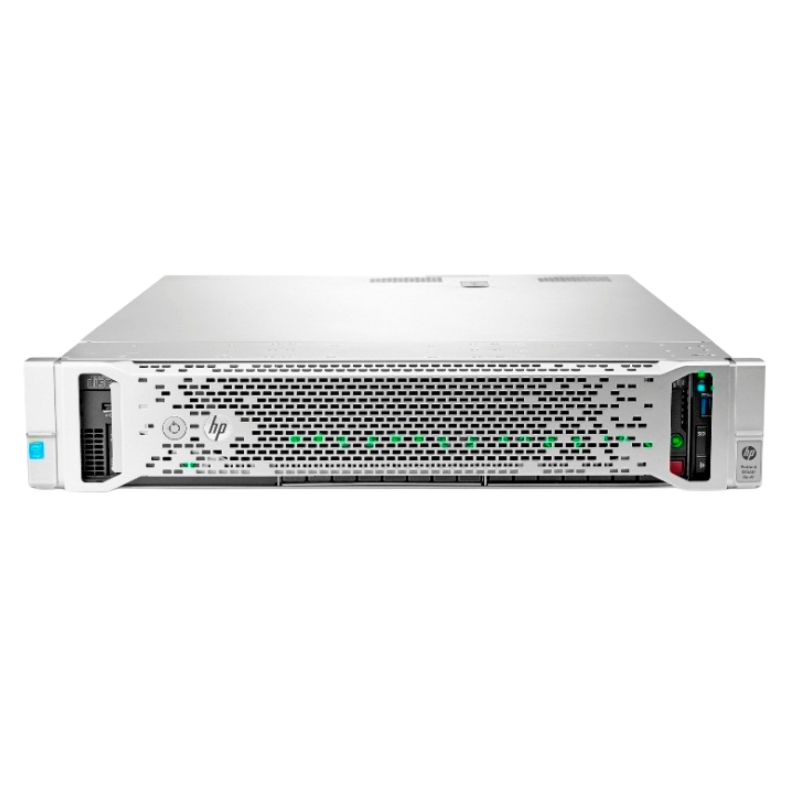

HPE DL560 Gen9 Server Xeon 1.7GHz 10Core E5-4610V3, DDR4 32GB 741064-B21

Processor

The HPE Proliant DL560 Gen9 Server is equipped with a powerful Xeon 1.7GHz 10Core E5-4610V3 processor, which offers exceptional performance and reliability for users. This processor is specifically designed for enterprise-level computing, making it an ideal choice for businesses of all sizes.

Main Information of HPE Proliant

The HPE Proliant DL560 Gen9, with part number 741064-B21, is a highly capable rack-mountable server designed to meet demanding computing needs. Developed by Hewlett Packard Enterprise, this model delivers exceptional performance and flexibility for various business applications.

Manufacturer Information

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 741064-B21

Product Details

• Product Name: HPE Proliant DL560 Gen9 E5-4620v3 2p 64GB-R P440ar/2GB 8SFF 2x1200W RPS Base Server
• Form Factor: Rack-mountable - 2U
• Scalability: 4-way

Processor & Chipset

Processor Specifications

• Type: Intel Xeon E5-4610v3, 1.7 GHz
• Cores: 10-core
• Quantity: 2 (Max: 4)
• QuickPath Interconnect: 6.4 GT/s
• Socket: FCLGA2011-3
• Main Features: Hyper-threading Technology, Intel Turbo Boost Technology 2

Cache Memory

• Installed Size: 50 MB L3 Cache
• Cache Per Processor: 25 MB

Memory

Configuration & Features

• Installed Size: 32 GB, expandable up to 1.5 TB
• Technology: DDR4 SDRAM with Advanced ECC
• Effective Speed: 2133 MHz
• Memory Compliance: PC4-17000
• Form Factor: DIMM 288-pin
• Slots: 24 (22 free)
• Features: Registered, Memory Mirroring, Online Spare Memory, Quad Channel Architecture, HP SmartMemory

Supported RAM Configurations

• PC4-17000: Up to 1.5 TB Registered
• Load-reduced: Up to 1.5 TB

Storage

Drive Configuration

• Hard Drive: None
• Optical Drive: None

Storage Controllers

• Type: RAID
• Controller Interface: SATA 6 Gb/s
• Model: HP Dynamic Smart Array B140i
• Channels: 10
• RAID Levels: RAID 0, RAID 1, RAID 5

Display & Graphics

Graphics Processor

• Model: Matrox G200
• Video Interfaces: VGA

Networking & Communication

Network Interfaces

• Bus Type: PCI Express 2.0 x4
• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331FLR
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: Integrated Lights-Out 4 (iLO 4)
• Features: Wake On LAN (WOL), PXE Support
• Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3az

Expansion & Connectivity

Expansion Bays & Slots

• Hot-swap Bays: 8 x 2.5 SFF (All free)
• FlexibleLOM Slot: 1 (Free)
• DIMM Slots: 24 (2 occupied)
• CPU Slots: 4 (All free)
• PCIe Slots:
  • 2 x PCIe 3.0 x16 (Half-length, Full-height, X8 Mode)
  • 1 x PCIe 3.0 x8 (Half-length, Full-height)
  • 1 x PCIe 3.0 x16 (Half-length, Full-height, X8 Mode, 2 Processors Required)
• MicroSD Card Slots: 2 (All free)

Interfaces & Ports

• Serial Port: 1
• VGA Port: 1
• HP iLO Port: 1
• USB Ports:
  • 2 x USB 2.0 (Rear)
  • 1 x USB 2.0 (Internal)
  • 1 x USB 3.0 (Front)
  • 2 x USB 3.0 (Rear)
  • 1 x USB 3.0 (Internal)
• LAN Ports: 4 x Gigabit Ethernet

Power & Dimensions

Power Specifications

• Device Type: Hot-plug Power Supply
• Redundancy: Yes (1+1 Optional)
• Installed Quantity: 1
• Max Supported Quantity: 2
• Voltage: AC 120/230 V (50/60 Hz)
• Power Rating: 1200 Watts
• 80 Plus Certification: 80 Plus Platinum

Physical Dimensions

• Width: 17.5 inches
• Depth: 29.5 inches
• Height: 3.4 inches
• Weight: 39 lbs

Improved Performance

The Xeon 1.7GHz 10Core E5-4610V3 processor provides a significant boost in performance compared to its predecessors. With its ten powerful cores, it can handle multiple tasks simultaneously, ensuring smooth and efficient operation even under heavy workloads. This means that users can run resource-intensive applications and perform complex computations without experiencing any slowdowns or bottlenecks.

Enhanced Efficiency

In addition to its impressive performance capabilities, the Xeon 1.7GHz 10Core E5-4610V3 processor also offers improved energy efficiency. It incorporates advanced power management technologies that intelligently adjust power consumption based on workload demands. This not only reduces energy costs but also lowers the overall carbon footprint of the server, making it a more environmentally friendly choice.

Reliability and Scalability

The Xeon 1.7GHz 10Core E5-4610V3 processor is built to deliver exceptional reliability and scalability. It features advanced error correction mechanisms that ensure data integrity and prevent system crashes due to memory errors. Additionally, it supports Intel's Hyper-Threading technology, allowing each physical core to execute multiple threads simultaneously. This enables efficient multitasking and enhances the overall responsiveness of the server.

The importance of the Xeon 1.7GHz 10Core E5-4610V3 processor cannot be overstated for businesses that rely on their servers for critical operations. Its exceptional performance, energy efficiency, reliability, and scalability make it an essential component of the HPE Proliant DL560 Gen9 Server.

Memory

The HPE Proliant DL560 Gen9 Server is equipped with DDR4 32GB memory, providing users with ample capacity to handle demanding workloads. Memory plays a crucial role in the overall performance and responsiveness of the server, making it an essential feature for businesses.

Increased Efficiency

With DDR4 technology, the HPE Proliant DL560 Gen9 Server offers improved memory performance compared to its predecessors. The higher data transfer rates and lower power consumption of DDR4 memory result in faster data access and reduced latency. This translates into improved overall system efficiency, allowing users to execute tasks more quickly and efficiently.

Enhanced Reliability

DDR4 memory also offers enhanced reliability features that ensure data integrity and minimize the risk of errors. Error correction mechanisms built into DDR4 modules can detect and correct single-bit errors, preventing potential system crashes or data corruption. This is especially important for businesses that handle critical data and cannot afford any loss or corruption.

Scalability and Future-Proofing

The HPE Proliant DL560 Gen9 Server's DDR4 32GB memory provides ample room for future scalability. With its high capacity, businesses can easily expand their server's memory as their needs grow, without having to invest in additional hardware. This scalability ensures that the server remains capable of handling evolving workloads and applications, making it a future-proof investment.

The importance of DDR4 32GB memory cannot be understated for businesses that require high-performance computing capabilities. Its increased efficiency, enhanced reliability, and scalability make it a critical component of the HPE Proliant DL560 Gen9 Server.

Part Number

The part number for the HPE Proliant DL560 Gen9 Server is 741064-B21. This unique identifier plays a vital role in ensuring compatibility, tracking inventory, and simplifying the procurement process for users.

Compatibility and Ease of Procurement

Part number 741064-B21 serves as a universal identifier for the HPE Proliant DL560 Gen9 Server. When purchasing additional components or accessories for the server, users can simply reference the part number to ensure compatibility. This eliminates the risk of purchasing incompatible hardware and streamlines the procurement process, saving both time and effort.

Inventory Management

For businesses that manage a large number of servers, keeping track of inventory can be a challenging task. Part number 741064-B21 enables efficient inventory management by providing a unique identifier for each HPE Proliant DL560 Gen9 Server. By referencing the part number, businesses can easily track their servers' locations, configurations, and warranty status, ensuring smooth operations and minimizing downtime.

Technical Support and Documentation

Part number 741064-B21 is also essential when seeking technical support or accessing product documentation. When contacting customer support or browsing online resources, users can provide or search for the part number to ensure accurate and relevant information. This simplifies troubleshooting processes and enables users to quickly resolve any issues they may encounter with their HPE Proliant DL560 Gen9 Server.

Part number 741064-B21 holds significant benefits and importance for users of the HPE Proliant DL560 Gen9 Server. Its role in ensuring compatibility, simplifying procurement, facilitating inventory management, and accessing technical support makes it an essential component of the overall user experience.
