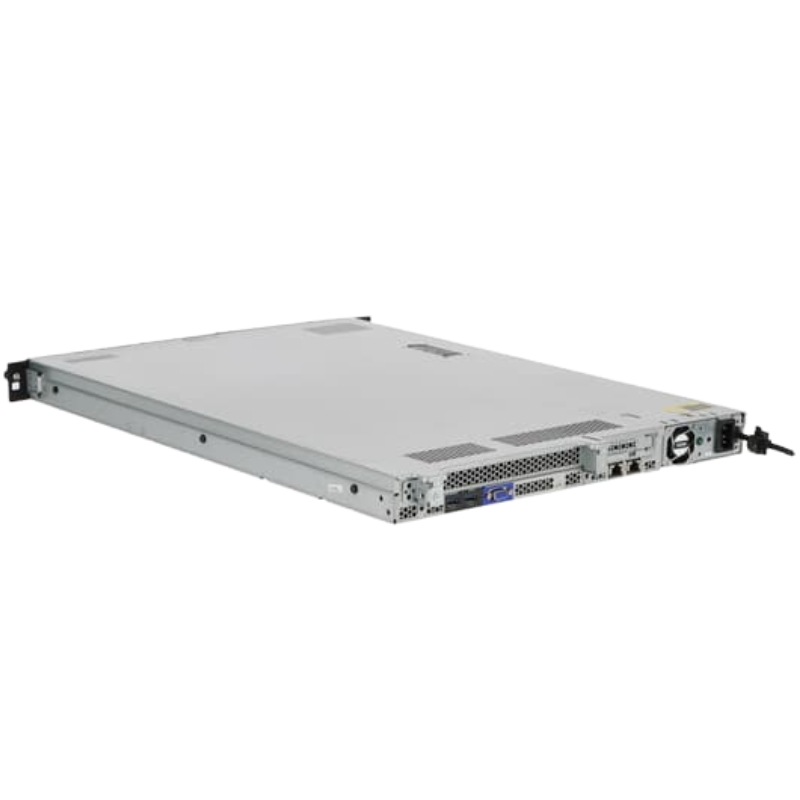

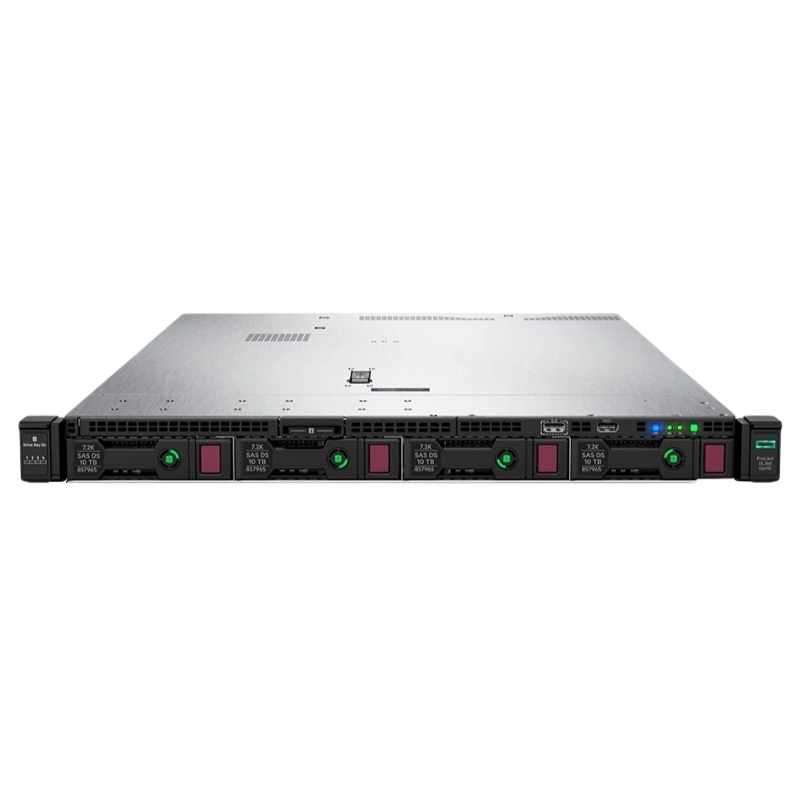

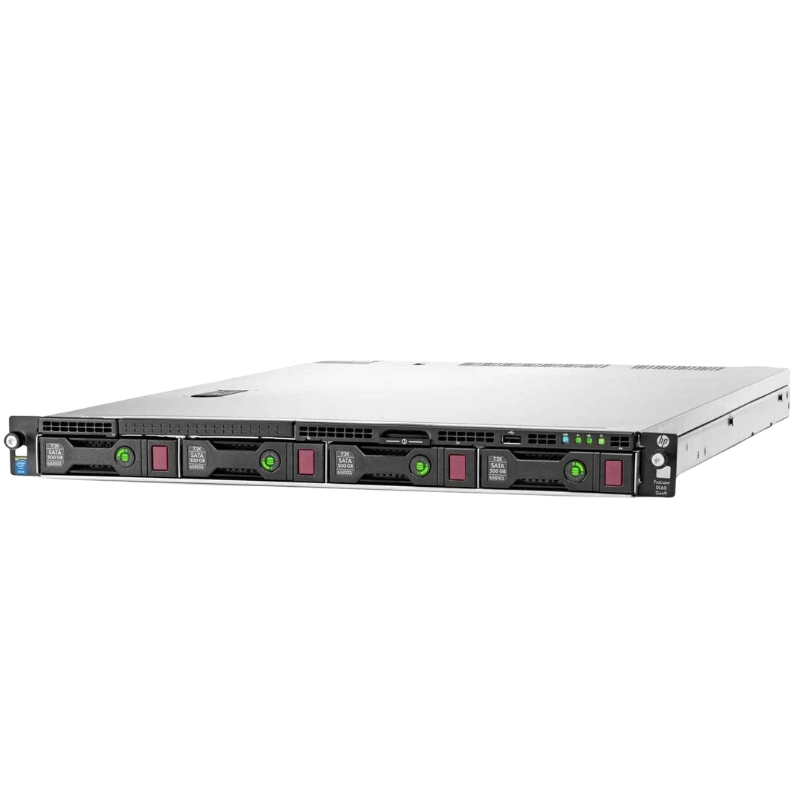

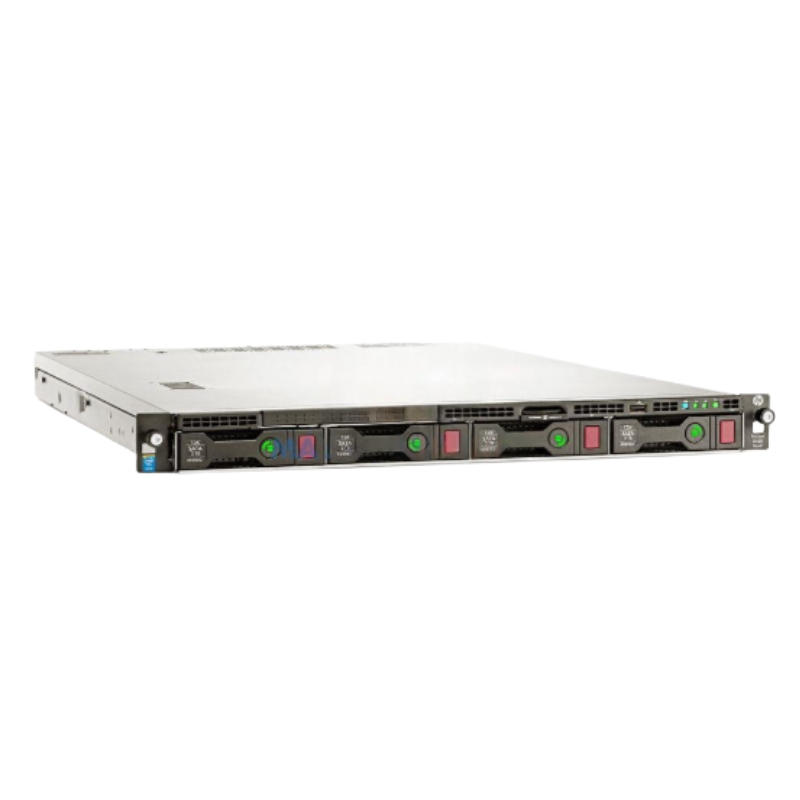

HPE DL60 Gen9 E5-2603v4 8GB-R B140i 4LFF 830012-B21

Processor

The HPE ProLiant DL60 Gen9 Server is equipped with the powerful E5-2603v4 processor. This processor is designed to deliver exceptional performance and reliability, making it an ideal choice for a variety of workloads and applications.

General Information

• Manufacturer: HPE
• Manufacturer Part Number: 830012-B21
• Product Name: Proliant DL120 Gen9 - 1U Rack-Mount Server (Entry Model)

Processor & Chipset

• Processor Type: Intel Xeon E5-2603v4 at 1.7 GHz
• Core Count: 6 cores
• 64-bit Computing: Yes
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Processor Upgradability: Yes, upgradable

Cache Memory

• Installed Size: 15 MB L3 Cache
• Cache per Processor: 15 MB

Memory Specifications

Installed Memory

• Size: 8 GB (Expandable up to 128 GB)
• Type: DDR4 SDRAM
• Speed: 2400 MHz
• Compliance: PC4-19200
• Form Factor: DIMM 288-pin
• Features: Registered, Online Spare Memory, Quad Channel Architecture, HP SmartMemory
• Configuration: 1 x 8 GB
• Supported RAM: 128 GB Registered, 256 GB Load-Reduced

Storage Details

• Hard Drive: None
• Optical Drive: None

Storage Controllers

• Controller Type: 1 x RAID
• Interface Type: SATA 6 Gb/s
• Controller Name: HP Dynamic Smart Array B140i
• Channel Quantity: 10
• RAID Levels Supported: RAID 0, RAID 1, RAID 5, RAID 10

Display & Graphics

• Graphics Controller: Integrated Matrox G200eh2

Networking & Communication

• Interface Type: PCI Express 2.0 x2
• Ethernet Ports: 2 x Gigabit Ethernet
• Ethernet Controller: HP NC361i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: Integrated Lights Out Management (ILOM)
• Features: Wake On LAN (WOL), PXE Support
• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az

Power Specifications

• Device Type: Non-hot-plug Power Supply
• Installed Quantity: 1
• Nominal Voltage: AC 100-240V (50/60 Hz)
• Power Output: 550 Watts

Expansion & Connectivity

Expansion Bays

• External 5.25" Slim Line: 1 total / 1 free
• Hot-swap 3.5" LFF: 4 total / 4 free

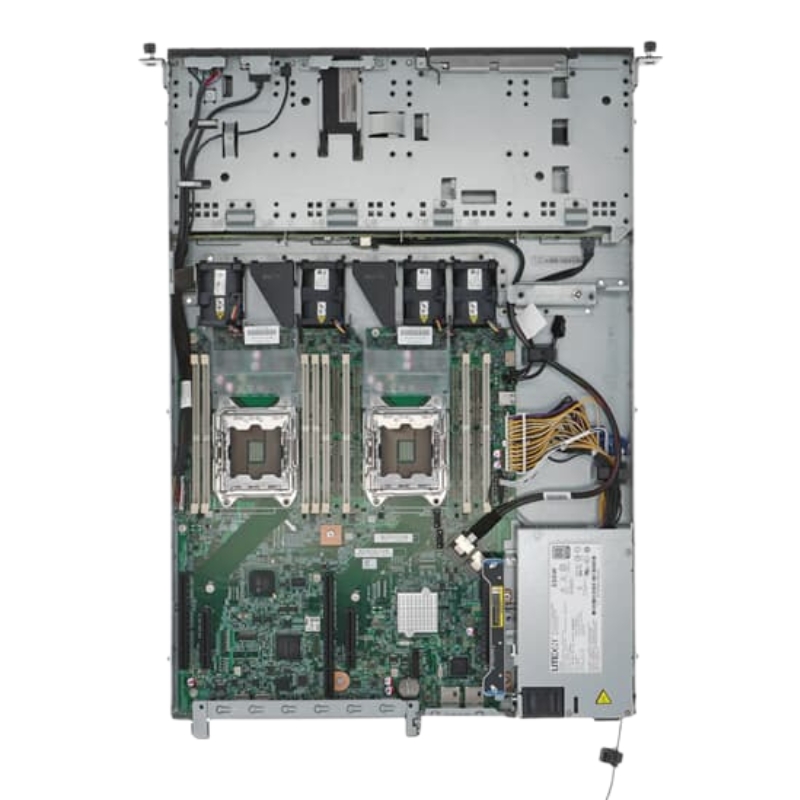

Expansion Slots

• CPU Slot: 1 total / 0 free
• DIMM 288-pin Slots: 8 total / 7 free
• PCIe 3.0 x16 (Low-profile): 1 total / 1 free
• PCIe 3.0 x8 (Low-profile): 1 total / 1 free
• PCIe 3.0 x8 (Half-length, Full-height): 1 total / 1 free
• MicroSD Card (Internal): 1 total / 1 free

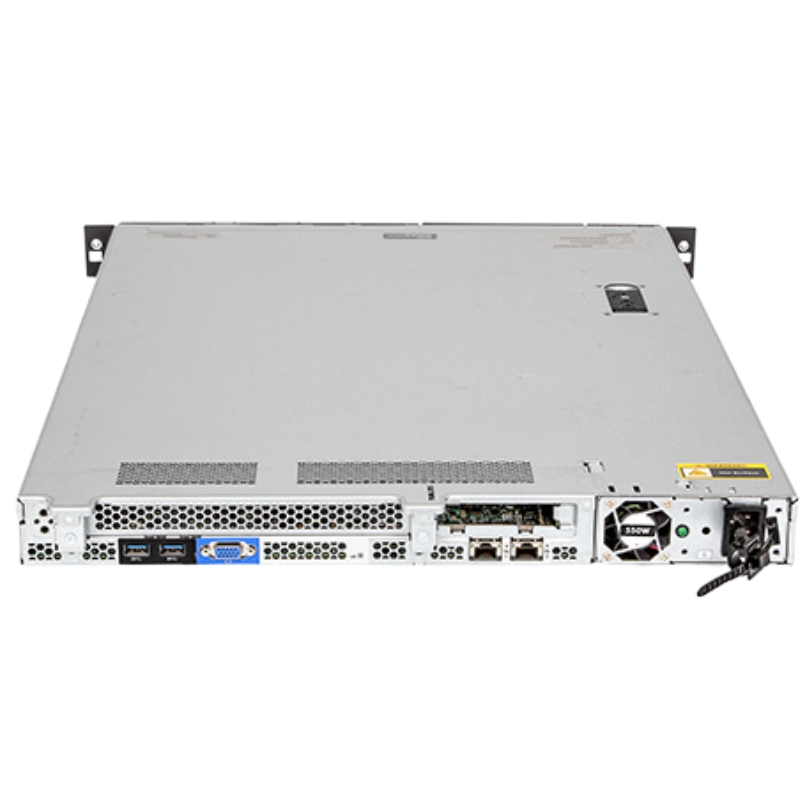

Interfaces & Ports

• LAN (Gigabit Ethernet) - RJ-45: 2
• HP iLO - RJ-45: 1
• VGA: 1
• USB 2.0: 1 (Front)
• USB 3.0: 3 (2 Rear, 1 Internal)

Dimensions & Weight

• Width: 17.1 inches
• Depth: 23.9 inches
• Height: 1.7 inches
• Weight: 19.84 lbs

Improved Performance

The E5-2603v4 processor features six cores and supports twelve threads, providing enhanced performance for demanding tasks. With a base clock speed of 1.7GHz and a maximum turbo frequency of 3.6GHz, this processor can handle intensive workloads with ease. Whether you are running virtual machines, hosting databases, or processing large datasets, the E5-2603v4 ensures smooth and efficient performance.

Efficient Multitasking

With its multi-threading capability, the E5-2603v4 processor allows for efficient multitasking. It can handle multiple tasks simultaneously, improving productivity and reducing processing time. This is particularly beneficial for businesses that rely on running multiple applications or processes concurrently.

Enhanced Energy Efficiency

The E5-2603v4 processor is built on a 14nm manufacturing process, which results in improved energy efficiency. It consumes less power while delivering high-performance computing, helping to reduce overall energy costs. Additionally, the processor supports advanced power management features, allowing it to dynamically adjust power consumption based on workload demands.

Memory

The HPE ProLiant DL60 Gen9 Server is equipped with 8GB-R memory, providing ample capacity for efficient data processing and storage. This memory configuration offers several benefits for users looking to optimize their server performance.

Smooth Application Performance

With 8GB of memory, the server can efficiently handle multiple applications simultaneously without sacrificing performance. This allows businesses to run resource-intensive applications smoothly, ensuring a seamless user experience. Whether you are running complex databases, virtualization environments, or high-traffic websites, the 8GB-R memory ensures optimal application performance.

Flexible Scalability

The 8GB-R memory configuration of the DL60 Gen9 Server allows for easy scalability. Users can expand the memory capacity as their business needs grow, ensuring that the server can handle increasing workloads. This flexibility eliminates the need for frequent hardware upgrades and reduces costs associated with downtime.

Reliable Data Storage

The 8GB-R memory provides reliable data storage capabilities, ensuring that critical information is stored securely. This is particularly important for businesses that deal with sensitive data or require high levels of data integrity. The server's memory configuration helps prevent data loss or corruption, providing peace of mind to users.

Storage

The HPE ProLiant DL60 Gen9 Server features the B140i 4LFF storage solution, offering ample storage capacity and high-performance capabilities. The storage feature plays a crucial role in optimizing data management and accessibility.

High Storage Capacity

The B140i 4LFF storage solution provides sufficient space to store large amounts of data. With support for up to four LFF (Large Form Factor) drives, users can store terabytes of information efficiently. This is particularly beneficial for businesses that deal with large files or require extensive data storage.

Fast Data Access

The B140i 4LFF storage solution offers high-performance capabilities, enabling fast data access and retrieval. It utilizes advanced RAID (Redundant Array of Independent Disks) technology to improve data reliability and read/write speeds. This ensures that users can access their stored data quickly and efficiently, enhancing overall productivity.

Data Redundancy and Protection

The B140i 4LFF storage solution supports RAID configurations, providing data redundancy and protection. RAID technology allows for data to be distributed across multiple drives, reducing the risk of data loss in the event of a drive failure. This ensures that critical information remains intact and accessible, minimizing downtime and potential disruptions to business operations.

Part Number

The HPE ProLiant DL60 Gen9 Server is identified by the part number 830012-B21. This unique identifier is essential for users and businesses looking to purchase, maintain, or upgrade their server infrastructure.

Accurate Identification

The part number 830012-B21 ensures accurate identification of the HPE ProLiant DL60 Gen9 Server model. It allows users to precisely specify the server they require, ensuring compatibility with their existing infrastructure or specific business needs. This eliminates any confusion or compatibility issues that may arise when selecting a server.

Easy Maintenance and Upgrades

Having the correct part number simplifies server maintenance and upgrades. Users can easily identify and source the necessary components or spare parts specific to the DL60 Gen9 Server model. This streamlines the process of replacing faulty components or expanding server capabilities, minimizing downtime and maximizing productivity.

Technical Support and Documentation

The part number serves as a reference point when seeking technical support or accessing documentation related to the DL60 Gen9 Server. Users can provide the part number to HPE's support team for efficient troubleshooting and assistance. Additionally, the part number is often used in product manuals, guides, and online resources to provide specific instructions tailored to the DL60 Gen9 Server model.
