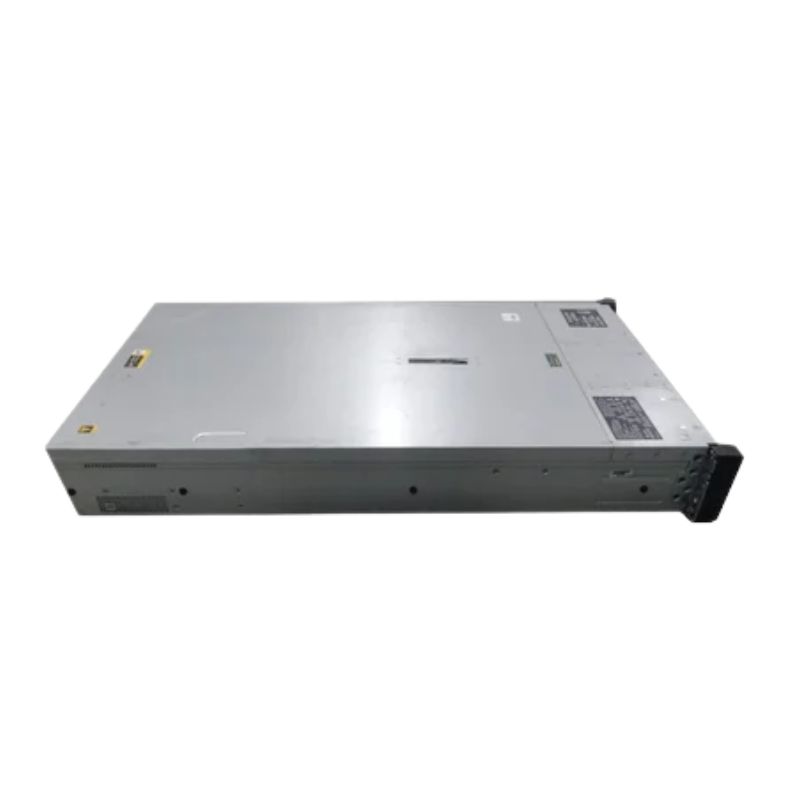

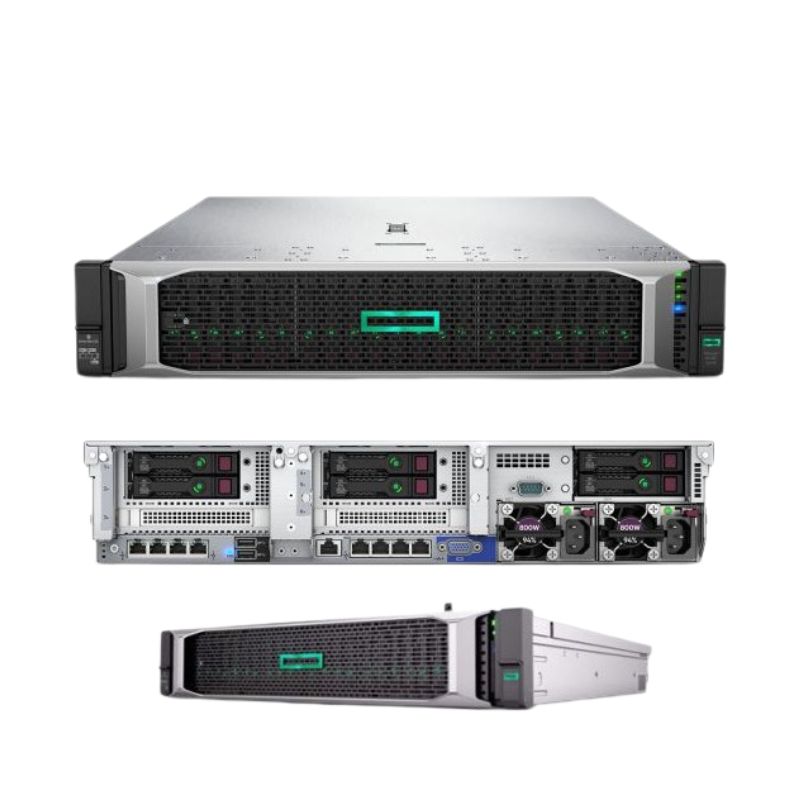

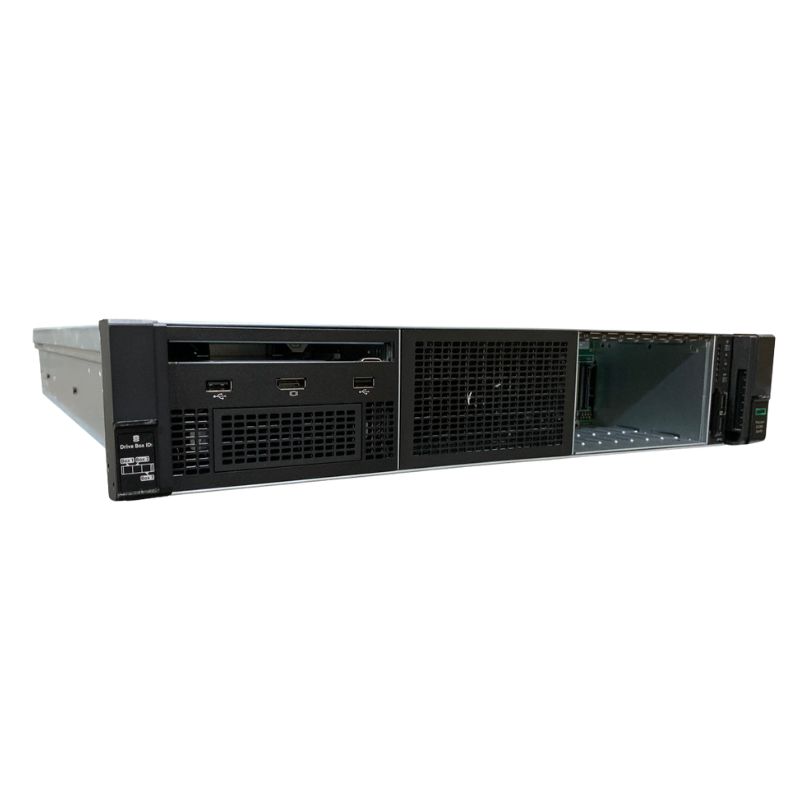

HPE Gen10 P06421-B21 Xeon 2.2 GHz 8-core Silver 4114 Rack Server

Processor

The HPE Gen10 HPE P06421-B21 Rack Server comes equipped with a powerful Xeon 2.2 GHz 8-core Silver 4114 processor. This processor is designed to deliver exceptional performance and reliability, making it an ideal choice for businesses and organizations that require high-performance computing capabilities.

General Product Information

• Manufacturer: Hewlett Packard Enterprise
• Part Number: P06421-B21
• Product Name: ProLiant DL380 Gen10 - 2U Rack-Mountable Performance Server

Processor and Chipset

CPU Specifications

• Processor Model: Intel Xeon Silver 4114
• Base Clock Speed: 2.2 GHz
• Maximum Turbo Speed: 3.0 GHz
• Cores: 10-core
• Quantity: 1 (Upgradable to 2)
• Features: Hyper-Threading, Intel Turbo Boost Technology 2
• Chipset: Intel C621

Cache Memory

• Installed Cache: L3 Cache - 13.75 MB
• Cache per Processor: 13.75 MB

Memory Specifications

• Installed RAM: 32 GB (Expandable up to 3 TB)
• Memory Technology: DDR4 SDRAM
• Effective Memory Speed: 2400 MHz
• Rated Memory Speed: 2666 MHz
• Memory Compliance: PC4-20800
• Form Factor: DIMM 288-pin
• Memory Slots: 12 (11 available)
• Configuration: 1 x 32 GB
• Maximum RAM Supported: 3.072 TB (Load-reduced PC4-20800), 768 GB (Registered)

Storage Controllers

Primary Controller

• Type: RAID
• Interface: PCIe 3.0 x8
• Controller Name: HPE Smart Array P408i-a
• Channels: 8
• RAID Levels: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
• Buffer Size: 2 GB

Secondary Controller

• Type: SATA
• Interface: SATA 6 Gb/s
• Controller Name: HPE Smart Array S100i SR Software
• Channels: 14

Graphics Controller

• Video Memory: 16 MB
• Video Interface: VGA

Networking and Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331i
• Protocols Supported: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Features: Wake on LAN (WoL), PXE Support

Expansion and Connectivity

Bays

• External Bays: 8 (Hot-swap 2.5” SFF, all free)

Slots

• FlexibleLOM Slot: 1 (Available)
• PCIe 3.0 x16 Slot: 1 (Half-length, Full-height, Available)
• PCIe 3.0 x8 Slots: 2 (Half-length, Full-height, Available)
• MicroSD Card Slot: 1 (Internal, Available)

Interfaces

• HP iLO Type A: 1 (Front)
• USB 3.0 Ports: 5 (1 Front, 2 Rear, 2 Internal)
• Gigabit Ethernet RJ-45 Ports: 4 (Rear)
• HP iLO RJ-45 Port: 1 (Rear)
• VGA Port: 1 (Rear)

Miscellaneous

Included Accessories

• RAID Battery Backup Unit
• HP Easy Install Rail Kit
• 4 Standard Fans
• CPU Standard Heatsink

Compliance Standards

• AES
• FIPS 140-2
• IPv6 Ready
• TLS v1.2
• ASHRAE Class A4
• ASHRAE Class A3
• WEEE 2002/95/EC
• ACPI 6.1

Manufacturer Selling Program

• HPE Smart Buy

Power Specifications

• Device Type: Hot-Plug Power Supply
• Redundancy: Optional (1+1 with Optional Power Supply)
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 800 Watts
• 80 Plus Certification: 80 Plus Platinum

Dimensions and Weight

• Width: 17.5 inches
• Depth: 28.8 inches
• Height: 3.4 inches
• Weight: 32.54 lbs

Enhanced Performance

The Xeon 2.2 GHz 8-core Silver 4114 processor offers enhanced performance compared to previous generation processors. With its eight cores, it is capable of handling multiple tasks simultaneously, ensuring smooth and efficient operations even during peak workloads. This makes it perfect for resource-intensive applications and workloads such as virtualization, database management, and data analysis.

Improved Efficiency

Efficiency is a crucial factor when it comes to server performance. The Xeon 2.2 GHz 8-core Silver 4114 processor is designed to optimize power consumption without compromising on performance. It utilizes advanced power management technologies to dynamically adjust power usage based on workload demands, resulting in lower energy consumption and reduced operating costs.

Advanced Security Features

Data security is of paramount importance in today's digital landscape, and the Xeon 2.2 GHz 8-core Silver 4114 processor includes advanced security features to protect sensitive data. It incorporates Intel's Trusted Execution Technology (TXT) and Intel Software Guard Extensions (SGX), which provide hardware-based security capabilities to safeguard critical workloads and help prevent unauthorized access and data breaches.

Future-Proofing

Investing in a server with a powerful processor like the Xeon 2.2 GHz 8-core Silver 4114 ensures future-proofing for your business. As technology continues to evolve, applications and workloads are becoming more demanding. By choosing a server with a high-performance processor, you can ensure that your infrastructure can handle future growth and remain competitive in the ever-changing business landscape.

Power Supply

The HPE Gen10 HPE P06421-B21 Rack Server is equipped with a reliable 1x 800w power supply. This power supply unit (PSU) is designed to provide a stable and efficient power source for the server, ensuring uninterrupted operations and minimizing the risk of power-related issues.

Reliability and Redundancy

A robust power supply is essential for any server, as it directly impacts the overall reliability and uptime of the system. The 1x 800w power supply in the HPE Gen10 HPE P06421-B21 Rack Server is designed to deliver a consistent and steady power flow to the server components, preventing unexpected shutdowns or system failures. Additionally, the server is equipped with redundant power supply options, allowing for seamless failover in case of a power supply failure.

Energy Efficiency

Energy efficiency has become a key consideration for businesses striving to reduce their carbon footprint and lower operating costs. The 1x 800w power supply in this server is designed to meet strict energy efficiency standards, ensuring optimal power usage. By utilizing an energy-efficient power supply, businesses can reduce their electricity consumption, leading to cost savings and contributing to a greener environment.

Scalability and Expandability

The 1x 800w power supply provides ample capacity to support the server's current configuration. However, it also offers room for future scalability and expandability. As your business grows and demands increase, additional components such as hard drives, memory modules, or expansion cards may be added to the server. The power supply's capacity allows for these upgrades without compromising performance or stability.

Easy Maintenance

The 1x 800w power supply is designed for easy maintenance and replacement. In the event of a power supply failure or the need for an upgrade, the modular design of the power supply allows for quick and hassle-free replacement without interrupting server operations. This ensures minimal downtime and reduces the impact on business continuity.

Form Factor

The HPE Gen10 HPE P06421-B21 Rack Server boasts a compact 2U form factor. This form factor offers several benefits and plays a crucial role in optimizing space utilization and facilitating efficient data center management.

Space Efficiency

The 2U form factor of the server allows for efficient space utilization in data centers or server rooms. With its compact design, it occupies less vertical rack space, freeing up valuable real estate for other server systems or networking equipment. This is especially advantageous for businesses with limited physical space, as it enables them to maximize their infrastructure without compromising on performance or scalability.

Improved Airflow and Cooling

The 2U form factor also contributes to improved airflow and cooling within the server chassis. The design allows for better airflow management, with front-to-back or back-to-front cooling options, ensuring that components operate within optimal temperature ranges. Effective cooling is essential to prevent overheating and maintain system stability, especially in environments with high-density server deployments or demanding workloads.

Scalability and Expandability

The 2U form factor provides ample room for expansion and scalability. The server chassis can accommodate multiple hard drives, memory modules, and expansion cards, allowing businesses to easily scale their infrastructure based on evolving needs. This flexibility ensures that the server can adapt to changing workloads or future growth requirements, providing a cost-effective solution that can grow alongside the business.

Ease of Maintenance

The 2U form factor simplifies maintenance and servicing tasks. The server chassis is designed to be easily accessible, allowing for straightforward component replacement or upgrades. This saves valuable time during maintenance operations, reducing downtime and minimizing the impact on business operations.

In conclusion, the HPE Gen10 HPE P06421-B21 Rack Server offers a powerful Xeon 2.2 GHz 8-core Silver 4114 processor, ensuring enhanced performance, improved efficiency, advanced security features, and future-proofing capabilities. The server's 1x 800w power supply provides reliability, energy efficiency, scalability, and easy maintenance. Its compact 2U form factor optimizes space utilization, improves airflow and cooling, facilitates scalability and expandability, and simplifies maintenance tasks. With these features, the HPE Gen10 HPE P06421-B21 Rack Server is an excellent choice for businesses seeking a reliable and high-performance server solution.
