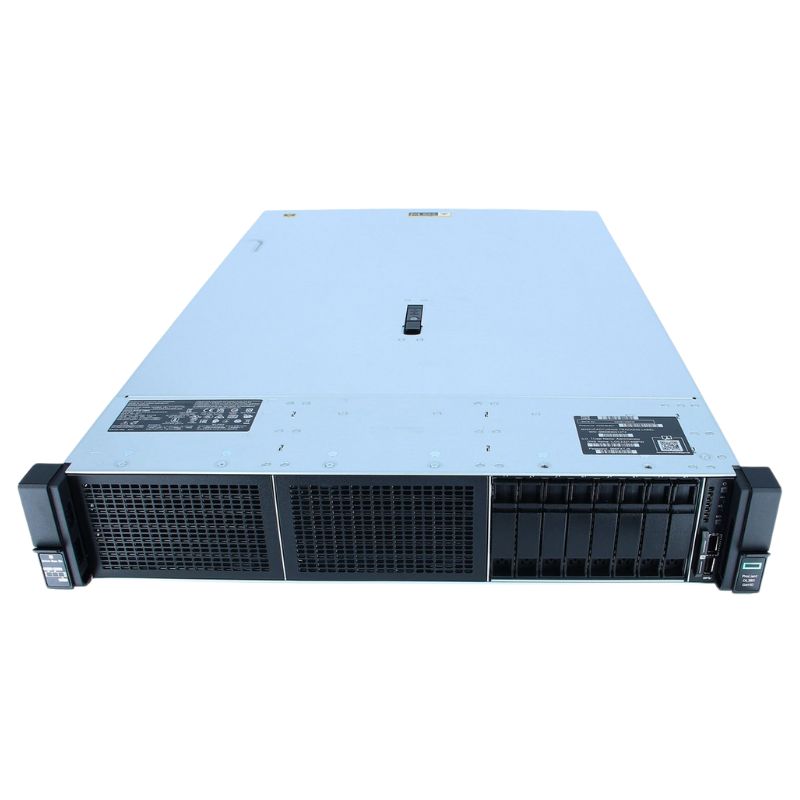

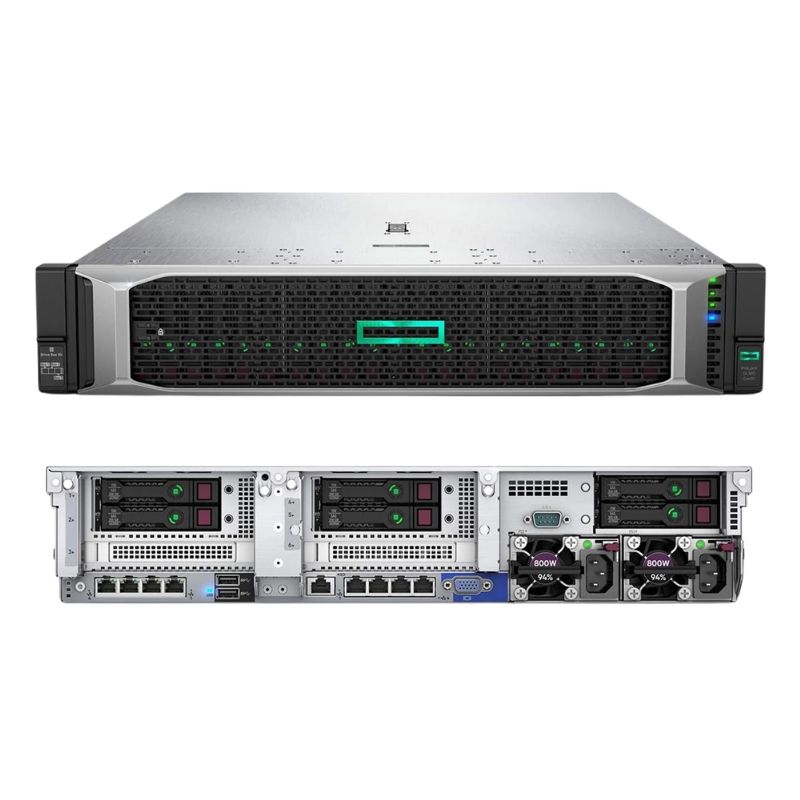

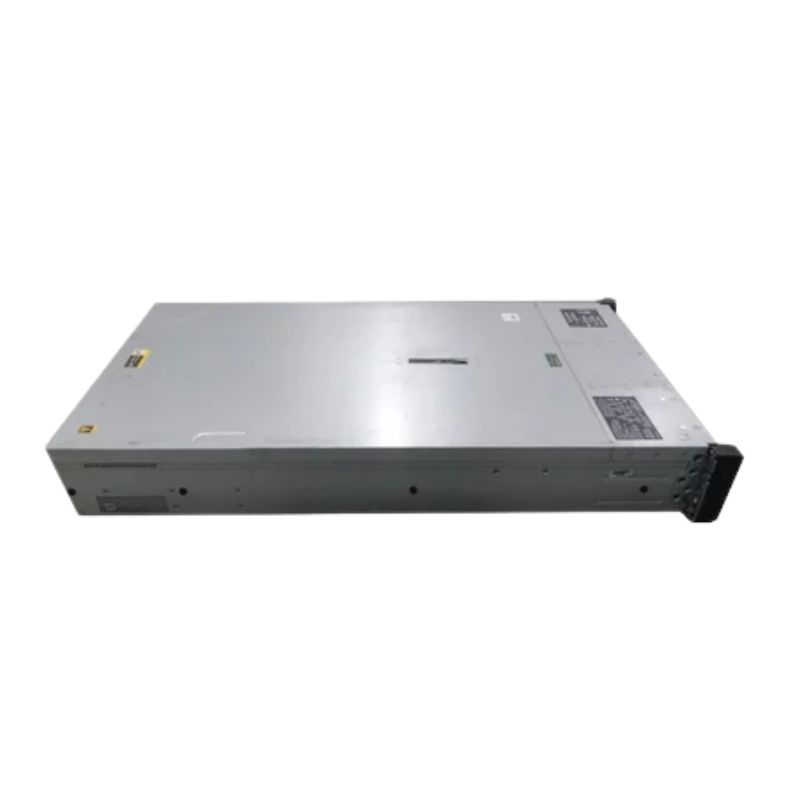

HPE Gen10 Xeon Gold 6130 16-core Server 8SFF P06423-B21 2.1 GHz

Processor

The HPE Gen10 Server is equipped with a powerful and efficient processor, the Xeon Gold 6130 2.1 GHz 16-core. This processor is designed to deliver exceptional performance and reliability, making it an ideal choice for a wide range of computing needs.

General Details

• Manufacturer: Hewlett Packard Enterprise
• Part Number: P06423-B21
• Product Name: Proliant DL380 Gen10 - 2U Rack-Mountable Server (Performance Model)

Processor & Chipset

CPU Specifications

• Processor: Intel Xeon Gold 6130
• Base Frequency: 2.1 GHz
• Maximum Turbo Speed: 3.7 GHz
• Number of Cores: 16-core
• Quantity of CPUs: 1 (upgradable to 2)
• Processor Features: Hyper-Threading, Intel Turbo Boost Technology 2
• Chipset: Intel C621

Cache Memory

• Cache Size: L3 Cache - 22 MB per processor

Memory

Memory Specifications

• Installed Memory: 64 GB (upgradable to 3 TB)
• Memory Type: DDR4 SDRAM
• Memory Speed: Effective and Rated at 2666 MHz
• Memory Compliance: PC4-20800
• Form Factor: DIMM 288-pin
• Slots: 12 total (10 available)
• Configuration Features: Registered, Dual Rank, HPE SmartMemory
• Supported RAM Configurations: PC4-20800 - Up to 3.072 TB (Load-Reduced), 768 GB (Registered)

Storage Controllers

Primary Storage Controller

• Type: RAID - PCIe 3.0 x8
• Interface: SATA 6 Gb/s / SAS 12 Gb/s
• Controller Name: HPE Smart Array P408i-a
• Channels: 8
• RAID Levels Supported: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
• Buffer Size: 2 GB

Secondary Storage Controller

• Type: SATA
• Interface: SATA 6 Gb/s
• Controller Name: HPE Smart Array S100i SR Software
• Channels: 14

Graphics Controller

• Video Memory: 16 MB
• Video Interface: VGA

Networking & Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331i
• Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5 (iLO 5)
• Features: Wake On LAN (WOL), PXE Support

Expansion & Connectivity

Bays

• External Bays: 8 x Hot-Swap 2.5" SFF

Slots

• FlexibleLOM: 1 slot (available)
• PCIe 3.0 x16: 1 slot (available)
• PCIe 3.0 x8: 2 slots (available)
• MicroSD Card (internal): 1 slot (available)

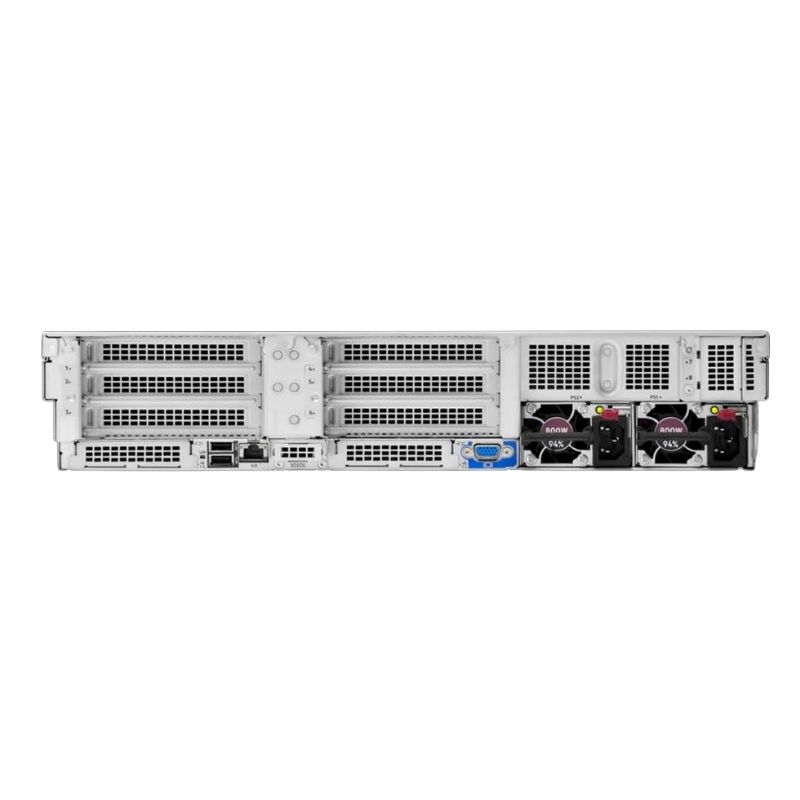

Interfaces

• HP iLO: 1 x Type A (front)
• USB 3.0 Ports: 5 (1 front, 2 rear, 2 internal)
• LAN Ports: 4 x Gigabit Ethernet (RJ-45, rear)
• HP iLO RJ-45: 1 (rear)
• VGA Port: 1 (rear)

Miscellaneous

Included Accessories

• RAID Battery Backup Unit
• HP Easy Install Rail Kit
• 4 Standard Fans
• CPU Standard Heatsink

Compliance Standards

• AES
• FIPS 140-2
• IPv6 Ready
• TLS v1.2
• ASHRAE Class A4
• ASHRAE Class A3
• WEEE 2002/95/EC
• ACPI 6.1

Power Description

• Power Supply Type: Hot-plug
• Power Redundancy: Optional (1+1 with Optional Power Supply)
• Installed Quantity: 2
• Max Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 800 Watts
• 80 Plus Certification: 80 Plus Platinum

Dimensions & Weight

• Width: 17.5 inches
• Depth: 28.8 inches
• Height: 3.4 inches
• Weight: 32.54 lbs

Exceptional Performance

With its 16 cores and a clock speed of 2.1 GHz, the Xeon Gold 6130 processor offers exceptional performance capabilities. It can handle demanding workloads and complex calculations with ease, ensuring that your server operates at peak performance even under heavy loads. This means faster data processing, quicker response times, and improved overall system efficiency.

Enhanced Multitasking

Thanks to its high core count, the Xeon Gold 6130 processor enables efficient multitasking. It can handle multiple tasks simultaneously without sacrificing performance, allowing you to run multiple applications or virtual machines without experiencing any slowdowns. This is particularly beneficial for businesses that rely on their servers to handle a variety of tasks simultaneously.

Optimized Power Efficiency

Despite its impressive performance capabilities, the Xeon Gold 6130 processor is also designed with power efficiency in mind. It features advanced power management technologies that help reduce energy consumption while maintaining optimal performance levels. This not only helps reduce operational costs but also minimizes the environmental impact of your server infrastructure.

Reliability and Stability

The Xeon Gold 6130 processor is known for its exceptional reliability and stability. It is built using advanced manufacturing processes and undergoes rigorous testing to ensure it can withstand the demands of continuous operation. With this processor powering your HPE Gen10 Server, you can rely on its stability and performance for critical business applications and data processing tasks.

Drive Bays

The HPE Gen10 Server features 8SFF drive bays, providing ample storage capacity for your data and applications. These drive bays offer several benefits and play a crucial role in the overall functionality and performance of your server.

Flexible Storage Options

The 8SFF drive bays allow you to choose from a wide range of storage options based on your specific needs. Whether you require high-capacity storage for large files or fast SSDs for quick data access, these drive bays can accommodate various storage configurations. This flexibility ensures that you can scale your storage capacity as your business grows without the need for additional hardware investments.

Improved Data Access Speed

With the 8SFF drive bays, you can take advantage of faster data access speeds. By using solid-state drives (SSDs) in these drive bays, you can significantly reduce data retrieval times, resulting in improved application performance and reduced latency. This is particularly beneficial for businesses that depend on quick data access for real-time analytics, database management, or other data-intensive operations.

Hot-Swappable Design

One of the key advantages of the 8SFF drive bays is their hot-swappable design. This means that you can replace or upgrade drives without having to power down the server, minimizing downtime and ensuring uninterrupted operation. It simplifies maintenance and allows for easy expansion or replacement of storage drives as needed, making it convenient for businesses that require high availability and reliability.

Optimized Storage Space

The 8SFF drive bays are designed to optimize storage space within the server chassis. They provide a compact and efficient solution for storing large amounts of data while minimizing the physical footprint of the server. This is particularly valuable in environments with limited rack space or where efficient space utilization is a priority.

Part Number

The HPE Gen10 Server is identified by its unique part number, P06423-B21. This part number serves several important purposes and provides valuable information for users and system administrators.

Easy Identification and Tracking

The part number, P06423-B21, helps in easy identification and tracking of the HPE Gen10 Server within your IT infrastructure. By referencing the part number, you can quickly identify the specific model and configuration of the server, making it easier to manage and maintain multiple servers in a data center environment. It simplifies inventory management and enables efficient tracking of system components and specifications.

Compatibility Assurance

The part number also ensures compatibility with other HPE Gen10 Server components and accessories. When procuring additional hardware or spare parts for your server, matching the part number ensures that the components are designed to work seamlessly with your specific server model. This helps avoid compatibility issues and ensures optimal performance and reliability.

Documentation and Support

The part number, P06423-B21, is often referenced in official documentation, user manuals, and support resources provided by HPE. When seeking technical assistance or accessing documentation, having the correct part number on hand ensures that you can find accurate information specific to your server model. This makes troubleshooting easier and facilitates efficient support from HPE or authorized service providers.

Future Upgradability

The part number also provides information about the server's base configuration, allowing for future upgradability. By understanding the specific model associated with the part number, you can identify the available upgrade options and plan for future enhancements or expansions. This allows you to maximize the lifespan of your server infrastructure and adapt it to changing business needs without requiring a complete replacement.

In conclusion, the HPE Gen10 Server's Xeon Gold 6130 2.1 GHz 16-core processor, 8SFF drive bays, and part number (P06423-B21) are all key features that contribute to its exceptional performance, scalability, and reliability. Whether you require powerful processing capabilities, flexible storage options, or easy identification and upgradability, these features ensure that the HPE Gen10 Server is well-suited for a wide range of enterprise applications and IT environments.
