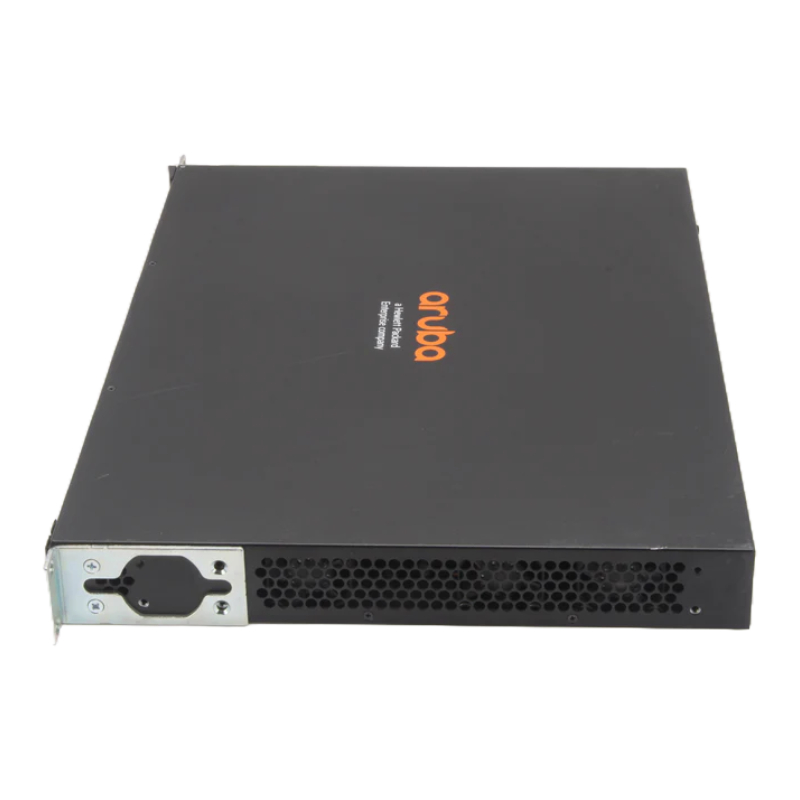

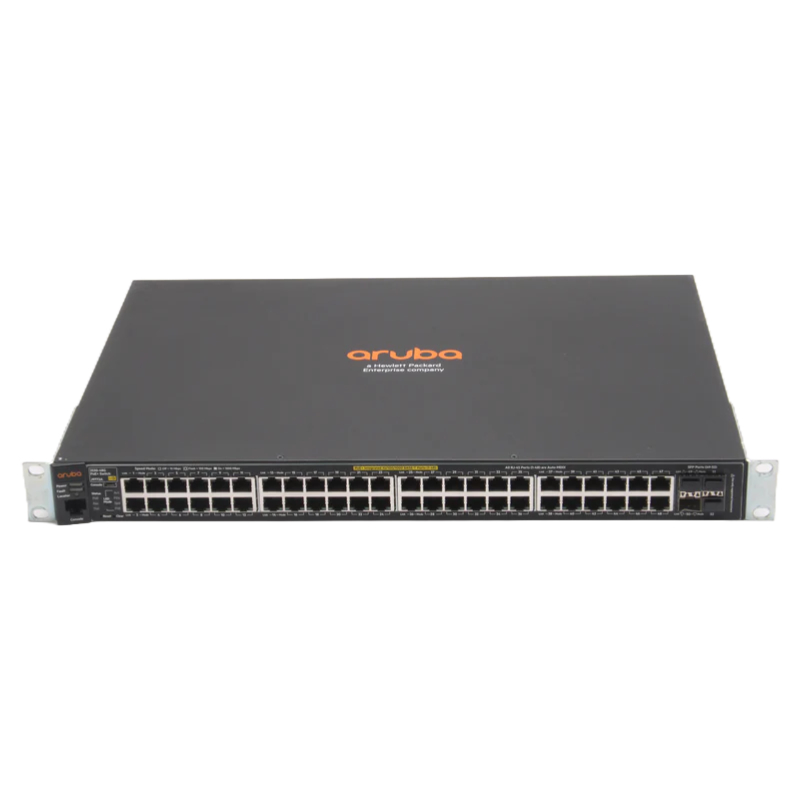

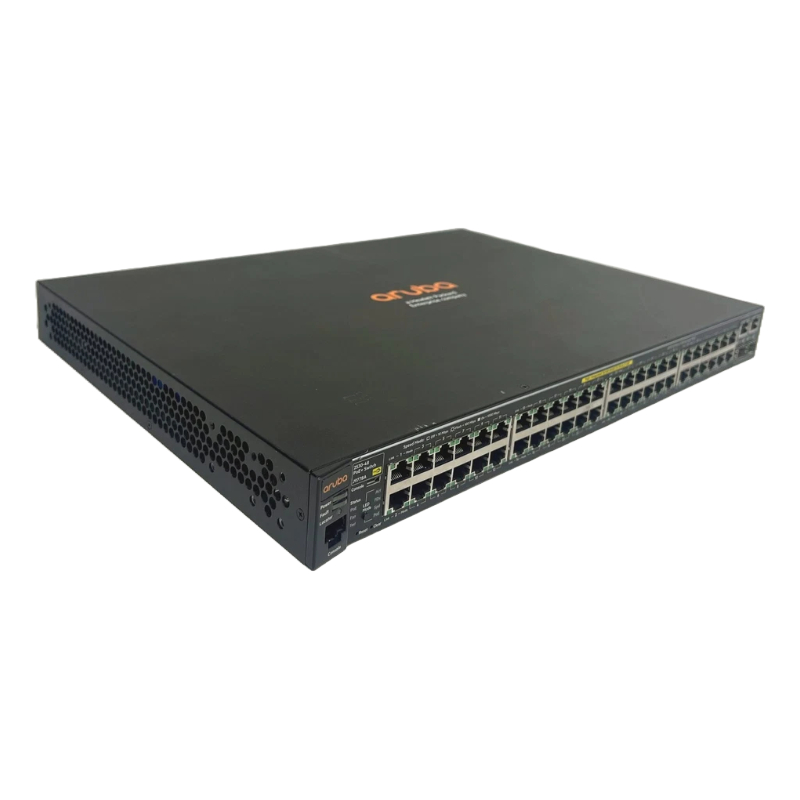

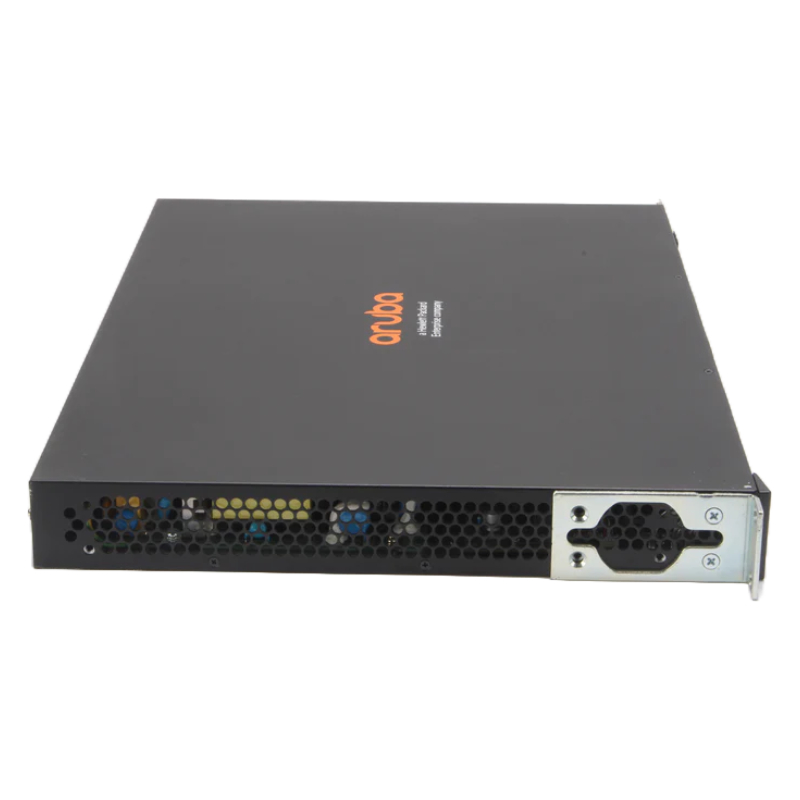

HPE J9772-61001 2530-48G-PoE Switch 48 Ports Manageable Expansion Slots

Manageable

The HPE J9772-61001 Switch is a highly manageable network switch that offers advanced features and capabilities for efficient network management. With its intuitive management interface and robust management tools, this switch provides users with complete control over their network infrastructure.

General Specifications

• Part Number: J9772-61001
  Manufacturer: HPE

• Device Type: Network Switch - 48 Ports - Managed
• Form Factor: Desktop, Rack-mountable, Wall-mountable - 1U
• Processor: Single ARM Core - 800 MHz
• RAM: 128 MB DDR3 SDRAM
• Flash Memory: 256 MB

Performance Metrics

• Throughput: 77.3 Million Packets Per Second (Mpps)
• Switching Capacity: 104 Gigabits Per Second (Gbps)

Networking Features

• Ports:
  • 48 x 10/100/1000 Mbps Ethernet Ports
  • 4 x Gigabit SFP Slots
• Power Over Ethernet (PoE): PoE+
• MAC Address Table Size: 16,000 Entries
• Jumbo Frame Support: Up to 9220 Bytes

Management & Protocols

• Remote Management Protocols:
  • SNMP v1, v2c, v3
  • RMON (1, 2, 3, 9)
  • Telnet
  • HTTP
  • TFTP
  • SSH v2
  • CLI
• Encryption: SSL
• Authentication Methods:
  • RADIUS
  • TACACS+
  • Secure Shell (SSH2)

Expansion and Connectivity

• Interfaces:
  • 48 x 10BASE-T/100BASE-TX/1000BASE-T RJ-45 Ports with PoE+
  • 4 x SFP+ Ports
• Management Interface: 1 x Console - RJ-45

Power Specifications

• Power Supply: Integrated Power Supply
• Voltage Requirements: AC 120/230 V (50/60 Hz)

Enhanced Control and Flexibility

One of the key benefits of the manageable feature of the HPE J9772-61001 Switch is the enhanced control and flexibility it offers to users. With this feature, administrators can easily configure, monitor, and manage the switch according to their specific requirements. This level of control allows for efficient network optimization and ensures that the switch operates at peak performance.

Configuration Capabilities

The manageable feature of the HPE J9772-61001 Switch enables administrators to configure various aspects of the switch, such as VLANs, spanning tree protocols, and Quality of Service (QoS) settings. By customizing these configurations, users can prioritize critical network traffic, allocate bandwidth efficiently, and optimize overall network performance.

Monitoring Capabilities

In addition to configuration capabilities, the manageable feature also provides comprehensive monitoring capabilities. Administrators can monitor network traffic, track usage patterns, and identify potential bottlenecks or security threats. This level of visibility allows for proactive troubleshooting and helps ensure uninterrupted network connectivity.

Centralized Management

The HPE J9772-61001 Switch is equipped with a centralized management interface that simplifies the overall management process. Administrators can access and manage multiple switches from a single interface, eliminating the need to individually configure and monitor each switch. This centralized approach saves time, reduces complexity, and streamlines network management tasks.

Firmware Upgrades

Another significant advantage of the manageable feature is the ability to perform firmware upgrades easily. The switch's management interface provides a straightforward process for upgrading the switch's firmware to the latest version. This ensures that the switch remains up-to-date with the latest security patches, bug fixes, and feature enhancements, ultimately improving network reliability and performance.

Security and Access Control

The manageable feature of the HPE J9772-61001 Switch also offers robust security and access control capabilities. Administrators can configure access policies, enforce authentication mechanisms, and implement role-based access control. This level of control helps protect sensitive data, prevent unauthorized access, and ensure network integrity.

Expansion Slots

With its impressive 48 expansion slots, the HPE J9772-61001 Switch provides users with ample room for network expansion and growth. This feature is particularly important for organizations that anticipate future scalability needs or have plans to add new devices to their network infrastructure.

Scalability

The expansion slots of the HPE J9772-61001 Switch allow for seamless scalability, enabling users to add additional modules or cards as their network requirements evolve. Whether it's increasing bandwidth capacity or integrating new technologies, the switch's expansion slots provide the flexibility needed to accommodate future growth without disrupting existing network operations.

High-Speed Connectivity

The HPE J9772-61001 Switch's expansion slots support high-speed connectivity options such as 10 Gigabit Ethernet (10GbE) and 40 Gigabit Ethernet (40GbE). These high-speed interfaces enable faster data transfer rates, improved network performance, and reduced latency. With such capabilities, organizations can meet the demands of bandwidth-intensive applications and ensure smooth data transmission across their network.

Modularity

The modularity offered by the expansion slots allows users to customize their switch configuration according to their specific needs. Whether it's adding fiber optic connectivity or stacking multiple switches for increased redundancy, the HPE J9772-61001 Switch's expansion slots empower users to tailor their network infrastructure to their unique requirements.

Future-Proof Investment

Investing in a switch with ample expansion slots like the HPE J9772-61001 ensures that organizations can future-proof their network infrastructure. By having the ability to add new modules or cards as technology advances, users can stay ahead of the curve and leverage the latest advancements without the need for a complete network overhaul. This scalability translates into long-term cost savings and a more efficient network infrastructure.

Ports

The HPE J9772-61001 Switch boasts an impressive 48 ports, making it an ideal choice for organizations that require a high-density switch to support numerous devices and connections. This feature provides users with the necessary connectivity options to efficiently connect their network devices and enable seamless communication.

Device Connectivity

The 48 ports on the HPE J9772-61001 Switch allow for seamless device connectivity. Organizations can connect a wide range of devices, including computers, servers, printers, IP phones, and access points, without the need for additional networking equipment. This simplifies network deployment and management, reduces cable clutter, and ensures efficient device communication.

High-Speed Connectivity

The ports on the HPE J9772-61001 Switch support high-speed connectivity options, including Gigabit Ethernet (1GbE) and 10 Gigabit Ethernet (10GbE). These high-speed interfaces enable fast data transfer rates, ensuring smooth data transmission and optimal network performance. Whether it's transferring large files or streaming high-definition multimedia content, the switch's high-speed ports can handle the demands of bandwidth-intensive applications.

VLAN Support

The HPE J9772-61001 Switch's ports also support Virtual Local Area Networks (VLANs), allowing for efficient network segmentation. VLANs enable organizations to create separate networks within a single physical network, providing enhanced security, improved network performance, and simplified management. With VLAN support, users can easily isolate and control network traffic, ensuring that critical data remains secure and network resources are utilized effectively.

PoE Capability

A notable feature of the HPE J9772-61001 Switch's ports is the Power over Ethernet (PoE) capability. This feature allows the switch to provide power to connected devices, such as IP phones, wireless access points, and security cameras, through the Ethernet cables. By eliminating the need for separate power cables, PoE simplifies device installation, reduces cable clutter, and enables flexible device placement.

Flexibility in Device Placement

With PoE capability, organizations can deploy devices in locations where power outlets are not readily available. This flexibility in device placement enhances network design possibilities and simplifies installation in areas such as warehouses, outdoor spaces, or areas with limited power infrastructure. Additionally, PoE enables centralized power management, making it easier to remotely power cycle or troubleshoot connected devices.

Cost Savings

The PoE capability of the HPE J9772-61001 Switch eliminates the need for additional power supplies or adapters for PoE-enabled devices. This not only reduces equipment costs but also lowers energy consumption and simplifies cable management. By leveraging PoE, organizations can achieve significant cost savings while maintaining a highly functional and efficient network infrastructure.

Power Over Ethernet

The HPE J9772-61001 Switch features Power over Ethernet (PoE) capabilities that enable the switch to provide power directly to connected devices through Ethernet cables. This feature offers significant benefits and plays a crucial role in simplifying device deployment, enhancing flexibility, and improving overall network efficiency.

Simplified Device Deployment

The PoE capability of the HPE J9772-61001 Switch simplifies device deployment by eliminating the need for separate power cables. Devices such as IP phones, wireless access points, and security cameras can be conveniently connected to the switch using a single Ethernet cable, reducing installation time and effort. This streamlined deployment process minimizes cable clutter and enhances the overall aesthetics of the network infrastructure.

Flexible Device Placement

By providing power through Ethernet cables, the HPE J9772-61001 Switch enables flexible device placement. PoE eliminates the limitation of relying on power outlets, allowing devices to be installed in locations where power infrastructure is limited or non-existent. This flexibility enhances network design possibilities and enables organizations to deploy devices in areas such as warehouses, outdoor spaces, or remote locations with ease.

Remote Power Management

The PoE capability of the HPE J9772-61001 Switch offers remote power management capabilities. Administrators can remotely power cycle or troubleshoot connected devices without physically accessing them. This feature saves time and effort, particularly in large-scale deployments where devices are spread across multiple locations. Remote power management ensures uninterrupted device operation and enhances overall network reliability.

Cost Efficiency

Implementing PoE with the HPE J9772-61001 Switch can lead to significant cost savings. By eliminating the need for separate power supplies or adapters for PoE-enabled devices, organizations can reduce equipment costs. Additionally, PoE allows for more efficient energy consumption by providing power only when it is needed. This results in lower electricity bills and a greener network infrastructure.

Flexibility in Network Design

The PoE capability of the HPE J9772-61001 Switch offers flexibility in network design by enabling the integration of various devices without the constraint of power availability. Organizations can easily add or relocate devices without the need for additional power infrastructure, saving time and resources. This flexibility allows for agile network expansion and adaptation to evolving business needs.

Improved Network Efficiency

The PoE capability of the HPE J9772-61001 Switch contributes to improved network efficiency by simplifying cable management and reducing clutter. With power and data transmitted through a single cable, organizations can achieve a cleaner and more organized network infrastructure. This not only improves the overall aesthetics but also enhances airflow and reduces the risk of cable damage or disconnection, leading to better network performance and reliability.
