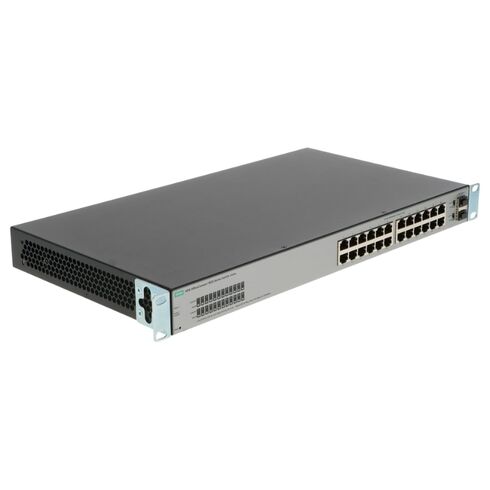

HPE J9980A 1820-24G 24-Port Managed Desktop Rack-Mountable Wall-Mountable

Ports

The HPE 1820-24G Managed switch is equipped with 24 ports, making it an ideal choice for businesses that require a high number of network connections. These ports provide the necessary connectivity to support multiple devices such as computers, servers, printers, and other network devices.

Overview of HPE J9980A

Discover the HPE J9980A, a versatile 24-port managed switch designed for high-performance networking. This robust switch is ideal for both small and medium-sized businesses seeking reliable and scalable networking solutions.

Product Details

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Model Number: J9980A
• Product Type: 24-Port Managed Switch

Technical Specifications

Device Configuration

• Form Factor: Desktop, Rack-Mountable, Wall-Mountable – 1U
• Network Type: Gigabit Ethernet
• Port Configuration: 24 x 10/100/1000 Mbps + 2 x Fast Ethernet/Gigabit SFP

Performance Metrics

• Packet Throughput: Up to 38.6 Million Packets Per Second (Mpps)
• Switching Capacity: 52 Gigabits Per Second (Gbps)
• MAC Address Table Capacity: 8000 Entries
• Jumbo Frame Support: Yes

Management and Security

• Remote Management: SNMP v1, SNMP v2c, HTTPS
• Encryption: SSL

Key Features

• Flow Control and Full Duplex Capability
• Layer 2 Switching and VLAN Support
• Dynamic Host Configuration Protocol (DHCP) and BootP Support
• Auto-Uplink (Auto MDI/MDI-X) and Port Mirroring
• Denial of Service (DoS) Attack Prevention
• Simple Network Time Protocol (SNTP) Support
• Quality of Service (QoS) and Jumbo Frames Support
• Link Layer Discovery Protocol (LLDP) Support

Compliance and Standards

• IEEE 802.3, IEEE 802.3u, IEEE 802.1Q
• IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x
• IEEE 802.3ad (Link Aggregation Control Protocol - LACP)
• IEEE 802.1AB (Link Layer Discovery Protocol - LLDP)

Hardware Specifications

• Processor: 400 MHz
• Memory: 128 MB SDRAM
• Flash Storage: 16 MB

Expansion and Connectivity

• Network Interfaces: 24 x 1000Base-T RJ-45 / 2 x SFP

Increased Scalability

With 24 ports available, the HPE 1820-24G Managed switch offers increased scalability for businesses of all sizes. Whether you are a small startup or a large enterprise, having more ports allows you to connect and expand your network without the need for additional switches. This not only saves you money but also simplifies the management of your network infrastructure.

Efficient Network Performance

The 24 ports on the HPE 1820-24G Managed switch ensure efficient network performance by reducing network congestion. Each port provides a dedicated connection for a device, ensuring that data can flow smoothly without any bottlenecks. This is particularly beneficial in environments where high bandwidth applications are used, such as video streaming or file transfers.

Versatile Deployment Options

The HPE 1820-24G Managed switch offers flexible deployment options thanks to its 24 ports. Whether you need to set up a network in a small office, a data center, or a remote location, this switch can accommodate your needs. The abundance of ports allows you to connect multiple devices and configure your network in the most efficient way possible.

Small Offices

For small offices, the 24 ports on the HPE 1820-24G Managed switch enable easy connectivity for all employees. Each workstation can be connected directly to the switch, eliminating the need for additional hardware. This simplifies cable management and reduces the overall cost of setting up a network.

Data Centers

In data centers, where numerous servers and network storage devices are present, the 24 ports of the HPE 1820-24G Managed switch provide the necessary connectivity for seamless operation. These ports can be used to connect servers, storage devices, and other critical network equipment, ensuring reliable and efficient data transfer.

Remote Locations

For remote locations, such as branch offices or retail stores, the 24 ports on the HPE 1820-24G Managed switch allow for easy expansion and connectivity. With multiple devices needing to be connected, having an ample number of ports ensures that all necessary devices can be integrated into the network without any limitations.

Future-Proofing

Investing in a switch with 24 ports provides future-proofing for your network infrastructure. As your business grows and demands increase, having additional ports available allows you to easily accommodate new devices and users. This eliminates the need for costly upgrades or replacements down the line.

Mounting

The HPE 1820-24G Managed switch offers versatile mounting options, including desktop, rack-mountable, and wall-mountable configurations. This flexibility allows businesses to choose the most suitable mounting method based on their specific requirements and available space.

Desktop Mounting

The ability to mount the HPE 1820-24G Managed switch on a desktop is particularly useful for small offices or workspaces with limited space. The compact design of the switch allows it to be conveniently placed on a desk or any other flat surface without taking up excessive space. This ensures easy access for connecting and managing network cables.

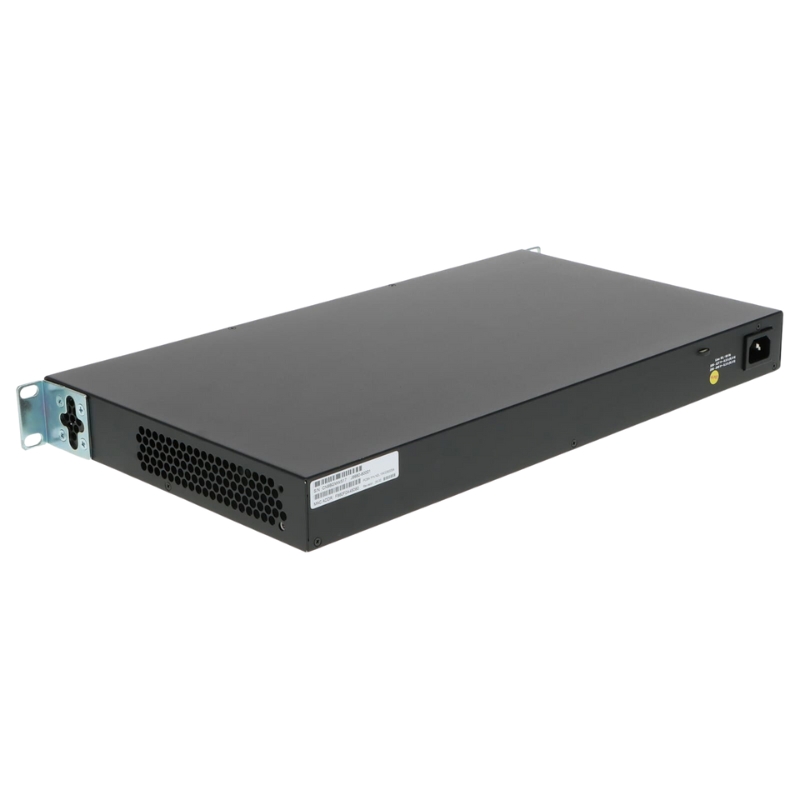

Rack-Mountable

For larger organizations or data centers, rack-mountable switches offer an efficient way to organize and manage network equipment. The HPE 1820-24G Managed switch is designed to be rack-mounted, allowing it to be installed in standard server racks. This not only saves space but also ensures a neater and more organized server room or data center.

Space Optimization

Rack-mountable switches allow businesses to maximize the use of vertical space in their server room or data center. By mounting the HPE 1820-24G Managed switch in a rack, you can effectively manage and organize multiple switches, servers, and other network equipment compactly and efficiently. This results in a more streamlined infrastructure and easier maintenance.

Improved Cooling

Rack-mounted switches facilitate better airflow management within the server rack. When properly installed in a rack, the HPE 1820-24G Managed switch allows for proper ventilation and cooling. This helps prevent overheating of network equipment, ensuring optimal performance and reducing the risk of hardware failures.

Wall-Mountable

The wall-mountable feature of the HPE 1820-24G Managed switch offers additional flexibility in deployment options. This is particularly useful when wall mounting is preferred or floor or rack space is limited. Wall-mounting the switch allows for easy access and saves valuable floor space.

Space Saving

Wall-mounting the HPE 1820-24G Managed switch is an excellent space-saving solution for small offices or areas with limited floor space. By attaching the switch securely to a wall, you can free up valuable desk or floor space that can be utilized for other purposes.

Accessibility

Wall-mounted switches are easily accessible, making them an ideal choice for environments where quick access to network equipment is essential. Whether for troubleshooting, cable management, or regular maintenance, having the switch mounted on the wall ensures easy reachability without the need to navigate through racks or crawl on the floor.

In conclusion, the 24 ports feature of the HPE 1820-24G Managed switch offers increased scalability, efficient network performance, and versatile deployment options. It allows for easy connectivity in small offices, seamless operation in data centers, and expansion in remote locations. On the other hand, the mounting options of desktop, rack-mountable, and wall-mountable provide flexibility, space optimization, improved cooling, and accessibility based on specific needs and available space.
