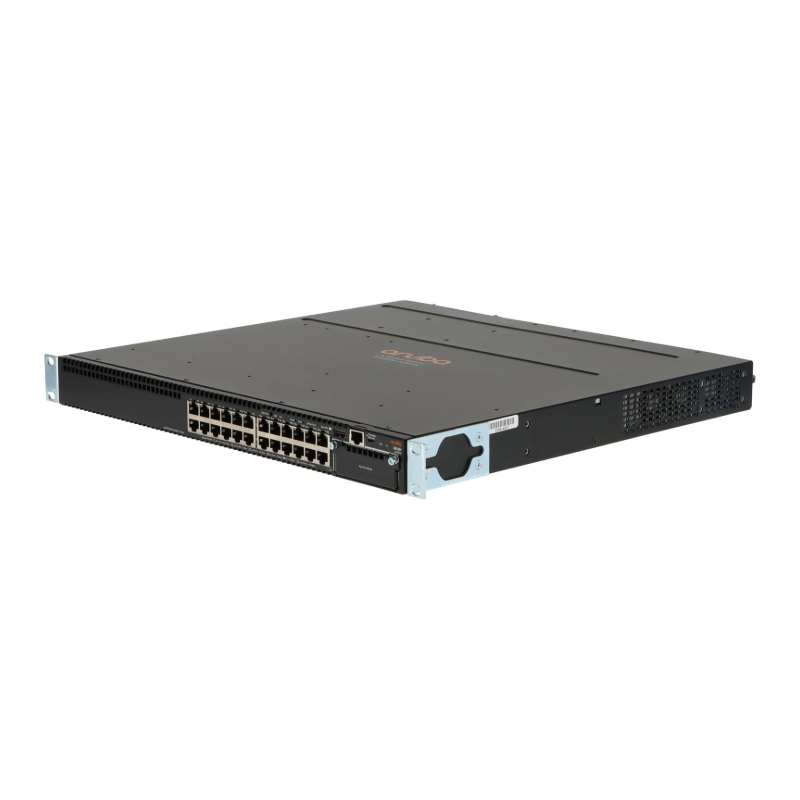

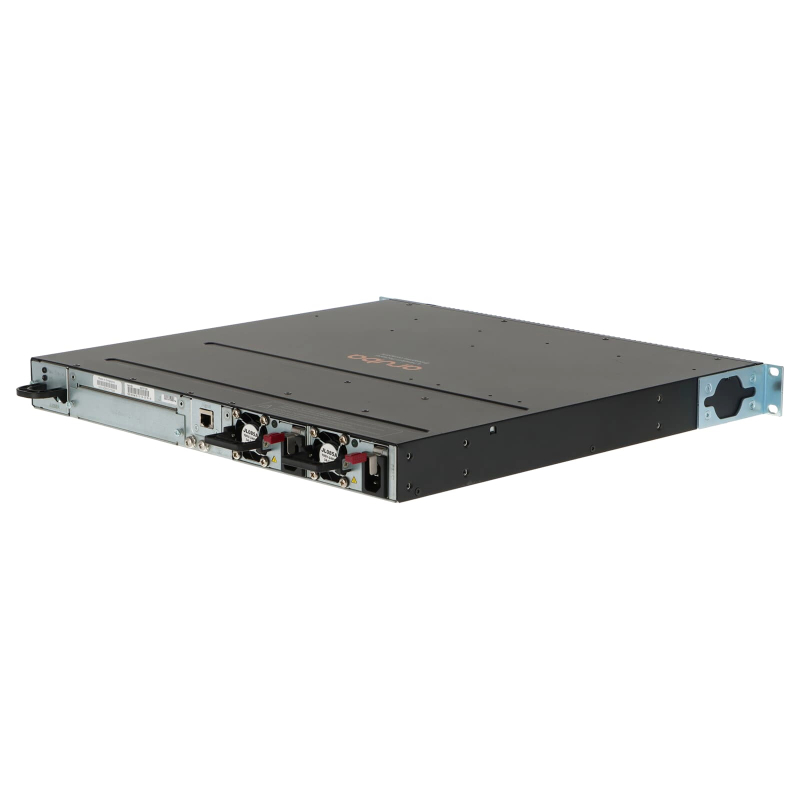

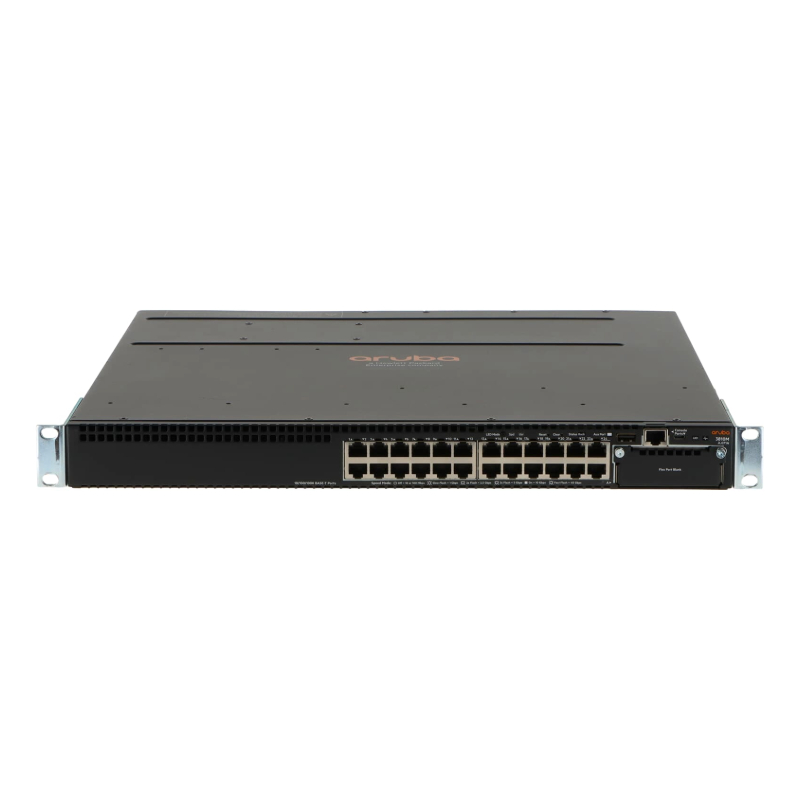

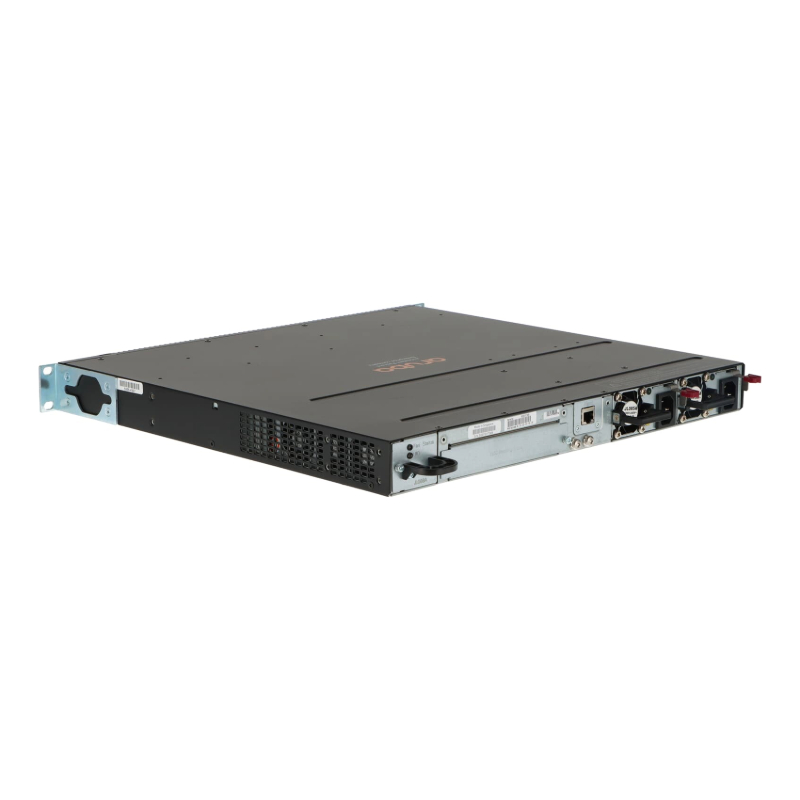

HPE JL073A 3810m 24G 24 Ports Managed Switch Poe+ Rack-mountable

Ports

The HPE 3810m 24G Managed Switch is equipped with 24 ports, making it an ideal choice for businesses and organizations that require a high-performance network switch. These ports offer a range of benefits and features that ensure smooth and efficient network operations.

General Information

• Part Number: JL073A
• Manufacturer: HPE
• Product Type: Managed Switch

Switch Specifications

• Device Type: 24-Port Layer 3 Managed Switch with Stackable Capability
• Form Factor: Rack-Mountable, 1U High
• Subtype: Gigabit Ethernet Switch
• Port Configuration: 24 x 10/100/1000 Mbps (PoE+)
• Power Over Ethernet (PoE): PoE+ Support

Performance Metrics

• Latency:
  • 2.8 µs for 1000Base-T
  • 1.8 µs for 10 Gbps
  • 1.5 µs for 40 Gbps
• Throughput: Up to 95.2 Mpps for 64-byte Packets
• Routing/Switching Capacity: 160 Gbps
• Switching Fabric Bandwidth: 169 Gbps

Capacity & Tables

• IPv4 Routing Table Entries: 10,000
• IPv6 Routing Table Entries: 5,000
• MAC Address Table Size: 64,000 Entries
• Jumbo Frame Support: Yes

Routing & Protocols

• Supported Protocols: OSPF, RIP (RIP-1, RIP-2), BGP, VRRP, OSPFv2, OSPFv3, Static IPv4/IPv6 Routing, RIPng, MLD, Bidirectional Forwarding Detection (BFD)

Management & Security

• Remote Management: RMON, Telnet, SNMPv3, HTTP, SSH, SSH-2, CLI, XRMON
• Encryption: SSL
• Authentication: RADIUS, TACACS+, SSH2

Advanced Features

• ARP Support
• Spanning Tree Protocol (STP)
• Per-VLAN Spanning Tree (PVST)
• Access Control List (ACL) Support
• Quality of Service (QoS)
• Device Link Detection Protocol (DLDP)
• Uni-Directional Link Detection (UDLD)
• Management Information Base (MIB)
• Dynamic VLAN Support (GVRP)
• Multiple VLAN Registration Protocol (MVRP)
• Class of Service (CoS)
• SFlow v5
• Type of Service (ToS)
• OpenFlow Support
• Internet Control Message Protocol (ICMP)

Standards Compliance

• IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP)
• IEEE 802.1x, IEEE 802.1s, IEEE 802.1v
• IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at

Hardware Specifications

• Processor: Dual Processor
• RAM: 6 GB DDR3 SDRAM
• Flash Memory: 1 GB

Expansion & Connectivity Options

• Interfaces:
  • 24 x 1000Base-T RJ-45 (PoE+)
  • 1 x Serial Console RJ-45
  • 1 x Management RJ-45
  • 1 x RJ-45
  • 1 x Micro-USB Type B
• Expansion Slots:
  • 1 Total / 1 Free Expansion Slot
  • 1 Total / 1 Free Stacking Module Slot

Power & Energy Efficiency

• Power Device: Internal Hot-Plug Power Supply (Not Installed)
• Installed Quantity: 0 (Max 2)
• Energy Star Qualified: Yes

Increased Connectivity

With 24 ports, this managed switch provides ample connectivity options for various devices and systems within your network infrastructure. Whether you need to connect multiple computers, printers, servers, or other network devices, the HPE 3810m has got you covered. The abundance of ports allows for simultaneous connections without the need for additional switches or hubs, simplifying your network architecture and reducing the complexity of cable management.

Versatile Network Configuration

Having 24 ports gives you the flexibility to configure your network in different ways to meet your specific requirements. You can create separate VLANs (Virtual Local Area Networks) to segment your network into logical groups, enhancing security and performance. Additionally, the HPE 3810m supports link aggregation, enabling you to combine multiple ports into a single high-bandwidth connection for increased throughput and redundancy.

Scalability

The 24 ports of the HPE 3810m Managed Switch allow for future scalability. As your business grows and your network demands increase, you can easily expand your infrastructure by connecting more devices to the available ports. This scalability ensures that your network remains efficient and capable of handling the growing demands of your organization without the need for costly upgrades or replacements.

Improved Performance

Each port on the HPE 3810m is capable of delivering high-speed data transmission rates, facilitating fast and reliable communication between devices. With support for Gigabit Ethernet, these ports offer up to 10 times faster speeds compared to traditional Fast Ethernet switches. This improved performance is crucial for bandwidth-intensive applications such as video streaming, VoIP, and data-intensive tasks, allowing your network to operate at its full potential.

Enhanced Network Management

The 24 ports of the HPE 3810m Managed Switch come with advanced management features, empowering network administrators to have granular control over their network. You can configure and monitor each port individually, enabling you to optimize performance, troubleshoot issues, and implement security measures. With features like Quality of Service (QoS), you can prioritize specific traffic types, ensuring critical applications receive the necessary bandwidth while maintaining a high level of service for all users.

Rack-mountable

The HPE 3810m 24G Managed Switch is designed to be rack-mountable, offering significant benefits and convenience for users with limited space or those looking for efficient network deployment options.

Space Optimization

By being rack-mountable, the HPE 3810m saves valuable floor space in your server room or data center. Instead of occupying a large area, this switch can be conveniently mounted in a standard rack enclosure, allowing you to maximize the usage of available space. This space optimization is particularly valuable in environments where real estate comes at a premium or when you need to accommodate other essential equipment in a limited area.

Scalability

Rack-mountable switches provide a scalable solution for expanding your network as your business grows. With a rack enclosure, you can easily add more switches or other network equipment to your rack, allowing for seamless integration and expansion. This scalability ensures that your network infrastructure can adapt to the changing needs of your organization without disruptions or significant investments in restructuring.

Improved Cable Management

Rack-mountable switches offer superior cable management capabilities compared to standalone switches. The switch's ports are neatly arranged within the rack enclosure, minimizing cable clutter and improving the overall aesthetics of your network setup. This organized cable management not only enhances the visual appeal but also simplifies troubleshooting and maintenance tasks. It becomes easier to trace cables, identify connectivity issues, and make changes when necessary, reducing downtime and improving operational efficiency.

Power-over-Ethernet

The HPE 3810m 24G Managed Switch features Power-over-Ethernet (PoE) technology, providing significant benefits and convenience for users who require power delivery to network devices through the Ethernet cables.

Simplified Deployment

With PoE support, the HPE 3810m eliminates the need for separate power cords and outlets for each network device. By delivering power directly through the Ethernet cables, you can easily deploy devices such as IP phones, wireless access points, surveillance cameras, and other PoE-enabled devices without the hassle of dealing with additional power infrastructure. This simplified deployment saves time, reduces costs, and streamlines the installation process.

Flexibility and Mobility

PoE enables flexibility in device placement by eliminating the dependency on nearby power outlets. You can deploy devices in locations where power availability is limited or inconveniently located. This flexibility allows for optimal positioning of devices to ensure optimal network coverage and performance. Furthermore, PoE enables easy relocation of devices without the need to consider power constraints, providing mobility and agility to adapt to changing requirements or physical configurations.

Cost and Energy Efficiency

By utilizing PoE, the HPE 3810m promotes cost and energy efficiency. The consolidation of power and data delivery over a single cable reduces the need for additional power infrastructure, contributing to cost savings during installation and maintenance. Moreover, PoE switches often incorporate power management features that allow you to monitor and control the power consumption of connected devices. This control helps optimize energy usage, reducing electricity costs, and aligning with environmental sustainability initiatives.

Centralized Power Management

The HPE 3810m's PoE feature offers centralized power management, providing administrators with enhanced control and monitoring capabilities. You can remotely monitor the power status of each PoE-enabled device, ensuring efficient utilization of power resources. Additionally, advanced power management features allow you to prioritize power delivery to critical devices, set power budgets, and configure automatic power cycling for troubleshooting purposes. This centralized power management simplifies network administration and ensures the availability of critical devices at all times.

In conclusion, the HPE 3810m 24G Managed Switch's 24 ports offer increased connectivity, versatile network configuration options, scalability, improved performance, and enhanced network management. Its rack-mountable design provides space optimization, easy installation and maintenance, scalability, and improved cable management. The Power-over-Ethernet feature simplifies deployment, offers flexibility and mobility, promotes cost and energy efficiency, and enables centralized power management. These features make the HPE 3810m an excellent choice for organizations seeking a reliable and efficient network switch solution.
