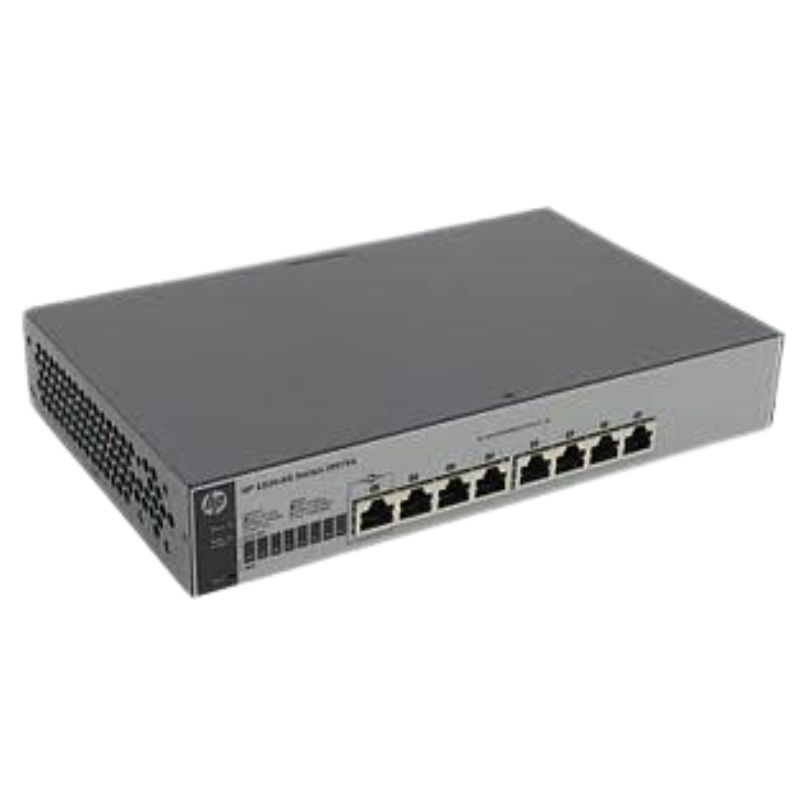

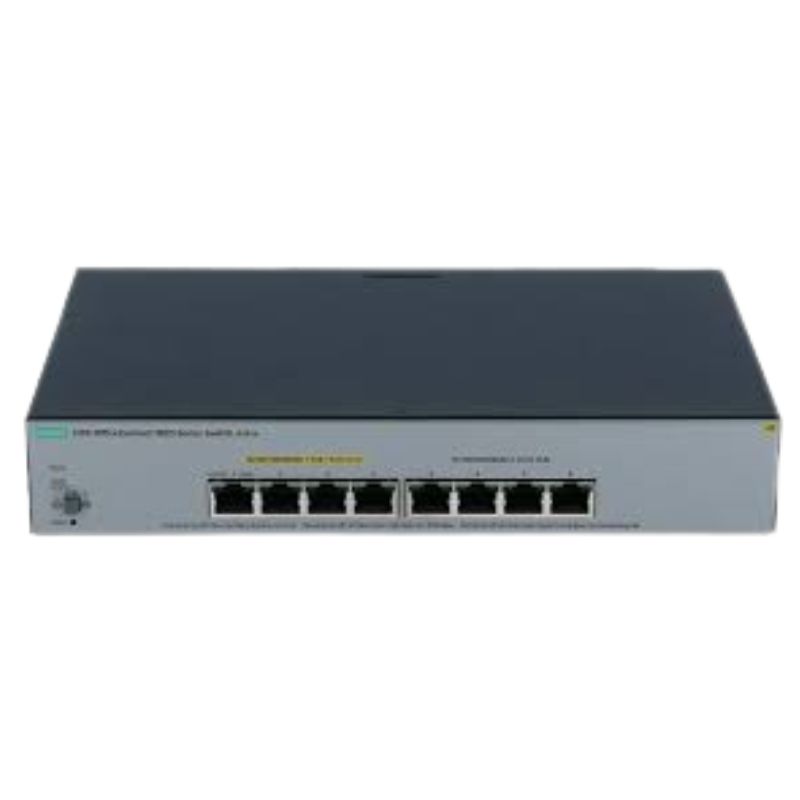

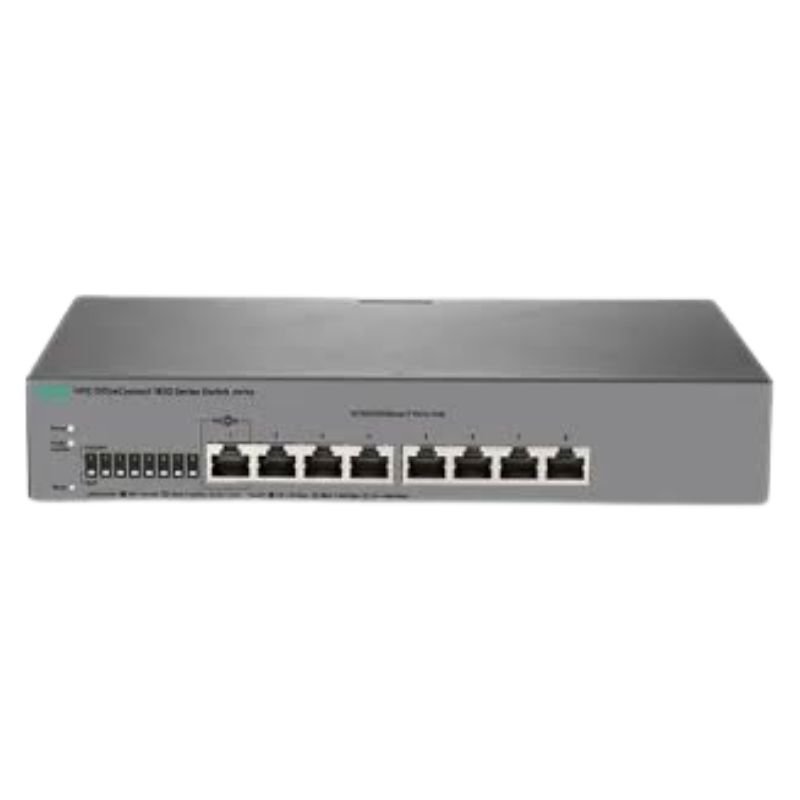

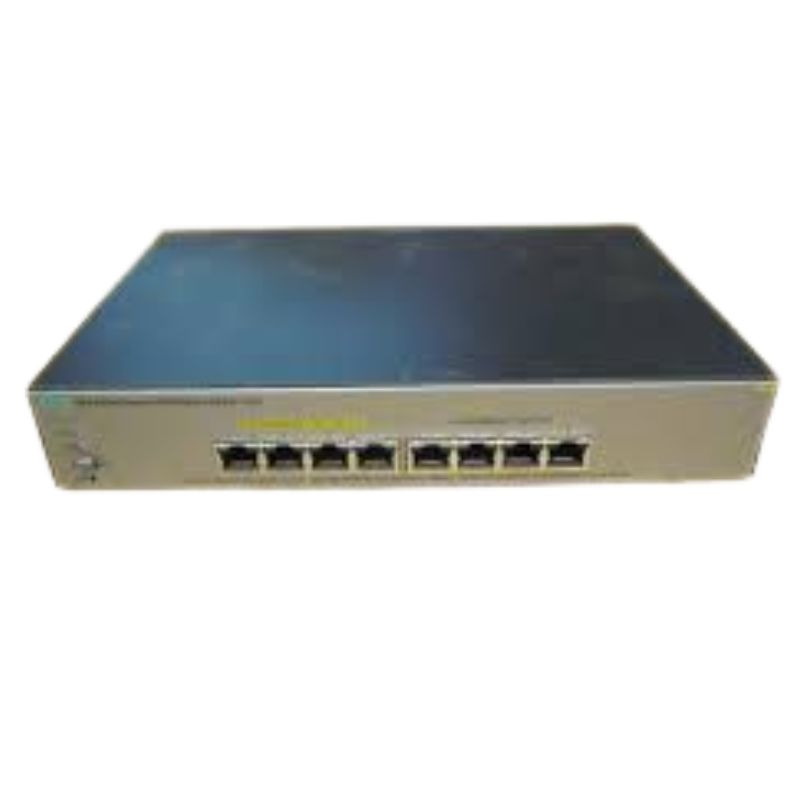

HPE JL380-61001 1920s L3 Managed 8 Ports Switch 8X10/100/1000 Rack Mountable

Product Overview

Device Specifications

• Device Type: 8-Port Managed Switch (Layer 3)
• Enclosure Type: Desktop, Rack-Mountable, Wall-Mountable (1U)
• Subtype: Gigabit Ethernet
• Ports: 8 x 10/100/1000 Mbps

Performance Metrics

• Latency:
  • 100 Mbps: 7 µs
  • 1 Gbps: 2.4 µs
• Throughput: Up to 11.9 Million Packets Per Second (Mpps)
• Routing/Switching Capacity: 16 Gbps

Capacity & Management

• Routing Table Entries: 32
• MAC Address Table Size: 8000 Entries
• Jumbo Frame Support: 9216 Bytes
• Routing Protocols: IGMP, Static IPv4 Routing
• Remote Management: SNMP (v1, v2c, v3), RMON, HTTP, HTTPS
• Authentication: RADIUS

Features

• Flow Control
• Auto-Negotiation
• Auto-Uplink (Auto MDI/MDI-X)
• IGMP Snooping
• IPv6 Support
• Half-Duplex and Full-Duplex Modes
• Spanning Tree Protocol (STP) Support
• Rapid Spanning Tree Protocol (RSTP) Support
• Multiple Spanning Tree Protocol (MSTP) Support
• Access Control List (ACL) Support
• Quality of Service (QoS)
• Fanless Design
• DHCP Relay and DHCP Client
• Port Isolation
• Class of Service (CoS)
• 1.5 MB Packet Buffer
• Link Aggregation
• Network Timing Protocol (NTP)
• LLDP-MED

Compliant Standards

• IEEE 802.1D
• IEEE 802.1Q
• IEEE 802.3AB
• IEEE 802.1P
• IEEE 802.3X
• IEEE 802.3AD (LACP)
• IEEE 802.1W
• IEEE 802.1S

Hardware Specifications

• Processor: ARM Cortex-A9, 400 MHz
• RAM: 256 MB SDRAM
• Flash Memory: 64 MB

Connectivity Options

• Interfaces: 8 x 1000BASE-T (RJ-45)

Power Requirements

• Voltage Required: AC 120/230 V (50/60 Hz)

Ports

The HPE JL380-61001 Rack Mountable switch is equipped with 8 ports, providing users with ample connectivity options for their network devices. These ports allow for the seamless integration of various devices, such as computers, printers, servers, and more. With 8 ports at their disposal, users can easily connect multiple devices to the network without the need for additional switches or hubs.

Increased Flexibility and Scalability

The 8 ports offered by the HPE JL380-61001 Rack Mountable switch provide users with increased flexibility and scalability. Whether you have a small office setup or a larger enterprise network, having 8 ports allows you to easily connect and manage your network devices. This scalability enables you to expand your network as your business grows, without the need to invest in additional networking equipment.

Efficient Data Transfer

With 8 ports, the HPE JL380-61001 Rack Mountable switch ensures efficient data transfer between connected devices. Each port offers high-speed data transmission capabilities, allowing for fast and reliable communication between devices. This ensures smooth operation and minimizes any potential delays or bottlenecks in data transfer.

Reduced Network Congestion

Having 8 ports on the HPE JL380-61001 Rack Mountable switch helps in reducing network congestion. With more ports available, the switch can distribute the network traffic evenly across the connected devices, preventing any single device from overwhelming the network. This results in improved network performance and a more stable connection for all devices.

Speed

The HPE JL380-61001 Rack Mountable switch boasts a speed of 10/100/1000, providing users with high-speed connectivity options for their network devices. This speed ensures fast data transfer and efficient communication between connected devices.

Fast Data Transfer

With a speed of 10/100/1000, the HPE JL380-61001 Rack Mountable switch enables fast data transfer between devices. Whether you are transferring large files, streaming high-definition media, or conducting video conferences, this high-speed connectivity ensures smooth and uninterrupted performance.

Enhanced Productivity

The high-speed connectivity offered by the HPE JL380-61001 Rack Mountable switch enhances productivity in a variety of ways. Users can quickly access and share files, collaborate on projects in real-time, and experience seamless communication. This speed eliminates any potential bottlenecks or delays, allowing users to work efficiently and achieve more in less time.

Future-Proofing

The 10/100/1000 speed of the HPE JL380-61001 Rack Mountable switch ensures future-proofing for your network. As technology advances and network demands increase, having a switch with high-speed capabilities becomes crucial. By investing in a switch with 10/100/1000 speed, you can rest assured that your network will be able to handle the requirements of future devices and applications.

Management

The HPE JL380-61001 Rack Mountable switch offers L3 Managed capabilities, providing users with advanced management options for their network. This feature allows for enhanced control, configuration, and monitoring of the switch, ensuring optimal performance and security.

Advanced Configuration

With L3 Managed capabilities, users have access to advanced configuration options for the HPE JL380-61001 Rack Mountable switch. This enables them to customize the switch according to their specific network requirements. Users can set up VLANs (Virtual Local Area Networks), QoS (Quality of Service) policies, and other advanced networking features to optimize their network performance.

Enhanced Security

The L3 Managed feature of the HPE JL380-61001 Rack Mountable switch enhances network security. Users can implement access control policies, create secure connections, and monitor network traffic for any suspicious activity. This ensures that sensitive data and network resources are protected from unauthorized access, providing peace of mind for users.

Monitoring and Troubleshooting

The L3 Managed capabilities of the HPE JL380-61001 Rack Mountable switch enable users to monitor and troubleshoot their network effectively. Users can access detailed analytics, monitor network performance, and identify any potential issues or bottlenecks. This proactive approach to network management allows for faster problem resolution and minimizes downtime.

In conclusion, the HPE JL380-61001 Rack Mountable switch offers 8 ports, 10/100/1000 speed, and L3 Managed capabilities. These features provide users with increased flexibility, scalability, fast data transfer, enhanced productivity, future-proofing, advanced configuration, enhanced security, and effective monitoring and troubleshooting options. The HPE JL380-61001 Rack Mountable switch is an excellent choice for individuals and businesses looking for a reliable and high-performance networking solution.
