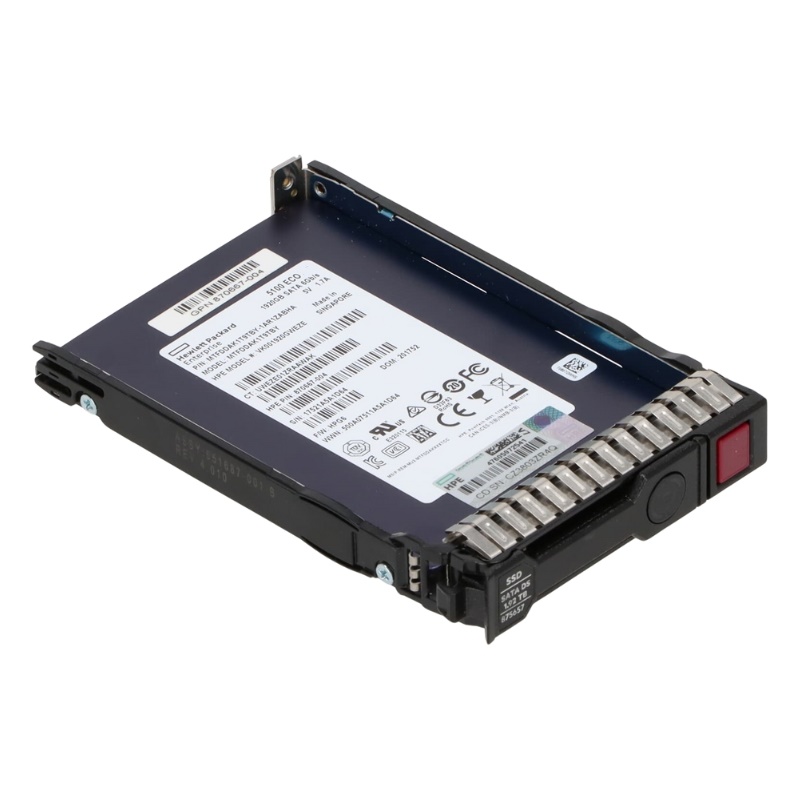

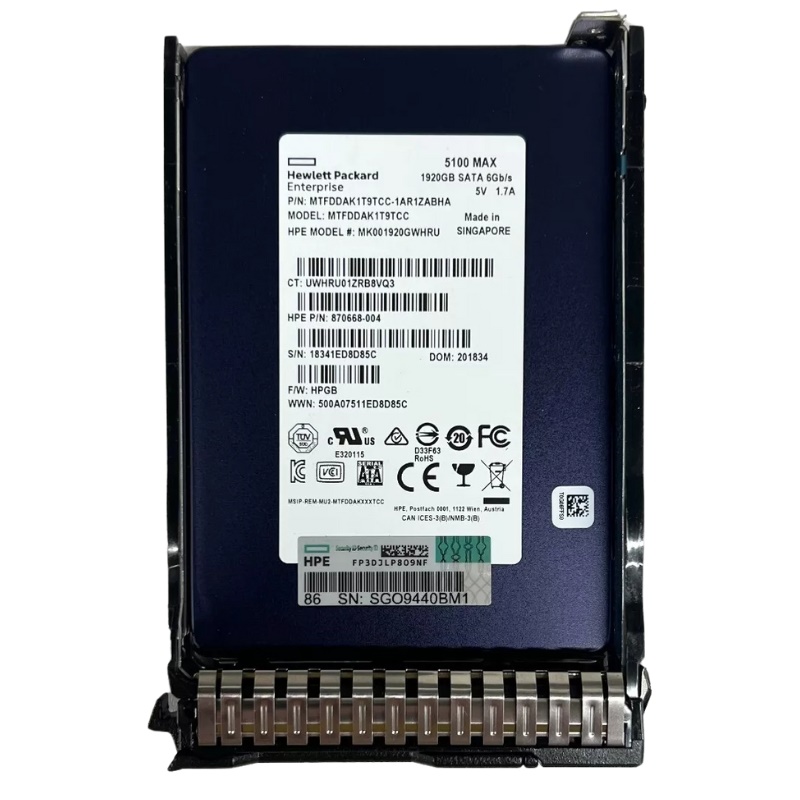

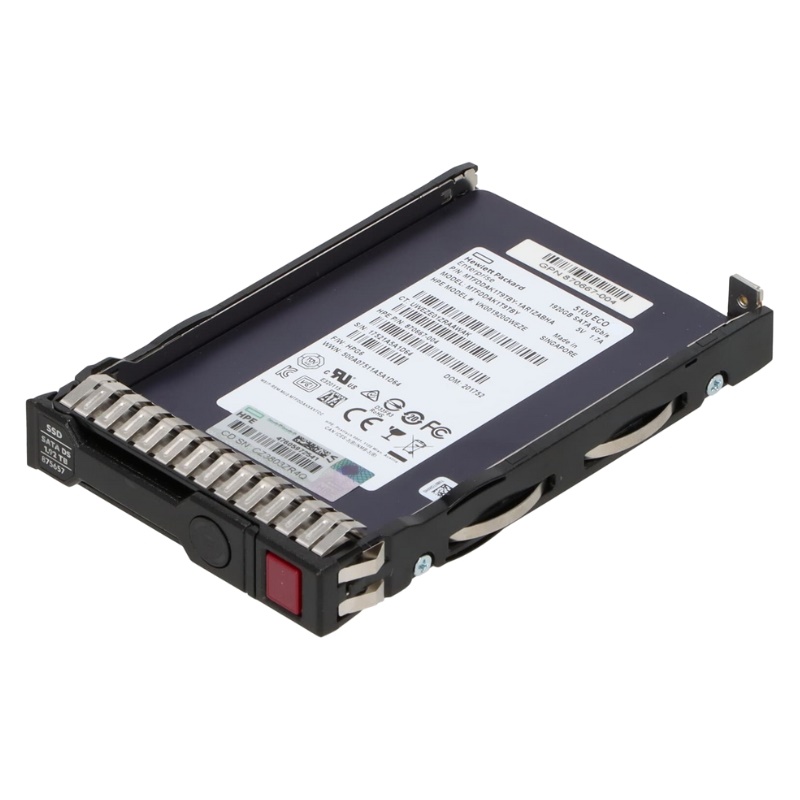

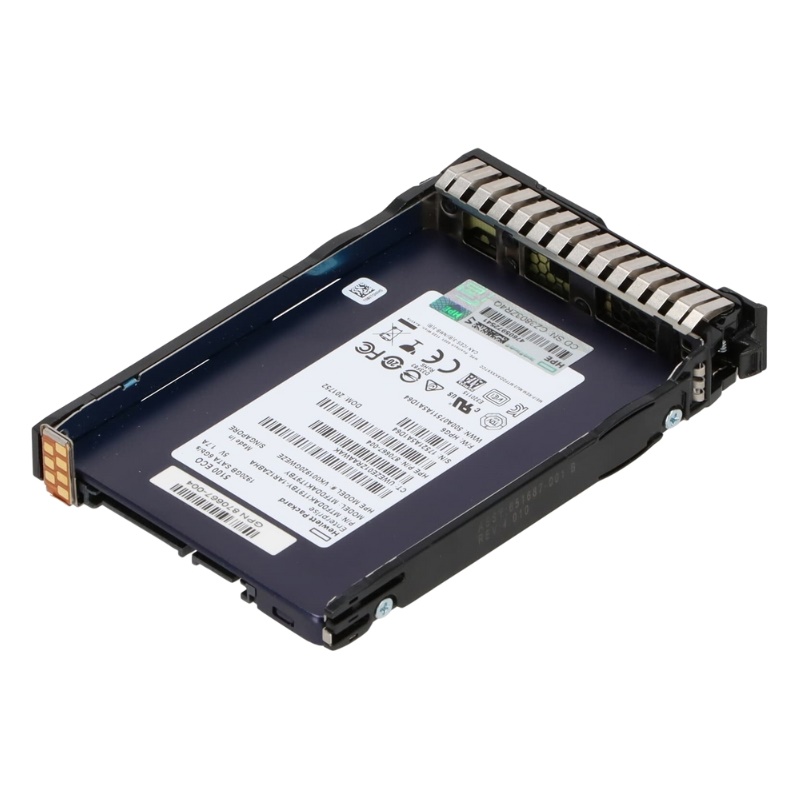

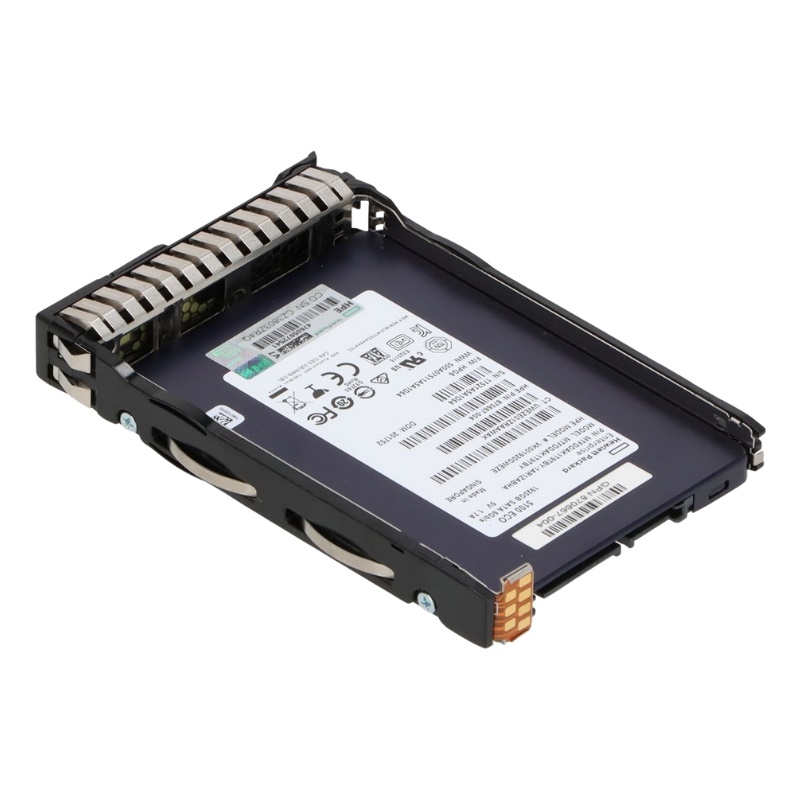

HPE P04501-X21 1.92TB 3.5" SATA 6Gbps SSD

Brand Specifications: HPE 1.92TB Solid State Drive

Identification and Model Numbers

• Brand: HPE
• MPN: P04501-X21
• Option Part Number: P04501-X21
• Spare Part Number: P05318-001
• Model Number: VK001920GWSXK
• Assembly Number: P03483-003

General Features

• Device Type: Hot-swap solid-state drive
• Storage Capacity: 1.92 TB
• Form Factor: 3.5-inch LFF (Large Form Factor)
• Interface: SATA 6Gbps
• Plug Type: Hot pluggable
• Carrier Type: Low Profile Carrier (LPC)
• NAND Type: Triple-Level Cell (TLC)
• Workload: Read-intensive applications
• Features: Power Loss Protection, Digitally Signed Firmware
• Bundle: Includes HPE Low Profile Carrier
• Height: 7 mm

Performance Details

Durability and Write Capacity

• 30 Days Writes: 3,500
• Endurance DWPD: 1.00 Drive Writes Per Day

Data Transfer Speeds

• Drive Transfer Rate: 600 MBps (external)
• Max Sequential Read Throughput: 520 MiB/s
• Max Sequential Write Throughput: 495 MiB/s

Latency and Input/Output Performance

• Random Read Latency: 125 µSec (4KiB, Q=1)
• Random Write Latency: 41 µSec (4KiB, Q=1)
• Random Read IOPS: 64,000 (4KiB, Q=16)
• Random Write IOPS: 24,000 (4KiB, Q=16)
• Max Random Read IOPS: 62,000 (4KiB, Q=32)
• Max Random Write IOPS: 25,000 (4KiB, Q=32)

Connectivity and Expansion

• Interfaces: 1 x SATA 6Gbps
• Compatible Bay: 3.5-inch LFF (Large Form Factor)

Power Consumption

• Idle Power Usage: 1.50 Watts
• Power During Random Read: 3.10 Watts
• Power During Random Write: 3.10 Watts
• Power During Sequential Read: 5.40 Watts
• Power During Sequential Write: 6.80 Watts
• Max Power Usage: 6.80 Watts

Compatibility with HPE ProLiant Servers

• Compatible with HPE ProLiant DL Series: DL160 (Gen10), DL325 (Gen10)
• Compatible with HPE ProLiant ML Series: ML110 (Gen10), ML350 (Gen10)
• Designed for 3.5-inch Low Profile Carrier (LPC) Drive Bays

Interface: SATA 6GBPS

When it comes to choosing the right solid-state drive (SSD) for your system, one of the crucial factors to consider is the interface. The HPE P04501-X21 SSD features a cutting-edge SATA 6Gbps interface that sets it apart from its competitors. In this section, we will explore the benefits and importance of this feature for users.

Enhanced Data Transfer Speeds

The SATA 6Gbps interface offers significantly faster data transfer speeds compared to its predecessors. With a maximum transfer rate of 6 gigabits per second, this SSD ensures that your data is transferred swiftly and efficiently. Whether you are transferring large files, running resource-intensive applications, or booting up your operating system, the enhanced data transfer speeds provided by the SATA 6Gbps interface will result in a seamless user experience.

By leveraging this high-speed interface, you can expect reduced load times, faster software installations, and improved overall system responsiveness. This is especially beneficial for professionals and gamers who depend on speedy data access and processing.

Backward Compatibility

Another advantage of the SATA 6Gbps interface is its backward compatibility with previous SATA versions. This means that you can easily upgrade your existing system without worrying about compatibility issues. Whether you have an older motherboard or a newer one, the HPE P04501-X21 SSD with SATA 6Gbps interface will seamlessly integrate into your setup.

This backward compatibility ensures that you can leverage the benefits of this advanced interface regardless of your current hardware configuration. It provides a future-proof solution that allows you to maximize the performance capabilities of your system without having to invest in additional components.

Improved System Efficiency

The SATA 6Gbps interface not only enhances data transfer speeds but also improves overall system efficiency. By leveraging this interface, the HPE P04501-X21 SSD minimizes data bottlenecks and optimizes the flow of information between your storage drive and other system components.

With improved efficiency, your system can handle demanding tasks with ease. Whether you are multitasking, rendering high-resolution videos, or running complex simulations, the SATA 6Gbps interface ensures that your SSD can keep up with the demands of your workload.

Reduced Power Consumption

In addition to its performance benefits, the SATA 6Gbps interface also contributes to energy efficiency. By enabling faster data transfer rates, the HPE P04501-X21 SSD can complete tasks more quickly, reducing the time it spends actively consuming power.

This reduced power consumption not only lowers your energy bills but also prolongs the lifespan of your SSD. With less heat generated and lower power usage, your SSD is less prone to overheating and can operate at optimal temperatures for longer durations.

Seamless Integration

The SATA 6Gbps interface ensures seamless integration into a wide range of systems. Whether you are building a high-performance gaming rig, a multimedia workstation, or a data-intensive server, the HPE P04501-X21 SSD with SATA 6Gbps interface is designed to meet your needs.

With its widespread compatibility and ease of installation, this SSD can be effortlessly incorporated into both desktop and server environments. Its versatile nature allows users to leverage its performance benefits across various industries and applications.

Conclusion:

The HPE P04501-X21 SSD with its SATA 6Gbps interface offers numerous benefits to users. From enhanced data transfer speeds and backward compatibility to improved system efficiency and reduced power consumption, this SSD is a reliable and high-performance storage solution. Whether you are a professional seeking optimal performance or a gamer looking for faster load times, the SATA 6Gbps interface of the HPE P04501-X21 SSD delivers on all fronts.
