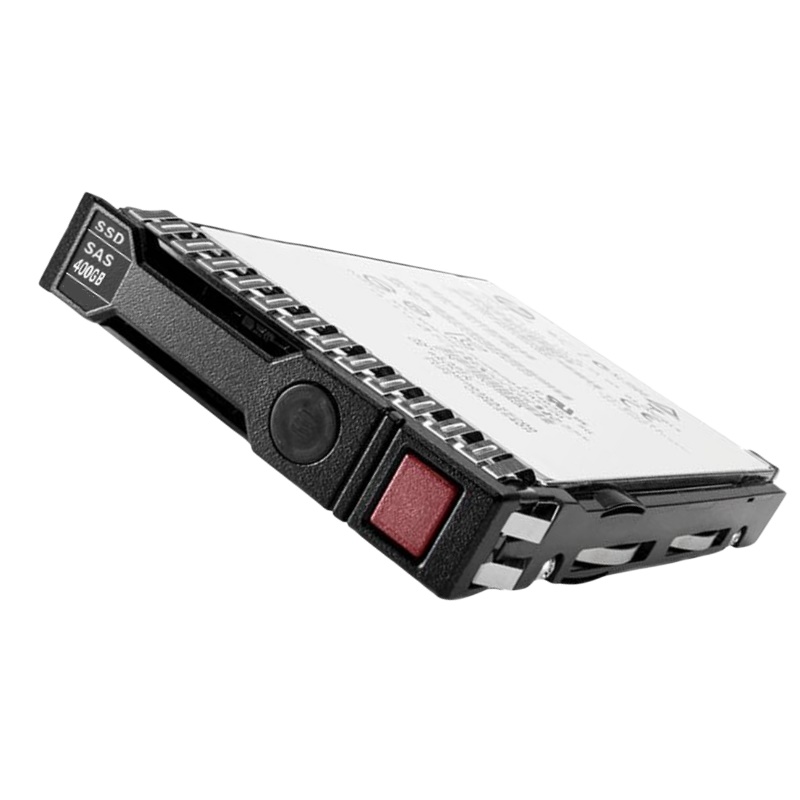

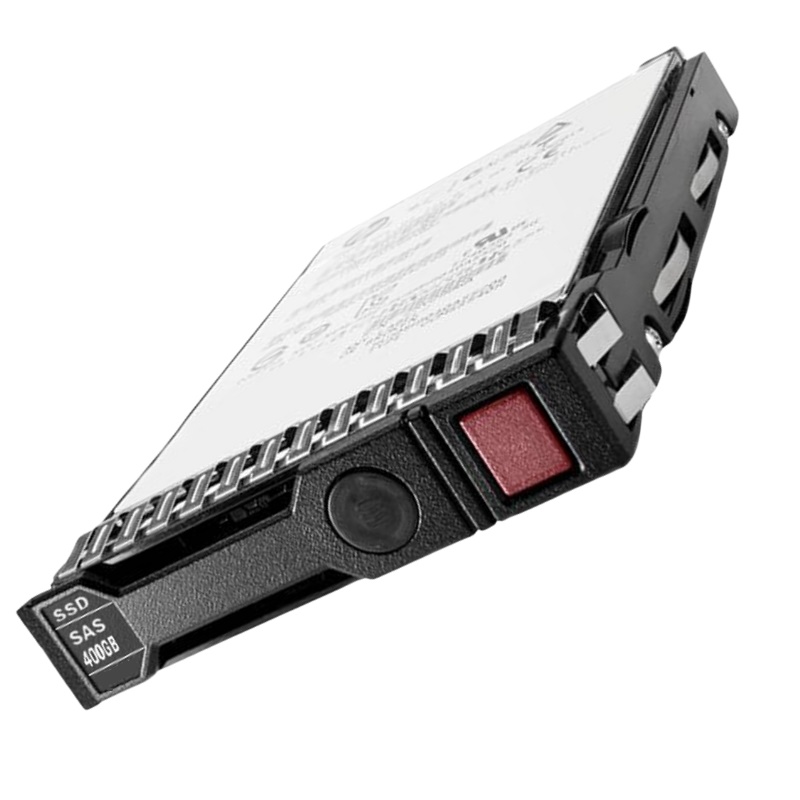

HPE P04525-K21 400GB SAS 12GBPS SSD Server Multi-Level Cell

Product Overview of P04525-K21 SSD

Specifications

• Brand: HPE
• Manufacturer Part Number (MPN): P04525-K21
• Option Part Number: P04525-K21
• Spare Part Number: P06576-001
• Model Identifier: MO000400JWTBQ
• Assembly Number: P04174-001

General Information

• Device Type: Solid State Drive (SSD) - Hot-Swap
• Storage Capacity: 400 GB
• Interface Type: SAS 12Gbps
• Form Factor: 2.5-inch SFF
• NAND Flash Technology: MLC (Multi-Level Cell)
• Bytes per Sector: 512
• Carrier Type: Smart Carrier (SC)
• Connection Type: Hot Pluggable
• Workload Type: Mixed Use
• Firmware: Digitally Signed Firmware (DS)
• Included Accessories: HPE SmartDrive Carrier
• Height: 15 mm (0.6 inches)

Performance Metrics

• 30-Day Write Total: 2190
• Endurance (DWPD): 3 (Drive Writes Per Day)
• Transfer Rate: 12 Gb/sec (external)
• Random Read IOPS (4KiB, Q=16): 95,000
• Max Random Read IOPS (4KiB): 165,000 @ Q64
• Random Write IOPS (4KiB, Q=16): 70,000
• Max Random Write IOPS (4KiB): 70,000 @ 4
• Maximum Sequential Reads Throughput: 1075 MiB/s
• Maximum Sequential Writes Throughput: 1025 MiB/s
• Random Read Average Latency: 120 µSec (4KiB, Q1)
• Random Write Average Latency: 48 µSec (4KiB, Q1)
• 4KiB Random Performance (70% Read / 30% Write, Queue 32): 105,000 IOPS
• 4KiB Random Performance (50% Read / 50% Write, Queue 32): 87,500 IOPS

Expansion and Connectivity Options

• Interface: 1 x SAS 12 Gb/s
• Compatible Bay Size: 2.5" SFF

Power Consumption

• Idle Power: 4.20 Watts
• Random Read Power: 4.82 Watts
• Random Write Power: 4.82 Watts
• Sequential Read Power: 6.21 Watts
• Sequential Write Power: 5.75 Watts
• Random Read/Write Power: 4.82 Watts
• Maximum Power Consumption: 6.21 Watts

Dimensions and Weight

• Height: 12.70 cm (5.00 inches)
• Width: 22.86 cm (9.00 inches)
• Depth: 17.78 cm (7.00 inches)
• Weight: 0.50 kg (1.10 lbs)

Compatibility Details

Designed For HPE ProLiant BL Series

• BL460c Gen10 (2.5 inches)

Compatible with HPE ProLiant DL Series

• DL160 Gen10 (2.5 inches)
• DL160 Gen10 Base (2.5 inches)
• DL160 Gen10 Entry (2.5 inches)
• DL180 Gen10 (2.5 inches)
• DL180 Gen10 Base (2.5 inches)
• DL180 Gen10 SMB (2.5 inches)
• DL325 Gen10 (2.5 inches)
• DL325 Gen10 Base (2.5 inches)
• DL325 Gen10 Entry (2.5 inches)
• DL325 Gen10 Performance (2.5 inches)
• DL325 Gen10 SMB Solution (2.5 inches)
• DL360 Gen10 (2.5 inches)
• DL360 Gen10 Entry (2.5 inches)
• DL360 Gen10 High Performance (2.5 inches)
• DL360 Gen10 Low (2.5 inches)
• DL360 Gen10 Network Choice (2.5 inches)
• DL360 Gen10 Performance (2.5 inches)
• DL360 Gen10 SMB (2.5 inches)
• DL360 Gen10 SMB Network Choice (2.5 inches)
• DL360 Gen10 Solution (2.5 inches)
• DL380 Gen10 (2.5 inches)
• DL380 Gen10 Entry (2.5 inches)
• DL380 Gen10 Entry SMB (2.5 inches)
• DL380 Gen10 for Cohesity DataPlatform (2.5 inches)
• DL380 Gen10 High Performance (2.5 inches)
• DL380 Gen10 Network Choice (2.5 inches)
• DL380 Gen10 Performance (2.5 inches)
• DL380 Gen10 SMB (2.5 inches)
• DL380 Gen10 Solution (2.5 inches)
• DL385 Gen10 (2.5 inches)
• DL385 Gen10 Base (2.5 inches)
• DL385 Gen10 Entry (2.5 inches)
• DL385 Gen10 High-Performance (2.5 inches)
• DL385 Gen10 Performance (2.5 inches)
• DL385 Gen10 Plus (2.5 inches)
• DL385 Gen10 Plus Entry (2.5 inches)
• DL385 Gen10 Solution (2.5 inches)
• DL560 Gen10 Base (2.5 inches)
• DL560 Gen10 Performance (2.5 inches)
• DL580 Gen10 (2.5 inches)
• DL580 Gen10 Base (2.5 inches)
• DL580 Gen10 Entry (2.5 inches)
• DL580 Gen10 Performance (2.5 inches)

Compatible with HPE ProLiant ML Series

• ML110 Gen10 (2.5 inches)
• ML110 Gen10 Entry (2.5 inches)
• ML110 Gen10 Performance (2.5 inches)
• ML110 Gen10 Solution (2.5

  Capacity: 400GB

  Enhanced Storage Space

  The HPE P04525-K21 SSD offers a remarkable storage capacity of 400GB. This sizable capacity provides users with ample space to store their data, applications, and files. Whether you are a professional who deals with large amounts of data or an individual user who requires substantial storage for personal files, the 400GB capacity of this SSD ensures that you have enough room to store all your important information.

  Improved Efficiency and Performance

  With a capacity of 400GB, the HPE P04525-K21 SSD enables users to optimize their workflow and increase productivity. The larger storage space allows for faster access to data, resulting in improved efficiency when handling complex tasks or running multiple applications simultaneously. This SSD is ideal for users who require high-performance storage that can keep up with their demanding workload.

  Seamless Data Management

  The 400GB capacity of the HPE P04525-K21 SSD ensures that users can easily manage their data without constantly worrying about running out of storage space. Whether you need to store large media files, databases, or virtual machines, this SSD provides the necessary capacity to accommodate your needs. Additionally, the ample storage space allows for easy organization and retrieval of files, ensuring a seamless data management experience.

  Future-Proof Solution

  By offering a substantial capacity of 400GB, the HPE P04525-K21 SSD provides users with a future-proof solution. As technologies continue to advance and file sizes increase, having a larger storage capacity becomes increasingly important. With this SSD, you can be confident that your storage needs will be met not only now but also in the future.

  Interface: SAS

  High-Speed Data Transfer

  The HPE P04525-K21 SSD features a SAS (Serial Attached SCSI) interface, which offers high-speed data transfer capabilities. This interface allows for faster and more efficient communication between the SSD and the host system, resulting in improved overall performance. Whether you are transferring large files or running intensive applications, the SAS interface ensures that data is transferred quickly and reliably.

  Wide Compatibility

  The SAS interface of the HPE P04525-K21 SSD ensures compatibility with a wide range of systems and devices. Whether you are using a server, workstation, or storage array, this SSD can easily integrate into your existing infrastructure. The versatility of the SAS interface makes it a popular choice among professionals who require seamless integration with their hardware.

  Improved Scalability

  With its SAS interface, the HPE P04525-K21 SSD offers improved scalability for users. The ability to connect multiple SSDs in a daisy-chain configuration allows for easy expansion of storage capacity. This feature is particularly beneficial for businesses and organizations that anticipate future growth and need a flexible storage solution that can adapt to their changing needs.

  Enhanced Reliability

  The SAS interface provides enhanced reliability compared to other interfaces. It offers features such as error detection and correction, which minimize the risk of data corruption during transfer. Additionally, the robust design of SAS connectors ensures secure and stable connections, reducing the chances of data loss or interruptions. With the HPE P04525-K21 SSD's SAS interface, users can have peace of mind knowing that their data is being transferred reliably.

  Speed: 12Gbps

  Lightning-Fast Performance

  The HPE P04525-K21 SSD boasts a speed of 12Gbps, enabling users to experience lightning-fast performance. This high-speed data transfer rate ensures that data can be accessed and processed quickly, resulting in reduced wait times and improved overall system responsiveness. Whether you are running resource-intensive applications or transferring large files, the 12Gbps speed of this SSD ensures smooth and efficient operations.

  Real-Time Data Processing

  With its 12Gbps speed, the HPE P04525-K21 SSD allows for real-time data processing. This is particularly important for users who work with time-sensitive applications or require immediate access to critical information. The fast speed of this SSD ensures that data can be processed and analyzed in real-time, enabling users to make informed decisions without delays.

  Optimized Workflows

  The 12Gbps speed of the HPE P04525-K21 SSD optimizes workflows by reducing bottlenecks and increasing productivity. Whether you are working with large datasets, performing complex calculations, or running virtual machines, the fast speed of this SSD ensures that your tasks are completed efficiently. By eliminating lag and latency, users can focus on their work without being hindered by slow data access or transfer speeds.

  Seamless Multimedia Experience

  The high-speed performance of the HPE P04525-K21 SSD enhances multimedia experiences for users. Whether you are editing videos, rendering 3D models, or playing high-definition games, this SSD ensures smooth playback and responsive interactions. The 12Gbps speed allows for quick loading times, fast rendering, and seamless multitasking, providing users with an immersive and enjoyable multimedia experience.

  Technology: Multi-Level Cell (MLC)

  Higher Storage Density

  The Multi-Level Cell (MLC) technology used in the HPE P04525-K21 SSD enables higher storage density compared to other technologies. This means that more data can be stored in a smaller physical space, allowing for efficient utilization of storage resources. With MLC technology, users can maximize their storage capacity without the need for additional physical drives.

  Cost-Effective Solution

  MLC technology offers a cost-effective solution for users who require high-capacity storage. Compared to other technologies such as Single-Level Cell (SLC), MLC provides a more affordable option without compromising performance. The HPE P04525-K21 SSD's utilization of MLC technology allows users to benefit from larger storage capacities at a lower cost per gigabyte.

  Reliable Performance

  The MLC technology used in the HPE P04525-K21 SSD ensures reliable performance and endurance. MLC cells have the ability to store multiple bits of data per cell, resulting in improved efficiency and longevity. This technology also incorporates error correction mechanisms and wear-leveling algorithms, which enhance the reliability and lifespan of the SSD. Users can rely on the HPE P04525-K21 SSD to deliver consistent performance and withstand heavy workloads.

  Energy Efficiency

  MLC technology offers energy-efficient operation, making it an environmentally friendly choice. The HPE P04525-K21 SSD's utilization of MLC technology ensures that power consumption is optimized without compromising performance. This not only reduces electricity costs but also contributes to a greener and more sustainable IT infrastructure.

  In conclusion, the HPE P04525-K21 SSD is a high-performance storage solution that offers a range of benefits to users. With its 400GB capacity, users can enjoy enhanced storage space, improved efficiency, seamless data management, and a future-proof solution. The SAS interface ensures high-speed data transfer, wide compatibility, improved scalability, and enhanced reliability. The 12Gbps speed enables lightning-fast performance, real-time data processing, optimized workflows, and a seamless multimedia experience. Lastly, the utilization of MLC technology delivers higher storage density, a cost-effective solution, reliable performance, and energy efficiency. Overall, the HPE P04525-K21 SSD is a versatile and reliable choice for users who require efficient and high-capacity storage.
