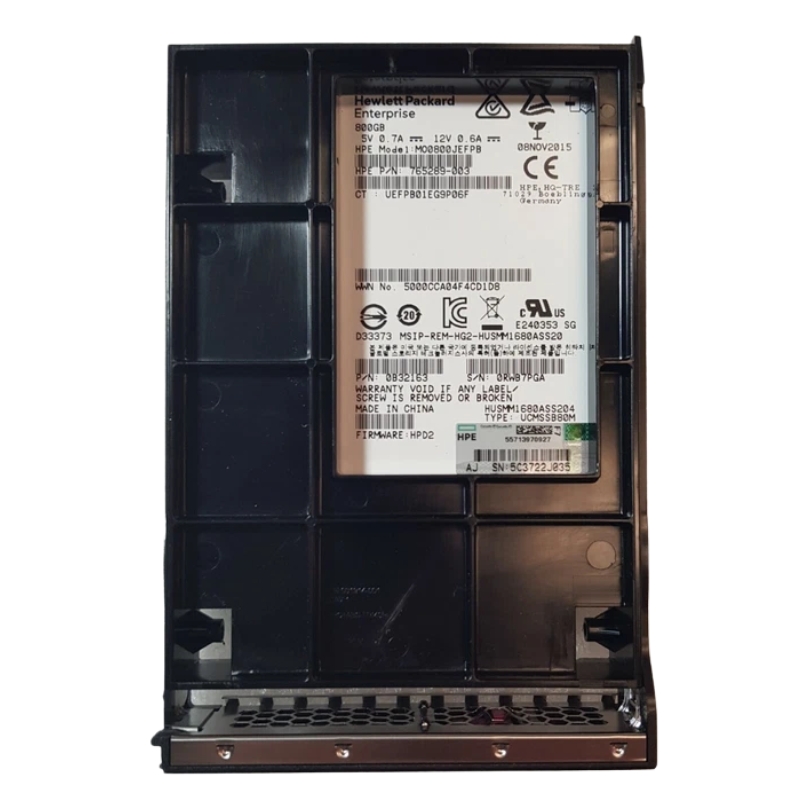

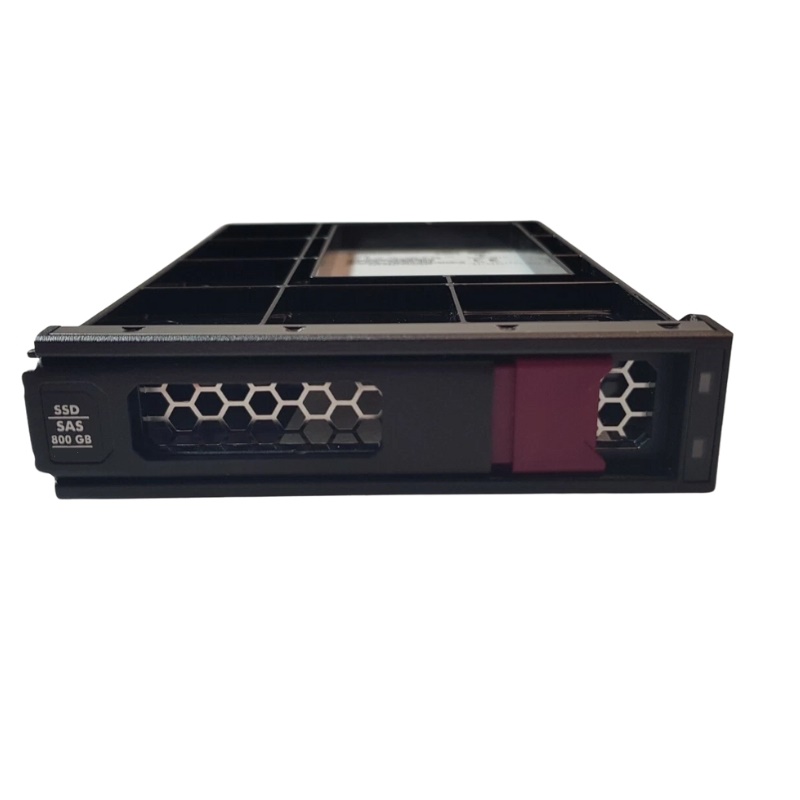

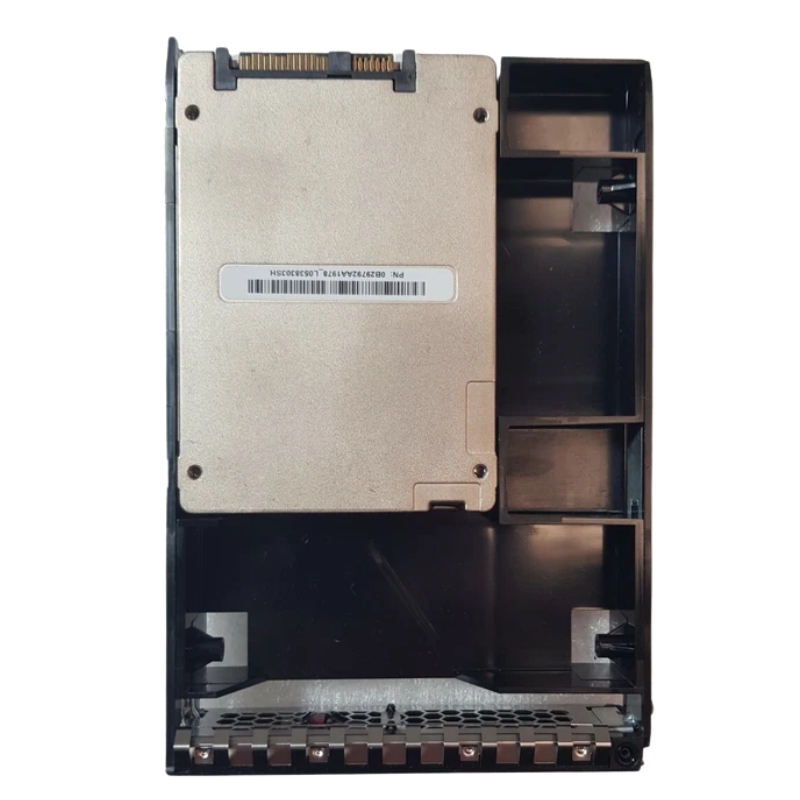

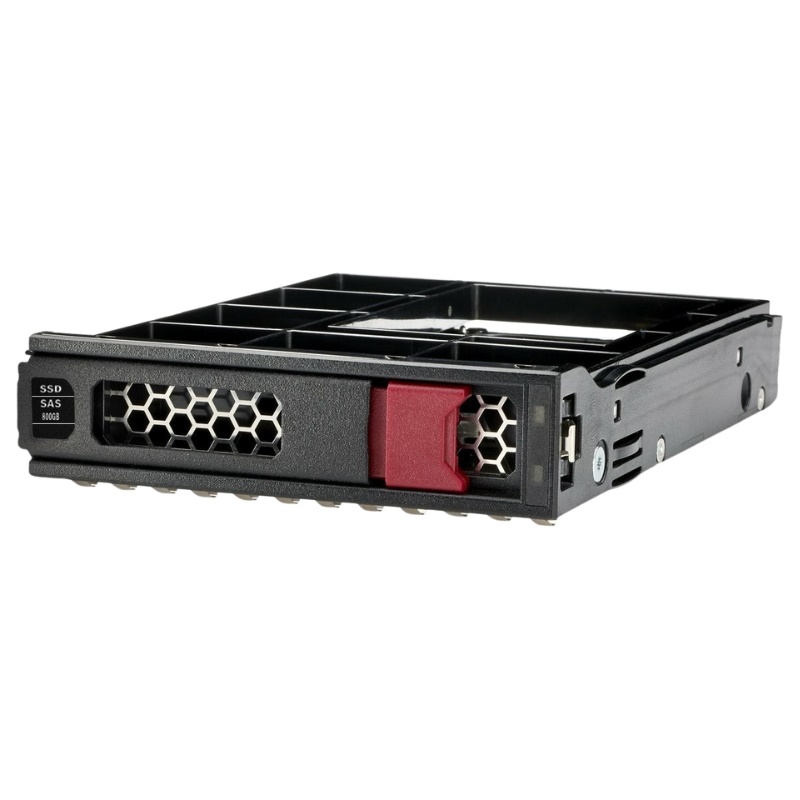

HPE P04531-X21 SAS 800GB 3.5" 12GBPS LFF Multi SSD

P04531-X21
Hover on image to enlarge

Brief Overview of P04531-X21

HPE SAS 800GB 3.5inch 12GBPS LFF Digitally Signed Firmware Multi SSD P04531-X21. Excellent Refurbished with 6-Month Replacement Warranty
QR Code of HPE P04531-X21 SAS 800GB 3.5" 12GBPS LFF Multi SSD
$1,478.25
$1,095.00
You save: $383.25 (26%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNP04531-X21Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Product/Item ConditionExcellent Refurbished ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30
Description

Overview of the HPE P04531-X21

Brand & Part Identification

  • Brand: HPE
  • Part Number: P04531-X21
  • Spare Part Number: P06579-001
  • Model Number: MO000800JWTBR
  • Assembly Number: P04174-002

Device Characteristics

General Features

  • Type: Solid State Drive - Hot-Swap
  • Capacity: 800 GB
  • NAND Technology: Multi-Level Cell (MLC)
  • Form Factor: 3.5 inch LFF
  • Interface: SAS 12Gb/s
  • Plug Type: Hot Pluggable
  • Carrier Type: Low Profile Converter (LPC)
  • Workload Classification: Mixed Use
  • Special Features: Digitally Signed Firmware
  • Included Accessories: HPE Low Profile Converter
  • Height: 0.6 inch (15 mm)

Performance Metrics

  • 30-Day Write Capacity: 4,380
  • Endurance (DWPD): 3 (Drive Writes Per Day)
  • Transfer Rate: 12 Gb/sec (external)
  • Random Read IOPS (4KiB, Q=16): 104,000
  • Max Random Read IOPS (4KiB): 165,000 @ Q32
  • Random Write IOPS (4KiB, Q=16): 85,000
  • Max Random Write IOPS (4KiB): 85,000 @ 16
  • Internal Read Rate: 1,075 MBps
  • Internal Write Rate: 1,030 MBps

Expansion & Connectivity Options

Interface Details

  • SAS Interface: 1 x 12 Gb/s
  • Compatible Bay Size: 3.5" LFF

Power Consumption

Power Usage Statistics

  • Idle Power Consumption: 4.26 Watts
  • Power for Random Reads: 4.97 Watts
  • Power for Random Writes: 4.97 Watts
  • Sequential Read Power: 6.71 Watts
  • Sequential Write Power: 6.95 Watts
  • Combined Random Read/Write Power: 4.97 Watts
  • Maximum Power Draw: 6.71 Watts

Physical Dimensions & Weight

  • Height: 22.23 cm
  • Width: 18.41 cm
  • Depth: 13.97 cm
  • Weight: 1.36 kg

Capacity: 800GB

The HPE P04531-X21 SSD is equipped with an impressive capacity of 800GB. This high storage capacity allows users to store a vast amount of data, making it an excellent choice for individuals and businesses alike.

Increased Data Storage

With 800GB of storage, users can store a significant amount of data on the HPE P04531-X21 SSD. This is particularly beneficial for businesses that deal with large amounts of data on a daily basis. It allows them to store important files, documents, and applications without worrying about running out of space.

Efficient Workflow

The ample storage capacity of the HPE P04531-X21 SSD enables users to keep all their files in one place, promoting a more organized workflow. Users can easily access and retrieve their data, boosting productivity and efficiency. Additionally, the increased capacity means users can run multiple applications simultaneously without experiencing any lag or performance issues.

Flexibility for Future Growth

As technology continues to advance and data requirements increase, having a high-capacity SSD like the HPE P04531-X21 becomes even more important. It provides users with the flexibility to accommodate future growth and expansion without the need for frequent upgrades or additional storage solutions. This ensures that users can continue to meet their data storage needs without any limitations.

Form Factor: 3.5inch

The HPE P04531-X21 SSD features a form factor of 3.5inch. This specific form factor offers several benefits and is an important consideration for users when choosing an SSD.

Compatibility with Existing Systems

The 3.5inch form factor of the HPE P04531-X21 SSD ensures compatibility with a wide range of existing systems and servers. This eliminates the need for any modifications or additional hardware, saving users both time and money. Users can simply install the SSD into their system without any hassle and start enjoying its benefits immediately.

Optimal Airflow and Cooling

The larger size of a 3.5inch SSD allows for better airflow and cooling within the system. This is particularly important for high-performance systems that generate a significant amount of heat. The improved airflow helps in dissipating heat efficiently, preventing the SSD from overheating and ensuring its longevity and reliability.

Easy Installation and Maintenance

The 3.5inch form factor makes installation and maintenance of the HPE P04531-X21 SSD a breeze. The larger size provides more room for connectors and screws, making it easier to secure the SSD in place. Additionally, the larger form factor allows for better visibility and accessibility, simplifying any future maintenance or upgrades that may be required.

Interface: SAS

The HPE P04531-X21 SSD is equipped with a SAS (Serial Attached SCSI) interface, which offers numerous benefits and is crucial for users seeking optimal performance and reliability.

Enhanced Data Transfer Speed

SAS interfaces are known for their exceptional data transfer speeds. With the SAS interface on the HPE P04531-X21 SSD, users can experience lightning-fast data transfer rates, enabling them to quickly access and retrieve their files. This is particularly advantageous for businesses that rely on time-sensitive operations or work with large datasets.

Reliability and Scalability

SAS interfaces are renowned for their reliability and scalability. The HPE P04531-X21 SSD's SAS interface ensures a stable and consistent connection between the drive and the host system, minimizing the risk of data loss or corruption. Additionally, SAS interfaces allow for easy expansion by supporting multiple devices in a daisy-chain configuration, making it simple to add more SSDs or other storage devices when needed.

Compatibility with Enterprise Environments

SAS interfaces are widely used in enterprise environments due to their robustness and compatibility. The HPE P04531-X21 SSD's SAS interface makes it an ideal choice for businesses and organizations that require high-performance storage solutions. It seamlessly integrates into existing SAS infrastructure, ensuring compatibility and easy integration without the need for extensive system modifications.

Data Transfer Rate: 12GBPS

The HPE P04531-X21 SSD boasts an impressive data transfer rate of 12Gbps. This high-speed transfer rate offers numerous benefits, making it an excellent choice for users who require fast and efficient data transfers.

Lightning-Fast Performance

With a data transfer rate of 12Gbps, the HPE P04531-X21 SSD delivers exceptional performance, allowing users to transfer large files or perform resource-intensive operations in a fraction of the time compared to traditional storage solutions. This is particularly advantageous for users who work with multimedia files, perform data analysis, or require real-time access to critical information.

Reduced Downtime

The high data transfer rate of the HPE P04531-X21 SSD significantly reduces downtime when transferring or accessing data. Users can quickly retrieve or upload files, ensuring uninterrupted workflow and minimizing productivity losses. This is particularly important for businesses that rely on time-sensitive operations or have strict service level agreements to meet.

Improved System Responsiveness

The 12Gbps data transfer rate enhances overall system responsiveness. Applications load faster, and system boot times are reduced, providing users with a seamless and efficient computing experience. Whether it's launching resource-intensive applications or performing multiple tasks simultaneously, the high data transfer rate ensures smooth operation without any lag or performance bottlenecks.

Firmware: Digitally Signed

The firmware of the HPE P04531-X21 SSD is digitally signed, offering users enhanced security and peace of mind when it comes to their data.

Data Integrity and Protection

Digitally signed firmware ensures the integrity and authenticity of the SSD's firmware. It guarantees that the firmware has not been tampered with or modified, providing users with assurance that their data is secure. This is particularly crucial for organizations that deal with sensitive or confidential information and need to comply with strict security standards.

Protection against Malicious Attacks

Digitally signed firmware helps protect against malicious attacks or unauthorized access to the SSD. By ensuring the authenticity of the firmware, it prevents potential security breaches and ensures that only authorized changes are made to the SSD's firmware. This helps safeguard data from theft, manipulation, or unauthorized access, protecting both individual users and businesses from potential cyber threats.

Trustworthy and Reliable Performance

The digitally signed firmware of the HPE P04531-X21 SSD instills trust in its performance and reliability. Users can rely on the SSD to perform optimally without any concerns about compromised firmware or potential vulnerabilities. The digital signature serves as a seal of approval, assuring users that the SSD is of high quality, secure, and trustworthy.

In conclusion, the HPE P04531-X21 SSD offers impressive features that cater to the diverse needs of users. Its 800GB capacity provides ample storage for data-intensive tasks, promoting efficiency and flexibility. The 3.5inch form factor ensures compatibility, optimal airflow, and easy installation. The SAS interface guarantees high data transfer speeds, reliability, and compatibility with enterprise environments. The 12Gbps data transfer rate enhances performance and reduces downtime. Lastly, the digitally signed firmware offers data integrity, protection against malicious attacks, and a trustworthy computing experience. With these features, the HPE P04531-X21 SSD is a reliable and powerful storage solution for users seeking high-performance and secure data storage.

Features
Product/Item Condition:
Excellent Refurbished
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
