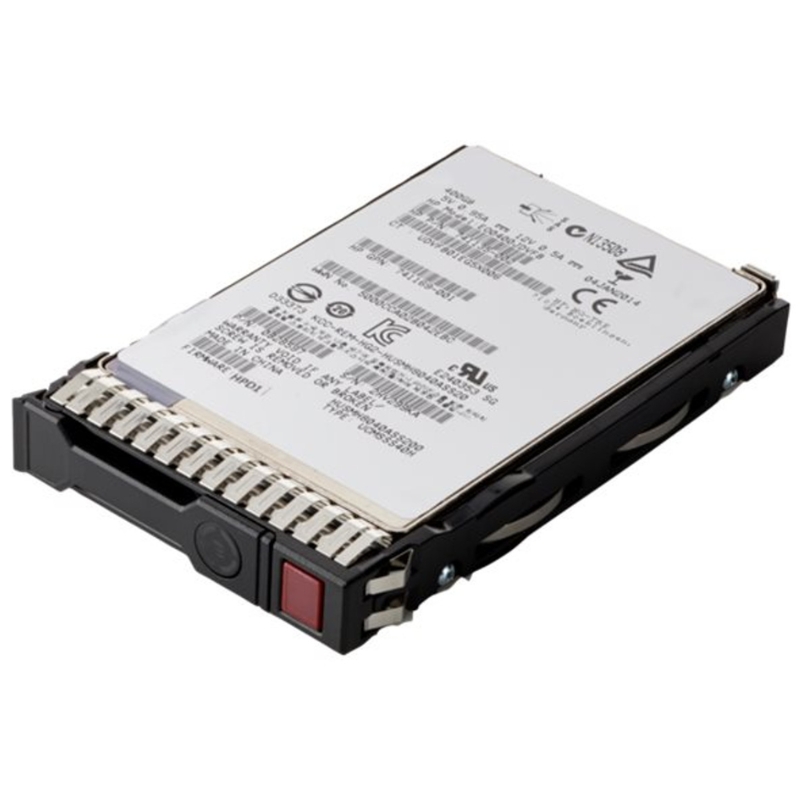

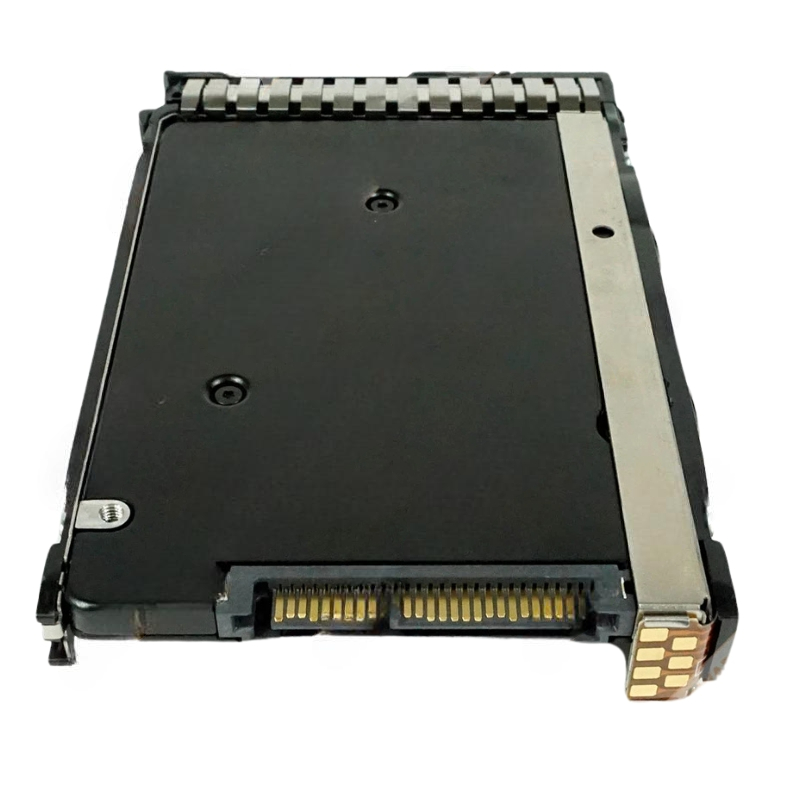

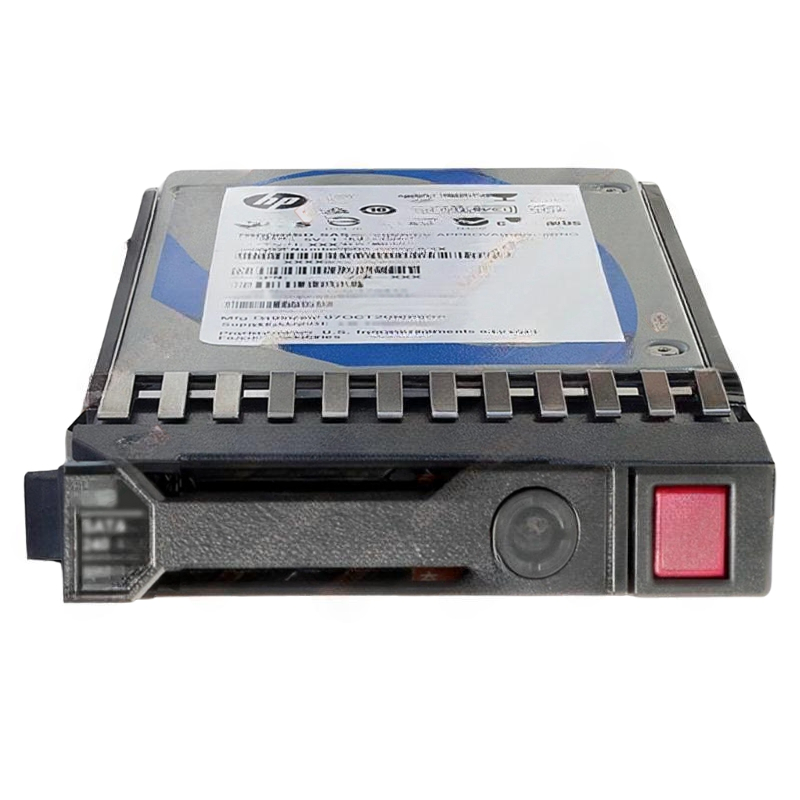

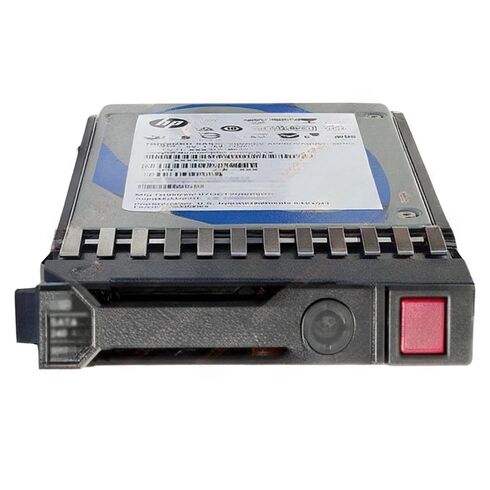

P06581-001 HPE SAS 12GBPS .6TB Mixed Use Solid State Drive

HPE P06581-001 1.6TB SAS SSD Overview

The HPE P06581-001 is a high-performance 1.6TB SAS 12Gbps Solid State Drive designed for enterprise-grade workloads. This 3.5-inch Large Form Factor (LFF) drive comes equipped with a Low Profile Converter (LPC) and digitally signed firmware, ensuring secure, reliable operation across HPE ProLiant and Apollo server platforms.

Key Specifications

• Manufacturer: HPE
• Part Number/SKU: P06581-001
• Form Factor: 3.5 inch LFF
• Interface: SAS 12Gbps
• Capacity: 1.6TB
• NAND Type: Triple-level cell (TLC)
• Connectivity: Dual Port, Hot Pluggable
• Bundled Accessory: HPE Low Profile Converter (LPC)
• Supported Platforms: HPE ProLiant Rack/Tower/BladeSystem Servers and Synergy
• Workload Type: Mixed Use
• Height: 15 mm

Exceptional Performance Metrics

• Random Read IOPS (4KiB, Q=16): 109,000
• Maximum Random Read IOPS (4KiB, Q=32): 165,000
• Random Write IOPS (4KiB, Q=16): 105,000
• Sequential Read Throughput: 1,075 MiB/s
• Sequential Write Throughput: 1,030 MiB/s
• Drive Endurance: 3 DWPD (Drive Writes Per Day)
• 30-Day Writes: 8,760 TB
• Average Latency: Random Read 135 µs, Random Write 35 µs

Power Efficiency

• Idle: 5.00 W
• Random Read/Write: 5.43 W
• Sequential Operations: 6.98 W
• Peak Power Consumption: 8.98 W

Physical Dimensions & Weight

• Height: 5.50 inch (13.97 cm)
• Width: 7.25 inch (18.41 cm)
• Depth: 8.75 inch (22.23 cm)
• Weight: 3.00 lbs (1.36 kg)

Compatibility & Supported Systems

This HPE 1.6TB SSD is compatible with a wide range of HPE server models for versatile deployment:

HPE Apollo Series

• 4200 Gen9 (3.5 inch)
• 4510 Gen9 (3.5 inch)

HPE ProLiant DL Series

• DL325 Gen10, DL325 Gen10 Base, Entry, Performance, Plus, SMB Solution, Solution variants
• DX380 Gen10 (3.5 inch)

HPE ProLiant ML Series

• ML110 Gen10, Entry, Performance, Solution
• ML350 Gen10, Base, Entry, High Performance, Performance, SMB, Solution, Special Server, Sub-Entry

Expansion & Connectivity

• Interface: 1 x SAS 12 Gb/s
• Compatible Bay: 3.5" LFF

Advanced Features

• Digitally Signed Firmware for security and stability
• Hot-swappable design for uninterrupted server operations
• Low Profile Converter (LPC) included for easy installation

HPE P06581-001 1.6TB SAS-12Gbps LFF Mixed Use SSD

The HPE P06581-001 1.6TB SAS-12Gbps 3.5-inch LFF Mixed Use Solid State Drive (SSD) represents a high-performance storage category designed for enterprise-grade applications requiring a balance of speed, endurance, and reliability. This product category focuses on mid-tier mixed-use workloads, making it suitable for databases, virtualization, transactional applications, and storage arrays that demand consistent throughput and low latency. The inclusion of digitally signed firmware ensures security and integrity, mitigating risks associated with unauthorized firmware modifications. Additionally, the drive’s support for the Low Profile Converter (LPC) allows backward compatibility and easy deployment across diverse HPE server and storage environments.

Technical specifications and interface design

Drives in this category utilize the SAS-12Gbps interface, providing high-speed serial connectivity for enterprise storage networks. The 3.5-inch Large Form Factor (LFF) accommodates higher storage capacity and enables easier integration into rack-mounted servers and storage enclosures. With a capacity of 1.6TB, the HPE P06581-001 SSD is ideal for mixed-use workloads that combine read-intensive and write-intensive operations. Mixed-use SSDs in this category typically feature endurance ratings that support several drive writes per day (DWPD), ensuring reliable performance over the lifespan of the drive. These drives leverage advanced NAND flash technology, error correction mechanisms, and intelligent wear-leveling algorithms to maintain data integrity and consistent performance.

Performance optimization for enterprise workloads

This product category emphasizes low-latency, high-throughput performance. SAS-12Gbps drives like the HPE P06581-001 are designed to accelerate applications that rely on frequent random I/O operations. For virtualized environments, these SSDs reduce bottlenecks by efficiently handling multiple simultaneous read/write operations, improving server response times and enhancing overall storage efficiency. Mixed-use drives strike a balance between read-intensive and write-intensive workloads, providing a cost-effective alternative to purely read-intensive or write-intensive SSDs while ensuring durability and long-term reliability. With their robust performance characteristics, these SSDs are frequently deployed in mission-critical applications, including database servers, virtualization clusters, and hybrid cloud storage architectures.

Digitally signed firmware and security considerations

Security and firmware integrity are critical aspects of enterprise storage. Drives within this category feature digitally signed firmware, a mechanism that verifies authenticity and prevents unauthorized modifications. This ensures that only trusted firmware runs on the drive, reducing the risk of security vulnerabilities, firmware corruption, and operational disruptions. IT administrators benefit from reduced downtime and enhanced protection against cyber threats targeting storage infrastructure. Compliance with data security standards and HPE’s rigorous quality assurance processes further reinforces the reliability and trustworthiness of these SSDs.

Form factor, compatibility, and deployment flexibility

The HPE P06581-001 uses a 3.5-inch Large Form Factor (LFF), which provides higher storage density per drive bay compared to 2.5-inch Small Form Factor (SFF) drives. The Low Profile Converter (LPC) included in this category allows these LFF SSDs to fit into SFF slots, offering maximum flexibility for mixed server and storage environments. This adaptability enables organizations to deploy high-capacity SSDs without requiring hardware modifications, simplifying upgrades, maintenance, and scaling operations. Compatibility across multiple generations of HPE ProLiant servers, storage arrays, and MSA or Nimble storage platforms ensures broad applicability, making these drives a versatile choice for enterprise IT infrastructure.

Reliability, endurance, and operational lifespan

Enterprise-class SSDs like the HPE P06581-001 are engineered for high reliability and endurance. Mixed-use drives in this category are typically rated for multiple drive writes per day (DWPD), with robust error correction code (ECC) mechanisms and wear-leveling algorithms that evenly distribute write cycles across the NAND media. This reduces the risk of premature drive failure, ensuring long-term operational stability. HPE’s design and validation processes also incorporate extensive environmental and stress testing, guaranteeing that these SSDs can operate under a range of temperatures, vibrations, and power conditions commonly encountered in enterprise data centers and mission-critical deployments.

Integration with enterprise storage solutions

Drives in this category are often integrated into HPE’s broader storage ecosystem, including ProLiant servers, MSA arrays, and Nimble Storage solutions. The SAS-12Gbps interface ensures seamless connectivity with HPE Smart Array controllers, providing features such as RAID configurations, cache optimization, and data protection capabilities. By leveraging HPE’s storage management tools, IT administrators can monitor drive health, performance metrics, and firmware updates efficiently, ensuring continuous availability and optimized workload performance. The combination of high-capacity LFF design, mixed-use endurance, and digital firmware verification makes these SSDs ideal for scaling modern enterprise storage infrastructures while maintaining predictable performance and security compliance.

Use cases and workload optimization

This SSD category is particularly suited for mixed-use workloads that require a balance between high-speed reads and writes. Typical use cases include virtualization clusters, database applications, email servers, high-performance transactional systems, and tiered storage environments. Enterprises benefit from the ability to accelerate data access, reduce latency, and improve overall I/O operations without compromising drive lifespan. By implementing these SSDs in tiered storage strategies, organizations can combine high-capacity SAS SSDs with traditional spinning disks to optimize cost, performance, and efficiency. Additionally, the compatibility with HPE’s storage arrays allows for deployment in hybrid configurations, providing a flexible solution that meets both current and future storage demands.
